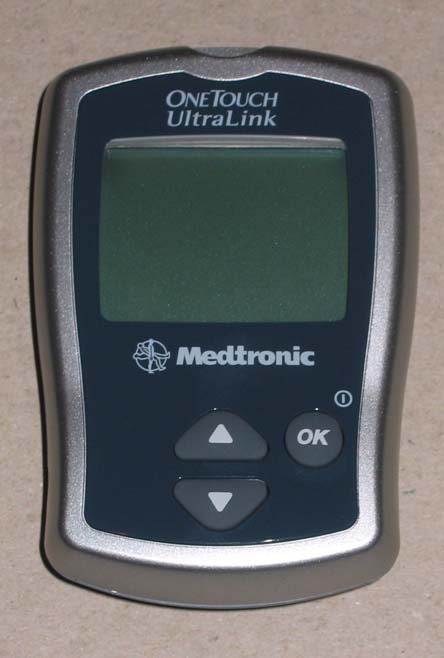

OneTouch® UltraLink™ External Photos & FCC Label Front View Rear View Serial Number/FCC ID Label- lower rear

OneTouch® UltraLink™ External Photos & FCC Label Front View Rear View Serial Number/FCC ID Label- lower rear

OneTouch® UltraLink™ Internal Photos Main Board component side Main Board LCD side RF Board component side RF Board antenna side PCB assemblies in front housing

www.nemko.com FCC Part 15 Subpart C, 15.249 : October 2006 Test Report: 93086TRFWL Applicant: Lifescan Inc 1000 Gilbraltar Drive Milpitas, CA 95035-6312 USA Apparatus: OneTouch® Ultralink™ Meter FCC ID: I5Q512 In Accordance With: FCC Part 15 Subpart C, 15.249 Operation in the 902-928MHz, 2400 - 2483.5 MHz, 5725-5875MHz and 24.0-24.25 GHz Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Roman Kuleba, Wireless Specialist Date: September 19, 2007 Total Number of Pages: 18 Nemko Canada Inc. REPORT SUMMARY Report Number: 93086TRFWL FCC ID: I5Q512 Specification: FCC Part 15 Subpart C, 15.249 Page 2 of 18 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: OneTouch® Ultralink™ Meter Specification: FCC Part 15 Subpart C, 15.249 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Jason Nixon, Telecom Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 93086TRFWL FCC ID: I5Q512 Specification: FCC Part 15 Subpart C, 15.249 Page 3 of 18 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................4 Section 2 : Test Conditions......................................................................................................................... 5 2.1 Specifications .............................................................................................................................................5 2.2 Deviations From Laboratory Test Procedures ............................................................................................5 2.3 Test Environment .......................................................................................................................................5 2.4 Test Equipment...........................................................................................................................................5 2.5 Measurement Uncertainty...........................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations .............................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Clause 15.215(c) 20dB Bandwidth ......................................................................................................................10 Clause 15.249(a) Radiated emissions not in Restricted Bands ............................................................................11 Clause 15.249(d) Spurious emissions (except Harmonics)..................................................................................13 Appendix B : Setup Photographs ............................................................................................................ 16 Appendix C : Block Diagram of Test Setups .......................................................................…

Text truncated - open the document above for the full version.

Radiated Emissions Position 1 Radiated Emissions Position 2 Radiated Emissions Position 3
