I88-5VZ-A2011Wireless router with VDSL2/ADSL broadband access

www.zyxel.com CellPipe 7130 RG Wireless router with VDSL2/ADSL broadband access Copyright © 2010 Firmware Version 0.0.02.GEN Default Login Details IP Addresshttp://192.168.1.1 User Nameadmin root tech Passwordtelus About This User's Guide CellPipe 7130 RG User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the CellPipe 7130 RG using the web configurator. Related Documentation Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access. Document Conventions CellPipe 7130 RG User’s Guide 4 Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The CellPipe 7130 RG may be referred to as the “CellPipe 7130 RG”, the “device”, the “system” or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font. • A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. • “Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen. • Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Document Conventions CellPipe 7130 RG User’s Guide 5 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The CellPipe 7130 RG icon is not an exact representation of your device. CellPipe 7130 RGComputerNotebook computer ServerDSLAMFirewall Te l e p h o n eSwitchRouter Safety Warnings CellPipe 7130 RG User’s Guide 6 Safety Warnings • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. • Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the device and the power source. • Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning. • Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device. • Use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord. • Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s). • If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged. Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately. Contents Overview CellPipe 7130 RG User’s Guide 7 Contents Overview User’s Guide ........................................................................................................................... 17 Introducing the CellPipe 7130 RG ............................................................................................. 19 Tutorials ..................................................................................................................................... 29 Introducing the Web Configurator ..............................................................................................83 Technical Reference .............................................................................................................. 89 Status Screens .......................................................................................................................... 91 WAN Setup .............................................................................................................................. 101 LAN Setup ............................................................................................................................... 131 Wireless LAN .................................…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC ID: I88-5VZ-A2011 Date: May 14, 2010 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFD1004113. Testing in regards to this report was done by Cerpass technology Coporation, located at No. 7-2, Moshihkeng, Fongtian Village, Shihding Township, Taipei County, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Anson Chou / Manager Tel: +886-2-26558100#5301 Fax: +886-2-26558200 Email: [email protected]

AHTHORIZATION LETTER FCC ID: I88-5VZ-A2011 Date: May 14, 2010 To whom it may concern: We, the undersigned, hereby authorize Cerpass Technology (Suzhou) Co., Ltd. of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Cerpass Technology (Suzhou) Co., Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 weeks from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Yours Sincerely, Engineer ZyXEL Communications Corporation

ZyXEL Communications Corporation Date: May 14, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: I88-5VZ-A2011 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Operational Description 3 Block Diagram. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Wang Yi , engineer ZyXEL Communications Corporation

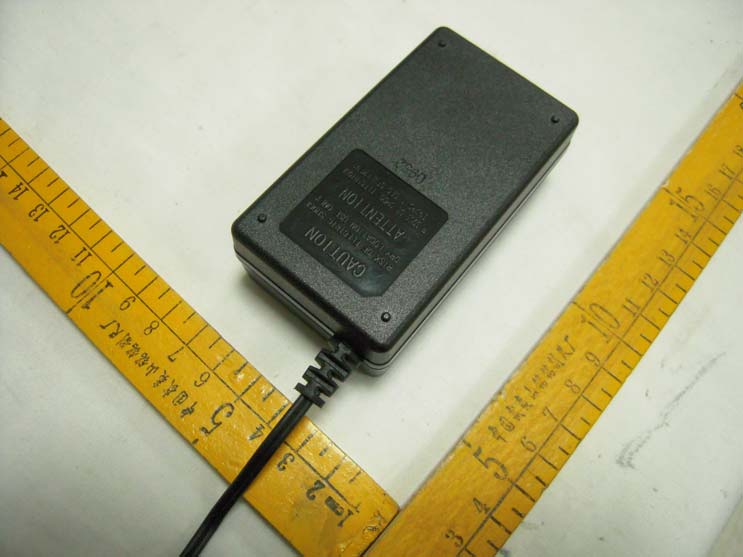

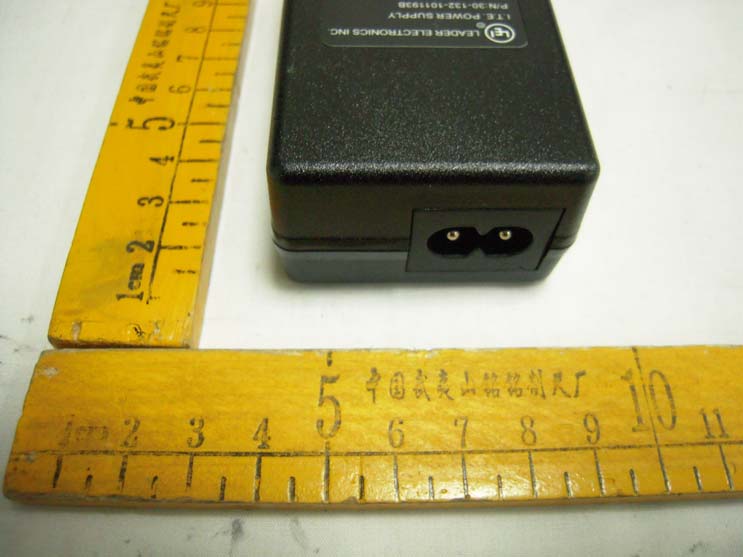

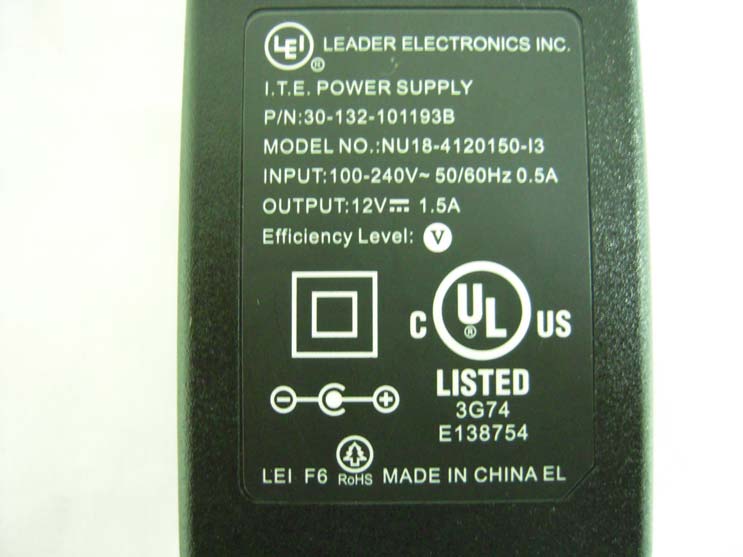

Wireless router with VDSL2/ADSL broadband access (Model name: P-870HNP-51b) Exterior Photographs: 1) 2) 3) 4) 5) 6) 7) 8) 9) 11) 12) 13) 14) 15) 16)

Wireless router with VDSL2/ADSL broadband access (Model name: P-870HNP-51b) FCC ID Position: FCC ID

Wireless router with VDSL2/ADSL broadband access (Model name: P-870HNP-51b) Inside photo: 1) 2) 3)

Page: 1 of 3 RF Exposure Evaluation Declaration Product: Wireless router with VDSL2/ADSL broadband access Test Item: RF Exposure Evaluation Declaration 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Page: 2 of 3 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.4. Test Result of RF Exposure Evaluation Antenna Gain: Ant0: antenna type: Dipole antenna antenna antenna gain: 1.8dBi Ant1: antenna type: Dipole antenna antenna antenna gain: 2.0dBi Output Power Into Antenna & RF Exposure Evaluation Distance: 1) 802.11b Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 233.8837 0.0737444 06 2437.00 207.9697 0.0655736 11 2462.00 190.1078 0.0599417 2) 802.11g Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 155.9553 0.049173 06 2437.00 168.6553 0.053178 11 2462.00 165.9587 0.052327 Page: 3 of 3 3) 802.11n(20MHz) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 358.0964 0.112909 06 2437.00 370.6807 0.116877 11 2462.00 351.5604 0.118048 4) 802.11n(40MHz) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 372.3917 0.117417 06 2437.00 380.1894 0.119875 09 2452.00 395.3666 0.124661 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1004113 Cerpass Technology Corp. Issued Date : May 13.2010 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 153 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : ZyXEL Communications Corp. Address : 6 innovation RD II, science park, hsinchu 300, TaiWan Manufacturer(1) : ZyXEL Communications Corp. Address(1) : 6 innovation RD II, science park, hsinchu 300, TaiWan Manufacturer(2) : ZyXEL Communications(Wuxi) Co Ltd. Address(2) : 60 – E, Minshan RD, New District, Wuxi, Jiangsu, P.R. China Equipment : Wireless router with VDSL2/ADSL broadband access Model No. : P-870HNP-51b, P-870HNUP-51b, 5Vz. A2011xxx(xxx means A~Z) FCC ID : I88-5VZ-A2011 ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1004113 Cerpass Technology Corp. Issued Date : May 13.2010 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 153 Table of Contents 1. Report of Measurements and Examinations.............................................................................................6 2. Test Configuration of Equipment under Test............................................................................................7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Carrier Frequency of Channels ....................................................................................................... 9 2.3. Test Manner ................................................................................................................................... 10 2.4. Description of Test System ............................................................................................................ 10 2.5. Connection Diagram of Test System ..............................................................................................11 2.6. General Information of Test ........................................................................................................... 12 2.7. Measurement Uncertainty ............................................................................................................. 12 3. Test of Conducted Emission ....................................................................................................................13 3.1. Test Limit........................................................................................................................................ 13 3.2. Test Procedures............................................................................................................................. 13 3.3. Typical Test Setup.......................................................................................................................... 14 3.4. Measurement Equipment .............................................................................................................. 14 3.5. Test Result and Data ..................................................................................................................... 15 4. Test of Radiated Emission ........................................................................................................................19 4.1. Test Limit........................................................................................................................................ 19 4.2. Test Procedures............................................................................................................................. 19 4.3. Typical Test Setup.......................................................................................................................... 20 4.4. Measurement Equipment .............................................................................................................. 21 4.5. Test Result and Data ..................................................................................................................... 22 5. Occupied Bandwidth .................................................................................................................................94 5.1. Test Limit........................................................................................................................................ 94 5.2. Test Procedures............................................................................................................................. 94 5.3. Test Setup Layout .......................................................................................................................... 94 5.4. Measurement Equipment .............................................................................................................. 94 5.5. Test Result and Data ..................................................................................................................... 95 6. Maximum Peak Output Power ................................................................................................................107 6.1. Test Limit...................................................................................................................................... 107 6.2. Test Procedure ............................................................................................................................ 107 6.3. Test Setup Layout ........................................................................................................................ 108 6.4. Measurement Equipment ............................................................................................................ 108 6.5. Test Result and Data ...........................................................…

Text truncated - open the document above for the full version.

Wireless router with VDSL2/ADSL broadband access (Model name: P-870HNP-51b) Test Photograph: Front View of Conducted Emission Test Back View of Conducted Emission Test Front View of Radiated Emission Test Back View of Radiated Emission Test
