I8803973802.11ax (WiFi 6) Dual-Radio Wall-Plate Unified Access Point

Quick Start Guide ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS | ITALIANO SVENSKA | ČEŠTINA | MAGYAR | POLSKI | ROMÂNĂ SLOVENČINA | SLOVENŠČINA | БЪЛГАРСКИ | ƸƻƹƹƲưƱ L·ĶļĬЇĹĽňĶĬ | ᢬ᦘ牛 | 皍⡤⚥俒 | 籗넓⚥俒 WAX300H 802.11ax (WiFi 6) Dual-Radio Wall-Plate Unified Access Point Contents Hardware Installation Hardware Installation EN DE Support Information Option A – Nebula Cloud Management Option B – Direct Management Option 1 Registration with the App Option 2 Registration with the Web 1-a WiFi Connection 1-b Wired Connection 1 2 3 A B C D 1 1 2 2 3 Unplug the telephone and networking device from the existing telephone and Ethernet wall jacks if any. Remove the wall plate. Ensure the included mounting bracket is positioned the same way as shown in the graphic. Secure the bracket onto the wall outlet box with two screws. You can use any two screw holes (A and B or C and D) on the bracket according to the type of your wall outlet box. Hold the WAC300H with the LAN ports facing down. Through the wall and bracket, connect an 8-pin Ethernet cable from a PoE switch to the WAC300H's UPLINK port. Trennen Sie das Telefon und Netzwerkgerät von bestehenden Telefon- und Ethernet-Anschlüssen ab, falls vorhanden. Entfernen Sie die Abdeckplatte. Vergewissern Sie sich, dass die mitgelieferte Montagehalterung wie in der Abbildung dargestellt positioniert ist Befestigen Sie ES FR IT SE CZ HU 1 1 1 1 1 1 2 2 2 2 2 3 3 3 3 3 3 wie in der Abbildung dargestellt positioniert ist. Befestigen Sie die Halterung mit zwei Schrauben an der Anschlussdose. Sie können wahlweise jedewede Doppelschraublöcher (A und B oder C und D) je nach ihrer Anschlussdose auf der Halterung verwenden. Halten Sie dden WAC300H so, dass die LAN-Anschlüsse nach untern gerichtet sind. Schließen Sie durch die Wand und die Halterung ein 8-Pol Ethernetkabel vom PoE-Schalter an den UPLINK Anschluss des WAC300H an. Desenchufe el teléfono y el dispositivo de red de las clavijas de teléfono y Ethernet en la pared, si las hay. Quite la placa de la pared. Asegúrese de que el soporte de montaje incluido se coloca del mismo modo que aparece en el gráfico. Apriete el soporte en el enchufe de la pared con dos tornillos. Puede utilizar dos agujeros de tornillos (A y B o C y D) en el soporte según el tipo de toma de corriente en la pared. Sostenga el WAC300H con los puertos LAN mirando hacia abajo. A través de la pared y el soporte, conecte un cable Ethernet de 8 contactos desde el interruptor PoE al puerto UPLINK del WAC300H. Débranchez le téléphone et le dispositif de mise en réseau du téléphone existant et les prises murales Ethernet le cas échéant. Retirez la plaque murale. Assurez-vous que le support de fixation inclus est positionné de la manière indiquée sur le graphique. Fixez le support sur le boîtier de prise murale avec deux vis. Vous pouvez utiliser les deux trous de vis (A et B ou C et D) sur le support en fonction du type de votre boîtier de prise murale. Maintenez le WAC300H avec les ports LAN dirigés vers le bas. A travers le mur et le support, connectez un câble Ethernet à 8 broches depuis un commutateur PoE au port UPLINK du WAC300H. Staccare il telefono e dispositivo di rete dalle esistenti prese alla parete per telefono ed Ethernet se presenti. Rimuovere la piastra dalla parete. Assicurarsi che la staffa di montaggio inclusa sia posizionata come indicato dalla figura. Fissare con due viti la staffa alla scatola di uscita della parete. Potete usare qualsiasi dei due fori per le viti (A e B o C e D) della staffa in base alla scatola di presa a muro. Tenere l'unità WAC300H con le porte LAN rivolte verso il basso. Passando da parete e staffa, collegare un cavo Ethernet a 8 pin dallo switch PoE alla porta UPLINK del WAC300H. Koppla ur telefonen och nätverksenheten från den befintliga telefonen och Ethernet-vägguttagen, om det finns några. Ta bort väggplåten. Se till att det medföljande monteringsfästet placeras på samma sätt som visas på bilden. Säkra fästet i vägguttagsboxen med två skruvar. Du kan använda valfria två skruvhål (A and B eller C och D) i fästet enligt typen av väggutloppsbox. Håll i WAC300H med LAN-portarna vända nedåt. Genom väggen och konsolen ansluter du en 8-stifts Ethernet-kabel från en PoE-brytare till UPLINK-porten för WAC300H. Odpojte telefon a síťové zařízení od stávajících telefonních a ethernetových zásuvek, pokud jsou k ní připojeny. Demontujte nástěnnou desku. Zkontrolujte, zda je přiložený montážní držák umístěn stejným způsobem jako na obrázku. Upevněte držák na nástěnnou zásuvku dvěma šrouby. Podle typu nástěnné zásuvky můžete použít libovolné dva otvory pro šrouby (A a B nebo C a D) na držáku. Podržte zařízení WAC300H tak, aby porty sítě LAN směřovaly dolů. Prostřednictvím stěny a držáku připojte 8kolíkový ethernetový kabel z přepínače PoE k UPLINK portu WAC300H. Húzza ki a telefont és a hálózati eszközt a meglévő telefon- és fali Ethernet csatlakozóból, ha van. Távolítsa el a fali lemezt. BG RO RU UA PL SI 1 1 1 1 1 1 2 2 2 2 2 2 2 3 3 3 3 3 3 Gondoskodjon róla, hogy a rögzítőkonzol helyzete megegyezzen az ábrával. Rögzítse a konzolt a fali csatlakozódobozhoz két csavarral. A fali csatlakozódoboztól függően bármely két csavarfuratot (A és B vagy C és D) használhatja a konzolon. Tartsa a WAC300H-t úgy, hogy a LAN port lefelé nézzen. A falon és a konzolon keresztül egy 8 tűs Ethernet kábellel csatlakoztasson egy PoE switchet a WAC300H UPLINK portjához. Odłączyć telefon i urządzenie sieciowe od istniejących ściennych gniazd telefonicznych i sieci Ethernet, o ile takie występują. Usunąć płytkę ścienną. Upewnić się, że dołączony wspornik montażowy jest umieszczony w taki sam sposób, jak pokazano na rysunku. Zamocować wspornik na ścianie skrzynki wyjściowej za pomocą dwóch śrub. Można użyć dowolnych dwóch otworów na śruby (A i B lub C i D) na wsporniku w zależności od typu skrzynki wyjściowej na ścianie. Przytrzymać WAC300H z portami LAN skierowanymi w dół. Poprzez ścianę i wspornik podłączyć 8-stykowy kabel Ethernet z przełącz…

Text truncated - open the document above for the full version.

Safety Warnings/ EU Declaration of conformity - English Do not put the device in a place that is humid, dusty, has extreme temperatures, or that blocks the device ventilation slots. These conditions may harm your device. There is a remote risk of electric shock from lightning: (1) Do not use the device outside, and make sure all the connections are indoors. (2) Do not install or service this device during a thunderstorm. Connect only suitable accessories to the device. Make sure to connect the cables to the correct ports. Do not open the device. Opening or removing the device covers can expose you to dangerous high voltage or other risks. Please contact your vendor for further information. Place connected cables carefully so that no one will step on them or stumble over them and disconnect all cables from this device before servicing or disassembling. Please use the provided or designated cables/power cables/ adaptors. Connect the power adaptor or cord to the right supply voltage (for example, 120V AC in North America or 230V AC in Europe), If the power adaptor or cord is damaged, it might cause electrocution. Remove the damaged power adaptor or cord from the device and the power source. Do not try to repair the power adaptor or cord by yourself. Contact your vendor to order a new one. There is a risk of explosion if you replace the device battery with an incorrect one. Dispose of used batteries according to the instructions. Please refer to the device back label, datasheet, box specifications or catalog information for power rating of the device and operating temperature. The socket-outlet shall be installed near the device, and shall be easily accessible because it serves as the main disconnecting device. This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range. Restrictions or Requirements in:BE,BG,CZ,DK,DE,EE,IE,EL,ES,FR,HR,IT,CY,LV,LT,LU,HU,MT,NL,AT,PL, PT,RO,SI,SK,FI,SE,NO,IS,LI,CH,TR,UK(NI),RU,UA. This equipment should be installed and operated with a minimum distance of 20 cm between the radio equipment and your body. The maximum RF power operating for each band as follow: The band 2400-2483.5 MHz is 89.13 mW. The band 5150-5350 MHz is 198.15 mW. The band 5470-5725 MHz is 485.29 mW EU Declaration of conformity Hereby, Zyxel declares that the WAX300H is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: https://www.zyxel.com/global/en/support/download. Disposal and Recycling Information The symbol below means that according to local regulations your product and/or its battery shall be disposed of separately from domestic waste. If this product is end of life, take it to a recycling station designated by local authorities. At the time of disposal, the separate collection of your product and/or its battery will help save natural resources and ensure that the environment is sustainable. Varování//Czech Je zakázáno umísovat zaízenído vlhkého, praného a extrémního prostedía blokovat jeho ventilaníotvory. Jakékoli výe uvedenépodmínky mohou zaízenípokodit. Existuje nepatrné riziko elektrického oku zpsobeného bleskem: (1) Nepouívejte zaízenívenku a ujistte se, e vekerápipojeníjsou uvnit. (2) Neinstalujte zaízeníani neprovádjte jeho servis bhem bouky. K zaízenípipojujte pouze vhodnépísluenství. Ujistte se, e kabely zapojujete do správných port. Neotevírejte zaízení, neotevírejte ani nesundávejte kryty, protoe kryjí místa nebezpeného vysokého naptía mohou pedstavovat dalírizika. Dalíinformace získáte od prodejce. Pipojovacíkabely umístte tak, aby po nich nikdo nelapal a nemohl pes nklopýtnout. Ped servisem odpojte vechny kabely od zaízení. Pouívejte pouze dodanénebo k danému úelu urenépipojovacíkabely/síové kabely/adaptéry. Pipojte zaízeníke zdroji se správným naptím (napíklad v Severní Americe 120 V AC, v Evrop230 V AC). Pokud je síovýadaptér nebo kabel pokozen, me zpsobit smrt elektrickým proudem. Takový adaptér nebo kabel odpojte ze zaízenía sít. Jejich oprava je zakázána, obrate se na místního prodejce a zakupte nový. Pi výmnza nesprávnýtyp baterie hrozíriziko výbuchu. Pouitébaterie likvidujte v souladu s pokyny. Jmenovitý výkon zaízenía provozníteploty najdete v informacích na zadním títku, v datovém listu nebo v informaním katalogu se specifikacemi. Zásuvka by se mla nacházet v blízkosti zaízenía mla by být snadno pístupná, protoe slouíjako hlavníprostedek pro odpojení. prostory budov. BE,BG,CZ,DK,DE,EE,IE,EL,ES,FR,HR,IT,CY,LV,LT,LU,HU,MT,NL,AT,PL, PT,RO,SI,SK,FI,SE,NO,IS,LI,CH,TR,UK(NI),RU,UA. V pásmu 2400-2483.5 MHz je to 89.13mW. V pásmu 5150-5350 MHz je to 198.15 mW V pásmu 5470-5725 MHz je to 485.29 mW e tento WAX300H https://www.zyxel.com/global/en/ support/download. Informace o likvidaci a recyklaci Sikkerhedsadvarsler/ EU-overensstemmelseserklæring- Denmark Det er forbudt at placere produktet i fugtige, støvede og ekstreme miljøer, hvor produktets ventilationsåbninger kan blokeres, da dette vil ødelægge din enhed. Der er risiko for elektrisk stød i forbindelse med lynnedslag: (1) Anvend ikke enheden udendørs, og sørg for at alle tilslutninger er indendørs. (2) Foretag ikke installation eller udfør service på enheden i tordenvejr. Tilslut kun egnet tilbehør til enheden. Sørg for at montere kablerne til de rigtige kontakter. Åbn ikke enheden, åbning eller fjernelse af dæksler kan udsætte dig for fare i forbindelse med højspændingspunkter eller andre risici. Kontakt din forhandler for yderligere information. Placer kablerne med omhu så ingen kan komme til at træde på dem eller snuble over dem. Frakobl alle kabler til enheden inden servicering eller adskillelse. Brug kun de medfølgende egnede tilslutningskabler/strømkabler/adaptere. Tilslut til den rigtige netforsyning (fx 120V AC i Nordamerika eller 230V AC i Europa). Hvis strømadapteren eller netledningen er beskadiget, kan det forårsage fatale elektriske stød. Fjern dem fra din enhed og strømforsyning. De…

Text truncated - open the document above for the full version.

Default Login Details User’s Guide NWA/WAC/WAX Series 802.11 a/b/g/n/ac/ax Access Point Copyright © 2023 Zyxel and/or its affiliates. All rights reserved. Management IP Address http://DHCP-assigned IP OR http://192.168.1.2 User Nameadmin Password1234 Version 6.60 Edition 1, 07/2023 NWA/WAC/WAX Series User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots and graphics in this book may differ slightly from your product due to differences in your product hardware, firmware, or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Some screens or options in this book may not be available for your product (see the product feature tables in Section 1.2 on page 13). Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the Zyxel Device and access the Web Configurator. •CLI Reference Guide The CLI Reference Guide explains how to use the Command-Line Interface (CLI) and CLI commands to configure the Zyxel Device. Note: It is recommended you use the Web Configurator to configure the Zyxel Device. • Web Configurator Online Help Click the help icon in any screen for help in configuring that screen and supplementary information. • Nebula Control Center User’s Guide This User’s Guide shows how to manage the Zyxel Device remotely. The features of these devices can be managed through Nebula Control Center. It also offers features that are not available when the Zyxel Device is in standalone mode (see Section 2.1.2 on page 27). • AC (AP Controller) User’s Guide See the ZyWALL ATP, ZyWALL VPN, USG FLEX, or NXC User’s Guide for instructions on using the gateways or NXC as an AP Controller (AC) for the Zyxel Device. This is used when the Zyxel Device is set to be managed by a Zyxel AC. •More Information Go to support.zyxel.com to find other information on the Zyxel Device . Document Conventions NWA/WAC/WAX Series User’s Guide 3 Document Conventions Warnings and Notes These are how warnings and notes are shown in this guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • All models in this series may be referred to as the “Zyxel Device” in this guide. • Product labels, screen names, field labels and field choices are all in bold font. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Configuration > Network > IP Setting means you first click Configuration in the navigation panel, then the Network sub menu and finally the IP Setting tab to get to that screen. Icons Used in Figures Figures in this guide may use the following generic icons. The Zyxel Device icon is not an exact representation of your device. Zyxel DeviceRouterSwitchInternet ServerDesktopLaptopIP Phone PrinterSmart T.V. Contents Overview NWA/WAC/WAX Series User’s Guide 4 Contents Overview Introduction ........................................................................................................................................... 12 AP Management .................................................................................................................................. 26 Hardware ............................................................................................................................................... 36 Web Configurator ................................................................................................................................. 42 Standalone Configuration ................................................................................................................53 Standalone Configuration ................................................................................................................... 54 Dashboard ............................................................................................................................................ 56 Setup Wizard ......................................................................................................................................... 62 Monitor ................................................................................................................................................... 69 Network ................................................................................................................................................. 81 Wireless ................................................................................................................................................... 94 Bluetooth ............................................................................................................................................. 110 User ....................................................................................................................................................... 113 AP Profile .............................................................................................................................................. 120 WDS Profile ........................................................................................................................................... 164 Certificates .......................................................................................................................................... 166 System .................................................................................................................................................. 182 Log and Report ................................................................................................................................... 204 File Manager ..............................................................................…

Text truncated - open the document above for the full version.

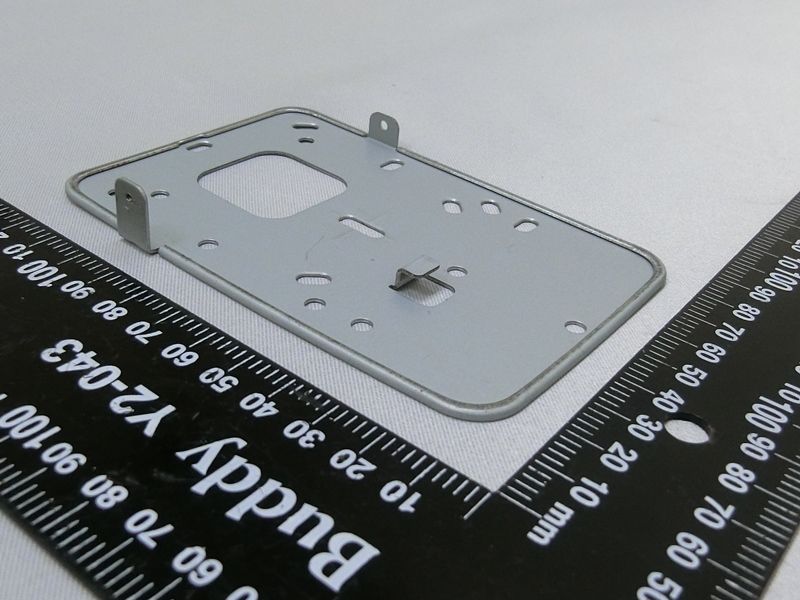

PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 1 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Jul. 14, 2023 Report Version : 01 Brand Name: ZYXEL Model Name: WAX300H PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 2 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Jul. 14, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 3 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Jul. 14, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 4 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Jul. 14, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 5 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Jul. 14, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 6 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Jul. 14, 2023 Report Version : 01 Wall Bracket

Label and location

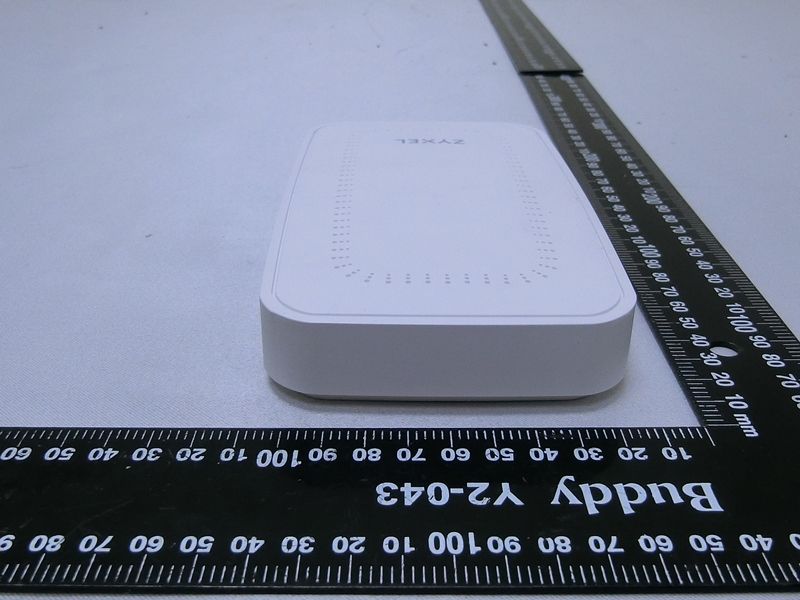

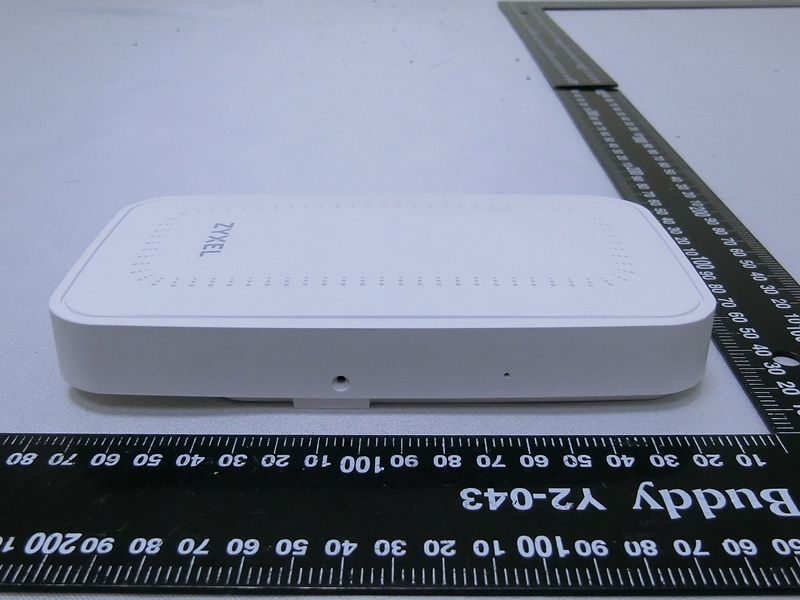

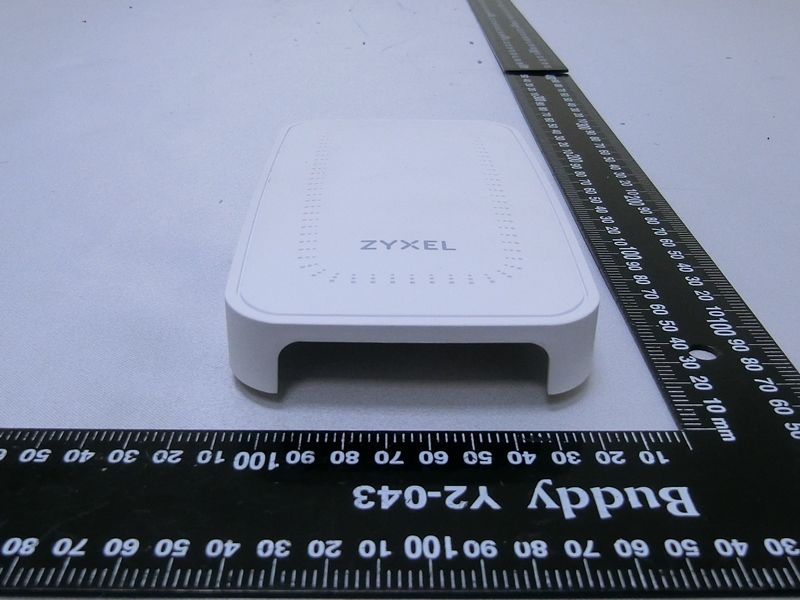

PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 1 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 Brand Name: ZYXEL Model Name: WAX300H PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 2 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 3 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 4 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 5 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 6 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 Ant. 2 Ant. 1 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 7 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 8 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 9 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 10 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 11 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 12 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 13 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02 PHOTOGRAPHS OF EUT EP311613 Sporton International Inc. Page No. : 14 of 14 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 18, 2023 Report Version : 02

RADIO EXPOSURE TEST REPORT Report No. : FA311613 TEL : 886-3-656-9065 Page Number : 2 of 10 FAX : 886-3-656-9085 Issued Date : Jul. 25, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 02 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Accessories ............................................................................................................................................ 7 1.4 Applicable Standards ............................................................................................................................. 7 1.5 Testing Location ..................................................................................................................................... 7 2 Maximum Permissible Exposure ........................................................................................................ 8 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 8 2.2 MPE Calculation Method ........................................................................................................................ 8 2.3 MPE Exemption ...................................................................................................................................... 9 2.4 Calculated Result and Limit .................................................................................................................. 10 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA311613 TEL : 886-3-656-9065 Page Number : 3 of 10 FAX : 886-3-656-9085 Issued Date : Jul. 25, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 02 History of this test report Report No. Version Description Issued Date FA311613 01 Initial issue of report Jul. 14, 2023 FA311613 02 Adding repeater function Jul. 25, 2023 RADIO EXPOSURE TEST REPORT Report No. : FA311613 TEL : 886-3-656-9065 Page Number : 4 of 10 FAX : 886-3-656-9085 Issued Date : Jul. 25, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 02 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: 1. The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. 2. The test configuration, test mode and test software were written in this test report are declared by the manufacturer. Reviewed by: Sam Chen Report Producer: Viola Huang RADIO EXPOSURE TEST REPORT Report No. : FA311613 TEL : 886-3-656-9065 Page Number : 5 of 10 FAX : 886-3-656-9085 Issued Date : Jul. 25, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 02 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5250 5250-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) RADIO EXPOSURE TEST REPORT Report No. : FA311613 TEL : 886-3-656-9065 Page Number : 6 of 10 FAX : 886-3-656-9085 Issued Date : Jul. 25, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 02 1.2 Antenna Information Ant. 2.4GHz 5GHz Brand Model Name Antenna Type Connector Gain (dBi) 1 1 1 LYNwave ALX23M-222AA0 PIFA Antenna N/A Note 1 2 2 2 LYNwave ALX23M-222AA1 PIFA Antenna N/A Note 1: Ant. 2400~2500 MHz 5150~5250 MHz 5251~5300 MHz 5301~5490 MHz 5491~5725 MHz 5725~5835 MHz 1 1.4 4.2 4.6 4.6 5.1 5.1 2 2.7 3.2 3.5 3.5 3.5 4.3 Note 2: The above information was declared by manufacturer. Note 3: Directional gain information RADIO EXPOSURE TEST REPORT Report No. : FA311613 TEL : 886-3-656-9065 Page Number : 7 of 10 FAX : 886-3-656-9085 Issued Date : Jul. 25, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 02 For 2.4GHz: For IEEE 802.11b/g/n/VHT/ax (2TX/2RX) Port 1~Port 2 can be used as transmitting/receiving antenna. Port 1~Port 2 could transmit/receive simultaneously. For 5GHz UNII 1~UNII 3: For IEEE 802.11a/n/ac/ax (2TX/2RX) Port 1~Port 2 can be used as transmitting/receiving antenna. Port 1~Port 2 could transmit/receive simultaneously. 1.3 Accessories Accessories Wall Bracket*1 1.4 Table for EUT supports function Function Supports Band AP Router 2.4GHz, 5GHz UNII 1~3 Repeater 2.4GHz, 5GHz UNII 1, 3 Note: The above information was declared by manufacturer. 1.5 Applicable Standards According to the specifications of …
