Prestige 964 Cable Router with 11g AP User's Guide Ver 1.0 April, 2004 Prestige 964 Cable Router with 802.11g Access Point Copyright iii Copyright Prestige 964 Cable Router with 11g AP Copyright © 2004 by ZyXEL Communications Corporation. The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice. Trademarks Trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners. Prestige 964 Cable Router with 802.11g Access Point iv FCC Statement Federal Communications Commission (FCC) Interference Statement This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operations. This equipment has been tested and found to comply with the limits for a CLASS B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio/television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Notice 1 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Notice 2 This equipment must be installed and operated in accordance with provided instructions and the antenna (s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Prestige 964 Cable Router with 802.11g Access Point Canadian Users v Information for Canadian Users The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Industry Canada does not guarantee that the equipment will operate to a user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company's inside wiring associated with a single line individual service may be extended by means of a certified connector assembly. The customer should be aware that the compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. For their own protection, users should ensure that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution Users should not attempt to make such connections themselves, but should contact the appropriate electrical inspection authority, or electrician, as appropriate. Note This digital apparatus does not exceed the class A limits for radio noise emissions from digital apparatus set out in the radio interference regulations of Industry Canada. Prestige 964 Cable Router with 802.11g Access Point vi Warranty ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. Note Repair or replacement, as…

Text truncated - open the document above for the full version.

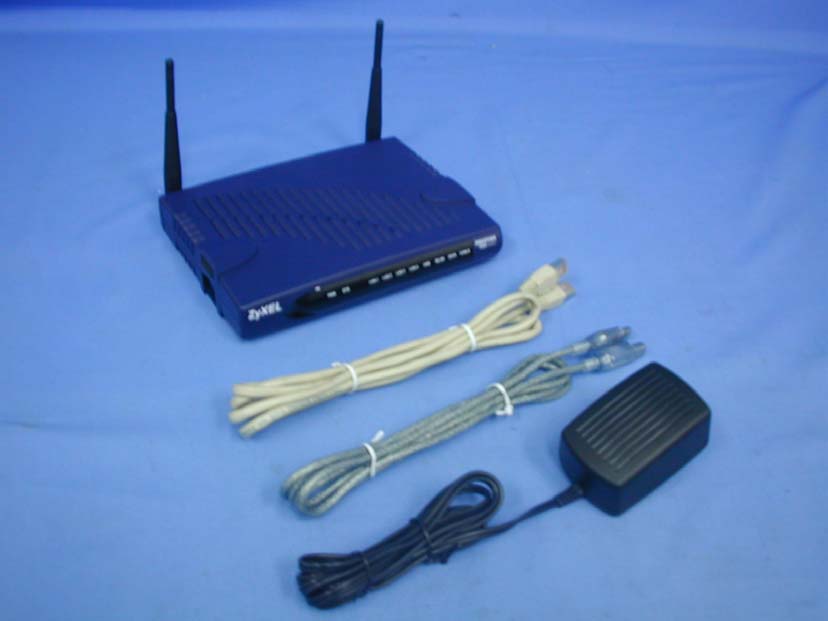

Report No.: 044H052FI Page : 1 of 11 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ZyXEL FCC ID.: I88-P964APR No. 6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Trade name: ZyXEL Model No.:Prestige 964AP Router Prestige 964 Cable Router with 11g AP Model No.: Prestige 964AP Router F F C C C C I I D D : : I I 8 8 8 8 - - P P 9 9 6 6 4 4 A A P P R R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

ZyXEL FCC ID.: I88-P964APR No. 6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Trade name: ZyXEL Model No.:Prestige 964AP Router Prestige 964 Cable Router with 11g AP Model No.: Prestige 964AP Router F F C C C C I I D D : : I I 8 8 8 8 - - P P 9 9 6 6 4 4 A A P P R R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 044H052FI Page : 2 of 11 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 044H052FI Page : 3 of 11 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 044H052FI Page : 4 of 11 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 044H052FI Page : 5 of 11 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 044H052FI Page : 6 of 11 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 044H052FI Page : 7 of 11 Version:1.0 (13) EUT Photo Report No.: 044H052FI Page : 8 of 11 Version:1.0 (14) EUT Photo Report No.: 044H052FI Page : 9 of 11 Version:1.0 (15) EUT Photo Report No.: 044H052FI Page : 10 of 11 Version:1.0 (16) EUT Photo (17) EUT Photo Report No.: 044H052FI Page : 11 of 11 Version:1.0 (18) EUT Photo

Report No. 044H052FI Page: 5 of 57 Version:1.0 1.2. Operational Description EUT is a Prestige 964 Cable Router with 11g AP with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps for IEEE 802.11b and eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps for IEEE 802.11g. The device of RF carrier is DQPSK, DBPSK and CCK. The device adapts Digitally Modulation Spread Spectrum modulation. The Connector antenna was provides diversity function to improve the receiving function. This Prestige 964 Cable Router with 11g AP, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission for IEEE 802.11b and Orthogonal Frequency Division Multiplexing (OFDM) for IEEE 802.11g, the Prestige 964 Cable Router with 11g AP Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network.

Report No. 044H052FI Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Prestige 964 Cable Router with 11g AP Model No.: Prestige 964AP Router FCC ID.: I88-P964APR Applicant : ZyXEL Communications Corporation Address : No. 6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt : Apr. 21, 2004 Date of Declaration: May. 14, 2004 Report No. : 044H052FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 044H052FI Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 044H052FI Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Prestige 964 Cable Router with 11g AP Test Item : RF Exposure Evaluation Test Site : No.1 OATS Test Mode : Normal Operation (IEEE 802.11b) Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.0dBi or 2.0 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.0 17.7828 0.0071 6 2437.0 15.4882 0.0061 11 2462.0 19.3197 0.0077 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 044H052FI Page: 4 of 4 Version: 1.0 Product : Prestige 964 Cable Router with 11g AP Test Item : RF Exposure Evaluation Test Site : No.1 OATS Test Mode : Normal Operation (IEEE 802.11g) Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.0dBi or 2.0 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.0 88.5116 0.0351 6 2437.0 84.7227 0.0336 11 2462.0 59.0201 0.0234 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

ZyGATE Confidential AA BB CC DD EE 4 4 3 3 2 2 1 1 A2A4A6A13A7 WLAN_D2WLAN_D14WLAN_D13WLAN_D12WLAN_D11WLAN_D3 A10 WLAN_D0 D8 WLAN_D1 D9 WLAN_D2 D10 WLAN_D3 D11 WLAN_D4 D12 WLAN_D5 D13 WLAN_D6 D14 WLAN_D8 D0 WLAN_D7 D15 WLAN_D9 D1 WLAN_D10 D2 WLAN_D11 D3 WLAN_D12 D4 WLAN_D13 D5 WLAN_D14 D6 WLAN_D15 D7 A0A1A2A3A4A5A6A7A8A9A10A11A12A13A14 WLAN_IRQ_N WLAN_RESET WLAN_WE_NWLAN_OE_N WLAN_D10WLAN_D1 WLAN_CE1_N WLAN_D0 A1 WLAN_REG_N A3A5A12A14A8 WLAN_CE2_N A9A11 WLAN_WAIT_N WLAN_D15WLAN_D7WLAN_D6WLAN_D5WLAN_D4 WLAN_D9WLAN_D8 A0 +3.3V +3.3V+3.3V +3.3V +3.3V A[14..0] D[15:0] (7) WLAN_IRQ_N WLAN_RESET PCMCIA_CE1_N EBI_RD_N EBI_WR_N EBI_R/W_N PCMCIA_WAIT_NPCMCIA_CE2_N TitleSize Document Number Re v Date: Sheet of 9- 802.11 Socket C 312 Monday, May 03, 2004 ZyGATE Communications, Inc. P964S Cable Sharing Gateway with USB, 4 port Sw itch and Wireless 802.11G AP 3.8 This pullup resistor puts theBCM94306MP bus interfaceinto 16-bit PC Card mode. LITTLE ENDIANBUS SWAP TP901TP902TP903 C90110uF/10V 12 C907 0.1uF 12 R908 10K 1 2 R910 10K 1 2 C903 0.1uF 12 C908 0.1uF 12 TP904 R907 10K 1 2 C904 0.1uF 12 C909 0.1uF 12 R903 1K 1 2 C905 0.1uF 12 C906 0.1uF 12 J3HEADER 62x2 TIP 1 8PMJ-3 3 8PMJ-6 5 8PMJ-7 7 8PMJ-8 9 LED1_GRNP 11 LED1_GRNN 13 CHSGND 15 INTB# 17 3.3V 19 RESERVED 21 GND 23 CLK 25 GND 27 REQ# 29 3.3V 31 AD[31] 33 AD[29] 35 GND 37 AD[27] 39 AD[25] 41 RESERVED 43 CBE[3]# 45 AD[23] 47 GND 49 AD[21] 51 AD[19] 53 GND 55 AD[17] 57 CBE[2]# 59 IRDY# 61 3.3V 63 CLKRUN# 65 SERR# 67 GND 69 PERR# 71 CBE[1]# 73 AD[14] 75 GND 77 AD[12] 79 AD[10] 81 GND 83 AD[8] 85 AD[7] 87 3.3V 89 AD[5] 91 RESERVED 93 AD[3] 95 5V 97 AD[1] 99 GND 101 AC_SYNC 103 AC_SDATA_IN 105 AC_BIT_CLK 107 AC_CODEC_ID1# 109 MOD_AUDIO_MON 111 AUDIO_GND 113 SYS_AUDIO_OUT 115 SYS_AUDIO_OUT GND 117 AUDIO_GND 119 RESERVED 121 ACC5VA 123 RING 2 8PMJ-1 4 8PMJ-2 6 8PMJ-4 8 8PMJ-5 10 LED2_YELP 12 LED2_YELN 14 RESERVED 16 5V 18 INTA# 20 RESERVED 22 3.3VAUX 24 RST# 26 3.3V 28 GNT# 30 GND 32 PME# 34 RESERVED 36 AD[30] 38 3.3V 40 AD[28] 42 AD[26] 44 AD[24] 46 IDSEL 48 GND 50 AD[22] 52 AD[20] 54 PAR 56 AD[18] 58 AD[16] 60 GND 62 FRAME# 64 TRDY# 66 STOP# 68 3.3V 70 DEVSEL# 72 GND 74 AD[15] 76 AD[13] 78 AD[11] 80 GND 82 AD[9] 84 CBE[0]# 86 3.3V 88 AD[6] 90 AD[4] 92 AD[2] 94 AD[0] 96 RESERVED_WIP 98 RESERVED_WIP 100 GND 102 M66EN 104 AC_SDATA_OUT 106 AC_CODEC_ID0# 108 AC_RESET# 110 RESERVED 112 GND 114 SYS_AUDIO_IN 116 SYS_AUDIO_IN GND 118 AUDIO_GND 120 MPCIACT# 122 3.3VAUX 124 DGND 125 DGND 126 R905 1K 1 2 R909 10K 1 2 C902 0.1uF 12 R902 4.7K 1 2 R906 1K 1 2 R901 1K 1 2 ZyGATE Confidential 55 44 33 22 11 D D C C B B A A PNP2P5_CNTRL VIN+ PNP3P3_CNTRL +2.5V +2.5V+1.2V +3.3V GND VIN +3.3V +3.3V_TUNER VIN V1.8 TitleSize Document Number Re v Date: Sheet of Power P964S Cable Sharing Gateway with USB, 4 port Switch and Wireless 802.11G AP C 412 Wednesday, April 14, 2004 Route this control line as short as possible. 3.8 ZyGATE Communications, Inc. Put these output regulation capacitors closer to Q104.2 Route this control line as short as possible. Put these output regulation capacitors closer to Q105.2 Evenly Distribute GND test VIA's around thePCB. Label accordingly. Locate powerconnector on rearpanel as far from thediplexer as possible. 9 VDC INPUT +3.3V @ 1000mA For BCM3348 & CMOS Tuner +3.3V @ 800mA CMOS Tuner Q1042SB1188 1 23 C131 0.1uF 12 C9180.1uF 12 BCM3348 (1 OF 4) POWER REGULATION 3.3V -> 2.5V REGULATORREGULATOR 2.5V -> 1.2V U201DBCM3348A1 PNP3P3_SUPPLY AC2 PNP3P3_CONTROL AD1 PNP3P3_SENSE AE1 PNP2P5_SUPPLY AD2 PNP2P5_CONTROL AF3 PNP2P5_SENSE AC3 + C113470uF/16V 12 Q101P MOSFET 4431 S 1 S 2 S 3 G 4 D 5 D 6 D 7 D 8 C135DNI + C111 470uF/16V + C919 220uF/16V 12 C1031000pF /2KV 12 U101 LM3485 ISENSE 1 SGND 2 NC 3 FB 4 ADJ 5 PGND 6 PGATE 7 VIN 8 R9150.22 12 TP905 1 1 R91733K 12 D101 RB051L-40 AC J101 POWER-JACK2.0 123 GND3 testpoint_040 TP 1 Q10412SB1412 (DNP) 1 23 C14210uF/10V TP33 1 1 L68 100uH (DNP) 1 2 D315 RB051L-40 AC C133 0.1uF 12 C115100pF 12 L103 6.8uH C134DNI + C10210uF/16V 12 R10817.4K 1% 12 C912 0.1uF FB101MLB-201209-0220P-N2 1 2 GND1 testpoint_040 TP 1 GND2 testpoint_040 TP 1 C112 0.1uF C1090.01uF 12 C130 0.1uF 12 L610 15uH 1 2 L101 15uH 1 2 GND5 testpoint_040 TP 1 C32200pF 12 C14347uF/16V 12 L1BEAD 12 GND6 testpoint_040 TP 1 C91110uF/10V R9164.12K 1% 12 + C1 220uF/16V 12 C14522uF/16V 12 R1020 ohm (Short by trace) 1 2 R10910K 1% 12 C14410uF/10V GND4 testpoint_040 TP 1 R9141.82K (1%) 12 C114 0.1uF 12 VDD33 testpoint_040 TP 1 C1081000pF 12 C132 0.1uF 12 C10610uF/10V Q1052SB1188 1 23 U611AMS34063 SC 1 SE 2 TC 3 G 4 FB 5 VCC 6 CS 7 DC 8 C920100pF 12 Q10512SB1412 (DNP) 1 23 ZyGATE Confidential AA BB CC DD EE 4 4 3 3 2 2 1 1 D1D2D3 JTAG_TDI D4D5 JTAG_TMS nCABLE_LED D6 JTAG_TCK SD_A12 D7 FLASH_ RESET_N D8D9D10 D2 D12 A7 A11A19 D2D7D10D8D14 A21 D11 D4 A7D12D3D11 SD_A12 D15D3D11 D8A9A5 D12 A15A18 A4 A21D9A4D13A14 A14 D15 POR_RESET_N D6A13 D13 D7A8A1 D6D9 D1A17 A10A11 A12 D14 A9A15 D1 A5A3 D14A10 D13 A6 A20A3D10 A1 D0 D15 A12A8A18A2A19 FLASH_WR_NA16D5 JTAG_TDO FLASH_CS_N A6D4D0FLASH_RD_NA2 D5 A13 nWORNING_LED A16A17 SD_DQ5SD_DQ0SD_DQ13SD_DQ4SD_DQ12SD_DQ11SD_DQ7SD_DQ15SD_DQ2SD_DQ10SD_DQ6SD_DQ14SD_DQ1 A4 XTAL_VDD A22EBI_BS0_N XTALI_24M A20 A0 SD_A2SD_DQM1SD_A5SD_A4SD_A3SD_A7 SD_RAS_N SD_A6SD_A8SD_CS_NSD_A0SD_A1SD_DQM0 SD_CLK SD_A9SD_CKESD_WE_NSD_A10 nManualRST SYSPLL_VDD nSoftRST SD_CAS_N nSoftRST SD_BSA1SD_A11SD_BSA0 SD_A[12:0] FLASH_ RESET_N EBI_BS1_N A5 A1A2A3A4A5A6A7A8A9A10A11A12A13A14A15A16A17A18A19 SD_A2SD_A9SD_A8 A20 SD_A1SD_A3SD_A11SD_A10 SD_DQ3 SD_A7SD_A6SD_A5SD_A4 A21 SD_A0 A22 WP#FLASH_WR_N POR_RESET_N FLASH_RD_N FLASH_CS_N FLASH_ RESET_N A3 SD_DQ8 WP# SD_DQ9 3348_GPIO2 D[15:0] SDCLK 3348_GPIO13348_GPIO0 D0 nWORNING_LEDnRST_LANSYS_LEDnCABLE_LED nSYS_LED EESK EDI EDOEECSWLAN_RESETWLAN_LNK/ACT MII_CLK25M MII_RXD2MII_RXD0MII_RXD1MII_RXD3 MII_TXD3MII_TXD1MII_TXD2MII_TXENMII_TXD0MII_TXER 3348_GPIO33348_GPIO4 +3.3V +3.3V +3.3V +3.3V +3.3V+1.2V +1.2V+2.5V +3.3V +3.3V +3.3V +2.5V +3.3V WLAN_IRQ_N EBI_WR_NA[14..0] (sheet 9)EBI_RD_N D[15:0] (sheet 9) EBI_R/W_N (she…

Text truncated - open the document above for the full version.

Report No. 044H052FI Page: 1 of 57 Version:1.0 Test Report Product Name : Prestige 964 Cable Router with 11g AP Model No.: Prestige 964AP Router FCC ID.: I88-P964APR Applicant : ZyXEL Communications Corporation Address : No. 6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt : Apr. 21, 2004 Date of Test : May 14, 2004 Report No. : 044H052FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 044H052FI Page: 2 of 57 Version:1.0 Test Report Certification Test Date : May 14, 2004 Report No. : 044H052FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Prestige 964 Cable Router with 11g AP Applicant : ZyXEL Communications Corporation Address : No. 6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Manufacturer : ZyGATE Communications Inc. Model No. : Prestige 964AP Router FCC ID. : I88-P964APR Rated Voltage : AC 120V/60Hz Trade Name : ZyXEL Measurement Standard : FCC CFR Title 47 Part 15 Subpart C: 2003 Measurement Procedure : ANSI C63.4: 2001 Test Result : Complied Documented By : ( Carol Tsai ) Tested By : ( Dampier Chang ) Approved By : ( Kevin Wang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 Report No. 044H052FI Page: 3 of 57 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of tested System .....................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................23 3.1. Test Equipment............................................................................................................................23 3.2. Test Setup ....................................................................................................................................23 3.3. Limits ..........................................................................................................................................23 3.4. Test Result of Peak Power Output...............................................................................................24 4. Radiated Emission .....................................................................................................................26 4.1. Test Equipment............................................................................................................................26 4.2. Test Setup ....................................................................................................................................26 4.3. Limits ..........................................................................................................................................27 4.4. Test Procedure .............................................................................................................................27 4.5. Test Result of Radiated Emission................................................................................................28 5. Band Edge ..................................................................................................................................40 5.1. Test Equipment............................................................................................................................40 5.2. Test Setup ....................................................................................................................................40 5.3. Limits ..........................................................................................................................................42 5.4. Test Procedure .............................................................................................................................42 5.5. Test Result of Band Edge ..............................................…

Text truncated - open the document above for the full version.

Report No.: 044H052FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 044H052FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 044H052FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
