I8803911802.11ax (WiFi 6) Dual-Radio PoE Access Point

Default Login Details User’s Guide NWA50AX PRO/NWA90AX PRO/ NWA55AXE 802.11ax (WiFi6) Dual-Radio PoE Access Point/802.11ax (WiFi6) Dual-Radio Outdoor PoE Access Point Copyright © 2023 Zyxel and/or its affiliates. All rights reserved. Management IP Address http://DHCP-assigned IP OR http://192.168.1.2 User Nameadmin Password1234 Version 6.29/6.55 Edition 1, 01/2023 NWA50AX PRO/NWA90AX PRO/NWA55AXE Series User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots and graphics in this book may differ slightly from your product due to differences in your product hardware, firmware, or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Some screens or options in this book may not be available for your product (see the product feature tables in Section 1.2 on page 12). Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the Zyxel Device and access the Web Configurator. •CLI Reference Guide The CLI Reference Guide explains how to use the Command-Line Interface (CLI) and CLI commands to configure the Zyxel Device. Note: It is recommended you use the Web Configurator to configure the Zyxel Device. • Web Configurator Online Help Click the help icon in any screen for help in configuring that screen and supplementary information. • Nebula Control Center User’s Guide This User’s Guide shows how to manage the Zyxel Device remotely. The features of these devices can be managed through Nebula Control Center. It also offers features that are not available when the Zyxel Device is in standalone mode (see Section 2.1.2 on page 22). •More Information Go to support.zyxel.com to find other information on the Zyxel Device . Document Conventions NWA50AX PRO/NWA90AX PRO/NWA55AXE Series User’s Guide 3 Document Conventions Warnings and Notes These are how warnings and notes are shown in this guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • All models in this series may be referred to as the “Zyxel Device” in this guide. • Product labels, screen names, field labels and field choices are all in bold font. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Configuration > Network > IP Setting means you first click Configuration in the navigation panel, then the Network sub menu and finally the IP Setting tab to get to that screen. Icons Used in Figures Figures in this guide may use the following generic icons. The Zyxel Device icon is not an exact representation of your device. Zyxel DeviceRouterSwitchInternet ServerDesktopLaptopIP Phone PrinterSmart T.V. Contents Overview NWA50AX PRO/NWA90AX PRO/NWA55AXE Series User’s Guide 4 Contents Overview Introduction ........................................................................................................................................... 12 AP Management .................................................................................................................................. 22 Hardware ............................................................................................................................................... 30 Web Configurator ................................................................................................................................. 33 Standalone Configuration ................................................................................................................44 Standalone Configuration ................................................................................................................... 45 Dashboard ............................................................................................................................................ 47 Setup Wizard ......................................................................................................................................... 53 Monitor ................................................................................................................................................... 59 Network ................................................................................................................................................. 71 Wireless ................................................................................................................................................... 78 User ......................................................................................................................................................... 91 AP Profile ................................................................................................................................................ 98 WDS Profile ........................................................................................................................................... 129 Certificates .......................................................................................................................................... 131 System .................................................................................................................................................. 147 Log and Report ................................................................................................................................... 166 File Manager ....................................................................................................................................... 172 Diagnostics .......................................................................................................................................... 183 LEDs .............................................…

Text truncated - open the document above for the full version.

Zyxel Communications Corporation No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Date: 2023/1/17 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: I8803911 Product name: 802.11ax (WiFi 6) Dual-Radio PoE Access Point To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model NWA50AX PRO, NWA90AX PRO to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Date: January 16, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: I8803911 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after issue date. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description ☐ Bill of Materials ☐ Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Zyxel Communications Corporation No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Date: January 16, 2023 Subject: Ad Hoc Mode Function Declaration FCC ID: I8803911 To Whom it may concern, We, Zyxel Communications Corporation declare that the device does not support any non-US channels and country code selection in all the operational mode(s). Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

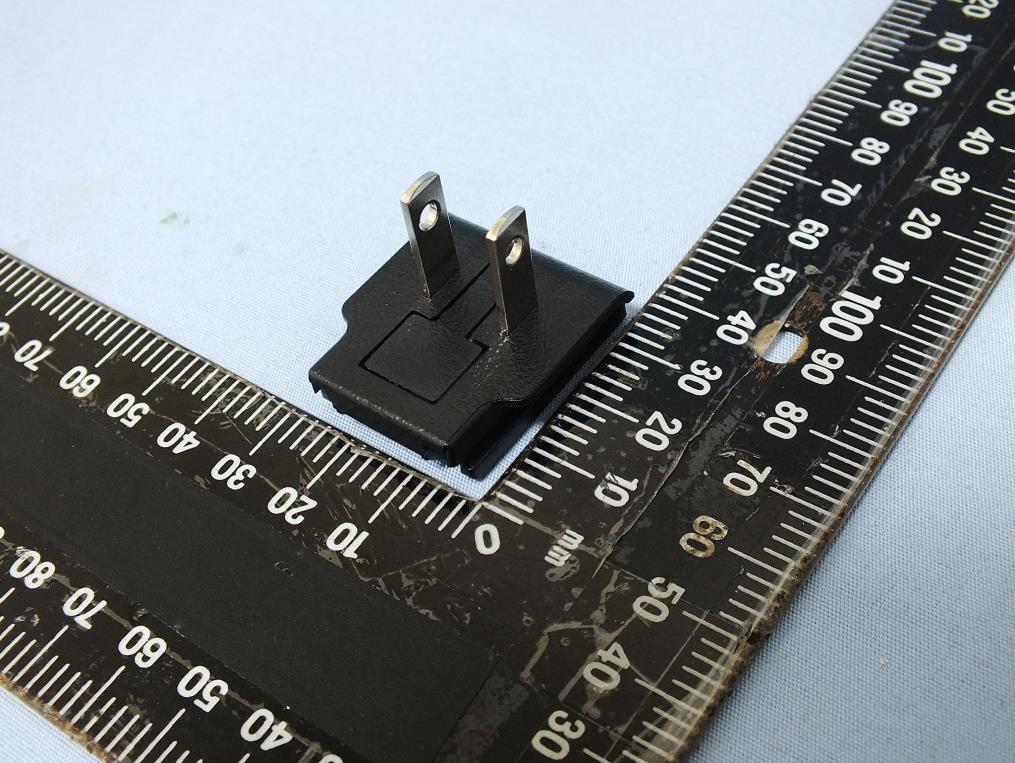

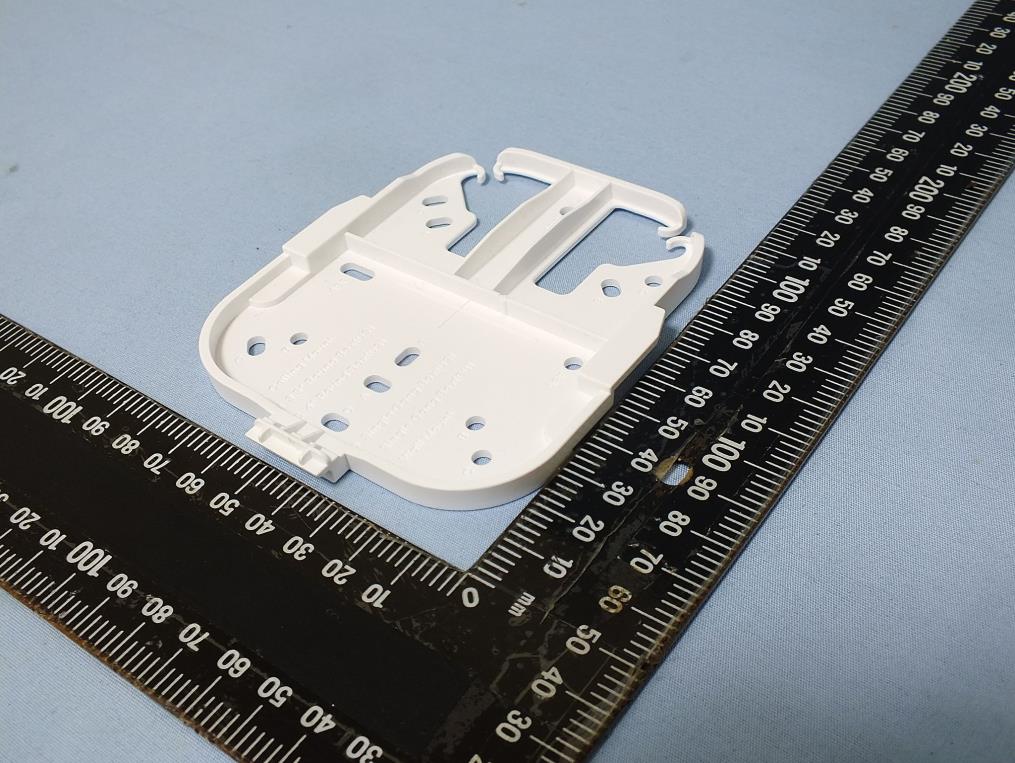

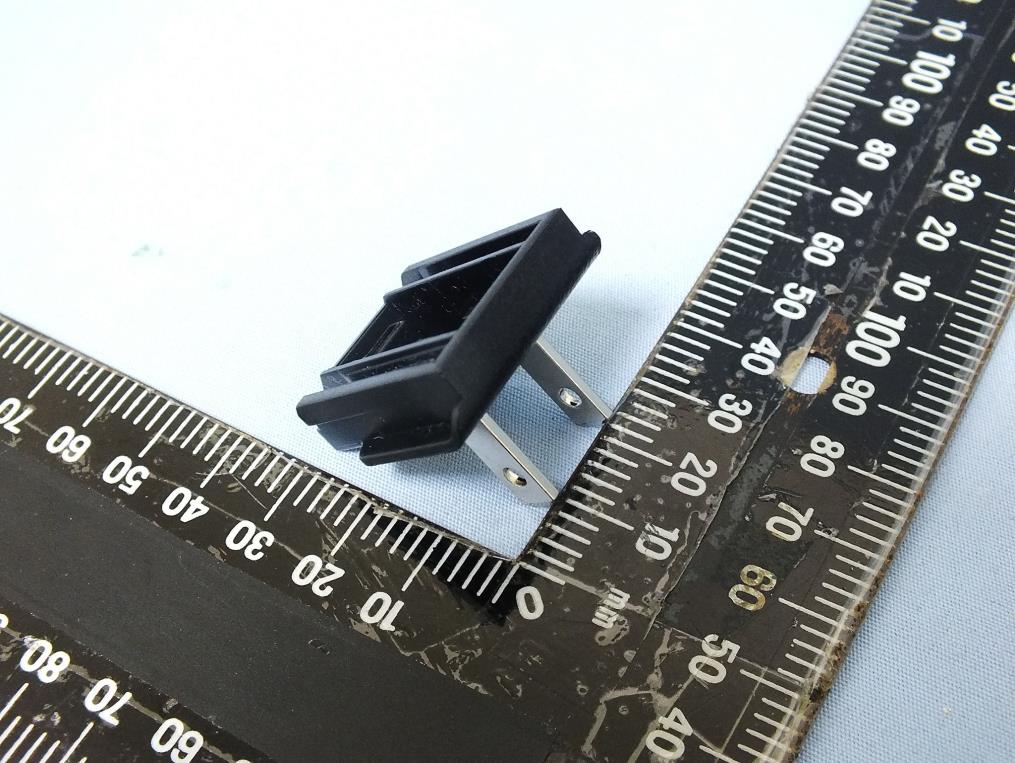

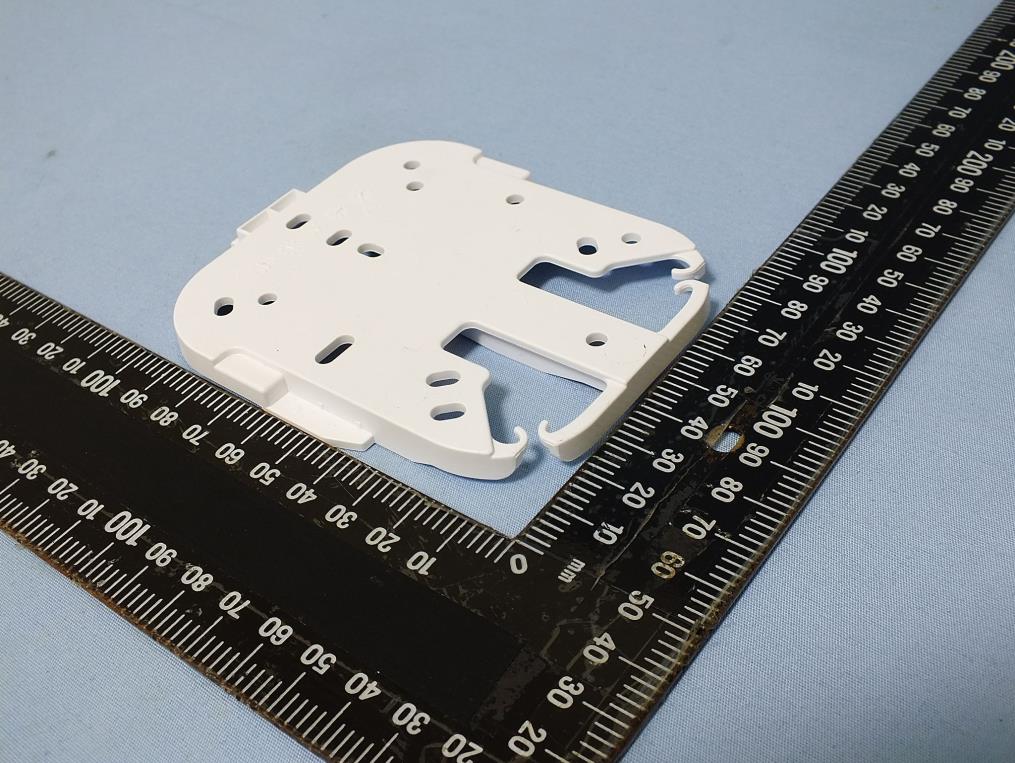

Project No.: EP2N1601 Page No. : 1 of 18 Photographs of EUT Project No.: EP2N1601 Page No. : 2 of 18 Project No.: EP2N1601 Page No. : 3 of 18 Project No.: EP2N1601 Page No. : 4 of 18 Project No.: EP2N1601 Page No. : 5 of 18 Project No.: EP2N1601 Page No. : 6 of 18 Project No.: EP2N1601 Page No. : 7 of 18 Project No.: EP2N1601 Page No. : 8 of 18

Project No.: EP2N1601 Page No. : 9 of 18 Project No.: EP2N1601 Page No. : 10 of 18 Project No.: EP2N1601 Page No. : 11 of 18 Project No.: EP2N1601 Page No. : 12 of 18 Project No.: EP2N1601 Page No. : 13 of 18 Project No.: EP2N1601 Page No. : 14 of 18 Project No.: EP2N1601 Page No. : 15 of 18 Project No.: EP2N1601 Page No. : 16 of 18 Project No.: EP2N1601 Page No. : 17 of 18 Project No.: EP2N1601 Page No. : 18 of 18

Report No.: FA2N1601 Page : 1 of 8 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : I8803911 Equipment : 802.11ax (WiFi 6) Dual-Radio PoE Access Point Model No. : NWA50AX PRO (Please refer to section 1.1.1 for more details) Brand Name : ZYXEL Applicant : Zyxel Communications Corporation Address : No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Standard : 47 CFR FCC Part 2.1091 Received Date : Nov. 16, 2022 Tested Date : Nov. 22, 2022 ~ Jan. 04, 2023 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA2N1601 Page : 2 of 8 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information.............................................................................................................................................. 4 2 RF EXPOSURE TEST EXEMPTIONS ................................................................................................... 5 2.1 1-mW TEST EXEMPTION ..................................................................................................................... 5 2.2 SAR-BASED EXEMPTION .................................................................................................................... 5 2.3 MPE-BASED EXEMPTION .................................................................................................................... 5 2.4 REFERENCE GUIDANCE ..................................................................................................................... 6 2.5 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 6 2.6 MEASUREMENT UNCERTAINTY ......................................................................................................... 6 2.7 EXEMPTION CALCULATION ................................................................................................................ 7 2.8 MPE EVALUATION OF SIMULTANEOUS TRANSMISSION ................................................................ 7 3 TEST LABORATORY INFORMATION ................................................................................................. 8 Report No.: FA2N1601 Page : 3 of 8 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA2N1601 Rev. 01 Initial issue Jan. 16, 2023 Report No.: FA2N1601 Page : 4 of 8 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description ZYXEL NWA50AX PRO 802.11ax (WiFi 6) Dual-Radio PoE Access Point Software cloud management functions are different NWA90AX PRO  The above models, model NWA50AX PRO was selected as a representative one for the final test and only its data was recorded in this report. Report No.: FA2N1601 Page : 5 of 8 Report Version: Rev. 01 2 RF Exposure Test Exemptions 2.1 1-mW TEST EXEMPTION Available maximum time-averaged power is no more than 1 mW. 2.2 SAR-BASED EXEMPTION This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. The maximum time-averaged power or effective radiated power (ERP), whichever is greater, ≤ Pth Pth (mW) = ERP 20cm (d/20) x d≤20cm Pth (mW) = ERP 20cm 20 cm < d ≤40cm Where = - log 10 Pth (mW) = ERP 20cm (mW) = 2040f 0.3GHz ≤ f < 1.5 GHz Pth (mW) = ERP 20cm (mW) = 3060 1.5GHz ≤ f < 6 GHz Frequency (MHz) Power Thresholds mW dBm 663 1353 31.31 699 1426 31.54 704 1436 31.57 777 1585 32.00 824 1681 32.26 902 1840 32.65 1500 ~ 6000 3060 34.86 2.3 MPE-BASED EXEMPTION For a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. Radio Source Frequency Minimum Distance Threshold ERP F L MHz F H MHz λ L / 2π λ H / 2π W 0.3 - 1.34 159 m - 35.6 m 1920 R 2 1.34 - 30 35.6 m - 1.6 m 3450 R 2 /f 2 30 - 300 1.6 m - 159 mm 3.83 R 2 300 - 1500 159 mm - 31.8 mm 0.0128 R 2 f 1500 - 100000 31.8 mm - 0.5 mm 19.2 R 2 Note: R is the antenna-person separation distance. Report No.: FA2N1601 Page : 6 of 8 Report Version: Rev. 01 2.4 REFERENCE GUIDANCE 447498 D04 Interim General RF Exposure Guidance v01 2.5 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 2.6 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA2N1601 Page : 7 of 8 Report Version: Rev. 01 2.7 EXEMPTION CALCULATION Non-beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Maximum Tune Up Limit (dBm) Antenna Gain (dBi) EIRP (dBm) ERP (dBm) ERP (mW) SAR-Based Exemption Thresholds (mW) Ratio Pass/ Fail 2412-2462 23.79 24 2.6 26.6 24.45 278.61 3060 0.091 Pass 5180-5240 29.34 29.5 2.87 32.37 30.22 1051.96 3060 0.343 Pass 5260-5320 23.70 24 4.30 28.3 26.15 412.1 3060 0.135 Pass 5500-5720 23.72 24 3.96 27.96 25.81 381.07 3060 0.124 Pass 5745-5825 29.57 30 2.69 32.69 30.54 11…
