Default Login Details User’s Guide NWA/WAC/WAX Series 802.11 a/b/g/n/ac/ax Access Point Copyright © 2020 Zyxel Communications Corporation Management IP Address http://DHCP-assigned IP OR http://192.168.1.2 User Nameadmin Password1234 Version 6.10 Edition 3, 5/2020 NWA/WAC/WAX Series User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots and graphics in this book may differ slightly from your product due to differences in your product hardware, firmware, or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Some screens or options in this book may not be available for your product (see the product feature tables in Section 1.4 on page 19). Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the Zyxel Device and access the Web Configurator. •CLI Reference Guide The CLI Reference Guide explains how to use the Command-Line Interface (CLI) and CLI commands to configure the Zyxel Device. Note: It is recommended you use the Web Configurator to configure the Zyxel Device. • Web Configurator Online Help Click the help icon in any screen for help in configuring that screen and supplementary information. • Nebula Control Center User’s Guide This User’s Guide shows how to manage the Zyxel Device remotely. The features of these devices can be managed through Nebula Control Center. It also offers features that are not available when the Zyxel Device is in standalone mode (see Section 2.1.2 on page 24). • NXC Series User’s Guide See this User’s Guide for instructions on using the NXC as an AP Controller (AC) for the Zyxel Device. This is used when the Zyxel Device is set to be managed by a Zyxel AC. •More Information Go to support.zyxel.com to find other information on the Zyxel Device . NWA/WAC/WAX Series User’s Guide 3 Document Conventions Warnings and Notes These are how warnings and notes are shown in this guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • All models in this series may be referred to as the “Zyxel Device” in this guide. • Product labels, screen names, field labels and field choices are all in bold font. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Configuration > Network > IP Setting means you first click Configuration in the navigation panel, then the Network sub menu and finally the IP Setting tab to get to that screen. Icons Used in Figures Figures in this guide may use the following generic icons. The Zyxel Device icon is not an exact representation of your device. Zyxel DeviceRouterSwitchInternet ServerDesktopLaptopAP Controller PrinterNebula SwitchNebula GatewaySmart T.V. IP Phone Contents Overview NWA/WAC/WAX Series User’s Guide 4 Contents Overview Introduction ........................................................................................................................................... 13 AP Management .................................................................................................................................. 24 Hardware ............................................................................................................................................... 33 Web Configurator ................................................................................................................................. 53 Standalone Configuration ................................................................................................................64 Standalone Configuration ................................................................................................................... 65 Dashboard ............................................................................................................................................ 67 Setup Wizard ......................................................................................................................................... 73 Monitor ................................................................................................................................................... 79 Network ................................................................................................................................................. 94 Wireless ................................................................................................................................................. 105 Bluetooth ............................................................................................................................................. 119 User ....................................................................................................................................................... 122 AP Profile .............................................................................................................................................. 129 MON Profile ......................................................................................................................................... 162 WDS Profile ........................................................................................................................................... 165 Certificates .......................................................................................................................................... 167 System .................................................................................................................................................. 183 Log and Report ................................................................................................................................... …

Text truncated - open the document above for the full version.

NWA/WAC/WAX Series User’s Guide 165 CHAPTER 15 WDS Profile 15.1 Overview This chapter shows you how to configure WDS (Wireless Distribution System) profiles for the Zyxel Device to form a WDS with other APs. 15.1.1 What You Can Do in this Chapter The WDS Profile screen (Section 15.2 on page 165) creates preset WDS configurations that can be used by the Zyxel Device. 15.2 WDS Profile This screen allows you to manage and create WDS profiles that can be used by the APs. To access this screen, click Configuration > Object > WDS Profile. Figure 97 Configuration > Object > WDS Profile The following table describes the labels in this screen. Table 71 Configuration > Object > WDS Profile LABELDESCRIPTION AddClick this to add a new profile. EditClick this to edit the selected profile. RemoveClick this to remove the selected profile. #This field is a sequential value, and it is not associated with a specific profile. Profile NameThis field indicates the name assigned to the profile. WDS SSIDThis field shows the SSID specified in this WDS profile. Chapter 15 WDS Profile NWA/WAC/WAX Series User’s Guide 166 15.2.1 Add/Edit WDS Profile This screen allows you to create a new WDS profile or edit an existing one. To access this screen, click the Add button or select and existing profile and click the Edit button. Figure 98 Configuration > Object > WDS Profile > Add/Edit WDS Profile The following table describes the labels in this screen. Table 72 Configuration > Object > WDS Profile > Add/Edit WDS Profile LABELDESCRIPTION Profile NameEnter up to 31 alphanumeric characters for the profile name. WDS SSIDEnter the SSID with which you want the Zyxel Device to connect to a root AP or repeater to form a WDS. Pre-Shared KeyEnter a pre-shared key of between 8 and 63 case-sensitive ASCII characters (including spaces and symbols) or 64 hexadecimal characters. The key is used to encrypt the traffic between the APs. OKClick OK to save your changes back to the Zyxel Device. CancelClick Cancel to exit this screen without saving your changes. NWA/WAC/WAX Series User’s Guide 167 CHAPTER 16 Certificates 16.1 Overview The Zyxel Device can use certificates (also called digital IDs) to authenticate users. Certificates are based on public-private key pairs. A certificate contains the certificate owner’s identity and public key. Certificates provide a way to exchange public keys for use in authentication. 16.1.1 What You Can Do in this Chapter • The My Certificates screens (Section 16.2 on page 170) generate and export self-signed certificates or certification requests and import the Zyxel Device’s CA-signed certificates. • The Trusted Certificates screens (Section 16.3 on page 177) save CA certificates and trusted remote host certificates to the Zyxel Device. The Zyxel Device trusts any valid certificate that you have imported as a trusted certificate. It also trusts any valid certificate signed by any of the certificates that you have imported as a trusted certificate. 16.1.2 What You Need to Know The following terms and concepts may help as you read this chapter. When using public-key cryptology for authentication, each host has two keys. One key is public and can be made openly available. The other key is private and must be kept secure. These keys work like a handwritten signature (in fact, certificates are often referred to as “digital signatures”). Only you can write your signature exactly as it should look. When people know what your signature looks like, they can verify whether something was signed by you, or by someone else. In the same way, your private key “writes” your digital signature and your public key allows people to verify whether data was signed by you, or by someone else. This process works as follows: 1Tim wants to send a message to Jenny. He needs her to be sure that it comes from him, and that the message content has not been altered by anyone else along the way. Tim generates a public key pair (one public key and one private key). 2Tim keeps the private key and makes the public key openly available. This means that anyone who receives a message seeming to come from Tim can read it and verify whether it is really from him or not. 3Tim uses his private key to sign the message and sends it to Jenny. 4Jenny receives the message and uses Tim’s public key to verify it. Jenny knows that the message is from Tim, and that although other people may have been able to read the message, no-one can have altered it (because they cannot re-sign the message with Tim’s private key). Chapter 16 Certificates NWA/WAC/WAX Series User’s Guide 168 5Additionally, Jenny uses her own private key to sign a message and Tim uses Jenny’s public key to verify the message. The Zyxel Device uses certificates based on public-key cryptology to authenticate users attempting to establish a connection, not to encrypt the data that you send after establishing a connection. The method used to secure the data that you send through an established connection depends on the type of connection. The certification authority uses its private key to sign certificates. Anyone can then use the certification authority’s public key to verify the certificates. A certification path is the hierarchy of certification authority certificates that validate a certificate. The Zyxel Device does not trust a certificate if any certificate on its path has expired or been revoked. Certification authorities maintain directory servers with databases of valid and revoked certificates. A directory of certificates that have been revoked before the scheduled expiration is called a CRL (Certificate Revocation List). The Zyxel Device can check a peer’s certificate against a directory server’s list of revoked certificates. The framework of servers, software, procedures and policies that handles keys is called PKI (public-key infrastructure). Advantages of Certificates Certificates offer the following benefits. • The Zyxel Device only has to store the certificates of the cert…

Text truncated - open the document above for the full version.

Zyxel Communications Corporation No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Date: 2020/5/8 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: I8811AXAP24 Product name: 802.11ax (WiFi 6) Dual-Radio Unified Access Point, 802.11ax (WiFi 6) Dual-Radio PoE Access Point To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WAX610D/NWA210AX to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name:Gary Chang Job Title :Manager e-mail: [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Date: May 8, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID:I8811AXAP24 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR§2.803 and the importation rules in 47 CFR§2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grantshort-term confidentiality request on the following attachments until 180 days after issue date. ☒Internal Photographs ☒External Photographs ☒User's manual ☒Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒Block Diagram ☒Schematics ☒Operational Description ☐Bill of Materials ☐Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Zyxel Communications Corporation No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Date: May 8, 2020 Subject: Ad Hoc Mode Function Declaration FCC ID: I8811AXAP24 IC ID: 2468C-11AXAP24 To Whom it may concern, We, Zyxel Communications Corporation declare that the device does not support any non-US channels and country code selection in all the operational mode(s). Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

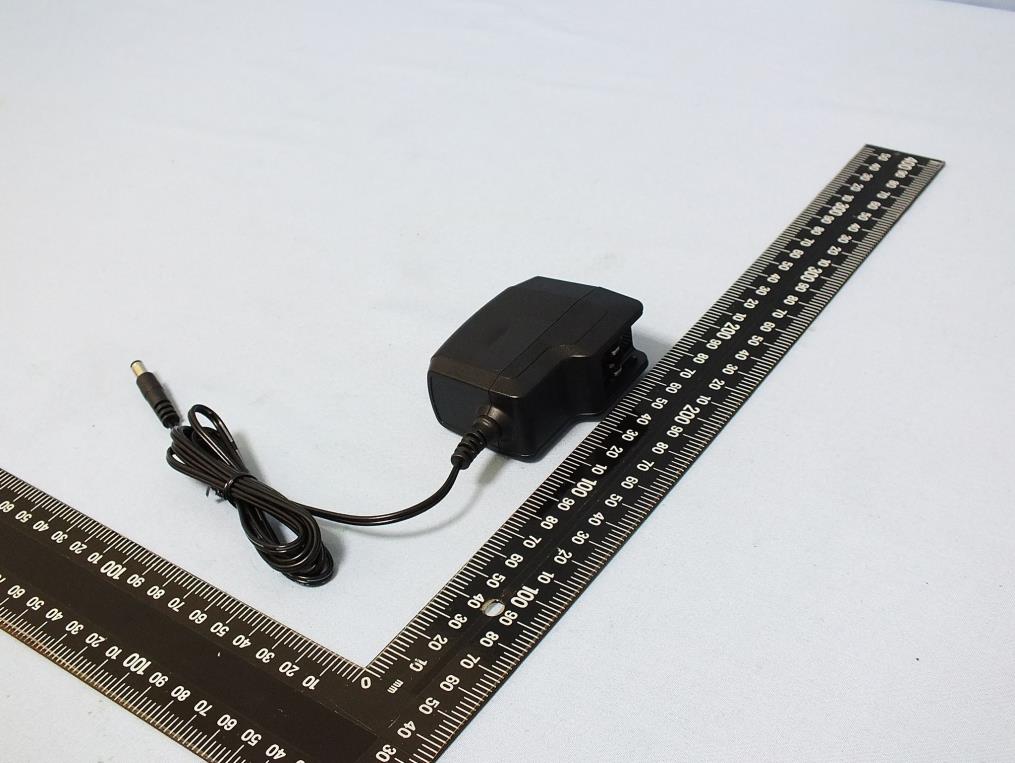

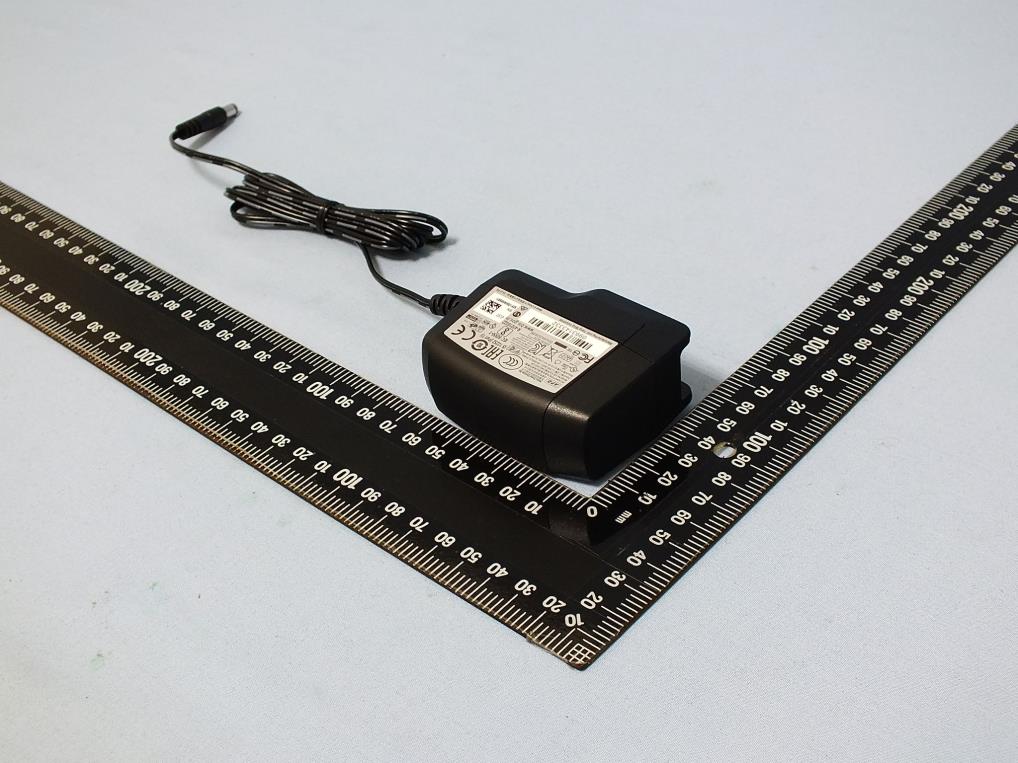

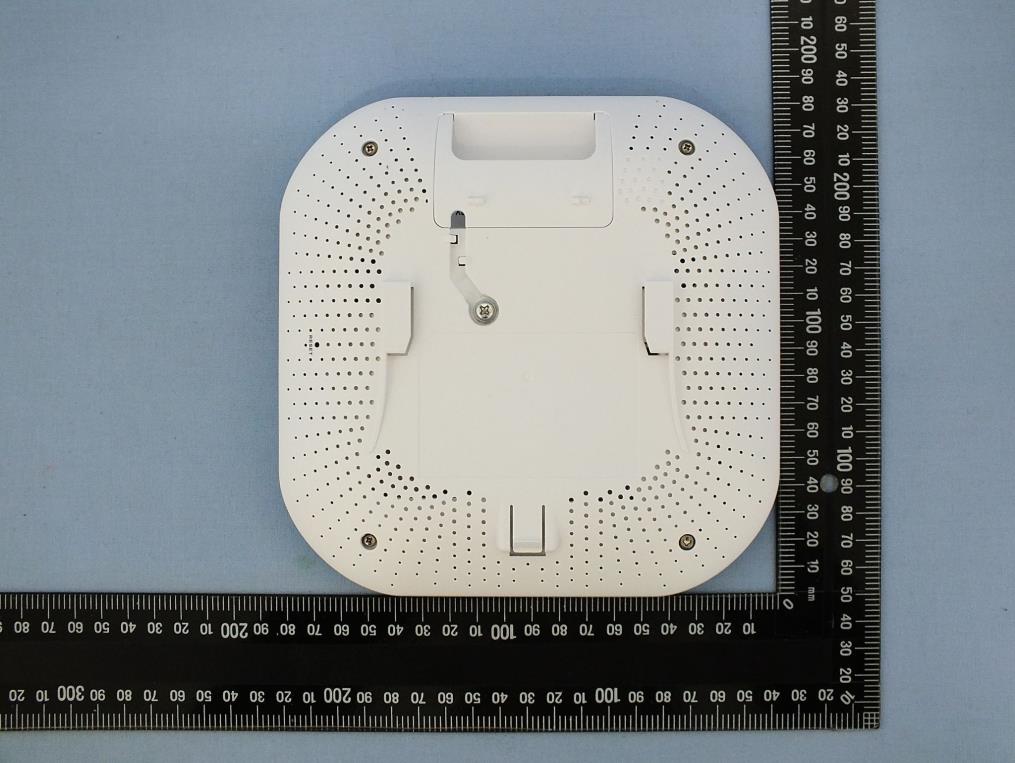

Project No.: 040603 Page No. : 1 of 28 Photographs of EUT Model: NWA210AX Project No.: 040603 Page No. : 2 of 28 Project No.: 040603 Page No. : 3 of 28 Project No.: 040603 Page No. : 4 of 28 Project No.: 040603 Page No. : 5 of 28 Project No.: 040603 Page No. : 6 of 28 Project No.: 040603 Page No. : 7 of 28 Project No.: 040603 Page No. : 8 of 28 Model: WAX610D Project No.: 040603 Page No. : 9 of 28 Project No.: 040603 Page No. : 10 of 28 Project No.: 040603 Page No. : 11 of 28 Project No.: 040603 Page No. : 12 of 28

ICONDIMENSION 7 x 5mm 7 x 5mm 6.45 x 5mm 4.485 x 6.705mm 5 x 5mm 3.963 x 5mm 3.794 x 5mm 5.39 x 5mm 5.179 x 7.5 mm PANTONE BLACK Diecut display only PANTONE WHITE Colors Printed/Dimensions/ LENGTH WIDTH 74.5 mm x 49.5 mm SPEC LABEL A artwork design jane Note: 1. Font : Galano Grotesque 2. Chinese Font : 思源黑體 3. MATERIAL:WHITE MYLAR#50+FOG PET#25 Designed by Zyxel in Taiwan. Made in Taiwan. 合勤設計. 台灣製造. 生產地變更時，依產地別標示如下: (“合勤設計”中英文不變) EX:產地為台灣: WAX610D3264403301 01 jane29 Apr. ‘20 FCC ID: I8811AXAP24 IC:2468C-11AXAP24 Model Number(機種) : WAX610D 產品名稱 : 802.11ax (WiFi 6) 雙頻整合式無線網路接取器 Power Rating(輸入) : 12V 2A Power Consumption : 19 Watt max. Communications Corporation EU Importer: ZYXEL Communications A/S, Gladsaxevej 378, 2. th. 2860 Søborg, Denmark US Importer: ZYXEL Communications, Inc, 1130 North Miller Street Anaheim, CA 92806-2001 EU site https://www.zyxel.com/dk/da/ US site https://www.zyxel.com/us/en/ This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3(B)/NMB-3(B) D41163 RoHS ICONDIMENSION 7 x 5mm 7 x 5mm 6.45 x 5mm 4.485 x 6.705mm 5 x 5mm 3.963 x 5mm 3.794 x 5mm 5.39 x 5mm 5.179 x 7.5 mm PANTONE BLACK Diecut display only PANTONE WHITE Colors Printed/Dimensions/ LENGTH WIDTH 74.5 mm x 49.5 mm 01 SPEC LABEL jane Note: 1. Font : Galano Grotesque 2. Chinese Font : 思源黑體 3. MATERIAL:WHITE MYLAR#50+FOG PET#25 Designed by Zyxel in Taiwan. Made in Taiwan. 合勤設計. 台灣製造. 生產地變更時，依產地別標示如下: (“合勤設計”中英文不變) EX:產地為台灣: NWA210AX3264403401 A artwork design 29 Apr. ‘20 FCC ID: I8811AXAP24 IC:2468C-11AXAP24 Model Number(機種) : NWA210AX 產品名稱 : 802.11ax (WiFi 6) 雙頻POE無線網路接取器 Power Rating(輸入) : 12V 2A Power Consumption : 19 Watt max. Communications Corporation EU Importer: ZYXEL Communications A/S, Gladsaxevej 378, 2. th. 2860 Søborg, Denmark US Importer: ZYXEL Communications, Inc, 1130 North Miller Street Anaheim, CA 92806-2001 EU site https://www.zyxel.com/dk/da/ US site https://www.zyxel.com/us/en/ This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3(B)/NMB-3(B) D41163 RoHS FCC ID: I8811AXAP24 IC: 2468C-11AXAP24

Project No.: 040603 Page No. : 13 of 28 Model: NWA210AX Project No.: 040603 Page No. : 14 of 28 Project No.: 040603 Page No. : 15 of 28 Project No.: 040603 Page No. : 16 of 28 Project No.: 040603 Page No. : 17 of 28 Project No.: 040603 Page No. : 18 of 28 Project No.: 040603 Page No. : 19 of 28 Project No.: 040603 Page No. : 20 of 28 Project No.: 040603 Page No. : 21 of 28 Model: WAX610D Project No.: 040603 Page No. : 22 of 28 Project No.: 040603 Page No. : 23 of 28 Project No.: 040603 Page No. : 24 of 28 Project No.: 040603 Page No. : 25 of 28 Project No.: 040603 Page No. : 26 of 28 Project No.: 040603 Page No. : 27 of 28 Project No.: 040603 Page No. : 28 of 28

Report No.: FA040603 Page : 1 of 8 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : I8811AXAP24 Equipment : 802.11ax (WiFi 6) Dual-Radio Unified Access Point Model No. : WAX610D, NWA210AX Multiple Listing : Refer to item 1.1.1 for more details. Brand Name : ZYXEL Applicant : Zyxel Communications Corporation Address : No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Standard : 47 CFR FCC Part 2.1091 Received Date : Apr. 06, 2020 Tested Date : Apr. 21 ~ May 11, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA040603 Page : 2 of 8 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information .............................................................................................................................................. 4 2 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 5 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 5 2.2 MPE EVALUATION FORMULA ............................................................................................................. 5 2.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 5 2.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 2.5 MPE EVALUATION RESULTS .............................................................................................................. 6 2.6 MPE EVALUATION OF SIMULTANEOUS TRANSMISSION. ............................................................... 7 3 TEST LABORATORY INFORMATION ................................................................................................. 8 Report No.: FA040603 Page : 3 of 8 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA040603 Rev. 01 Initial issue May 28, 2020 Report No.: FA040603 Page : 4 of 8 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description ZYXEL WAX610D 802.11ax (WiFi 6) Dual-Radio Unified Access Point Difference between two models is software. NWA210AX 802.11ax (WiFi 6) Dual-Radio PoE Access Point  The above models, model WAX610D was selected as a representative one for the final test and only its data was recorded in this report. Report No.: FA040603 Page : 5 of 8 Report Version: Rev. 01 2 MPE EVALUATION OF MOBILE DEVICES 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 2.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 2.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 2.4 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2) Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA040603 Page : 6 of 8 Report Version: Rev. 01 2.5 MPE EVALUATION RESULTS Non-beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2412 ~ 2462 (Wi-Fi) 23.96 24 0 20 0.050 1 0.050 Pass 5180 ~ 5240 (Wi-Fi) 26.80 27 3.2 20 0.208 1 0.208 Pass 5260 ~ 5320 (Wi-Fi) 22.64 23 4.2 20 0.104 1 0.104 Pass 5500~5700 (Wi-Fi) 23.22 23.5 4.3 20 0.120 1 0.120 Pass 5745 ~ 5825 (Wi-Fi) 29.11 29.5 5 20 0.561 1 0.561 Pass Note: *Ratio = Power density / Limit. Beamforming mode Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2412 ~ 2462 (Wi-Fi) 20.54 21 3.01 20 0.050 1 0.050 Pass 5180 ~ 5240 (Wi-Fi) 20.78 21 9.22 20 0.209 1 0.209 Pass 5260 ~ 5320 (Wi-Fi) 16.62 17 10.22 20 0.105 1 0.105 Pass 5500~5700 (Wi-Fi) 17.20 17.5 10.32 20 0.120 1 0.120 Pass 5745 ~ 5825 (Wi-Fi) 22.68 23 11.02 20 0.502 1 0.502 Pass Note 1: *Ratio = Power density / Limit. Note 2:Test result is bin-by-bin summing measured value of each TX port. Note 3: 2412 ~ 2462 MHz: Directional gain = 0 + 10 * log(2/1) =3.01 dBi 5150 ~ 5250 MHz, Directional gain = 3.2 + 10 * log(4/1) =9.22 dBi 5250 ~ 5350 MHz, Directional gain = 4.2 + 10 * log(4/1) =10.22 dBi 5470 ~ 5750 MHz, Directional gain = 4.3 + 10 * log(4/1) =10.32 dBi 5725 ~ 5850 MHz, Directional gain = 5 + 10 * log(4/1) =11.02dBi Report No.: FA040603 Page : 7 of 8 Report Version: Rev. 01 2.6 MPE EVALUATION OF SIMULTANEOUS TRANSMISSION. Mode Max Ratio of Each Mode Non-beamforming mode Beamforming mode WLAN 2.4GHz 0.050 0.050 WLAN 5GHz 0.561 0.502 Sum 0.611 0.552 Limit 1 1 Pass / Fail Pass Pass Repor…
