ZyXEL AG-220 802.11a/g Wireless USB Adapter User’s Guide Version 1.00 Edition 1 7/2006 ZyXEL AG-220 User’s Guide Copyright3 Copyright Copyright © 2006 by ZyXEL Communications Corporation. The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice. Trademarks ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners. ZyXEL AG-220 User’s Guide 4Certifications Certifications Federal Communications Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operations. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1Reorient or relocate the receiving antenna. 2Increase the separation between the equipment and the receiver. 3Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement • This device has been tested to the FCC exposure requirements (Specific Absorption Rate). • Testing was performed on laptop computers with antennas at 0mm spacing. The maximum SAR value is: 1.420W/kg at 2.4 GHz and 0.518W/kg at 5 GHz. The device must not be collocated with any other antennas or transmitters. • This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot configuration. • The device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2). End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. • This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ZyXEL AG-220 User’s Guide Certifications5 • For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. • IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. 注意 ! 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用 者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現 有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍 受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 在 5250MHz~5350MHz頻帶內操作之無線資訊傳輸設備，限於室內使用。 Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device has been designed for the WLAN 2.4 GHz and 5 GHz networks throughout the EC region and Switzerland, with restrictions in France. This device has been designed for the WLAN 2.4 GHz network throughout the EC region and Switzerland, with restrictions in France. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Viewing Certifications 1Go to http://www.zyxel.com. 2Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3Select the certification you wish to view from this page. ZyXEL AG-220 User’s Guide 6Safety Warnings Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • ONLY qualified service personnel should service or disassemble this device. • Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning. • Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s). This product is recyclable. Dispose of it properly. ZyXEL AG-220 User’s Guide ZyXEL Limited Warranty7 ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in material…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: I88AG220 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: z Schematics z Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Yi Wang Section Manager EMC/Safety Engineering Section

Letter of Agency To whom it may concern, I, an officer of ZyXEL Communications Corporation, hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of the equipment, ZyXEL AG-220, required in the FCC Part 15C/15E approval until further notice. Sincerely yours, Yi Wang Section Manager EMC/Safety Engineering Section

Date：2006/09/07 To: Federal Communication Commission From: ZyXEL Communications Corporation To whom it may concern: Please see our response below: 1) Op desc does not appear to be in accordance with 2.1033(b)(4) and OET/Lab filing guidance, i.e., Exhibits - Operational description: - Operational or technical description regarding how the device operates, is modulated and meets requirements. - Describe the EUT completely. What is it? (in plain English as well as in technical terms). Give functional description. - The User Manual is not a substitute for the Operational Description. - Always describe the transmit frequencies and signals such as modulation type, pulse repetition rate, signal type, information being sent. Please revise filing where appropriate. Response: We’ve modified Op description to include more info as requested, please see revised Op description uploaded. 2) User manual shows "5.15 ~ 5.725GHz" - this does not seem to agree with Form731 listed freqs. Note this also appears to include 5.47-5.725 GHz 15E DFS freqs. Please summarize device operating freqs and output powers, and revise user manual and other exhibits where appropriate. If device includes 5.47-5.725 GHz operations, please revise test report and SAR exhibits accordingly. Response: As documented on page 74 of user’s manual, 5.47 to 5.725GHz band is for EU model only and is not available for US model. Sincerely yours, __________________________________ Yi Wang EMC/Safety Engineering Section ZyXEL Communications Corporation

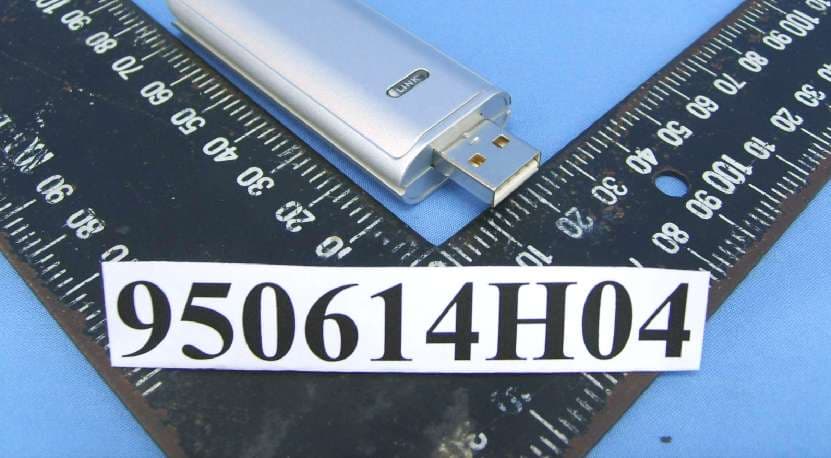

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID：I88AG220 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

SCALE DRW.DES.CKD.RECKD.APP. MODELSHEET D W G N O . A 1 1 Z-Com, Inc. NAME PART NO. UNITS GRADE ANGLE M.M. TOLERANCE AG-760A *Fcc Label ZyXEL AG-220 56-A12201-00N 11 1 ECO NO.REVISIONAPP.DES.DATE TOLERANCE GRADE ( ) GRADE ABC LENGTH 60.050.080.20 0.080.100.30 0.100.150.40 0.200.300.80 6618 1850 50180 ~ ~ ~ ~ 0.2 : 1.:50# 2.: 3.PANTONE425C 4. :39.01 X12.01MM 3R-1.0 +/-0.25MM 5. JAMIE 3/20/06 Z 0 2 A 0 2 2 39.01 1 2 . 0 1 2.45 2 . 2 9 V 0 . 1 39.01 1 2 . 0 1 2.45 2 . 2 9 Scale: 2/1

Page 2 Page 3

FCC ID: I88AG220 Report No. RF950614H04 Operational Description AG220 is an IEEE 802.11a/b/g compliant wireless USB adapter. AG220 plugs into USB port on computer and allows to access wireless network. Also turn AG220 into an access point (AP) using the ZyXEL utility. The AG220 have wireless station mode (infrastructure & Ad-Hoc) and Access Point mode. The AG220 runs from 5 volts, which is provided by the USB port, which interface support USB 2.0. About radio partial: Use an AL7230 radio chip that is transceiver circuit. When transmit that uses a synthesizer to generate the desired carrier from the 40MHz oscillator. Modulates this carrier using the input serial data and then amplifies it for transmission to the antenna via the filter. When receive the signal from the antenna is fed via the filter to a low noise amplifier and then to the receiver. The radio operates from 2412MHz to 2462MHz according to the IEEE 802.11b/g specification. The data rates supported are 1Mbps(DBPSK), 2Mbps(DQPSK), 5.5Mbps(CCK), and 11Mbps(CCK) for 11b and 6,9,12,18,24,36,48,54Mbps OFDM for 11g. The radio operates from 5150MHz to 5320MHz and 5725 to 5825MHz according to the IEEE 802.11a specification. The data rates supported are 6,9,12,18,24,36,48,54Mbps OFDM for 11a. The antenna is PCB Printe antenna without connector. FCC ID: I88AG220 Report No. RF950614H04 FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA950614H041Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950614H04 MODEL NO.: AG-220 RECEIVED: Jun. 14, 2006 TESTED: Jul. 13 ~ 14, 2006 ISSUED: Jul. 18, 2006 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Science Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 46 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: SA950614H042Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION.....................................................................................................3 2.GENERAL INFORMATION.....................................................................................4 2.1GENERAL DESCRIPTION OF EUT.......................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION...............9 3.DESCRIPTION OF SUPPORT UNITS..................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS...............................13 4.1.DESCRIPTION OF ANTENNA LOCATION...........................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION....................................................14 4.3.DESCRIPTION OF TEST MODE..........................................................................15 4.4.SUMMARY OF TEST RESULTS..........................................................................16 5.TEST RESULTS...................................................................................................17 5.1TEST PROCEDURES..........................................................................................17 5.2MEASURED SAR RESULTS................................................................................19 5.3SAR LIMITS..........................................................................................................25 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS..................................................26 5.5TEST EQUIPMENT FOR TISSUE PROPERTY....................................................31 6.SYSTEM VALIDATION.........................................................................................32 6.1TEST EQUIPMENT..............................................................................................32 6.2TEST PROCEDURE.............................................................................................33 6.3VALIDATION RESULTS.......................................................................................35 6.4SYSTEM VALIDATION UNCERTAINTIES (FOR 2.4GHz).....................................36 6.5SYSTEM VALIDATION UNCERTAINTIES (FOR 5.0GHz).....................................37 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.....................................38 7.1PROBE CALIBRATION UNCERTAINTY...............................................................38 7.2ISOTROPY UNCERTAINTY.................................................................................39 7.3BOUNDARY EFFECT UNCERTAINTY.................................................................39 7.4PROBE LINEARITY UNCERTAINTY....................................................................40 7.5READOUT ELECTRONICS UNCERTAINTY........................................................40 7.6RESPONSE TIME UNCERTAINTY.......................................................................40 7.7INTEGRATION TIME UNCERTAINTY..................................................................41 7.8PROBE POSITIONER MECHANICAL TOLERANCE............................................42 7.9PROBE POSITIONING.........................................................................................42 7.10PHANTOM UNCERTAINTY..................................................................................43 7.11DASY4 UNCERTAINTY BUDGET (For 2.4GHz)...................................................44 7.12DASY4 UNCERTAINTY BUDGET (For 5.0 ~ 6.0GHz)..........................................45 8.INFORMATION ON THE TESTING LABORATORIES..........................................46 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA950614H043Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: 802.11a/g Wireless USB Adapter MODEL: AG-220 BRAND: ZyXEL APPLICANT: ZyXEL Communications Corporation TESTED: Jul. 13 ~ 14, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE:Jul. 18, 2006 Rennie Wang TECHNICAL ACCEPTANCE :, DATE:Jul. 18, 2006 Responsible for RF Stanely Hsu APPROVED BY:, DATE:Jul. 18, 2006 Gary Chang / Supervisor Report No.: SA950614H044Report Format Version 2.0.3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT 802.11a/g Wireless USB A…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=151mm MSL 5000MHz D=150mm A - 2 Date/Time: 2006/7/13 15:11:21 Test Laboratory: Advance Data Technology D600-11b-CH1-Mode 1 DUT: 802.11a/g Wireless USB Adapter ; Type: AG220 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 51; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.13, 4.13, 4.13) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Low Channel 1/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.50 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.8 V/m Peak SAR (extrapolated) = 2.84 W/kg SAR(1 g) = 1.34 mW/g; SAR(10 g) = 0.669 mW/g Maximum value of SAR (measured) = 1.47 mW/g A - 3 Date/Time: 2006/7/13 15:27:37 Test Laboratory: Advance Data Technology D600-11b-CH6-Mode 1 DUT: 802.11a/g Wireless USB Adapter ; Type: AG220 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2.02 mho/m; ε r = 51; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.13, 4.13, 4.13) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Mid Channel 6/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.44 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.5 V/m Peak SAR (extrapolated) = 2.74 W/kg SAR(1 g) = 1.27 mW/g; SAR(10 g) = 0.630 mW/g Maximum value of SAR (measured) = 1.39 mW/g A - 4 Date/Time: 2006/7/13 15:42:33 Test Laboratory: Advance Data Technology D600-11b-CH11-Mode 1 DUT: 802.11a/g Wireless USB Adapter ; Type: AG220 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.05 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.13, 4.13, 4.13) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 High Channel 11/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.58 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.3 V/m Peak SAR (extrapolated) = 3.15 W/kg SAR(1 g) = 1.42 mW/g; SAR(10 g) = 0.699 mW/g Maximum value of SAR (measured) = 1.56 mW/g A - 5 A - 6 Date/Time: 2006/7/13 16:07:46 Test Laboratory: Advance Data Technology D600-11g-CH1-Mode 2 DUT: 802.11a/g Wireless USB Adapter ; Type: AG220 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 51; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.13, 4.13, 4.13) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44 ; Postprocessing SW: SEMCAD, V1.8 Build 171 Low Channel 1/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.49 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.6 V/m Peak SAR (extrapolated) = 2.55 W/kg SAR(1 g) = 1.25 mW/g; SAR(10 g) = 0.628 mW/g Maximum value of SAR (measured) = 1.37 mW/g A - 7 Date/Time: 2006/7/13 16:22:58 Test Laboratory: Advance Data Technology D600-11g-CH6-Mode 2 DUT: 802.11a/g Wireless USB Adapter ; Type: AG220 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2.02 mho/m; ε r = 51; ρ = 1000 kg/m 3 ; Liquid level : 151 mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.13, 4.13, 4.13) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Me…

Text truncated - open the document above for the full version.

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: DOSIMETRIC E-FIELD PROBE

D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report No.: RF950614H041Report Format Version 2.0.4 FCC TEST REPORT (15.247) REPORT NO.: RF950614H04 MODEL NO.: AG-220 RECEIVED: June 14, 2006 TESTED: June 17 to July 14, 2006 ISSUED: July 15, 2006 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Science Park, Hsinchu 300 TAIWAN ROC ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950614H042Report Format Version 2.0.4 Table of Contents 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 3.GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.......................................................................6 3.2DESCRIPTION OF TEST MODES.........................................................................7 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................10 3.4DESCRIPTION OF SUPPORT UNITS..................................................................11 3.5CONFIGURATION OF SYSTEM UNDER TEST...................................................12 4.TEST TYPES AND RESULTS..............................................................................13 4.1CONDUCTED EMISSION MEASUREMENT........................................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................13 4.1.2TEST INSTRUMENTS..........................................................................................13 4.1.3TEST PROCEDURES..........................................................................................14 4.1.4DEVIATION FROM TEST STANDARD.................................................................14 4.1.5TEST SETUP..................................................................................................15 4.1.6EUT OPERATING CONDITIONS.........................................................................15 4.1.7TEST RESULTS..................................................................................................16 4.2RADIATED EMISSION MEASUREMENT.............................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................18 4.2.2TEST INSTRUMENTS..........................................................................................19 4.2.3TEST PROCEDURES..........................................................................................20 4.2.4DEVIATION FROM TEST STANDARD.................................................................20 4.2.5TEST SETUP..................................................................................................21 4.2.6EUT OPERATING CONDITIONS.........................................................................21 4.2.7TEST RESULTS..................................................................................................22 4.36dB BANDWIDTH MEASUREMENT....................................................................37 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT.................................................37 4.3.2TEST INSTRUMENTS..........................................................................................37 4.3.3TEST PROCEDURE.............................................................................................38 4.3.4DEVIATION FROM TEST STANDARD.................................................................38 4.3.5TEST SETUP..................................................................................................38 Report No.: RF950614H043Report Format Version 2.0.4 4.3.6EUT OPERATING CONDITIONS.........................................................................38 4.3.7TEST RESULTS..................................................................................................39 4.4MAXIMUM PEAK OUTPUT POWER....................................................................43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................43 4.4.2INSTRUMENTS..................................................................................................43 4.4.3TEST PROCEDURES..........................................................................................44 4.4.4DEVIATION FROM TEST STANDARD.................................................................44 4.4.5TEST SETUP..................................................................................................44 4.4.6EUT OPERATING CONDITIONS.........................................................................44 4.4.7TEST RESULTS..................................................................................................45 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................46 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................46 4.5.2TEST INSTRUMENTS..........................................................................................46 4.5.3TEST PROCEDURE.............................................................................................47 4.5.4DEVIATION FROM TEST STANDARD.................................................................47 4.5.5TEST SETUP............................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF950614H041Report Format Version 2.0.4 FCC TEST REPORT (15.407) REPORT NO.: RF950614H04 MODEL NO.: AG…
