I88AG320802.11a/g Wireless PCI Adapter

ZyXEL AG-320 User’s Guide Copyright3 Copyright Copyright © 2006 by ZyXEL Communications Corporation. The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice. Trademarks ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners. ZyXEL AG-320 User’s Guide 4Certifications Certifications Federal Communications Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operations. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio/television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1Reorient or relocate the receiving antenna. 2Increase the separation between the equipment and the receiver. 3Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement • The 802.11a/b/g Wireless PCI Adapter has been tested to the FCC exposure requirements (Specific Absorption Rate). • The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2). End users must follow the specific operating instructions for satisfying RF exposure compliance. • This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. • For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. • To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. ZyXEL AG-320 User’s Guide Certifications5 注意 ! 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用 者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現 有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍 受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 在 5250MHz~5350MHz頻帶內操作之無線資訊傳輸設備，限於室內使用。 Notices Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This product has been designed for the WLAN 2.4 GHz and 5 GHz networks throughout the EC region and Switzerland, with restrictions in France. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Viewing Certifications 1Go to http://www.zyxel.com. 2Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3Select the certification you wish to view from this page. ZyXEL AG-320 User’s Guide 6ZyXEL Limited Warranty ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two (2) years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. Note Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser. To obtain the services of this warranty, contact ZyXEL's Service Center for your Return Material Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended that the unit be insured when shipped. Any returned products without proof of purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor. All repaired or r…

Text truncated - open the document above for the full version.

Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: ZyXEL Communications Corporation FCC ID: I88AG320 To whom it may concern, Permanent Confidentiality Request is hereby submitted by ZyXEL Communications Corporation to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: ZyXEL Communications Corporation has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, Yi Wang Section Manager EMC / Safety Engineering Section ZyXEL Communications Corporation

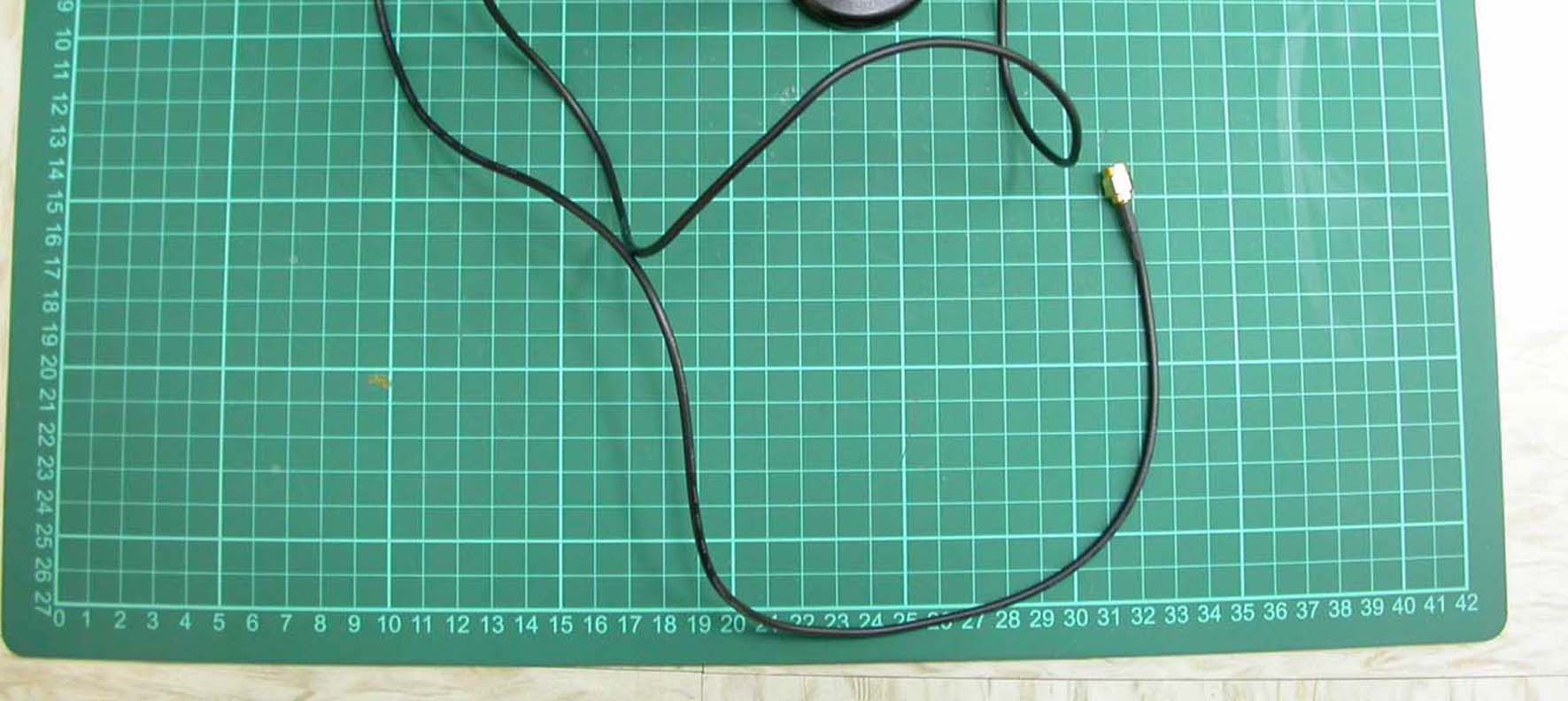

Photo 1: External photo of EUT AG-320 Photo 2: External photo of EUT AG-320 Photo 3: External photo of antenna Photo 4: External photo of antenna Photo 5: External photo of antenna Photo 6: External photo of antenna Photo 7: External photo of antenna Photo 8: External photo of antenna Photo 9: External photo of EUT

FCC ID Label Location 18.64mm 28.21mm

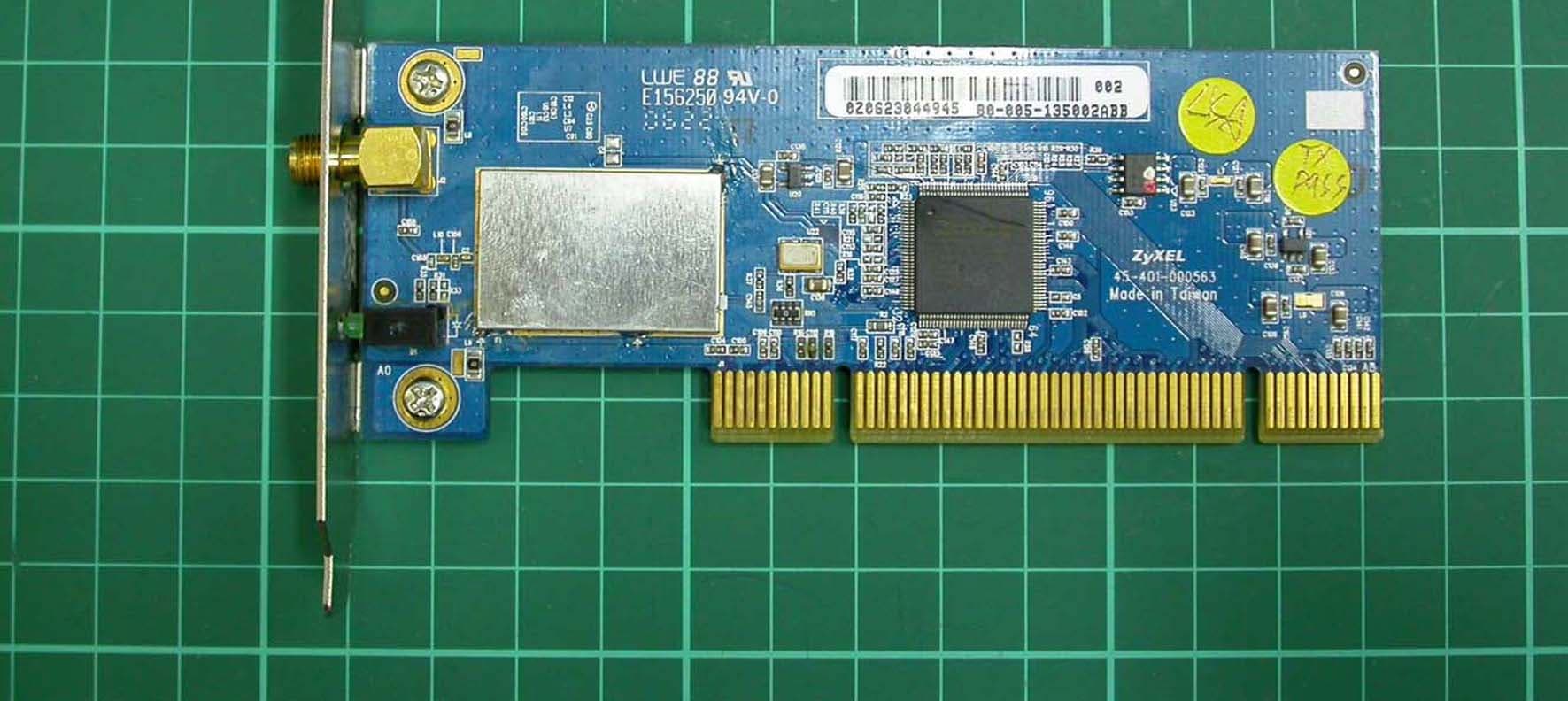

Photo 1: Internal photo of EUT AG-320 Photo 2: Internal photo of EUT AG-320

FCC ID. : I88AG320 Report No.: EME-060720 Page 1 of 6 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-060720 Model No. : AG-320 Issued Date : July. 3, 2006 Applicant : ZyXEL Communications Corporation 6, Innovation RD II, Science-Based Industrial Park, Hsin-Chu, Ta i w a n Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : I88AG320 Report No.: EME-060720 Page 2 of 6 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 5 FCC ID. : I88AG320 Report No.: EME-060720 Page 3 of 6 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 802.11a/g Wireless PCI Adapter -Model: AG-320 FCC ID: I88AG320 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Pass FCC ID. : I88AG320 Report No.: EME-060720 Page 4 of 6 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The EUT operates in the 2.4GHz ISM band. The EUT (antenna included) is compliant with modular approval and the normal operation distance (after installing in other device, such as router or access point), 20cm from the human body; therefore, the EUT is defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : I88AG320 Report No.: EME-060720 Page 5 of 6 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Mode: 802.11b(DSSS Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.58 86.90 0.02740 1.0 6 (middle) 2437 1.58 87.30 0.02752 1.0 11 (highest) 2462 1.58 77.45 0.02442 1.0 Test Mode: 802.11g(OFDM Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.58 178.24 0.05620 1.0 6 (middle) 2437 1.58 224.91 0.07075 1.0 11 (highest) 2462 1.58 152.05 0.04794 1.0 FCC ID. : I88AG320 Report No.: EME-060720 Page 6 of 6 Test Mode: 802.11a (OFDM Modulaiton) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 149 (lowest) 5745 2.00 41.2098 0.01635 1.0 157 (middle) 5785 2.00 40.0867 0.01591 1.0 161 (highest) 5805 2.00 32.2849 0.01281 1.0 Test Mode: 802.11a (OFDM Modulaiton) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 36 (lowest) 5180 2.00 46.4515 0.01843 1.0 40 (middle) 5200 2.00 34.9945 0.01389 1.0 48 (highest) 5240 2.00 44.8745 0.01781 1.0 Test Mode: 802.11a (OFDM Modulaiton) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 52 (lowest) 5260 2.00 43.1519 0.01713 1.0 60 (middle) 5300 2.00 57.1479 0.02268 1.0 64 (highest) 5320 2.00 36.1410 0.01434 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : I88AG320 Report No.: EME-060720 Page 1 of 117 EMC TEST REPORT Report No. : EME-060720 Model No. : AG-320 Issued Date : July 3, 2006 Applicant : ZyXEL Communications Corporation No. 6, Innovation Rd. II, Science-Based Industrial Park, Hsin-Chu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 117 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : I88AG320 Report No.: EME-060720 Page 2 of 117 Table of Contents Summary of Tests ..............................................................................................................5 1. General information ......................................................................................................6 1.1 Identification of the EUT ........................................................................................6 1.2 Additional information about the EUT....................................................................6 1.3 Antenna description.................................................................................................7 1.4 Peripherals equipment .............................................................................................7 2. Test specifications .........................................................................................................8 2.1 Test standard............................................................................................................8 2.2 Operation mode .......................................................................................................8 2.3 Test equipment ........................................................................................................9 3. Minimum 6dB Bandwidth test (FCC 15.247) .............................................................10 3.1 Operating environment..........................................................................................10 3.2 Test setup & procedure ..........................................................................................10 3.3 Measured data of Minimum 6dB Bandwidth test results ......................................10 4. Maximum Output Power test (FCC 15.247) ...............................................................17 4.1 Operating environment..........................................................................................17 4.2 Test setup & procedure ..........................................................................................17 4.3 Measured data of Maximum Output Power test results ........................................17 5. RF Antenna Conducted Spurious test..........................................................................18 5.1 Operating environment..........................................................................................18 5.2 Test setup & procedure ..........................................................................................18 5.3 Measured data of the highest RF Antenna Conducted Spurious test result ..........18 6. Radiated Emission test (FCC 15.247) .........................................................................37 6.1 Operating environment..........................................................................................37 6.2 Test setup & procedure ..........................................................................................37 6.3 Emission limits ......................................................................................................38 6.4 Radiated spurious emission test data.....................................................................39 6.4.1 Measurement results: frequencies equal to or less than 1 GHz..........................39 6.4.2 Measurement results: frequency above 1GHz ...................................................40 7. Power Spectrum Density test (FCC 15.247) ...............................................................46 7.1 Operating environment..........................................................................................46 7.2 Test setup & procedure ..........................................................................................46 FCC ID. : I88AG320 Report No.: EME-060720 Page 3 of 117 7.3 Measured data of Power Spectrum Density test results ........................................46 8. Emission on the band edge (FCC 15.247)...................................................................53 8.1 Operating environment..........................................................................................53 8.2 Test setup & procedure ..........................................................................................53 8.3 Test Result .............................................................................................................54 8.3.1 Conducted Method .............................................................................................54 8.3.2 Radiated Method ................................................................................................62 9. Peak Output Power test (FCC 15.407) ........................................................................63 9.1 Operating environment..........................................................................................63 9.2 Test setup & procedure ..........................................................................................63 9.3 Limit ......................................................................................................................63 9.4 Measured data of Maximum Output Power test results ........................................63 10. Power Spectrum Densit…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo AG-320 Photo 2: Conducted Emission Test Set-up photo AG-320 Photo 3: Conducted Emission Test Set-up photo AG-320

Photo 1: Radiated Emission Test set-up photo AG-320 Photo 2: Radiated Emission Test set-up photo AG-320 Photo 3: Radiated Emission Test set-up photo AG-320
