I88AMG1302Wireless N ADSL2+ 4-port Gateway

www.zyxel.com www.zyxel.com AMG1302-T10A Wireless N ADSL2+ 4-port Gateway IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Copyright © 2012 ZyXEL Communications Corporation Version 1.00 Edition 1, 2/2012 Default Login Details LAN IP Address https://192.168.1.1 Password1234 AMG1302-T10A User’s Guide2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Graphics in this book may differ slightly from the product due to differences in operating systems, operating system versions, or if you installed updated firmware/software for your device. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the Device and access the Web Configurator wizards. (See the wizard real time help for information on configuring each screen.) It also contains a connection diagram. Contents Overview AMG1302-T10A User’s Guide 3 Contents Overview User’s Guide ....................................................................................................................................... 13 Introduction .............................................................................................................................................15 The Web Configurator .............................................................................................................................21 Status Screens ........................................................................................................................................27 Tutorials ..................................................................................................................................................31 Technical Reference .......................................................................................................................... 53 Internet Setup Wizard ............................................................................................................................. 55 WAN Setup .............................................................................................................................................69 LAN Setup ...............................................................................................................................................85 Wireless LAN ..........................................................................................................................................97 Network Address Translation (NAT) ......................................................................................................127 Firewalls ................................................................................................................................................141 Filters ....................................................................................................................................................153 Static Route ...........................................................................................................................................159 Port Binding ...........................................................................................................................................163 PVID Setting ..........................................................................................................................................167 Quality of Service (QoS) .......................................................................................................................169 Dynamic DNS Setup .............................................................................................................................177 Remote Management ............................................................................................................................179 Universal Plug-and-Play (UPnP) ...........................................................................................................187 CWMP ...................................................................................................................................................199 System Settings ....................................................................................................................................203 Logs ......................................................................................................................................................207 Tools ......................................................................................................................................................217 Diagnostic .............................................................................................................................................223 Troubleshooting ....................................................................................................................................227 Contents Overview AMG1302-T10A User’s Guide 4 Table of Contents AMG1302-T10A User’s Guide 5 Table of Contents Contents Overview .............................................................................................................................. 3 Table of Contents ................................................................................................................................. 5 Part I: User’s Guide ......................................................................................... 13 Chapter 1 Introduction ......................................................................................................................................... 15 1.1 Overview ...........................................................................................................................................15 1.2 Ways to Manage the Device .............................................................................................................15 1.3 Good Habits for Managing the Device ........…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID：I88AMG1302 Date: Feb, 22, 2012 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Thomas Wei Title of authorized signer: Senior Manager Company Name: ZyXEL Communications Corporation Tel: +886-3-578-3942 Fax: +886-3-578-2439 E-mail: [email protected]

Date: Feb, 22, 2012 Federal Communications Commission Authorization and Evaluation Division FCC ID: I88AMG1302 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Thomas Wei Title of authorized signer: Senior Manager Company Name: ZyXEL Communications Corporation Tel: +886-3-578-3942 Fax: +886-3-578-2439 E-mail: [email protected]

Attestation for FCC Declaration of Conformity FCC ID: I88AMG1302 Date:Feb. 22, 2012 Please be notified that we, the undersigned, ZyXEL Communications Corporation declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1001057, with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Thomas Wei Title of authorized signer: Senior Manager Company Name: ZyXEL Communications Corporation Tel: +886-3-578-3942 Fax: +886-3-578-2439 E-mail: [email protected]

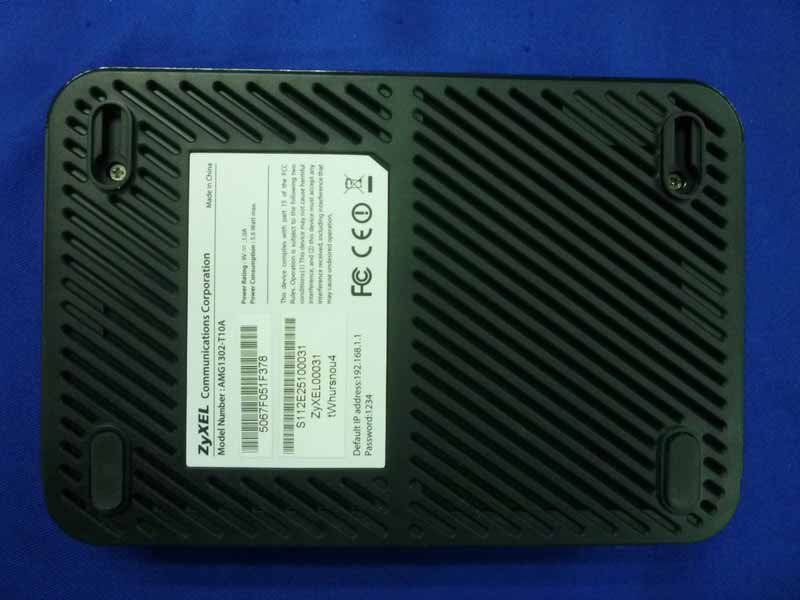

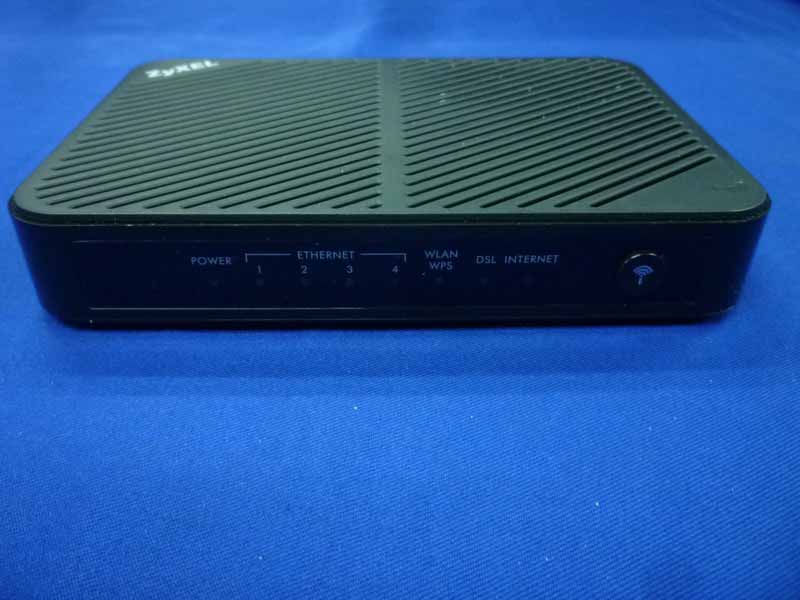

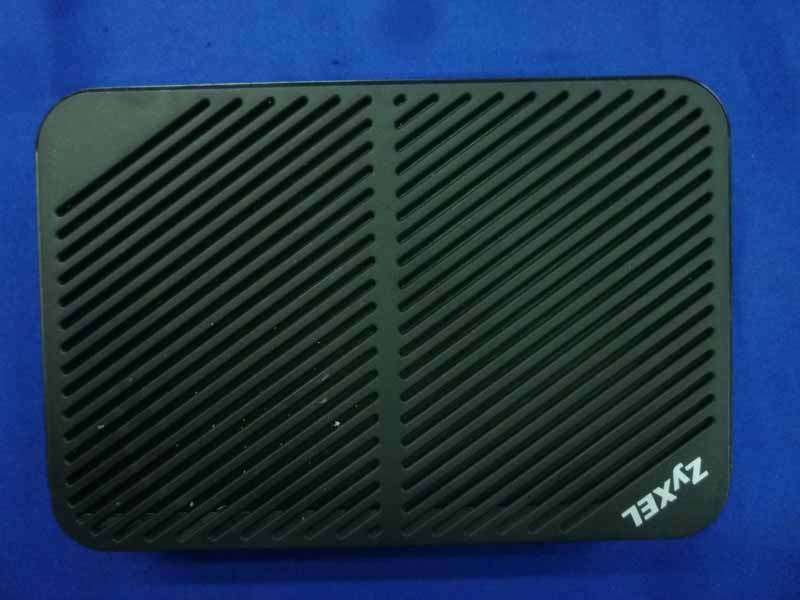

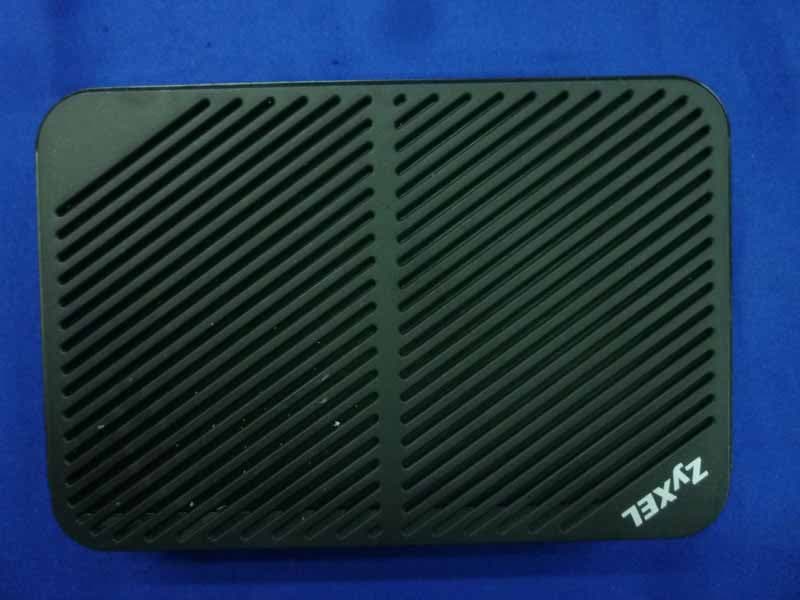

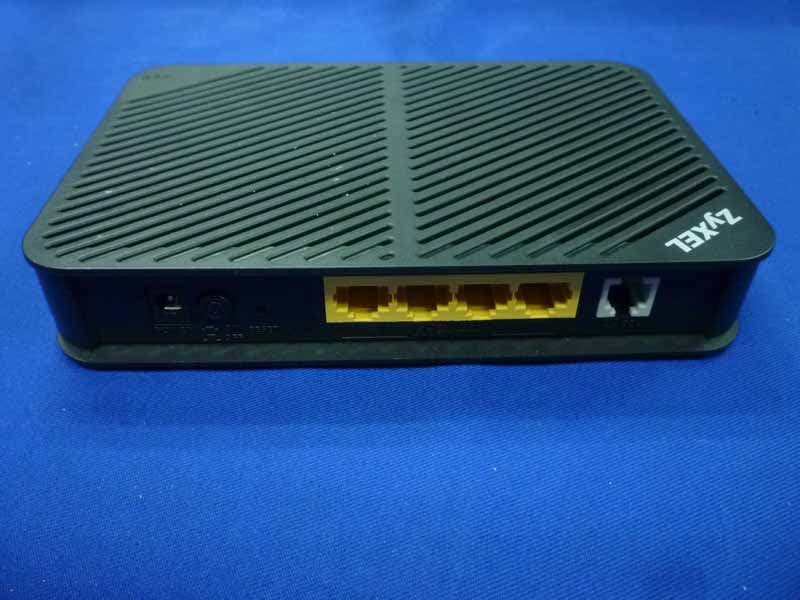

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 14-3 Figure 5 Inside of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 14-4 Figure 7 Components Side of the PCB Figure 8 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 14-5 Figure 9 Components Side of the PCB Figure 10 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 14-6 Figure 11 Power Adapter Figure 12 Power Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 14-7 Figure 13 Power Adapter #2

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: Wireless N ADSL2+ 4-port Gateway M/N: AMG1302-T10A Test date: 2011-12-10 Pressure: 100.6 kpa Humidity: 47% Tested by: Leo-Li Test site: RF Site Temperature：25°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 4 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 16.58 45.50 4 2.51 0.0227 CH6 2437 16.53 44.98 4 2.51 0.0225 CH11 2462 16.59 45.60 4 2.51 0.0228 11g CH1 2412 21.95 156.68 4 2.51 0.0783 CH6 2437 21.79 151.01 4 2.51 0.0755 CH11 2462 22.03 159.59 4 2.51 0.0798 11n HT20 CH1 2412 22.78 189.67 4 2.51 0.0948 CH6 2437 22.16 164.44 4 2.51 0.0822 CH11 2462 22.77 189.23 4 2.51 0.0946 11n HT40 CH1 2422 22.96 197.70 4 2.51 0.0988 CH4 2437 23.24 210.86 4 2.51 0.1054 CH7 2452 23.11 204.64 4 2.51 0.1023 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of ZyXEL Communications Corporation Wireless N ADSL2+ 4-port Gateway Model No.: AMG1302-T10A, Keenetic ADSL Keenetic ADSL EE FCC ID: I88AMG1302 Prepared for : ZyXEL Communications Corporation No.6, Innovation RD II, Science-Based Industrial Park, Hsin-Chu, Taiwan R.O.C Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F11282 Date of Test ： Dec.07~12, 2011 Date of Report ： Dec.13, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ................................................................................... 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block Diagram of Test Setup ............................................................................................... 2-3 2.5. Test Facility .......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ...................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ............................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88AMG1302 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11282 13-3 (Above 1000MHz)
