  1. Home/
  2. ZyXEL Communications Corporation/
  3. I88C1000Z

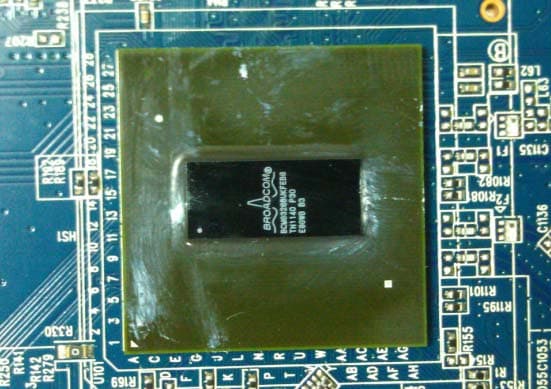

I88C1000Z802.11n Wireless VDSL 4-port Gateway

ZyXEL Communications Corporation
802.11n Wireless VDSL 4-port Gateway - FCC ID I88C1000Z - ZyXEL Communications Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 12, 2012
Application Purpose
Original Equipment
Date of Application
Jun 12, 2012
Equipment Note
802.11n Wireless VDSL 4-port Gateway
Frequency Range
2412.00000000 - 2462.00000000
Company
ZyXEL Communications Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 C1000Z 802.11n Wireless VDSL2+ 4-port Gateway Quick Start Guide Versi on 1.0 5/2012 Edition 1 C1000Z Quick Start Guide 2 Overview The C1000Z is a wireless VDSL router with a four-port buil t-in switch. This Quick Start Guide shows you how to use the C1000Z to connect to the Internet and how to configure the device settings to connect wirelessly. See your User’s Guide for background information on all features. Quick Login Information LAN IP address http://192.168.0.1 default administrator password Check back label Note: The device is designed to allow both vertical and wall mounted usage. C1000Z Quick Start Guide 3 If you want to mount this product onto the wall, please follow below step. Step 1: use screws (Dimension:4.0mm) fix bracket into the wall Step 2: put equipment mount on bracket C1000Z Quick Start Guide 4 Hardware Connections 1 DSL: Use the gray telephone wire to connect your C1000Z’s DSL port to a telephone jack (or to the modem port on a splitter if you are using one). 2 ETHERNET: Use the yellow Ethernet cable to connect a computer to an ETHERNET port for initial con figuration and/or Internet access. 3 POWER: Use the included power adaptor to connect an appropriate power source to the POWER socket. Make sure the power source is on. 4 Push in the POWER button. 5 Look at the lights on the front panel. • The POWER light blinks while your C1000Z starts up and stays on once it is ready. • Each ETHERNET light stays on if the corresponding ETHERNET port is properly connected and blinks when there is traffic. • The DSL light is on when the C1000Z has a DSL connection. • The INTERNET light is on when you are able to access the Internet and blinks when the C1000Z Is sending or receiving data. Wait a couple of minutes while your device checks the connection. If any of these lights are not on, check your connections and inspect your cables for dam age. If the lights are still off, contact your local C1000Z Quick Start Guide 5 vendor. 2 Internet Connection Setup: Automatic Use this section to have your C1000Z au tomatically detect and set up your Internet connec tion. 1 Open your web browser to a website. Wait while your C1000Z tries to detect your DSL connection to your ISP. This may take a few minutes. 2 After it detects the connection, the DSL light shows green on your device and the Internet light comes on when the Internet is ready for you to use. If you have a PPPoE connec tion, you will have to enter your user name and password. 3 Go to section 3 if you wish to configure your wireless se ttings. 4 If you do not see the connection test screen, or the connection test is not success ful , follow the instructions i n the screen below, or check your connections and restart the C1000Z. If you still cannot access the Internet, follow the steps in section 3. 3 Configuring your Wireless Settings To create a wireless network, the C1000Z and your wireless computer must all use the sam e SSID (network name), channel and security C1000Z Quick Start Guide 6 settings. If you do not set wireless security then anyone within range could use your C1000Z to access your network and the Internet. Choose W PA-PSK wireless security if your wireless device supports it as it is stronger than W EP. Otherwise choose W EP. 1 Select Active and click Next to continue. It i s s trongly recommended that Enable OTIST i s NOT selected. See section 7 for more information. 2 Configure your wireless settings i n the screen. Click Next. 3 If you select either WEP or WPA-PSK security (recommended), then follow the directions to enter the appropriate key. Click Next to continue and Apply to save your wireless LAN settings. 4 Check your configuration and write down your wireless LAN settings for later use. Click Finish to complete and save the wizard setup. 5 Your Internet i s ready for you to use. Open your browser and navigate to your favorite website. 4 Internet Connection Setup Using Advanced Settings Use this section to set up your Internet connection manually if you do not C1000Z Quick Start Guide 7 see the ISP Parameters for Internet Access screen when you run the wizard (see section 4, step 4). 1 Login again. (Follow steps 1 to 5 in section 3.) 2 Select Go to Advanced setup. Then, click Apply. 3 The Status screen appears. Click Network > WAN i n the navigation panel on the left of the screen. 4 E n t e r the in formation exactly as provided by your ISP. Click Apply. 5 If you still cannot access the Internet, see Troubleshooting and/or contact your Internet Service Provider (ISP) for assistance. Troubleshooting 1 If you cannot access the web configurator, • Your computer may be set to use a static IP address in a different subnet from the ZyXEL device. See the appendix in the User’s Guide for information on setting up your IP address. • If you are using Internet Explorer in Windows XP or Windows Server 2003, make sure you allow pop-up windows, JavaScripts and Java permissions or set the Internet security level lower than High in Internet Explorer (i n Internet Explorer, click Tools > Internet Options > Security > Custom Level...). See the appendix i n the User’s Guide for more C1000Z Quick Start Guide 8 information. 2 If you cannot access the Internet when your computer i s connected to the ETHERNET port, follow these steps. A) Check the lights on the front panel . If they are different from what i s described in section 1, make sure the C1000Z is correc tly connected. (See section 1.) If the lights are still different, turn off the device, wait a few seconds, and turn it on again. B) Check you have correctly entered the information your ISP gave you. For example, if your account has a user name and password, make sure you type i t correctly. In addition, if you are not sure which encapsula tion your ISP uses, contact your ISP. If your ISP did not give you Internet connec tion in formation, follow the steps in section 2. C) If you are using a new Internet account, contact your ISP to make sure it is active. D) If…

Text truncated - open the document above for the full version.

Attestation Statements

Attestation for FCC Declaration of Conformity FCC ID: I88C1000Z Date: Jun 11, 2012 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFD1205104. Testing in regards to this report was done by Cerpass technology Coporation, located at No.68-1, Shihbachongsi, Shihding Township, Taipei City 223, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ZyXEL Communications Corporation 2012/06/11 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZyXEL Communications Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Equipment: 802.11n Wireless VDSL 4-port Gateway Model No.: C1000Z; DSL-401GNU-B1B v2 FCC ID: I88C1000Z We affirm that between SIEMIC and ZyXEL Communications Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 ZyXEL Communications Corporation 2012/06/11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: I88C1000Z We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Operational Description - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

External Photos

CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 4 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 4 3) EUT Photo Adapter 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 4 5) EUT Photo 6) EUT Photo(power adapter) CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 4 7) EUT Photo

ID Label/Location Info

802.11n Wireless VDSL 4-port Gateway (Model name: C1000Z) FCC ID Position: FCC ID

Internal Photos

CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo Chain 1 Chain 0 CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 3) EUT Photo 4) EUT Photo(module)

RF Exposure Info

CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11n Wireless VDSL 4-port Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 19.94 dBm (98.63 mW) 802.11g: 19.63 dBm (91.83 mW) 802.11n (20MHz): Chain0:20.41dBm (109.90 mW) Chain1:19.64 dBm (92.04 mW) 802.11n (40MHz): Chain0:19.59 dBm (90.99 mW) Chain1:19.12 dBm (81.66 mW) Antenna gain (Max) Chain0:5.50 dBi (Numeric gain:3.548 ) Chain1:5.50dBi(Numeric gain: 3.548) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 20.41 dBm (109.90 mW) at 2412 MHz (withnumeric 3.548 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 19.94 5.50 20 0.070 1 802.11g 2412-2462 19.63 5.50 20 0.065 1 802.11n(20MHz)(Chain0) 2412-2462 20.41 5.50 20 0.078 1 802.11n(20MHz)(Chain1) 2412-2462 19.64 5.50 20 0.065 1 802.11 n(20MHz) (Chain0+Chain1) 2412-2462 / / 20 0.143 1 802.11n(40MHz)(Chain0) 2422-2452 19.59 5.50 20 0.064 1 802.11n(40MHz)(Chain1) 2422-2452 19.12 5.50 20 0.058 1 802.11 n(40MHz) (Chain0+Chain1) 2422-2452 / / 20 0.122 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

Test Report

CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued Date : June 6, 2012 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 138 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : ZyXEL Communications Corporation Address : NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan Equipment : 802.11n Wireless VDSL 4-port Gateway Model No. : C1000Z; DSL-401GNU-B1B v2 FCC ID : I88C1000Z ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued Date : June 6, 2012 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 138 Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 1.1. List of Measurements and Examinations ........................................................................................ 6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Carrier Frequency of Channels ....................................................................................................... 8 2.3. Test Manner ..................................................................................................................................... 9 2.4. Description of Test System ............................................................................................................ 10 2.5. General Information of Test ............................................................................................................11 2.6. Measurement Uncertainty ..............................................................................................................11 3. Antenna Requirements ............................................................................................................................. 12 3.1. Standard Applicable ....................................................................................................................... 12 3.2. Antenna Construction and Directional Gain .................................................................................. 12 4. Test of Conducted Emission.................................................................................................................... 13 4.1. Test Limit........................................................................................................................................ 13 4.2. Test Procedures............................................................................................................................. 13 4.3. Typical Test Setup.......................................................................................................................... 14 4.4. Measurement Equipment .............................................................................................................. 14 4.5. Test Result and Data ..................................................................................................................... 15 5. Test of Radiated Emission ....................................................................................................................... 17 5.1. Test Limit........................................................................................................................................ 17 5.2. Test Procedures............................................................................................................................. 17 5.3. Typical Test Setup.......................................................................................................................... 18 5.4. Measurement Equipment .............................................................................................................. 19 5.5. Test Result and Data ..................................................................................................................... 20 6. Occupied Bandwidth ................................................................................................................................ 33 6.1. Test Limit........................................................................................................................................ 33 6.2. Test Procedures............................................................................................................................. 33 6.3. Test Setup Layout .......................................................................................................................... 33 6.4. Measurement Equipment .............................................................................................................. 33 6.5. Test Result and Data ..................................................................................................................... 34 7. Maximum Peak Output Power ................................................................................................................. 52 7.1. Test Limit........................................................................................................................................ 52 7.2. Test Procedure .............................................................................................................................. 52 7.3. Test Setup Layout .......................................................................................................................... 52 7.4. Measurement Equipment .......................…

Text truncated - open the document above for the full version.

Test Setup Photos

CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1205104 Cerpass Technology Corp. Issued date : June 8, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G

Contact Information

Applicant

Emma Bao(Section Manager)
[email protected]886 3 578-3942Fax: 886 3 578-2439

Test Firm

Cerpass Technology (SuZhou) Co., Ltd.Miro Chueh
[email protected]86-0512-69175888Fax: 86-0512-36175666

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz109.90 mW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum peak conducted output power. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration and contains 20/40MHz bandwidth as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
