I88C1100ZVDSL2 4-port Gateway 802.11n with USB

www.zyxel.com C1100Z 802.11n Wi-Fi Router Version 1.00 Edition 1, 04/2015 Default Login Details LAN IP Addresshttp://192.168.0.1 User Nameadmin PasswordCheck the device label Copyright © 2015 ZyXEL Communications Corporation Quick Start Guide 2 Device Panels POWER DSL INTERNET ETHERNET USB SLOT POWER RESET DSL PORT USB ETHERNET 1-4 WI-FI 2.4G WAN/LAN WAN PORT PORTS 1-4 WPS BUTTON PHONE PORT 3 Overview The Device is a VDSL2 router and Ethernet gateway with a four-port built-in Ethernet switch and IEEE 802.11n wireless. The Device allows wired and wireless clients to safely access the Internet. The USB port allows you to connect a USB memory stick or USB hard drive for storing or sharing files through the network. Requirements Make sure you have the following things before you start. • Internet access - account information provided by your ISP, such as user name, password, and so on. • Internet Explorer 6.0 and later versions, with JavaScript enabled, or Mozilla Firefox 3 and later versions or Safari 2.0 and later versions. 44 Hardware Setup To connect your Device: 1. Use a telephone cable to connect your Device’s DSL port to a telephone jack (or the DSL or modem jack on a splitter if you have one). 2. ETHERNET: Use an Ethernet cable to connect a computer to a LAN port for initial configuration and/or Internet access. 1 2 3 4 5 3. USB: You can connect a USB memory stick or a USB hard drive for file sharing. The Device automatically detects the USB device. Alternatively, use a USB cable (not provided) to connect a USB printer to this port. 4. POWER: Use the provided power adaptor to connect the POWER socket to an appropriate power source. Make sure the power at the outlet is on. After connecting the power adaptor, look at the lights on the front panel. •The POWER light blinks while your Device starts up and then stays on once it is ready. •The DSL light is either amber or green (depending on your configuration method, see Internet Connection Setup) when your Device has a DSL connection. •The INTERNET light turns on when the gateway is able to access the Internet and will blink when your Device is sending or receiving data. •The WAN/LAN light is on if it is properly connected and blinks when there is traffic. • Each ETHERNET light is on if the corresponding LAN port is properly connected and blinks when there is traffic. •The USB light turns on when there is a USB printer or memory device is connected to the Device and blinks when transmitting data. •The Wi-Fi 2.4G light is green when the wireless LAN is ready and blinks when there is traffic. •The WPS light is green when WPS is enabled and blinks amber while WPS is in process. If the lights do not come on, check your connections and inspect your cables for damage. If the lights are still off, contact technical support. 66 Internet Connection Setup Your Device can automatically detect and configure your Internet connection once the hardware is connected properly. Automatic Connection 1. Open your web browser to a website. Wait while your Device tries to detect your DSL connection to your ISP. This may take a few minutes. 2. After it detects the connection, the DSL light shows amber on your Device and the INTERNET light comes on when the Internet is ready for you to use. If you have a PPPoE connection, you will have to enter the user name and password provided by your ISP. 3. Go to Set Up a Wireless Network if you wish to configure your wireless settings. 4. If the automatic connection is not successful, check your connections and restart the Device. Also, make sure you have entered the user name and password correctly. If you still cannot access the Internet, follow the steps in the next section to manually configure the Internet connection. Manual Connection You can also manually log into the Device’s Web Configurator and configure the Internet connection. 7 1. In your browser, if the Device does not automatically re-direct you to the login screen, go to http://192.168.0.1. 2. Enter the default user name admin and password (see the Device’s label). Click Apply. If the login screen does not open, make sure you allow web browser pop-up windows, JavaScripts and Java permissions. Your computer should be also set to get an IP address automatically from a DHCP server. 3. The main screen appears. Click Quick Setup to configure the Device’s Internet access. 88 4. Enter the user name and password provided by your ISP. Click Apply to finish the configuration. 5. The DSL light is green on your Device and the INTERNET light comes on when the Internet is ready for you to use. If you still cannot access the Internet, contact your ISP. Set Up a Wireless Network You can set up a wireless network using the following methods: Using Wireless Protected Setup (WPS) Press the WPS button on the Device’s front panel for more than 5 seconds to turn the WPS function on. 9 Follow these steps to add a WPS-enabled device to the wireless network using the WPS button. Set Up a Wireless Network Manually The wireless LAN on your Device is enabled by default. To add a wireless client to the network, use the settings found on the bottom panel of your Device. Configure wireless devices that you want to connect to the wireless network to use the same wireless settings as the Device. The default wireless settings vary for each Device. Refer to the label of your Device and use the provided information. Place the devices you want to connect near one another. Press the WPS button on the Device. Press the WPS button on a compatible device within 2 minutes of pressing the button on the Device. The WPS light on the Device blinks amber when connection is in progress and is solid green when connected. 1 2 3 1010 Wall Mounting The following are dimensions of a screw anchor and M3 tap screw used for wall mounting. All measurements are in millimeters (mm). 1. Locate a high position on a wall that is free of obstructions. Use a sturdy wall. 2. For a concrete or brick wall find a drill bi…

Text truncated - open the document above for the full version.

www.zyxel.com DoC Attestation Letter Date: March 30, 2015 We ZyXEL Communications Corporation, as the grantee of this project (FCC ID: I88C1100Z / Brand Name: ZyXEL / Model No.: C1100Z), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD531825, FCC designation number: TW1024). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name: ZyXEL Communications Corporation Applicant’s company address : No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Signature: Name and Job Title: Emma Bao / Section Manager E-Mail: [email protected] Tel.: 886 3 578-3942 # 88582

www.zyxel.com Confidential Letter Date: March 31, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: I88C1100Z To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. Schematics Block Diagram Operation Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days after the grant as outlined in Public Notice DA 04-1705. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely ___________________ Emma Bao Section Manager ZyXEL Communications Corporation

Date: March 31, 2015 Power of Attorney D e a r S i r, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address: No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name: Leo Huang Job T itle: Manager e-mail: [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: ZyXEL / C1100Z FCC ID: I88C1100Z Product name: 802.11n Wi-Fi Router FCC Grantee contact person information. Applicant’s company name : ZyXEL Communications Corporation Applicant’s company address : No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Signature: Name and Job Title: Emma Bao / Section Manager E-Mail: [email protected] Tel.: 886 3 578-3942 # 88582 www.zyxel.com

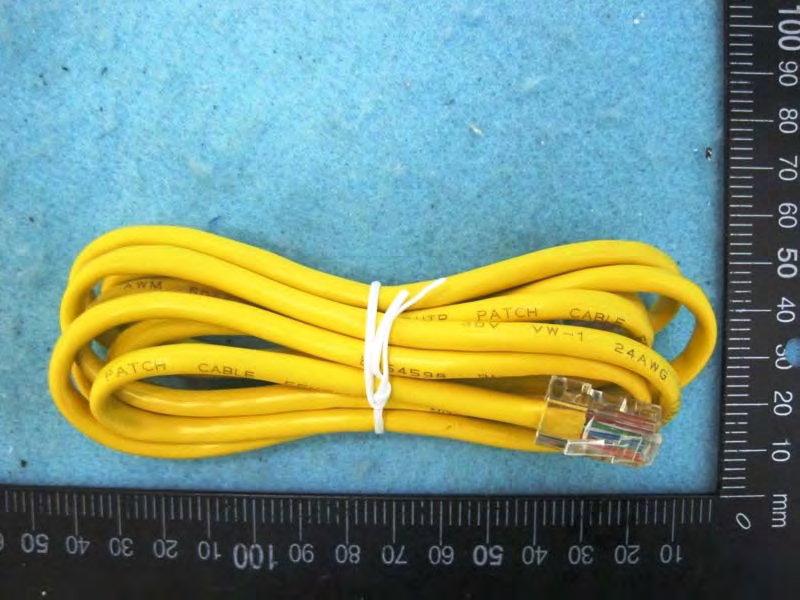

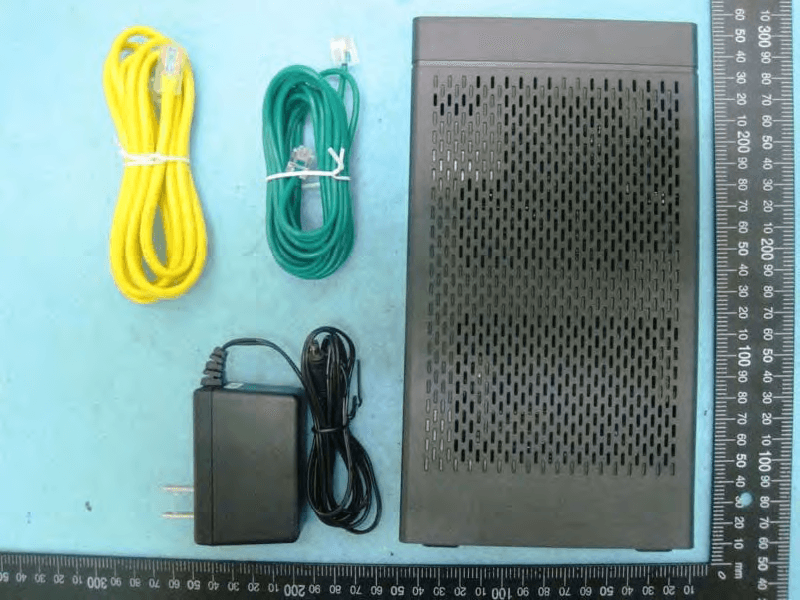

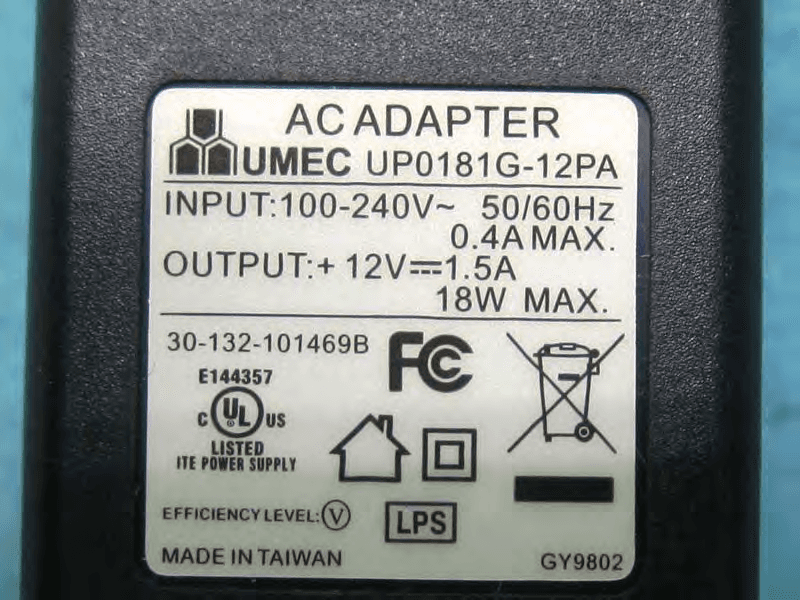

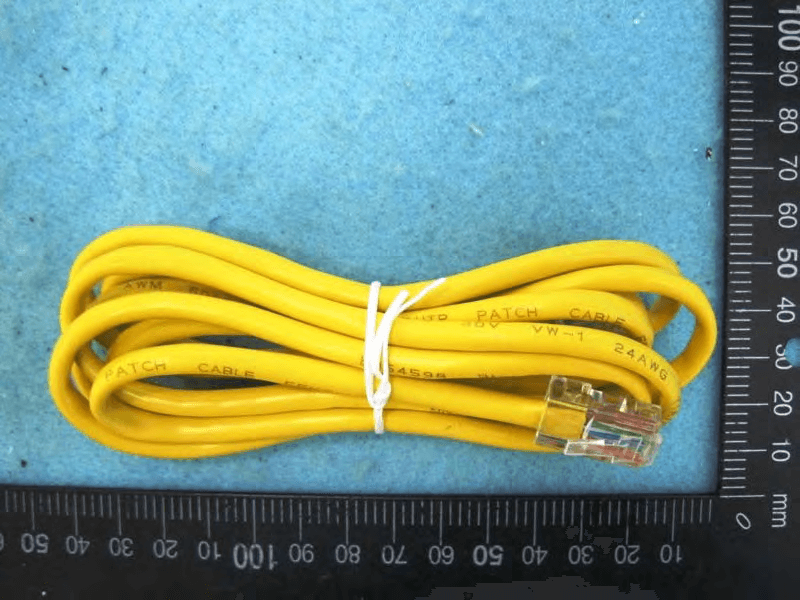

Report No.:531825 SPORTON International Inc. PAGE NUMBER : 1 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:531825 SPORTON International Inc. PAGE NUMBER : 2 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 3 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 4 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Adapter Model No.: UP0181G-12PA Report No.:531825 SPORTON International Inc. PAGE NUMBER : 5 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 6 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Ethernet Cable Report No.:531825 SPORTON International Inc. PAGE NUMBER : 7 OF 7 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 DSL Cable

FCC ID: I88C1100Z Label: Label Location: LABEL HERE

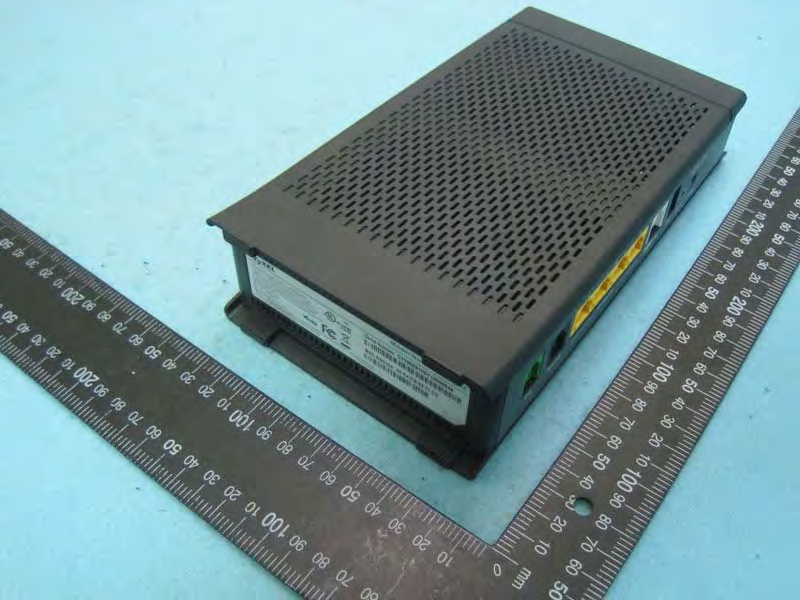

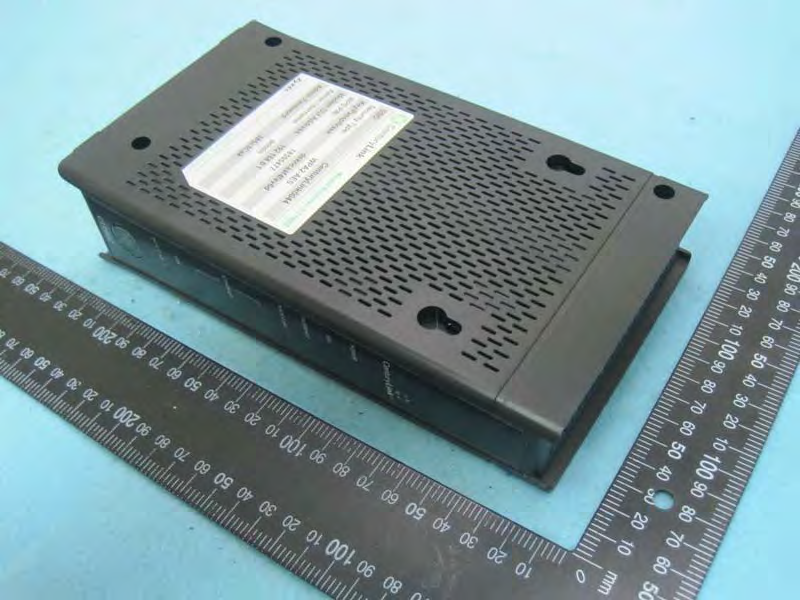

Report No.:531825 SPORTON International Inc. PAGE NUMBER : 1 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:531825 SPORTON International Inc. PAGE NUMBER : 2 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 3 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 4 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 5 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 6 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 7 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 8 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 9 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973 Report No.:531825 SPORTON International Inc. PAGE NUMBER : 10 OF 10 TEL : 886-3-327-3456 ISSUED DATE : Apr. 16, 2015 FAX : 886-3-327-0973

Report No.: FR531825 FCC ID: I88C1100Z Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR531825 FCC ID: I88C1100Z Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby that distance of at least 0.2 m is normally maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR531825 FCC ID: I88C1100Z Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11g: 29.82 dBm Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 3.70 2.3442 29.8200 959.4006 0.447662 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company ZyXEL Communications Corporation Applicant Address No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan FCC ID I88C1100Z Manufacturer’s company (1) MitraStar Technology Corporation Manufacturer Address No. 6, Innovation Rd II, Science-Based Industrial, Hsinchu, Taiwan Manufacturer’s company (2) WuXi MitraStar Technology Co. Ltd Manufacturer Address 60#-E, Minshan Road, New district WuXi, Jiangsu, P.R. China Product Name 802.11n Wi-Fi Router Brand Name ZyXEL Model No. C1100Z Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Mar. 13, 2015 Final Test Date Mar. 26, 2015 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r02 and KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR531825 Report Format Version: Rev. 01 Page No. : i of ii FCC ID: I88C1100Z Issued Date : Apr. 16, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. EUT Operation during Test ...................................................................................................................................................................7 3.10. Duty Cycle ..........................................................................................................................................................................................7 3.11. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................15 4.3. Power Spectral Density Measurement ..............................................................................................................................................17 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................22 4.5. Radiated Emissions Measurement ....................................................................................................................................................28 4.6. Emissions Measurement ....................................................................................................................................................................43 4.7. Antenna Requirements .....................................................................................................................................................................57 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 58 6. MEASUREMENT UNCERTAINTY................................…

Text truncated - open the document above for the full version.

Report No.: FR531825 FCC ID: I88C1100Z Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR531825 FCC ID: I88C1100Z Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR531825 FCC ID: I88C1100Z Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR531825 FCC ID: I88C1100Z Page No. : A4 of A5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR531825 FCC ID: I88C1100Z Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
