I88EMG1302R10AWireless N300 4-port USB Ethernet Gateway

Quick Start Guide www.zyxel.com EMG1302-R10A Wireless N300 4-port Ethernet Gateway Version V1.00 Edition 1, 1/2014 Copyright © 2013 ZyXEL Communications Corporation User’s Guide Default Login Details LAN IP Addresshttp://192.168.1.1 User Namesupervisor Passwordsupervisor User Nameadmin Password1234 EMG1302-R10A User’s Guide2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Note: This guide is a reference for a series of products. Therefore some features or options in this guide may not be available in your product. Graphics in this book may differ slightly from the product due to differences in operating systems, operating system versions, or if you installed updated firmware/software for your device. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the EMG1302-R10A and access the Web Configurator. It contains information on setting up your wireless network. EMG1302-R10A User’s Guide 3 EMG1302-R10A User’s Guide4 Contents Overview EMG1302-R10A User’s Guide 5 Contents Overview User’s Guide ........................................................................................................................... 13 Introduction ................................................................................................................................15 Introducing the Web Configurator ..............................................................................................19 Quick Start ..................................................................................................................................23 Monitor .......................................................................................................................................29 Router Mode ..............................................................................................................................35 Tutorials .....................................................................................................................................43 Technical Reference .............................................................................................................. 53 WAN ...........................................................................................................................................55 Wireless LAN .............................................................................................................................75 LAN ............................................................................................................................................93 DHCP Server .............................................................................................................................97 Quality of Service (QoS) ..........................................................................................................103 NAT ..........................................................................................................................................109 DDNS ....................................................................................................................................... 117 Routing ..................................................................................................................................... 119 Interface Group ........................................................................................................................123 Security ....................................................................................................................................125 Content Filtering .......................................................................................................................131 IPv6 Firewall .............................................................................................................................135 Remote Management ...............................................................................................................137 Universal Plug-and-Play (UPnP) ..............................................................................................145 Maintenance .............................................................................................................................153 Troubleshooting .......................................................................................................................161 Contents Overview EMG1302-R10A User’s Guide 6 Table of Contents EMG1302-R10A User’s Guide 7 Table of Contents Contents Overview .................................................................................................................. 5 Table of Contents ..................................................................................................................... 7 Part I: User’s Guide ................................................................................ 13 Chapter 1 Introduction ............................................................................................................................. 15 1.1 Overview ..............................................................................................................................15 1.2 Applications ..........................................................................................................................15 1.3 Ways to Manage the EMG1302-R10A .................................................................................15 1.4 Good Habits for Managing the EMG1302-R10A ..................................................................15 1.5 LEDs ....................................................................................................................................16 1.6 The WPS Button ..................................................................................................................17 1.7 Wall Mounting ......................…

Text truncated - open the document above for the full version.

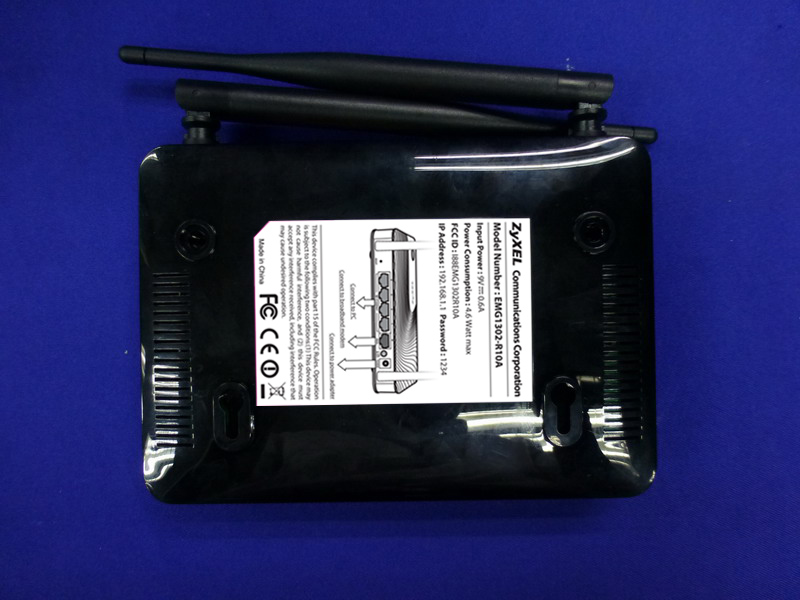

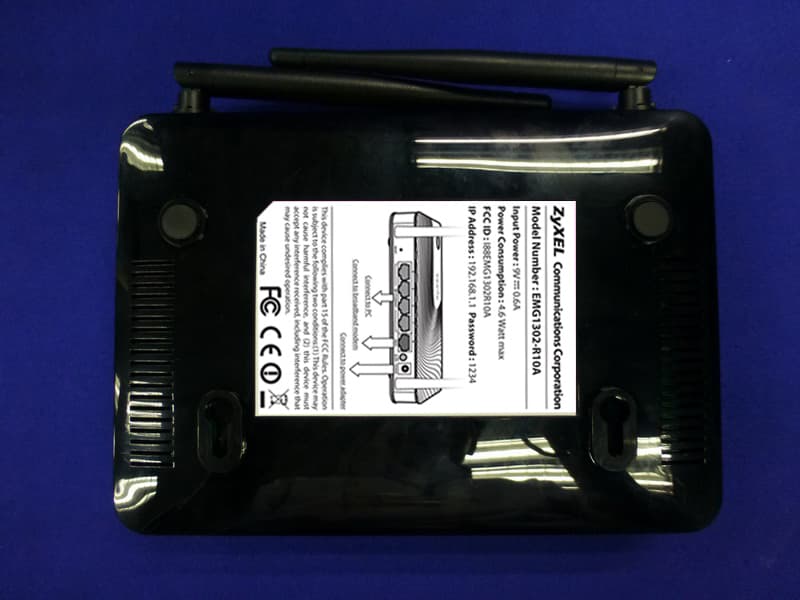

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-1 14. PHOTOS OF THE EUT (EMG1312-R10A: 3dBi) Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-8 (EMG1302-R10A: 3dBi) Figure 15 General Appearance of the EUT Figure 16 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-9 Figure 17 General Appearance of the EUT Figure 18 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-10 Figure 19 General Appearance of the EUT Figure 20 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-15 (EMG1312-R10A: 5dBi) Figure 29 General Appearance of the EUT Figure 30 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-16 Figure 31 General Appearance of the EUT Figure 32 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-21 Figure 41 Power Adapter #2 (EMG1302-R10A: 5dBi) Figure 42 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-22 Figure 43 General Appearance of the EUT Figure 44 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-23 Figure 45 General Appearance of the EUT Figure 46 General Appearance of the EUT

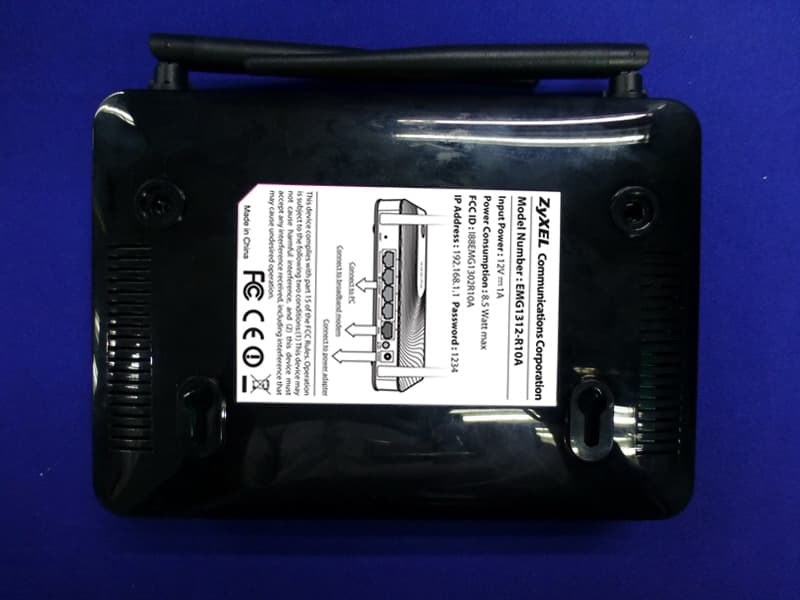

C B A 12 C 345678 B E D D A 9 料号： 12345 与上一版的区别 E 6789 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 完成日期 设 计 Model Number : EMG1312-R10A Input Power : 12V 1A Power Consumption : 8.5 Watt max FCC ID : I88EMG1302R10A IP Address : 192.168.1.1 Password : 1234 Connect to broadband modem Connect to power adapter Connect to PC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-4 Figure 7 Frontside of the PCB Figure 8 Backside of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-5 Figure 9 Power Adapter #1 Figure 10 Power Adapter #1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-6 Figure 11 Power Adapter #1 Figure 12 Power Adapter #2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-7 Figure 13 Power Adapter #2 Figure 14 Power Adapter #2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-11 Figure 21 Frontside of the PCB Figure 22 Backside of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-12 Figure 23 Power Adapter #1 Figure 24 Power Adapter #1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-13 Figure 25 Power Adapter #1 Figure 26 Power Adapter #2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-14 Figure 27 Power Adapter #2 Figure 28 Power Adapter #2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-17 Figure 33 General Appearance of the EUT Figure 34 Fontside of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-18 Figure 35 Backside of the PCB Figure 36 Power Adapter #1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-19 Figure 37 Power Adapter #1 Figure 38 Power Adapter #1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-20 Figure 39 Power Adapter #2 Figure 40 Power Adapter #2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-24 Figure 47 General Appearance of the EUT Figure 48 Frontside of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-25 Figure 49 Backside of the PCB Figure 50 Power Adapter #1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-26 Figure 51 Power Adapter #1 Figure 52 Power Adapter #1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 14-27 Figure 53 Power Adapter #2 Figure 54 Power Adapter #2

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 10-1 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz Estimation Result EUT: Wireless N300 4-port Ethernet Gateway with USB M/N: EMG1312-R10A Test date: 2013-12-29 Pressure: 101.1±1.0 kpa Humidity: 52.2±3.0% Tested by: Leo-Li Test site: RF site Temperature:21.6±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 5dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 20.21 104.95 5 3.16 0.0661 CH6 2437 19.54 89.95 5 3.16 0.0566 11b CH11 2462 18.71 74.30 5 3.16 0.0468 CH1 2412 25.38 345.14 5 3.16 0.2172 CH6 2437 27.12 515.23 5 3.16 0.3243 11g CH11 2462 25.15 327.34 5 3.16 0.2060 CH1 2412 25.51 355.63 5 3.16 0.2238 CH6 2437 24.71 295.80 5 3.16 0.1862 11n HT20 CH11 2462 25.10 323.59 5 3.16 0.2037 CH1 2422 26.15 412.10 5 3.16 0.2594 CH4 2437 25.38 345.14 5 3.16 0.2172 11n HT40 CH7 2452 25.40 346.74 5 3.16 0.2182

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of ZyXEL Communications Corporation Product (1)Wireless N300 4-port USB Ethernet Gateway (2) Wireless N300 4-port Ethernet Gateway Model Number EMG1312-R10A; Keenetic Omni EMG1302-R10A; Keenetic Lite II; WAP3205 v3 FCC ID: I88EMG1302R10A Prepared for : ZyXEL Communications Corporation No. 2, Gongye E. 9th Road Hsinchu Science Park, Hsinchu, Taiwan Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F14012 Date of Test ： Sep.27~Dec.29, 2013 Date of Report ： Feb.17, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-2 2.4. Block Diagram of Test Setup ...............................................................................................2-2 2.5. Test Facility ..........................................................................................................................2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-3 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-2 4.3. Radiated Emission Limit ......................................................................................................4-3 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-4 4.7. Radiated Emission Test Results ...........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-67 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-68 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-69 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-70 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-71 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-72 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-73 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-74 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-75 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-76 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-77 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 4-78 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-1 5. CONDUCTED SPURIOUS EMISSIONS 5.1. Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1. Spectrum AnalyzerAgilent E4446A US44300459 May.08, 13 1 Year 2. Attenuator Agilent 8491B MY39262165 May.08,13 1 Year 3. RF Cable Hubersuhner SUCOFLEX10228618/2 May.08,13 1 Year 5.2. Limit In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. 5.3. Test Procedure The transmitter output was connected to a spectrum analyzer, The resolution bandwidth is set to 100 kHz, The video bandwidth is set to 300 kHz and measure all the emissions detected. 5.4. Test result PASS (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-2 Conducted emission test data: ANT 0 Test Mode: IEEE 802.11b TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-4 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-5 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-7 Test Mode: IEEE 802.11g TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-8 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-9 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-11 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-13 Test Mode: IEEE 11nTH20 Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-15 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-16 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-18 Test Mode: IEEE 11nTH40 Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-20 Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-22 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 5-23 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88EMG1302R10A page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14012 13-3 (Above 1000MHz)
