I88EMG2926Q10ADual-Band Wireless AC/N Gigabit Ethernet Gateway

Quick Start Guide www.zyxel.com EMG2926-Q10A Dual-Band Wireless AC/N Gigabit Ethernet Gateway Version 1.00 Edition 1, 02/2014 Copyright © 2014 ZyXEL Communications Corporation User’s Guide Default Login Details LAN IP Addresshttp://192.168.0.1 (Router Mode) http://192.168.0.2 (Access Point Mode) User Nameadmin EMG2926-Q10A User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the EMG2926-Q10A. It contains information on setting up your network and configuring for Internet access. Contents Overview EMG2926-Q10A User’s Guide 3 Contents Overview User’s Guide ....................................................................................................................................... 11 Introduction .............................................................................................................................................12 Connection Wizard ..................................................................................................................................18 Introducing the Web Configurator ...........................................................................................................28 EMG2926-Q10A Modes ..........................................................................................................................31 Easy Mode ..............................................................................................................................................32 Router Mode ...........................................................................................................................................43 Access Point Mode .................................................................................................................................50 Tutorials ..................................................................................................................................................57 Technical Reference .......................................................................................................................... 69 Monitor ....................................................................................................................................................70 WAN ........................................................................................................................................................75 Wireless LAN ..........................................................................................................................................86 LAN .......................................................................................................................................................109 DHCP Server ........................................................................................................................................ 113 NAT ....................................................................................................................................................... 118 DDNS ....................................................................................................................................................129 Static Route ...........................................................................................................................................131 Firewall ..................................................................................................................................................134 Content Filtering ....................................................................................................................................139 Parental Control ....................................................................................................................................142 IPv6 Firewall ..........................................................................................................................................146 StreamBoost Management ...................................................................................................................149 Remote Management ............................................................................................................................154 Universal Plug-and-Play (UPnP) ...........................................................................................................161 USB Media Sharing ...............................................................................................................................167 Port Configuration .................................................................................................................................177 Maintenance ..........................................................................................................................................179 Troubleshooting ....................................................................................................................................190 Table of Contents EMG2926-Q10A User’s Guide 4 Table of Contents Contents Overview .............................................................................................................................. 3 Table of Contents ................................................................................................................................. 4 Part I: User’s Guide ......................................................................................... 11 Chapter 1 Introduction ......................................................................................................................................... 12 1.1 Overview ..........…

Text truncated - open the document above for the full version.

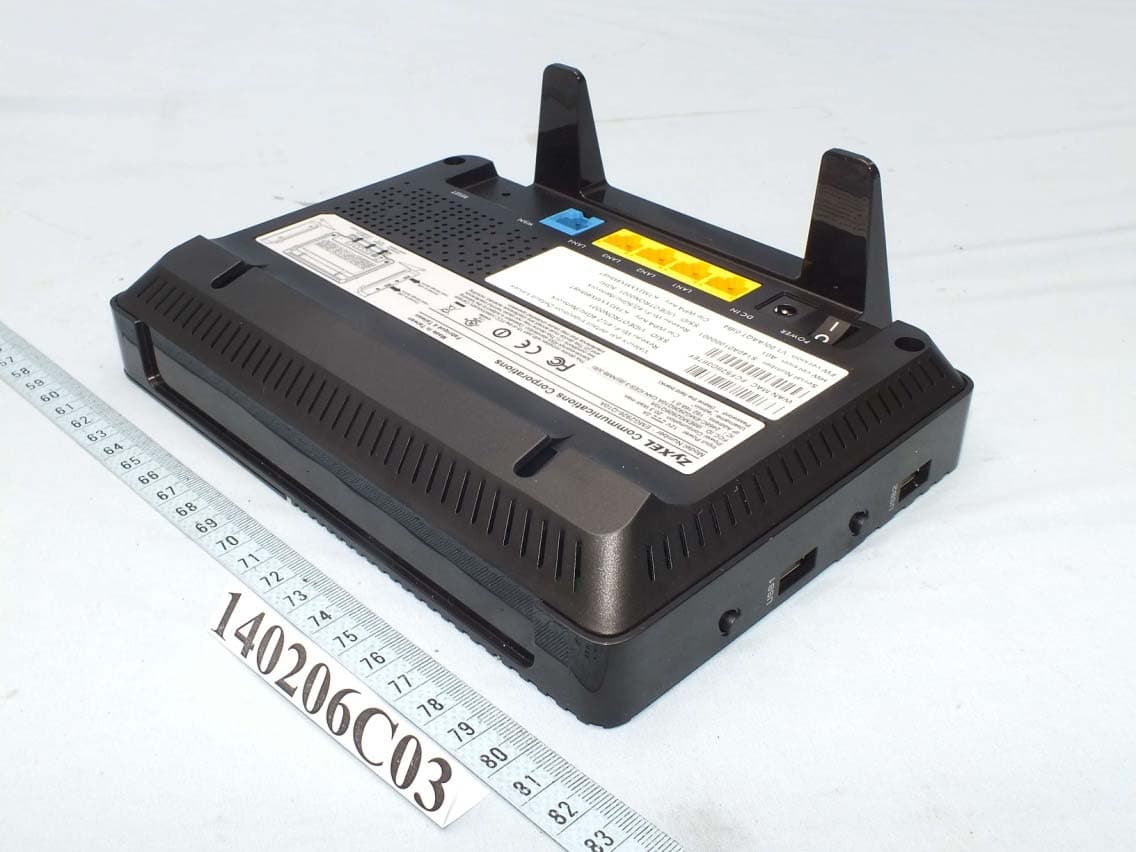

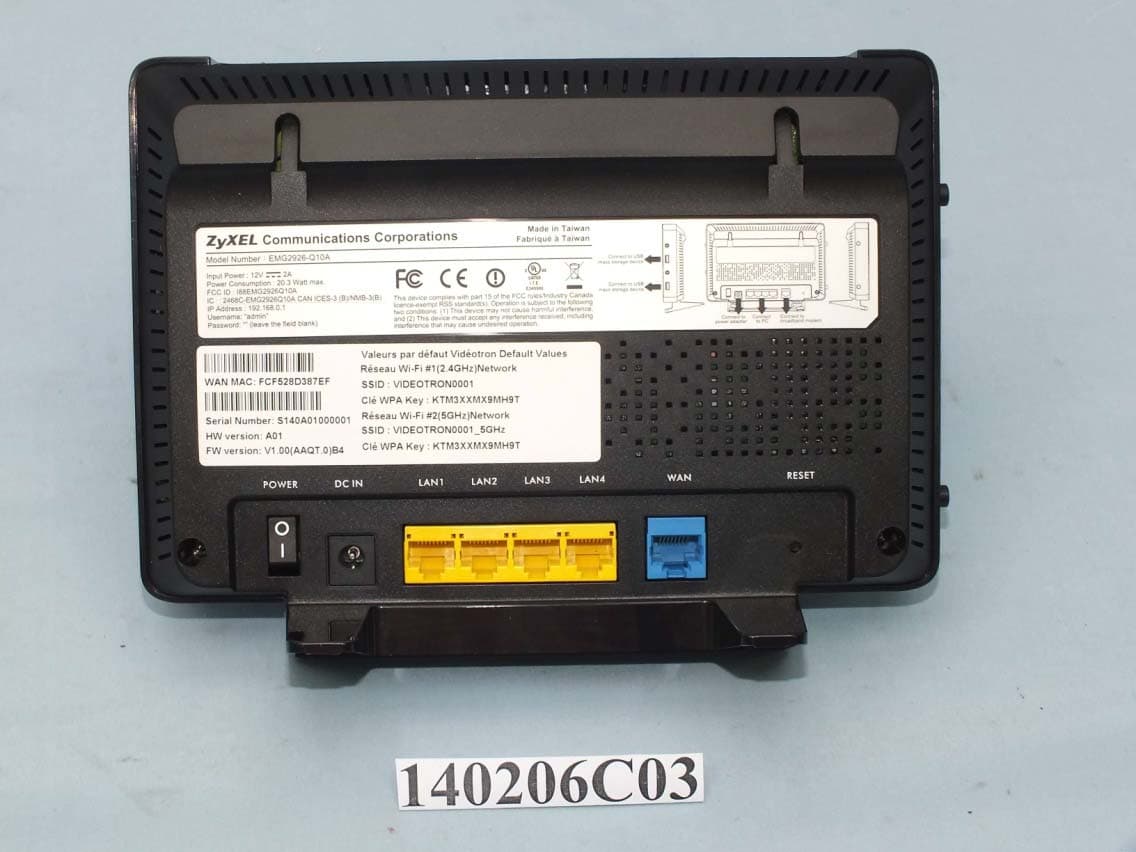

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

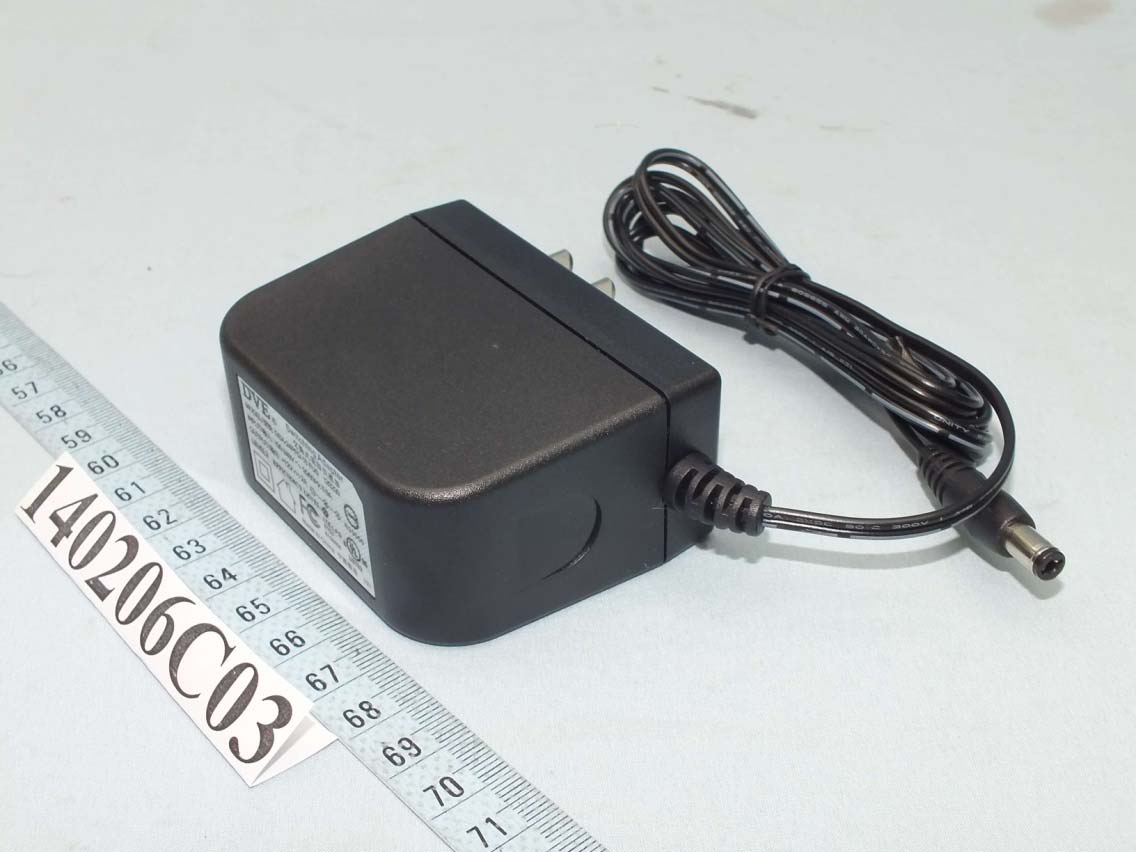

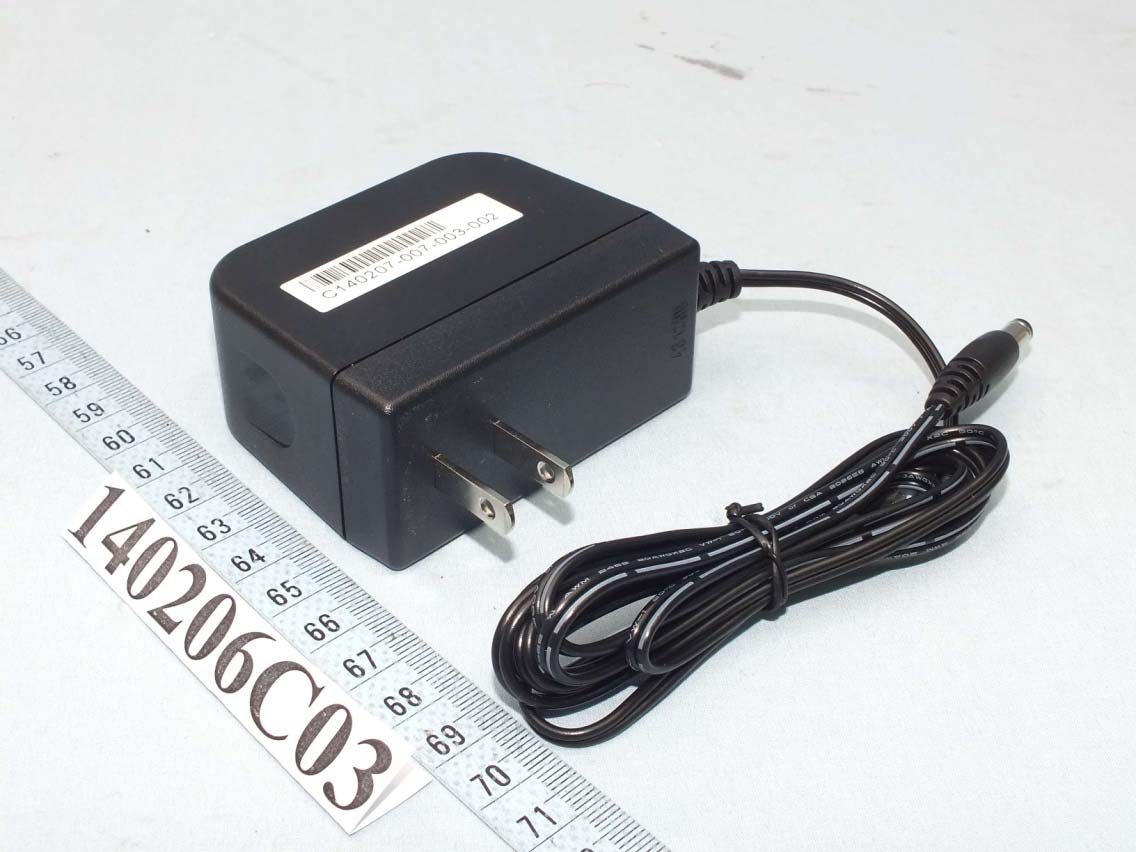

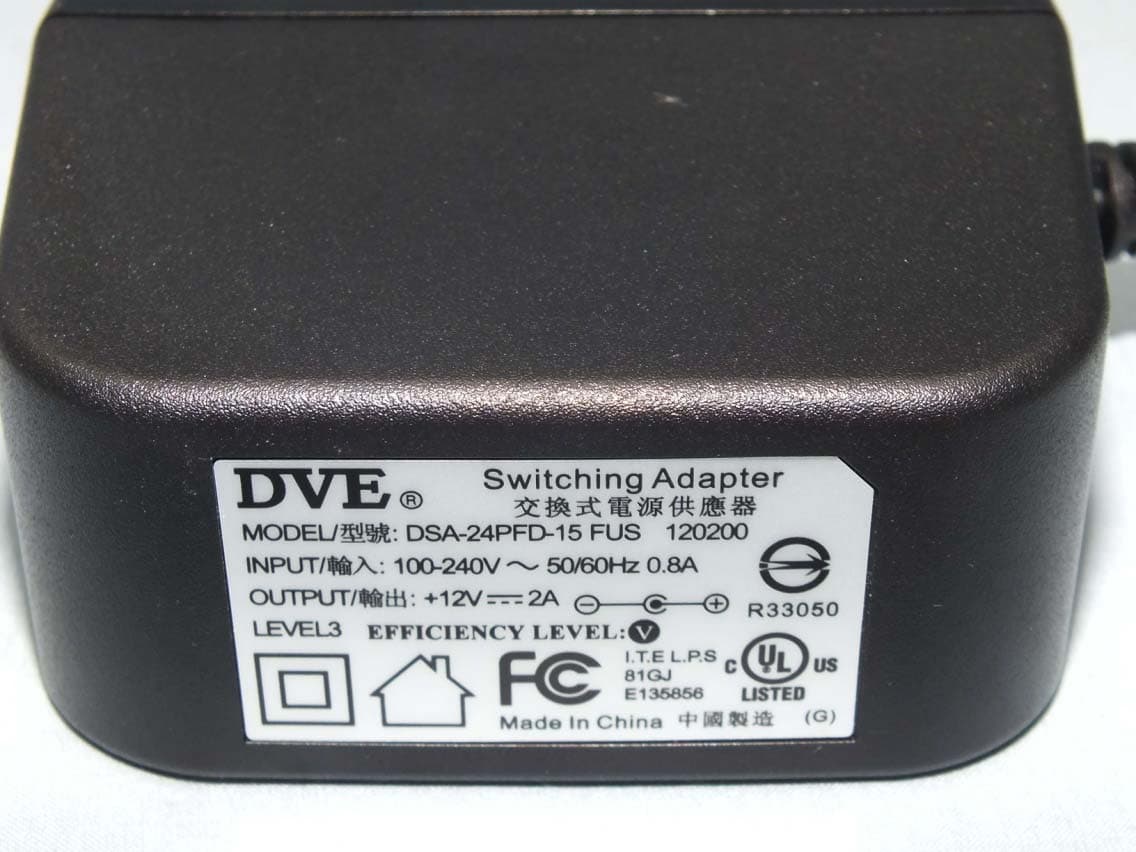

FCC ID: I88EMG2926Q10A Report No.: RF140206C03 Operational Description This device is a Dual-Band Wirless AC/N Gigabit Ethernet Gateway, which operates in both of 2.4GHz and 5GHz bands; the maximum data rate could be up to 1300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 1300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc from AC adapter. The antenna is PCB antenna with IPEX antenna connector. The other instruction, please have a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA130511C01B 1 of 6 Report Format Version 5.0.0 Reference No.: 130511C01, 140206C03 RF EXPOSURE REPORT REPORT NO.: SA130511C01B MODEL NO.: EMG2926-Q10A FCC ID: I88EMG2926Q10A RECEIVED: May 09, 2013 TESTED: May 23, 2013 ~ Jun. 21, 2013 ISSUED: Feb. 14, 2014 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Hsinchu Science Park No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. Report No.: SA130511C01B 2 of 6 Report Format Version 5.0.0 Reference No.: 130511C01, 140206C03 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 3 1. CERTIFICATION .......................................................................................................... 4 2. RF EXPOSURE ........................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..................................... 5 2.2 MPE CALCULATION FORMULA................................................................................. 5 2.3 CLASSIFICATION ....................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .............................. 6 Report No.: SA130511C01B 3 of 6 Report Format Version 5.0.0 Reference No.: 130511C01, 140206C03 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130511C01B Original release Feb. 14, 2014 Report No.: SA130511C01B 4 of 6 Report Format Version 5.0.0 Reference No.: 130511C01, 140206C03 1. CERTIFICATION PRODUCT:Dual-Band Wirless AC/N Gigabit Ethernet Gateway MODEL NO.:EMG2926-Q10A BRAND: ZyXEL APPLICANT:ZyXEL Communications Corporation TESTED:May 23, 2013 ~ Jun. 21, 2013 TEST SAMPLE:ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: EMG2926-Q10A) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Feb. 14, 2014 Ivy Lin / Specialist APPROVED BY: , DATE :Feb. 14, 2014 Ken Liu / Senior Manager Report No.: SA130511C01B 5 of 6 Report Format Version 5.0.0 Reference No.: 130511C01, 140206C03 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 23cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130511C01B 6 of 6 Report Format Version 5.0.0 Reference No.: 130511C01, 140206C03 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 29.19 6.77 23 0.593 1 5180-5240 16.93 6.77 23 0.035 1 5745-5825 27.00 6.77 23 0.358 1 NOTE: Directional gain = 2dBi + 10log(3) = 6.77dBi CONCULSION: Both of the WLAN 2.4G & WLAN 5G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN 2.4G + WLAN 5.0G = 0.593 + 0.358 = 0.951 Therefore, the maximum calculation of this situation is 0.951, which is less than the “1” limit. ---END---

Report No.: RF130511C01B 1 of 108 Report Format Version 5.2.0 Reference No.: 130511C01, 140206C03 FCC TEST REPORT (15.247) REPORT NO.: RF130511C01B MODEL NO.: EMG2926-Q10A FCC ID: I88EMG2926Q10A RECEIVED: May 09, 2013 TESTED: May 23, 2013 ~ Feb. 08, 2014 ISSUED: Feb. 14, 2014 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Hsinchu Science Park No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF130511C01B 2 of 108 Report Format Version 5.2.0 Reference No.: 130511C01, 140206C03 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 5 1. CERTIFICATION .......................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 15 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 17 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 18 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 19 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................ 20 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 20 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 20 4.1.2 TEST INSTRUMENTS ............................................................................................... 21 4.1.3 TEST PROCEDURES ............................................................................................... 23 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 23 4.1.5 TEST SETUP ............................................................................................................. 24 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 24 4.1.7 TEST RESULTS ........................................................................................................ 25 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 38 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 38 4.2.2 TEST INSTRUMENTS ............................................................................................... 38 4.2.3 TEST PROCEDURES ............................................................................................... 39 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 39 4.2.5 TEST SETUP ............................................................................................................. 39 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 39 4.2.7 TEST RESULTS ........................................................................................................ 40 4.3 6DB BANDWIDTH MEASUREMENT ........................................................................ 42 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ..................................................... 42 4.3.2 TEST SETUP ............................................................................................................. 42 4.3.3 TEST INSTRUMENTS ............................................................................................... 42 4.3.4 TEST PROCEDURE .................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF130511C01B-1 1 of 57 Report Format Version 5.2.0 Reference No.: 130511C01, 140206C03 FCC TEST REPORT (15.407) REPORT NO.: RF130511C01B-1 MODEL NO.: EMG2926-Q10A FCC ID: I88EMG2926Q10A RECEIVED: May 09, 2013 TESTED: May 24, 2013 ~ Feb. 13, 2014 ISSUED: Feb. 14, 2014 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Hsinchu Science Park No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF130511C01B-1 2 of 57 Report Format Version 5.2.0 Reference No.: 130511C01, 140206C03 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 4 1. CERTIFICATION .......................................................................................................... 5 2. SUMMARY OF TEST RESULTS ................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 6 3. GENERAL INFORMATION .......................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 7 3.2 DESCRIPTION OF TEST MODES .............................................................................. 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 10 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 12 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 17 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 18 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 19 4. TEST TYPES AND RESULTS ................................................................................... 20 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 20 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 20 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ............. 20 4.1.3 TEST INSTRUMENTS ............................................................................................... 21 4.1.4 TEST PROCEDURES ............................................................................................... 23 4.1.5 DEVIATION FROM TEST STANDARD...................................................................... 23 4.1.6 TEST SETUP ............................................................................................................. 24 4.1.7 EUT OPERATING CONDITION ................................................................................. 24 4.1.8 TEST RESULTS ........................................................................................................ 25 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 35 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 35 4.2.2 TEST INSTRUMENTS ............................................................................................... 35 4.2.3 TEST PROCEDURES ............................................................................................... 36 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 36 4.2.5 TEST SETUP ............................................................................................................. 36 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 36 4.2.7 TEST RESULTS ........................................................................................................ 37 4.3 PEAK TRANSMIT POWER MEASUREMENT .......................................................... 39 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT ........................................ 39 4.3.2 TEST SETUP ............................................................................................................. 39 4.3.3 TEST INSTRUMENTS ............................................................................................... 40 4.3.4 TEST PRO…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
