54M Wireless LAN Module G-620 User’s Manual Rev 0.1 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their 3 end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: I88G620”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. For all the model ship to USA market, OEM integrator shall limit the accessible channel to US channel 1 -11 only during the manufacturing process by special firmware setting which is not available to the end user. 4 About this manual This User’s Manual describes how to install and operate your 54M Wireless LAN Module. Please read this manual before you install the product. This manual includes the following topics: ¾ Product description and features. ¾ Software installation procedure. 5 Table of Contents About this manual............................................................ 4 Chapter 1 - Introduction................................................... 6 Features.............................................................................................. 6 What is Wireless LAN?........................................................................ 7 Wireless LAN Modes........................................................................... 7 Notes on Wireless LAN Configuration................................................. 8 Chapter 2 – Driver Installation for Windows.................... 9 Driver installation for Windows 98....................................................... 9 Driver installation for Windows 2000................................................. 12 Driver installation for Windows ME.................................................... 15 Driver installation for Windows XP.................................................... 17 6 Chapter 1 - Introduction Thank you for purchasing the 54M Wireless LAN Module. This high-speed Wireless LAN Module provides you with an innovative wireless networking solution. The Adapter is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! The Module is a network Module with a rate of 1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48 and 54 Mbps operating in the ISM band using Direct Sequence Spread Spectrum (DSSS)…

Text truncated - open the document above for the full version.

FCC ID: I88G-620 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __ Yi Wang Section Manager EMC/Safety Engineering Section

Letter of Agency To whom it may concern, I, an officer of ZyXEL Communications Corporation, hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of the equipment, ZyXEL G-620, required in the FCC Part 15C approval until further notice. Sincerely yours, Yi Wang Section Manager EMC/Safety Engineering Section

FCC ID: I88G-620 Report No. RF940823H02B Mobile Modular Approval Request Letter Advance Data Technology May 17, 2006 Dear Application Examiner, ZyXEL Communications Corporation’s 802. 11g wireless MiniPCI card, FCC ID: I88G-620, would like to have your authorization as a mobile modular approval specific to the Notebook Computer Access Point...etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AL2230S. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.8VDC powered. The MiniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AME8801CEEV. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: I88G-620 Report No. RF940823H02B 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

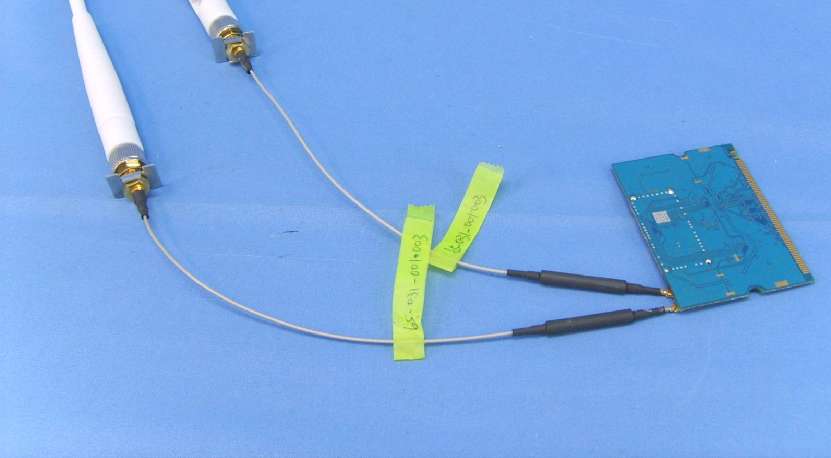

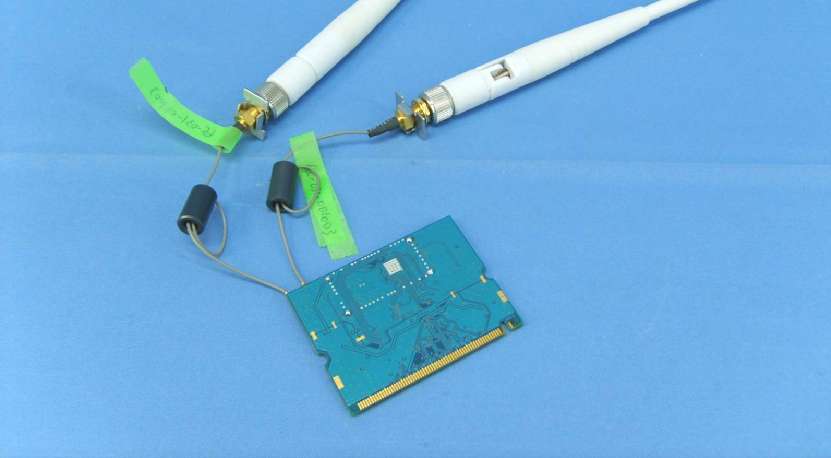

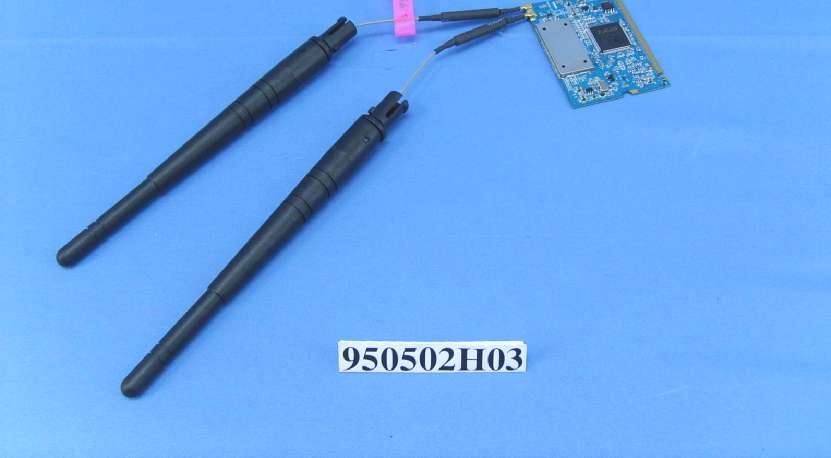

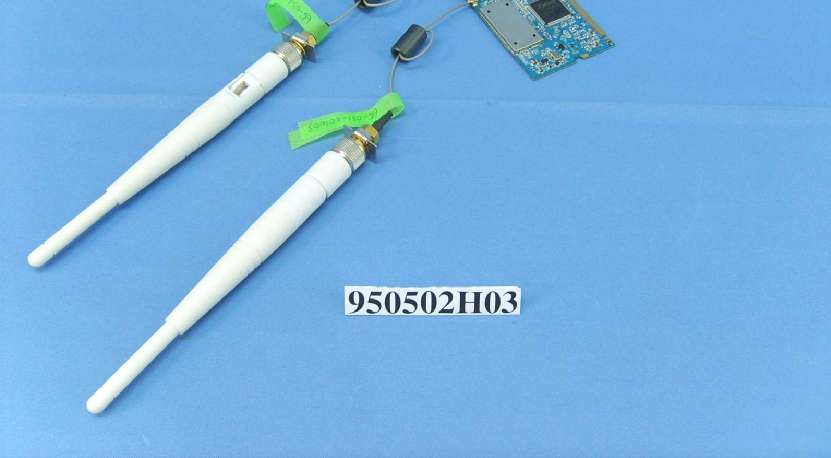

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Antenna 1 Page 2 EUT with Antenna 2 Page 3 EUT with Antenna 3 Page 4

(Fig.1) FCC ID: I88G-620 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 5 Page 6 Page 7 Page 8 Antenna 1 Page 9 Antenna 2 Page 10 Antenna 3 Page 11

FCC ID: I88G-620 Report No. RF940823H02B Operational Description This device is an 802. 11g wireless MiniPCI card, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802. 11g wireless MiniPCI card) is powered by host equipment. The antennas are as following: No.Antenna TypeConnectorGain (dBi)Remark 1DipoleUFLR(10)2.95 Black with short cable. 2DipoleUFLR(10)2.95 Black with long cable. 2DipoleUFLR(10)2 White. The other instruction, please have a look at the users manual.

Report No.: SA940823H02B Reference No.: 950502H03 1 RF EXPOSURE REPORT REPORT NO.: SA940823H02B MODEL NO.: ZyXEL G-620 FCC ID: I88G-620 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Science Park, Hsinchu 300 TAIWAN ROC ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA940823H02B Reference No.: 950502H03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA940823H02B Reference No.: 950502H03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA940823H02B Reference No.: 950502H03 4 6. Test Results 6.1 Antenna Gain There are three antennas provided to this EUT, please refer to the following table: No.Antenna TypeConnectorGain (dBi)Remark 1DipoleUFLR(10)2.95 Black with short cable. 2DipoleUFLR(10)2.95 Black with long cable. 2DipoleUFLR(10)2 White. From the above antennas, the antenna 1 was selected as representative antennas. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241266.0690.0261.0 6243767.6080.0271.0 11246269.1830.0271.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241272.4440.0281.0 62437112.2020.0441.0 11246270.7950.0281.0

Report No.: RF940823H02B1Report Format Version 2.0.4 Reference No.: 950502H03 FCC TEST REPORT REPORT NO.: RF940823H02B MODEL NO.: ZyXEL G-620 RECEIVED: May 02, 2006 TESTED: May 02 to 10, 2006 ISSUED: May 12, 2006 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Science Park, Hsinchu 300 TAIWAN ROC ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF940823H02B2Report Format Version 2.0.4 Reference No.: 950502H03 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS..............................10 3.5DESCRIPTION OF SUPPORT UNITS........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................11 4TEST TYPES AND RESULTS.....................................................................12 4.1CONDUCTED EMISSION MEASUREMENT..............................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................12 4.1.2TEST INSTRUMENTS.................................................................................12 4.1.3TEST PROCEDURES.................................................................................13 4.1.4TEST SETUP..............................................................................................13 4.1.5EUT OPERATING CONDITIONS................................................................14 4.1.6TEST RESULTS..........................................................................................15 4.2RADIATED EMISSION MEASUREMENT...................................................17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................17 4.2.2TEST INSTRUMENTS.................................................................................18 4.2.3TEST PROCEDURES.................................................................................19 4.2.4TEST SETUP..............................................................................................20 4.2.5EUT OPERATING CONDITIONS................................................................20 4.2.6TEST RESULTS..........................................................................................21 4.2.7TEST RESULTS - DSSS.............................................................................22 4.2.8TEST RESULTS - OFDM............................................................................25 4.36dB BANDWIDTH MEASUREMENT...........................................................28 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................28 4.3.2TEST INSTRUMENTS.................................................................................28 4.3.3TEST PROCEDURE....................................................................................29 4.3.4TEST SETUP..............................................................................................29 Report No.: RF940823H02B3Report Format Version 2.0.4 Reference No.: 950502H03 4.3.5EUT OPERATING CONDITIONS................................................................29 4.3.6TEST RESULTS –DSSS..............................................................................30 4.3.7TEST RESULTS-OFDM..............................................................................33 4.4MAXIMUM PEAK OUTPUT POWER..........................................................36 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........36 4.4.2TEST INSTRUMENTS.................................................................................36 4.4.3TEST PROCEDURES.................................................................................37 4.4.4TEST SETUP..............................................................................................37 4.4.5EUT OPERATING CONDITIONS................................................................37 4.4.6TEST RESULTS – DSSS.............................................................................38 4.4.7TEST RESULTS –OFDM.............................................................................39 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................40 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................40 4.5.2TEST INSTRUMENTS.................................................................................40 4.5.3TEST PROCEDURE....................................................................................41 4.5.4TEST SETUP..............................................................................................41 4.5.5EUT OPERATING CONDITIONS................................................................41 4.5.6TEST RESULTS –DSSS..............................................................................42 4.5.7TEST RESULTS –OFDM.............................................................................45 4.6BAND EDGES …

Text truncated - open the document above for the full version.

Report No.: RF940823H02B58Report Format Version 2.0.4 Reference No.: 950502H03 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF940823H02B59Report Format Version 2.0.4 Reference No.: 950502H03 RADIATED EMISSION TEST Report No.: RF940823H02B60Report Format Version 2.0.4 Reference No.: 950502H03
