Chapter 15 The Firewall Screens MAX-207HW2R User’s Guide 151 15.4 Technical Reference The following section contains additional technical information about the MAX- 207HW2R features described in this chapter. 15.4.1 Stateful Inspection Firewall. Stateful inspection firewalls restrict access by screening data packets against defined access rules. They make access control decisions based on IP address and protocol. They also "inspect" the session data to assure the integrity of the connection and to adapt to dynamic protocols. These firewalls generally provide the best speed and transparency; however, they may lack the granular application level access control or caching that some proxies support. Firewalls, of one type or another, have become an integral part of standard security solutions for enterprises. 15.4.2 Guidelines For Enhancing Security With Your Firewall 1Change the default password via web configurator. 2Think about access control before you connect to the network in any way. 3Limit who can access your router. 4Don't enable any local service (such as telnet or FTP) that you don't use. Any enabled service could present a potential security risk. A determined hacker might be able to find creative ways to misuse the enabled services to access the firewall or the network. 5For local services that are enabled, protect against misuse. Protect by configuring the services to communicate only with specific peers, and protect by configuring rules to block packets for the services at specific interfaces. 6Protect against IP spoofing by making sure the firewall is active. 7Keep the firewall in a secured (locked) room. 15.4.3 The “Triangle Route” Problem A traffic route is a path for sending or receiving data packets between two Ethernet devices. You may have more than one connection to the Internet (through one or more ISPs). If an alternate gateway is on the LAN (and its IP address is in the same subnet as the MAX-207HW2R’s LAN IP address), the Chapter 15 The Firewall Screens MAX-207HW2R User’s Guide 152 “triangle route” (also called asymmetrical route) problem may occur. The steps below describe the “triangle route” problem. 1A computer on the LAN initiates a connection by sending out a SYN packet to a receiving server on the WAN. 2The MAX-207HW2R reroutes the SYN packet through Gateway A on the LAN to the WAN. 3The reply from the WAN goes directly to the computer on the LAN without going through the MAX-207HW2R. As a result, the MAX-207HW2R resets the connection, as the connection has not been acknowledged. Figure 68 “Triangle Route” Problem 15.4.3.1 Solving the “Triangle Route” Problem If you have the MAX-207HW2R allow triangle route sessions, traffic from the WAN can go directly to a LAN computer without passing through the MAX-207HW2R and its firewall protection. Another solution is to use IP alias. IP alias allows you to partition your network into logical sections over the same Ethernet interface. Your MAX-207HW2R supports up to three logical LAN interfaces with the MAX-207HW2R being the gateway for each logical network. It’s like having multiple LAN networks that actually use the same physical cables and ports. By putting your LAN and Gateway A in different subnets, all returning network traffic must pass through the MAX-207HW2R to your LAN. The following steps describe such a scenario. 1A computer on the LAN initiates a connection by sending a SYN packet to a receiving server on the WAN. 2The MAX-207HW2R reroutes the packet to Gateway A, which is in Subnet 2. Chapter 15 The Firewall Screens MAX-207HW2R User’s Guide 153 3The reply from the WAN goes to the MAX-207HW2R. 4The MAX-207HW2R then sends it to the computer on the LAN in Subnet 1. Figure 69 IP Alias Chapter 15 The Firewall Screens MAX-207HW2R User’s Guide 154 MAX-207HW2R User’s Guide 155 CHAPTER 16 Content Filter 16.1 Overview Use the TOOLS > Content Filter screens to create and enforce policies that restrict access to the Internet based on content Internet content filtering allows you to create and enforce Internet access policies tailored to their needs. Content filtering is the ability to block certain web features or specific URL keywords. The MAX-207HW2R can block web features such as ActiveX controls, Java applets, cookies and disable web proxies. The MAX- 207HW2R also allows you to define time periods and days during which the MAX- 207HW2R performs content filtering. 16.1.1 What You Can Do in This Chapter •The General screen (Section 16.2 on page 156) lets you set up a trusted IP address, which web features are restricted, and which keywords are blocked when content filtering is effective. •The Schedule screen (Section 16.3 on page 158) lets you schedule content filtering. Chapter 16 Content Filter MAX-207HW2R User’s Guide 156 16.2 Filter Click TOOLS > Content Filter > General to set up a trusted IP address, which web features are restricted, and which keywords are blocked when content filtering is effective. Figure 70 TOOLS > Content Filter > General Chapter 16 Content Filter MAX-207HW2R User’s Guide 157 The following table describes the labels in this screen. Table 62 TOOLS > Content Filter > General LABELDESCRIPTION Enable Content Filter Trusted IP Setup Trusted Computer IP Address You can allow a specific computer to access all Internet resources without the restrictions you set in these screens. Enter the IP address of the trusted computer. Restrict Web Features Select the web features you want to disable. If a user downloads a page with a restricted feature, that part of the web page appears blank or grayed out. ActiveX - This is a tool for building dynamic and active Web pages and distributed object applications. When you visit an ActiveX Web site, ActiveX controls are downloaded to your browser, where they remain in case you visit the site again. Java - This is used to build downloadable Web components or Internet and intranet business applications of all kinds. Cookies - This is used by Web servers to track…

Text truncated - open the document above for the full version.

www.zyxel.com www.zyxel.com MAX-207HW2R WiMAX MIMO Indoor Simple CPE (2.5 GHz) Copyright © 2010 ZyXEL Communications Corporation Firmware Version 1.0 Edition 1, 02/2010 Default Login Details IP Addresshttp://192.168.1.1 Admin Name and Password admin 1234 User Name and Password User user About This User's Guide MAX-207HW2R User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the ZyXEL MAX- 207HW2R using the web configurator. You should have at least a basic knowledge of TCP/IP networking concepts and topology. Related Documentation •Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access. • Web Configurator Online Help Embedded web help for descriptions of individual screens and supplementary information. • Command Reference Guide The Command Reference Guide explains how to use the Command-Line Interface (CLI) and CLI commands to configure the MAX-207HW2R. Note: It is recommended you use the web configurator to configure the MAX- 207HW2R. • Support Disc Refer to the included CD for support documents. • ZyXEL Web Site Please refer to www.zyxel.com for additional support documentation and product certifications. Documentation Feedback Send your comments, questions or suggestions to: [email protected] Thank you! The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 30099, Taiwan. About This User's Guide MAX-207HW2R User’s Guide 4 Need More Help? More help is available at www.zyxel.com. • Download Library Search for the latest product updates and documentation from this link. Read the Tech Doc Overview to find out how to efficiently use the User Guide, Quick Start Guide and Command Line Interface Reference Guide in order to better understand how to use your product. • Knowledge Base If you have a specific question about your product, the answer may be here. This is a collection of answers to previously asked questions about ZyXEL products. •Forum This contains discussions on ZyXEL products. Learn from others who use ZyXEL products and share your experiences as well. Customer Support Should problems arise that cannot be solved by the methods listed above, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device. See http://www.zyxel.com/web/contact_us.php for contact information. Please have the following information ready when you contact an office. • Product model and serial number. •Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it. Document Conventions MAX-207HW2R User’s Guide 5 Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your MAX- 207HW2R. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The MAX-207HW2R may be referred to as the “MAX-207HW2R”, the “device”, the “system” or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font. • A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. • “Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, TOOLS > Logs > Log Settings means you first click Tools in the navigation panel, then the Logs sub menu and finally the Log Settings tab to get to that screen. • Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Document Conventions MAX-207HW2R User’s Guide 6 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The MAX- 207HW2R icon is not an exact representation of your MAX-207HW2R.\ Table 1 Common Icons WiMAX DeviceWiMAX Access PointComputer NotebookServerWiMAX Base Station TelephoneSwitchRouter Internet CloudInternet/WiMAX Cloud Wireless Signal Safety Warnings MAX-207HW2R User’s Guide 7 Safety Warnings • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. Connect it to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do NOT remove the plug and connect it to a power outlet by itself; always attach the plug to the power adaptor first before connecting it to a power outlet. • Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. • Do NOT use the d…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: I88IX280P Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors.                                     Sincerely yours, __________________________________ Wang Yi EMC/Safety Engineering Section ZyXEL Communications Corporation  Confidentiality Request FCC ID: I88IX280P Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operationdal description BOM Tune-up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours,

Power of Attorney To whom it may concern: We, ZyXEL Communications Corporation, located at No.6, Innovation Rd II, Science- Park, Hsin-Chu, 300, Taiwan, R.O.C, hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 27M approval and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC ID: I88IX280P If you have questions regarding the authorization or need further information, please don’t hesitate to contact us Thank you! Sincerely yours, __________________________________ Wang Yi EMC/Safety Engineering Section 2010/5/17

Declaration Letter We, ZyXEL Communications Corporation, located at No.6, Innovation Rd II, Science-Park, Hsin-Chu, 300, Taiwan, R.O.C, declares that device’s maximum ratio of DL:UL is 29:18. That means it can not support the higher ratio than 29:18. For example, 26:21. The radio can not be modified to higher ratio than 29:18 by any method. FCC ID: I88IX280P If you have any question regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________ Wang Yi / EMC Safety Engineering Section Manager ZyXEL Communications Corporation TEL: +886-3-578-3942 FAX: +886-3-578-2439 2010/5/25

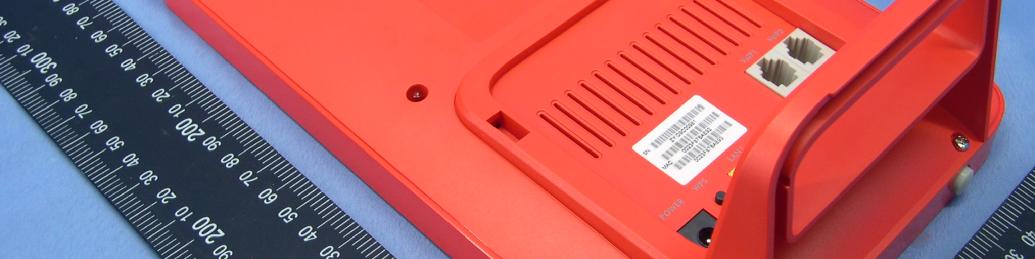

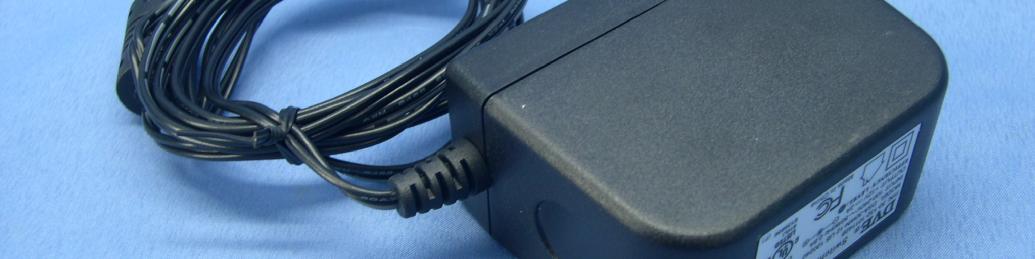

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 11 Page 12 Page 13 Page 14

FCC ID：I88IX280P LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

Report No.: SA990415E05 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990415E05 MODEL NO.: MAX-207HW2R, IX280P-5-1420JMDL-A, MAX-207HW2R1, MAX-207HW2R2, MAX-207HW2R3, MAX-207HW2R4 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Science-Park, Hsin-Chu, 300, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990415E05 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990415E05 Report Format Version 3.0.1 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by client enabled the EUT to transmit and receive data at specific channel frequencies individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Temporary Fixed Device Report No.: SA990415E05 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain The antennas provided to this EUT, please refer to the following table: For WiMAX: Antenna Antenna Type Antenna Connector Gain (dBi) Cable loss (dB) Net Gain (dBi) Cable Length (cm) Frequency range (MHz) Diversity Function 1 Dipole I-PEX 6.7 0.5 6.2 29 2500~2700 YES 2 Dipole I-PEX 6.7 0.5 6.2 29 2500~2700 YES For Wi-Fi: Antenna Type Antenna Connector Antenna Gain (dBi) Cable loss(dB) Net Gain (dBi) Cable Length (cm) Frequency range (MHz) Diversity Function PIFA I-PEX 1.6 0.5 1.1 15 2400~2483 N/A 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For WiMAX: CHANNEL BANDWIDTH: 5MHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Low 2505 489.779 0.406 1.0 Middle 2590 457.088 0.379 1.0 High 2685 436.516 0.362 1.0 CHANNEL BANDWIDTH: 10MHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Low 2505 426.580 0.354 1.0 Middle 2590 407.380 0.338 1.0 High 2685 467.735 0.388 1.0 Report No.: SA990415E05 Report Format Version 3.0.1 5 For Wi-Fi: 802.11b Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 102.3 0.026 1.0 6 2437 134.9 0.035 1.0 11 2462 102.3 0.026 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 257.0 0.066 1.0 6 2437 275.4 0.071 1.0 11 2462 263.0 0.067 1.0 CONCLUSION: Both of the WiMAX and Wi-Fi can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.406 / 1 + 0.071 / 1 = 0.477, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---
