I88LTE7480-S905-VLTE-A Outdoor Router

Default Login Details User’s Guide LT E S e r i e s Copyright © 2020 Zyxel Communications Corporation LAN IP Addresshttp://192.168.1.1 Loginadmin PasswordSee the Zyxel Device label Version 1.00_2.00 Ed 7, 8/2020 LTE Series User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. This is a series User’s Guide. Screenshots and graphics in this book may differ slightly from what you see due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the Zyxel Device. •More Information Go to support.zyxel.com to find other information on the Zyxel Device . LTE Series User’s Guide 3 Document Conventions Warnings and Notes These are how warnings and notes are shown in this guide. Warnings tell you about things that could harm you or your Zyxel Device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The LTE device in this user’s guide may be referred to as the “Zyxel Device” in this guide. • Product labels, screen names, field labels and field choices are all in bold font. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Network Setting > Routing > DNS Route means you first click Network Setting in the navigation panel, then the Routing submenu and finally the DNS Route tab to get to that screen. Icons Used in Figures Figures in this user guide may use the following generic icons. The Zyxel Device icon is not an exact representation of your Zyxel Device. Zyxel DeviceGeneric Router Switch Server FirewallUSB Storage Device Printer Contents Overview LTE Series User’s Guide 4 Contents Overview User’s Guide ......................................................................................................................................12 Introduction ........................................................................................................................................... 13 The Web Configurator ......................................................................................................................... 21 Quick Start ............................................................................................................................................. 31 Tutorials .................................................................................................................................................. 35 Technical Reference ........................................................................................................................52 Connection Status ................................................................................................................................ 53 Broadband ............................................................................................................................................ 64 Home Networking ................................................................................................................................. 76 Routing ................................................................................................................................................... 98 Network Address Translation (NAT) ................................................................................................... 106 Dynamic DNS Setup ........................................................................................................................... 116 SAS CBSD ............................................................................................................................................. 120 Firewall ................................................................................................................................................. 126 MAC Filter ............................................................................................................................................ 137 Certificates .......................................................................................................................................... 139 Log ....................................................................................................................................................... 148 Traffic Status ....................................................................................................................................... 151 ARP Table ............................................................................................................................................ 154 Routing Table ...................................................................................................................................... 156 Cellular WAN Status ........................................................................................................................... 159 System .................................................................................................................................................. 164 User Account ...................................................................................................................................... 165 Remote Management ....................................................................................................................... 168 Time Settings ........................................................................................................................................ 173 E-mail Notification .............................................................................................................................. 176 Log Setting .......................................................................................................................................... 179 Firmw…

Text truncated - open the document above for the full version.

Confidentiality Request Federal Communications Commission Authorization and Evaluation Division FCC ID:I88LTE7480-S905-V To Whom It May Concern, Date: 9/23/2020 Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Operation Description Tune-up procedure Part list The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Internal Photos Test Setup Photos User Manual Sincerely, ---------------------------------------- Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Date: September 24, 2020 FCC ID:I88LTE7480-S905-V AUTHORIZATION LETTER To whom it may concern: We, the undersigned, hereby authorizeAmanda Wu of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out byAmanda Wu of BV CPS Taoyuan on Zyxel Communications Corporation’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, ---------------------------------------- Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Reference No.:200424E06-1 CONSTRUCTION PHOTOS OF EUT Reference No.:200424E06-1 Reference No.:200424E06-1 Reference No.:200424E06-1 Reference No.:200424E06-1 Reference No.:200424E06-1 Reference No.:200424E06-1

FCC LABEL & Label LOCATION The label will be permanently affixed at a conspicu ous location on the device. FCC ID: I88LTE7480-S905-V

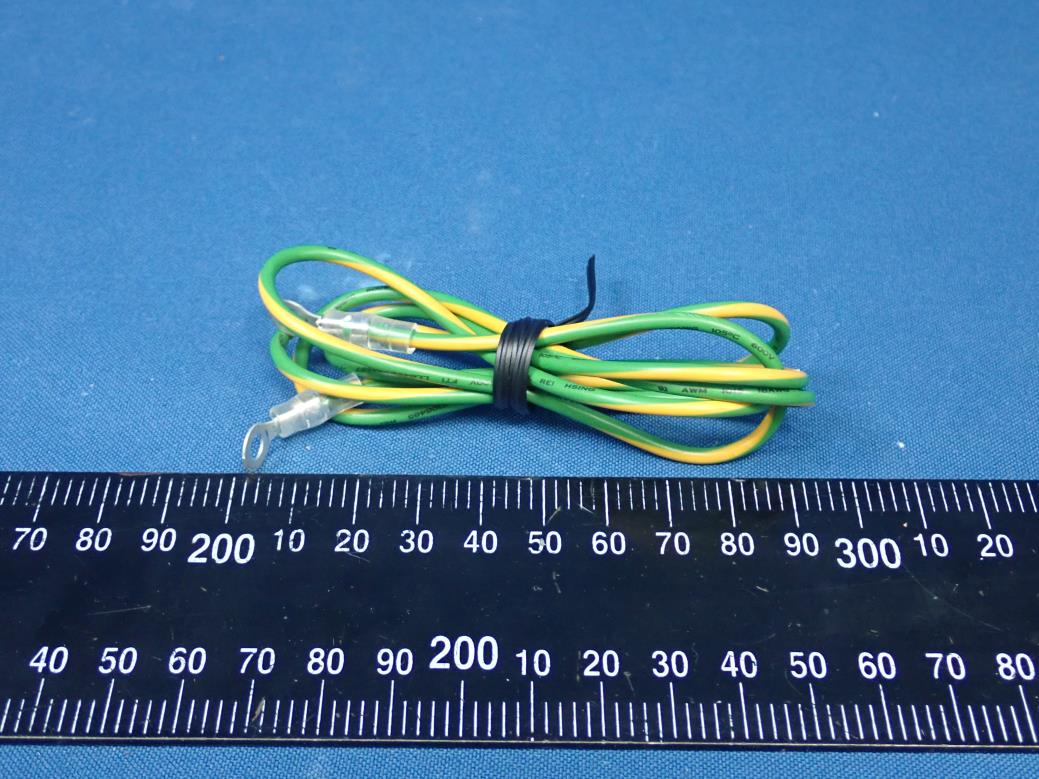

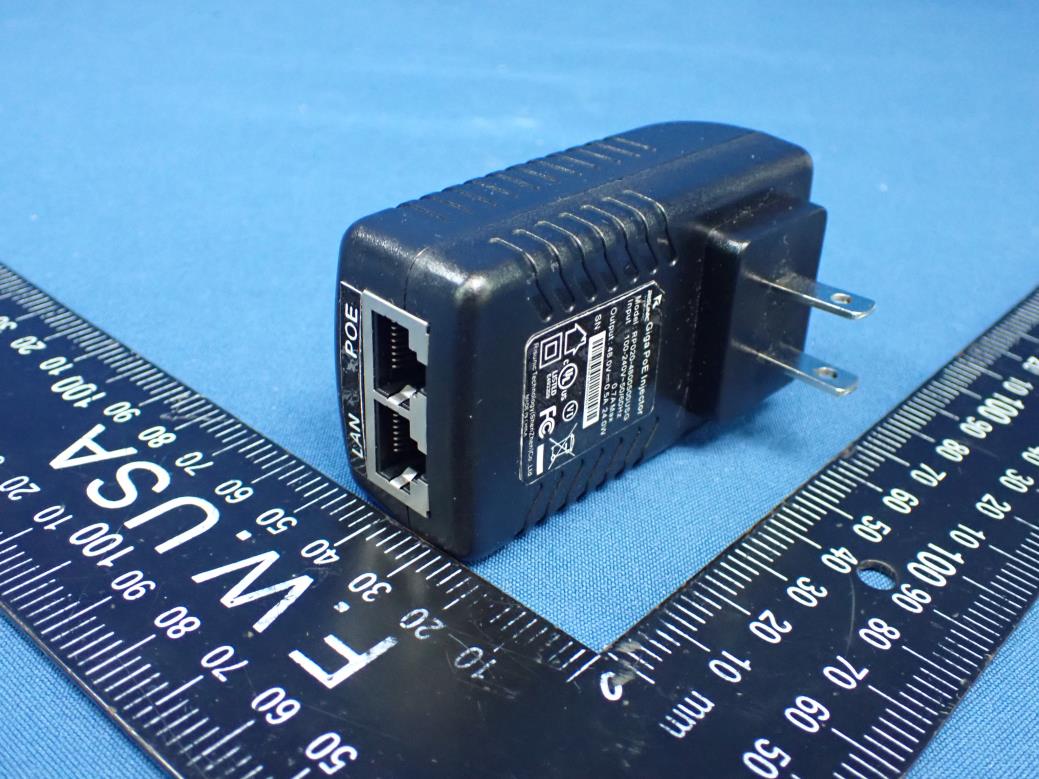

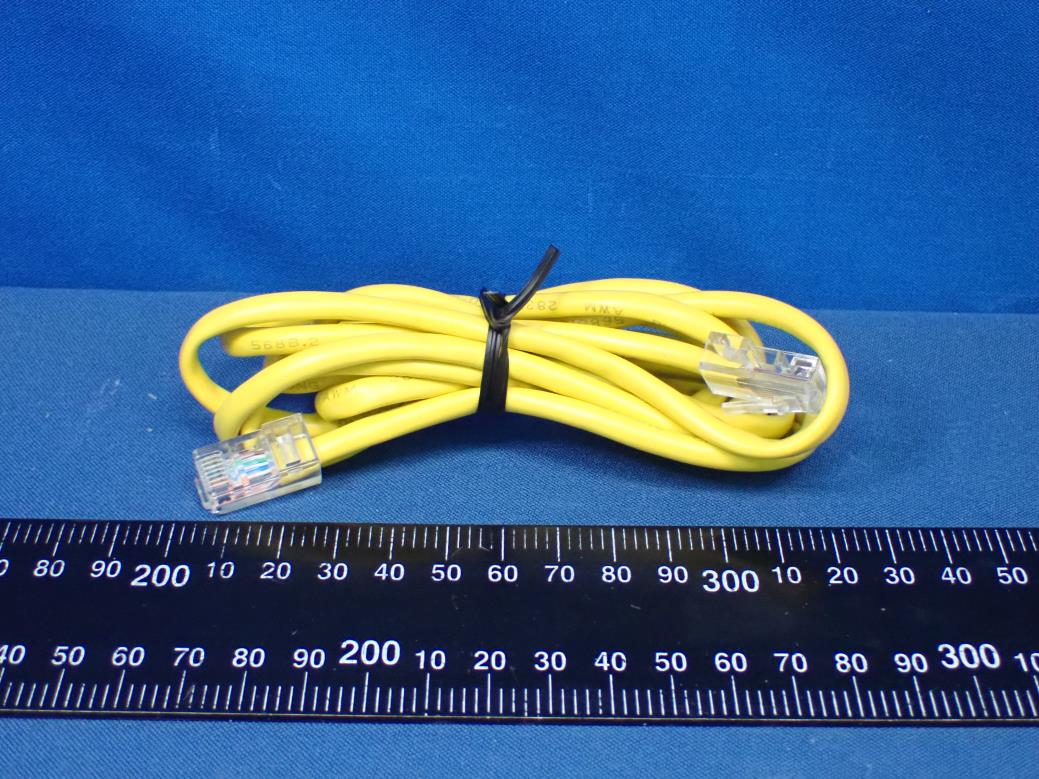

Reference No.:200424E06-2 CONSTRUCTION PHOTOS OF EUT Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2 Reference No.:200424E06-2

Report No.: SA181220E07A Page No. 1 / 7 Report Format Version: 6.1.1 Reference No.: 200424E06 RF Exposure Report Report No.: SA181220E07A FCC ID: I88LTE7480-S905-V Test Model: LTE7480-S905 Received Date: Apr. 24, 2020 Test Date: Sep. 18, 2020 Issued Date: Sep. 28, 2020 Applicant: Zyxel Communications Corporation Address: No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA181220E07A Page No. 2 / 7 Report Format Version: 6.1.1 Reference No.: 200424E06 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 6 2.5 Calculation Result of Maximum Conducted Power ............................................................................. 7 Report No.: SA181220E07A Page No. 3 / 7 Report Format Version: 6.1.1 Reference No.: 200424E06 Release Control Record Issue No. Description Date Issued SA181220E07A Original release. Sep. 28, 2020 Report No.: SA181220E07A Page No. 4 / 7 Report Format Version: 6.1.1 Reference No.: 200424E06 1 Certificate of Conformity Product: LTE-A Outdoor Router Brand: ZYXEL Test Model: LTE7480-S905 Sample Status: ENGINEERING SAMPLE Applicant: Zyxel Communications Corporation Test Date: Sep. 18, 2020 Standards: FCC Part 2 (Section 2.1091) IEEE C95.3 -2002 References Test Guidance: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date: Sep. 28, 2020 Claire Kuan / Specialist Approved by : , Date: Sep. 28, 2020 Clark Lin / Technical Manager Report No.: SA181220E07A Page No. 5 / 7 Report Format Version: 6.1.1 Reference No.: 200424E06 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA181220E07A Page No. 6 / 7 Report Format Version: 6.1.1 Reference No.: 200424E06 2.4 Antenna Gain Chain No. Antenna Net Gain(dBi) Frequency range Antenna Type Connector Type WLAN-ANT0 6 2.4 ~ 2.4835GHz PIFA iPEX WLAN-ANT1 5 2.4 ~ 2.4835GHz PIFA iPEX WWAN_0 (TX & RX) 9.85 3550 ~ 3700 MHz Dipole iPEX WWAN_1 (RX only) 9.85 3550 ~ 3700 MHz Dipole iPEX WWAN_2 (RX only) 9.85 3550 ~ 3700 MHz Dipole iPEX WWAN_3 (RX only) 9.85 3550 ~ 3700 MHz Dipole iPEX *The above Antenna information is declared by manufacturer and for more detailed features description, please refer to the manufac…

Text truncated - open the document above for the full version.

Report No.: RF181220E07A-1 Page No. 1 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 FCC Test Report (Part 96) Report No.: RF181220E07A-1 FCC ID: I88LTE7480-S905-V Test Model: LTE7480-S905 Received Date: Apr. 24, 2020 Test Date: Sep. 17 to 18, 2020 Issued Date: Sep. 28, 2020 Applicant: Zyxel Communications Corporation Address: No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location : E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RF181220E07A-1 Page No. 2 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.1.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.2 Description of Support Units .............................................................................................................. 11 3.2.1 Configuration of System under Test .................................................................................................. 12 3.3 General Description of Applied Standards and References .............................................................. 13 4 Test Types and Results ...................................................................................................................... 14 4.1 Maximum EIRP Measurement .......................................................................................................... 14 4.1.1 Limits of Maximum EIRP Measurement ............................................................................................ 14 4.1.2 Test Setup .......................................................................................................................................... 14 4.1.3 Test Instruments ................................................................................................................................ 15 4.1.4 Test Procedures ................................................................................................................................. 17 4.1.5 Deviation from Test Standard ............................................................................................................ 17 4.1.6 EUT Operating Conditions ................................................................................................................. 17 4.1.7 Test Results ....................................................................................................................................... 18 4.2 Modulation Characteristics Measurement ......................................................................................... 34 4.2.1 Limits of Modulation Characteristics .................................................................................................. 34 4.2.2 Test Procedure .................................................................................................................................. 34 4.2.3 Test Setup .......................................................................................................................................... 34 4.2.4 Test Results ....................................................................................................................................... 35 4.3 Frequency Stability Measurement ..................................................................................................... 36 4.3.1 Limits of Frequency Stabi…

Text truncated - open the document above for the full version.

Report No.: RF181220E07A-1 Page No. 75 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Middle QPSK 16QAM 64QAM Report No.: RF181220E07A-1 Page No. 76 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 High QPSK 16QAM 64QAM Report No.: RF181220E07A-1 Page No. 77 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 15MHz: Spectrum Plot of Value Low QPSK 16QAM 64QAM Report No.: RF181220E07A-1 Page No. 78 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Middle QPSK 16QAM 64QAM Report No.: RF181220E07A-1 Page No. 79 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 High QPSK 16QAM 64QAM Report No.: RF181220E07A-1 Page No. 80 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 20MHz: Spectrum Plot of Value Low QPSK 16QAM 64QAM Report No.: RF181220E07A-1 Page No. 81 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Middle QPSK 16QAM 64QAM Report No.: RF181220E07A-1 Page No. 82 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 High QPSK 16QAM 64QAM Report No.: RF181220E07A-1 Page No. 83 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 CA Contiguous Spectrum Plot of Value Worst case QPSK / PPk QPSK / PAvg 16QAM / PPk 16QAM / PAvg 64QAM / PPk 64QAM / PAvg Report No.: RF181220E07A-1 Page No. 84 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 4.6 Conducted Spurious Emissions 4.6.1 Limits of Conducted Spurious Emissions Measurement For CBSD power of any emissions outside the Fundamental Limit Within 0-10MHz above the Assigned Channel -13 dBm/MHz Within 0-10MHz below the Assigned Channel Greater than 10MHz above the Assigned Channel -25 dBm/MHz Greater than 10MHz below the Assigned Channel Power of any emission below 3530MHz -40 dBm/MHz Power of any emission above 3720MHz 4.6.2 Test Setup 4.6.3 Test Instruments Refer to section 4.1.3 to get information of above instrument. Communication Simulator Spectrum Analyzer Power Splitter EUT Attenuator Report No.: RF181220E07A-1 Page No. 85 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 4.6.4 Test Procedure a. The EUT makes a phone call to the communication simulator. All measurements were done at low, middle and high operational frequency range. b. Measuring frequency range is from 9 kHz to 40 GHz. 20dB attenuation pad is connected with spectrum. RBW=1MHz and VBW=3MHz is used for conducted emission measurement. c. Measurement instrument be configured to measure only during active transmissions (gating function of spectrum is enabled to measure max output power of TX on burst). d. Set RMS detection and a free-running sweep. e. The trace mode shall be set to max hold, thus, multiple sweeps (e.g., 10) in maximum hold are necessary to ensure that the maximum power is measured. Report No.: RF181220E07A-1 Page No. 86 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 4.6.5 Test Results LTE Band 48 Channel Bandwidth 5MHz QPSK Low Channel 3552.5MHz 1 RB-0 Within 1MHz outside the designated channel 1 RB-Max Within 1MHz outside the designated channel 1 RB-0 Greater than 1MHz outside the Assigned Channel 1 RB-Max Greater than 1MHz outside the Assigned Channel NOTE: 1MHz outside of designated channel needs to reduce the limit, When measured RBW less than 1MHz. Within 1- B MHz above the Assigned channel Limit is -13+10*Log(51kHz/1MHz) = -25.92 dBm Within 1- B MHz below the Assigned channel Limit is -13+10*Log(51kHz/1MHz) = -25.92 dBm B MHz above the Assigned channel Limit is -25+10*Log(51kHz/1MHz) = -37.92 dBm B MHz below the Assigned channel Limit is -25+10*Log(51kHz/1MHz) = -37.92 dBm “B” is the bandwidth in MHz of the assigned channel or multiple contiguous channels of the End User Device. Report No.: RF181220E07A-1 Page No. 87 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 LTE Band 48 Channel Bandwidth 5MHz QPSK Low Channel 3552.5MHz Full RB Within 1MHz outside the designated channel Full RB Greater than 1MHz outside the Assigned Channel NOTE: 1MHz outside of designated channel needs to reduce the limit, When measured RBW less than 1MHz. Within 1- B MHz above the Assigned channel Limit is -13+10*Log(51kHz/1MHz) = -25.92 dBm Within 1- B MHz below the Assigned channel Limit is -13+10*Log(51kHz/1MHz) = -25.92 dBm B MHz above the Assigned channel Limit is -25+10*Log(51kHz/1MHz) = -37.92 dBm B MHz below the Assigned channel Limit is -25+10*Log(51kHz/1MHz) = -37.92 dBm “B” is the bandwidth in MHz of the assigned channel or multiple contiguous channels of the End User Device. Report No.: RF181220E07A-1 Page No. 88 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Note: The signal of 9kHz is IF signal from test instrument. Report No.: RF181220E07A-1 Page No. 89 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Channel Bandwidth 5MHz QPSK Middle Channel 3625MHz 1 RB-0 Within 1MHz outside the designated channel 1 RB-Max Within 1MHz outside the designated channel 1 RB-0 Greater than 1MHz outside the Assigned Channel 1 RB-Max Greater than 1MHz outside the Assigned Channel NOTE: 1MHz outside of designated channel needs to reduce the limit, When measured RBW less than 1MHz. Within 1- B MHz above the Assigned channel Limit is -13+10*Log(51kHz/1MHz) = -25.92 dBm Within 1- B MHz below the Assigned channel Limit is -13+10*Log(51kHz/1MHz) = -25.92 dBm B MHz above the Assigned channel Limit is -25+10*Log(51kHz/1MHz) = -37.92 dBm B MHz below the Assigned channel Limit is -25+10*Log(51kHz/1MHz) = -37.92 dBm “B” is the bandwidth in MHz of the assigned channel or multiple contiguous channels of the End User Device. Report No.: RF181220E07A-1 Page No. 90 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 LTE Band 48 Middle Channel 3625MHz Low Channel 3625MHz Full RB Within 1MHz outside the designated channel Full RB Greater than 1MHz outside the Assigned Channel NOTE: 1MHz outside of designated channel needs to reduce the limit, When measured RBW less than 1MHz. Within 1- B MHz above the Assigned channel Limit is -13+10*Log(51kHz/1…

Text truncated - open the document above for the full version.

Report No.: RF181220E07A-1 Page No. 109 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Note: The signal of 9kHz is IF signal from test instrument. Report No.: RF181220E07A-1 Page No. 110 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Channel Bandwidth 15MHz QPSK High Channel 3692.5MHz 1 RB-0 Within 1MHz outside the designated channel 1 RB-Max Within 1MHz outside the designated channel 1 RB-0 Greater than 1MHz outside the Assigned Channel 1 RB-Max Greater than 1MHz outside the Assigned Channel NOTE: 1MHz outside of designated channel needs to reduce the limit, When measured RBW less than 1MHz. Within 1- B MHz above the Assigned channel Limit is -13+10*Log(150kHz/1MHz) = -21.24 dBm Within 1- B MHz below the Assigned channel Limit is -13+10*Log(150kHz/1MHz) = -21.24 dBm B MHz above the Assigned channel Limit is -25+10*Log(150kHz/1MHz) = -33.24 dBm B MHz below the Assigned channel Limit is -25+10*Log(150kHz/1MHz) = -33.24 dBm “B” is the bandwidth in MHz of the assigned channel or multiple contiguous channels of the End User Device. Report No.: RF181220E07A-1 Page No. 111 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Channel Bandwidth 15MHz QPSK High Channel 3692.5MHz Full RB Within 1MHz outside the designated channel Full RB Greater than 1MHz outside the Assigned Channel NOTE: 1MHz outside of designated channel needs to reduce the limit, When measured RBW less than 1MHz. Within 1- B MHz above the Assigned channel Limit is -13+10*Log(150kHz/1MHz) = -21.24 dBm Within 1- B MHz below the Assigned channel Limit is -13+10*Log(150kHz/1MHz) = -21.24 dBm B MHz above the Assigned channel Limit is -25+10*Log(150kHz/1MHz) = -33.24 dBm B MHz below the Assigned channel Limit is -25+10*Log(150kHz/1MHz) = -33.24 dBm “B” is the bandwidth in MHz of the assigned channel or multiple contiguous channels of the End User Device. Report No.: RF181220E07A-1 Page No. 112 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Note: The signal of 9kHz is IF signal from test instrument. Report No.: RF181220E07A-1 Page No. 113 / 154 Report Format Version: 6.1.1 Reference No.: 200424E06 Channel Bandwidth 20MHz QPSK Low Channel 3560MHz 1 RB-0 Within 1MHz outside the designated channel 1 RB-Max Within 1MHz outside the designated channel 1 RB-0 Greater than 1MHz outside the Assigned Channel 1 RB-Max Greater than 1MHz outside the Assigned Channel NOTE: 1MHz outside of designated channel needs to reduce the limit, When measured RBW less than 1MHz. Within 1- B MHz above the Assigned channel Limit is -13+10*Log(200kHz/1MHz) = -19.99 dBm Within 1- B MHz below the Assigned channel Limit is -13+10*Log(200kHz/1MHz) = -19.99 dBm B MHz above the Assigned channel Limit is -25+10*Log(200kHz/1MHz) = -31.99 dBm B MHz below…

Text truncated - open the document above for the full version.
