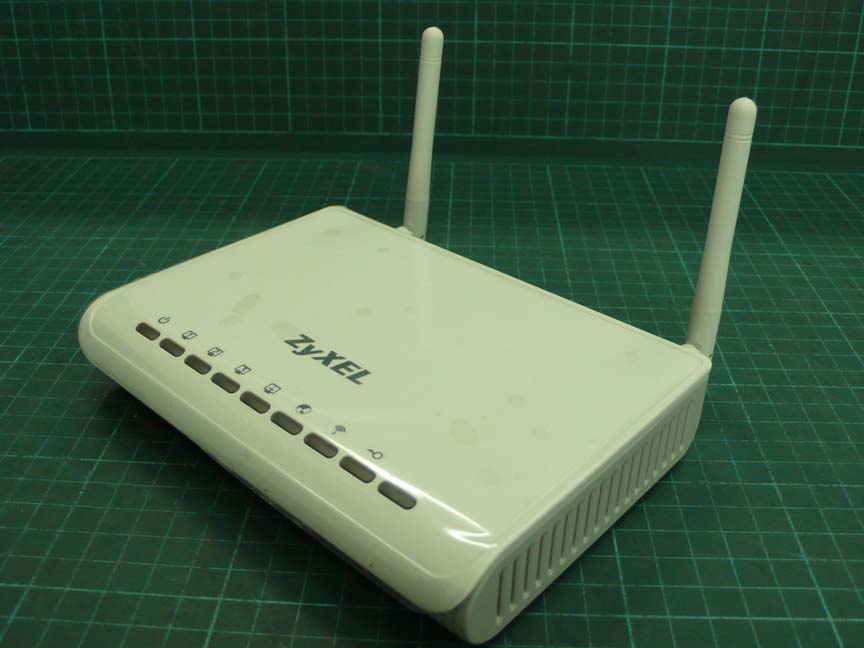

I88NBG420NWireless N Router

www.zyxel.com NBG420N Wireless N Router User’s Guide Version 3.60 3/2008 Edition 1 DEFAULT LOGIN IP Addresshttp://192.168.1.1 Password1234 About This User's Guide NBG420N User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the NBG420N using the web configurator. You should have at least a basic knowledge of TCP/IP networking concepts and topology. Related Documentation • Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access. • Web Configurator Online Help Embedded web help for descriptions of individual screens and supplementary information. "It is recommended you use the web configurator to configure the NBG420N. • Supporting Disk Refer to the included CD for support documents. • ZyXEL Web Site Please refer to www.zyxel.com for additional support documentation and product certifications. User Guide Feedback Help us help you. Send all User Guide-related comments, questions or suggestions for improvement to the following address, or use e-mail instead. Thank you! The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. E-mail: [email protected] Document Conventions NBG420N User’s Guide 4 Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. 1Warnings tell you about things that could harm you or your device. "Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The NBG420N may be referred to as the “NBG420N”, the “device”, the “product” or the “system” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font. • A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. • “Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen. • Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Document Conventions NBG420N User’s Guide 5 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The NBG420N icon is not an exact representation of your device. NBG420NComputerNotebook computer ServerDSLAMFirewall TelephoneSwitchRouter Modem Safety Warnings NBG420N User’s Guide 6 Safety Warnings 1For your safety, be sure to read and follow all warning notices and instructions. • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. • Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the power outlet. • Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning. • Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device. • Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s). • If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged. This product is recyclable. Dispose of it properly. Safety Warnings NBG420N User’s Guide 7 Safety Warnings NBG420N User’s Guide 8 Contents Overview NBG420N User’s Guide 9 Contents Overview Introduction ............................................................................................................................ 29 Getting to Know Your NBG420N ............................................................................................... 31 The WPS Button ........................................................................................................................ 35 Introducing the Web Configurator ..............................................................................................37 Connection Wizard .................................................................................................................... 49 AP Mode .....................…

Text truncated - open the document above for the full version.

Chapter 7 Wireless LAN NBG420N User’s Guide 101 7.6 MAC Filter The MAC filter screen allows you to configure the NBG420N to give exclusive access to up to 32 devices (Allow) or exclude up to 32 devices from accessing the NBG420N (Deny). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02. You need to know the MAC address of the devices to configure this screen. To change your NBG420N’s MAC filter settings, click Network > Wireless LAN > MAC Filter. The screen appears as shown. Group Key Update Timer The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/ WPA2-PSK key management) or RADIUS server (if using WPA/WPA2 key management) sends a new group key out to all clients. The re-keying process is the WPA/WPA2 equivalent of automatically changing the WEP key for an AP and all stations in a WLAN on a periodic basis. Setting of the Group Key Update Timer is also supported in WPA-PSK/WPA2-PSK mode. The NBG420N default is1800 seconds (30 minutes). Authentication Server IP AddressEnter the IP address of the external authentication server in dotted decimal notation. Port NumberEnter the port number of the external authentication server. The default port number is 1812. You need not change this value unless your network administrator instructs you to do so with additional information. Shared SecretEnter a password (up to 31 alphanumeric characters) as the key to be shared between the external authentication server and the NBG420N. The key must be the same on the external authentication server and your NBG420N. The key is not sent over the network. Accounting Server ActiveSelect Yes from the drop down list box to enable user accounting through an external authentication server. IP AddressEnter the IP address of the external accounting server in dotted decimal notation. Port NumberEnter the port number of the external accounting server. The default port number is1813. You need not change this value unless your network administrator instructs you to do so with additional information. Shared SecretEnter a password (up to 31 alphanumeric characters) as the key to be shared between the external accounting server and the NBG420N. The key must be the same on the external accounting server and your NBG420N. The key is not sent over the network. ApplyClickApply to save your changes back to the NBG420N. ResetClickReset to reload the previous configuration for this screen. Table 33 Network > Wireless LAN > General: WPA/WPA2 LABELDESCRIPTION Chapter 7 Wireless LAN NBG420N User’s Guide 102 Figure 66 Network > Wireless LAN > MAC Filter The following table describes the labels in this menu. 7.7 Wireless LAN Advanced Screen ClickNetwork > Wireless LAN > Advanced. The screen appears as shown. Table 34 Network > Wireless LAN > MAC Filter LABELDESCRIPTION ActiveSelect Yes from the drop down list box to enable MAC address filtering. Filter Action Define the filter action for the list of MAC addresses in the MAC Address table. Select Deny to block access to the NBG420N, MAC addresses not listed will be allowed to access the NBG420N Select Allow to permit access to the NBG420N, MAC addresses not listed will be denied access to the NBG420N. SetThis is the index number of the MAC address. MAC Address Enter the MAC addresses of the wireless station that are allowed or denied access to the NBG420N in these address fields. Enter the MAC addresses in a valid MAC address format, that is, six hexadecimal character pairs, for example, 12:34:56:78:9a:bc. ApplyClickApply to save your changes back to the NBG420N. ResetClickReset to reload the previous configuration for this screen. Chapter 7 Wireless LAN NBG420N User’s Guide 103 Figure 67 Network > Wireless LAN > Advanced The following table describes the labels in this screen. 7.8 Quality of Service (QoS) Screen The QoS screen allows you to automatically give a service (such as e-mail, VoIP or FTP) a priority level. ClickNetwork > Wireless LAN > QoS. The following screen appears. Table 35 Network > Wireless LAN > Advanced LABELDESCRIPTION Roaming Configuration Enable Roaming Select this option if your network environment has multiple APs and you want your wireless device to be able to access the network as you move between wireless networks. Wireless Advanced Setup RTS/CTS Threshold Data with its frame size larger than this value will perform the RTS (Request To Send)/CTS (Clear To Send) handshake. Enter a value between 0 and 2432. Enable Intra- BSS Traffic A Basic Service Set (BSS) exists when all communications between wireless clients or between a wireless client and a wired network client go through one access point (AP). Intra-BSS traffic is traffic between wireless clients in the BSS. When Intra-BSS is enabled, wireless client A and B can access the wired network and communicate with each other. When Intra-BSS is disabled, wireless client A and B can still access the wired network but cannot communicate with each other. ApplyClickApply to save your changes back to the NBG420N. ResetClickReset to reload the previous configuration for this screen. Chapter 7 Wireless LAN NBG420N User’s Guide 104 Figure 68 Network > Wireless LAN > QoS The following table describes the labels in this screen. Table 36 Network > Wireless LAN > QoS LABELDESCRIPTION WMM QoS PolicySelect Default to have the NBG420N automatically give a service a priority level according to the ToS value in the IP header of packets it sends. WMM QoS (Wifi MultiMedia Quality of Service) gives high priority to voice and video, which makes them run more smoothly. SelectApplication Priority from the drop-down list box to display a table of application names, services, ports and priorities to which you want to apply WMM QoS. The table appears only if you select Application Priority in WMM QoS Policy. #This is the number of an individual application entry. NameTh…

Text truncated - open the document above for the full version.

Chapter 17 Bandwidth Management NBG420N User’s Guide 201 17.6 Predefined Bandwidth Management Services The following is a description of the services that you can select and to which you can apply media bandwidth management using the wizard screens. 17.6.1 Services and Port Numbers SeeAppendix F on page 321 for commonly used services and port numbers. Mid Typically used for “excellent effort” or better than best effort and would include important business traffic that can tolerate some delay. LowThis is typically used for non-critical “background” traffic such as bulk transfers that are allowed but that should not affect other applications and users. Table 72 Bandwidth Management Priorities PRIORITY LEVELS: TRAFFIC WITH A HIGHER PRIORITY GETS THROUGH FASTER WHILE TRAFFIC WITH A LOWER PRIORITY IS DROPPED IF THE NETWORK IS CONGESTED. Table 73 Media Bandwidth Management Setup: Services SERVICEDESCRIPTION Xbox LiveThis is Microsoft’s online gaming service that lets you play multiplayer Xbox games on the Internet via broadband technology. Xbox Live uses port 3074. VoIP (SIP)Sending voice signals over the Internet is called Voice over IP or VoIP. Session Initiated Protocol (SIP) is an internationally recognized standard for implementing VoIP. SIP is an application-layer control (signaling) protocol that handles the setting up, altering and tearing down of voice and multimedia sessions over the Internet. SIP is transported primarily over UDP but can also be transported over TCP, using the default port number 5060. FTPFile Transfer Program enables fast transfer of files, including large files that may not be possible by e-mail. FTP uses port number 21. E-MailElectronic mail consists of messages sent through a computer network to specific groups or individuals. Here are some default ports for e-mail: POP3 - port 110 IMAP - port 143 SMTP - port 25 HTTP - port 80 BitTorrentBitTorrent is a free P2P (peer-to-peer) sharing tool allowing you to distribute large software and media files using ports 6881 to 6889. BitTorrent requires you to search for a file with a searching engine yourself. It distributes files by corporation and trading, that is, the client downloads the file in small pieces and share the pieces with other peers to get other half of the file. MSN WebcamMSN messenger allows you to chat online and send instant messages. If you use MSN messenger and also have a webcam, you can send your image/photo in real-time along with messages WWWThe World Wide Web (WWW) is an Internet system to distribute graphical, hyper- linked information, based on Hyper Text Transfer Protocol (HTTP) - a client/server protocol for the World Wide Web. The Web is not synonymous with the Internet; rather, it is just one service on the Internet. Other services on the Internet include Internet Relay Chat and Newsgroups. The Web is accessed through use of a browser. Chapter 17 Bandwidth Management NBG420N User’s Guide 202 17.7 Default Bandwidth Management Classes and Priorities If you enable bandwidth management but do not configure a rule for critical traffic like VoIP, the voice traffic may then get delayed due to insufficient bandwidth. With the automatic traffic classifier feature activated, the NBG420N automatically assigns a default bandwidth management class and priority to traffic that does not match any of the user-defined rules. The traffic is classified based on the traffic type. Real-time traffic always gets higher priority over other traffic. The following table shows you the priorities between the three default classes (AutoClass_H, AutoClass_M and Default Class) and user-defined rules. 6 is the highest priority. 17.8 Bandwidth Management General Configuration ClickManagement > Bandwidth MGMT to open the bandwidth management General screen. Figure 121 Management > Bandwidth MGMT > General Table 74 Bandwidth Management Priority with Default Classes CLASS TYPEPRIORITY User-defined with high priority6 AutoClass_H 5 User-defined with medium priority4 AutoClass_M3 User-defined with low priority2 Default Class1 Chapter 17 Bandwidth Management NBG420N User’s Guide 203 The following table describes the labels in this screen. 17.9 Bandwidth Management Advanced Configuration ClickManagement > Bandwidth MGMT > Advanced to open the bandwidth management Advanced screen. Figure 122 Management > Bandwidth MGMT > Advanced Table 75 Management > Bandwidth MGMT > General LABELDESCRIPTION Enable Bandwidth Management Select this check box to have the NBG420N apply bandwidth management. Enable bandwidth management to give traffic that matches a bandwidth rule priority over traffic that does not match a bandwidth rule. Enabling bandwidth management also allows you to control the maximum or minimum amounts of bandwidth that can be used by traffic that matches a bandwidth rule. Enable Automatic Traffic Classifier This field is only applicable when you select the Enable Bandwidth Management check box. Select this check box to have the NBG420N base on the default bandwidth classes to apply bandwidth management. Real-time packets, such as VoIP traffic always get higher priority. ApplyClickApply to save your customized settings. ResetClickReset to begin configuring this screen afresh. Chapter 17 Bandwidth Management NBG420N User’s Guide 204 The following table describes the labels in this screen. Table 76 Management > Bandwidth MGMT > Advanced LABELDESCRIPTION Check my upstream bandwidth Click the Detection button to check the size of your upstream bandwidth. Upstream Bandwidth (kbps) Enter the amount of bandwidth in kbps (2 to 100,000) that you want to allocate for traffic. 20 kbps to 20,000 kbps is recommended. The recommendation is to set this speed to be equal to or less than the speed of the broadband device connected to the WAN port. For example, set the speed to 1000 Kbps (or less) if the broadband device connected to the WAN port has an upstream speed of 1000 Kbps. Application ListUse this table to allocate specific amounts of …

Text truncated - open the document above for the full version.

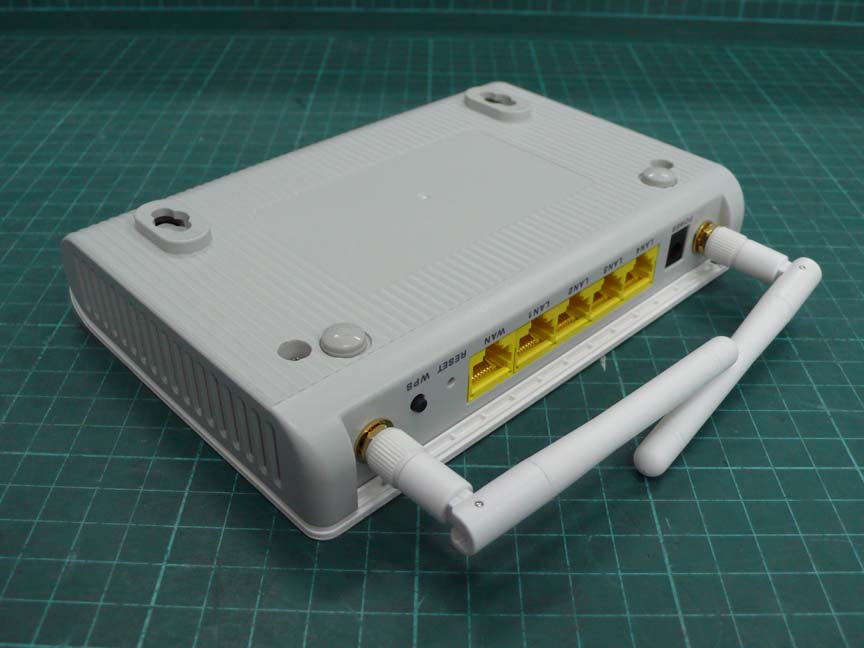

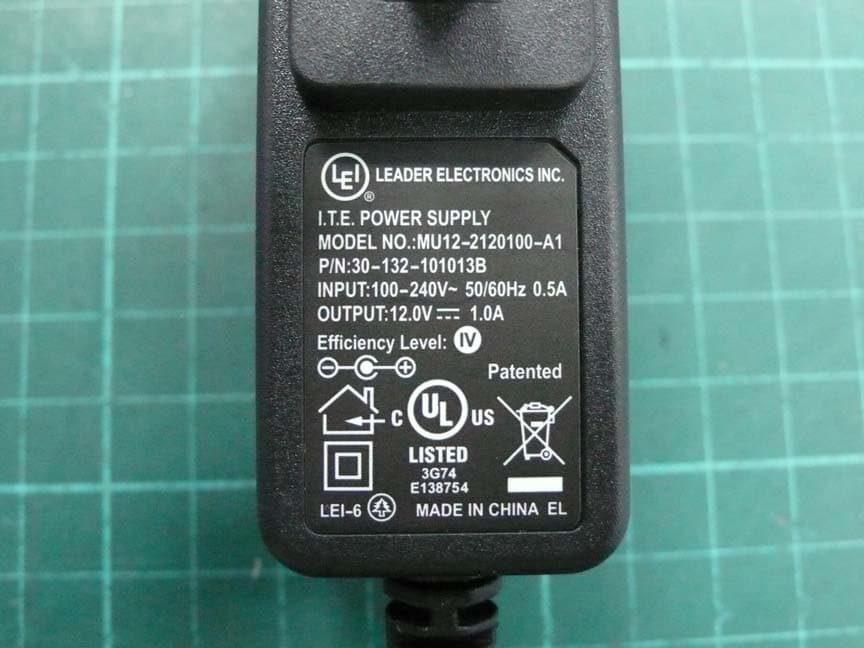

271 PART VI Appendices and Index Product Specifications and Wall-Mounting Instructions (273) Pop-up Windows, JavaScripts and Java Permissions (279) IP Addresses and Subnetting (285) Setting up Your Computer’s IP Address (293) Wireless LANs (309) Services (321) Legal Information (325) Customer Support (329) Index (335) 272 NBG420N User’s Guide 273 APPENDIX A Product Specifications and Wall- Mounting Instructions The following tables summarize the NBG420N’s hardware and firmware features. Table 113 Hardware Features Dimensions (W x D x H) 115 x 162 x 33 mm Weight250g Power SpecificationInput: 120~240 AC, 50~60 Hz Output: 12 V AC 1 A Ethernet portsAuto-negotiating: 10 Mbps or 100 Mbps in either half-duplex or full-duplex mode. Auto-crossover: Use either crossover or straight-through Ethernet cables. 4-5 Port SwitchA combination of switch and router makes your NBG420N a cost-effective and viable network solution. You can add up to four computers to the NBG420N without the cost of a hub when connecting to the Internet through the WAN port. You can add up to five computers to the NBG420N when you connect to the Internet in AP mode. Add more than four computers to your LAN by using a hub. LEDsPWR, LAN1-4, WAN, WLAN, WPS Reset ButtonThe reset button is built into the rear panel. Use this button to restore the NBG420N to its factory default settings. Press for 1 second to restart the device. Press for 5 seconds to restore to factory default settings. WPS buttonPress the WPS on two WPS enabled devices within 120 seconds for a security-enabled wireless connection. AntennaThe NBG420N is equipped with two 2dBi (2.4GHz) detachable antennas to provide clear radio transmission and reception on the wireless network. Operation EnvironmentTemperature: 0º C ~ 40º C Humidity: 20% ~ 95% RH (Non-condensing) Storage EnvironmentTemperature: -20º C ~ 60º C Humidity: 20% ~ 95% RH (Non-condensing) Distance between the centers of the holes on the device’s back. 120 mm Screw size for wall- mounting M4 Tap Screw Appendix A Product Specifications and Wall-Mounting Instructions NBG420N User’s Guide 274 Table 114 Firmware Features FEATUREDESCRIPTION Default IP Address192.168.1.1 Default Subnet Mask255.255.255.0 (24 bits) Default Password1234 DHCP Pool192.168.1.33 to 192.168.1.64 Wireless InterfaceWireless LAN Default Wireless SSIDWireless LAN: ZyXEL Wireless LAN when WPS enabled: ZyXEL WPS Default Wireless IP Address Wireless LAN: Same as LAN (192.168.1.1) Default Wireless Subnet Mask Wireless LAN: Same as LAN (255.255.255.0) Default Wireless DHCP Pool Size Wireless LAN: Same as LAN (32 from 192.168.1.33 to 192.168.1.64) Device ManagementUse the web configurator to easily configure the rich range of features on the NBG420N. Wireless FunctionalityAllows IEEE 802.11b and/or IEEE 802.11g and/or IEEE 802.11n wireless clients to connect to the NBG420N wirelessly. Enable wireless security (WEP, WPA(2), WPA(2)-PSK) and/or MAC filtering to protect your wireless network. Note: The NBG420N may be prone to RF (Radio Frequency) interference from other 2.4 GHz devices such as microwave ovens, wireless phones, Bluetooth enabled devices, and other wireless LANs. Firmware UpgradeDownload new firmware (when available) from the ZyXEL web site and use the web configurator, an FTP or a TFTP tool to put it on the NBG420N. Note: Only upload firmware for your specific model! Configuration Backup & Restoration Make a copy of the NBG420N’s configuration and put it back on the NBG420N later if you decide you want to revert back to an earlier configuration. Network Address Translation (NAT) Each computer on your network must have its own unique IP address. Use NAT to convert a single public IP address to multiple private IP addresses for the computers on your network. FirewallYou can configure firewall on the NBG420N for secure Internet access. When the firewall is on, by default, all incoming traffic from the Internet to your network is blocked unless it is initiated from your network. This means that probes from the outside to your network are not allowed, but you can safely browse the Internet and download files for example. Content FilterThe NBG420N blocks or allows access to web sites that you specify and blocks access to web sites with URLs that contain keywords that you specify. You can define time periods and days during which content filtering is enabled. You can also include or exclude particular computers on your network from content filtering. You can also subscribe to category-based content filtering that allows your NBG420N to check web sites against an external database. Appendix A Product Specifications and Wall-Mounting Instructions NBG420N User’s Guide 275 IPSec VPNThis allows you to establish a secure Virtual Private Network (VPN) tunnel to connect with business partners and branch offices using data encryption and the Internet without the expense of leased site-to-site lines. The NBG420N VPN is based on the IPSec standard and is fully interoperable with other IPSec-based VPN products. Bandwidth Management You can efficiently manage traffic on your network by reserving bandwidth and giving priority to certain types of traffic and/or to particular computers. Wireless LAN SchedulerYou can schedule the times the Wireless LAN is enabled/disabled. Time and DateGet the current time and date from an external server when you turn on your NBG420N. You can also set the time manually. These dates and times are then used in logs. Port ForwardingIf you have a server (mail or web server for example) on your network, then use this feature to let people access it from the Internet. DHCP (Dynamic Host Configuration Protocol) Use this feature to have the NBG420N assign IP addresses, an IP default gateway and DNS servers to computers on your network. Dynamic DNS SupportWith Dynamic DNS (Domain Name System) support, you can use a fixed URL, www.zyxel.com for example, with a dynamic IP address. You must register for this service with a Dynamic DNS s…

Text truncated - open the document above for the full version.

Attestation for FCC Declaration of Conformity FCC ID: I88NBG420N Data: 2008/3/25 Please be notified that we, the undersigned, ZyXEL Communications Corporation declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is TS08020061-EME. Testing in regards to this report was done by Intertek Testing Service Taiwan Ltd., located at No. 11, Lane 275, Ko Nan 1st Street, Shiang-Shan District, Hsinchu Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Printed name: Wang Yi Position: Section Manager ZyXEL Communications Corporation Tel: +886-3-5783942 Fax: +886-3-5782439 Email: [email protected]

ZyXEL Confidentiality Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: ZyXEL Communications Corporation FCC ID: 188NBG420N To whom it may concern, Request is hereby submitted by ZyXEL Communications Corporation to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently cor~fidential: Schematics Detailed Block diagrams Detailed Operational/Functional Description Rationale for request for confidentiality: ZyXEL Communications Corporation has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Section Manager ZyXEL Communications Corporation ZyXEL Communications Corporation No.6 Innovation Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan Tel886 3 5783942 Fax 886 3 5782439

Dear Sir: Our wireless product (Product name: Wireless N Router, Model number: NBG420N) is base on country’s requirement of customer to setup wireless channel. For different country, we have different country code to setup. The country code is fixed and user can’t change it. For example, the user in American can only use channel 1 to channel 11. Best regards. Wang Yi EMC/Safety Engineering Section Manager

Attention: Application Examiner Date: Apr. 18, 2008 Re: Response to FCC ID: I88NBG420N Comments Dear Sir, Thanks for your comments on Apr.17 for FCC ID: I88NBG420N, please see the answer as below. 1) Please review the Block Diagram. This appears to be a “system block” – what is wanted in addition is a more detailed “RF Block”. Kindly provide this additional detail. Answer: Our client have provided the RF Block diagram and we have uploaded to ATCB website, the file name as Block-Revised 2) There are two Agent Authorization letters – which one should I use? Answer: One is for FCC ID (Letter of Agency), one is for IC (Authority to Act as Agent). 3) The Test Report is quite through. However, you will find the “Table of Contents” is incorrect. Kindly note all the references which point to Page 28. Answer: We’ve revised table of contests of test report and uploaded to ATCB website, the file name as “ID report-part1-revsied” 4) This device has an FCC logo. I assume it must have been tested as a Part 15B device. FCC now requires that an attestation must appear in the filing whenever the DofC procedures are followed. Please submit this letter at your earliest convenience. Answer: Our client provided the DoC letter and we uploaded to ATCB website, the file name as “Attestation for FCC Declaration of Conformity” 5) This device is one of the highest peak power devices for its class I have seen. Consequently, I will need to see specifications for the antennas to make certain it meets the radiated power and MPE limitations. Please provide additional detail on the antenna specifications and gain. Answer: We’ve provided the antenna spec. and uploaded to ATCB website. The files name as “Antenna spec-part1, 2, and 3”, 6) I have some concerns about the “auto channel” function described in the Manual. I understand that it seeks out an unused channel for operations. However, I am concerned that this device may try and begin transmitting within the restricted bands on Channels 12 or 13. How is this prevented? Answer: It has been uploaded already. Please see “Confirmation letter-FCC 1-11 channel” Should you have any question, please don’t hesitate to let me know. Best regards. Yvette Yang Officer

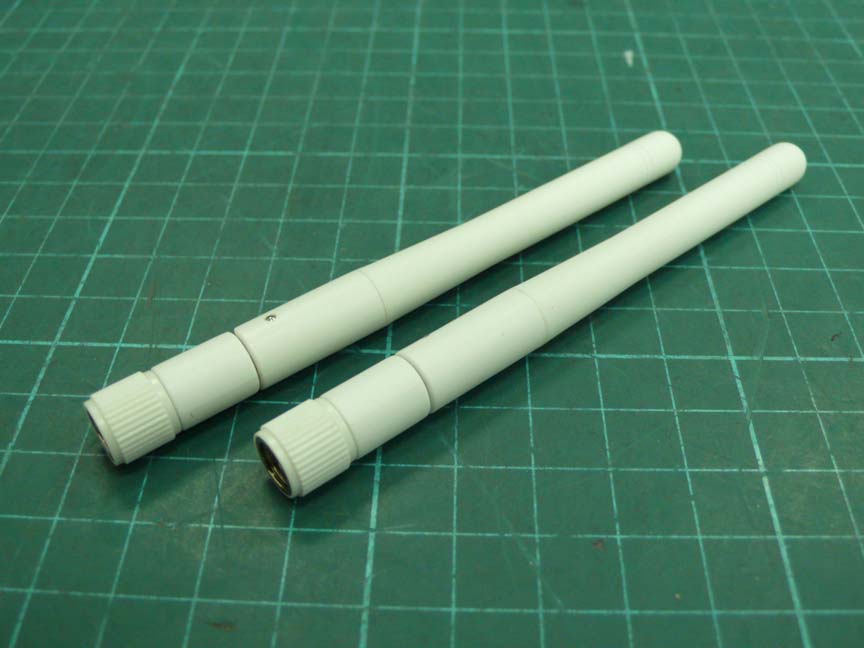

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 16, 2008 RE: ZyXel Communications Corporation FCC ID: I88NBG420N I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please review the Block Diagram. This appears to be a “system block” – what is wanted in addition is a more detailed “RF Block”. Kindly provide this additional detail. 2.) There are two Agent Authorization letters – which one should I use? 3.) The Test Report is quite through. However, you will find the “Table of Contents” is incorrect. Kindly note all the references which point to Page 28. 4.) This device has an FCC logo. I assume it must have been tested as a Part 15B device. FCC now requires that an attestation must appear in the filing whenever the DofC procedures are followed. Please submit this letter at your earliest convenience. 5.) This device is one of the highest peak power devices for its class I have seen. Consequently, I will need to see specifications for the antennas to make certain it meets the radiated power and MPE limitations. Please provide additional detail on …
