I88NBG4604Wireless N Gigabit Managed Router

www.zyxel.com www.zyxel.com NBG4604 Wireless N Gigabit Managed Router Copyright © 2010 ZyXEL Communications Corporation Firmware Version 1.0 Edition 3, 04/2010 Default Login Details IP Addresshttp://192.168.1.1 Password1234 Company Confidential Company Confidential About This User's Guide NBG4604 User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the NBG4604 using the Web Configurator. You should have at least a basic knowledge of TCP/IP networking concepts and topology. Tips for Reading User’s Guides On-Screen When reading a ZyXEL User’s Guide On-Screen, keep the following in mind: •If you don’t already have the latest version of Adobe Reader, you can download it from http://www.adobe.com . •Use the PDF’s bookmarks to quickly navigate to the areas that interest you. Adobe Reader’s bookmarks pane opens by default in all ZyXEL User’s Guide PDFs. •If you know the page number or know vaguely which page-range you want to view, you can enter a number in the toolbar in Reader, then press [ENTER] to jump directly to that page. •Type [CTRL]+[F] to open the Adobe Reader search utility and enter a word or phrase. This can help you quickly pinpoint the information you require. You can also enter text directly into the toolbar in Reader. •To quickly move around within a page, press the [SPACE] bar. This turns your cursor into a “hand” with which you can grab the page and move it around freely on your screen. •Embedded hyperlinks are actually cross-references to related text. Click them to jump to the corresponding section of the User’s Guide PDF. Related Documentation •Quick Start Guide The Quick Start Guide is designed to help you get your NBG4604 up and running right away. It contains information on setting up your network and configuring for Internet access. •Supporting Disc The embedded Web Help contains descriptions of individual screens and supplementary information. •Support Disc Refer to the included CD for support documents. Company Confidential About This User's Guide NBG4604 User’s Guide 4 Documentation Feedback Send your comments, questions or suggestions to: [email protected] Thank you! The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 30099, Taiwan. Need More Help? More help is available at www.zyxel.com . •Download Library Search for the latest product updates and documentation from this link. Read the Tech Doc Overview to find out how to efficiently use the User Guide, Quick Start Guide and Command Line Interface Reference Guide in order to better understand how to use your product. •Knowledge Base If you have a specific question about your product, the answer may be here. This is a collection of answers to previously asked questions about ZyXEL products. •Forum This contains discussions on ZyXEL products. Learn from others who use ZyXEL products and share your experiences as well. Company Confidential About This User's Guide NBG4604 User’s Guide 5 Customer Support Should problems arise that cannot be solved by the methods listed above, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device. See http://www.zyxel.com/web/contact_us.php for contact information. Please have the following information ready when you contact an office. •Product model and serial number. •Warranty Information. •Date that you received your device. Company Confidential Document Conventions NBG4604 User’s Guide 6 Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions •The NBG4604 may be referred to as the “NBG4604”, the “device”, the “product” or the “system” in this User’s Guide. •Product labels, screen names, field labels and field choices are all in bold font. •A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. •“Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. •A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen. •Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. •“e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Company Confidential Document Conventions NBG4604 User’s Guide 7 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The NBG4604 icon is not an exact representation of your device. NBG4604ComputerNotebook computer ServerModemFirewall TelephoneSwitchRouter Company Confidential Safety Warnings NBG4604 User’s Guide 8 Safety Warnings •Do NOT use this product near water, for example, in a wet basement or near a swimming pool. •Do NOT expose your device to dampness, dust or corrosive liquids. •Do NOT store things on the device. •Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. •Connect ONLY suitable accessories to the device. •Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. •Make sure to connect the cables to the correct ports. •Place connect…

Text truncated - open the document above for the full version.

Chapter 16Bandwidth Management NBG4604 User’s Guide 148 16.3 What You Need To Know You can limit an application’s uplink or downlink bandwidth. This limit keeps the traffic from using up too much of the out-going interface’s bandwidth. This way you can make sure there is bandwidth for other applications. Use the following guidelines: •The sum of the bandwidth allotments that apply to the WAN interface (LAN to WAN, WLAN to WAN) must be less than or equal to the Uplink value that you configure in the Bandwidth ManagementGeneral screen. •The sum of the bandwidth allotments that apply to the LAN port (WAN to LAN, WAN to WLAN) must be less than or equal to the Downlink value that you configure in the Bandwidth ManagementGeneral screen. 16.4 General Configuration Use this screen to enable bandwidth management and assign uplink/downlink limits. You can use either one of the following types: •Priority Queue. Enable bandwidth management to give uplink traffic that matches a bandwidth rule priority over traffic that does not match a bandwidth rule. (This type does not apply to downlink traffic.) •Bandwidth Allocation. Enabling bandwidth management also allows you to control the maximum or minimum amounts of bandwidth that can be used by traffic that matches a bandwidth rule. Note: You cannot apply both bandwidth management types at the same time. ClickManagement> Bandwidth MGMT to open the bandwidth management General screen. Figure 82 Management > Bandwidth MGMT > General Company Confidential Chapter 16Bandwidth Management NBG4604 User’s Guide 149 The following table describes the labels in this screen. 16.5 Advanced Configuration Use this screen to configure bandwidth managements rule for the pre-defined services or applications. Use this screen to configure bandwidth managements rule for specific protocols on an IP or IP range. Note: This screen contains the Priority Queue and Bandwidth Allocation tables. Though both tables are described in this section, you can only apply the rules in one table. Fill out the table of the Bandwidth Management Type you selected inSection 16.4 on page 148. Table 55 Management > Bandwidth MGMT > General LABELDESCRIPTION Service Management Bandwidth Management Type This field allows you to have NBG4604 apply bandwidth management. Select Priority Queue or Bandwidth Allocation to enable bandwidth management. •Select Priority Queue to allocate bandwidth based on the pre- defined priority assigned to an application. Refer to Section 16.5 on page 149. •Select Bandwidth Allocation allocate specific amounts of bandwidth to specific protocols on an IP or IP range. Refer to Section 16.5 on page 149. Select Disable if you do not want to use this feature. Total Bandwidth Setting. The fields below appear when you enable Bandwidth Management. UplinkType or select the total amount of bandwidth (from 64 Kbps to 30 Mbps) that you want to dedicate to uplink traffic. If you type the amount of bandwidth, the selection automatically becomesUser Defined. If you select the amount of bandwidth, the field automatically displays the value in Kbps. This is traffic from LAN/WLAN to WAN. DownlinkType or select the total amount of bandwidth (from 64 Kbps to 30 Mbps) that you want to dedicate to downlink traffic. If you type the amount of bandwidth, the selection automatically becomesUser Defined. If you select the amount of bandwidth, the field automatically displays the value in Kbps. This is traffic from WAN to LAN/WLAN. ApplyClickApply to save your customized settings. ResetClickReset to begin configuring this screen afresh. Company Confidential Chapter 16Bandwidth Management NBG4604 User’s Guide 150 ClickManagement > Bandwidth MGMT > Advanced to open the bandwidth management Advanced screen. Figure 83 Management > Bandwidth MGMT > Advanced The following table describes the labels in this screen. Table 56 Management > Bandwidth MGMT > Advanced LABELDESCRIPTION Priority Queue Local IP Address Enter the IP address of the computer to which bandwidth management does not apply. Priority QueueUse this table to allocate specific amounts of bandwidth based on the pre-defined service. Company Confidential Chapter 16Bandwidth Management NBG4604 User’s Guide 151 #This is the number of an individual bandwidth management rule. EnableSelect this check box to have the NBG4604 apply this bandwidth management rule. ServiceThis is the name of the service. You can also enter the name (up to 10 keyboard characters) of a service you want to add in the priority queue (for example, Messenger). PrioritySelect a priority from the drop down list box. Choose High or Low. Specific PortThis displays the port/s assigned to the service. You can also specify the port/s to services to which you want to allocate bandwidth. Choose either Both,TCP or UDP in the drop-down menu and enter the port or range of ports in the provided boxes. Note: If you are entering a specific port and not a range of ports, you can either leave the second port field blank or enter the same port number again. Bandwidth Allocation Use this table to allocate specific amounts of bandwidth to specific protocols on an IP or IP range. #This is the number of an individual bandwidth management rule. EnableSelect this check box to have the NBG4604 apply this bandwidth management rule. LAN IP RangeThis displays the range of IP addresses for which the bandwidth management rule applies. DirectionThese read-only labels represent uplink or downlink traffic. To LAN applies bandwidth management to traffic from WAN to LAN/ WLAN (i.e., downlink). To WAN applies bandwidth management to traffic from LAN/WLAN to WAN (i.e., uplink). Both applies bandwidth management to traffic that the NBG4604 forwards to both the LAN and the WAN. Port RangeThis displays the range of ports for which the bandwidth management rule applies. PolicyThis displays either Max (maximum) or Min (minimum) and refers to the maximum or minimum bandwidth allowed for the rule in kilobits per second in …

Text truncated - open the document above for the full version.

General Declaration We, the undersigned, attest that this device does not support “Ad Hoc on non-US frequencies”. FCC ID: I88NBG4604 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________ Wang Yi EMC/Safety Engineering Section 2010/4/20

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: I88NBG4604 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________ Wang Yi EMC/Safety Engineering Section ZyXEL Communications Corporation 2010/4/19

Power of Attorney To whom it may concern: We, ZyXEL Communications Corporation, located at No.6, Innovation Rd II, Science- Park, Hsin-Chu, 300, Taiwan, R.O.C, hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. FCC ID: I88NBG4604 If you have questions regarding the authorization or need further information, please don’t hesitate to contact us Thank you! Sincerely yours, __________________________________ Wang Yi EMC/Safety Engineering Section 2010/4/19

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID： I88NBG4604 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 4 Page 5 Page 6

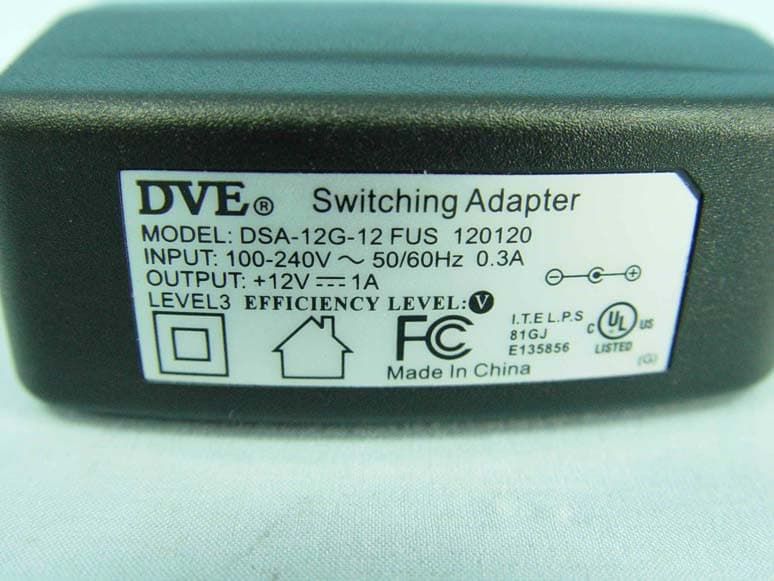

FCC ID: I88NBG4604 Report No.: RF990325E19 Operational Description This device is a Wireless N Gigabit Managed Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc from an adapter. The antenna is Dipole antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA990325E19 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990325E19 MODEL NO.: NBG4604 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Science-Park, Hsin-Chu, 300, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA990325E19 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 24.7 2 20 0.093 1.00

Report No.: RF990325E19 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990325E19 MODEL NO.: NBG4604 RECEIVED: Mar. 25, 2010 TESTED: Mar. 31 ~ Apr. 14, 2010 ISSUED: Apr. 15, 2010 APPLICANT: ZyXEL Communications Corporation ADDRESS: No. 6, Innovation Road II, Science-Park, Hsin-Chu, 300, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990325E19 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION...................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................. 5 2.1 MEASUREMENT UNCERTAINTY........................................................................... 5 3. GENERAL INFORMATION ...................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 6 3.2 DESCRIPTION OF TEST MODES .......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 10 4. TEST TYPES AND RESULTS ............................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT ............................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS........................................................................................... 12 4.1.3 TEST PROCEDURES ........................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 13 4.1.5 TEST SETUP......................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 14 4.1.7 TEST RESULTS .................................................................................................... 15 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 28 4.2.2 TEST INSTRUMENTS........................................................................................... 28 4.2.3 TEST PROCEDURES ........................................................................................... 29 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 29 4.2.5 TEST SETUP......................................................................................................... 30 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 30 4.2.7 TEST RESULTS .................................................................................................... 31 4.3 6dB BANDWIDTH MEASUREMENT..................................................................... 33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 33 4.3.2 TEST INSTRUMENTS........................................................................................... 33 4.3.3 TEST PROCEDURE.............................................................................................. 33 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 33 4.3.5 TEST SETUP......................................................................................................... 34 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 34 4.3.7 TEST RESULTS .................................................................................................... 35 4.4 MAXIMUM OUTPUT POWER ............................................................................... 39 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT................................ 39 4.4.2 INSTRUMENTS..................................................................................................... 39 Report No.: RF990325E19 3 Report Format Version 3.0.1 4.4.3 TEST PROCEDURES ........................................................................................... 39 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 40 4.4.5 TEST SETUP......................................................................................................... 40 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 40 4.4.7 TEST RESULTS .................................................................................................... 41 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................................ 42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............................. 42 4.5.2 TEST INSTRUMENTS..................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
