1/2Copyright © 2012 ZyXEL Communications Corp. All Rights Reserved Quick Start Guide NBG4615 v2 Wireless N300 Gigabit NetUSB Router LAN Port: LAN1~4 IP Address: 192.168.1.1 Password: 1234 Default Login Details Standard-Anmeldedaten | Detalles de inicio de sesión predeterminados Informations de connexion par défaut | Dettagli sull'accesso predefinito Inloggningsuppgifter, standard | Standaard login-gegevens Oletus-sisäänkirjautumistiedot | 曎士䕂䔹‣失䯮宅壈 Please refer to the User's Guide for more information. 1 2 Internet Setup- Method 1 Optional Hardware Installation WAN DC IN 1 USB 2 3 4 Optional 5 Please Check... Bitte prüfen... | Por favor, compruebe... Veuillez vérifier... | Controllare... Kontrollera... | Controleren a.u.b. Tarkista... | 妉㥠㚣 Open web browser Webbrowser öffnen Abra el explorador de la web Ouvrez votre navigateur Web Aprire il browser Öppna webbläsare Open webbrowser Avaa www-selain 敲╆䶙柨㿶妤♏ Login and follow instructions Anmelden und Anweisungen ausführen Inicie sesión y siga las instrucciones Connectez-vous et suivez les instructions Accedere e seguire le istruzioni Logga in och följ anvisningarna Inloggen en aanwijzingen opvolgen Kirjaudu sisään ja seuraa ohjeita 䙢⅌ḍᾄ䅎㋮䤡ὃ㥔 Internet-Setup - Methode 1 | Configuración de Internet - Método 1 Installation d'Internet - Méthode 1 | Configurazione Internet - Metodo 1 Internetinställning - metod 1 | Internet Setup - Methode 1 Internet-asennus - vaihe 1 | 䱰教䱰岭士⩘㑷㮓 LAN WLAN POWER 1 2 3 4 5 Attach antenna Antenne anschließen Coloque la antena Branchez l'antenne Agganciare l'antenna Montera antennen Antenne bevestigen Liitä antenni 怊㎌⤐䷁ Connect computer Computer anschließen Conecte el ordenador Connectez l'ordinateur Collegare il computer Anslut datorn Computer aansluiten Yhdistä tietokone 怊㎌曢免 Connect gateway modem Modem anschließen Conecte el módem Connectez le modem Collegare il modem Anslut modemet Modem aansluiten Yhdistä modeemi 怊㎌䶙暂䶙巖敿怺㕟㓁㩆 Connect power Stromkabel anschließen Conecte la alimentación Branchez l'alimentation Alimentazione Anslut till elnätet Voeding aansluiten Yhdistä virta 怊㎌曢㹷 Connect USB device USB-Gerät anschließen Conecte el dispositivo USB Connectez un périphérique USB Collegare il dispositivo USB Anslut USB-enheten USB-apparaat aansluiten Yhdistä USB-laite 怊㎌86%壄何 Installation der Hardware | Instalación del hardware Installation du matériel | Installazione hardware Maskinvaruinstallation | Hardware Installatie Laitteen asennus | 䜪榒⩇垛 2/2Copyright © 2012 ZyXEL Communications Corp. All Rights Reserved 㳏ヶ ᾄ㓁ἵ⊆䍮曢㳉弢⯫『曢㩆䮈䏭徍㲼 䬓⌨ṳ㢄䵺❲⻶婴嬰⏯㠣Ḳἵ⊆䍮⯫栢曢㩆Ə杅䵺娘⏖Ə⅓⏟ ̊┭噆ㇽὦ䔏俬✮ᷴ耒㒬凑孱㛛栢䍮 ̊ ⊇⤎⊆䍮ㇽ孱㛛⎆娔姯Ḳ䉠『⎱⊆僤 ̨ 䬓⌨⛂㢄ἵ⊆䍮⯫栢曢㩆Ḳὦ䔏ᷴ耒爻柦棂刑⭰⅏⎱⹙㓥⏯㲼态Ὲƞ䵺䙣䏥㛰 ⹙㓥䏥屈㘩Əㆰ䪲⍚⁃䔏Əḍ㔠╫凚䄈⹙㓥㘩㖠耒乣乳ὦ䔏 ̨∴柬⏯㲼态ῈƏ㋮ᾄ曢Ὲ奶⮁ὃ㥔Ḳ䄈 ䷁曢Ὲ ̨ἵ⊆䍮⯫栢曢㩆柯頁⎾⏯㲼态Ὲㇽⷌ㥔 ̊䦸⭟⎱憒䘩䔏曢㳉弢⯫『曢㩆娔₀Ḳ⹙㓥 ̨ 㜓㩆昷✏ᷴ⹙㓥⏯㲼曢凡凮ᷴ⎾墒⹙㓥ῄ暃㢄ờᷲ㖣⮋ⅎὦ䔏 ̨㸂⯸曢䢨㳉爻柦Ə媲⦌恐ὦ䔏 ̨ This device is designed for the WLAN 2.4 GHz and/or 5 GHz networks throughout the EC region and Switzerland, with restrictions in France. Ce produit est conçu pour les bandes de fréquences 2,4 GHz et/ou 5 GHz conformément à la législation Européenne. En France métropolitaine, suivant les décisions n°03-908 et 03-909 de l’ARCEP, la puissance d’émission ne devra pas dépasser 10 mW (10 dB) dans le cadre d’une installation WiFi en extérieur pour les fréquences comprises entre 2454 MHz et 2483,5 MHz. Declarations ⩇...娤⌈ 䂡ṭわ䙫⭰⅏Ə媲ℯ斘孧Ọᷲ孍␱⎱㋮䤡 ‡媲⋦⯮㭋䔉(m)㎌徸㰛 ̊䁒䄗ㇽ㔥何✏檿㺒䙫䒗⡪ ̨ ‡恦ℴ娔₀㎌姟 ‡ỢἼ㶙檻⇮⋦孺娔₀㎌姟㰛 ̊曏㰛 ̊檿㾼⺍ ̊㱈㰛儷圼『䙫㶙檻ㇽ⅝ẽ㰛Ụ ̨ ‡䁗⡜⎱㱈䉐⇮⋦㎌姟䁗⡜ ̊㱈䉐 ̊㲀✆ ̊棆䉐ㇽ⅝ẽᷴ⏯恐䙫㜷㖀 ̨ ‡⇮⋦憴㐻ㇽ㒅㒱娔₀Əḍ⋦ὦ䔏ᷴ㭊䢡䙫曢㹷孱⢺♏ ̨ 勌㎌ᷱᷴ㭊䢡䙫曢㹷孱⢺♏㛪㛰䇭䂟䙫梏暑 ̨ ‡媲⋦暏ヶ㛛㏂䔉(m)ⅎ䙫曢㱇 ̨ ‡⥩㞃㛛㏂ᷴ㭊䢡Ḳ曢㱇❲⻶Ə㛪㛰䇭䂟䙫梏暑Ə媲ᾄ壤怇┭媑㗵㛟嘼䏭ὦ䔏怵Ḳ曢㱇 ̨ ‡媲⯮⻉曢㱇Ḇ㢫✏恐䕝䙫曢♏ㇽ曢⬷娔₀⛅㔝嘼 ̨ ‡媲⋦⯮娔₀姊檻 ̨ ‡媲⋦昢䤀娔₀䙫㕊䆘⬻Ə䩡㰊⯴㴨ᷴ嶚⯮㛪怇ㇷ娔₀21日⮚ ̨ ‡媲㎹✏㭊䢡䙫曢⢺ᾂ䵍㎹⺎ ⥩⋾併⏗䁊曢⢺9$&Ə㬷㴙㘖9$& ̨ ‡‮勌曢㹷孱⢺♏ㇽ曢㹷孱⢺♏䙫亃䷁21日⣅Ə媲臼㎹⺎㊻晋Ə勌わ恫乣乳㎹曢ὦ䔏Ə㛪㛰姟曢㭢Ẉ䙫梏暑 ̨ ‡媲⋦婍⛽῕䏭曢㹷孱⢺♏ㇽ曢㹷孱⢺♏䙫亃䷁Ə勌㛰㮧21日Ə媲䛛㎌偖䵈わ峣岞䙫⹾⮝Ə峣岞ᷧῲ㖗䙫曢㹷孱⢺♏ ̨ ‡媲⋦⯮㭋娔₀⭰壄㖣⮋⣽Ə㭋娔₀€恐⏯㔥何㖣⮋ⅎ ̨ ‡媲⋦暏ᷧ刓❪✥Ḇ㢫 ̨ ‡媲⎪斘䔉(m)傳岣ᷱ䙫娔₀栴⮁⊆䍮 ‡媲⎪俪䔉(m)❲拫ㇽ㘖比䚹ᷱ㨀䤡䙫ὃ㥔㺒⺍ “INFORMAZIONI AGLI UTENTI” Ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n.151”Attuazione delle Direttive 2002/95/CE, 2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché allo smaltimento dei rifiuti” Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente dagli altri rifiuti. La raccolta differenziata della presente apparecchiatura giunta a fine vita è organizzata e gestita dal produttore. L’utente che vorrà disfarsi della presente apparecchiatura dovrà quindi contattare il produttore e seguire il sistema che questo ha adottato per consentire la raccolta separata dell’apparecchiatura giunta a fine vita. L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchiatura dismessa al riciclaggio, al trattamento e allo smaltimento ambientalmente compatibile contribuisce ad evitare possibili effetti negativi sull’ambiente e sulla salute e favorisce il reimpiego e/o riciclo dei materiali di cui è composta l’apparecchiatura. Lo smaltimento abusivo del prodotto da parte del detentore comporta l’applicazione delle sanzioni amministrative previste dalla normativa vigente.” ENGLISHDEUTSCHESPAÑOLFRANÇAIS Green Product Declaration RoHS Directive 2011/65/EU WEEE Directive 2002/96/EC (W EEE: Waste Electrical and Electronic Equipment) 2003/108/EC;2008/34/EC Declaration Signature: Name/Title: Thomas Wei / Quality Management Department/ Senior Director. Date (yyyy/mm/dd): 2012/07/09 Grünes Produkt Erklärung RoHS Richtlinie 2011/65/EU ElektroGRichtlinie 2002/96/EG (ElektroG: Über Elektro- und Elektronik-Altgeräte) 2003/108/EG;2008/34/EG Unterschrift des Erklärenden: Name/Title: Thomas Wei / Quality Management Department/ Senior Director. Date (yyyy/mm/dd): 2012/07/09 Declaración de Producto Ecológico Directiva RoHS2011/65/UE Directiva RAEE 2002/96/CE (RAEE : Residuos de Aparatos Eléctricos y Electrónicos) 2003/108/CE;2008/34/CE Firma de declarac…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: ZyXEL Communications Corporation Address: No.6 Innovation Rd. II , Science-Based Industrial Park , City: Hsin-Chu , Country: Taiwan Declare that: Name Representative of agent: Daphne Liang Agent Company name: Compliance Certification Services Inc. Address: No.8, Jiucengling, Xinhua Dist., City: Tainan City 712, Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: Wireless N300 Gigabit NetUSB Router Type designation: NBG4615 v2 Trademark: ZyXEL on our behalf. Date:2012-11-21 Signature: Name/Title: Thomas Wei/ Senior Director Company Name: ZyXEL Communications Corporation Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment: Wireless N300 Gigabit NetUSB Router Trademark(s) and Model(s): ZyXEL and NBG4615 v2 Manufacturer: ZyXEL Communications Corporation FCC ID in case other parts of this equipment are subject to certification: I88NBG4615V2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: No.： T12 1019N91-D Issue date: November 3, 2012 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: ZyXEL Communications Corporation Name/Title (legal representative): Thomas Wei / Senior Director Address: No.6 Innovation Rd. II , Science-Based Industrial Park , Hsin-Chu, Taiwan Phone: 886-3-5783942 Fax: 886-3-5786854 E-mail: [email protected] Date: 2012-11-30 Signature: FCC

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: ZyXEL Communications Corporation Address : No.6 Innovation Rd. II , Science-Based Industrial Park , City: Hsin-Chu , Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: I88NBG4615V2 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2012-11-21 Name and signature of applicant: Thomas Wei Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

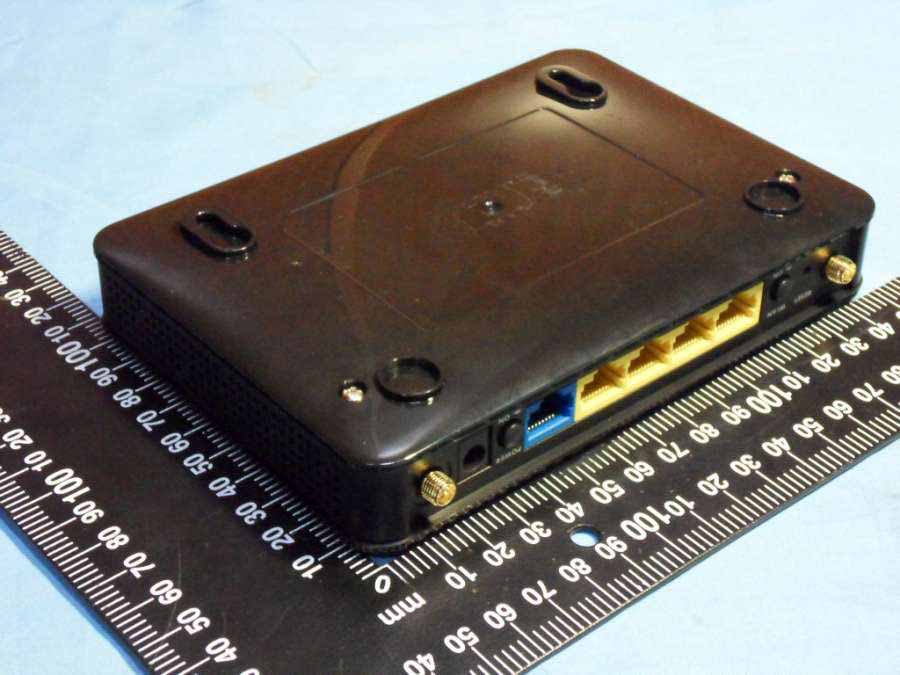

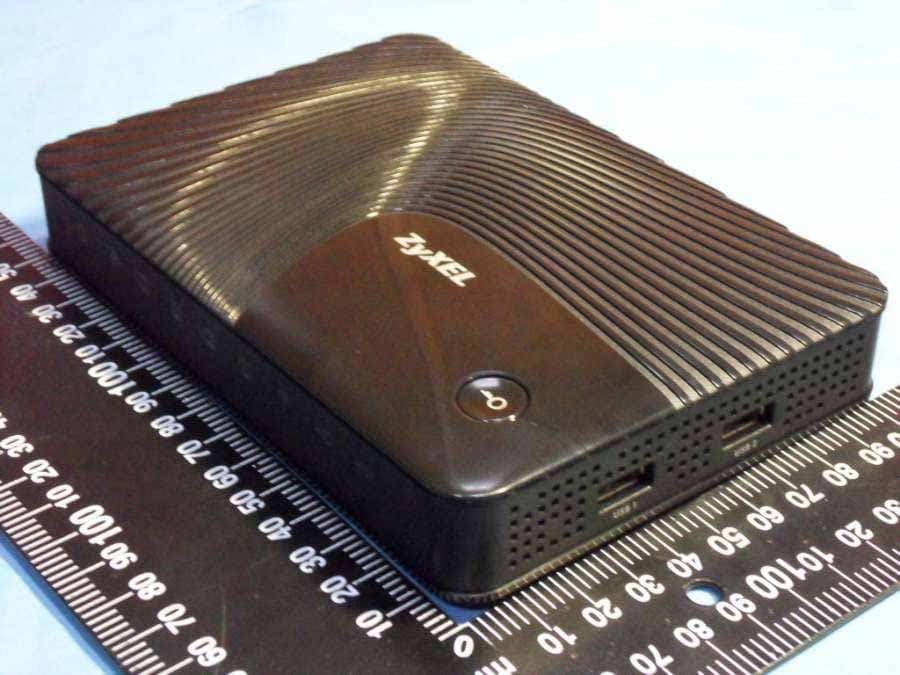

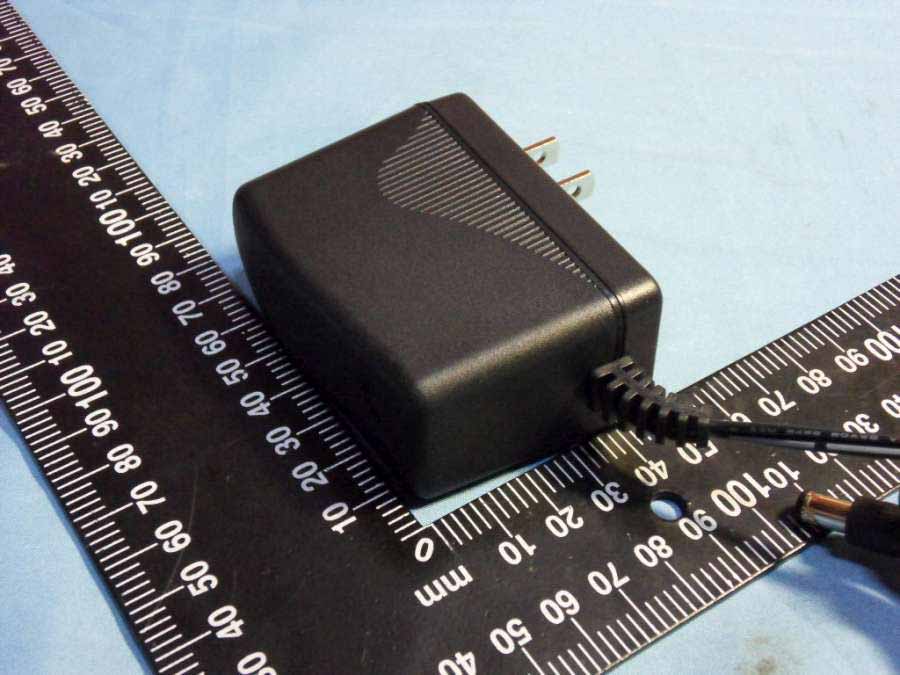

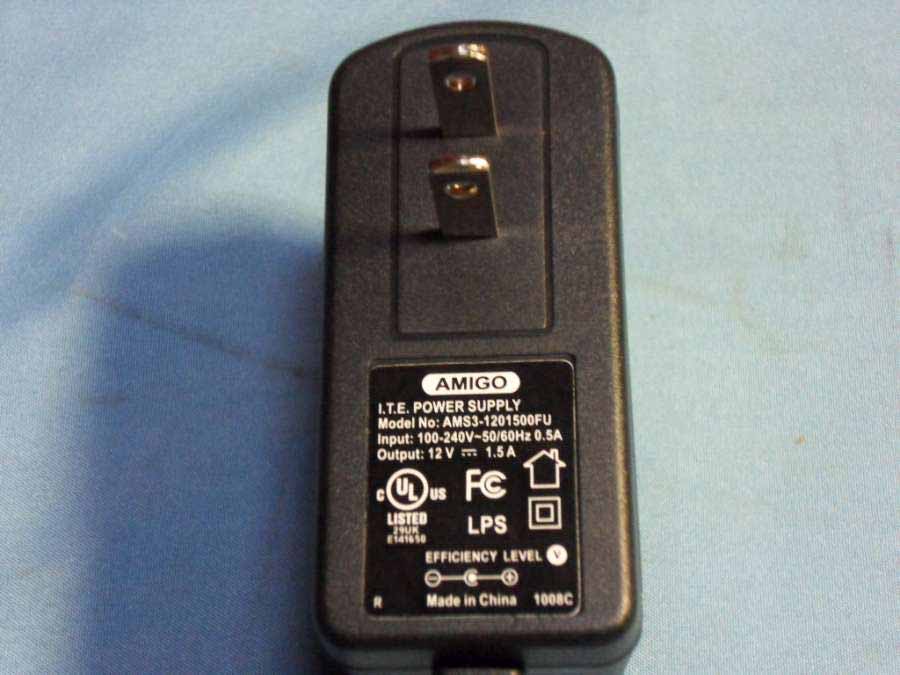

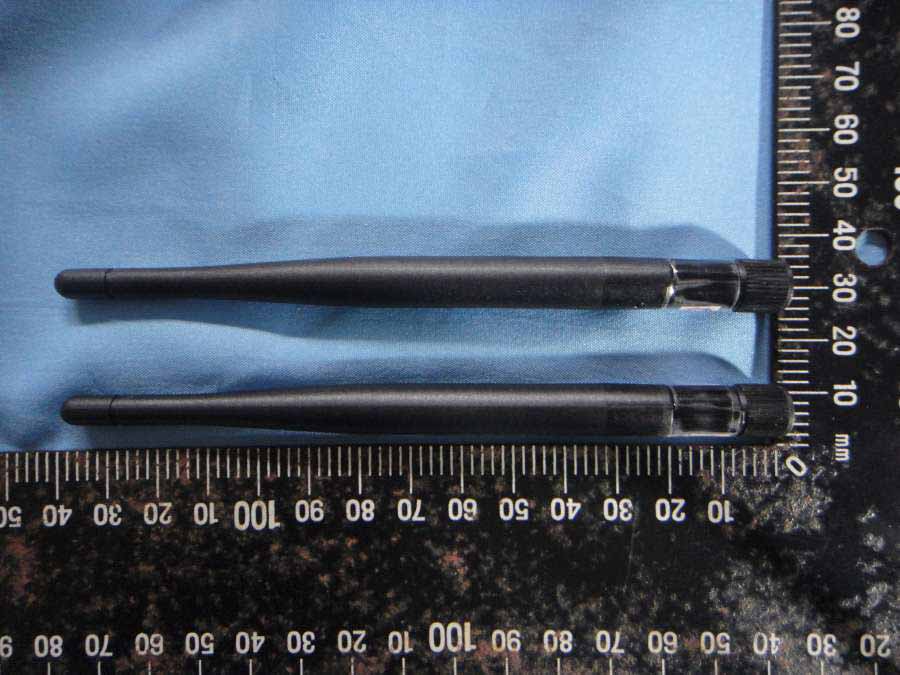

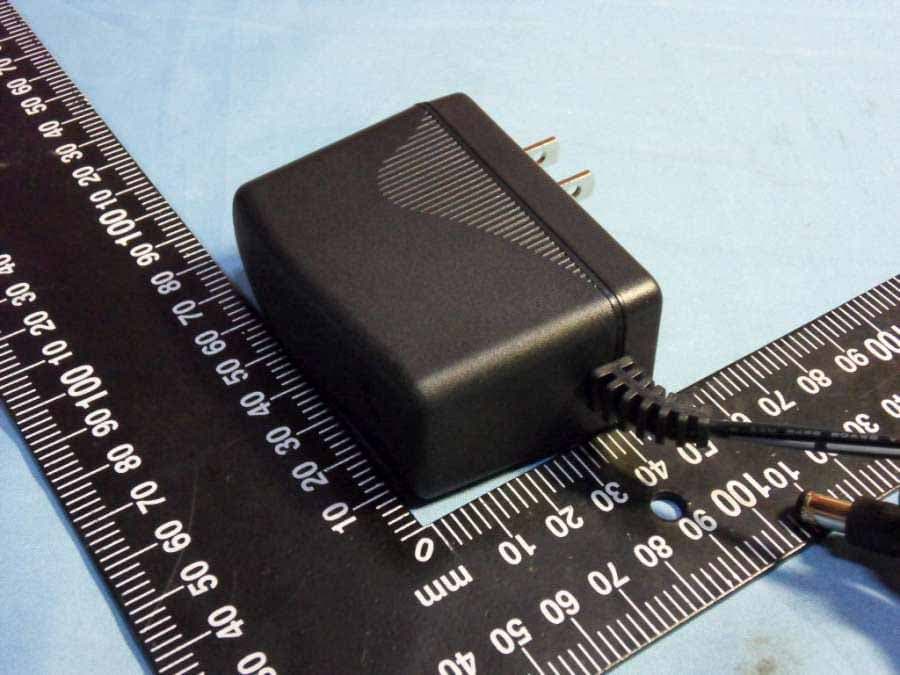

Compliance Certification Services Inc. Report No.T121019N91 Page A1 / 8 External Photo ( NBG4615 v2 ) Compliance Certification Services Inc. Report No.T121019N91 Page A2 / 8 Compliance Certification Services Inc. Report No.T121019N91 Page A3 / 8 Compliance Certification Services Inc. Report No.T121019N91 Page A4 / 8

Diagram Label location Label location

Compliance Certification Services Inc. Report No.T121019N91 Page A5 / 8 Internal Photo ( NBG4615 v2 ) Compliance Certification Services Inc. Report No.T121019N91 Page A6 / 8 Compliance Certification Services Inc. Report No.T121019N91 Page A7 / 8 Compliance Certification Services Inc. Report No.T121019N91 Page A8 / 8

!!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 56 / 135 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E uu 30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S uu Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields 2 2 0796.0 100/3770 1000/30 d GP d GP S u u u uu Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 57 / 135 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. 22 0796.0 100/3770 1000/30 d GP d GP S u u u uu Once Antenna Gain=2.0dBi=1.995262mW Total Antenna Gain=5.01dBi=3.16978638mW IEEE 802.11b = 0.0796 * 284.4461 *1.58489319 ÷ 400 = 0.08971 IEEE 802.11g = 0.0796 * 295.8012 *1.58489319 ÷ 400 = 0.09329 IEEE 802.11n HT20 = 0.0796 * 351.6498 *3.16978638 ÷ 400 = 0.22182 IEEE 802.11n HT40 = 0.0796 * 163.2322 *3.16978638 ÷ 400 = 0.10296 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 24.54 284.45 2.00 1.00 0.089713 IEEE 802.11g 20 24.71 295.80 2.00 1.00 0.093294 IEEE 802.11n HT2020 25.46 351.65 5.01 1.00 0.221816 IEEE 802.11n HT4020 22.13 163.23 5.01 1.00 0.102965 REMARK:For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

!!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 1 / 135 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For Wireless N300 Gigabit NetUSB Router Model: NBG4615 v2 Brand: ZyXEL Issued for ZyXEL Communications Corporation No.6 Innovation Rd. II , Science-Based Industrial Park , Hsin-Chu , Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: November 03, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 2 / 135 REVISION HISTORY Rev. Issue Date RevisionsEffect Page Revised By 00November 03, 2012 Initial Issue ALL Sunny Chang !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 3 / 135 TABLE OF CONTENTS. 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 3. DESCRIPTION OF TEST MODES ..................................................................................6 4. TEST METHODOLOGY ..................................................................................................7 5. FACILITIES AND ACCREDITATIONS............................................................................7 5.1 FACILITIES............................................................................................................................................7 5.2 EQUIPMENT..........................................................................................................................................7 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................8 6. CALIBRATION AND UNCERTAINTY.............................................................................8 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................8 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................8 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................9 7.1 SETUP CONFIGURATION OF EUT..................................................................................................9 7.2 SUPPORT EQUIPMENT.....................................................................................................................9 7.2 SUPPORT EQUIPMENT.....................................................................................................................10 7.3 EUT OPERATING CONDITION.........................................................................................................11 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................12 8.1 6DB BANDWIDTH................................................................................................................................12 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................27 8.3 MAXIMUM PERMISSIBLE EXPOSURE...........................................................................................56 8.4 POWER SPECTRAL DENSITY..........................................................................................................58 8.5 CONDUCTED SPURIOUS EMISSION.............................................................................................72 8.6 RADIATED EMISSIONS......................................................................................................................92 8.7 POWERLINE CONDUCTED EMISSIONS........................................................................................127 9. ANTENNA REQUIREMENT ............................................................................................131 9.1 STANDARD APPLICABLE..................................................................................................................131 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................131 APPENDIX SETUP PHOTOS .............................................................................................132 APPENDIX II PHOTOGRAPHS OF EUT.................................................................A1 !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 4 / 135 1. TEST REPORT CERTIFICATION Applicant Κ ZyXEL Communications Corporation Address Κ No.6 Innovation Rd. II , Science-Based Industrial Park , Hsin-Chu , Taiwan Equipment Under Test Κ Wireless N300 Gigabit NetUSB Router Model Κ NBG4615 v2 Brand Κ ZyXEL Date of Test Κ September 17, 2012 ~ October 28, 2012 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 5 / 135 2. EUT DESCRIPTION Product Name Wireless N300 Gigabit NetUSB Router Model NBG4615 v2 Brand ZyXEL Received Date September 17, 2012 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz~2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz~2452MHz Transmit Power IEEE 802.11b Mode : 24.54dBm (DTS Band) (284.4mW) IEEE 802.11g Mode : 24.71dBm (DTS Band) (295.8mW) IEEE 802.11n …

Text truncated - open the document above for the full version.

!!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 72 / 135 8.5 CONDUCTED SPURIOUS EMISSION LIMITS § 15.247(d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the and that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. Attenuation below the general limits specified in § 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in § 15.205(a), must also comply with the radiated emission limits specified in § 15.209(a) (see § 15.205(c)). TEST EQUIPMENT Name of Equipment ManufacturerModelSerial Number Calibration Due Spectrum Analyzer R&S FSU 200789 SEP. 29, 2013 Remark: Each piece of equipment is scheduled for calibration once a year. TEST SETUP TEST PROCEDURE The transmitter output is connected to a spectrum analyzer. The resolution bandwidth is set to 100 kHz. The video bandwidth is set to 300 kHz. The spectrum from 30 MHz to 26 GHz is investigated with the transmitter set to the lowest, middle, and highest channels in the 2.4 GHz band. !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 73 / 135 TEST RESULTS 802.11n HT20 Mode LOW CHANNEL Frequency ChainA ChainB Total Limit Margin ʳʳʳʳʳʳ (MHz)(dBm)(dBm)(dBm)(dBm)(dB) Result Fundamental 0.00-0.56 -- -- -- -- 2400.00 -28.49-30.80 -25.48 -20.00 -5.48 Pass MIDDLE CHANNEL Frequency ChainA ChainB Total Limit Margin ʳʳʳʳʳʳ (MHz)(dBm)(dBm)(dBm)(dBm)(dB) Result Fundamental 0.49-0.45 -- -- -- -- 120.43 -42.62-44.80 -39.61 -19.51 -20.10 Pass HIGH CHANNEL Frequency ChainA ChainB Total Limit Margin ʳʳʳʳʳʳ (MHz)(dBm)(dBm)(dBm)(dBm)(dB) Result Fundamental 0.07-0.30 -- -- -- -- 2483.50 -29.62-33.27 -26.61 -19.93 -6.68 Pass 802.11n HT40 Mode LOW CHANNEL Frequency ChainA ChainB Total Limit Margin ʳʳʳʳʳʳ (MHz)(dBm)(dBm)(dBm)(dBm)(dB) Result Fundamental -6.67-6.56 -- -- -- -- 2400.00 -37.26-36.92 -33.91 -26.56 -7.35 Pass MIDDLE CHANNEL Frequency ChainA ChainB Total Limit Margin ʳʳʳʳʳʳ (MHz)(dBm)(dBm)(dBm)(dBm)(dB) Result Fundamental -6.04-6.31 -- -- -- -- 2400.00 -42.35-42.60 -39.34 -26.04 -13.30 Pass 2483.50 -42.77-44.78 -39.76 -26.04 -13.72 Pass HIGH CHANNEL Frequency ChainA ChainB Total Limit Margin ʳʳʳʳʳʳ (MHz)(dBm)(dBm)(dBm)(dBm)(dB) Result Fundamental -5.86-5.46 -- -- -- -- 2483.50 -38.53-41.43 -35.52 -25.46 -10.06 Pass Remark: Total (dBm) = Measure + 10 log(2) dB, Measure=Choose the max chain value !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 74 / 135 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( IEEE 802.11b MODE ) CH Low (30MHz~3GHz) (802.11b MODE ) Ref 20 dBmAtt 10 dB * Offset 11.7 dB MAXH A LVL 1 PK EXT EXREF 297 MHz/Start 30 MHzStop 3 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 300 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 9.56 dBm 2.414567308 GHz 2 Marker 2 [T1 ] -21.95 dBm 96.634615385 MHz 3 Marker 3 [T1 ] -18.93 dBm 2.400000000 GHz 4 Marker 4 [T1 ] -51.15 dBm 2.483500000 GHz D1 -10.44 dBm Date: 28.OCT.2012 18:58:11 CH Low (3GHz~26.5GHz) (802.11b MODE ) Ref 20 dBmAtt 10 dB * * Offset 11.7 dB MAXH A LVL 3DB RBW 100 kHz VBW 300 kHz SWT 2.35 s * Start 3 GHzStop 26.5 GHz2.35 GHz/ EXT EXREF 1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -10.44 dBm Date: 28.OCT.2012 18:58:55 !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 75 / 135 CH Mid (30MHz~3GHz) (802.11b MODE ) Ref 20 dBmAtt 10 dB * Offset 11.7 dB MAXH A LVL 1 PK EXT EXREF 297 MHz/Start 30 MHzStop 3 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 300 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 8.98 dBm 2.438365385 GHz 2 Marker 2 [T1 ] -23.97 dBm 120.432692308 MHz 3 Marker 3 [T1 ] -49.57 dBm 2.400000000 GHz 4 Marker 4 [T1 ] -51.75 dBm 2.483500000 GHz D1 -11.02 dBm Date: 28.OCT.2012 18:59:47 CH Mid (3GHz~26.5GHz) (802.11b MODE ) Ref 20 dBmAtt 10 dB * * Offset 11.7 dB MAXH A LVL 3DB RBW 100 kHz VBW 300 kHz SWT 2.35 s * Start 3 GHzStop 26.5 GHz2.35 GHz/ EXT EXREF 1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -11.02 dBm Date: 28.OCT.2012 19:00:18 !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 76 / 135 CH High (30MHz~3GHz) (802.11b MODE ) Ref 20 dBmAtt 10 dB * Offset 11.7 dB MAXH A LVL 1 PK EXT EXREF 297 MHz/Start 30 MHzStop 3 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 300 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 8.51 dBm 2.462163462 GHz 2 Marker 2 [T1 ] -25.06 dBm 144.230769231 MHz 3 Marker 3 [T1 ] -51.16 dBm 2.400000000 GHz 4 Marker 4 [T1 ] -20.79 dBm 2.483500000 GHz D1 -11.49 dBm Date: 28.OCT.2012 19:01:11 CH High (3GHz~26.5GHz) (802.11b MODE ) Ref 20 dBmAtt 10 dB * * Offset 11.7 dB MAXH A LVL 3DB RBW 100 kHz VBW 300 kHz SWT 2.35 s * Start 3 GHzStop 26.5 GHz2.35 GHz/ EXT EXREF 1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -11.49 dBm Date: 28.OCT.2012 19:01:33 !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No.ΚT121019N91-RP1 ! Page 77 / 135 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11g MODE ) CH Low (30MHz~3GHz) (802.11g MODE ) Ref 20 dBmAtt 10 dB * Offset 11.7 dB MAXH A LVL 1 PK EXT EXREF 297 MHz/Start 30 MHzStop 3 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 300 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 1.21 dBm 2.419326923 GHz 2 Marker 2 [T1 ] -38.30 dBm 96.634615385 MHz 3 Marker 3 [T1 ] -26.98 dBm 2.400000000 GHz 4 Marker 4 [T1 ] -50.68 dBm 2.483500000 GHz D1 -18.79 dBm Date: 28.OCT.2012 18:54:29 CH Low (3~26.5GHz) (802.11g MODE ) Ref 20 dBmAtt 10 dB * * Offset 11.7 dB MAXH A LVL 3DB RBW 100 kHz VBW 300 kHz SWT 2.35 s * Start 3 GHzStop 26.5 GHz2.35 GHz/ EXT EXREF 1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -18.79 dBm Date: 28.OCT.2012 18:55:02 !!!Reference No.: T120724N41-RP1 FCC IDΚI88NBG4615V2 Report No…

Text truncated - open the document above for the full version.

Reference No.: T120724N41-RP1 FCC IDI88NBG4615V2 Report No.T121019N91-RP1 Page 132 / 135 APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Reference No.: T120724N41-RP1 FCC IDI88NBG4615V2 Report No.T121019N91-RP1 Page 133 / 135 RADIATED RF MEASUREMENT SETUP Reference No.: T120724N41-RP1 FCC IDI88NBG4615V2 Report No.T121019N91-RP1 Page 134 / 135 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Reference No.: T120724N41-RP1 FCC IDI88NBG4615V2 Report No.T121019N91-RP1 Page 135 / 135 CONDUCTED EMISSION SETUP
