I88NBG5615Simultaneous Dual-Band Wireless N750 Media Router

Quick Start Guide www.zyxel.com N BG5 6 1 5 Simultaneous Dual-Band Wireless N750 Media Router Version 1.00 Edition 1, 12/2012 Copyright © 2012 ZyXEL Communications Corporation U se r ’s Gu id e D e f a u lt Log in D e t a ils LAN IP Addresshttp://192.168.1.1 (Router Mode) http://192.168.1.2 (Access Point Mode) Password1234 NBG5615 User’s Guide2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the NBG5615 and access the Web Configurator wizards. It contains information on setting up your network and configuring for Internet access. Contents Overview NBG5615 User’s Guide 3 Contents Overview User’s Guide ....................................................................................................................................... 13 Introduction .............................................................................................................................................15 ZyXEL NetUSB Share Center Utility .......................................................................................................21 Connection Wizard ..................................................................................................................................27 Introducing the Web Configurator ...........................................................................................................39 NBG5615 Modes .....................................................................................................................................43 Easy Mode ..............................................................................................................................................45 Router Mode ...........................................................................................................................................57 Access Point Mode .................................................................................................................................65 Tutorials ..................................................................................................................................................73 Technical Reference .......................................................................................................................... 87 Monitor ....................................................................................................................................................89 WAN ........................................................................................................................................................95 Wireless LAN ........................................................................................................................................105 LAN .......................................................................................................................................................129 DHCP Server ........................................................................................................................................133 NAT .......................................................................................................................................................139 DDNS ....................................................................................................................................................149 Static Route ...........................................................................................................................................151 Firewall ..................................................................................................................................................155 Content Filtering ....................................................................................................................................161 Bandwidth Management .......................................................................................................................165 Remote Management ............................................................................................................................173 Universal Plug-and-Play (UPnP) ...........................................................................................................177 USB Media Sharing ...............................................................................................................................183 Maintenance ..........................................................................................................................................193 Troubleshooting ....................................................................................................................................203 Contents Overview NBG5615 User’s Guide 4 Table of Contents NBG5615 User’s Guide 5 Table of Contents Contents Overview .............................................................................................................................. 3 Table of Contents ................................................................................................................................. 5 Part I: User’s Guide ......................................................................................... 13 Chapter 1 Introduction ......................................................................................................................................... 15 1.1 Overview ...........................................................................................................................................15 1.2 Applications ..............................................................................................…

Text truncated - open the document above for the full version.

NBG5615 User’s Guide133 CHAPTER 14 DHCP Server 14.1 Overview DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the NBG5615’s LAN as a DHCP server or disable it. When configured as a server, the NBG5615 provides the TCP/IP configuration for the clients. If DHCP service is disabled, you must have another DHCP server on your LAN, or else the computer must be manually configured. 14.1.1 What You Can Do •Use the Ge n e r a l screen to enable the DHCP server ( Section 14.2 on page 133). •Use the Adv a n ce d screen to assign IP addresses on the LAN to specific individual computers based on their MAC Addresses (Section 14.3 on page 134). •Use the Clie n t List screen to view the current DHCP client information (Section 14.4 on page 136). 14.1.2 What You Need To Know The following terms and concepts may help as you read through this chapter. MAC Addresses Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02. Find out the MAC addresses of your network devices if you intend to add them to the D H CP Clie n t List screen. 14.2 DHCP Server General Screen Use this screen to enable the DHCP server. Click N e t w or k > D H CP Se r v e r . The following screen displays. Chapter 14 DHCP Server NBG5615 User’s Guide 134 Figure 78 Network > DHCP Server > General The following table describes the labels in this screen. 14.3 DHCP Server Advanced Screen This screen allows you to assign IP addresses on the LAN to specific individual computers based on their MAC addresses. You can also use this screen to configure the DNS server information that the NBG5615 sends to the DHCP clients. To change your NBG5615’s static DHCP settings, click N e t w or k > D H CP Se r v e r > Ad v a n ce d . The following screen displays. Table 52 Network > DHCP Server > General LABELDESCRIPTION DHCP ServerSelect En a b le to activate DHCP for LAN. DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients (computers) to obtain TCP/IP configuration at startup from a server. Enable the DHCP server unless your ISP instructs you to do otherwise. Select D isa b le to stop the NBG5615 acting as a DHCP server. When configured as a server, the NBG5615 provides TCP/IP configuration for the clients. If not, DHCP service is disabled and you must have another DHCP server on your LAN, or else the computers must be manually configured. When set as a server, fill in the following four fields. IP Pool Starting Address This field specifies the first of the contiguous addresses in the IP address pool for LAN. Pool SizeThis field specifies the size, or count of the IP address pool for LAN. ApplyClick Ap p ly to save your changes back to the NBG5615. CancelClick Ca n ce l to begin configuring this screen afresh. Chapter 14 DHCP Server NBG5615 User’s Guide 135 Figure 79 Network > DHCP Server > Advanced The following table describes the labels in this screen. Table 53 Network > DHCP Server > Advanced LABELDESCRIPTION Static DHCP Table #This is the index number of the static IP table entry (row). MAC AddressType the MAC address (with colons) of a computer on your LAN. IP AddressType the LAN IP address of a computer on your LAN. DNS Server DNS Servers Assigned by DHCP Server The NBG5615 passes a DNS (Domain Name System) server IP address (in the order you specify here) to the DHCP clients. The NBG5615 only passes this information to the LAN DHCP clients when you enable D H CP Se r v e r . When you disable D H CP Se r v e r , DHCP service is disabled and you must have another DHCP sever on your LAN, or else the computers must have their DNS server addresses manually configured. Chapter 14 DHCP Server NBG5615 User’s Guide 136 14.4 DHCP Client List Screen The DHCP table shows current DHCP client information (including IP Address, Host Name and MAC Address) of network clients using the NBG5615’s DHCP servers. Configure this screen to always assign an IP address to a MAC address (and host name). Click N e t w or k > D H CP Se r v e r > Clie n t List . Note: You can also view a read-only client list by clicking M on it or > D H CP Se r v e r . Figure 80 Network > DHCP Server > Client List The following table describes the labels in this screen. First DNS Server Second DNS Server Third DNS Server Select Ob t a in e d Fr om I SP if your ISP dynamically assigns DNS server information (and the NBG5615's WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns. Select U se r - D e f in e d if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose U se r - D e f in e d , but leave the IP address set to 0.0.0.0, U se r - D e f in e d changes to N on e after you click Ap p ly . If you set a second choice to U se r - D e f in e d , and enter the same IP address, the second U se r - D e f in e d changes to N on e after you click Ap p ly . Select D N S Re la y to have the NBG5615 act as a DNS proxy. The NBG5615's LAN IP address displays in the field to the right (read-only). The NBG5615 tells the DHCP clients on the LAN that the NBG5615 itself is the DNS server. When a computer on the LAN sends a DNS query to the NBG5615, the NBG5615 forwards the query to the NBG5615's system DNS server (configured in the W AN > I n t e r n e t Con n e ct ion screen) and relays the response back to the computer. You can only select D N S Re la y for one of the three servers; if you select D N S Re la y for a second or third DNS server, that choice changes to N on e after you click Ap p ly . Select N on e if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a computer in order to access it. ApplyClick Ap p ly to save your changes …

Text truncated - open the document above for the full version.

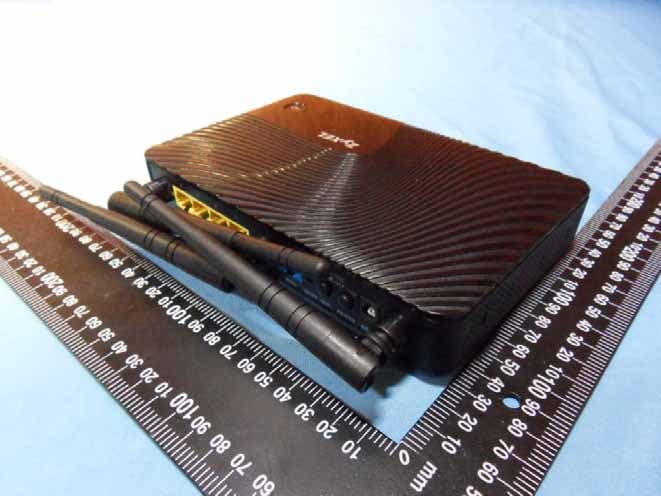

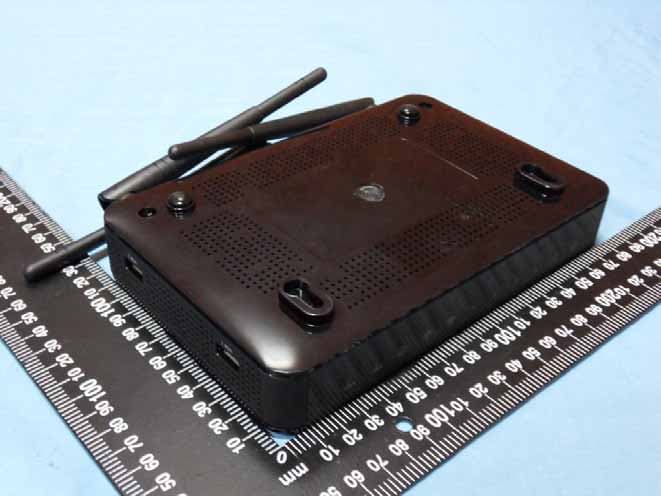

Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A1 / 11 External Photo (NBG5615) Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A2 / 11 Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A3 / 11

Diagram Label location

Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A4 / 11 Internal Photo (NBG5615) Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A5 / 11 Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A6 / 11 Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A7 / 11 Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A8 / 11 Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A9 / 11 Internal Photo Antenna 2 (5G) Antenna 2 (2.4G+5G) Antenna 1 (2.4G+5G) Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A10 / 11 Internal Photo (Antenna 1) Compliance Certification Services Inc. Report No.T121212N91 Date of IssueJanuary 12, 2013 Page A11 / 11 Internal Photo (Antenna 2)

Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 135 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 136 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Numeric antenna gain : Antenna Gain 1 (5G): 4.00 dBi = 2.51188643 Antenna Gain 1 (5G): 4.00 dBi = 2.51188643 Antenna Gain 1 (5G): 4.00 dBi = 2.51188643 Array Gain (5G): 8.77 dBi = 7.53565929 No non-compliance noted: (MPE distance equals 20 cm) IEEE 802.11a = 0.0796 * 23.7137 * 2.51188643 ÷ 400 = 0.01185 IEEE 802.11n HT20 = 0.0796 * 13.0038 * 7.53565929 ÷ 400 = 0.0195 IEEE 802.11n HT40 = 0.0796 * 12.9972 * 7.53565929 ÷ 400 = 0.01949 Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11a 4.0 20.0 13.75 23.71 1.00 0.011854 IEEE 802.11n HT20 8.77 20.0 11.14 13.00 1.00 0.019500 IEEE 802.11n HT40 8.77 20.0 11.14 13.00 1.00 0.019491 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 1 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART E AND ANSI C63.4:2003 TEST REPORT For Simultaneous Dual-Band Wireless N750 Media Router Model: NBG5615 Data Applies To: EMG2626-R10A, Keenetic Ultra Brand Name : ZyXEL Issued for ZyXEL Communications Corporation No.6 Innovation Rd. II , Science-Based Industrial Park , Hsin-Chu , Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: April 23, 2013 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 2 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 12, 2013 Initial Issue ALL Sunny Chang 01 April 18, 2013 Update data Page 8; 136 Sunny Chang 02 April 23, 2013 Update data Page 136 Sunny Chang Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 3 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 7 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 9 7. FCC PART 15.407 REQUIREMENTS.......................................................................... 13 7.1 26dB BANDWIDTH ................................................................................................ 13 7.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................ 29 7.3 PEAK POWER SPECTRAL DENSITY ................................................................... 47 7.4 PEAK EXCURSION ............................................................................................... 63 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 81 7.6 RADIATED EMISSION........................................................................................... 96 7.7 CONDUCTED EMISSION ...................................................................................... 123 7.8 FREQUENCY STABILITY...................................................................................... 128 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 135 APPENDIX II SETUP PHOTOS ....................................................................................... 137 Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 4 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ZyXEL Communications Corporation Address No.6 Innovation Rd. II , Science-Based Industrial Park , Hsin-Chu , Taiwan Equipment Under Test Simultaneous Dual-Band Wireless N750 Media Router Model NBG5615 Data Applies To EMG2626-R10A, Keenetic Ultra Trade Name ZyXEL Tested Date December 17, 2012 ~ December 28, 2012 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart E AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 5 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Simultaneous Dual-Band Wireless N750 Media Router Model Number NBG5615 Data Applies To EMG2626-R10A, Keenetic Ultra Brand Name ZyXEL Identify Number T121212N91 Received Date December 12, 2012 IEEE 802.11a, 802.11n HT20 : 5180MHz ~ 5240MHz, Frequency Range IEEE 802.11n HT40 : 5180MHz ~ 5220MHz, IEEE 802.11a : 5180MHz ~ 5240MHz : 13.75dBm IEEE 802.11n HT20 : 5180MHz ~ 5240MHz : 11.14dBm Transmit Power IEEE 802.11n HT40 : 5180MHz ~ 5220MHz : 11.14dBm IEEE 802.11a, 802.11n HT20 : 20MHz Channel Spac…

Text truncated - open the document above for the full version.

Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 111 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Restricted Band Edges Detector Mode : Peak Polarity : Horizontal CH Low IEEE 802.11a Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB ** 1 PK MAXH EXT EXREF 70 MHz/Start 4.5 GHzStop 5.2 GHz * * 3DB RBW 1 MHz VBW 3 MHz SWT 100 ms * 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 60.78 dBμ V 5.150000000 GHz D1 74 dBμV F1 Date: 27.DEC.2012 14:01:43 Detector Mode : Average Polarity : Horizontal CH Low IEEE 802.11a Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB * 1 PK MAXH EXT EXREF 70 MHz/Start 4.5 GHzStop 5.2 GHz * 3DB RBW 1 MHz * VBW 10 Hz SWT 56 s 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 48.67 dBμ V 5.150000000 GHz F1 D1 54 dBμV Date: 27.DEC.2012 14:04:14 Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 112 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Detector Mode : Peak Polarity : Vertical CH Low IEEE 802.11a Mode A Offset 6.6 dB LVL * 3DB RBW 1 MHz Ref 118.6 dBμVAtt 0 dB ** Start 4.5 GHzStop 5.2 GHz70 MHz/ EXT EXREF 1 PK MAXH * VBW 1 MHz SWT 100 ms * 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 61.81 dBμ V 5.150000000 GHz 2 Marker 2 [T1 ] 65.04 dBμ V 5.126561026 GHz F1 D1 74 dBμV Date: 27.DEC.2012 10:50:03 Detector Mode : Average Polarity : Vertical CH Low IEEE 802.11a Mode A Offset 6.6 dB LVL * 3DB RBW 1 MHz * VBW 10 Hz SWT 56 sRef 118.6 dBμVAtt 0 dB * Start 4.5 GHzStop 5.2 GHz70 MHz/ EXT EXREF 1 PK MAXH 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 50.20 dBμ V 5.150000000 GHz 2 Marker 2 [T1 ] 51.55 dBμ V 5.127682821 GHz D1 54 dBμV F1 Date: 27.DEC.2012 10:49:43 Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 113 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Detector Mode : Peak Polarity : Horizontal CH High IEEE 802.11a Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB ** 1 PK MAXH EXT EXREF 26 MHz/Start 5.2 GHzStop 5.46 GHz * * 3DB RBW 1 MHz VBW 1 MHz SWT 100 ms * 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 60.77 dBμ V 5.350000000 GHz F1 D1 74 dBμV Date: 27.DEC.2012 12:16:13 Detector Mode : Average Polarity : Horizontal CH High IEEE 802.11a Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB * 1 PK MAXH EXT EXREF 26 MHz/Start 5.2 GHzStop 5.46 GHz * 3DB RBW 1 MHz * VBW 10 Hz SWT 21 s 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 48.76 dBμ V 5.350000000 GHz F1 D1 54 dBμV Date: 27.DEC.2012 12:16:42 Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 114 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Detector Mode : Peak Polarity : Vertical CH High IEEE 802.11a Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB ** 1 PK MAXH EXT EXREF 26 MHz/Start 5.2 GHzStop 5.46 GHz * * 3DB RBW 1 MHz VBW 1 MHz SWT 100 ms * 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 60.44 dBμ V 5.350000000 GHz D1 74 dBμV F1 Date: 27.DEC.2012 11:34:19 Detector Mode : Average Polarity : Vertical CH High IEEE 802.11a Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB * 1 PK MAXH EXT EXREF 26 MHz/Start 5.2 GHzStop 5.46 GHz * 3DB RBW 1 MHz * VBW 10 Hz SWT 21 s 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 48.79 dBμ V 5.350000000 GHz F1 D1 54 dBμV Date: 27.DEC.2012 11:34:56 Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 115 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Detector Mode : Peak Polarity : Horizontal CH Low IEEE 802.11n HT20 Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB ** 1 PK MAXH EXT EXREF 70 MHz/Start 4.5 GHzStop 5.2 GHz * 3DB RBW 1 MHz * VBW 1 MHz SWT 100 ms * 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 61.85 dBμ V 5.150000000 GHz F1 D1 74 dBμV Date: 27.DEC.2012 14:06:51 Detector Mode : Average Polarity : Horizontal CH Low IEEE 802.11n HT20 Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB * 1 PK MAXH EXT EXREF 70 MHz/Start 4.5 GHzStop 5.2 GHz * 3DB RBW 1 MHz * VBW 10 Hz SWT 56 s 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 48.58 dBμ V 5.150000000 GHz F1 D1 54 dBμV Date: 27.DEC.2012 14:08:48 Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 116 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Detector Mode : Peak Polarity : Vertical CH Low IEEE 802.11n HT20 Mode A Offset 6.6 dB LVL * 3DB RBW 1 MHz Ref 118.6 dBμVAtt 0 dB ** Start 4.5 GHzStop 5.2 GHz70 MHz/ EXT EXREF 1 PK MAXH * VBW 1 MHz SWT 100 ms * 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 61.72 dBμ V 5.150000000 GHz F1 D1 74 dBμV Date: 27.DEC.2012 10:53:30 Detector Mode : Average Polarity : Vertical CH Low IEEE 802.11n HT20 Mode A Offset 6.6 dB LVL * 3DB RBW 1 MHz Ref 118.6 dBμVAtt 0 dB * Start 4.5 GHzStop 5.2 GHz70 MHz/ EXT EXREF 1 PK MAXH * VBW 10 Hz SWT 56 s 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 49.73 dBμ V 5.150000000 GHz 2 Marker 2 [T1 ] 50.35 dBμ V 5.127682821 GHz F1 D1 54 dBμV Date: 27.DEC.2012 10:52:32 Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 117 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Detector Mode : Peak Polarity : Horizontal CH High IEEE 802.11n HT20 Mode A Offset 6.6 dB LVL Ref 118.6 dBμVAtt 0 dB ** 1 PK MAXH EXT EXREF 26 MHz/Start 5.2 GHzStop 5.46 GHz * 3DB RBW 1 MHz * VBW 1 MHz SWT 100 ms * 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 60.45 dBμ V 5.350000000 GHz F1 D1 74 dBμV Date: 27.DEC.2012 12:17:54 Detector Mode : Average Polarity : Horizontal CH High IEEE 802.11n HT20 Mode A Offset 6.6 dB LVL Ref 118…

Text truncated - open the document above for the full version.

Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 137 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 138 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. RADIATED RF MEASUREMENT SETUP Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 139 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. RADIATED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Reference No.T121212N91-RP1-1 FCC IDI88NBG5615 Report No.T121212N91-RP1-1 Page 140 / 140 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
