I88NWA1100N802.11 b/g/n PoE Access Point

IP Addresshttp://192.168.1.2 Usernameadmin Password1234 NWA1100-N Quick Start Guide 802.11b/g/n PoE Access Point Firmware Version 1.00 Edition 1, 3/2011 DEFAULT LOGIN DETAILS www.zyxel.com 2011 ZyXEL Communications Corporation 2 Panels 3 Overview ENGLISH This Quick Start Guide shows how to set up and configure the NWA1100-N (marked Zin the figure) to allow wireless clients to securely access your wired network. See your User’s Guide for more information. You may need your Internet access information. To set up your wireless network you need to: • Connect the Hardware • Access the Web Configurator • Configure the NWA1100-N • Install the Hardware • Set Up Power over Ethernet (Optional) 4 Connect the Hardware 1 2 3 1. Using the Ethernet cable, connect the ETHERNET port to a computer for initial configuration. 2. Connect the POWER 12VDC socket to a power source using only the included power adaptor. Connect the NWA1100-N’s ETHERNET port to an Ethernet jack with network access after you have completed the initial configuration. 5 LEDs • The SYS LED blinks red, then turns steady green when the power is connected. • One of the LEDs by the ETHERNET port turns on if the port is properly connected, and blinks when there is traffic. The yellow light shines if the connection is at 1000 Mbps. The green light shines if the connection is at 10/100Mbps. #If neither LED near the ETHERNET port turns on, check the cable connections to the port. Ensure your computer’s network card is working properly. Access the Web Configurator Internet Explorer 6.0 and later versions, with JavaScript enabled, or Mozilla Firefox 3 and later versions or Safari 2.0 and later versions. Set Up Your Computer’s IP Address Note down your computer’s current IP settings before you change them. 6 First, set your computer to use a static IP address in the 192.168.1.3 - 192.168.1.254 range with a subnet mask of 255.255.255.0. This ensures that your computer can communicate with your NWA1100-N. See your User’s Guide for information on setting up your computer’s IP address. Log Into the Web Configurator Even though you can connect to the NWA1100-N wirelessly, it is recommended that you connect your computer to the ETHERNET port for initial configuration. 1. Launch your web browser. Enter 192.168.1.2 (the NWA1100-N’s default IP address) as the address. #If you cannot access the Web configurator, make sure the IP addresses and subnet masks of the NWA1100-N and the computer are in the same IP address range. 2. Enter admin (the default username) in the Username field and1234 (the default password) in thePassword field. Click Login. 3. Change the login password by entering a new password and clicking Apply. Be sure to record the new password and keep it in a safe place. #If you change the password and then forget it, you will need to reset the NWA1100-N. Refer to the User’s Guide for how to use the RESET button. 7 4. The STATUS screen appears. Configure the NWA1100-N Configure System Settings 1.Click SYSTEM in the navigation panel. 2.The SYSTEM > General screen appears. •System Name is for identifying the NWA1100-N on your network. Choose a distinctive name, or leave this at its default. 8 • You can configure the Ethernet port speed and duplex in the Ethernet Data Rate field. If you are not sure, select Auto. 3.Click Apply. Configure Wireless Settings 1.Click WIRELESS in the navigation panel. The Wireless Settings screen displays. Configure the basic settings for your wireless network. The wireless stations and the NWA1100-N must use the same SSID, channel ID and encryption settings for wireless communication. •Operation Mode: Ensure that Access Point mode is selected. 9 •Wireless Mode: Select the wireless standard you want your network to use. If you are not sure which to select, select 802.11b/ g/n. • SSID Profile: Select the SSID profile you want to configure for network access from the drop-down list box. •Channel: Select the wireless channel you want your network to use. •Channel Width: Select the channel bandwidth you want to use. If you are not sure, select 20/40 MHz. 2.Click Apply to save your settings. 3.Click the SSID tab. If you want to configure advanced settings of an SSID profile (such as change the profile name, SSID, or security), select it and click Edit. 10 4.Click the Security tab. Select the profile you want to configure and click Edit. 5.The edit screen of the selected security profile appears. If you don’t configure wireless security, anyone can access your network. • This is where you can enter the security settings for your wireless network. The fields you fill in differ according to the type of security you select in the Security Mode field. Select None if you do not wish to use wireless security. • This example uses WPA2-PSK security, in which all wireless clients must use the same pre-shared key to join the network. • Ensure that all your wireless clients support the type of security you set. Click Apply when you have finished. #If the wireless clients cannot communicate with the network, ensure that the clients and the NWA1100-N are using the same wireless security settings. 11 Configure IP Settings 1.You need to set your NWA1100-N’s IP address to be in the same subnet as your network. Click IP in the navigation panel. • Select Obtain IP Address Automatically if you want to have a DHCP server on your network assign an IP address to the NWA1100-N. • If you have a specific IP address to use, select Use Fixed IP Address and enter it along with the subnet mask and gateway IP address. • If your ISP provided specific DNS (Domain Name System) settings, enter them in the System DNS Servers section. Otherwise, leave these fields at their defaults. • Click Apply. The NWA1100-N now uses the new IP settings; you can no longer connect to the NWA1100-N using the default IP address. If you change the NWA1100-N’s IP address, you must use the new IP address when you next access the web configurator. If you select Obtain IP Address…

Text truncated - open the document above for the full version.

General Declaration FCC ID: I88NWA1100N We, ZyXEL Communications Corporation, declares that the device does not have “Ad Hoc on non-US frequencies” while applying for the following product. If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you!

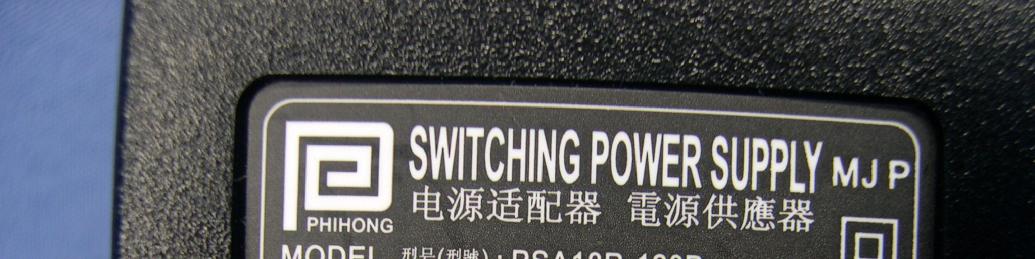

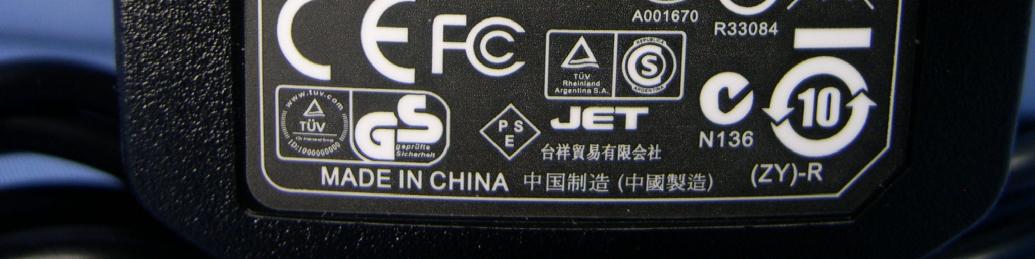

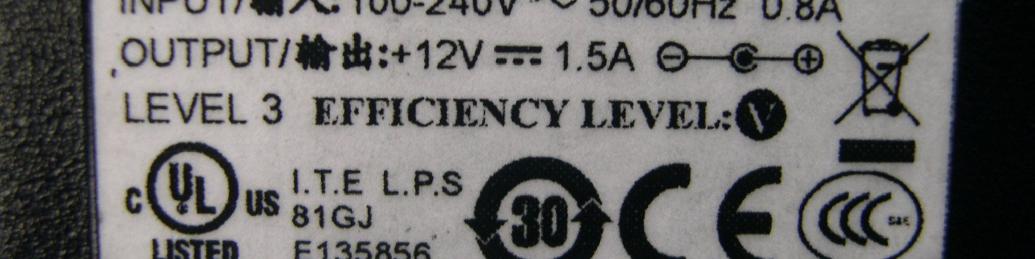

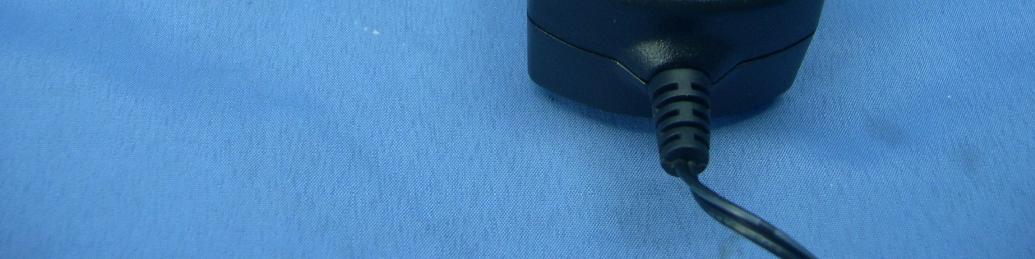

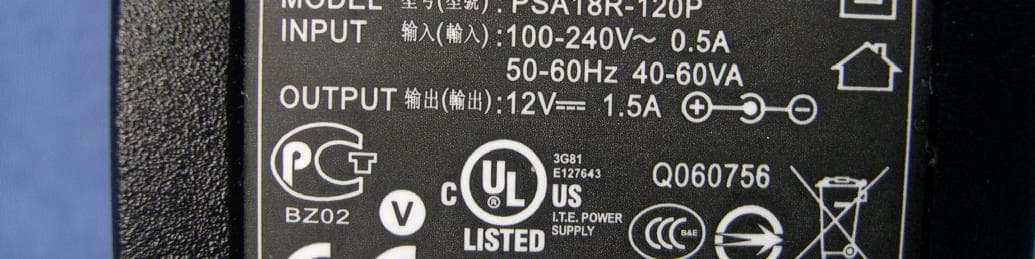

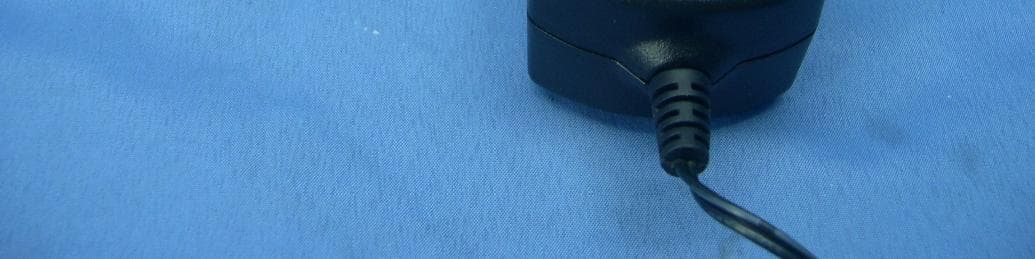

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Adapter Model No.: DSA-20CA-12 120150 Page 6 Page 7 Adapter Model No.: PSA18R-120P Page 8

FCC ID: I88NWA1100N FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Report No.: SA110415E02 Report Format Version 4.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA110415E02 MODEL NO.: NWA1100-N FCC ID: I88NWA1100N ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ZyXEL Communications Corporation ADDRESS: No.6 Innovation Road II.Science Park,Hsin -Chu, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA110415E02 Report Format Version 4.0.0. 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110415E02 Original release May 13, 2011 Report No.: SA110415E02 Report Format Version 4.0.0. 3 1.CERTIFICATION PRODUCT: 802.11 b/g/n PoE Access Point BRAND NAME: ZyXEL MODEL NO.: NWA1100-N TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: ZyXEL Communications Corporation STANDARDS: IEEE C95.1 The above equipment (Model: NWA1100-N) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: May 13, 2011 (Carol Liao, Specialist ) APPROVED BY : , DATE: May 13, 2011 ( May Chen, Deputy Manager ) Report No.: SA110415E02 Report Format Version 4.0.0. 4 2.RF Exposure Limit LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3.MPE calculation Formula Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4.Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110415E02 Report Format Version 4.0.0. 5 5.calculation result of maximum conducted power For BEAM FORMING OPERATION For 15.247(2.4GHz): FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 521.7 5.1 20 0.336 1.00 ---END---
