NWD3105 Wireless N-lite PCI Express Adapter Default Login Details Version 1.0.0 Edition 1, 11/2011 www.zyxel.com Copyright © 2011 ZyXEL Communications Corporation FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user‟s authority to operate the equipment. In the U.S., Channel 12 and Channel 13 are banned to use according to the act of FCC. So please kindly make sure your AP is working on other channel before you use it. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user‟s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don‟t use the product outdoors in France. I CONTENTS Package Contents..................................................................................................... 1 Chapter 1 Introduction ......................................................................................... 2 1.1 Overview of the product ..................................................................................................... 2 1.2 Features ............................................................................................................................. 2 1.3 LED Status ......................................................................................................................... 3 Chapter 2 Installation Guide ................................................................................ 4 2.1 Hardware Installation ......................................................................................................... 4 2.2 Software Installation........................................................................................................... 4 2.2.1 Overview.......................................................................................................................4 2.2.2 Software Installation for Windows XP ............................................................................4 2.2.3 Software Installation for Windows Vista .........................................................................9 2.2.4 Software Installation for Windows 7 ............................................................................. 12 Chapter 3 Configuration for Windows XP ........................................................ 15 3.1 Current Status .................................................................................................................. 15 3.2 Profile Management ......................................................................................................... 17 3.2.1 Add or Modify a Configuration Profile .......................................................................... 17 3.2.2 Remove a profile ......................................................................................................... 22 3.2.3 Switch another Profile .............…

Text truncated - open the document above for the full version.

of the FCC rules and KKKKKJJDB349827 K Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) Express Adapter , bearing the above FCC ID is also complying Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-KKKKKKKKKKKkou, Taipei Hsien, The test report number for FCC DoC is EM-F1001059, which is issued by an accredited lab, Audix with the requirements of FCC DoC. Taiwan R.O.C I88NWD3105 * FCC ID Signature Senior Manager Thomas Wei e that our product, Wireless N-lite PCI Wireless N-lite PCI Express Adapter * Company Name ZyXEL Communications Corporation 1/1 www.zyxel.com FCC Declaration of Conformity The following equipment: * Type of Product * Model Number NWD3105 Produced by: * Company Address No. 6, Innovation Rd. II, Science-Based Industrial Park, Hsin-Chu, We, ZyXEL Communications Corporation, hereby declar Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The following importer/manufacturer is responsible for this declaration: Company Name: ZyXEL Communications, Inc. Company Address: 1130 North Miller Street Anaheim, CA 92806-2001, USA Person is responsible for making this declaration: Name (Full Name) Position/ Title 2012/02/02 Date

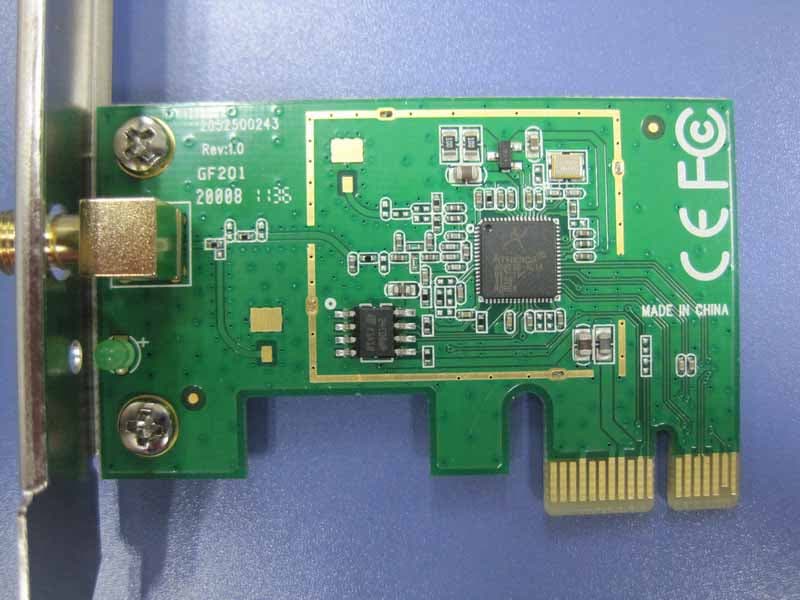

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

FCC ID : I88NWD3105 Input Voltage : 3.3V NWD3105 Wireless N-lite PCI Express Adapter Wireless N-lite Adapter 31(W) x 26(H) mm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: Wireless N-lite PCI Express Adapter M/N: NWD3105 Test date: 2011-12-08 Pressure: 100.6 kpa Humidity: 47% Tested by: Leo-Li Test site: RF Site Temperature：25°C Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain(linear) MPE (mW/ cm2 ) 11b 1 2412 17.61 57.68 2 1.58 0.0182 6 2437 20.12 102.80 2 1.58 0.0324 11 2462 20.15 103.51 2 1.58 0.0327 11g 1 2412 16.93 49.32 2 1.58 0.0156 6 2437 24.14 259.42 2 1.58 0.0818 11 2462 16.89 48.87 2 1.58 0.0154 11n HT20 1 2412 16.06 40.36 2 1.58 0.0127 6 2437 25.32 340.41 2 1.58 0.1074 11 2462 15.66 36.81 2 1.58 0.0116 11n HT40 1 2422 12.41 17.42 2 1.58 0.0055 4 2437 23.04 201.37 2 1.58 0.0635 7 2452 12.80 19.05 2 1.58 0.0060 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of ZyXEL Communications Corporation Wireless N-lite PCI Express Adapter Model No.: NWD3105 FCC ID: I88NWD3105 Prepared for : ZyXEL Communications Corporation No.6, Innovation RD II, Science-Based Industrial Park, Hsin-Chu, Taiwan R.O.C Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F11283 Date of Test ： Nov.26~Dec.08, 2011 Date of Report ： Dec.15, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ..........................................................1-1 1.1. Description of Standards and Results ................................................................................... 1-1 2. GENERAL INFORMATION ..........................................................................................2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block Diagram of Test Setup ............................................................................................... 2-3 2.5. Test Facility .......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST .......................................................3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION TEST .......................................................................................4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ......................................................................5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST .............................................................................6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test .........................................................................................................7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ...................................................................................................................... 7-1…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:I88NWD3105 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11283 13-3 (Above 1000MHz)
