I88NWD670SU802.11a/g Wireless Super AG Mini-PCI Card

ZyXEL Communications Corp. Proprietary & Confidential Information Specifications are subject to change without notice i ZyXEL NWD-670SU 802.11a/g Wireless Super AG Mini-PCI Card User’s Manual Release 0.1 ZyXEL Communications Corp. Proprietary & Confidential Information Specifications are subject to change without notice ii Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11a or 802.11b/g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). ZyXEL Communications Corp. Proprietary & Confidential Information Specifications are subject to change without notice iii IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. ZyXEL Communications Corp. Proprietary & Confidential Information Specifications are subject to change without notice iv End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: I88NWD670SU”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. For all the model ship to USA market, OEM integrator shall limit the accessible channel to US channel 1 -11 only during the manufacturing process by special firmware setting which is not available to the end user. ZyXEL Communications Corp. Proprietary & Confidential Information Specifications are subject to change without notice v About this manual This User’s Manual describes how to install and operate your 802.11a/g Wireless LAN Module. Please read this manual before you install the product. This manual includes the following topics: l Product description and features. l Software installation procedure. ZyXEL Communications Corp. Proprietary & Confidential Information Specifications are subject to change without notice vi Table of Contents About this manual .................................................. iv Chapter 1 - Introduction.......................................... 1 Features .................................................................................. 1 What is Wireless LAN?............................................................. 2 Wireless LAN Modes................................................................ 2 Notes on Wireless LAN Configuration...................................... 3 Chapter 2 – Driver Installation for Windows ........... 4 Driver installation for Windows XP ........................................... 4 ZyXEL Communications Corp. Proprietary & Confidential Information Specifications are sub…

Text truncated - open the document above for the full version.

Letter of Agency To whom it may concern, "I, an officer of ZyXEL Communications Corporation do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). Sincerely yours, Yi Wang Section Manager EMC/Safety Engineering Section

APPENDIX B Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: ZyXEL Communications Corporation FCC ID: I88NWD670SU To whom it may concern, Request is hereby submitted by ZyXEL Communications Corporation to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: ZyXEL Communications Corporation has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, ZyXEL Communications Corporation Title Company name 簽名：

FCC ID: I88NWD670SU Date: Nov. 3, 2006 Modular Approval Request Letter Dear Sir, There’s an 802.11a/g Wireless Super AG Mini-PCI Card that would like to have your authorization as a modular approval. The specific product as below, 802.11a/g Wireless Super AG Mini-PCI Card, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Company : ZyXEL Communications Corporation Model Name : 802.11a/g Wireless Super AG Mini-PCI Card Model Number : NWD-670SU FCC ID : I88NWD670SU Requirement of Public Notice DA00-1407 Reference to NWD-670SU 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip AR5414. Please see diagram.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the NWD-670SU. Please see circuit.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The NWD-670SU meets the FCC antenna requirements. It has a unique connector. Please see external photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The NWD-670SU was tested in a stand-alone configuration via a PCMCIA extender. Please see conducted set-up photo.pdf and spurious set-up photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of NWD-670SU is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The NWD-670SU is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The NWD-670SU comply with applicable RF exposure requirements. Please see RF safety evaluation. pdf Yours sincerely, Kevin Chen Supervisor Intertek Testing Service Taiwan Ltd.

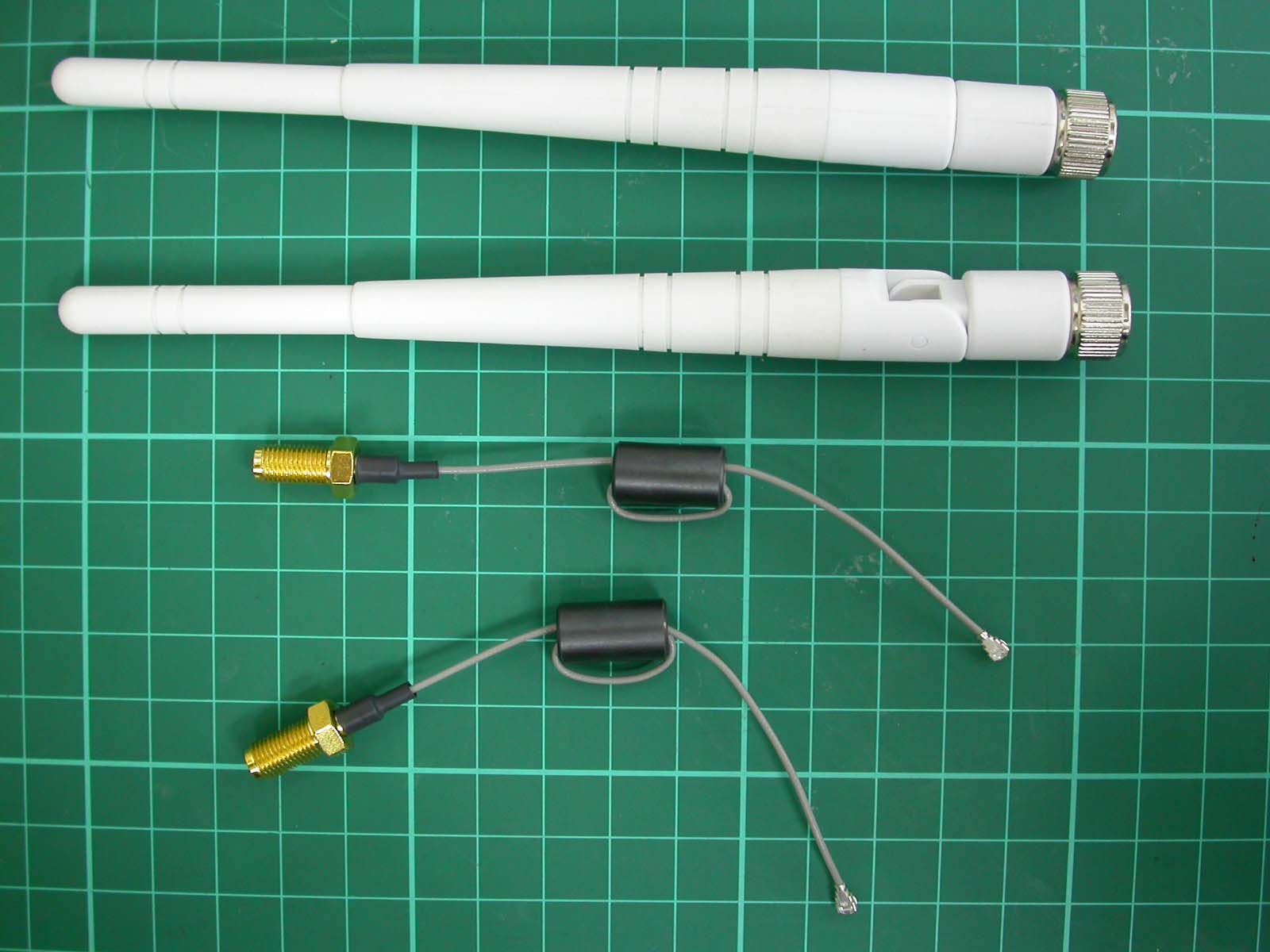

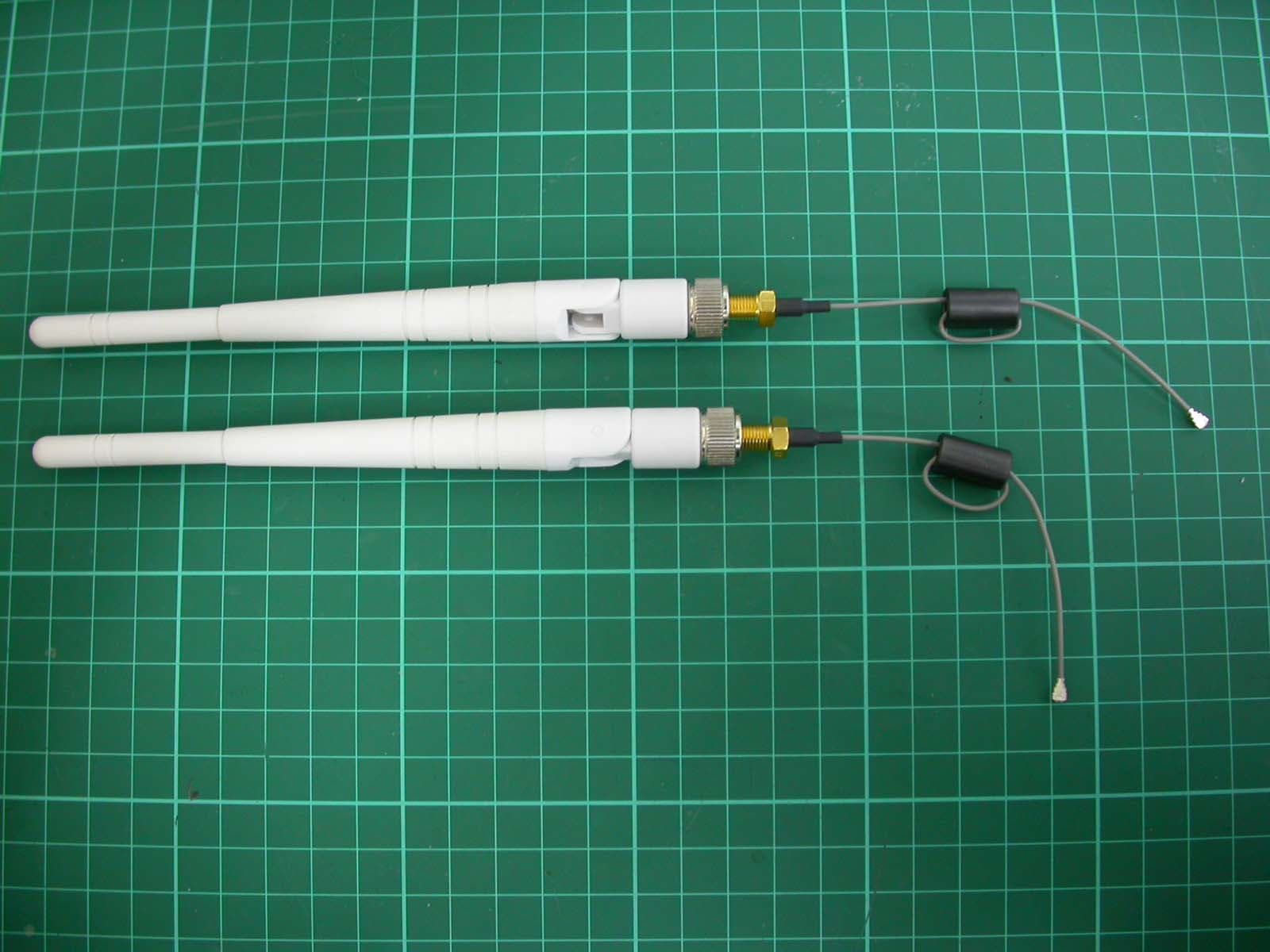

Photo 1: External photo of EUT NWD-670SU Photo 2: External photo of EUT NWD-670SU Photo 3: External photo of antenna Photo 4: External photo of antenna Photo 5: External photo of antenna

FCC ID Label Location 20mm 30mm

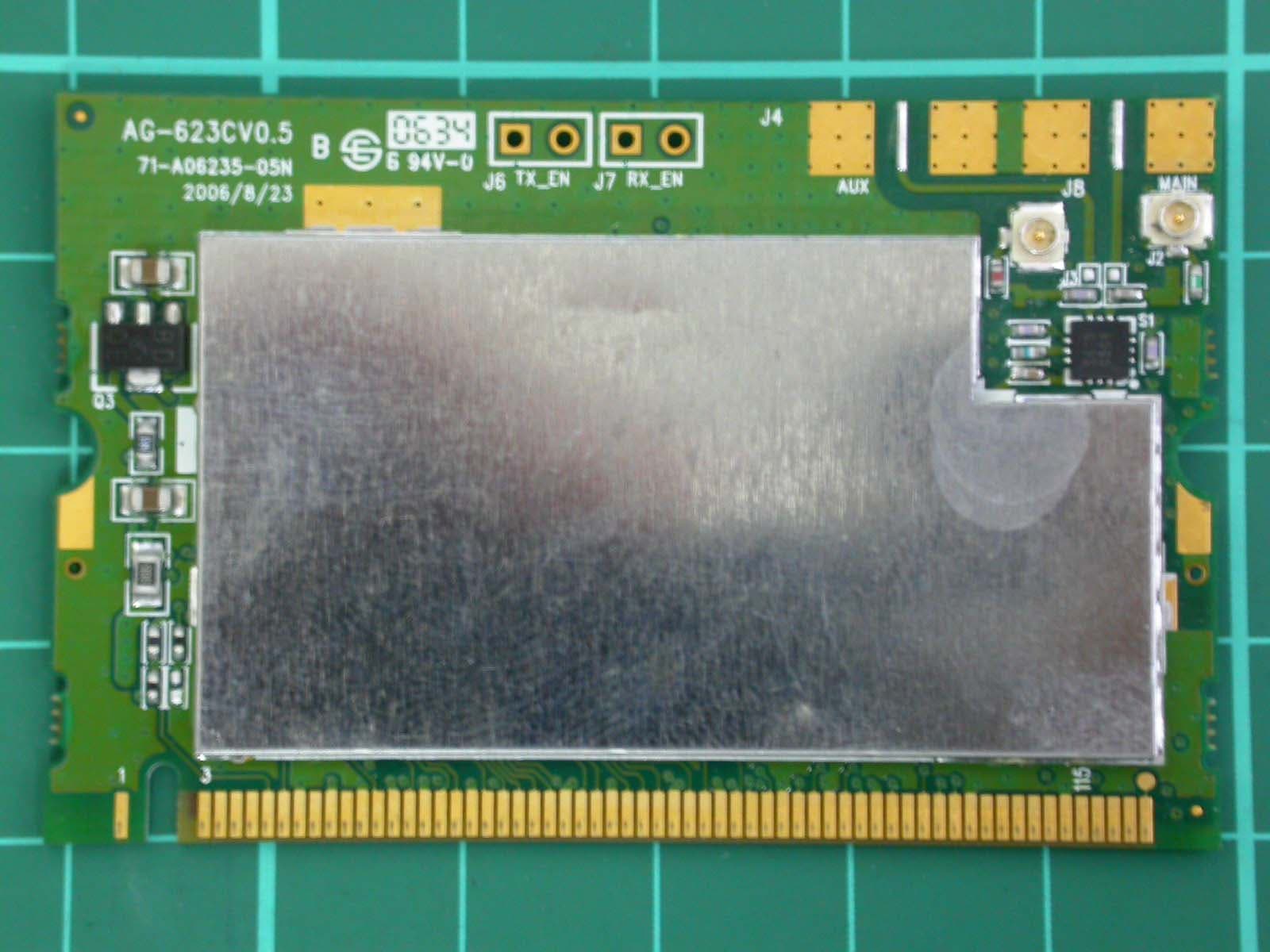

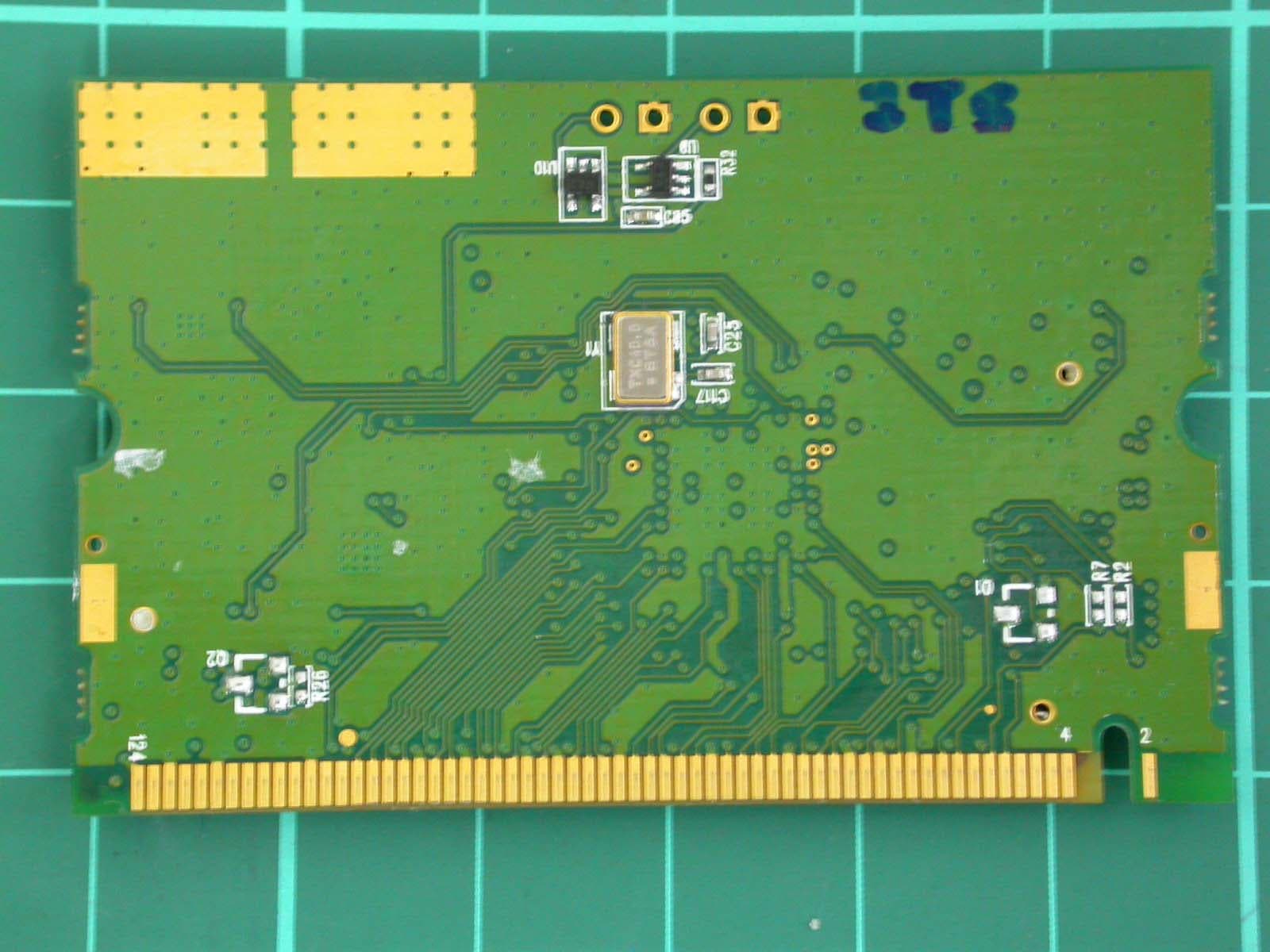

Photo 1: Internal photo of EUT NWD-670SU Photo 2: Internal photo of EUT NWD-670SU

Specification 1. Electrical Properties : 1.1 Frequency Rang............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Antenna Gain................ [email protected]~2.5GHz 2.65dBi@ 4.9GHz~5.825GHz 1.7 Polarization............... ...Linear Vertical 1.8 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20к ~ +65к 2.6 Storage Temp. ............ ...-30к ~ +75к 2.7 Color ........................ .Black 2.8 Connector.................. ...SMA Plug Reverse RF Antenna Cable Assembly 1W 2.4GHz ~ 2.5GHzΙ4.9GHz ~ 5.825GHz 50ȍ Nominal 1.92 Max. -10 dB Maximum Omni-directional 1 WHITE 2 C034-510579-A

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 Insertion Loss............... 4GHz--------1.7dB 6GHz--------2.2dB 1.4 VSWR..................... ...1.5 (max) 2. Physical Properties : 2.1 Cable...........................φ1.13 Coaxial Cable 2.2 Operating Temp. ......... ...-20 ~ +65 2.3 Storage Temp. ............ ...-30 ~ +75 2.4 Connector.................. ...SMA Jack Reverse 2.5 Connector.................. ...HRS DC ~ 6GHz 50Ω Nominal 2GHz--------1.1dB 3GHz--------1.4dB 5GHz--------1.9dB RF Cable Assembly C034-510580-A

FCC ID. : I88NWD670SU Report No.: EME-061198 Page 1 of 6 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-061198 Model No. : NWD-670SU Issued Date : Oct. 27, 2006 Applicant : ZyXEL Communications Corporation 6, Innovation RD II, Science-Based Industrial Park, Hsin-Chu, Ta i w a n Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : I88NWD670SU Report No.: EME-061198 Page 2 of 6 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 5 FCC ID. : I88NWD670SU Report No.: EME-061198 Page 3 of 6 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 802.11a/g Wireless Super AG Mini-PCI Card -Model: NWD-670SU FCC ID: I88NWD670SU Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Pass FCC ID. : I88NWD670SU Report No.: EME-061198 Page 4 of 6 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The EUT operates in the 2.4GHz ISM band. The EUT (antenna included) is compliant with modular approval and the normal operation distance (after installing in other device, such as router or access point), 20cm from the human body; therefore, the EUT is defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : I88NWD670SU Report No.: EME-061198 Page 5 of 6 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Mode: 802.11b(DSSS Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.60 87.70 0.02797 1.0 6 (middle) 2437 1.60 83.37 0.02659 1.0 11 (highest) 2462 1.60 85.51 0.02727 1.0 Test Mode: 802.11g normal mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412 1.60 174.18 0.05556 1.0 6 (middle) 2437 1.60 225.42 0.07190 1.0 11 (highest) 2462 1.60 183.65 0.05858 1.0 FCC ID. : I88NWD670SU Report No.: EME-061198 Page 6 of 6 Test Mode: 802.11g Turbo mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 6 (middle) 2437 1.60 198.15 0.06320 1.0 Test Mode: 802.11a normal mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 149 (lowest) 5745 1.84 158.85 0.05817 1.0 157 (middle) 5785 1.84 150.66 0.05517 1.0 165 (highest) 5825 1.84 140.60 0.05149 1.0 Test Mode: 802.11a Turbo mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 153 (middle) 5765 1.84 147.23 0.05392 1.0 Test Mode: 802.11a normal mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 36 (lowest) 5180 1.84 3.6728 0.00135 1.0 40 (middle) 5200 1.84 3.8194 0.00140 1.0 48 (highest) 5240 1.84 3.2359 0.00119 1.0 Test Mode: 802.11a Turbo mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 40 (middle) 5200 1.84 1.8836 0.00069 1.0 The Notice in Installation Manual has been s…

Text truncated - open the document above for the full version.

FCC ID. : I88NWD670SU Report No.: EME-061198 Page 1 of 132 EMC TEST REPORT Report No. : EME-061198 Model No. : NWD-670SU Issued Date : Oct. 27, 2006 Applicant : ZyXEL Communications Corporation No. 6, Innovation Rd. II, Science-Based Industrial Park, Hsin-Chu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 132 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : I88NWD670SU Report No.: EME-061198 Page 2 of 132 Table of Contents Summary of Tests ..............................................................................................................5 1. General information ......................................................................................................6 1.1 Identification of the EUT ........................................................................................6 1.2 Additional information about the EUT....................................................................6 1.3 Antenna description.................................................................................................7 1.4 Peripherals equipment .............................................................................................7 2. Test specifications .........................................................................................................8 2.1 Test standard............................................................................................................8 2.2 Operation mode .......................................................................................................8 2.3 Test equipment ........................................................................................................9 3. Minimum 6dB Bandwidth test (FCC 15.247) .............................................................10 3.1 Operating environment..........................................................................................10 3.2 Test setup & procedure ..........................................................................................10 3.3 Measured data of Minimum 6dB Bandwidth test results ......................................10 4. Maximum Output Power test (FCC 15.247) ...............................................................23 4.1 Operating environment..........................................................................................23 4.2 Test setup & procedure ..........................................................................................23 4.3 Measured data of Maximum Output Power test results ........................................23 5. RF Antenna Conducted Spurious test..........................................................................25 5.1 Operating environment..........................................................................................25 5.2 Test setup & procedure ..........................................................................................25 5.3 Measured data of the highest RF Antenna Conducted Spurious test result ..........25 6. Radiated Emission test (FCC 15.247) .........................................................................63 6.1 Operating environment..........................................................................................63 6.2 Test setup & procedure ..........................................................................................63 6.3 Emission limits ......................................................................................................64 6.4 Radiated spurious emission test data.....................................................................65 6.4.1 Measurement results: frequencies equal to or less than 1 GHz..........................65 6.4.2 Measurement results: frequency above 1GHz ...................................................66 7. Power Spectrum Density test (FCC 15.247) ...............................................................77 7.1 Operating environment..........................................................................................77 7.2 Test setup & procedure ..........................................................................................77 FCC ID. : I88NWD670SU Report No.: EME-061198 Page 3 of 132 7.3 Measured data of Power Spectrum Density test results ........................................77 8. Emission on the band edge (FCC 15.247)...................................................................90 8.1 Operating environment..........................................................................................90 8.2 Test setup & procedure ..........................................................................................90 8.3 Test Result .............................................................................................................91 8.3.1 Conducted Method .............................................................................................91 8.3.2 Radiated Method ................................................................................................99 9. Peak Output Power test (FCC 15.407) ......................................................................100 9.1 Operating environment........................................................................................100 9.2 Test setup & procedure ........................................................................................100 9.3 Limit ....................................................................................................................100 9.4 Measured data of Maximum Output Power test results ......................................101 10. Power Spectru…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo NWD-670SU Photo 2: Conducted Emission Test Set-up photo NWD-670SU Photo 3: Conducted Emission Test Set-up photo NWD-670SU

Photo 1: Radiated Emission Test set-up photo NWD-670SU Photo 2: Radiated Emission Test set-up photo NWD-670SU Photo 3: Radiated Emission Test set-up photo NWD-670SU
