I88P2612HNUF1FADSL2+ VoIP IAD

Operational Description The EUT is a ADSL2+ VoIP IAD with 11 channels 802.11b/g /n(20MHz) and with 7 channels 802.11n(40MHz) function. The EUT provides two completed transmitters and two receivers. The EUT use an antenna working in 802.11b /g of the state and use 2 antennas working in the 802.11n(20MHz), 802.11n(40MHz) of the state. The modulation of device is DSSS, OFDM, transmitting speed 1, 2, 5.5, 11 for 802.11b, 6, 9, 12, 18, 24, 36, 48 and 54Mbps for 802.11g, up to 300Mbps for 802.11n. The technology of this device used is DSSS, OFDM. The device adapts direct sequence spread spectrum modulation for WLAN module. The antenna provides diversity function to improve the receiving function. This device, compliant with IEEE 802.11b, IEEE 802.11g, IEEE802.11n(20MHz) and IEEE 802.11n(40MHz) is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz is Direst Sequence Spread Spectrum (DSSS) radio transmission, the EUT Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b, IEEE 802.11g, IEEE802.11n(20MHz) and IEEE 802.11n(40MHz) network devices.

www.zyxel.com www.zyxel.com P-2612HNU(L)-FxF 802.11n ADSL2+ VoIP IAD Copyright © 2013 ZyXEL Communications Corporation Firmware Version 3.10 Edition 1, 9/2013 Default Login Details IP Addresshttps://192.168.1.1 User NameAdmin account: admin User account: user PasswordAdmin account: 1234 User account: 1234 About This User's Guide P-2612HNU(L)-FxF User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the ZyXEL Device using the web configurator. Related Documentation • Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access. • Support Disc Refer to the included CD for support documents. Documentation Feedback Send your comments, questions or suggestions to: [email protected] Thank you! The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 30099, Taiwan. Need More Help? More help is available at www.zyxel.com. About This User's Guide P-2612HNU(L)-FxF User’s Guide 4 • Download Library Search for the latest product updates and documentation from this link. Read the Tech Doc Overview to find out how to efficiently use the User Guide, Quick Start Guide and Command Line Interface Reference Guide in order to better understand how to use your product. • Knowledge Base If you have a specific question about your product, the answer may be here. This is a collection of answers to previously asked questions about ZyXEL products. • Forum This contains discussions on ZyXEL products. Learn from others who use ZyXEL products and share your experiences as well. Customer Support Should problems arise that cannot be solved by the methods listed above, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device. See http://www.zyxel.com/web/contact_us.php for contact information. Please have the following information ready when you contact an office. • Product model and serial number. • Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it. Document Conventions P-2612HNU(L)-FxF User’s Guide 5 Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The P-2612HNU(L)-FxF may be referred to as the “ZyXEL Device”, the “device”, the “system” or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font. • A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. • “Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen. • Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Document Conventions P-2612HNU(L)-FxF User’s Guide 6 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The ZyXEL Device icon is not an exact representation of your device. ZyXEL DeviceComputerNotebook computer ServerFirewallTelephone RouterSwitch Safety Warnings P-2612HNU(L)-FxF User’s Guide 7 Safety Warnings • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. • Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the device and the power source. • Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning. • Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device. • Use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord. • If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged. • This CPE is indoor use only. (Utilisation intér…

Text truncated - open the document above for the full version.

Chapter 11 Network Address Translation (NAT) P-2612HNU(L)-FxF User’s Guide 201 addresses and the ISP assigns the WAN IP address. The NAT network appears as a single host on the Internet. Figure 75 Multiple Servers Behind NAT Example 11.2.1 The Port Forwarding Screen Click Network Setting > NAT to open the Port Forwarding screen. See Appendix E on page 381 for port numbers commonly used for particular services. Figure 76 Network Setting > NAT > Port Forwarding The following table describes the fields in this screen. A=192.168.1.33 D=192.168.1.36 C=192.168.1.35 B=192.168.1.34 WAN LAN 192.168.1.1 IP Address assigned by ISP Table 44 Network Setting > NAT > Port Forwarding LABELDESCRIPTION Add new ruleClick this to add a new port forwarding rule. #This is the index number of the entry. StatusThis field indicates whether the rule is active or not. Clear the check box to disable the rule. Select the check box to enable it. Service NameThis is the service’s name. This shows User Defined if you manually added a service. You can change this by clicking the edit icon. WAN InterfaceThis shows the WAN interface through which the service is forwarded. Start Port This is the first external port number that identifies a service. End PortThis is the last external port number that identifies a service. Chapter 11 Network Address Translation (NAT) P-2612HNU(L)-FxF User’s Guide 202 11.2.2 The Port Forwarding Edit Screen This screen lets you create or edit a port forwarding rule. Click Add new rule in the Port Forwarding screen or the Edit icon next to an existing rule to open the following screen. Figure 77 Port Forwarding: Add/Edit The following table describes the labels in this screen. Translation Start Port This is the first internal port number that identifies a service. Translation End Port This is the last internal port number that identifies a service. Server IP Address This is the server’s IP address. ProtocolThis shows the IP protocol supported by this virtual server, whether it is TCP, UDP, or TCP/UDP. ModifyClick the Edit icon to edit the port forwarding rule. Click the Delete icon to delete an existing port forwarding rule. Note that subsequent address mapping rules move up by one when you take this action. ApplyClick Apply to save your changes. CancelClick Cancel to restore your previously saved settings. Table 44 Network Setting > NAT > Port Forwarding (continued) LABELDESCRIPTION Table 45 Port Forwarding: Add/Edit LABELDESCRIPTION Service NameEnter a name to identify this rule using keyboard characters (A-Z, a-z, 1- 2 and so on). WAN InterfaceSelect the WAN interface through which the service is forwarded. You must have already configured a WAN connection with NAT enabled. Chapter 11 Network Address Translation (NAT) P-2612HNU(L)-FxF User’s Guide 203 11.3 The Sessions Screen Use the Sessions screen to limit the number of concurrent NAT sessions each client can use. Click Network Setting > NAT > Sessions to display the following screen. Figure 78 Network Setting > NAT > Sessions Start PortEnter the original destination port for the packets. To forward only one port, enter the port number again in the External End Port field. To forward a series of ports, enter the start port number here and the end port number in the External End Port field. End PortEnter the last port of the original destination port range. To forward only one port, enter the port number in the External Start Port field above and then enter it again in this field. To forward a series of ports, enter the last port number in a series that begins with the port number in the External Start Port field above. Translation Start Port This shows the port number to which you want the ZyXEL Device to translate the incoming port. For a range of ports, enter the first number of the range to which you want the incoming ports translated. Translation End Port This shows the last port of the translated port range. Server IP Address Enter the inside IP address of the virtual server here. Protocol Type Select the protocol supported by this virtual server. Choices are TCP, UDP, or TCP/UDP. ApplyClick Apply to save your changes. BackClick Back to return to the previous screen without saving. Table 45 Port Forwarding: Add/Edit (continued) LABELDESCRIPTION Chapter 11 Network Address Translation (NAT) P-2612HNU(L)-FxF User’s Guide 204 The following table describes the fields in this screen. 11.4 Technical Reference This section provides some technical background information about the topics covered in this chapter. 11.4.1 NAT Definitions Inside/outside denotes where a host is located relative to the ZyXEL Device, for example, the computers of your subscribers are the inside hosts, while the web servers on the Internet are the outside hosts. Global/local denotes the IP address of a host in a packet as the packet traverses a router, for example, the local address refers to the IP address of a host when the packet is in the local network, while the global address refers to the IP address of the host when the same packet is traveling in the WAN side. Note that inside/outside refers to the location of a host, while global/local refers to the IP address of a host used in a packet. Thus, an inside local address (ILA) is the IP address of an inside host in a packet when the packet is still in the local network, while an inside global address (IGA) is the IP address of the same inside host when the packet is on the WAN side. The following table summarizes this information. Table 46 Network Setting > NAT > Sessions LABELDESCRIPTION MAX NAT Session Use this field to set a common limit to the number of concurrent NAT sessions each client computer can have. If only a few clients use peer to peer applications, you can raise this number to improve their performance. With heavy peer to peer application use, lower this number to ensure no single client uses too many of the available NAT sessions. ApplyClick Apply to save your changes. CancelClick Cancel to restore …

Text truncated - open the document above for the full version.

ZyXEL Communications Corporation No. 2, Gongye E. 9th Rd., East Dist., Hsin-Chu, Taiwan May. 6, 2013 Letter of Attestation Country Settings Ref: I88P2612HNUF1F To Whom it may concern: Section 16.7 of the User Manual refers to The Region Screen. It implies that other countries can be selected, however all devices for the USA market will only have the ability to select USA as region, as such the end-user will not be able to modify or set channels that are not certified in this FCC application or that are not allowed to use in the USA. Sincerely, ZyXEL Communications Corporation

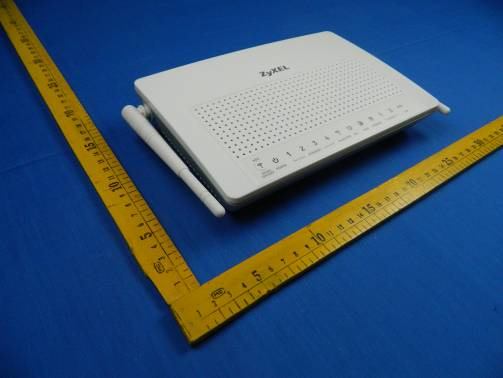

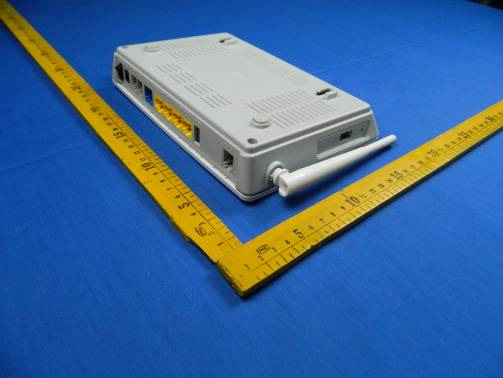

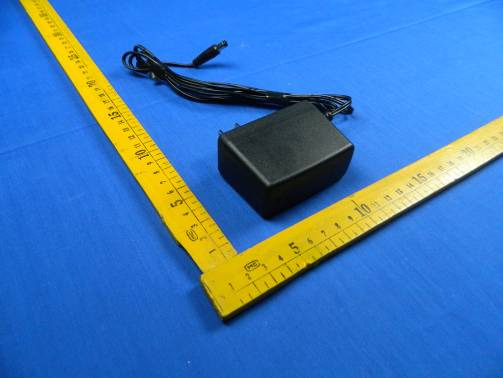

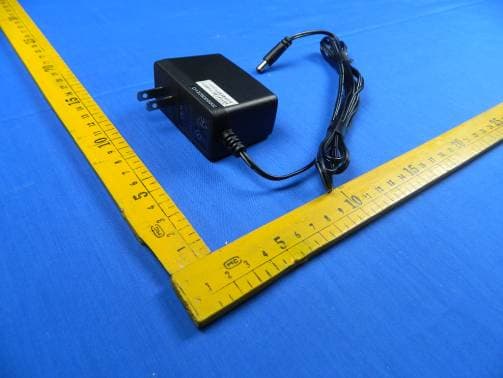

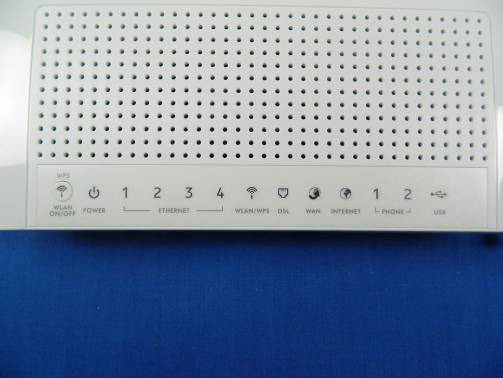

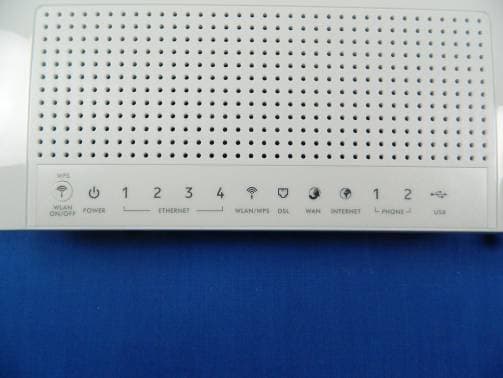

CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 5 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 5 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 5 5) EUT Photo 6) EUT Photo(Adapter) CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 5 7) EUT Photo(Adapter) 8) EUT Photo(Adapter) CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 5 9) EUT Photo(Adapter)

ADSL2+ VoIP IAD (Model name: P-2612HNUL-F1F, DSL-2192HNUL-L1, P-2612HNUL-F3F, DSL-2192HNUL-L3, P-2612HNU- F1F, DSL-2192HNU-L1, P-2612HNU-F3F, DSL-2192HNU-L3) FCC ID Position: FCC ID

CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo Chain 0 Chain 1 CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo 6) EUT Photo（module）

CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 23,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT ADSL2+ VoIP IAD Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 25.46 dBm (351.56 mW) 802.11g: 27.17 dBm (521.19 mW) 802.11n (20MHz) chain0:23.70 dBm (234.42 mW) 802.11n (20MHz) chain1:23.17 dBm (207.49 mW) 802.11n (40MHz)chain 0:23.75 dBm (237.14 mW) 802.11n (40MHz)chain 1:23.62 dBm (230.14 mW) Antenna gain (Max) Dipole Antenna 0 2.0dBi(Numeric gain:1.585) Dipole Antenna 1 2.0dBi(Numeric gain:1.585) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 27.17 dBm (521.19 mW) at 2437 MHz (withnumeric 1.585 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 23,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 23,2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 25.46 2.00 20 0.111 1 802.11g 2412-2462 27.17 2.00 20 0.164 1 802.11n(20MHz) chain 0 2412-2462 23.70 2.00 20 0.074 1 802.11n(20MHz) chain 1 2412-2462 23.17 2.00 20 0.065 1 802.11n(20MHz) chain 0+chain1 2412-2462 / / 20 0.139 1 802.11n(40MHz) chain 0 2422-2452 23.75 2.00 20 0.075 1 802.11n(40MHz) chain 1 2422-2452 23.62 2.00 20 0.073 1 802.11n(40MHz) chain 0+chain 1 2422-2452 / / 20 0.147 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued Date : Apr 22,2013 Tel:86 512 6917 5888 Fax: 86 512 6917 5666 Page No. : 1 of 103 FCC ID : I88P2612HNUF1F FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : ZyXEL Communications Corporation Address : No. 2, Gongye E. 9th Rd., East Dist., Hsinchu City 300, Taiwan (R.O.C) Equipment : ADSL2+ VoIP IAD Model No. : P 2612HNUL F1F, DSL 2192HNUL L1, P 2612HNUL F3F, DSL 2192HNUL L3, P 2612HNU F1F, DSL 2192HNU L1, P 2612HNU F3F, DSL 2192HNU L3 FCC ID : I88P2612HNUF1F
The test result refers exclusively to the test presented test model / sample.
Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full.
The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued Date : Apr 22,2013 Tel:86 512 6917 5888 Fax: 86 512 6917 5666 Page No. : 2 of 103 FCC ID : I88P2612HNUF1F Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 1.1 List of Measurements and Examinations .........................................................................................6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1 Manufacturer.....................................................................................................................................7 2.2 Feature of Equipment under Test .....................................................................................................7 2.3 Carrier Frequency of Channels ........................................................................................................8 2.4 Test Manner ......................................................................................................................................9 2.5 Description of Test System .............................................................................................................10 2.6 General Information of Test ............................................................................................................11 2.7 Measurement Uncertainty ..............................................................................................................11 3. Antenna Requirements ............................................................................................................................. 12 3.1 Standard Applicable ........................................................................................................................12 3.2 Antenna Construction and Directional Gain ...................................................................................12 4. Test of Conducted Emission.................................................................................................................... 13 4.1 Test Limit.........................................................................................................................................13 4.2 Test Procedures..............................................................................................................................13 4.3 Typical Test Setup...........................................................................................................................14 4.4 Measurement Equipment ...............................................................................................................14 4.5 Test Result and Data ......................................................................................................................15 5. Test of Radiated Emission ....................................................................................................................... 17 5.1 Test Limit.........................................................................................................................................17 5.2 Test Procedures..............................................................................................................................17 5.3 Typical Test Setup...........................................................................................................................18 5.4 Measurement Equipment ...............................................................................................................19 5.5 Test Result and Data ......................................................................................................................20 6. Occupied Bandwidth................................................................................................................................. 33 6.1 Test Limit.........................................................................................................................................33 6.2 Test Procedures..............................................................................................................................33 6.3 Test Setup Layout ...........................................................................................................................33 6.4 Measurement Equipment ...............................................................................................................33 6.5 Test Result and Data ......................................................................................................................34 7. Maximum Peak Output Power ................................................................................................................. 46 7.1 Test Limit.........................................................................................................................................46 7.2 Test Procedure ......................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1304055 Cerpass Technology Corp. Issued date : Apr 22, 2013 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G
