I88P6101CWireless N-lite ADSL2+ 4-port Gateway

P-6101C (DSL-100HN-T1A v2) User Manual 使用手冊 802.11n wireless ADSL2+ 4port router Version: 1.13 Original: 6/2012 預設登入資訊 IP Address http://192.168.1.1 Username user Password user Wireless Parameters: SSID: Key : In order to avoid hacker to attache the wireless AP,WPA2-PSK and AES authentication method is suggested (see Page 8) and change the user password P-6101C P-6101C 2 Introduction P-6101C is 802.11n ADSL2+ wireless 4 port router and provide high-rate internet service。Its internal switch can connect at most 4 pcs. IEEE 802.11n wireless (AP) can provide wireless internet service. This Manual will provide the steps how to set P-6101C for Internet services and you need to have the account info provided by the ISP. Hardware Connection 1. ADSL： Please connect the telephone line to the wall jack to get the Internet service. If you need to use the attached ADSL splitter, first connect one side of the telephone line to the Ethernet port, then the other side P-6101C P-6101C 3 to the Splitter, then connect the Splitter line port to the wall jack of the telephone Splitter has three interfaces： • LINE：Connect to the Phone wall jack • MODEM：Connect to the device’s ADSL jack • PHONE：Connect to Phone 2. ETHERNET： Use Ethernet Cable to connect the Ethernet ports to PC or STB (Set-Top- Box) in order to connect to the Internet and get VOD. 3. POWER：ON/OFF to power on/shut off P-6101C 4. CONSOLE: Management Port for engineering usage Check LED If LED cannot be on, please plug off the power and re-check the hardware P-6101C 4 Wall Mounted Function If you want to mount this product onto the wall, please follow below step. Wall mounted hole Wall mounted hole P-6101C 5 Step 1: use screws (Dimension:4.0mm) fix bracket into the wall Step 2: put equipment mount on bracket Product Spec  Anntena： 1* Embedded Antenna  Band： 2.4 GHz (11g/n) USA (FCC): 2.412 to 2.462 GHz  Max. output power： a. 11b/g 54Mbps 15dbm 6Mbps 19dbm b. 11g/n 20MHz 15dbm 40MHz 15dbm  Wired transfer rate：10/100Mbps （full-duplex/half-duplex）  LAN： 4*port  WLAN: a. Max. transfer rate：150Mbps b. WMM support c. WEP support d. WPA/WPA2-PSK support e. WPA2 support f. WPA/WPA2-Enterprise Support ADSL Spec  ADSL line code: DMT modulation P-6101C 6  Handshake protocol: ITU-T Rec. G.994.1  SNR margin: display real-time SNR margin for both upstream and downstream on demand  ATM transmission convergence: ITU-T G.992.5 Annex K.  Spectra bound should be configurable  Spectra Mask: - Transmitter signal comply with Power Spectrum Density (PSD) mask specified in Annex A of ITU-T Rec. G.992.5 and the pass- band PSD ripple should be no greater than +1.0dB. - Support ITU-T G.992.5 Annex M  Controllable spectrum bound: ITU-T G.992.5  EOC and Overhead Channel Access：ITU-T Rec G.992.5 and ITU-T Rec G.997.1  Latency path function: ITU-T Rec G.992.5  Rate Adaptive modes: ITU-T Rec G.992.5 and ITU-T Rec G.997.1  Selectable pilot subcarrier for downstream direction: ITU-T Rec G.992.5  Power Management Link state (including L0,L2 and L3): specified in ITU Rec G.992.5 and L2, L3 should be configurable.  Power Management: ITU-T Rec G.992.5 and the transitions between L0 and L2 states in downstream should comply with ITU-T Rec G.992.5 and ITU-T Rec G.997.1 P-6101C 7  The loop diagnostics function: ITU-T Rec G.992.5  Seamless Rate Adaptation (SRA): On-line configuration specified in ITU-T Rec G.992.5  Non-overlapped spectrum operation: ITU-T Rec G.992.5  Trellis Coding: ITU-T Rec G.992.5  Dying Gasp Message: ITU-T Rec G.992.5  Backward compatibility: ADSL G.dmt and an ADSL2 line by auto- handshake technique  Impulse Noise Protection: ITU-T Rec G.992.5  Should show near-end Errored Second (ES), Severely Errored Second (SES) and Unavailable Second (UAS)  Support to show near-end Code Violation  Target Noise margin, Max. Noise Margin, Min. Noise Margin, Up- shift Noise Margin, Down-shift Noise Margin, Max. Interleaving Delay, Min.Net Date Rate, Max.Net Data Rate, INP_min, and the Max. normal transmit PSD for downstream should be supported and configurable.  AAL 5 PVC supporting UBR, the configurable parameter shall include PCR and CDVT  F5 End-to End OAM loopback function (ITU-T Rec.1.610) P-6101C 8 WEB GUI Page 1. Type the blew IP in the browser「192.168.1.1」。 2. Type the username: user，Password: user. Enter OK 3. Main page P-6101C 9 Basic Functions: Status Page Status will show info such as FW version, MAC, WAN, LAN, WLAN and so on P-6101C 1 0 Interface Setup You can set WAN\ LAN\WLAN under Interface Setup WAN Make settings for the Internet services, ISP will provide you the related PPPoE/PPPoA account info. The device will automatically dial and your PC doesn’t need to do any dial operation. With this setting, please refer to LAN/DHCP. P-6101C 11 LAN Set IP address of the LAN network and run DHCP server Current IP address Choose Enabled to run DHCP server IP Range WLAN WLAN Setting options: • Channel: Wireless transfer channel • Output Power: Adjust the wireless coverage • SSID: Wireless AP Name，Type in English or Number •Broadcast SSID: Choose Yes, when you search the wireless AP, will see the SSID name; If Choose No, will not see the SSID name, need to type the SSID to make the computer to connect to the device • Authentication Type: Choose the secure authentication methods (WEP、 WPAPSK、 WPA2PSK) or unsecure authentication way (OPEN)。 P-6101C 12 • Secure mode and pre-shared key : E.g. under Authentication Type , choose WPA2-PSK。Under Encryption and PreShared Key fill in the passwords After this, click save button to save all the settings. P-6101C 13 Test Wireless: 1. Wireless clients search the SSID of P-6101C 2. Choose the same authentication way as P-6101C and fill the same key 3. Get the LAN IP assigned by the device If wireless clients can’t connect to the Internet, check the DSL connection and Internet account info Firewall Set the router to make the servers behind your router can be seen outside P-6101C 14 Port Forwarding First, Interfac…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ZyXEL Communications Corporation 2012/07/11 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZyXEL Communications Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Equipment: Wireless N-lite ADSL2+ 4-port Gateway Model No.: P-6101C,DSL-100HN-T1A v2 FCC ID: I88P6101C We affirm that between SIEMIC and ZyXEL Communications Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 ZyXEL Communications Corporation 2012/07/11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: I88P6101C We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Operational Description - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

Attestation for FCC Declaration of Conformity FCC ID: I88P6101C Date: Jul 11, 2012 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFD1206116. Testing in regards to this report was done by Cerpass technology Coporation, located at No.68-1, Shihbachongsi, Shihding Township, Taipei City 223, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

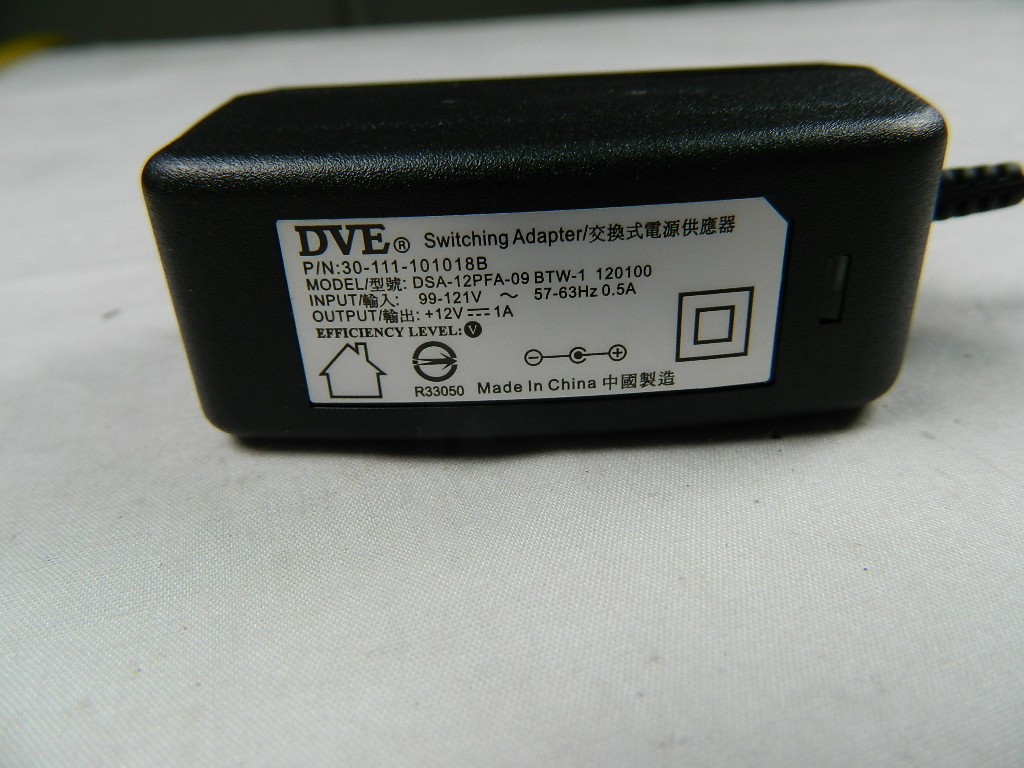

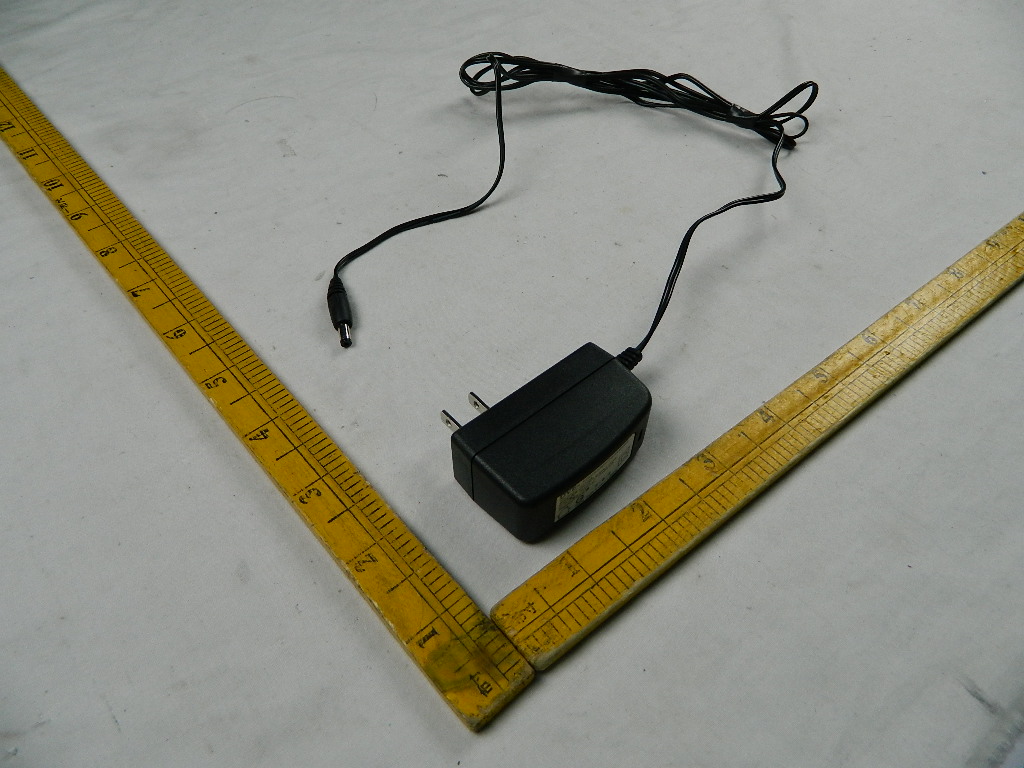

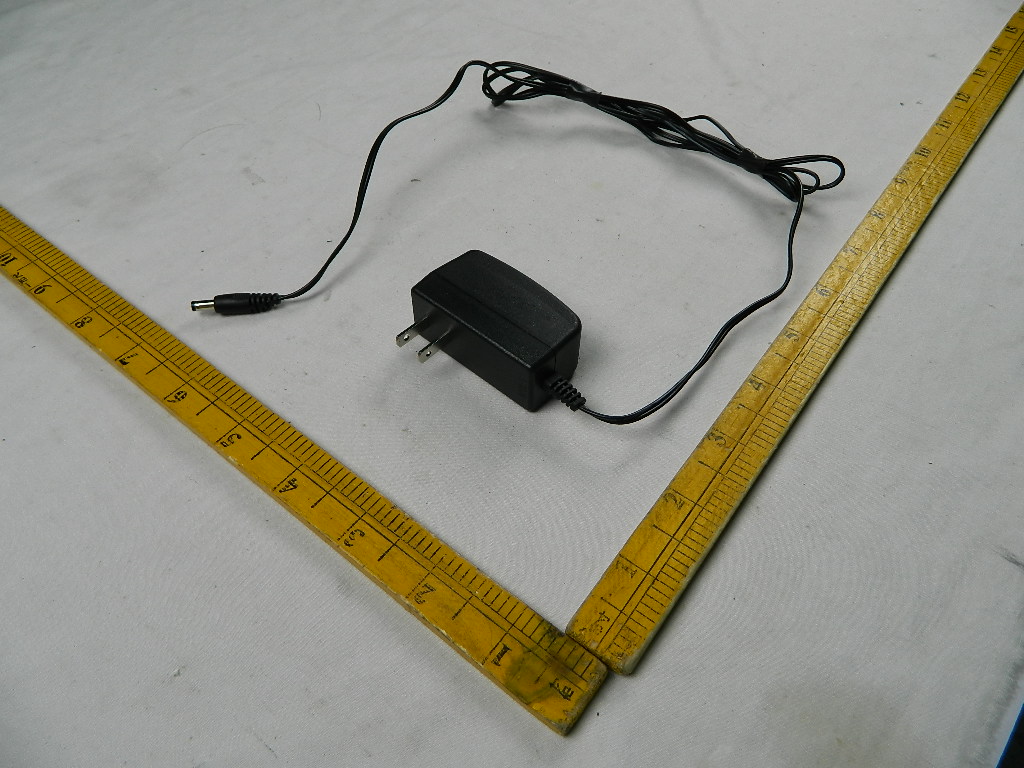

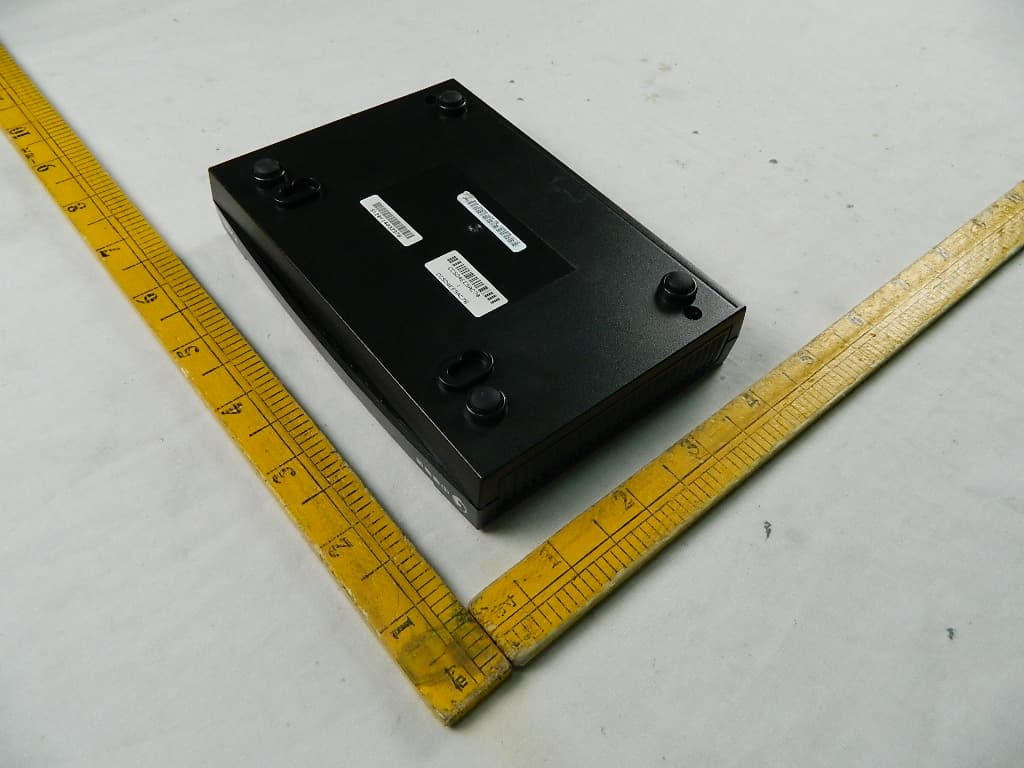

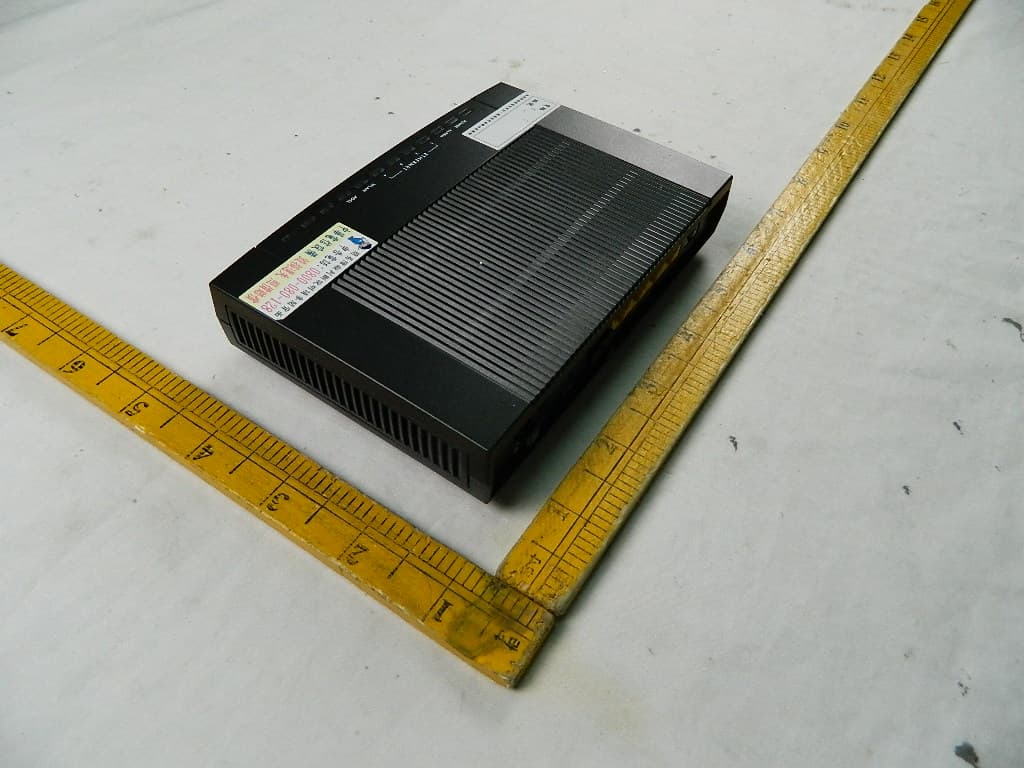

CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo Adapter 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo 6) EUT Photo(power adapter)

Wireless N-lite ADSL2+ 4-port Gateway (Model name: P-6101C, DSL-100HN-T1A v2) FCC ID Position: FCC ID

CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo Antenna CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo（module） CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo

CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11n Wireless VDSL 4-port Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 18.26 dBm (66.99 mW) 802.11g: 18.19 dBm (65.92 mW) 802.11n (20MHz): 16.60 dBm (45.71 mW) 802.11n (40MHz): 16.47dBm (44.36 mW) Antenna gain (Max) 3 dBi (Numeric gain:1.995 ) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 18.26 dBm (66.99 mW) at 2412 MHz (withnumeric 1.995 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 18.26 3.0 20 0.027 1 802.11g 2412-2462 18.19 3.0 20 0.026 1 802.11n(20MHz) 2412-2462 16.60 3.0 20 0.018 1 802.11n(40MHz) 2422-2452 16.47 3.0 20 0.018 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued Date : July 9, 2012 Tel:8651269175888 Fax: 8651269175666 Page No. : 1 of 77 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : ZyXEL Communications Corporation Address : NO.6,Innovation Rd.II Science Based Industrial Park HsinChu,Taiwan Equipment : Wireless Nlite ADSL2+ 4port Gateway Model No. : P6101C,DSL100HNT1A v2 FCC ID : I88P6101C
The test result refers exclusively to the test presented test model / sample.
Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full.
The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued Date : July 9, 2012 Tel:8651269175888 Fax: 8651269175666 Page No. : 2 of 77 Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 1.1. List of Measurements and Examinations .........................................................................................6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1. Feature of Equipment under Test .....................................................................................................7 2.2. Carrier Frequency of Channels ........................................................................................................8 2.3. Test Manner ......................................................................................................................................9 2.4. Description of Test System ............................................................................................................ 10 2.5. General Information of Test ............................................................................................................ 11 2.6. Measurement Uncertainty .............................................................................................................. 11 3. Antenna Requirements ............................................................................................................................. 12 3.1. Standard Applicable ....................................................................................................................... 12 3.2. Antenna Construction and Directional Gain .................................................................................. 12 4. Test of Conducted Emission .................................................................................................................... 13 4.1. Test Limit ........................................................................................................................................ 13 4.2. Test Procedures ............................................................................................................................. 13 4.3. Typical Test Setup.......................................................................................................................... 14 4.4. Measurement Equipment .............................................................................................................. 14 4.5. Test Result and Data ..................................................................................................................... 15 5. Test of Radiated Emission ....................................................................................................................... 17 5.1. Test Limit ........................................................................................................................................ 17 5.2. Test Procedures ............................................................................................................................. 17 5.3. Typical Test Setup.......................................................................................................................... 18 5.4. Measurement Equipment .............................................................................................................. 19 5.5. Test Result and Data ..................................................................................................................... 20 6. Occupied Bandwidth................................................................................................................................. 33 6.1. Test Limit ........................................................................................................................................ 33 6.2. Test Procedures ............................................................................................................................. 33 6.3. Test Setup Layout .......................................................................................................................... 33 6.4. Measurement Equipment .............................................................................................................. 33 6.5. Test Result and Data ..................................................................................................................... 34 7. Maximum Peak Output Power ................................................................................................................. 42 7.1. Test Limit ........................................................................................................................................ 42 7.2. Test Procedure .............................................................................................................................. 42 7.3. Test Setup Layout .......................................................................................................................... 42 7.4. Measurement Equipment ...............…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1206116 Cerpass Technology Corp. Issued date : July 10, 2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G
