I88P660HNT1H802.11n Wireless ADSL2+ 4-port Gateway

www.zyxel.com www.zyxel.com P-660HN-T1h 802.11n Wireless ADSL2+ 4-port Gateway Copyright © 2010 ZyXEL Communications Corporation Firmware Version 3.40 Edition 1, 6/2010 Default Login Details IP Addresshttp://192.168.1.1 Password1234 About This User's Guide P-660HN-T1h User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the ZyXEL Device using the web configurator. You should have at least a basic knowledge of TCP/IP networking concepts and topology. Related Documentation •Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access. • Support Disc Refer to the included CD for support documents. • ZyXEL Web Site Please refer to www.zyxel.com for additional support documentation and product certifications. Documentation Feedback Send your comments, questions or suggestions to: [email protected] Thank you! The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 30099, Taiwan. Need More Help? More help is available at www.zyxel.com. About This User's Guide P-660HN-T1h User’s Guide 4 • Download Library Search for the latest product updates and documentation from this link. Read the Tech Doc Overview to find out how to efficiently use the User Guide, Quick Start Guide and Command Line Interface Reference Guide in order to better understand how to use your product. • Knowledge Base If you have a specific question about your product, the answer may be here. This is a collection of answers to previously asked questions about ZyXEL products. •Forum This contains discussions on ZyXEL products. Learn from others who use ZyXEL products and share your experiences as well. Customer Support In the event of problems that cannot be solved by using this manual, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device. See http://www.zyxel.com/ web/contact_us.php for contact information. Please have the following information ready when you contact an office. • Product model and serial number. •Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it. Disclaimer Graphics in this book may differ slightly from the product due to differences in operating systems, operating system versions, or if you installed updated firmware/software for your device. Every effort has been made to ensure that the information in this manual is accurate. Document Conventions P-660HN-T1h User’s Guide 5 Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The P-660HN-T1h may be referred to as the “ZyXEL Device”, the “device”, the “system” or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font. • A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. • “Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen. • Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Document Conventions P-660HN-T1h User’s Guide 6 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The ZyXEL Device icon is not an exact representation of your device. ZyXEL DeviceComputerNotebook computer ServerFirewallTelep hone RouterSwitch Safety Warnings P-660HN-T1h User’s Guide 7 Safety Warnings • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. • Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the device and the power source. • Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. There is a …

Text truncated - open the document above for the full version.

AHTHORIZATION LETTER FCC ID: I88P660HNT1H Date: Aug 20, 2010 To whom it may concern: We, the undersigned, hereby authorize Cerpass Technology (Suzhou) Co., Ltd. of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Cerpass Technology (Suzhou) Co., Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 weeks from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Thank you. Yours Sincerely, Engineer ZyXEL Communications Corporation

ZyXEL Communications Corporation Date: Aug 18, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: I88P660HNT1H Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Operational Description 3 Block Diagram. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Wang Yi , engineer ZyXEL Communications Corporation

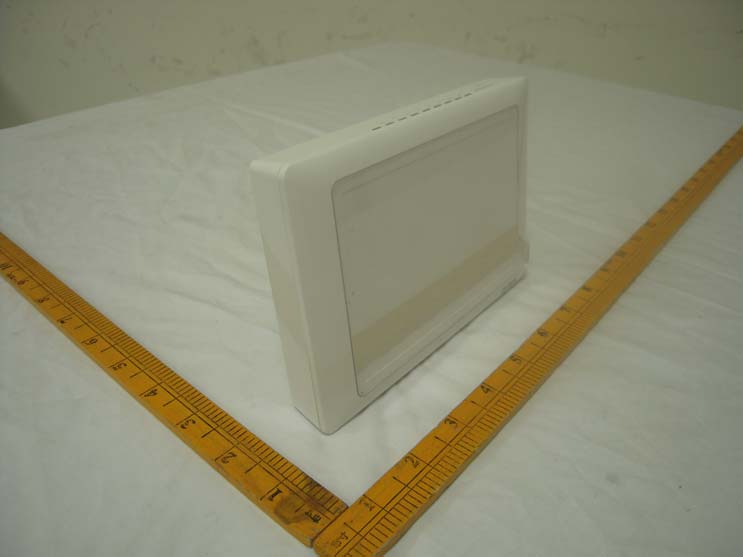

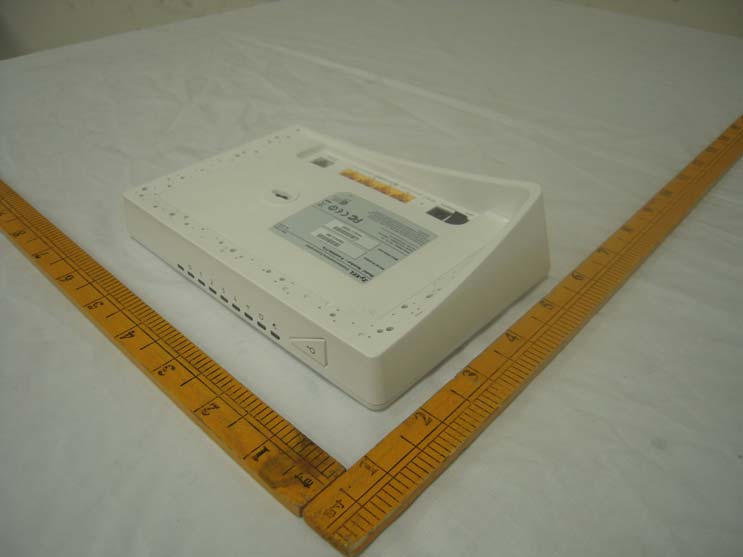

802.11n Wireless ADSL2+ 4-port Gateway (Model name: P-660HN-T1H) Exterior Photographs: 1) 2) 3) 4) 5) 6) 7) 8)

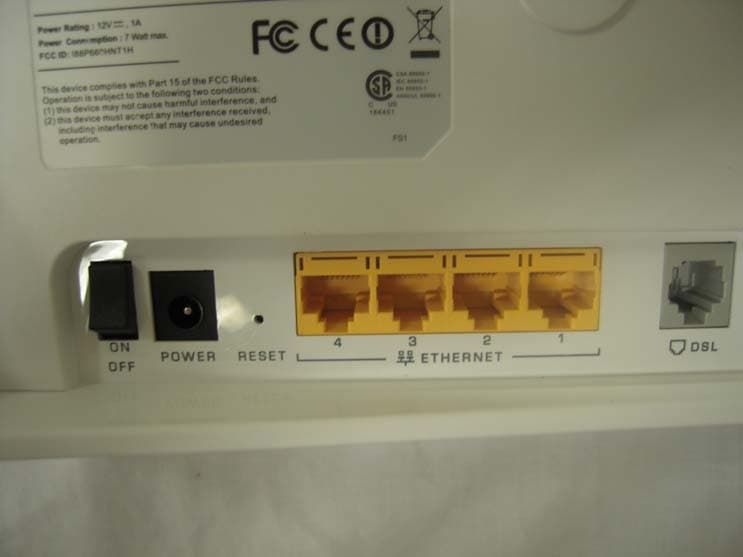

802.11n Wireless ADSL2+ 4-port Gateway (Model name: P-660HN-T1H) FCC ID Position: FCC ID

802.11n Wireless ADSL2+ 4-port Gateway (Model name: P-660HN-T1H) Inside photo: 1) 2) 3) 4)

Page: 1 of 3 RF Exposure Evaluation Declaration Product: 802.11n Wireless ADSL2+ 4-port Gateway Test Item: RF Exposure Evaluation Declaration 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Page: 2 of 3 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.4. Test Result of RF Exposure Evaluation Antenna Gain: antenna type: Dipole antenna antenna antenna gain: 6.0dBi Output Power Into Antenna & RF Exposure Evaluation Distance: 1) 802.11b Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 31.0456 0.0245883 06 2437.00 30.8319 0.0244191 11 2462.00 31.6228 0.0250455 2) 802.11g Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 55.2077 0.0437249 06 2437.00 58.7489 0.0465296 11 2462.00 58.7489 0.0465296 Page: 3 of 3 3) 802.11n(20MHz) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 48.5289 0.0384352 06 2437.00 38.4592 0.0304600 11 2462.00 40.3645 0.0319690 5) 802.11n(40MHz) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 40.0867 0.0317490 06 2437.00 35.6451 0.0282312 09 2452.00 36.8978 0.0292233

Product Number: NB0186-B Product Name: Antenna COR/F-G-15b Specification For Approval Date: 2010 / 07 / 06 File No.: 100706001 Version: 1.0 Customer： 合勤科技有限公司 Customer P/N： 65-031-060612B INVAX P/N： NB0186-B Description : Antenna Cortec Checked By: Customer Approved By: INVAX System Technology Corp. Cortec Technology Inc. 4F. No. 815.Chung Hsiao East Rd.,Sec.5 Xian-Xi Industrial, Sha-Tou Administration Zone, Taipei, TAIWAN Chang-An Town, Dong-Guan City, Guangdong Province, China TEL:886-2-2788-5218 FAX:886-2-2783-1658 TEL:86-769-85388261 FAX:86-769-85317869 http://www.invaxsystem.com http://www.cortec.com.cn Product Number: NB0186-B Product Name: Antenna Page 1 Version: 1.0 Issue Date: 2010-07-06 Index: 1. Specification / Page 2 2. Characteristics and Reliability Test / Page 3 3. Antenna - S Parameter Test Data / Page 4 4. Antenna - Radiation Pattern Test Data / Page 5 ~ 6 5. Mechanical and Packing Drawing / Page 7 ~ 8 6. Material Description and RoHS Test Report / Page 9 ~ end Product Number: NB0186-B Product Name: Antenna Page 2 Version: 1.0 Issue Date: 2010-07-06 1. Specification Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <= 2.0 Antenna Gain 5.3 ± 0.7 dBi Efficiency >= 90% Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator PCB Cable Type O.D. 1.13 mm // 240 mm (Gray) C. Environmental Operation Temperature - 40 ̊C ~ + 65 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C Storage Time 1800 Days Product Number: NB0186-B Product Name: Antenna Page 3 Version: 1.0 Issue Date: 2010-07-06 2. Characteristics and Reliability Test Test Items Test Condition and Procedure Requirements C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2 Antenna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1 Vibration MIL-STD-202G, 201A Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2 Random Drop Height: 1.5 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5% M3 Solderability MIL-STD-202G, 210F, cond. A Solder iron: 350±10°C; Duration: 5 seconds 1. Mounted on PCB 2. No Visual Damage M4 Terminal- Pull Test MIL-STD-202G, 211A, cond. A Holding with individual specification; force applied to axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M5 Dimension Inspection of dimension, color, material, package, surface process Directive DUT specification E1 Salt Spray MIL-STD-202G, 101E, cond. B Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E2 Humidity MIL-STD-202G, 103B, cond. B Temp: 40°C; RH: >= 95%; Time: 48 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E3 Thermal Shock 1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes) Cycles: 24 After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E4 Life (High Temp.) MIL-STD-202G, 108A, cond. A Temp: 85°C; Time: 96 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% R1 RoHS With Reference to IEC 62321:2008 with flow chart Directive RoHS 2002/95/EC R2 PFOS With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC R3 PFOA With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC Product Number: NB0186-B Product Name: Antenna Page 4 Version: 1.0 Issue Date: 2010-07-06 3. Antenna - S Parameter Test Data Product Number: NB0186-B Product Name: Antenna Page 5 Version: 1.0 Issue Date: 2010-07-06 4. Antenna - Radiation Pattern Test Data Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna Product Number: NB0186-B Product Name: Antenna Page 6 Version: 1.0 Issue Date: 2010-07-06 5. Mechanical Drawing See attached files 6. Material Description and RoHS Test Report See attached files 物质安全数据表 产品名称: KB-6160/6150(FR-4) Page 1 of 2 1 – 产品及厂商资料 1.1. 产品名称 : 环氧玻璃布基覆铜层压板 1.2. 物料编 号 : KB-6160/6150(FR-4) 1.3. 供应商 名称 : 建滔积层板有限公司 2 – 成分/组成信息 2.1. 组成 : a) 增强材料 : E级玻璃纤维布 CAS NO. 65997-17-3 含量：41~44% b) 粘合剂 : 环氧树脂 CAS NO. 26265-08-7 含量：37~40% c) 覆金属层 : 电解铜箔 CAS NO. 7440-50-8 含量：15~17% 2.2. 有害成 分 : 无 2.3. 标记 : 无 3 – 危险性概述 3.1. 健康危害 : 无 3.2. 环境影 响 : 无 4 – 急救措施 4.1. 吸入 : NA 4.2. 皮肤接 触 : 长期接触有刺激性，用肥皂水清洗皮肤 4.3. 眼睛接 触 : NA 4.4. 食入 : NA 5 – 消防措施 5.1. 危险特性 : 无 5.2. 燃烧产 物 : CO 2 , HBr 5.3. 灭火方 式 : - 推荐 : 常用灭火方法及灭火剂均可 - 不推荐 : 无 5.4. 消防人 员之特殊防护设备 : 穿戴防烟的呼吸用具 5.5. 其他推 荐方式 : 无 6 – 泄露应急处理 6.1. 个人防护 : NA 6.2. 环境注 意事项 : 无 6.3. 清理方 法 : NA 6.4. 次要危 害 : 无 7 – 操作处置与储存 7.1. 操作者防护及预防 : 无 7.2. 火灾及 爆炸预防 : NA 7.3. 操作处 置注意事项 : 无 7.4. 不相容 物质 : 避免强氧化剂及腐蚀性物品 7.5. 推荐的 储存条件 : 室温 7.6. 包装材 料 - 推荐 : 采用原有的包装 - 不推荐 : 无 8 – 接触控制/个体防护 8.1. 特殊控制参数 : 无 8.2. 推荐的 工程控制 : 无 8.3. 个人防 护设备 : 无 产品名称: KB-6160/6150(FR-4) Page2 of 2 9 – 物理及化学性质 9.1. 物质状态及形状 : 固体，片状 9.2. 颜色 : 黄色/自然色 9.3. 气味 : 无 10 – 稳定性和反应性 10.1. 避免接触的条件 : 暴晒、雨淋、周围有腐蚀性气体 10.2. 避免接 触的物品 : 强氧化剂 10.3. 分解产 物 : 见5.2 11 – 毒性资料 11.1. 吸入 : NA 11.2. 皮肤接 触 : NA 11.3. 眼睛接 触 : NA 11.4. 食入 : NA 12 – 生态学资料 12.1. 生物蓄集性 : NA 12.2. 生物降 解性 : NA 13 – 废弃处置 13.1. 处置方法 : 控制焚烧法 13.2. 残余物 处置 : 无特殊规定 13.3. 污染性 包装处置 : NA 14 – 运输信息 特殊运输方式及注意事项 : 无 15 – 法规信息 适用法规 : Sony (SS-00259) 技术标准 16 –相关物质含量（SGS 测试） SS-00259第三版限制标准 1 （Cd）镉 ＜2ppm (EN1122) 1 （Cd）镉 ＜5ppm 2 （Pb）铅 6ppm (EPA3050B) 2 （Pb）铅 30ppm 3 （Hg）汞 ＜2ppm (EPA3052) 3 （Hg）汞 ＜5ppm 4 （Cr 6+ ）六价铬离子＜2ppm (USEPA3060A&7196A) 4 （Cr 6+ ）六价铬离子＜5ppm 5 Cd+Pb+Hg+Cr 6+ ＜12 ppm 5 Cd+Pb+Hg+Cr 6+ ＜100 ppm 6 不含（PBB）多溴联苯和（PBDE）多溴二苯醚 (83/264/EEC) 6 不含（PBB）多溴联苯和（PBDE）多 溴二苯醚 (83/264/EEC) 17– 其他信息 : 制表日期：2005年1月1日 就我们目前对该产品的认知，以上所列的信息均是正确的。但是，我们无法保证在这里包含了所有的完整 和准确的信息。材料的适用性由使用者做最终的决定。 QMTS2.E123995 Polymeric Materials - Filament-wound Tubing, Industrial Laminates, Vulcanized Fiber, and Materials for Use in Fabric…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1007075 Cerpass Technology Corp. Issued Date : Aug 09,2010 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 201 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : ZyXEL Communications Corp. Address : NO.6,Innovation Rd.IIScience Based Industrial Park Hsin-Chu,Taiwan Manufacturer(1) : ZyXEL Communications Corp. Address(1) : NO.6,Innovation Rd.IIScience Based Industrial Park Hsin-Chu,Taiwan Manufacturer(2) : ZyXEL Communications(Wuxi) Co Ltd. Address(2) : 60 – E, Minshan RD, New District, Wuxi, Jiangsu, P.R. China Equipment : 802.11n Wireless ADSL2+ 4-port Gateway Model No. : P-660HN-T1H, P-660HN-T1h FCC ID : I88P660HNT1H ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1007075 Cerpass Technology Corp. Issued Date : Aug 09,2010 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 201 Table of Contents 1. Report of Measurements and Examinations.............................................................................................6 2. Test Configuration of Equipment under Test............................................................................................7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Carrier Frequency of Channels ....................................................................................................... 8 2.3. Test Manner ..................................................................................................................................... 9 2.4. Description of Test System .............................................................................................................. 9 2.5. Connection Diagram of Test System ............................................................................................. 10 2.6. General Information of Test ............................................................................................................11 2.7. Measurement Uncertainty ..............................................................................................................11 3. Test of Conducted Emission ....................................................................................................................12 3.1. Test Limit........................................................................................................................................ 12 3.2. Test Procedures............................................................................................................................. 12 3.3. Typical Test Setup.......................................................................................................................... 13 3.4. Measurement Equipment .............................................................................................................. 13 3.5. Test Result and Data ..................................................................................................................... 14 3.6. Test Photographs........................................................................................................................... 18 4. Test of Radiated Emission ........................................................................................................................19 4.1. Test Limit........................................................................................................................................ 19 4.2. Test Procedures............................................................................................................................. 19 4.3. Typical Test Setup.......................................................................................................................... 20 4.4. Measurement Equipment .............................................................................................................. 21 4.5. Test Result and Data ..................................................................................................................... 22 4.6. Test Photographs......................................................................................................................... 142 5. Occupied Bandwidth ...............................................................................................................................143 5.1. Test Limit...................................................................................................................................... 143 5.2. Test Procedures........................................................................................................................... 143 5.3. Test Setup Layout ........................................................................................................................ 143 5.4. Measurement Equipment ............................................................................................................ 143 5.5. Test Result and Data ................................................................................................................... 144 6. Maximum Peak Output Power ................................................................................................................152 6.1. Test Limit...................................................................................................................................... 152 6.2. Test Procedure ............................................................................................................................ 152 6.3. Test Setup Layout .............................................................................…

Text truncated - open the document above for the full version.

802.11n Wireless ADSL2+ 4-port Gateway (Model name: P-660HN-T1H) Test Photograph: Front View of Conducted Emission Test Back View of Conducted Emission Test Front View of Radiated Emission Test Back View of Radiated Emission Test
