www.zyxel.com www.zyxel.com P-660N-T1A 802.11n Wireless ADSL2+ Gateway Copyright © 2010 ZyXEL Communications Corporation Firmware Version 3.40 Edition 1, 7/2010 Default Login Details IP Addresshttp://192.168.1.1 Password1234 About This User's Guide P-660N-T1A User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the ZyXEL Device using the web configurator. You should have at least a basic knowledge of TCP/IP networking concepts and topology. Related Documentation •Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access. • Support Disc Refer to the included CD for support documents. • ZyXEL Web Site Please refer to www.zyxel.com for additional support documentation and product certifications. Documentation Feedback Send your comments, questions or suggestions to: [email protected] Thank you! The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 30099, Taiwan. Need More Help? More help is available at www.zyxel.com. About This User's Guide P-660N-T1A User’s Guide 4 • Download Library Search for the latest product updates and documentation from this link. Read the Tech Doc Overview to find out how to efficiently use the User Guide, Quick Start Guide and Command Line Interface Reference Guide in order to better understand how to use your product. • Knowledge Base If you have a specific question about your product, the answer may be here. This is a collection of answers to previously asked questions about ZyXEL products. •Forum This contains discussions on ZyXEL products. Learn from others who use ZyXEL products and share your experiences as well. Customer Support In the event of problems that cannot be solved by using this manual, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device. See http://www.zyxel.com/ web/contact_us.php for contact information. Please have the following information ready when you contact an office. • Product model and serial number. •Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it. Disclaimer Graphics in this book may differ slightly from the product due to differences in operating systems, operating system versions, or if you installed updated firmware/software for your device. Every effort has been made to ensure that the information in this manual is accurate. Document Conventions P-660N-T1A User’s Guide 5 Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The P-660N-T1A may be referred to as the “ZyXEL Device”, the “device”, the “system” or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font. • A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. • “Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen. • Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Document Conventions P-660N-T1A User’s Guide 6 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The ZyXEL Device icon is not an exact representation of your device. ZyXEL DeviceComputerNotebook computer ServerFirewallTelep hone RouterSwitch Safety Warnings P-660N-T1A User’s Guide 7 Safety Warnings • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. • Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the device and the power source. • Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of…

Text truncated - open the document above for the full version.

Chapter 21 Tools P-660N-T1A User’s Guide 221 Backup Configuration Backup Configuration allows you to back up (save) the ZyXEL Device’s current configuration to a file on your computer. Once your ZyXEL Device is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file will be useful in case you need to return to your previous settings. Click Backup to save the ZyXEL Device’s current configuration to your computer. Restore Configuration Restore Configuration allows you to upload a new or previously saved configuration file from your computer to your ZyXEL Device. Do not turn off the ZyXEL Device while configuration file upload is in progress. After you see a “restore configuration successful” screen, you must then wait one minute before logging into the ZyXEL Device again. Figure 107 Configuration Upload Successful Table 90 Restore Configuration LABELDESCRIPTION File Path Type in the location of the file you want to upload in this field or click Browse ... to find it. Browse... Click this to find the file you want to upload. Remember that you must decompress compressed (.ZIP) files before you can upload them. Upload Click this to begin the upload process. Chapter 21 Tools P-660N-T1A User’s Guide 222 The ZyXEL Device automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop. Figure 108 Network Temporarily Disconnected If you uploaded the default configuration file you may need to change the IP address of your computer to be in the same subnet as that of the default device IP address (192.168.1.1). See Appendix A on page 243 for details on how to set up your computer’s IP address. If the upload was not successful, the following screen will appear. Click Return to go back to the Configuration screen. Figure 109 Configuration Upload Error Chapter 21 Tools P-660N-T1A User’s Guide 223 Reset to Factory Defaults Click the Reset button to clear all user-entered configuration information and return the ZyXEL Device to its factory defaults. The following warning screen appears. Figure 110 Reset Warning Message Figure 111 Reset In Process Message You can also press the RESET button on the rear panel to reset the factory defaults of your ZyXEL Device. Refer to Section 1.6 on page 26 for more information on the RESET button. 21.4 The Restart Screen System restart allows you to reboot the ZyXEL Device remotely without turning the power off. You may need to do this if the ZyXEL Device hangs, for example. Click Maintenance > Tools > Restart. Click Restart to have the ZyXEL Device reboot. This does not affect the ZyXEL Device's configuration. Figure 112 Maintenance > Tools >Restart Chapter 21 Tools P-660N-T1A User’s Guide 224 P-660N-T1A User’s Guide 225 CHAPTER 22 Diagnostic 22.1 Overview These read-only screens display information to help you identify problems with the ZyXEL Device. 22.1.1 What You Can Do in the Diagnostic Screens •Use the General Diagnostic screen (Section 22.2 on page 225) to ping an IP address. •Use the DSL Line Diagnostic screen (Section 22.3 on page 226) to view the DSL line statistics and reset the ADSL line. 22.2 The General Diagnostic Screen Use this screen to ping an IP address. Click Maintenance > Diagnostic to open the screen shown next. Figure 113 Maintenance > Diagnostic > General Chapter 22 Diagnostic P-660N-T1A User’s Guide 226 The following table describes the fields in this screen. 22.3 The DSL Line Diagnostic Screen Use this screen to view the DSL line statistics and reset the ADSL line. Click Maintenance > Diagnostic > DSL Line to open the screen shown next. Figure 114 Maintenance > Diagnostic > DSL Line Table 91 Maintenance > Diagnostic > General LABELDESCRIPTION TCP/IP Address Type the IP address of a computer that you want to ping in order to test a connection. PingClick this to ping the IP address that you entered. Chapter 22 Diagnostic P-660N-T1A User’s Guide 227 The following table describes the fields in this screen. Table 92 Maintenance > Diagnostic > DSL Line LABELDESCRIPTION ATM StatusClick this to view your DSL connection’s Asynchronous Transfer Mode (ATM) statistics. ATM is a networking technology that provides high- speed data transfer. ATM uses fixed-size packets of information called cells. With ATM, a high QoS (Quality of Service) can be guaranteed. The (Segmentation and Reassembly) SAR driver translates packets into ATM cells. It also receives ATM cells and reassembles them into packets. These counters are set back to zero whenever the device starts up. inPkts is the number of good ATM cells that have been received. inDiscards is the number of received ATM cells that were rejected. outPkts is the number of ATM cells that have been sent. outDiscards is the number of ATM cells sent that were rejected. inF4Pkts is the number of ATM Operations, Administration, and Management (OAM) F4 cells that have been received. See ITU recommendation I.610 for more on OAM for ATM. outF4Pkts is the number of ATM OAM F4 cells that have been sent. inF5Pkts is the number of ATM OAM F5 cells that have been received. outF5Pkts is the number of ATM OAM F5 cells that have been sent. openChan is the number of times that the ZyXEL Device has opened a logical DSL channel. closeChan is the number of times that the ZyXEL Device has closed a logical DSL channel. txRate is the number of bytes transmitted per second. rxRate is the number of bytes received per second. ATM Loopback Te s t Click this to start the ATM loopback test. Make sure you have configured at least one PVC with proper VPIs/VCIs before you begin this test. The ZyXEL Device sends an OAM F5 packet to the DSLAM/ATM switch and then returns it (loops it back) to the ZyXEL Device. The ATM loopback test is useful for troubleshooting problems with the DSLAM and ATM network. Chapter 22 Diagnostic P-660N-T1A User’s Guide 228 DSL…

Text truncated - open the document above for the full version.

ZyXEL Communications Corporation No. 6, Innovation Rd.II Science Based Industrial Park，Hsin-Chu,Taiwan Date: 2010-7-15 Subject: Ad Hoc Mode Function Declaration FCC ID: I88P660NT1A To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, ( Signature Here) Name: Title: Section Manager Tel: 886-3-5783942 EXT 6780 E-mail: [email protected]

ZyXEL Communications Corporation (FCC ID：I88P660NT1A) 2010-07-09 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: This device can connect to a personal computer during normal operation, and as such it is also considered a class B personal computer peripheral subject to the DoC procedure. The device was tested by Compliance Certification Services Inc. in No. 81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County, Taiwan.The report number is KS100623B02-EF Sincerely, ------------------------------- Wangyi Section Manager ZyXEL Communications Corporation

ZyXEL Communications Corporation Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: I88P660NT1A To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards Sincerely, Wangyi / Section Manager ZyXEL Communications Corporation 2010-07-09

ZyXEL Communications Corporation 2010-07-09 FCC ID：I88P660NT1A Dear Sir, I hereby have entrusted the following person to be a proxy regarding applicaton for Type Certification. Compliance Certification Services Inc. Address: No.10 WeiyeRd, Innovation park, Eco&Tec, DevelopmentZone, Kunshan City, Jiangsu, P.R.O.C Name: Miro Job Title: Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ZyXEL /P-660N-T1A FCC ID: I88P660NT1A Product Name: 802.11n Wireless ADSL2+ Gateway Signature_ ___________________ FCC grantee contact person information. Name/Title: Wangyi / Section Manager Company Name: ZyXEL Communications Corporation Address: No. 6, Innovation Rd II,Science- Based Industrial Park,Hsin-Chu,Taiwan TEL: 886-3-5783942-6780 FAX: 886-3-5782439 Email: [email protected]

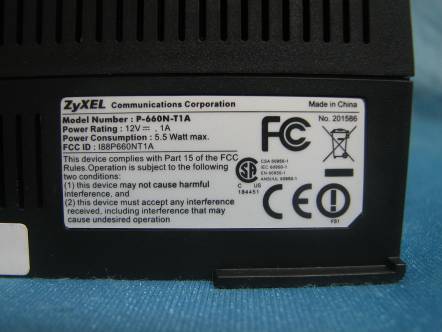

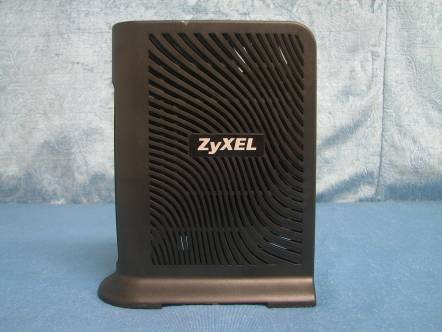

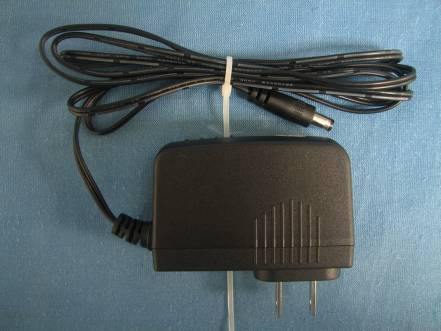

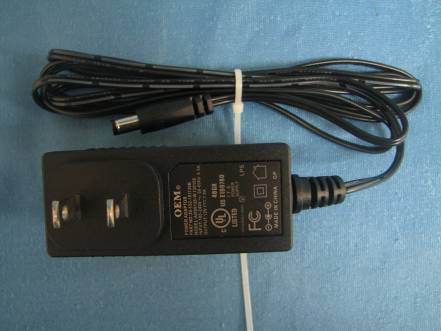

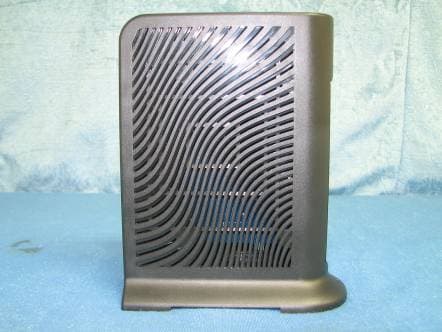

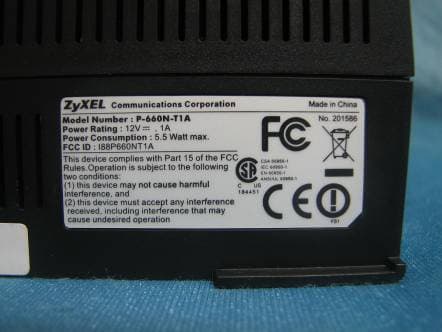

Report No: KS100623B02 Date of Issue: July 14, 2010 EXTERNAL PHOTOGRAPHS OF EUT Report No: KS100623B02 Date of Issue: July 14, 2010 Report No: KS100623B02 Date of Issue: July 14, 2010 Report No: KS100623B02 Date of Issue: July 14, 2010 Adapter Model name: ADS0128-W 120100 Manufacturer: OEM Report No: KS100623B02 Date of Issue: July 14, 2010
