I88P664HNT1802.11n Dual ADSL 2+ 4-port Gateway

ZyXEL Communications Corporation
802.11n Dual ADSL 2+ 4-port Gateway - FCC ID I88P664HNT1 - ZyXEL Communications Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 08, 2010
Application Purpose
Original Equipment
Date of Application
Sep 08, 2010
Equipment Note
802.11n Dual ADSL 2+ 4-port Gateway
Frequency Range
2422.00000000 - 2452.00000000
Company
ZyXEL Communications Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

P-664HN-T1 802.11nDualADSL2+4-portGateway QuickStartGuide Version3.40 8/2010 Edition1 P-664HN-T1QuickStartGuide Overview TheP-664HN-T1isa802.11nDualADSL2+4-portGatewaywithafour-portbuilt-in switch. ThisQuickStartGuideshowsyouhowtousetheP-664HN-T1to connecttotheInternetand howtoconfigurethedevicesettingstoconnectwirelessly. SeeyourUser’sGuidefor backgroundinformationonallfeatures. QuickLoginInformation LANIP addresshttp://192.168.1.1 defaultadministratorpassword1234 2 P-664HN-T1QuickStartGuide 1HardwareConnections 1DSL:UsethegraytelephonewiretoconnectyourP-664HN-T1’sDSLportto telephone jack(or to themodemportonasplitterifyouareusingone). 2ETHERNET:UsetheyellowEthernetcable toconnectacomputertoanETHERNETportfor initialconfigurationand/orInternetaccess. 3POWER:Usetheincludedpoweradaptorto connectanappropriatepowersourcetothePOWERsocket. Makesurethepowersource ison. 4Push inthePOWERbutton. 5Lookatthe lightsonthefrontpanel. •ThePOWERlightblinkswhileyourP-664HN-T1 startsupandstayson onceitisready. •EachETHERNETlightstaysonifthecorrespondingETHERNETportisproperlyconnectedandblinks whenthereistraffic. •TheDSLlightisonwhentheP-664HN-T1hasaDSLconnection. •TheINTERNETlightisonwhenyouare abletoaccesstheInternetandblinkswhentheP-664HN-T1 issendingorreceivingdata.Waitacouple ofminuteswhileyourdevicechecksthe connection. Ifanyoftheselightsarenoton,checkyour connectionsandinspectyourcablesfordamage.Ifthelights are stilloff,contactyourlocalvendor. 2InternetConnectionSetup:Automatic Use thissectionto haveyourP-664HN-T1automaticallydetectandsetupyourInternetconnection. 1Openyourwebbrowsertoawebsite.WaitwhileyourP-664HN-T1triestodetectyourDSL connectionto your ISP.Thismaytakea fewminutes. 2Afteritdetectstheconnection,theDSLlightshowsgreenonyourdeviceand theInternetlightcomeson when theInternet isreadyforyou touse.IfyouhaveaPPPoEconnection,youwillhavetoenteryour user nameandpassword. 3Goto section3ifyouwishtoconfigureyourwirelesssettings. 4Ifyoudonotseetheconnectiontestscreen,ortheconnectiontestisnotsuccessful,followthe instructionsinthescreenbelow,orcheckyourconnectionsandrestarttheP-664HN-T1.Ifyoustill cannot accesstheInternet,followthestepsinsection3. 3ConfiguringyourWirelessSettings Tocreateawirelessnetwork,theP-664HN-T1andyourwirelesscomputermustallusethe same SSID(networkname),channelandsecuritysettings. Ifyoudonotsetwirelesssecuritythenanyonewithinrange coulduseyourP-664HN-T1toaccess yournetworkandthe Internet. ChooseWPA-PSKwirelesssecurityifyourwirelessdevicesupportsitasitisstrongerthanWEP.Otherwise chooseWEP. 3 P-664HN-T1QuickStartGuide 1SelectActiveandclickNexttocontinue.ItisstronglyrecommendedthatEnableOTISTisNOTselected. Seesection7formoreinformation. 2Configureyourwirelesssettingsinthescreen.ClickNext. 3)Ifyou selecteitherWEPorWPA-PSKsecurity(recommended),thenfollowthedirectionstoenter theappropriatekey.ClickNexttocontinueandApplytosaveyourwirelessLANsettings. 4Checkyourconfigurationandwrite downyourwirelessLANsettingsforlateruse.ClickFinishtocompleteand savethewizardsetup. 5YourInternetisreadyforyoutouse.Openyourbrowserandnavigatetoyourfavoritewebsite. 4InternetConnectionSetupUsingAdvancedSettings UsethissectiontosetupyourInternetconnectionmanuallyifyoudonotseetheISPParametersforInternet Accessscreenwhenyourunthewizard(seesection4,step4). 1Loginagain.(Followsteps1to5insection3.) 2SelectGotoAdvancedsetup.Then,clickApply. 3TheStatusscreenappears.ClickNetwork>WANinthenavigationpanelontheleftofthescreen. 4EntertheinformationexactlyasprovidedbyyourISP.ClickApply. 5IfyoustillcannotaccesstheInternet,seeTroubleshootingand/orcontactyourInternetServiceProvider (ISP)forassistance. 4 P-664HN-T1QuickStartGuide Troubleshooting 1Ifyoucannotaccessthewebconfigurator, •YourcomputermaybesettouseastaticIP addressinadifferentsubnetfromthe ZyXELdevice.See the appendixintheUser’sGuideforinformationonsettingupyourIPaddress. •Ifyou areusingInternetExplorerinWindowsXPorWindowsServer2003,makesureyouallowpop-up windows,JavaScriptsandJavapermissionsor settheInternetsecuritylevellowerthanHighinInternet Explorer(inInternetExplorer,clickTools> InternetOptions>Security>CustomLevel...).See the appendixintheUser’sGuideformore information. 2IfyoucannotaccesstheInternetwhenyourcomputerisconnectedtotheETHERNETport,followthese steps. A)Checkthelightsonthefrontpanel.Iftheyaredifferentfromwhatisdescribedinsection1,makesure theP-664HN-T1iscorrectlyconnected.(See section1.)Ifthelightsarestilldifferent,turnoffthe device,waita fewseconds,andturnitonagain. B)CheckyouhavecorrectlyenteredtheinformatinonyourISPgaveyou.Forexample,ifyour accounthas ausernameandpassword,makesureyoutypeitcorrectly.Inaddition,ifyouarenotsurewhich encapsulationyour ISPuses,contactyourISP.IfyourISPdidnotgiveyouInternetconnection information,followthestepsinsection2. C)IfyouareusinganewInternetaccount,contactyourISPtomakesureitisactive. D)Ifyoustillhaveproblems,seeTroubleshootingintheUser’sGuide. IfyoucannotaccesstheInternetafteryoutakethestepsabove,eithertrythefollowingorcontactyourISP: E)TurnyourP-664HN-T1offandon.OpenyourInternetbrowserifit isnotalreadyopen. LettheP-664HN-T1completetheDSLconnectiontest(thismaytake severalminutes).See section2 fordetails. Ifthe testissuccessful,checkwhetheryoucanaccesstheInternet. F)Ifthetest isunsuccessfulorifyoucannotaccesstheInternet,logintotheP-664HN-T1’s webconfigurator(seesection3). •ClickNetwork>WAN>InternetConnection.Ensurethatthesettingsi nthisscreenarethesameas thoseyourISPgaveyou.IfyourISPgaveyouastaticIPaddresstouse,selectStaticIPAddressin theIPAddresssectionandenteriti ntheIPAddressfield.Ifnot,selectObtainanIPAddressAuto- matically.ClickApply. •Clickthewizard icon().RuntheInternet/WirelessSetupwizardagain.Checkwhetheryoucan accesstheInternet. IfyoustillcannotaccesstheInternet,takethefollowingsteps: •IfyouareusingBridgemode(checkModeintheNetwork>WAN>InternetConnectionscreen)click NAT>GeneralandensureActiveNetworkAddressTranslation(NAT)isnotselected.ClickLAN> DHCPSetupandensurethatDHCPissettoNone.YourISPgivesyourcomputer…

Text truncated - open the document above for the full version.

Cover Letter(s)

AHTHORIZATION LETTER FCC ID: I88P664HNT1 Date: Aug 26, 2010 To whom it may concern: We, the undersigned, hereby authorize Cerpass Technology (Suzhou) Co., Ltd. of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Cerpass Technology (Suzhou) Co., Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 weeks from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Thank you. Yours Sincerely, Engineer ZyXEL Communications Corporation

Cover Letter(s)

ZyXEL Communications Corporation Date: Aug 26, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: I88P664HNT1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Operational Description 3 Block Diagram. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Wang Yi , engineer ZyXEL Communications Corporation

External Photos

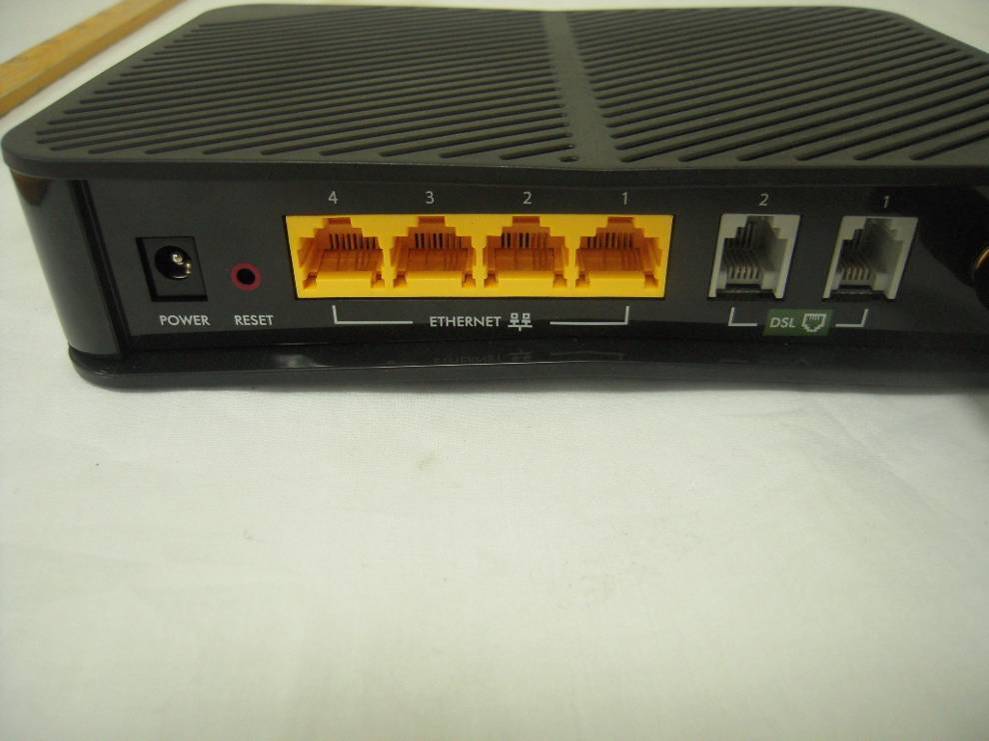

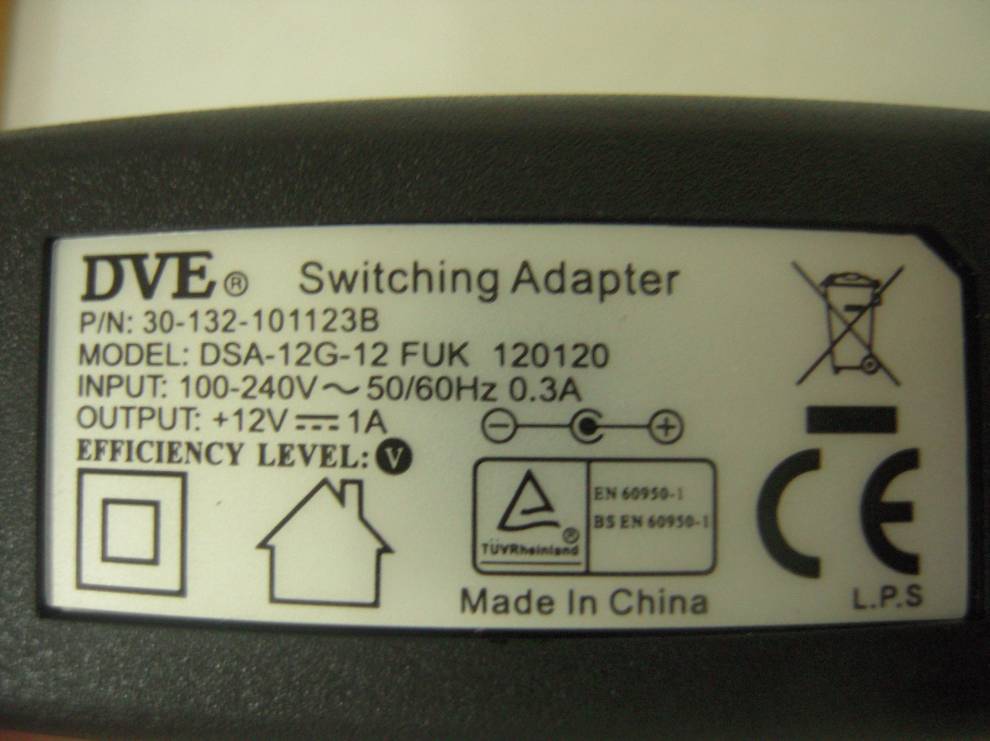

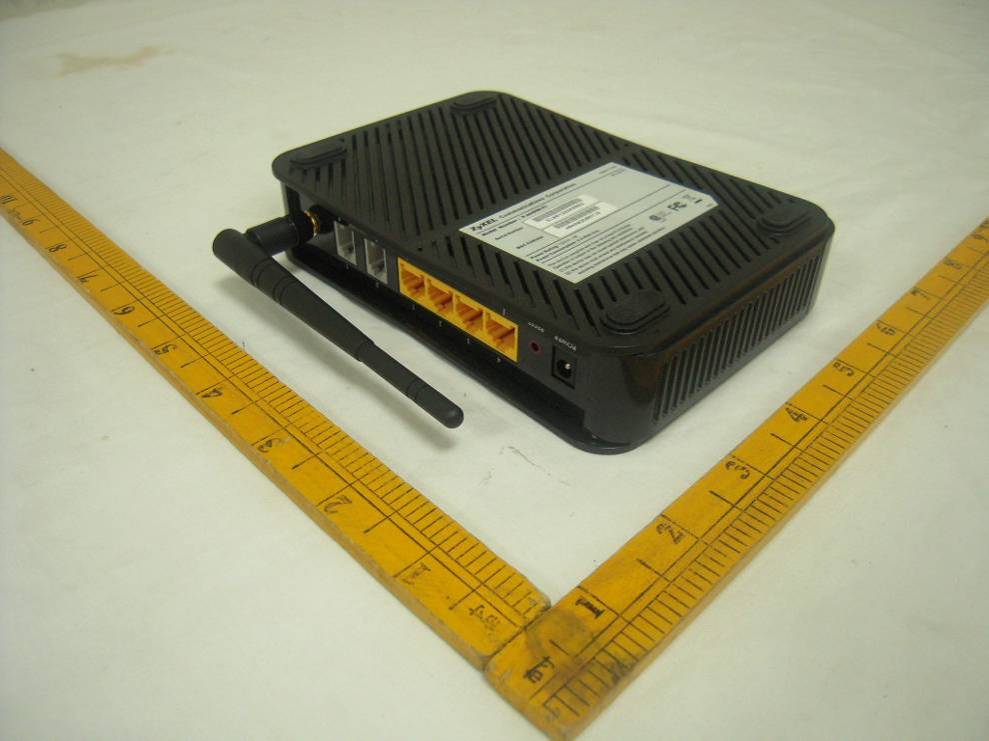

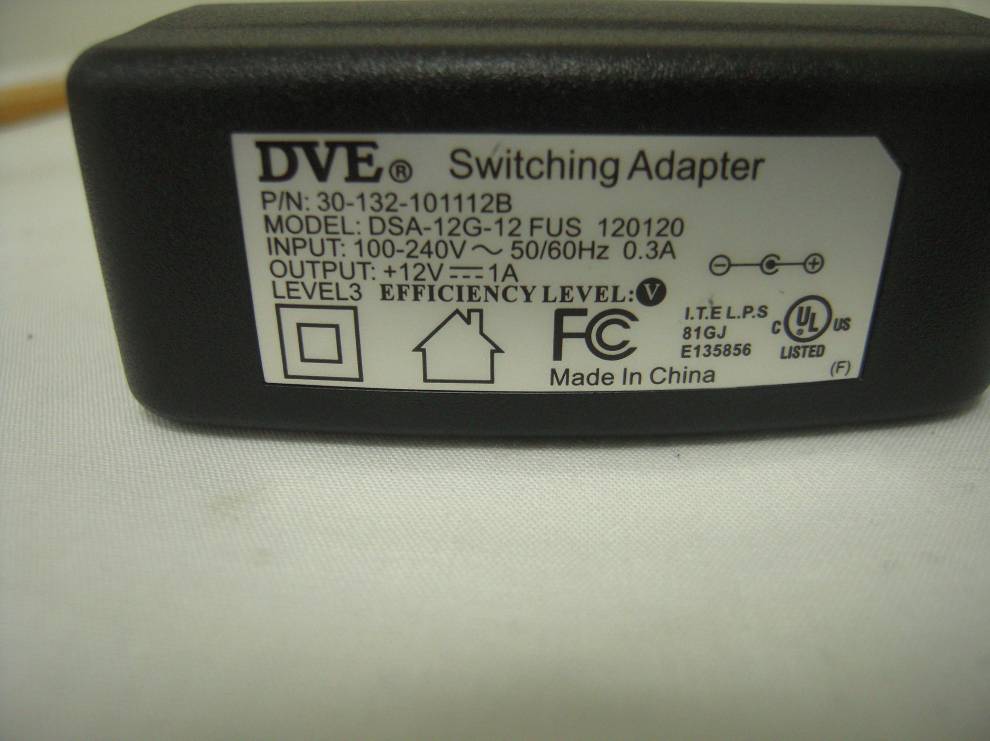

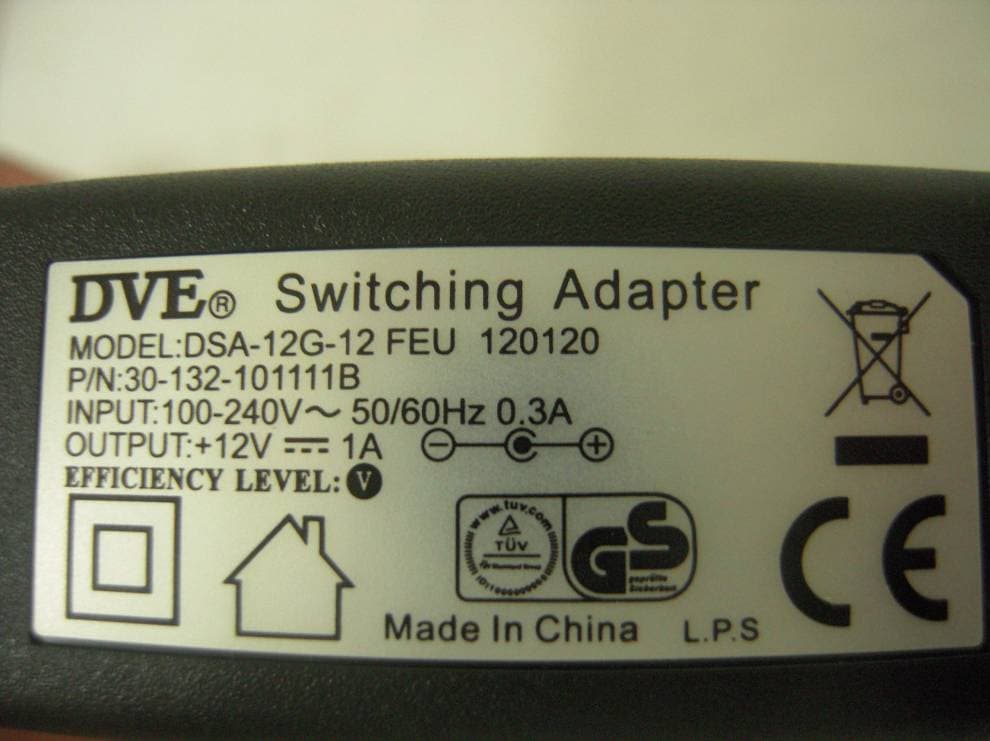

802.11n Dual ADSL 2+ 4-port Gateway (Model name: P-664HN-T1) Exterior Photographs: 1) 2) 3) 4) adapter #1 5) adapter #1 6) adapter #1 7) adapter #1 8) adapter #2 9) adapter #2 10) adapter #2 11) adapter #2 12) adapter #3 13) adapter #3 14) adapter #3 15) adapter #3

ID Label/Location Info

802.11n Dual ADSL 2+ 4-port Gateway (Model name: P-664HN-T1) FCC ID Position: FCC ID

Internal Photos

802.11n Dual ADSL 2+ 4-port Gateway (Model name: P-664HN-T1) Inside photo: 1) 2) 3)

RF Exposure Info

Page: 1 of 4 RF Exposure Evaluation Declaration Product: 802.11n Dual ADSL 2+ 4-port Gateway Test Item: RF Exposure Evaluation Declaration 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Page: 2 of 4 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. 1.3. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.4. Test Result of RF Exposure Evaluation Antenna Gain: Ant0: antenna type: Dipole antenna antenna gain:3.0dBi Ant1: antenna type: Dipole antenna antenna gain: 2.0dBi Output Power Into Antenna & RF Exposure Evaluation Distance: 1) 802.11b Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 57.9429 0.0230001 06 2437.00 52.9663 0.0210247 11 2462.00 50.2343 0.0199402 2) 802.11g Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 90.9913 0.0361184 06 2437.00 85.1138 0.0337854 11 2462.00 103.5142 0.0410893 Page: 3 of 4 3) 802.11n(20MHz) (An0) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 68.0769 0.0270227 06 2437.00 45.1856 0.0179362 11 2462.00 56.2341 0.0223218 4) 802.11n(20MHz) (An1) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 63.9735 0.0253939 06 2437.00 76.5597 0.0303899 11 2462.00 71.1214 0.0282312 5) 802.11n(20MHz) (An0 and An1) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 132.1296 0.0524480 06 2437.00 121.6186 0.0482758 11 2462.00 127.3503 0.0505509 Page: 4 of 4 6) 802.11n(40MHz) (An0) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 70.6318 0.0280369 06 2437.00 52.7230 0.0209281 09 2452.00 65.0130 0.0258065 7) 802.11n(40MHz) (An1) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 86.8960 0.0344928 06 2437.00 65.4636 0.0259854 09 2452.00 63.3870 0.0251611 8) 802.11n(40MHz) (An0 and An1) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 157.3983 0.0624783 06 2437.00 118.3042 0.0469601 09 2452.00 128.5287 0.0510187

Test Report

FOXCONN DIPOLE ANTENNA 2.4G 3dBi w/SMA Black 65-031-087401B / FX01X49-AH-EF Product Number: AN2400-1708RS Product Name: Antenna Page 2 Version: 1.0 Issue Date: 2009-08-13 1. Specification Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <= 2.0 Antenna Gain 3.0 dBi Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic Body: TPE Hinge: PA+ABS Holder: PA+ABS Cable Type RG-178 Connector Type SMA Male Reverse Connector Pull Test >= 3 Kg Connector Torque Test 200 ~ 500 g.cm C. Environmental Operation Temperature - 40 ̊C ~ + 65 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C Product Number: AN2400-1708RS Product Name: Antenna Page 4 Version: 1.0 Issue Date: 2009-08-13 3. Antenna - S Parameter Test Data Product Number: AN2400-1708RS Product Name: Antenna Page 5 Version: 1.0 Issue Date: 2009-08-13 4. Antenna - Radiation Pattern Test Data Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna 5. Mechanical Drawing See attached files 6. Material Description and RoHS Test Report See attached files Revision : A Customer : ALL APPROVED BY: CHECKED BY: DESIGNED BY: Name:2.4GHz Antenna Page: 1 of 1 Date: 2009.08.10 Part Number : AN2400-1708RS  產品包裝規範 PACKING CRITERION HU CHUNJIN SIDE FRONT RoHS Label MEAS 37.0x30.0x28.0 cm G W: ### KGS N W: ### KGS QTY: ### PCS ITEM NO: ### I V X C/NO MADE IN CHINA Size:37.0x30.0x28.0cm 800PCS/BOX 3. SEALING 2.PACKING 。 1 . Enter PE bag。 10pcs/ bag。 JackGrant 物 質 安 全 資 料 表 一、物品與廠商資料 物品名稱: TPEE熱塑性聚酯彈性體 其他名稱:1140LH,1155LL,1163LL,1172LL 建議用途及限制使用:無 製造商或供應商名稱、地址及電話:長春人造樹脂廠股份有限公司/台北市松江路301號7樓 /(02)25001800 緊急聯絡電話/傳真電話:(07)3711301/(07)3710819 二、危害辨識資料 物品危害分類:NA 標示內容: 象徵符號:[tSymbol] 警 示 語:無 危害警告訊息: 危害防範措拖:無 其他危害: 三、成分辨識資料 純物質 中英文名稱:熱塑性聚酯彈性體/Thermoplastic Polyester Elastomer 同義名稱: 化學文摘社登記號碼(CAS No.):9078-71-1 危害物質成分(成分百分比):>99% 四、急救措施 不同暴露途徑之急救方法: ̇吸入: 當吸入加熱所產生之氣體時,應立即移至通風良好之處,如有必要則送醫治療 ̇皮膚接觸: 若被高溫的液體產物濺到皮膚,應立即沖水,冷卻後變硬之固體不可從傷處任意移 走,經一段時間後會自行脫落,若情況危急應送醫治療。 ̇眼睛接觸: 若被高溫的液體產物濺到眼睛,立即送醫並以大量的冷水沖洗。 ̇食入: 最重要症狀及危害效應:無 對急救人員之防護:無 對醫師之提示:無 五、滅火措施 適用滅火劑:水、乾粉、泡沫、二氧化碳 滅火時可能遭遇之特殊危害:無 特殊滅火程序:依A級火災處理 消防人員之特殊防護設備:穿著個人防護裝備 六、洩漏處理方法 個人應注意事項:處理時應穿著個人防護裝備 環境注意事項:包裝袋洩露會造成環境污染 清理方法:直接以掃帚清理作為回收料使用 七、安全處置與儲存方法 處置:作業時配戴防護手套,及防塵口罩,避免粉塵由口鼻吸入 儲存:應存放於乾燥及通風良好之處 八、暴露預防措施 工程控制: ND 控制參數 八小時日時量平均 容許濃度 TWA 短時間時量平均 容許濃度 STEL 最高容許 濃度 CEILING 生物指標 依無毒粉塵標準 8HR 容許量 10mg/m3 個人防護設備: ̇呼吸防護:防粉塵用防護面罩 ̇手部防護: 隔熱手套 ̇眼睛防護: 安全護目眼鏡 ̇皮膚及身體防護:長袖工作服及安全鞋 衛生措施:工作後應徹底洗淨雙手 九、物理及化學性質 外觀: 固體氣味:無臭 嗅覺閾值: 熔點:200-218 Ph值:ND 沸點/沸點範圍:>350 易燃性(固體,氣體): 分解溫度: >300°C 閃火點:>355 °C 測試方法: 自燃溫度: >420°C 爆炸界限:ND 蒸氣壓: ND蒸氣密度:ND 密度: 1.1-1.27溶解度: 不溶於 辛醇/水分配係數(log K ow):揮發速率: 十、安定性及反應性 安定性:安定 特殊狀況下可能之危害反應: 粉塵危害 應避免之狀況:加熱至300°C以上 應避免之物質: 強鹼,強氧化劑 危害分解物: ND 十一、毒性資料 暴露途徑:無 症狀:無 急毒性:無 慢毒性或長期毒性:無 十二、生態資料 生態毒性: 持久性及降解性: 生物蓄積性: 土壤中之流動性: 其他不良效應: 十三、廢棄處置方法 廢棄處置方法:料頭外售,交由回收料廠商粉碎回收 十四、運送資料 聯合國編號: 聯合國運輸名稱: 運輸危害分類: 包裝類別: 海洋污染物(是/否): 特殊運送方法及注意事項:運送過程保持貨品乾燥 十五、法規資料 適用法規:中華民國公告之毒性化學物質一覽表 十六、其他資料 參考文獻 製表單位 名稱:長春人造樹脂廠股份有限公司高雄廠 地址/電話:高雄縣仁武鄉仁武村工業一路14號/(07)3711301 製表人職稱:助理工程師姓名:馬祥泰 製表日期2008/09/24 09:1 9:5 1 AM修改日期 :2008/09/24 09: 19: 50 AM 備註 SAFETY DATA SHEET TECHNYL ® ALLOY KC 226 NAT Page : 1/6 Date : 2008/04/16 Version : A.01 Cancels and replaces version : 2.1 1. Product and company identification a. Product Name: TECHNYL ® ALLOY KC 226 NAT b. Usage and Restriction ○ Recommended usage: Injection molding (Semi-processed products) ○ Restriction: Industrial use only c. Maker/Supplier/Distributor ○ Maker: RHODIA POLYAMIDE Co., LTD ○ Add.: 3 rd F/L KANGNAM B/D, 1321-1, SEOCHO-DONG, SEOCHO-GU, SEOUL, KOREA ○ Emergency Number: +82 52 231 0900 / +82 2 2108 4901 ○ Responsible: PS team 2. Hazard identification a. Hazard classification: Not classified (by calculation according to the GHS method) b. Hazard statement: ○ Pictogram: None ○ Signal Word: None ○ Hazard Statement: None ○ Precautionary statement - Prevention P260 Do not breathe dust/fume/gas/mist/vapors/spray P270 Do not eat, drink or smoke when using this product P280 Wear protective gloves/protective clothing/eye protection/face protection P284 Wear respiratory protection - Response P302+P352 IF ON SKIN: Wash with plenty of soap and water. P301+P330+P331 IF SWALLOWED: Rinse mouth. Do NOT induce vomiting P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present. - Storage P410+P403 Protect from sunlight, Store in a well-ventilated place - Disposal P501 Follow achievable methods for the disposal of a substance and package. ○ NFPA: - HEALTH: 1, - FIRE: 1, - REACTIVITY: 0 c. Further information: Although classified according to EC criteria (calculated by the conventional method), this product is exempt from labeling according to article 9.3 of Annex 6 of Directive 67/548/EEC, 28 th ATP. SAFETY DATA SHEET TECHNYL ® ALLOY KC 226 NAT Page : 2/6 Date : 2008/04/16 Version : A.01 Cancels and replaces version : 2.1 3. Composition / information on ingredients Chemical name CAS no EINECS Content (%) Hazard POLYAMIDE 6 25038-54-4 ABS 9003-56-9 Other additives Confidential Total 100 4. First-aid measures a. Inhalation: Quickly move the person away from the contaminated area. Make the affected person rest. If necessary seek medical advice. b. Skin contact: Wash immediately and thoroughly for a prolonged period (at least 15 minutes).In case of inflammation (redness, irritation, ...) obtain medical attention. c. Eye contact: Immediately rinse with plenty of running water for a prolonged period, (at least 15 minutes) whilst keeping the eyes wide open if irritation persists, consult a doctor. d. Ingestion: NEVER attempt to induce vomiting. Do not give anything to drink. If necessary seek medical advice. e. Major symptoms/effect of Acute and Chronic toxicity: No data f. Information for emergency measure and doctor: …

Text truncated - open the document above for the full version.

Test Report

CERPASS TECHNOLOGY CORP. Report No.: SEFI1008045 Cerpass Technology Corp. Issued Date : Aug 30, 2010 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 245 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : ZyXEL Communications Corp. Address : NO.6,Innovation Rd.IIScience Based Industrial Park Hsin-Chu,Taiwan Manufacturer(1) : ZyXEL Communications Corp. Address(1) : NO.6,Innovation Rd.IIScience Based Industrial Park Hsin-Chu,Taiwan Manufacturer(2) : ZyXEL Communications(Wuxi) Co Ltd. Address(2) : 60 – E, Minshan RD, New District, Wuxi, Jiangsu, P.R. China Equipment : 802.11n Dual ADSL 2+ 4-port Gateway Model No. : P-664HN-T1 FCC ID : I88P664HNT1 ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1008045 Cerpass Technology Corp. Issued Date : Aug 30, 2010 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 245 Table of Contents 1. Report of Measurements and Examinations.............................................................................................6 2. Test Configuration of Equipment under Test............................................................................................7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Carrier Frequency of Channels ....................................................................................................... 8 2.3. Test Manner ..................................................................................................................................... 9 2.4. Description of Test System .............................................................................................................. 9 2.5. Connection Diagram of Test System ............................................................................................. 10 2.6. General Information of Test ............................................................................................................11 2.7. Measurement Uncertainty ..............................................................................................................11 3. Test of Conducted Emission ....................................................................................................................12 3.1. Test Limit........................................................................................................................................ 12 3.2. Test Procedures............................................................................................................................. 12 3.3. Typical Test Setup.......................................................................................................................... 13 3.4. Measurement Equipment .............................................................................................................. 13 3.5. Test Result and Data ..................................................................................................................... 14 4. Test of Radiated Emission ........................................................................................................................19 4.1. Test Limit........................................................................................................................................ 19 4.2. Test Procedures............................................................................................................................. 19 4.3. Typical Test Setup.......................................................................................................................... 20 4.4. Measurement Equipment .............................................................................................................. 21 4.5. Test Result and Data ..................................................................................................................... 22 5. Occupied Bandwidth ...............................................................................................................................154 5.1. Test Limit...................................................................................................................................... 154 5.2. Test Procedures........................................................................................................................... 154 5.3. Test Setup Layout ........................................................................................................................ 154 5.4. Measurement Equipment ............................................................................................................ 154 5.5. Test Result and Data ................................................................................................................... 155 6. Maximum Peak Output Power ................................................................................................................167 6.1. Test Limit...................................................................................................................................... 167 6.2. Test Procedure ............................................................................................................................ 167 6.3. Test Setup Layout ........................................................................................................................ 168 6.4. Measurement Equipment ............................................................................................................ 168 6.5. Test Result and Data .................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

802.11n Dual ADSL 2+ 4-port Gateway (Model name: P-664HN-T1) Test Photograph: Front View of Conducted Emission Test Back View of Conducted Emission Test Front View of Radiated Emission Test Back View of Radiated Emission Test

Contact Information

Applicant

Emma Bao(Section Manager)
[email protected]886 3 578-3942Fax: 886 3 578-2439

Test Firm

Cerpass Technology CorporationAnson Chou
[email protected]886-2-2792-3366Fax: 886-2-2792-1100

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz157.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted output power as indicated in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz
