I88P873HNUP51B802.11n VDSL2 Bonded 4-port Wi-Fi Gateway

www.zyxel.com www.zyxel.com P-873HNUP-51B 802.11n Wireless VDSL2 4-port Gateway Copyright © 2011 ZyXEL Communications Corporation Firmware Version 1.10 Edition 1, 5/2011 Default Login Details IP Addresshttp://192.168.1.1 User Nameadmin Password1234 About This User's Guide P-873HNUP-51B User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the ZyXEL Device using the web configurator. Related Documentation •Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access. •Support Disc Refer to the included CD for support documents. Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The P-873HNUP-51B may be referred to as the “ZyXEL Device”, the “device”, the “system” or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font. • A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. • “Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen. • Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Document Conventions P-873HNUP-51B User’s Guide 4 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The ZyXEL Device icon is not an exact representation of your device. ZyXEL DeviceComputerNotebook computer ServerFirewallTe le p ho ne RouterSwitch Safety Warnings P-873HNUP-51B User’s Guide 5 Safety Warnings • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. • Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the device and the power source. • Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning. • Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device. • Use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord. • Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s). • This product is for indoor use only (utilisation intérieure exclusivement). Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately. Safety Warnings P-873HNUP-51B User’s Guide 6 Contents Overview P-873HNUP-51B User’s Guide 7 Contents Overview User’s Guide ........................................................................................................................... 19 Introducing the P-873HNUP-51B ...............................................................................................21 The Web Configurator ................................................................................................................29 Quick Start ..................................................................................................................................37 Tutorials .....................................................................................................................................39 Technical Reference .............................................................................................................. 63 Network Map and Status Screens ..............................................................................................65 Broadband ..................................................................................................................................71 Wireless ...................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ZyXEL Communications Corp. 2011/05/26 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZyXEL Communications Corp. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Equipment: 802.11n VDSL2 Bonded 4-port Wi-Fi Gateway Model No.: P-873HNUP-51B, DSL-491HNUP-B1D FCC ID: I88P873HNUP51B We affirm that between SIEMIC and ZyXEL Communications Corp., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Wang Yi /Engineer ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

Attestation for FCC Declaration of Conformity FCC ID: I88P873HNUP51B Date: May 26, 2011 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFD1104067. Testing in regards to this report was done by Cerpass technology Coporation, located at No.68-1, Shihbachongsi, Shihding Township, Taipei City 223, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Anson Chou / Manager Tel: +886-2-26558100#5301 Fax: +886-2-26558200 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 ZyXEL Communications Corporation 2011/05/26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: I88P660HNT1 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Operational Description - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Wang Yi /Engineer ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

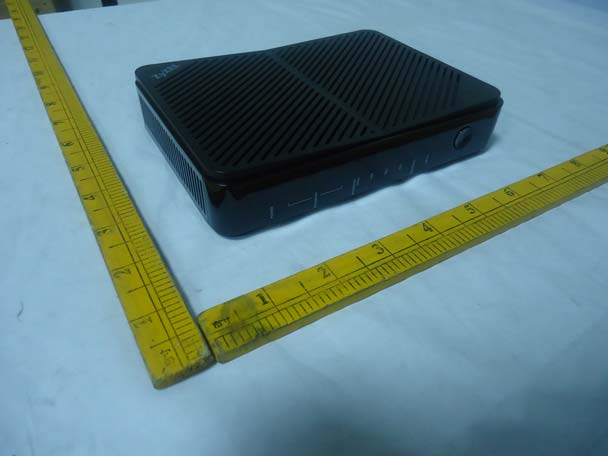

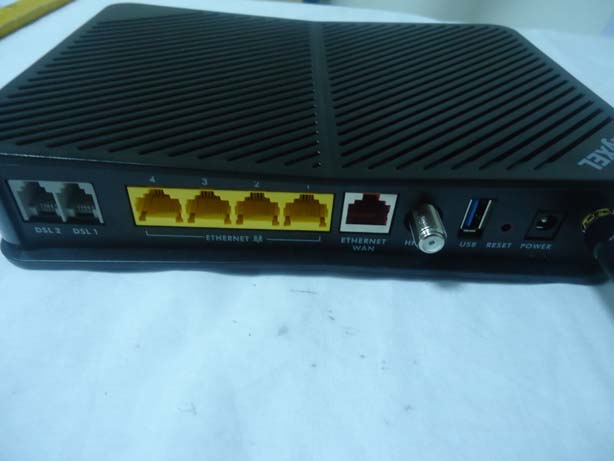

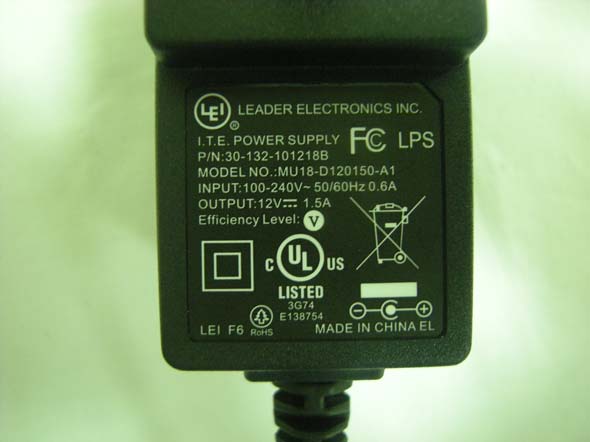

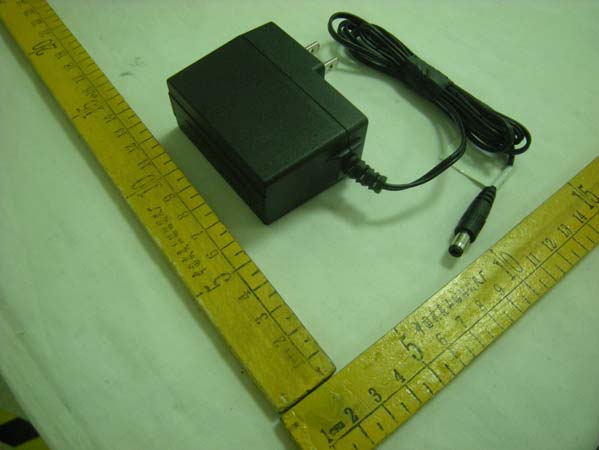

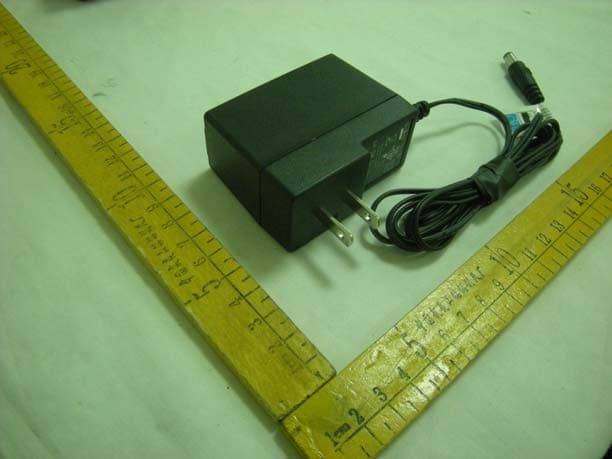

CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 5 EXTERNAL PHOTOGRAPHS OF EUT CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 5 CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 5 Adapter CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 5 CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 5

802.11n VDSL2 Bonded 4-port Wi-Fi Gateway (Model name: P-873HNUP-51B, DSL-491HNUP-B1D) FCC ID Position: FCC ID

CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 6 INTERNAL PHOTOGRAPHS OF EUT CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 6 CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 6 CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 6 CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 6 CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 6 of 6 Chain1 Chain0

CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11n VDSL2 Bonded 4-port Wi-Fi Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 24.24 dBm (265.46 mW) 802.11g: 22.07 dBm (161.06 mW) 802.11n (20MHz): Chain0:19.95 dBm (98.86 mW) Chain1:19.81 dBm (95.72 mW) 802.11n (40MHz): Chain0:18.98 dBm (79.07 mW) Chain1:18.74 dBm (74.82 mW) Antenna gain (Max) Chain0:3.00 dBi (Numeric gain:1.995 ) Chain1:2.83 dBi(Numeric gain: 1.919) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 24.24 dBm (265.46 mW) at 2437 MHz (withnumeric 1.995 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 24.24 3.00 20 0.105 1 802.11g 2412-2462 22.07 3.00 20 0.064 1 802.11n(20MHz)(Chain0) 2412-2462 19.95 3.00 20 0.039 1 802.11n(20MHz)(Chain1) 2412-2462 19.81 2.83 20 0.037 1 802.11 n(20MHz) (Chain0+Chain1) 2412-2462 / / 20 0.076 1 802.11n(40MHz)(Chain0) 2422-2452 18.98 3.00 20 0.031 1 802.11n(40MHz)(Chain1) 2422-2452 18.74 2.83 20 0.029 1 802.11 n(40MHz) (Chain0+Chain1) 2422-2452 / / 20 0.060 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued Date : Apr 29, 2011 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 121 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : ZyXEL Communications Corporation Address : No. 6, Innovation Road II, Science Park, Hsinchu 300, Taiwan Manufacturer : WuXi MitraStar Technology Co.,Ltd Address : Wuxi New District Minshan road 60#-E Jiangsu PRC Equipment : 802.11n VDSL2 Bonded 4-port Wi-Fi Gateway Model No. : P-873HNUP-51B, DSL-491HNUP-B1D Brand Name : ZyXEL FCC ID : I88P873HNUP51B ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued Date : Apr 29, 2011 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 121 Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Carrier Frequency of Channels ....................................................................................................... 8 2.3. Test Manner ..................................................................................................................................... 9 2.4. Description of Test System ............................................................................................................ 10 2.5. General Information of Test ............................................................................................................11 2.6. Measurement Uncertainty ..............................................................................................................11 3. Test of Conducted Emission.................................................................................................................... 12 3.1. Test Limit........................................................................................................................................ 12 3.2. Test Procedures............................................................................................................................. 12 3.3. Typical Test Setup.......................................................................................................................... 13 3.4. Measurement Equipment .............................................................................................................. 13 3.5. Test Result and Data ..................................................................................................................... 14 4. Test of Radiated Emission ....................................................................................................................... 15 4.1. Test Limit........................................................................................................................................ 15 4.2. Test Procedures............................................................................................................................. 15 4.3. Typical Test Setup.......................................................................................................................... 16 4.4. Measurement Equipment .............................................................................................................. 17 4.5. Test Result and Data ..................................................................................................................... 18 5. Occupied Bandwidth ................................................................................................................................ 31 5.1. Test Limit........................................................................................................................................ 31 5.2. Test Procedures............................................................................................................................. 31 5.3. Test Setup Layout .......................................................................................................................... 31 5.4. Measurement Equipment .............................................................................................................. 31 5.5. Test Result and Data ..................................................................................................................... 32 6. Maximum Peak Output Power ................................................................................................................. 50 6.1. Test Limit........................................................................................................................................ 50 6.2. Test Procedure .............................................................................................................................. 50 6.3. Test Setup Layout .......................................................................................................................... 50 6.4. Measurement Equipment .............................................................................................................. 50 6.5. Test Result and Data ..................................................................................................................... 51 7. Band Edges ............................................................................................................................................... 54 7.1. Test Limit...................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1104067 Cerpass Technology Corp. Issued date : Apr 29,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G
