I88PMG5318B20AWireless N GPON HGU with 4-port GbE Switch

Quick Start Guide www.zyxel.com PMG5318-B20A Wireless N GPON HGU with 4-port GbE Switch Version 1.00 Edition 1, 11/2013 Copyright © 2013 ZyXEL Communications Corporation User’s Guide Default Login Details LAN IP Addresshttp://192.168.1.1 User Nameadmin Password1234 PMG5318-B20A User’s Guide2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the GPON Device and get up and running right away. Table of Contents PMG5318-B20A User’s Guide 3 Table of Contents Table of Contents ................................................................................................................................. 3 Chapter 1 Introduction ........................................................................................................................................... 9 1.1 Overview .............................................................................................................................................9 1.2 Managing the GPON Device ...............................................................................................................9 1.3 Good Habits for Managing the GPON Device .....................................................................................9 1.4 Applications for the GPON Device ......................................................................................................9 1.4.1 Triple Play ................................................................................................................................10 1.4.2 Internet Access ........................................................................................................................10 1.4.3 VoIP Features .......................................................................................................................... 11 1.5 LEDs (Lights) .................................................................................................................................... 11 1.6 The Reset Button ..............................................................................................................................12 1.6.1 Using the Reset Button ............................................................................................................12 1.7 The WPS Button ...............................................................................................................................13 1.7.1 Using the WPS button .............................................................................................................13 Chapter 2 The Web Configurator ........................................................................................................................ 15 2.1 Overview ..........................................................................................................................................15 2.1.1 Accessing the Web Configurator .............................................................................................15 2.2 Web Configurator Main Screen .........................................................................................................16 2.2.1 Title Bar ...................................................................................................................................16 2.2.2 Navigation Panel .....................................................................................................................17 2.2.3 Main Window ...........................................................................................................................18 2.2.4 Status Bar ................................................................................................................................19 Chapter 3 Status Screens .................................................................................................................................... 21 3.1 Overview ...........................................................................................................................................21 3.2 Status ................................................................................................................................................21 Chapter 4 WAN ..................................................................................................................................................... 25 4.1 Overview ...........................................................................................................................................25 4.1.1 What You Need to Know ..........................................................................................................25 4.2 Internet Access Setup Status ............................................................................................................26 4.3 Internet Access Setup .......................................................................................................................26 4.3.1 WAN Interface Type - PPPoE ..................................................................................................27 Table of Contents PMG5318-B20A User’s Guide 4 4.3.2 WAN Interface Type - IP ..........................................................................................................32 4.3.3 WAN Interface Type - Bridging ................................................................................................36 4.3.4 802.1Q VLAN ID - Edit ............................................................................................................37 4.4 Default Gateway ...............................................................................................................................…

Text truncated - open the document above for the full version.

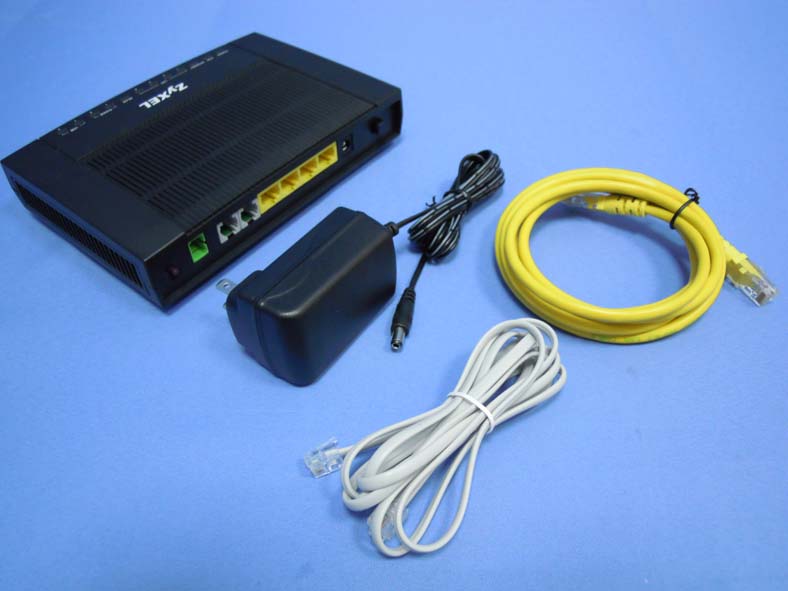

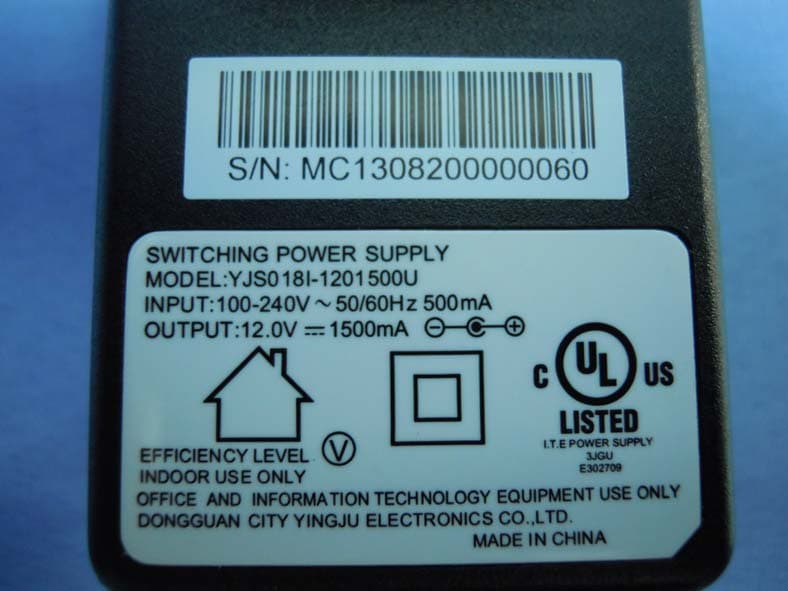

Report No： 13A0306R-RFUSP42V01 Page: 269 of 280 9. Attachment EUT Photograph (1) EUT Photo (Power Adapter: YINGJU, YJS018I-1201500U) (2) EUT Photo Report No： 13A0306R-RFUSP42V01 Page: 270 of 280 (3) EUT Photo

www.zyxel.com Label Drawing and Location FCC ID: I88PMG5318B20A Label Location: Label Information:

www.zyxel.com Label Drawing and Location FCC ID: I88PMG5318B20A Label Location: Label Information:

Report No： 13A0306R-RFUSP42V01 Page: 271 of 280 (4) EUT Photo (Power Adapter: DVE, DSA-18PFG-12 FUS 120150) (5) EUT Photo Report No： 13A0306R-RFUSP42V01 Page: 272 of 280 (6) EUT Photo Report No： 13A0306R-RFUSP42V01 Page: 273 of 280 (7) EUT Photo (8) EUT Photo Report No： 13A0306R-RFUSP42V01 Page: 274 of 280 (9) EUT Photo (10) EUT Photo Report No： 13A0306R-RFUSP42V01 Page: 275 of 280 (11) EUT Photo Report No： 13A0306R-RFUSP42V01 Page: 276 of 280 (12) EUT Photo (MB) Report No： 13A0306R-RFUSP42V01 Page: 277 of 280 (13) EUT Photo (MB) Report No： 13A0306R-RFUSP42V01 Page: 278 of 280 (14) EUT Photo (Left Antenna) (15) EUT Photo Report No： 13A0306R-RFUSP42V01 Page: 279 of 280 (16) EUT Photo (17) EUT Photo (Right Antenna) Report No： 13A0306R-RFUSP42V01 Page: 280 of 280 (18) EUT Photo

Report No. 13A0306R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation Declaration Product Name ： Wireless N GPON HGU with 4-port GbE Switch Model No. ： GPT-2542GNU v2, PMG5318-B20A FCC ID. ： I88PMG5318B20A Applicant : ZyXEL Communications Corporation Address : No. 2, Gongye E. 9th Road, Hsinchu Science Park Hsinchu, Taiwan Date of Report : 2013/10/16 Issued Date : 2013/12/03 Report No. : 13A0306R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 13A0306R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 13A0306R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product Wireless N GPON HGU with 4-port GbE Switch Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.3dBi or 1.7 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 32.2107 0.01089 6 2437 34.0408 0.01151 11 2462 32.7341 0.01107 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 25.7632 0.00871 6 2437 35.5631 0.01203 11 2462 41.1150 0.01391 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 13A0306R-RF-US-Exp Page: 4 of 4 Product Wireless N GPON HGU with 4-port GbE Switch Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 2.3dBi(or 1.7) and 2.7dBi(or 1.86) in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 27.3527 0.01012 6 2437 35.3997 0.01310 11 2462 41.8794 0.01550 IEEE 802.11n (40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 33.1131 0.01225 6 2437 37.4111 0.01384 9 2452 42.1697 0.01560 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 13A0306R-RFUSP42V01 Page: 1 of 280 FCC Test Report Product Name ： Wireless N GPON HGU with 4-port GbE Switch Model No. ： GPT-2542GNU v2, PMG5318-B20A FCC ID. ： I88PMG5318B20A Applicant ： ZyXEL Communications Corporation Address ： No. 2, Gongye E. 9th Road, Hsinchu Science Park Hsinchu, Taiwan Date of Receipt：2013/10/16 Issued Date ：2013/12/03 Report No. ：13A0306R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 13A0306R-RFUSP42V01 Page: 2 of 280 Test Report Certification Issued Date : 2013/12/03 Report No. : 13A0306R-RFUSP42V01 Product Name : Wireless N GPON HGU with 4-port GbE Switch Applicant : ZyXEL Communications Corporation Address : No. 2, Gongye E. 9th Road, Hsinchu Science Park Hsinchu, Taiwan Manufacturer : (1) MitraStar Technology Corporation (2) WuXi MitraStar Technology Co. Ltd. (3) SHENZHEN TORCH EQUIPMENT CO., LTD. Model No. : GPT-2542GNU v2, PMG5318-B20A FCC ID. ： I88PMG5318B20A EUT Voltage : AC 100-240V, 50-60Hz Trade Name : MitraStar, ZyXEL Applicable Standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result : Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Bruno Tsai / Assistant Engineer) Approved By : ( Roy Wang / Director ) Report No： 13A0306R-RFUSP42V01 Page: 3 of 280 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. Taiwan R.O.C. :TAF, Accreditation Number: 1313 USA :FCC, Registration Number: 365520 Canada :IC, Submission No: 150981 Report No： 13A0306R-RFUSP42V01 Page: 4 of 280 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................................. 6 1.1. EUT Description ................................................................................................................... 6 1.2. Operational Description...................................................................................................... 10 1.3. Mode of Operation ............................................................................................................. 11 1.4. Tested System Details........................................................................................................ 12 1.5. Configuration of Tested System ......................................................................................... 13 1.6. EUT Exercise Software ...................................................................................................... 14 1.7. Test Facility ........................................................................................................................ 15 2. Conducted Emission ..............................................................................................................16 2.1. Test Equipment ..................................................................................................................16 2.2. Test Setup .......................................................................................................................... 16 2.3. Limit.................................................................................................................................... 17 2.4. Test Procedure ................................................................................................................... 17 2.5. Test Specification ............................................................................................................... 17 2.6. Uncertainty ......................................................................................................................... 17 2.7. Test Result ......................................................................................................................... 18 2.8. Test Photo .......................................................................................................................... 22 3. Peak Power Output ................................................................................................................ 24 3.1. Test Equipment ..................................................................................................................24 3.2. Test Setup .......................................................................................................................... 24 3.3. Limit.................................................................................................................................... 24 3.4. Test Procedure ................................................................................................................... 24 3.5. Test Specification ......................................................................................................…

Text truncated - open the document above for the full version.

Report No： 13A0306R-RFUSP42V01 Page: 135 of 280 2412MHz (30MHz-1GHz)-802.11n(20MHz) (Ant 0) 2412MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 136 of 280 2412MHz (5GHz-9GHz)-802.11n(20MHz) (Ant 0) 2412MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 137 of 280 2412MHz (13GHz-17GHz)-802.11n(20MHz) (Ant 0) 2412MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 138 of 280 2412MHz (21GHz-25GHz)-802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 139 of 280 2437MHz (30MHz-1GHz) -802.11n(20MHz) (Ant 0) 2437MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 140 of 280 2437MHz (5GHz-9GHz) -802.11n(20MHz) (Ant 0) 2437MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 141 of 280 2437MHz (13GHz-17GHz) -802.11n(20MHz) (Ant 0) 2437MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 142 of 280 2437MHz (21GHz-25GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 143 of 280 2462MHz (30MHz-1GHz)-802.11n(20MHz) (Ant 0) 2462MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 144 of 280 2462MHz (5GHz-9GHz)-802.11n(20MHz) (Ant 0) 2462MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 145 of 280 2462MHz (13GHz-17GHz)-802.11n(20MHz) (Ant 0) 2462MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 146 of 280 2462MHz (21GHz-25GHz)-802.11n(20MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 147 of 280 2412MHz (30MHz-1GHz) -802.11n(20MHz) (Ant 1) 2412MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 148 of 280 2412MHz (5GHz-9GHz) -802.11n(20MHz) (Ant 1) 2412MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 149 of 280 2412MHz (13GHz-17GHz) -802.11n(20MHz) (Ant 1) 2412MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 150 of 280 2412MHz (21GHz-25GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 151 of 280 2437MHz (30MHz-1GHz)-802.11n(20MHz) (Ant 1) 2437MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 152 of 280 2437MHz (5GHz-9GHz)-802.11n(20MHz) (Ant 1) 2437MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 153 of 280 2437MHz (13GHz-17GHz)-802.11n(20MHz) (Ant 1) 2437MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 154 of 280 2437MHz (21GHz-25GHz)-802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 155 of 280 2462MHz (30MHz-1GHz) -802.11n(20MHz) (Ant 1) 2462MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 156 of 280 2462MHz (5GHz-9GHz) -802.11n(20MHz) (Ant 1) 2462MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 157 of 280 2462MHz (13GHz-17GHz) -802.11n(20MHz) (Ant 1) 2462MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 158 of 280 2462MHz (21GHz-25GHz) -802.11n(20MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 159 of 280 2422MHz (30MHz-1GHz)-802.11n(40MHz) (Ant 0) 2422MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 160 of 280 2422MHz (5GHz-9GHz)-802.11n(40MHz) (Ant 0) 2422MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 161 of 280 2422MHz (13GHz-17GHz)-802.11n(40MHz) (Ant 0) 2422MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 162 of 280 2422MHz (21GHz-25GHz)-802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 163 of 280 2437MHz (30MHz-1GHz) -802.11n(40MHz) (Ant 0) 2437MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 164 of 280 2437MHz (5GHz-9GHz) -802.11n(40MHz) (Ant 0) 2437MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 165 of 280 2437MHz (13GHz-17GHz) -802.11n(40MHz) (Ant 0) 2437MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 166 of 280 2437MHz (21GHz-25GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 167 of 280 2452MHz (30MHz-1GHz)-802.11n(40MHz) (Ant 0) 2452MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 168 of 280 2452MHz (5GHz-9GHz)-802.11n(40MHz) (Ant 0) 2452MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 169 of 280 2452MHz (13GHz-17GHz)-802.11n(40MHz) (Ant 0) 2452MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 170 of 280 2452MHz (21GHz-25GHz)-802.11n(40MHz) (Ant 0) Report No： 13A0306R-RFUSP42V01 Page: 171 of 280 2422MHz (30MHz-1GHz) -802.11n(40MHz) (Ant 1) 2422MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 172 of 280 2422MHz (5GHz-9GHz) -802.11n(40MHz) (Ant 1) 2422MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 173 of 280 2422MHz (13GHz-17GHz) -802.11n(40MHz) (Ant 1) 2422MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 174 of 280 2422MHz (21GHz-25GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 175 of 280 2437MHz (30MHz-1GHz)-802.11n(40MHz) (Ant 1) 2437MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 176 of 280 2437MHz (5GHz-9GHz)-802.11n(40MHz) (Ant 1) 2437MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 177 of 280 2437MHz (13GHz-17GHz)-802.11n(40MHz) (Ant 1) 2437MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 178 of 280 2437MHz (21GHz-25GHz)-802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 179 of 280 2452MHz (30MHz-1GHz) -802.11n(40MHz) (Ant 1) 2452MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 180 of 280 2452MHz (5GHz-9GHz) -802.11n(40MHz) (Ant 1) 2452MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RFUSP42V01 Page: 181 of 280 2452MHz (13GHz-17GHz) -802.11n(40MHz) (Ant 1) 2452MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 1) Report No： 13A0306R-RF…

Text truncated - open the document above for the full version.

Report No： 13A0306R-RFUSP42V01 Page: 22 of 280 2.8. Test Photo Test Mode ： Mode 1: Transmit (Power Adapter: YINGJU) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit (Power Adapter: YINGJU) Description： Back View of Conducted Emission Test Setup Report No： 13A0306R-RFUSP42V01 Page: 23 of 280 Test Mode ： Mode 2: Transmit (Power Adapter: DVE) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (Power Adapter: DVE) Description： Back View of Conducted Emission Test Setup Report No： 13A0306R-RFUSP42V01 Page: 94 of 280 4.8. Test Photo Test Mode ： Mode 1: Transmit (Power Adapter: YINGJU) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit (Power Adapter: YINGJU) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 13A0306R-RFUSP42V01 Page: 95 of 280 Test Mode ： Mode 2: Transmit (Power Adapter: DVE) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit (Power Adapter: DVE) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 13A0306R-RFUSP42V01 Page: 96 of 280 Test Mode ： Mode 1: Transmit (Power Adapter: YINGJU) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (Power Adapter: YINGJU) Description： Back View of Radiated Emission Test Setup (Horn)
