I88PRESTIGE314LAN Hub Router

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 August 4, 2000 QTK2000-F030 731 Confirmation Number: 13EA98393 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Certification Application for Class B Computing Device Peripheral FCC ID: I88PRESTIGE314 / Broadband Access Gateway With Hub Gentlemen: Enclosed, please find ZyXel Communications Corporation’s application for equipment authorization dated August 4, 2000. The subject device is in compliance with Part 15, Subpart B of the FCC Rules. This device is a dual Ethernet Broadband Access Gateway with an integrated 4-port hub and advanced management features. It is designed to provide easy access to Internet via Cable/ xDSL modem or broadband router. This device uses CPU type KS32C50100-01 and various clock frequencies including 10, 20, 25 and 50 MHz and has 5-RJ-45 jacks for WAN and LAN connection and RS-232 serial interface port to support System Management Terminal (SMT). Also, this device is provided with ZyXel Direct Plug-In AC Adapter, type JAD-121200. This EUT was network system tested while connected to host computer and remote located Notebook Computers via LAN and WAN interface cables and tested in representative 100 Mbps high-speed data transfer mode. Tests were performed in accordance with ANSI C63.4-1992 to show compliance to CISPR 22 Class B limits. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Group Manager Safety & Compliance Consulting

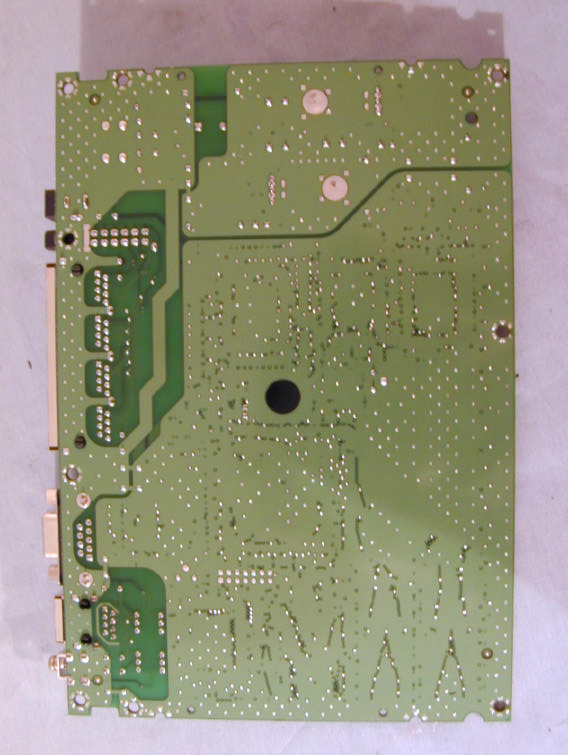

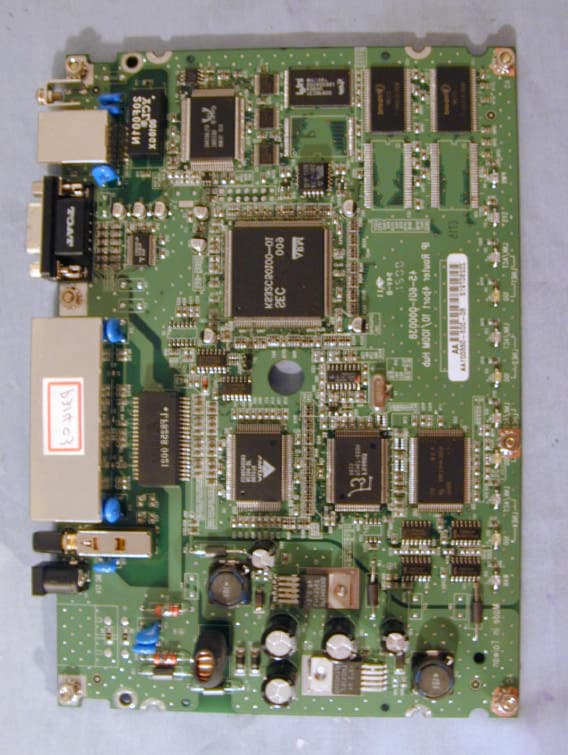

QuieTek Corporation Page: 1 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3: EUT Detailed Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo QuieTek Corporation Page: 4 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (6) EUT Photo QuieTek Corporation Page: 5 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo (8) EUT Photo QuieTek Corporation Page: 6 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (9) EUT Photo (10) EUT Photo QuieTek Corporation Page: 7 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (11) EUT Photo (12) EUT Photo QuieTek Corporation Page: 8 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (13) EUT Photo (14) EUT Photo QuieTek Corporation Page: 9 of 9 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (15) EUT Photo (16) EUT Photo

QuieTek Corporation Page: 1 of 16 FCC Report No.: 006H057FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : ZyXEL Communications Corporation Equipment Type : LAN Hub Router Model : PRESTIGE 314 FCC ID : I88PRESTIGE 314 Report No.: 006H057FI QuieTek Corporation Page: 2 of 16 FCC Report No.: 006H057FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : ZyXEL Communications Corporation Address : No.6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Equipment Type : LAN Hub Router Model : PRESTIGE 314 FCC ID. : I88PRESTIGE 314 Measurement Standard : CISPR 22/1985 Measurement Procedure : ANSI C63.4 /1992 Operation Voltage : 120VAC/60Hz Classification : Class B Test Result : Complied Test Date : July 11, 2000 Report No. : 006H057FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Zoe Lee Test Engineer: Calien Kang Approved: Kevin Wang QuieTek Corporation Page: 3 of 16 FCC Report No.: 006H057FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION........................................................................................................................................4 1.1 EUT Description................................................................................................................................................................4 1.2 Tested System Details........................................................................................................................................................5 1.3 EUT Configuration............................................................................................................................................................8 1.4 EUT Exercise Software.....................................................................................................................................................9 1.5 Test performed...................................................................................................................................................................9 1.6 Test Facility......................................................................................................................................................................10 2. CONDUCTED EMISSION..........................................................................................................................................11 2.1 Test Equipment List.........................................................................................................................................................11 2.2 Test Setup.........................................................................................................................................................................11 2.3 Limits................................................................................................................................................................................11 2.4 Test Procedure..................................................................................................................................................................12 2.5 Test Results......................................................................................................................................................................12 3. RADIATED EMISSION...............................................................................................................................................13 3.1 Test Equipment................................................................................................................................................................13 3.2 Test Setup.........................................................................................................................................................................13 3.3 Limits................................................................................................................................................................................14 3.4 Test Procedure..................................................................................................................................................................14 3.5 Test Results......................................................................................................................................................................14 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING................................................................15 5. ATTACHMENT.............................................................................................................................................................16 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAILED PHOTOGRAPHS QuieTek Corporation Page: 4 of 16 FCC Report No.: 006H057FI Accredited Lab. of NVLAP (NIST) NVLAP Lab. Code: 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : ZyXEL Communications Corporation Address : No.6, Innovation Rd II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Equipment Type : LAN Hub Router Model : PRESTIGE 314 FCC ID : I88PRESTIGE 314 Operation Voltage : 120VAC/60Hz LAN Cable (CROSSOVER) : Shielded, 1.8m, 1pc LAN Cable (STRAIGHT) : Shielded, 1.8m, 1pc RS 232 Cable : Non-Shielded, 1.…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 2 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test Back View of Conducted Test QuieTek Corporation Page: 2 of 2 FCC Report No.: 006H057FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test Back View of Radiated Test
