I88Q1000Z802.11n VDSL2+ 4-port Gigabit Ethernet USB Gateway

www.zyxel.com 802.11n VDSL2 4 GE Port USB Router over POTS Firmware v1.00 Edition 1, 5/2010 Q1000z DEFAULT LOGIN DETAILS IP Address:http://192.168.0.1 Copyright 2010 ZyXEL Communications Corporation 2 Device Panels LINE (DSL) POWER PHONE ETHERNET LEDs (Lights) RESET 3 Introduction Q1000Z is a VDSL2 router that provides super high-speed Internet access through a telephone line. It allows you to enjoy high-bandwidth applications, such as video streaming, on-line gaming and peer-to-peer (P2P). You can also set up a secure wireless network connection using the WPS button. Additionally, you can connect your telephone to the Q1000Z and make/receive PSTN calls. Before You Begin Make sure you have the following things before you set up your Q1000Z. • Internet access - account information provided by your ISP, such as user name, password, and so on. • Internet Explorer 6.0, Firefox 3.6, Safari: 4.0.5, Opera: 10.51 or Chrome 4.1.249.1064 as well as later versions of all these browsers, with JavaScript enabled. 4 Hardware Connections This section shows you how to set up your Q1000Z. 1. LINE: Use a telephone wire to connect this port to the telephone jack or wall outlet. 2. PHONE: Use another telephone wire to connect this port to your telephone. 3. ETHERNET: Use an Ethernet cable to connect a computer to this port for initial configuration and/or Internet access. 4. Use the power adaptor provided with your Q1000Z to connect an appropriate power source to this socket. As of writing, the USB port is reserved for future use. 5 Checking the LEDs (Lights) Look at the LEDs (lights) on the top panel of the Q1000Z. • The POWER light blinks during start-up and is green once the Q1000Z is ready. • The DSL light is green if a physical DSL connection exists and blinks when transmitting data. • The INTERNET light is green when Internet access is available. • The ETHERNET light turns on if the ETHERNET port is properly connected. The light blinks when the Q1000Z is sending or receiving data through the ETHERNET port. • The WIFI light turns on when the wireless network is enabled. # If none of the LEDs (lights) are on, check your connections. Make sure that you have the power adaptor connected to the Q1000Z and plugged in to an appropriate power source. Make sure the power source is turned on. Turn the Q1000Z off, wait for a few seconds and turn it back on. If the LEDs are still off, contact your local vendor. As of writing, the USB LED is reserved for future use. 6 Testing Internet Connection After you have connected the hardware and turned on the Q1000Z, open a web browser on your computer and go to any web site (for example, www.zyxel.com) to test your Internet connection. If you are prompted for a user name and password, enter the account information as given by your Internet service provider (ISP). If the INTERNET light is off but the DSL light is on, go to the Initial Configuration section to configure your Internet access settings. Initial Configuration 1. Open your browser and enter http://192.168.0.1 (the Q1000Z's default IP address) as the address. 2. The main screen displays. 7 # If the main screen does not display, make sure your computer is set to get an IP address automatically from a DHCP server. Click Quick Setup from the main screen. Follow the instructions in the screen and enter the Internet access information exactly as given to you by your ISP and click Apply. 3. If your ISP didn’t provide you a username and password, click the Advanced IP Configuration button. Configure your Q1000Z for Internet access according to instructions provided by your ISP. Make sure you enter the correct information. When your Internet connection is set up correctly, the DSL and INTERNET lights should be green. 8 Set Up a WPS Connection Press the WPS button on the Q1000Z’s front panel for more than 5 seconds to turn the WPS function on. Follow these steps to add a WPS-enabled device to the wireless network using the WPS button. Wall-mounting Take the following steps to hang your Q1000Z on a wall. 1. Select a position free of obstructions on a sturdy wall. 2. Drill two holes for the screws, exactly 110 mm apart. Place the devices you want to connect near one another. Press the WPS button on the Q1000Z. The WPS light blinks. Press the WPS button on a compatible device within 2 minutes of pressing the button on the Q1000Z. The WPS light on the Q1000Z shines steadily when connected. 1 2 3 9 3. Be careful to avoid damaging pipes or cables located inside the wall when drilling holes for the screws. 4. Do not insert the screws all the way into the wall. Leave a small gap of about 0.5 cm between the heads of the screws and the wall. 5. Make sure the screws are snugly fastened to the wall. They need to hold the weight of the Q1000Z with the connection cables. 6. Align the holes on the back of the Q1000Z with the screws on the wall. Hang the Q1000Z on the screws. 10 Customer Information Statement The information informing the user of his and the telephone company's rights and obligations is outlined on the following pages. This information will be included in the final version of the manual. 1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On bottom of this equipment is a label that contains, among other information, a product identifier of QWEST Q1000Z. If requested, this number must be provided to the telephone company. 2. If this equipment DL causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also you will be advised of your right to file a complaint with the FCC if you believe it is necessary. 3. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens, the telephone company…

Text truncated - open the document above for the full version.

AHTHORIZATION LETTER FCC ID: I88Q1000Z Date: Jun 08, 2010 To whom it may concern: We, the undersigned, hereby authorize Cerpass Technology (Suzhou) Co., Ltd. of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Cerpass Technology (Suzhou) Co., Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 weeks from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Yours Sincerely, Engineer ZyXEL Communications Corporation

ZyXEL Communications Corporation Date: Jun 08, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: I88Q1000Z Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Operational Description 3 Block Diagram. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Wang Yi , engineer ZyXEL Communications Corporation

Attestation for FCC Declaration of Conformity FCC ID: I88Q1000Z Date: Jun 08, 2010 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFD1005061. Testing in regards to this report was done by Cerpass technology Coporation, located at No. 7-2, Moshihkeng, Fongtian Village, Shihding Township, Taipei County, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Anson Chou / Manager Tel: +886-2-26558100#5301 Fax: +886-2-26558200 Email: [email protected]

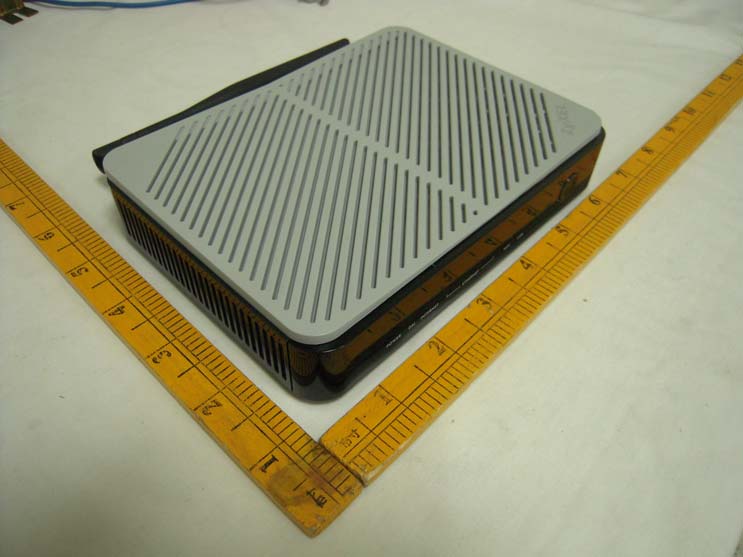

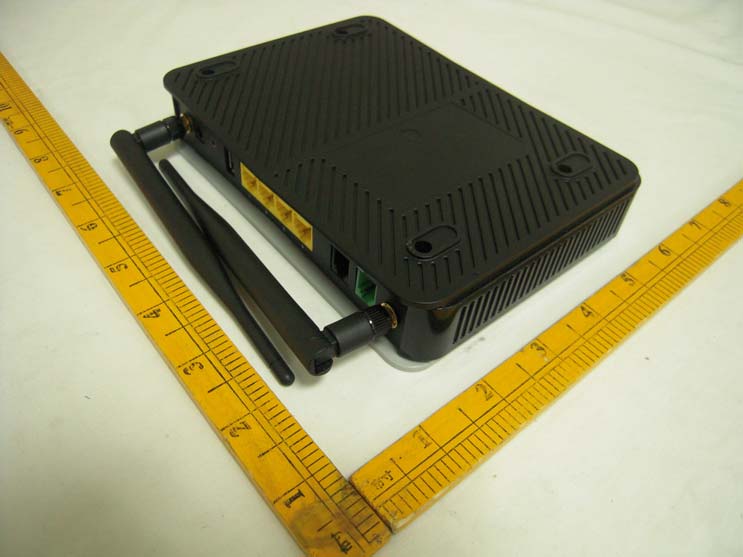

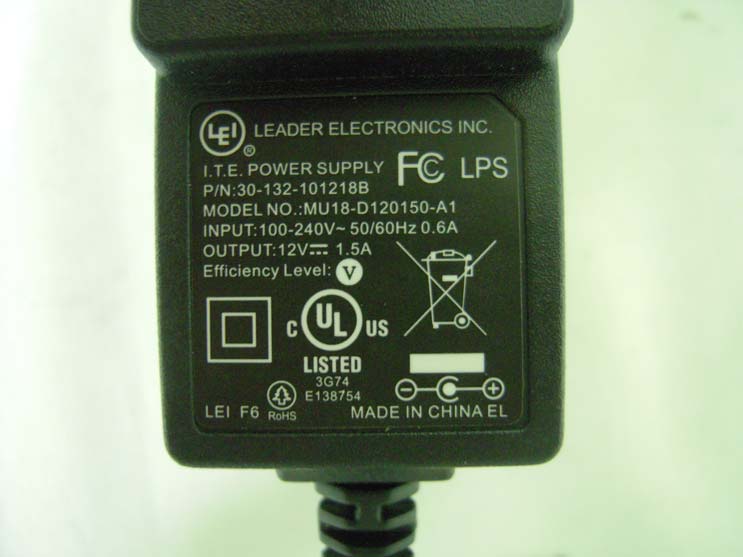

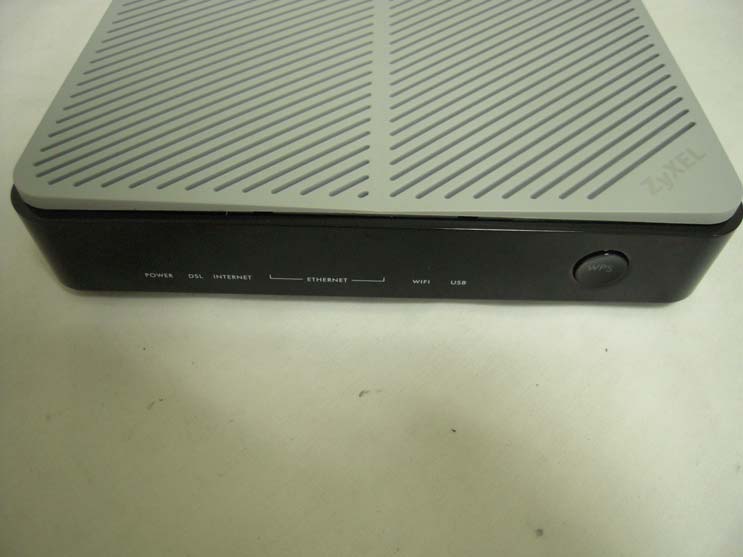

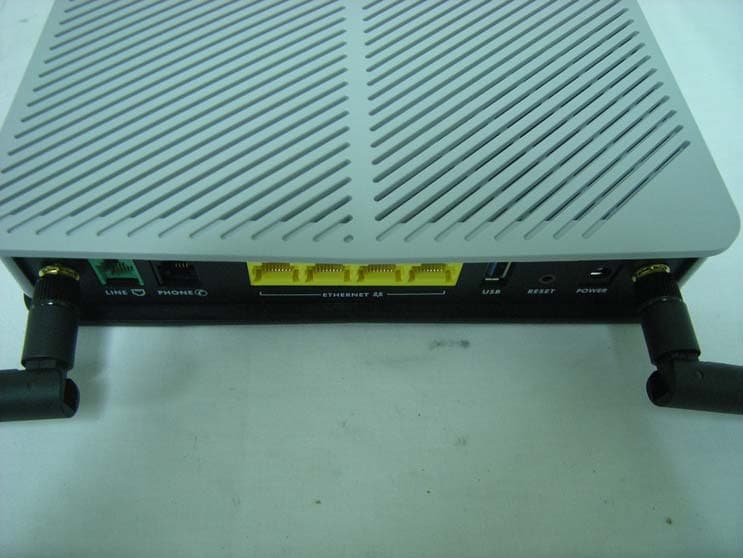

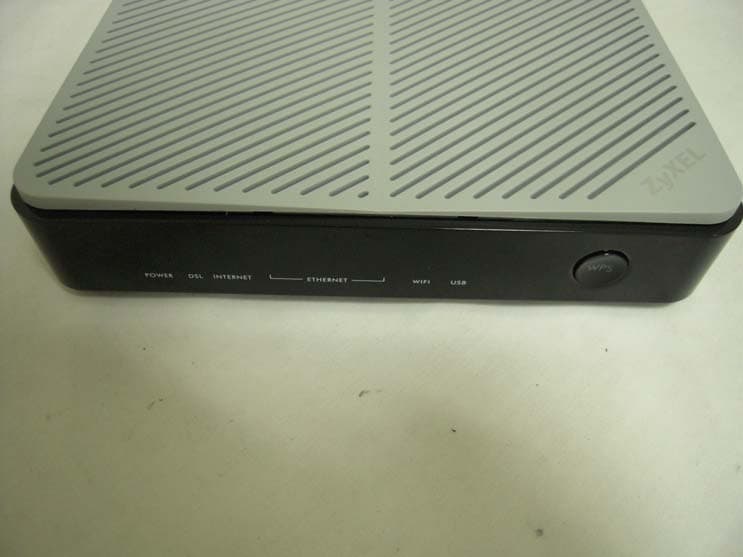

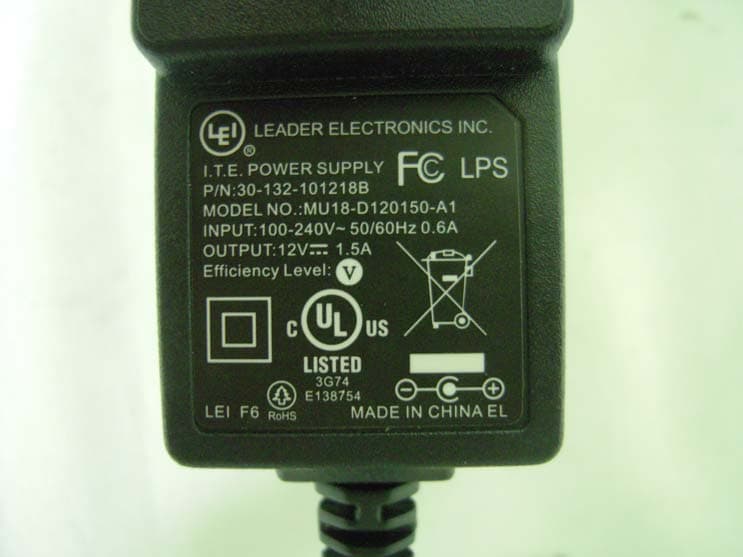

802.11n VDSL2+ 4-port Gigabit Ethernet USB Gateway (Model name: P-870HNU-51c for Qwest) Exterior Photographs: 1) 2) 3) 4) 5) 6) 7) 8) 9)

802.11n VDSL2+ 4-port Gigabit Ethernet USB Gateway (Model name: P-870HNU-51c for Qwest) FCC ID Position: FCC ID

802.11n VDSL2+ 4-port Gigabit Ethernet USB Gateway (Model name: P-870HNU-51c for Qwest) Inside photo: 1) 2) 3) 4)

Page: 1 of 3 RF Exposure Evaluation Declaration Product: 802.11n VDSL2+ 4-port Gigabit Ethernet USB Gateway Test Item: RF Exposure Evaluation Declaration 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Page: 2 of 4 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.4. Test Result of RF Exposure Evaluation Antenna Gain: Ant0: antenna type: Dipole antenna antenna antenna gain: 5.7dBi Ant1: antenna type: Dipole antenna antenna antenna gain: 5.7dBi Output Power Into Antenna & RF Exposure Evaluation Distance: 1) 802.11b Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 84.1395 0.0621853 06 2437.00 70.9578 0.0524431 11 2462.00 67.6083 0.0499675 2) 802.11g Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 101.3911 0.0749355 06 2437.00 95.7194 0.0707437 11 2462.00 88.1049 0.0651160 Page: 3 of 4 3) 802.11n(20MHz) (An0) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 103.9920 0.0768578 06 2437.00 93.5406 0.0691334 11 2462.00 82.9851 0.0613321 4) 802.11n(20MHz) (An1) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 209.8940 0.1551217 06 2437.00 185.3532 0.1369897 11 2462.00 159.5879 0.1179473 3) 802.11n(20MHz) (An1 and An0) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 314.0509 0.232106 06 2437.00 278.6121 0.205915 11 2462.00 242.6610 0.179344 5) 802.11n(40MHz) (An0) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 139.9587 0.1034398 06 2437.00 111.1732 0.0821652 09 2452.00 114.8154 0.0848571 Page: 4 of 4 6) 802.11n(40MHz) (An1) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 71.7794 0.0530503 06 2437.00 70.7946 0.0523225 09 2452.00 68.0769 0.0503139 7) 802.11n(40MHz) (An1 and An0) Test date: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 211.8361 0.1565626 06 2437.00 181.9701 0.1344894 09 2452.00 182.8100 0.1351101 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.
