I88UAG50Unified Access Gateway

UAG50 Unified Access Gateway Version 1.00 Edition 1, 05/2015 User’s Guide Login Details Login IP https:// 172.16.0.1 User Name admin Password 1234 Copyright © 2015 ZyXEL Communications Corporation UAG50 User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation • Quick St art Guide The Quick Start Guide shows how to connect the UAG and access the Web Configurator. It also contains a connection diagram and package contents list. UAG50 User’s Guide 3 Contents 1. Introduction ........................................................................................................... 6 1-1 Package Contents ................................................................................... 7 1-2 Features ................................................................................................. 7 1-3 Precautions ............................................................................................ 8 1-4 Outlook .................................................................................................. 8 1-4-1 Printing a test page ...................................................................... 10 1-4-2 How to load paper rolls ................................................................ 10 1-5 Technical Specifications ....................................................................... 11 1-5-1 Hardware Specifications .............................................................. 11 1-5-2 Software Specifications ................................................................ 12 2. Installation ........................................................................................................... 15 2-1 Connecting the Antennas .................................................................... 15 2-2 Installation Requirements .................................................................... 15 2-3 Getting Start ......................................................................................... 17 3. Configuring the UAG50 ........................................................................................ 19 3-1 Setting Wizard ...................................................................................... 19 3-2 Advanced Setup ................................................................................... 32 3-2-1 Authentication ............................................................................. 33 3-2-1-1 Authentication ...................................................................................................... 33 3-2-1-2 RADIUS .................................................................................................................. 35 3-2-2 Billing ............................................................................................ 37 3-2-2-1 Billing ..................................................................................................................... 37 3-2-2-2 Accounting............................................................................................................. 40 3-2-2-3 Credit Card ............................................................................................................ 47 UAG50 User’s Guide 4 3-2-3 Management ................................................................................ 50 3-2-3-1 Syslog ..................................................................................................................... 50 3-2-3-2 Session Trace ........................................................................................................ 57 3-2-3-3 Bandwidth ............................................................................................................. 58 3-2-3-4 SNMP ..................................................................................................................... 60 3-2-4 Security ........................................................................................ 61 3-2-4-1 Pass Through ......................................................................................................... 61 3-2-4-2 Filtering ................................................................................................................. 62 3-2-4-3 Secure Remote ...................................................................................................... 64 3-2-5 System .......................................................................................... 65 3-2-5-1 System ................................................................................................................... 65 3-2-5-2 WAN/LAN .............................................................................................................. 68 3-2-5-3 Server .................................................................................................................... 70 3-2-5-4 Customization ....................................................................................................... 73 3-2-5-5 Portal Page ............................................................................................................ 82 3-2-5-6 Advertisement....................................................................................................... 83 3-2-5-7 Walled Garden ....................................................................................................... 84 3-2-5-8 DDNS ...................................................................................................................... 86 3-2-5-9 Wireless ................................................................................................................. 88 3-2-5-10 USB .......................................................................…

Text truncated - open the document above for the full version.

www.tsky.com.tw 承認書 SPECIFICATION FOR APPROVAL ■樣品承認□新品承認□規格/材質變更承認 客戶名稱(Customer): 客戶料號(Customer P/N): 產品料號(Product No.): A8-A003-00071 產品品名(Product Name)： DIP 11b/g/n 5dBi D13 BLACK SMA MALE-RP 文件編號(Approved No)： 日期(Issued Date)： 年 月 日 客戶承認簽章 Customer Approval Signature In Charge Checked Approval 天凱科技股份有限公司TSKY CO., LTD. 新竹縣竹北市自強南路8號15F-1 Tel:03-5502626 Fax:03-5503131 15F-1,No.8,Ziqiang S.Rd., Jhubei City, Hsinchu County 30264,Taiwan (R.O.C.) 業務 核准 審核 主辦員 www.tsky.com.tw Contents Item Description Page 1. Cover 1 2. Contents 2 3. Specification 3 4. Drawing 4 5. Test Report 5-12 www.tsky.com.tw Specification .Electrical Properties : 1. Frequency : 2.4GHz ~ 2.5GHz 2. Impedance : 50Ω 3. Return Loss : ≦ ‐10dB 4. Peak Gain : 5.0dBi .Physical Properties : 1. Antenna Cover : TPEE 2. Antenna Base : PBT+PC 3. Connector : SMA MALE‐RP 4. Operation temperature : ­20°C~+65°C 5. Storage temperature : ­30°C~ +75°C 天凱科技股份有限公司 WIFI-G Antenna Test Report WIFI-G Antenna Test Report- Return Loss 天凱科技股份有限公司 Rotating y Axis (Theta Axis) 90 ° 180 ° 0 ° Ant Theta polarization 270 ° x y z Phi polarization 天凱科技股份有限公司 WIFI-G Antenna Test Report- E-plane Frequency2.4G2.45G2.5G Maximum Phi Value (dBi) - 18.06 -16.94 -17.61 Maximum Phi Angle (deg.) 52 54 54 -3.0dBBW Phi (deg.) 42 27. 5 29.4 天凱科技股份有限公司 WIFI-G Antenna Test Report- Phi Gain at E ‐ Plane Frequency2.4G2.45G2.5G Maximum Theta Value (dBi) 3.2 7 3.8 3.5 2 Maximum Theta Angle (deg.) 94 94 27 0 -3.0dBBW Theta (deg.) 34. 6 35.2 37.2 天凱科技股份有限公司 WIFI-G Antenna Test Report- Theta Gain at E ‐ Plane Rotating z Axis (Phi Axis) 90 ° 180 ° 0 ° 270 ° y z x Ant Theta polarization Phi polarization 天凱科技股份有限公司 WIFI-G Antenna Test Report- H-plane Frequency2.4G2.45G2.5G Maximum Phi Value (dBi) - 21.35 -23.86 -22.17 Maximum Phi Angle (deg.) 18 4 186 298 -3.0dBBW Phi (deg.) 180. 4 286.5 201.5 天凱科技股份有限公司 WIFI-G Antenna Test Report- Phi Gain at E ‐ Plane Frequency2.4G2.45G2.5G Maximum Theta Value (dBi) 3.4 3 4.01 3.79 Maximum Theta Angle(deg.) 0020 2 -3.0dBBW Theta (deg.) 36 0 360 360 天凱科技股份有限公司 WIFI-G Antenna Test Report- Theta Gain at E ‐ Plane

RF_160, Issue 03 Declaration of Authorization We Name: ZyXEL Communications Corporation Address: No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan, R.O.C. City: Hsinchu Country: Taiwan Declare that: Name Representative of agent: Gloria Chang Agent Company name: Compliance Certification Services Inc. Address: No.989 -1 Wen Shan Rd., Shang Shan Village,Qionglin Township, City: Hsinchu County 30741, Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: Unified Access Gateway Type designation: UAG50 Trademark: ZyXEL on our behalf. Date: 2015 -06 -15 Signature: . Name/Title: Emma Bao / Section Manager Company Name: ZyXEL Communications Corporation Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: ZyXEL Communications Corporation Address: No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan, R.O.C. City: Hsinchu Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: I88UAG50 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015-06-15 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

DECLARATION OF CONFORMITY (DoC) Equipment: Unified Access Gateway Trademark(s) and Model(s): ZyXEL / UAG50 Manufacturer: ZyXEL Communications Corporation FCC ID in case other parts of this equipment are subject to certification: I88UAG50 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:T150512S08 Issue date:2015-5-27 Company name: ZyXEL Communications Corporation Name/Title (legal representative): Emma Bao / Section Manager Address: No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Phone 886 3 578-3942 ext. 88582 E-mail: [email protected] Date: 2015-06-15 Signature:

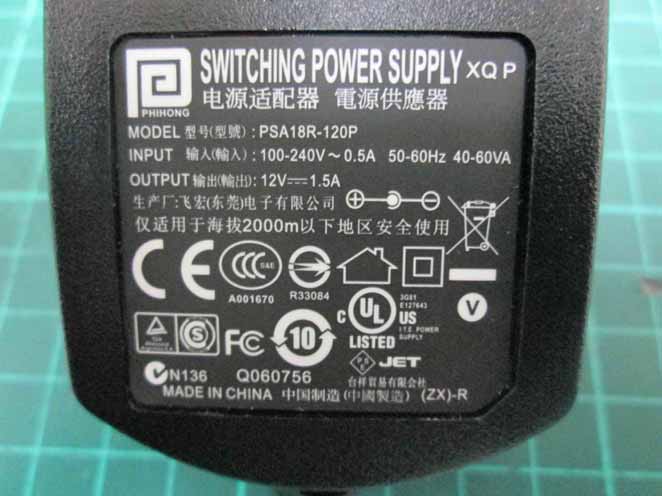

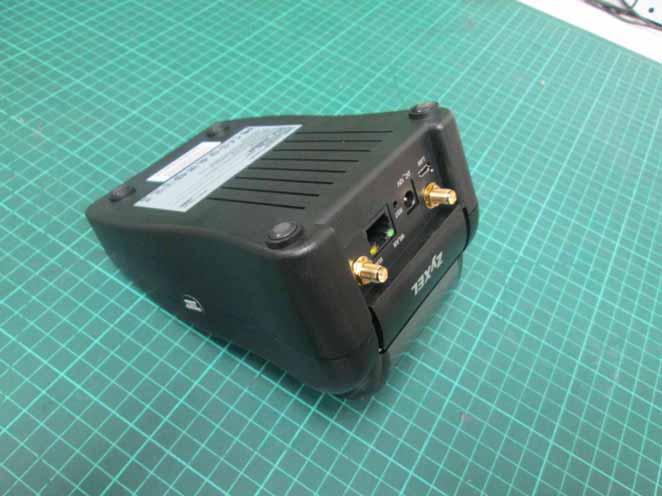

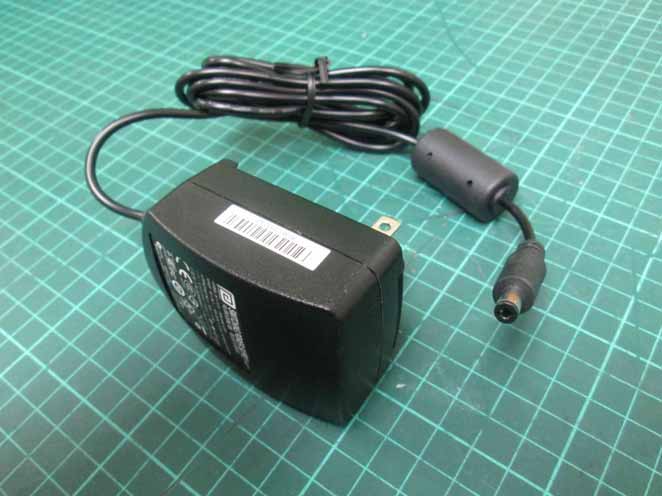

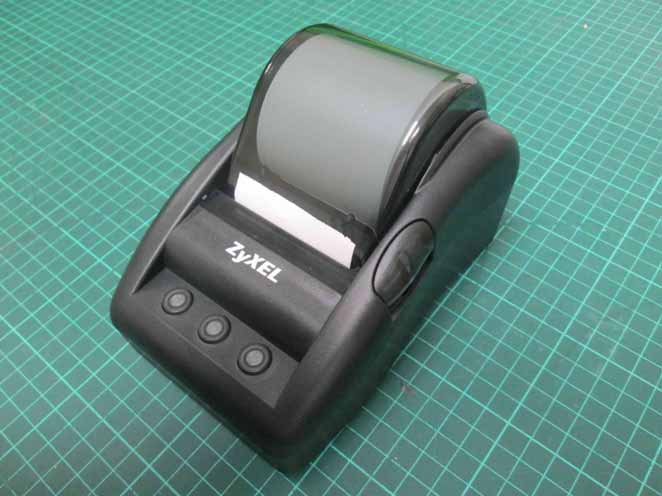

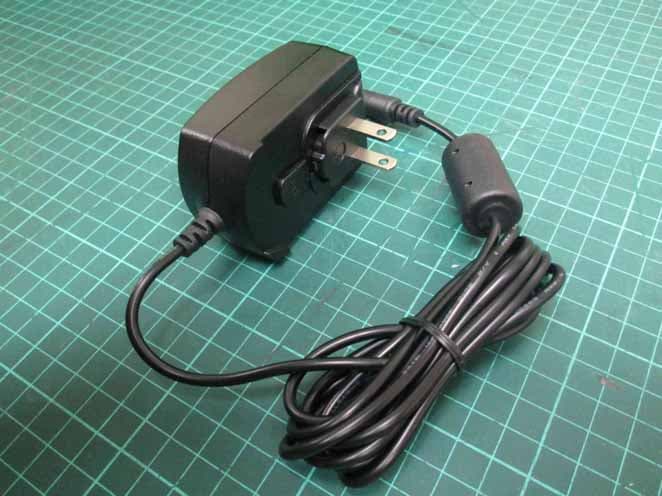

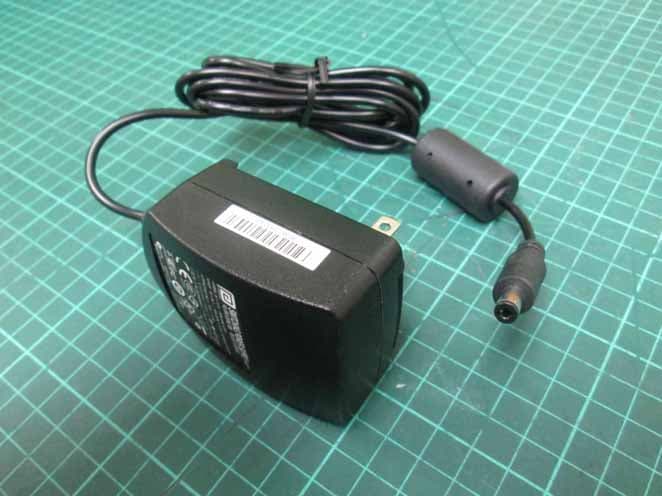

Report No.T150512S08 Page 1 of 6 External Photo Report No.T150512S08 Page 2 of 6 Report No.T150512S08 Page 3 of 6 Antenna(Model : A8-A003-00071) Report No.T150512S08 Page 4 of 6 Antenna(Model : A8-A003-00110) Report No.T150512S08 Page 5 of 6 Power Adapter(Model : PSA18R-120P) Report No.T150512S08 Page 6 of 6

Report No.T150512S08 Page 1 of 6 Internal Photo Report No.T150512S08 Page 2 of 6 Report No.T150512S08 Page 3 of 6 Report No.T150512S08 Page 4 of 6 Report No.T150512S08 Page 5 of 6 Report No.T150512S08 Page 6 of 6

Compliance Certification Services Inc. Refer No.T130924S01-RP1 Report No.: T150512S08-RP1-1 Date of Issue: May 27, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Unified Access Gateway Model UAG50 Trade Name ZyXEL Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Dipole Antenna × 2 (A8-A003-00071) 2.4GHz: Antenna 0 Gain : 5.00 dBi (Numeric gain 3.16) 2.4GHz: Antenna 1 Gain : 5.00 dBi (Numeric gain 3.16) Dipole Antenna × 2 (A8-A003-00110) 2.4GHz: Antenna 0 Gain : 2.00 dBi (Numeric gain 1.58) 2.4GHz: Antenna 1 Gain : 2.00 dBi (Numeric gain 1.58) Maximum Average output power IEEE 802.11b Mode: 19.12 dBm (81.658 mW) IEEE 802.11g Mode: 24.73 dBm (297.167 mW) IEEE 802.11n HT 20 Mod e 24.66 dBm (292.415 mW) IEEE 802.11n HT 40 Mod e 24.09 dBm (256.448 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Refer No.T130924S01-RP1 Report No.: T150512S08-RP1-1 Date of Issue: May 27, 2015 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/05/27 Initial Issue ALL Michelle Chiu Compliance Certification Services Inc. Refer No.T130924S01-RP1 Report No.: T150512S08-RP1-1 Date of Issue: May 27, 2015 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Refer No.T130924S01-RP1 Report No.: T150512S08-RP1-1 Date of Issue: May 27, 2015 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 241281.6583.16200.05131 IEEE 802.11g mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2437297.1673.16200.18691 IEEE 802.11n HT20 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2437292.4153.16200.18391 IEEE 802.11n HT40 mode: Frq.(MHz)P (mW) Gain (num.) D (cm) Power densit y in mW / cm 2 Limit (mW/cm 2 ) 2437256.4483.16200.16131

Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 1 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND C63.10:2009 TEST REPORT For Unified Access Gateway Model : UAG50 Trade Name : ZyXEL Issued for ZyXEL Communications Corporation No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: May 27, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 2 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 05/27/2015 Initial Issue All Page 107 Michelle Chiu Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 3 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS ................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 12 7.1 6dB BANDWIDTH .................................................................................................. 12 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 26 7.3 AVERAGE POWER ............................................................................................... 29 7.4 POWER SPECTRAL DENSITY ............................................................................. 32 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 47 7.7 RADIATED EMISSION ........................................................................................... 66 7.8 CONDUCTED EMISSION ...................................................................................... 99 APPENDIX I SETUP PHOTOS ........................................................................................ 104 Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 4 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ZyXEL Communications Corporation Address No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan, R.O.C. Equipment Under Test Unified Access Gateway Model UAG50 Trade Name ZyXEL Tested Date September 24 ~ October 16, 2013 ; May 12 ~ 19, 2015 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2009 & ANSI C63.4:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 5 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Unified Access Gateway Model Number UAG50 Identify Number T150512S08 Received Date September 24, 2013 Frequency Range IEEE 802.11b/g, 802.11n HT20 : 2412MHz ~ 2462MHz IEEE 802.11n HT40 : 2422MHz ~ 2452MHz Transmit Power IEEE 802.11b : 19.12 dBm (0.0817 W) IEEE 802.11g : 24.73 dBm (0.2972 W) IEEE 802.11n HT20 : 24.66 dBm (0.2924 W) IEEE 802.11n HT40 : 24.09 dBm (0.2566 W) Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz Channel Number IEEE 802.11b/g, 802.11n HT20: 11 Channels IEEE 802.11n HT40 : 7 Channels Transmit Data Rate IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 144.4, 130, 117, 115.6, 104, 86.7, 78, 72.2, 65, 58.5, 57.8, 52, 43.3, 39, 28.9, 26, 21.7, 19.5, 14.4, 13, 7.2, 6.5Mbps IEEE 802.11n HT40 : 300, 270, 243, 240, 216, 180, 162, 150, 135, 121.5, 120, 108, 90, 81, 60, 54, 45, 40.5, 30, 27, 15, 13.5Mbps…

Text truncated - open the document above for the full version.

Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 104 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 105 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 106 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Refer No.T130924S01- RP1 FCC ID : I88UAG50 Report No.T150512S08-RP1 Page 107 / 107 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
