I88VMG1312B10ADual WAN VDSL2 Gateway with 802.11n; Wireless N VDSL2 4-ports Gateway with USB

www.zyxel.com www.zyxel.com VMG1312-B10A Wireless N VDSL2 4-ports Gateway with USB Copyright © 2011 ZyXEL Communications Corporation Firmware Version 1.00 Edition 1, 12/2011 Default Login Details IP Addresshttp://192.168.1.1 User Nameadmin Password1234 About This User's Guide VMG1312-B10A User’s Guide 3 About This User's Guide Intended Audience This manual is intended for people who want to configure the Device using the web configurator. You should have at least a basic knowledge of TCP/IP networking concepts and topology. Related Documentation •Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access. •Support Disc Refer to the included CD for support documents. •ZyXEL Web Site Please refer to www.zyxel.com for additional support documentation and product certifications. Disclaimer Graphics in this book may differ slightly from the product due to differences in operating systems, operating system versions, or if you installed updated firmware/software for your device. Every effort has been made to ensure that the information in this manual is accurate. Document Conventions VMG1312-B10A User’s Guide 4 Document Conventions Warnings and Notes These are how warnings and notes are shown in this User’s Guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • The VMG1312-B10A may be referred to as the “Device”, the “system” or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font. • A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard. • “Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen. • Units of measurement may denote the “metric” value or the “scientific” value. For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may denote “1000000” or “1048576” and so on. • “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Document Conventions VMG1312-B10A User’s Guide 5 Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The Device icon is not an exact representation of your device. DeviceComputerNotebook computer ServerFirewallTe le p ho ne RouterSwitch Safety Warnings VMG1312-B10A User’s Guide 6 Safety Warnings • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. • Do NOT expose your device to dampness, dust or corrosive liquids. • Do NOT store things on the device. • Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning. • Connect ONLY suitable accessories to the device. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information. • Make sure to connect the cables to the correct ports. • Place connecting cables carefully so that no one will step on them or stumble over them. • Always disconnect all cables from this device before servicing or disassembling. • Use ONLY an appropriate power adaptor or cord for your device. • Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe). • Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. • Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution. • If the power adaptor or cord is damaged, remove it from the device and the power source. • Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one. • Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning. • Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device. • Use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord. • Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s). Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately. Contents Overview VMG1312-B10A User’s Guide 7 Contents Overview User’s Guide ....................................................................................................................................... 19 Introducing the Device ............................................................................................................................21 The Web Configurator .............................................................................................................................27 Quick Start ...............................................................................................................................................35 Tutorials .........................................................................................................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ZyXEL Communications Corporation 2012/01/11 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZyXEL Communications Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Equipment: Dual WAN VDSL2 Gateway with 802.11n; Wireless N VDSL2 4-ports Gateway with USB Model No.: DSL-401HNU-B1B V2, VMG1312-B10A FCC ID: I88VMG1312B10A We affirm that between SIEMIC and ZyXEL Communications Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 ZyXEL Communications Corporation 2012/01/11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: I88VMG1312B10A We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Operational Description - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

Attestation for FCC Declaration of Conformity FCC ID: I88VMG1312B10A Date: Jan 11, 2012 Please be notified that we, the undersigned, Cerpass technology Coporation declares that the product which bears the above FCC ID is a;so compliant with the FCC requirements for DOC. The test report number supporting the DOC is SEFD1111084. Testing in regards to this report was done by Cerpass technology Coporation, located at No.68-1, Shihbachongsi, Shihding Township, Taipei City 223, Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47 CFR 2.948(d) and(e)of the FCC rules and KDB349827. Sincerely, Thomas Wei/ Senior Manager ZyXEL Communications Corporation/ NO.6,Innovation Rd.II Science Based Industrial Park Hsin-Chu,Taiwan

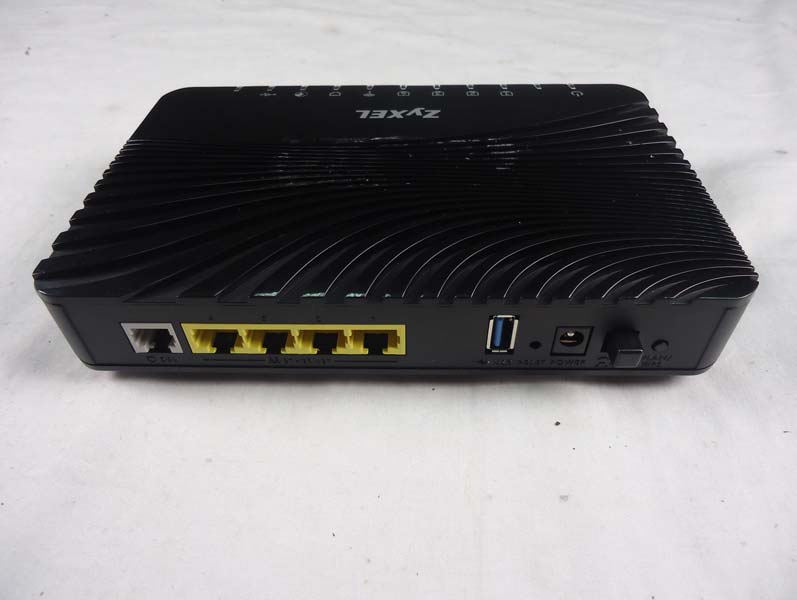

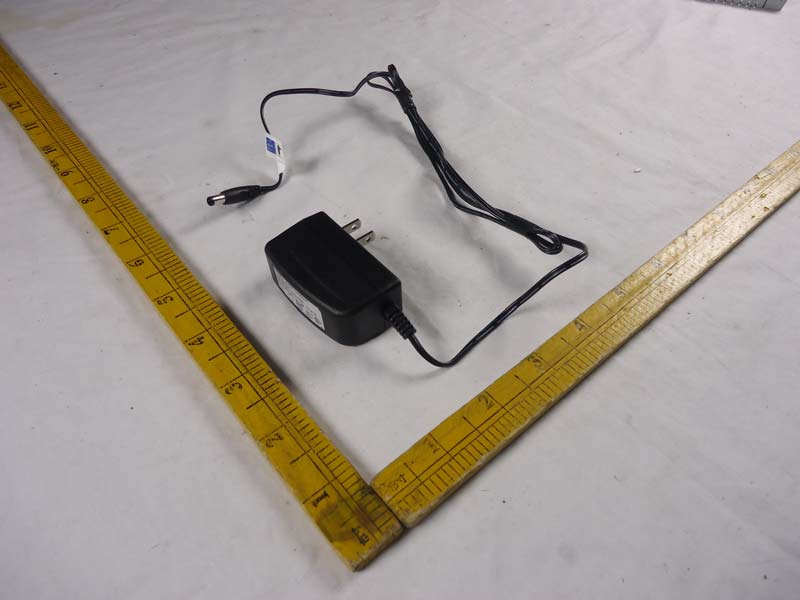

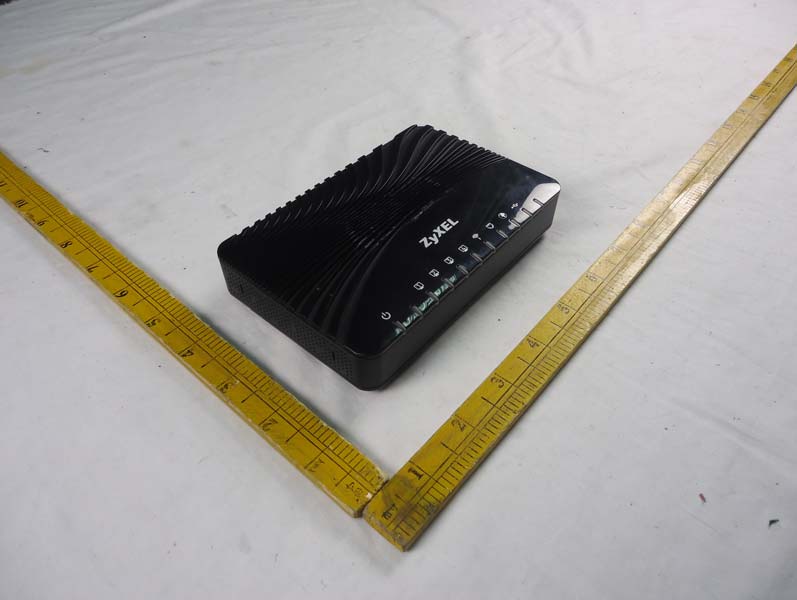

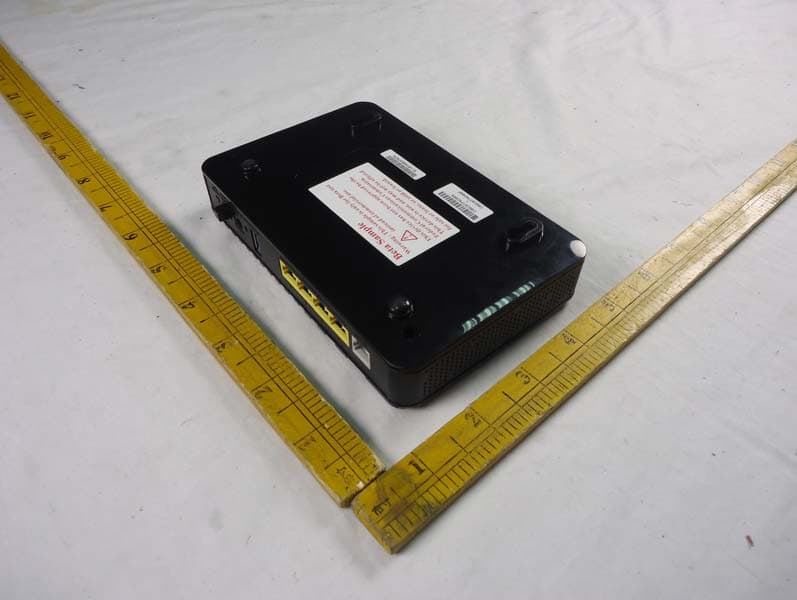

CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 4 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 4 3) EUT Photo Adapter 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 4 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 4 7) EUT Photo

CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo Chain 0 Chain 1 CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo（module）

CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Dual WAN VDSL2 Gateway with 802.11n; Wireless N VDSL2 4-ports Gateway with USB Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 21.21 dBm (132.13 mW) 802.11g: 22.12 dBm (162.93 mW) 802.11n (20MHz): Chain0:20.74 dBm (118.58 mW) Chain1:19.62 dBm (91.62 mW) 802.11n (40MHz): Chain0:22.40 dBm (173.78 mW) Chain1:21.20 dBm (131.83 mW) Antenna gain (Max) Chain0:5.00 dBi (Numeric gain:3.162 ) Chain1:5.00 dBi(Numeric gain: 3.162) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 22.40 dBm (173.78 mW) at 2452 MHz (withnumeric 3.162 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 21.21 5.00 20 0.083 1 802.11g 2412-2462 22.12 5.00 20 0.103 1 802.11n(20MHz)(Chain0) 2412-2462 20.74 5.00 20 0.075 1 802.11n(20MHz)(Chain1) 2412-2462 19.62 5.00 20 0.058 1 802.11 n(20MHz) (Chain0+Chain1) 2412-2462 / / 20 0.133 1 802.11n(40MHz)(Chain0) 2422-2452 22.40 5.00 20 0.109 1 802.11n(40MHz)(Chain1) 2422-2452 21.20 5.00 20 0.082 1 802.11 n(40MHz) (Chain0+Chain1) 2422-2452 / / 20 0.191 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFI1111084 Cerpass Technology(Suzhou) Co., Ltd. Issued Date : Jan 6,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 78 FCC ID : I88VMG1312B10A FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : ZyXEL Communications Corporation Address : NO.6,Innovation Rd.IIScience Based Industrial Park Hsin-Chu,Taiwan Equipment : Dual WAN VDSL2 Gateway with 802.11n; Wireless N VDSL2 4-ports Gateway with USB Model No. : DSL-401HNU-B1B V2, VMG1312-B10A FCC ID : I88VMG1312B10A Trade Name : ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology(Suzhou) Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFI1111084 Cerpass Technology(Suzhou) Co., Ltd. Issued Date : Jan 6,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 78 FCC ID : I88VMG1312B10A Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Manufacturer .............................................................................................................................. 7 2.2 Feature of Equipment under Test............................................................................................... 7 2.3 Carrier Frequency of Channels ..................................................................................................8 2.4 Test Mode and Test Software.....................................................................................................9 2.5 Description of Test System......................................................................................................... 9 2.6 General Information of Test......................................................................................................10 2.7 Measurement Uncertainty ........................................................................................................10 3. Antenna Requirements..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain............................................................................. 11 4. Test of Conducted Emission............................................................................................................12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures .......................................................................................................................12 4.3 Typical Test Setup ....................................................................................................................13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data................................................................................................................14 5. Test of Radiated Emission ...............................................................................................................16 5.1 Test Limit .................................................................................................................................. 16 5.2 Test Procedures .......................................................................................................................16 5.3 Typical Test Setup ....................................................................................................................17 5.4 Measurement equipment ......................................................................................................... 17 5.5 Test Result and Data................................................................................................................18 6. 6dB Bandwidth Measurement Data .................................................................................................31 6.1 Test Limit .................................................................................................................................. 31 6.2 Test Procedures .......................................................................................................................31 6.3 Test Setup Layout ....................................................................................................................31 6.4 Measurement equipment ......................................................................................................... 31 6.5 Test Result and Data................................................................................................................31 7. Maximum Peak Output Power .........................................................................................................41 7.1 Test Limit .................................................................................................................................. 41 7.2 Test Procedures .......…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 RADEATED EMISSION TEST Below 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1111084 Cerpass Technology Corp. Issued date : Jan 10,2012 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Above 1G
