I88VMG1312B10CWireless N VDSL2 4-ports Gateway with USB Wireless N VDSL2 4-ports Gateway without USB

Quick Start Guide www.zyxel.com VMG1312-B10C Wireless N VDSL2 4-port Gateway with USB Version 1.00 Edition 1, 10/2014 Copyright © 2014 ZyXEL Communications Corporation User’s Guide Default Login Details LAN IP Addresshttp://192.168.1.1 Loginadmin Password1234 VMG1312-B10C User’s Guide2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the Device and get up and running right away. Contents Overview VMG1312-B10C User’s Guide 3 Contents Overview User’s Guide ....................................................................................................................................... 15 Introducing the Device ............................................................................................................................17 The Web Configurator .............................................................................................................................23 Quick Start ...............................................................................................................................................31 Technical Reference .......................................................................................................................... 33 Network Map and Status Screens ...........................................................................................................35 Broadband ...............................................................................................................................................39 Wireless ..................................................................................................................................................65 Home Networking ..................................................................................................................................101 Routing ..................................................................................................................................................125 Quality of Service (QoS) .......................................................................................................................131 Network Address Translation (NAT) ......................................................................................................149 Dynamic DNS Setup .............................................................................................................................167 Interface Group .....................................................................................................................................171 USB Service ..........................................................................................................................................177 Firewall ..................................................................................................................................................183 MAC Filter .............................................................................................................................................193 Parental Control ....................................................................................................................................195 Scheduler Rule ......................................................................................................................................199 Certificates ............................................................................................................................................201 VPN .......................................................................................................................................................209 Log .......................................................................................................................................................221 Traffic Status ........................................................................................................................................225 ARP Table .............................................................................................................................................229 Routing Table ........................................................................................................................................231 IGMP Status .........................................................................................................................................233 xDSL Statistics ......................................................................................................................................235 3G Statistics .........................................................................................................................................239 User Account .........................................................................................................................................241 Remote Management ............................................................................................................................243 TR-069 Client ........................................................................................................................................245 TR-064 ..................................................................................................................................................247 Time Settings ........................................................................................................................................249 E-mail Notification .................................................................................................................................253 Lo…

Text truncated - open the document above for the full version.

ZyXEL Communications Corporation Date: 2014-09-02 Federal Communications Commission Authorization and Evaluation Division FCC ID: I88VMG1312B10C ATTESTATION FCC ID: I88VMG1312B10C Product Wireless N VDSL2 4-ports Gateway with USB Wireless N VDSL2 4-ports Gateway without USB Model DSL-401HNU-B3B v5 DSL-401HN-B1B v5 DSL-401HNU-B1B v5 VMG1302-B10C VMG1302-B30C VMG1312-B10C We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Emma Bao/ Section Manager ZyXEL Communications Corporation

ZyXEL Communications Corporation Family Certification Cover Letter FCC ID: I88VMG1312B10C Date: 2014/09/17 Please be notified that we, the undersigned, ZyXEL Communications Corporation declares that the product which bears the above FCC ID Contains 6 model numbers: Product Wireless N VDSL2 4-ports Gateway with USB Wireless N VDSL2 4-ports Gateway without USB Model DSL-401HNU-B3B v5 DSL-401HN-B1B v5 DSL-401HNU-B1B v5 VMG1302-B10C VMG1302-B30C VMG1312-B10C Note: DSL-401HNU-B1B v5, VMG1312-B10C, DSL-401HNU-B3B v5, VMG1302-B30C, DSL-401HN-B1B v5, VMG1302-B10C are electrically identical except only 2: 1) DSL-401HN-B1B v5，VMG1302-B10C have not USB port ，but other models have USB port. 2) Model names are different for market. Your understanding will be highly appreciated. Sincerely, Emma Bao/ Section Manager ZyXEL Communications Corporation

ZyXEL Communications Corporation DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:___ I88VMG1312B10C_________ Product Name:____ Wireless N VDSL2 4-ports Gateway with USB & Wireless N VDSL2 4-ports Gateway without USB _______ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Date this 2014-09-02 By: Emma Bao Si gnature Printed Title: Section Manager On behalf of : ZyXEL Communications Corporation (Company Name) Telephone: 886 3 578-3942

ZyXEL Communications Corporation No. 2, Gongye E. 9th Road, Hsinchu Science Park Attestation for FCC Declaration of Conformity FCC ID: I88VMG1312B10C Date: 2014/09/25 Please be notified that we, the undersigned, Q-Point Technology Inc declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 1460406R-ITUSP01V02 Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely __________________ Emma Bao/ Section Manager ZyXEL Communications Corporation

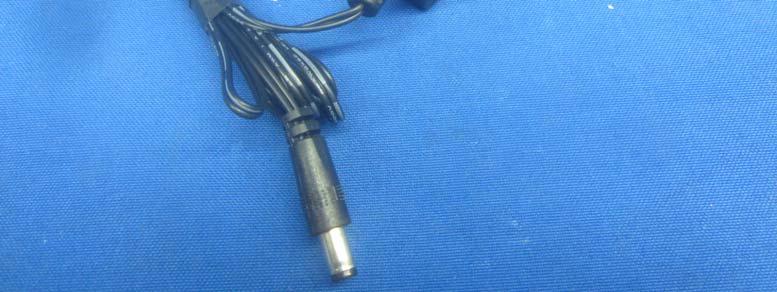

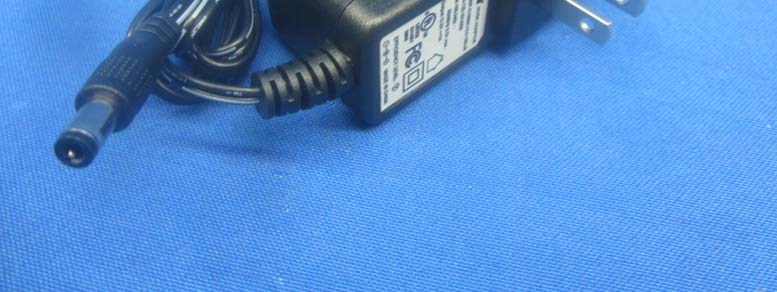

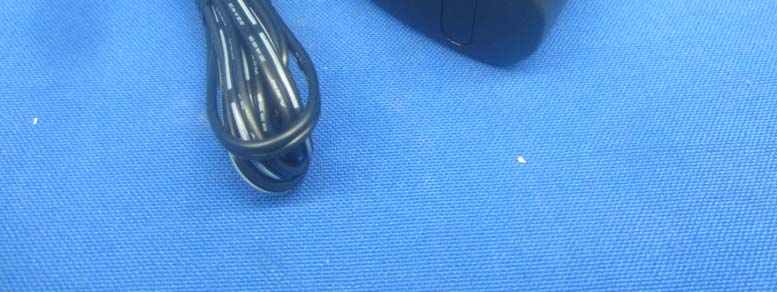

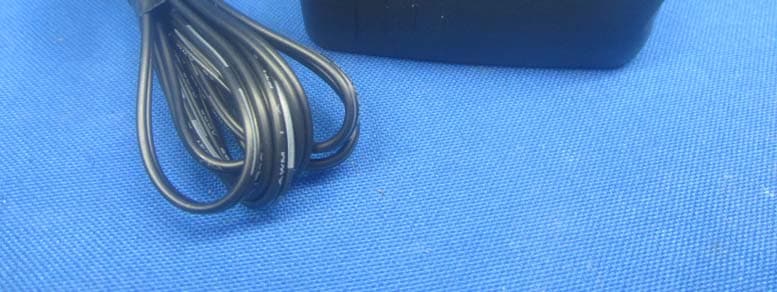

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (Adpater#1) (8) EUT Photo (Adpater#1) (9) EUT Photo (Adpater#1) (10) EUT Photo (Adpater#2) (11) EUT Photo (Adpater#2) (12) EUT Photo (Adpater#2)

I88VMG1312B10C I88VMG1312B10C

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo

RF Exposure evaluation MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Ant 1: 3.5dBi Ant 2: 1.7dBi Directional gain =5.66dBi Biggest output power is 788.04mW Calculated Result and Limit(WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 3.68 778.04 0.57 1 Compiles

Test Report FCC Part15 Subpart C Product Name : Wireless N VDSL2 4-ports Gateway with USB, Wireless N VDSL2 4-ports Gateway without USB Model No. : DSL-401HNU-B1B v5, VMG1312-B10C DSL-401HNU-B3B v5, VMG1312-B30C DSL-401HN-B1B v5, VMG1302-B10C FCC ID : I88VMG1312B10C Applicant : ZyXEL Communications Corporation Address : No.2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Date of Receipt : Jun. 13, 2014 Test Date : Jun.13, 2014~Aug. 04, 2014 Issued Date : Aug. 29, 2014 Report No. : 1460406R-RF-US-P05V01 Report Version : V1.2 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No: 1460406R-RF-US-P05V01 Page: 2 of 263 Test Report Certification Issued Date : Aug. 05, 2014 Report No. : 1460406R-RF-US-P05V01 Product Name : Wireless N VDSL2 4-ports Gateway with USB, Wireless N VDSL2 4-ports Gateway without USB Applicant : ZyXEL Communications Corporation Address : No.2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Manufacturer : Wuxi MitraStar Technology Co.Ltd Address : Wuxi New District Minshan road 60#-E Jiangsu PRC Model No. : DSL-401HNU-B1B v5, VMG1312-B10C DSL-401HNU-B3B v5, VMG1312-B30C DSL-401HN-B1B v5, VMG1302-B10C FCC ID : I88VMG1312B10C EUT Voltage : AC 100-240V / 50-60Hz Brand Name : ZyXEL Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009; ANSI C63.10: 2009; KDB 558074 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 1460406R-RF-US-P05V01 Page: 3 of 263 Laboratory Information We,QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC Japan:VCCI China:CNAS Report No: 1460406R-RF-US-P05V01 Page: 4 of 263 TABLE OF CONTENTS Description Page 1.General Information ................................................................................................. 7 1.1.EUT Description ...................................................................................................... 7 1.2.Mode of Operation ................................................................................................. 11 1.3.Tested System Details ........................................................................................... 12 1.4.Configuration of Tested System ............................................................................. 13 1.5.EUT Exercise Software .......................................................................................... 14 2.Technical Test ........................................................................................................ 15 2.1.Summary of Test Result ......................................................................................... 15 2.2.Test Environment ................................................................................................... 16 3.Conducted Emission .............................................................................................. 17 3.1.Test Equipment ...................................................................................................... 17 3.2.Test Setup.............................................................................................................. 17 3.3.Limit ....................................................................................................................... 18 3.4.Test Procedure...................................................................................................... 18 3.5.Uncertainty ............................................................................................................ 18 3.6.Test Result ............................................................................................................. 19 4.Radiated Emission ................................................................................................. 23 4.1.Test Equipment ...................................................................................................... 23 4.2.Test Setup.............................................................................................................. 24 4.3.Limit ........................................…

Text truncated - open the document above for the full version.

Report No: 1460406R-RF-US-P05V01 Page: 121 of 263 Channel 03 (2422MHz)-5 Channel 03 (2422MHz)-6 Report No: 1460406R-RF-US-P05V01 Page: 122 of 263 Channel 03 (2422MHz)-7 Channel 06 (2437MHz)-1 Report No: 1460406R-RF-US-P05V01 Page: 123 of 263 Channel 06 (2437MHz)-2 Channel 06 (2437MHz)-3 Report No: 1460406R-RF-US-P05V01 Page: 124 of 263 Channel 06 (2437MHz)-4 Channel 06 (2437MHz)-5 Report No: 1460406R-RF-US-P05V01 Page: 125 of 263 Channel 06 (2437MHz)-6 Channel 06 (2437MHz)-7 Report No: 1460406R-RF-US-P05V01 Page: 126 of 263 Channel 09 (2452MHz)-1 Channel 09 (2452MHz)-2 Report No: 1460406R-RF-US-P05V01 Page: 127 of 263 Channel 09 (2452MHz)-3 Channel 09 (2452MHz)-4 Report No: 1460406R-RF-US-P05V01 Page: 128 of 263 Channel 09 (2452MHz)-5 Channel 09 (2452MHz)-6 Report No: 1460406R-RF-US-P05V01 Page: 129 of 263 Channel 09 (2452MHz)-7 Report No: 1460406R-RF-US-P05V01 Page: 130 of 263 6. Radiated Emission Band Edge 6.1. Test Equipment Radiated Emission Band Edge / AC-5 Instrument Manufacturer Type No. Serial No. Cali. Due Date Spectrum Analyzer Agilent N9020A MY49100159 2015.03.28 Preamplifier Miteq NSP1800-25 1364185 2015.01.07 Preamplifier QuieTek AP-040G CHM-0906001 2015.05.03 Bilog Antenna Teseq GmbH CBL6112D 27612 2015.05.03 DRG Horn ETS-Lindgren 3117 00123988 2015.01.07 Coaxial Cable Huber+Suhner SUCOFLEX 106 AC5-C1 2016.04.10 Coaxial Cable Huber+Suhner SUCOFLEX 106 AC5-C2 2015.03.01 Coaxial Cable Huber+Suhner SUCOFLEX 102 AC5-C3 2015.03.01 EMI Receiver Agilent N9038A MY51210196 2015.03.01 Temperature/Humidity Meter Zhichen ZC1-2 AC5-TH 2015.06.09 Note 1: All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Report No: 1460406R-RF-US-P05V01 Page: 131 of 263 6.2. Test Setup 6.3. Limit Radiated emissions which fall in the restricted bands, as defined in Section 15.205(a) of FCC part 15, must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). 6.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009 and tested according to KDB 558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4: 2009 on radiated measurement. 6.5. Uncertainty The measurement uncertainty above 1G is defined as s 3.9 dB Report No: 1460406R-RF-US-P05V01 Page: 132 of 263 6.6. Test Result All of the test result shown indicates the worst case, and spectrum analyzer parameters setting as shown below: Peak detector: RBW = 1MHz, VBW = 3MHz, sweep time = 200ms; Average detector: RMS detector RBW = 1MHz, VBW = 3MHz, sweep time = auto. Measure Level = Reading Level + Cable Loss + Antenna Factor - Preamplifier Gain In case the emission is fail due to the used RB/VB is too wide, marker-delta method of FCC Public Notice will be followed. Engineer: Jack Site: AC5 Time: 2014/07/17 - 09:36 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Horizontal EUT: Wireless N VDSL2 4-ports Gateway with USB, Wireless N VDSL2 4-ports Gateway without USB Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2412MHz by 802.11b Ant1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 63.013 24.760-10.98774.000 38.253PK 2 * 2412.080 110.268 71.817N/AN/A 38.451PK Report No: 1460406R-RF-US-P05V01 Page: 133 of 263 Engineer: Jack Site: AC5 Time: 2014/07/17 - 09:46 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Horizontal EUT: Wireless N VDSL2 4-ports Gateway with USB, Wireless N VDSL2 4-ports Gateway without USB Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2412MHz by 802.11b Ant 1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 51.367 13.114-2.63354.000 38.253AV 2 * 2411.145 106.189 67.747N/AN/A 38.442AV Report No: 1460406R-RF-US-P05V01 Page: 134 of 263 Engineer: Jack Site: AC5 Time: 2014/07/17 - 09:54 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Vertical EUT: Wireless N VDSL2 4-ports Gateway with USB, Wireless N VDSL2 4-ports Gateway without USB Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2412MHz by 802.11b Ant 1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 63.329 25.736-10.67174.000 37.593PK 2 * 2411.915 108.588 70.887N/AN/A 37.701PK Report No: 1460406R-RF-US-P05V01 Page: 135 of 263 Engineer: Jack Site: AC5 Time: 2014/07/17 - 09:55 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Vertical EUT: Wireless N VDSL2 4-ports Gateway with USB, Wireless N VDSL2 4-ports Gateway without USB Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2412MHz by 802.11b Ant 1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 51.458 13.865-2.54254.000 37.593AV 2 * 2411.200 104.861 67.163N/AN/A 37.698AV Report No: 1460406R-RF-US-P05V01 Page: 136 of 263 Engineer: Jack Site: AC5 Time: 2014/07/17 - 10:03 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988(1-18GHz) Polarity: Horizontal EUT: Wireless N VDSL2 4-ports Gateway with USB, Wireless N VDSL2 4-ports Gateway without USB Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2462MHz by 802.11b Ant 1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2460.5…

Text truncated - open the document above for the full version.

Appendix 1 – Test Setup Photograph Test Mode: Transmitting Description: Front View of Conducted Emission Test Setup Test Mode: Transmitting Description: Back View of Conducted Emission Test Setup Page: 2 of 3 Test Mode: Transmitting Description: Front View of Radiated Emission Test Setup for Below 30MHz Test Mode: Transmitting Description: Front View of Radiated Emission Test Setup for Below 1GHz Page: 3 of 3 Test Mode : Transmitting Description : Front View of Radiated Emission Test Setup for 1~18GHz Test Mode: Transmitting Description: Front View of Radiated Emission Test Setup for Above 18GHz
