Quick Start Guide www.zyxel.com VMG8324-B10A and VMG8324- B30A Series Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Version 1.00 Edition 1, 11/2013 Copyright © 2013 ZyXEL Communications Corporation User’s Guide Default Login Details LAN IP Addresshttp://192.168.1.1 Loginadmin Password1234 VMG8324-B10A / VMG8324-B30A Series User’s Guide2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the Device and get up and running right away. Contents Overview VMG8324-B10A / VMG8324-B30A Series User’s Guide 3 Contents Overview User’s Guide ....................................................................................................................................... 15 Introducing the Device ............................................................................................................................17 The Web Configurator .............................................................................................................................25 Quick Start ...............................................................................................................................................33 Technical Reference .......................................................................................................................... 35 Network Map and Status Screens ...........................................................................................................37 Broadband ...............................................................................................................................................43 Wireless ..................................................................................................................................................71 Home Networking ..................................................................................................................................107 Routing ..................................................................................................................................................131 Quality of Service (QoS) .......................................................................................................................139 Network Address Translation (NAT) ......................................................................................................157 Dynamic DNS Setup .............................................................................................................................175 Interface Group .....................................................................................................................................179 USB Service ..........................................................................................................................................185 Power Management ..............................................................................................................................193 Firewall ..................................................................................................................................................197 MAC Filter .............................................................................................................................................205 Parental Control ....................................................................................................................................207 Scheduler Rule ...................................................................................................................................... 211 Certificates ............................................................................................................................................213 VPN .......................................................................................................................................................221 Voice .....................................................................................................................................................235 Log .......................................................................................................................................................267 Traffic Status ........................................................................................................................................271 VoIP Status ...........................................................................................................................................275 ARP Table .............................................................................................................................................277 Routing Table ........................................................................................................................................279 IGMP/MLD Status ................................................................................................................................281 xDSL Statistics ......................................................................................................................................283 3G Statistics .........................................................................................................................................287 User Account .........................................................................................................................................289 Remote Management ............................................................................................................................291 TR-069 Client .............................................................................…

Text truncated - open the document above for the full version.

VMG8324-B10A / VMG8324-B30A Series User’s Guide207 CHAPTER 17 Parental Control 17.1 Overview Parental control allows you to block web sites with the specific URL. You can also define time periods and days during which the Device performs parental control on a specific user. 17.2 The Parental Control Screen Use this screen to enable parental control, view the parental control rules and schedules. Click Security > Parental Control to open the following screen. Figure 124 Security > Parental Control The following table describes the fields in this screen. Table 93 Security > Parental Control LABELDESCRIPTION Parental Control Select Enable to activate parental control. Add new PCPClick this if you want to configure a new parental control rule. #This shows the index number of the rule. StatusThis indicates whether the rule is active or not. A yellow bulb signifies that this rule is active. A gray bulb signifies that this rule is not active. PCP NameThis shows the name of the rule. Home Network User (MAC) This shows the MAC address of the LAN user’s computer to which this rule applies. Chapter 17 Parental Control VMG8324-B10A / VMG8324-B30A Series User’s Guide 208 17.2.1 Add/Edit a Parental Control Rule Click Add new PCP in the Parental Control screen to add a new rule or click the Edit icon next to an existing rule to edit it. Use this screen to configure a restricted access schedule and/or URL filtering settings to block the users on your network from accessing certain web sites. Figure 125 Parental Control Rule: Add/Edit Internet Access Schedule This shows the day(s) and time on which parental control is enabled. Network Service This shows whether the network service is configured. If not, None will be shown. Website BlockThis shows whether the website block is configured. If not, None will be shown. ModifyClick the Edit icon to go to the screen where you can edit the rule. Click the Delete icon to delete an existing rule. ApplyClick Apply to save your changes. CancelClick Cancel to restore your previously saved settings. Table 93 Security > Parental Control (continued) LABELDESCRIPTION Chapter 17 Parental Control VMG8324-B10A / VMG8324-B30A Series User’s Guide 209 The following table describes the fields in this screen. Table 94 Parental Control Rule: Add/Edit LABELDESCRIPTION General ActiveSelect the checkbox to activate this parental control rule. Parental Control Profile Name Enter a descriptive name for the rule. Home Network User Select the LAN user that you want to apply this rule to from the drop-down list box. If you select Custom, enter the LAN user’s MAC address. If you select All, the rule applies to all LAN users. Internet Access Schedule DaySelect check boxes for the days that you want the Device to perform parental control. TimeDrag the time bar to define the time that the LAN user is allowed access. Network Service Network Service Setting If you select Block, the Device prohibits the users from viewing the Web sites with the URLs listed below. If you select Allow, the Device blocks access to all URLs except ones listed below. Add new service Click this to show a screen in which you can add a new service rule. You can configure the Service Name, Protocol, and Name of the new rule. #This shows the index number of the rule. Select the checkbox next to the rule to activate it. Service NameThis shows the name of the rule. Protocol:PortThis shows the protocol and the port of the rule. ModifyClick the Edit icon to go to the screen where you can edit the rule. Click the Delete icon to delete an existing rule. Blocked Site/ URL Keyword Click Add to show a screen to enter the URL of web site or URL keyword to which the Device blocks access. Click Delete to remove it. ApplyClick this button to save your settings back to the Device. CancelClick Cancel to restore your previously saved settings. Chapter 17 Parental Control VMG8324-B10A / VMG8324-B30A Series User’s Guide 210 VMG8324-B10A / VMG8324-B30A Series User’s Guide211 CHAPTER 18 Scheduler Rule 18.1 Overview You can define time periods and days during which the Device performs scheduled rules of certain features (such as Firewall Access Control) in the Scheduler Rule screen. 18.2 The Scheduler Rule Screen Use this screen to view, add, or edit time schedule rules. Click Security > Scheduler Rule to open the following screen. Figure 126 Security > Scheduler Rule The following table describes the fields in this screen. Table 95 Security > Scheduler Rule LABELDESCRIPTION Add new ruleClick this to create a new rule. #This is the index number of the entry. Rule NameThis shows the name of the rule. DayThis shows the day(s) on which this rule is enabled. TimeThis shows the period of time on which this rule is enabled. DescriptionThis shows the description of this rule. ModifyClick the Edit icon to edit the schedule. Click the Delete icon to delete a scheduler rule. Note: You cannot delete a scheduler rule once it is applied to a certain feature. Chapter 18 Scheduler Rule VMG8324-B10A / VMG8324-B30A Series User’s Guide 212 18.2.1 Add/Edit a Schedule Click the Add button in the Scheduler Rule screen or click the Edit icon next to a schedule rule to open the following screen. Use this screen to configure a restricted access schedule. Figure 127 Scheduler Rule: Add/Edit The following table describes the fields in this screen. Table 96 Scheduler Rule: Add/Edit LABELDESCRIPTION Rule NameEnter a name (up to 31 printable English keyboard characters, not including spaces) for this schedule. DaySelect check boxes for the days that you want the Device to perform this scheduler rule. Time if Day Range Enter the time period of each day, in 24-hour format, during which the rule will be enforced. DescriptionEnter a description for this scheduler rule. ApplyClick Apply to save your changes. CancelClick Cancel to exit this screen without saving. VMG8324-B10A / VMG8324-B30A Series User’s Guide213 CHAPTER 19 Certificates 19.1 Overview The Device can use certif…

Text truncated - open the document above for the full version.

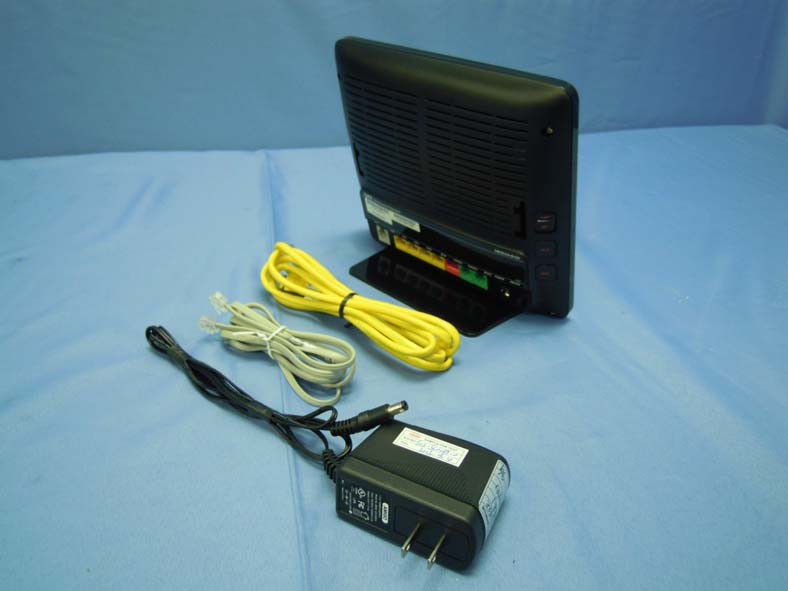

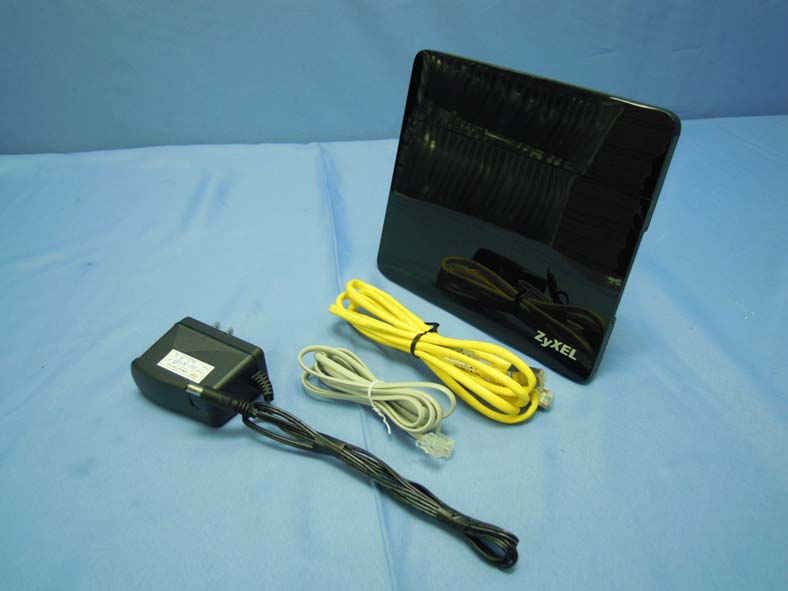

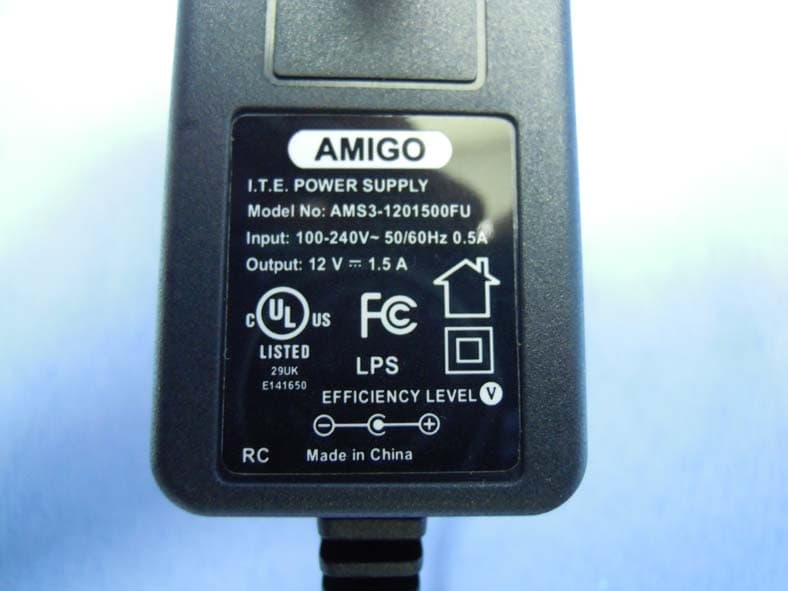

Report No： 138094R-RFUSP42V01 Page: 184 of 189 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 138094R-RFUSP42V01 Page: 185 of 189 (3) EUT Photo

ZyXEL FCC ID.: I88VMG8324B10A FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Model No.: VMG8324-B10A FCC ID : I88VMG8324B10A S/N: Made in Taiwan Trade name: ZyXEL Model number.: VMG8324-B10A

Report No： 138094R-RFUSP42V01 Page: 186 of 190 (4) EUT Photo (5) EUT Photo Report No： 138094R-RFUSP42V01 Page: 187 of 190 (6) EUT Photo (7) EUT Photo Report No： 138094R-RFUSP42V01 Page: 188 of 190 (8) EUT Photo (9) EUT Photo Report No： 138094R-RFUSP42V01 Page: 189 of 190 (10) EUT Photo (11) EUT Photo (MB) Report No： 138094R-RFUSP42V01 Page: 190 of 190 (12) EUT Photo (Antenna) (13) EUT Photo (Antenna)

Report No. 138094R-RF-US-Exp Page: 1 of 4 RF Exposure Evaluation Declaration Product Name ： Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Model No. ： VMG8324-B10A FCC ID. ： I88VMG8324B10A Applicant : ZyXEL Communications Corporation Address : No. 2, Gongye E. 9th Road, Hsinchu Science Park Hsinchu, Taiwan Date of Report : 2013/08/01 Report No. : 138094R-RF-US-Exp Issued Date : 2013/09/13 Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 138094R-RF-US-Exp Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 138094R-RF-US-Exp Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.9dBi or 1.95 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 57.8096 0.02243 6 2437 82.4138 0.03197 11 2462 49.7737 0.01931 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 52.2396 0.02027 6 2437 147.2313 0.05712 11 2462 34.3558 0.01333 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 138094R-RF-US-Exp Page: 4 of 4 1.4. Product Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 2.9dBi(or 1.95) and 3.7dBi(or 2.34) in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 86.2979 0.04017 6 2437 317.6874 0.14789 11 2462 86.8960 0.04045 IEEE 802.11n (40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 36.3078 0.01690 6 2437 48.9779 0.02280 11 2462 25.0611 0.01167 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 138094R-RFUSP42V01 Page: 1 of 223 FCC Test Report Product Name： Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Model No. ： VMG8324-B10A FCC ID. ： I88VMG8324B10A Applicant ： ZyXEL Communications Corporation Address ： No. 2, Gongye E. 9th Road, Hsinchu Science Park Hsinchu, Taiwan Date of Report ：2013/08/01 Report No. ：138094R-RFUSP42V01 Issued Date ：2013/09/13 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 138094R-RFUSP42V01 Page: 2 of 223 FCC Test Report Certification Issued Date : 2013/09/13 Report No. : 138094R-RFUSP42V01 Product Name ： Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Applicant ： ZyXEL Communications Corporation Address ： No. 2, Gongye E. 9th Road, Hsinchu Science Park Hsinchu, Taiwan Manufacturer ： (1) WuXi MitraStar Technology Co. Ltd. (2) MitraStar Technology Corporation Model No. ： VMG8324-B10A FCC ID. ： I88VMG8324B10A EUT Test Voltage : AC 100-240V, 50/60Hz Trade Name ： ZyXEL Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( Sabrina Tsai / Engineer) Approved By : ( Roy Wang / Director ) Report No： 138094R-RFUSP42V01 Page: 3 of 223 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 138094R-RFUSP42V01 Page: 4 of 223 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 13 1.7. Test Facility...................................................................................................................14 2. Conducted Emission .................................................................................................... 15 2.1. Test Equipment............................................................................................................. 15 2.2. Test Setup .................................................................................................................... 15 2.3. Limits ............................................................................................................................ 16 2.4. Test Procedure ............................................................................................................. 16 2.5. Test Specification.......................................................................................................... 16 2.6. Uncertainty ................................................................................................................... 16 2.7. Test Result....................................................................................................................17 2.8. Test Photo .................................................................................................................... 19 3. Peak Power Output ...................................................................................................... 20 3.1. Test Equipment............................................................................................................. 20 3.2. Test Setup .................................................................................................................... 20 3.3. Test procedures ............................................................................................................ 20 3.4. Limits ............................................................................................................................ 20 3.5. Test Specification.......................................................................................................... 20 3.6. Uncertainty ................................................................................................................... 20…

Text truncated - open the document above for the full version.

Report No： 138094R-RFUSP42V01 Page: 81 of 223 Channel 11 (2462MHz) Report No： 138094R-RFUSP42V01 Page: 82 of 223 Product Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/06 Test Site SR7 IEEE 802.11g, Antenna Gain: 2.9dBi, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 38.35 ≧20 Pass 11 2462 48.18 ≧20 Pass Channel 01 (2412MHz) Report No： 138094R-RFUSP42V01 Page: 83 of 223 Channel 11 (2462MHz) Report No： 138094R-RFUSP42V01 Page: 84 of 223 Product Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/06 Test Site SR7 IEEE 802.11n (20MHz), (Ant 0), Antenna Gain: 3.7dBi, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 40.08 ≧20 Pass 11 2462 41.81 ≧20 Pass Channel 1 (2412MHz) Report No： 138094R-RFUSP42V01 Page: 85 of 223 Channel 11 (2462MHz) Report No： 138094R-RFUSP42V01 Page: 86 of 223 Product Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/06 Test Site SR7 IEEE 802.11n (20MHz), (Ant 1), Antenna Gain: 3.7dBi, Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 1 2412 39.24 ≧20 Pass 11 2462 47.28 ≧20 Pass Channel 1 (2412MHz) Report No： 138094R-RFUSP42V01 Page: 87 of 223 Channel 11 (2462MHz) Report No： 138094R-RFUSP42V01 Page: 88 of 223 Product Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/06 Test Site SR7 IEEE 802.11n (40MHz), (Ant 0), Antenna Gain: 2.9dBi,Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 3 2422 32.92 ≧20 Pass 9 2452 47.03 ≧20 Pass Channel 3 (2422MHz) Report No： 138094R-RFUSP42V01 Page: 89 of 223 Channel 9 (2452MHz) Report No： 138094R-RFUSP42V01 Page: 90 of 223 Product Wireless N VDSL2 VoIP Combo WAN Gigabit IAD Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/06 Test Site SR7 IEEE 802.11n (40MHz), (Ant 1), Antenna Gain: 3.7dBi,Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 3 2422 34.60 ≧20 Pass 9 2452 44.33 ≧20 Pass Channel 3 (2422MHz) Report No： 138094R-RFUSP42V01 Page: 91 of 223 Channel 9 (2452MHz) Report No： 138094R-RFUSP42V01 Page: 92 of 223 2412MHz (30MHz-1GHz)-802.11b 2412MHz (1GHz-5GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 93 of 223 2412MHz (5GHz-9GHz)-802.11b 2412MHz (9GHz-13GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 94 of 223 2412MHz (13GHz-17GHz)-802.11b 2412MHz (17GHz-21GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 95 of 223 2412MHz (21GHz-25GHz)-802.11b 2437MHz (30MHz-1GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 96 of 223 2437MHz (1GHz-5GHz)-802.11b 2437MHz (5GHz-9GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 97 of 223 2437MHz (9GHz-13GHz)-802.11b 2437MHz (13GHz-17GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 98 of 223 2437MHz (17GHz-21GHz)-802.11b 2437MHz (21GHz-25GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 99 of 223 2462MHz (30MHz-1GHz)-802.11b 2462MHz (1GHz-5GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 100 of 223 2462MHz (5GHz-9GHz)-802.11b 2462MHz (9GHz-13GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 101 of 223 2462MHz (13GHz-17GHz)-802.11b 2462MHz (17GHz-21GHz) -802.11b Report No： 138094R-RFUSP42V01 Page: 102 of 223 2462MHz (21GHz-25GHz)-802.11b 2412MHz (30MHz-1GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 103 of 223 2412MHz (1GHz-5GHz)-802.11g 2412MHz (5GHz-9GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 104 of 223 2412MHz (9GHz-13GHz)-802.11g 2412MHz (13GHz-17GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 105 of 223 2412MHz (17GHz-21GHz)-802.11g 2412MHz (21GHz-25GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 106 of 223 2437MHz (30MHz-1GHz)-802.11g 2437MHz (1GHz-5GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 107 of 223 2437MHz (5GHz-9GHz)-802.11g 2437MHz (9GHz-13GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 108 of 223 2437MHz (13GHz-17GHz)-802.11g 2437MHz (17GHz-21GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 109 of 223 2437MHz (21GHz-25GHz)-802.11g 2462MHz (30MHz-1GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 110 of 223 2462MHz (1GHz-5GHz)-802.11g 2462MHz (5GHz-9GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 111 of 223 2462MHz (9GHz-13GHz)-802.11g 2462MHz (13GHz-17GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 112 of 223 2462MHz (17GHz-21GHz)-802.11g 2462MHz (21GHz-25GHz) -802.11g Report No： 138094R-RFUSP42V01 Page: 113 of 223 2412MHz (30MHz-1GHz)-802.11n(20MHz) (Ant 0) 2412MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 114 of 223 2412MHz (5GHz-9GHz)-802.11n(20MHz) (Ant 0) 2412MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 115 of 223 2412MHz (13GHz-17GHz)-802.11n(20MHz) (Ant 0) 2412MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 116 of 223 2412MHz (21GHz-25GHz)-802.11n(20MHz) (Ant 0) 2437MHz (30MHz-1GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 117 of 223 2437MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 0) 2437MHz (5GHz-9GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 118 of 223 2437MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 0) 2437MHz (13GHz-17GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 119 of 223 2437MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 0) 2437MHz (21GHz-25GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 120 of 223 2462MHz (30MHz-1GHz)-802.11n(20MHz) (Ant 0) 2462MHz (1GHz-5GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 121 of 223 2462MHz (5GHz-9GHz)-802.11n(20MHz) (Ant 0) 2462MHz (9GHz-13GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 122 of 223 2462MHz (13GHz-17GHz)-802.11n(20MHz) (Ant 0) 2462MHz (17GHz-21GHz) -802.11n(20MHz) (Ant 0) Report No： 138094R-RFUSP42V01 Page: 123 o…

Text truncated - open the document above for the full version.

Report No： 138094R-RFUSP42V01 Page: 151 of 223 2437MHz (21GHz-25GHz)-802.11n(40MHz) (Ant 1) 2452MHz (30MHz-1GHz) -802.11n(40MHz) (Ant 1) Report No： 138094R-RFUSP42V01 Page: 152 of 223 2452MHz (1GHz-5GHz) -802.11n(40MHz) (Ant 1) 2452MHz (5GHz-9GHz) -802.11n(40MHz) (Ant 1) Report No： 138094R-RFUSP42V01 Page: 153 of 223 2452MHz (9GHz-13GHz) -802.11n(40MHz) (Ant 1) 2452MHz (13GHz-17GHz) -802.11n(40MHz) (Ant 1) Report No： 138094R-RFUSP42V01 Page: 154 of 223 2452MHz (17GHz-21GHz) -802.11n(40MHz) (Ant 1) 2452MHz (21GHz-25GHz) -802.11n(40MHz) (Ant 1) Report No： 138094R-RFUSP42V01 Page: 155 of 223 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2014/02/17 Spectrum Analyzer Agilent E4440A MY46187335 2014/01/27 k Type Cable Huber Suhner Sucoflex 102 25623/2 2014/02/21 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 138094R-RFUSP42V01 Page: 156 of 223 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Pr…
