I88VSG1435B101

ZyXEL Communications Corporation

802.11n Wireless VDSL2 4-Port Gateway with HPNA3.1

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Oct 13, 2010
Application Purpose: Original Equipment
Date of Application: Oct 13, 2010
Equipment Note: 802.11n Wireless VDSL2 4-Port Gateway with HPNA3.1
Frequency Range: 2422.00000000 - 2452.00000000
Company: ZyXEL Communications Corporation
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

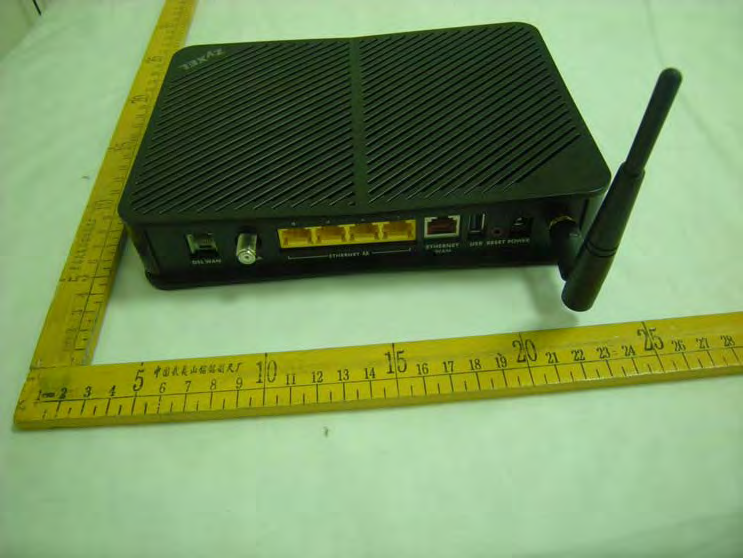

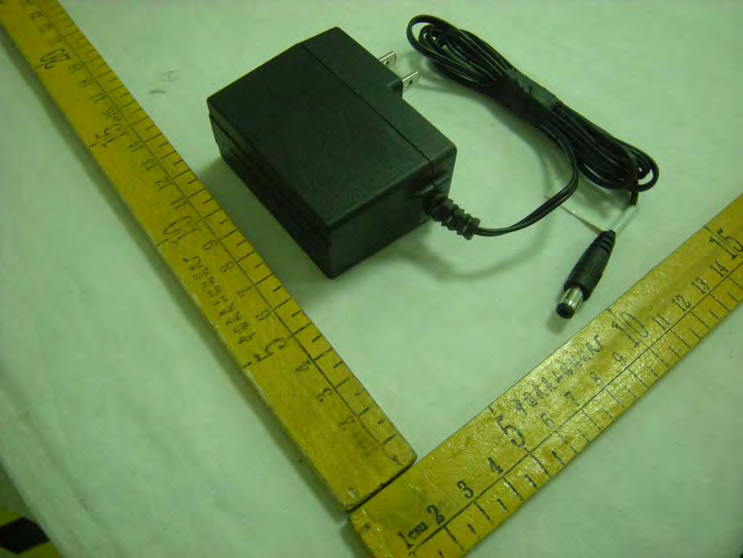

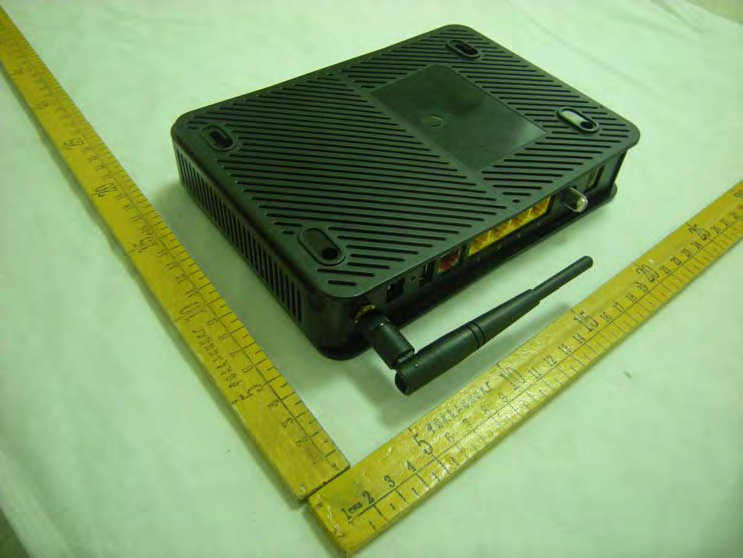

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	274.00 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is the maximum combined conducted output power as indicated in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz.
