I88WAC6103D-I802.11 ac Unified Pro Access Point

Quick Start Guide www.zyxel.com NWA5000/WAC6000 Series NWA5121-N / NWA5121-NI / NWA5123-NI / NWA5301-NJ / WAC6502D-E / WAC6502D-S / WAC6503D-S / WAC6553D-E / WAC6103D-I 802.11 a/b/g/n/ac Unified Access Point Version 4.21 Edition 1, 07/2015 Copyright © 2015 ZyXEL Communications Corporation User’s Guide Default Login Details LAN IP Addresshttp://192.168.1.2 User Nameadmin Password1234 802.11ac 同步雙頻整合式無線網路基地台 NWA5000 / WAC6000 Series User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the NWA/WAC and access the Web Configurator. • CLI Reference Guide The CLI Reference Guide explains how to use the Command-Line Interface (CLI) and CLI commands to configure the NWA/WAC. Note: It is recommended you use the Web Configurator to configure the NWA/WAC. • Web Configurator Online Help Click the help icon in any screen for help in configuring that screen and supplementary information. Contents Overview NWA5000 / WAC6000 Series User’s Guide 3 Contents Overview User’s Guide ....................................................................................................................................... 10 Introduction ............................................................................................................................................. 11 The Web Configurator .............................................................................................................................28 Technical Reference .......................................................................................................................... 40 Dashboard ...............................................................................................................................................41 Monitor ....................................................................................................................................................47 Network ...................................................................................................................................................59 Wireless ..................................................................................................................................................68 User .........................................................................................................................................................80 AP Profile ................................................................................................................................................87 MON Profile ...........................................................................................................................................106 WDS Profile ........................................................................................................................................... 110 Certificates ............................................................................................................................................ 112 System ..................................................................................................................................................129 Log and Report .....................................................................................................................................154 File Manager .........................................................................................................................................167 Diagnostics ............................................................................................................................................178 LEDs .....................................................................................................................................................180 Antenna Switch .....................................................................................................................................183 Reboot ...................................................................................................................................................185 Shutdown ..............................................................................................................................................186 Troubleshooting ....................................................................................................................................187 Table of Contents NWA5000 / WAC6000 Series User’s Guide 4 Table of Contents Contents Overview .............................................................................................................................. 3 Table of Contents ................................................................................................................................. 4 Part I: User’s Guide ......................................................................................... 10 Chapter 1 Introduction ......................................................................................................................................... 11 1.1 Overview .......................................................................................................................................... 11 1.1.1 Management Mode ..................................................................................................................12 1.1.2 MBSSID ...................................................................................................................................13 1.1.3 Dual-Radio ...................................................…

Text truncated - open the document above for the full version.

Appendix A Importing Certificates NWA5000 / WAC6000 Series User’s Guide 201 Removing a Certificate in Internet Explorer This section shows you how to remove a public key certificate in Internet Explorer 7 on Windows XP. 1Open Internet Explorer and click Tools > Internet Options. 2In the Internet Options dialog box, click Content > Certificates. Appendix A Importing Certificates NWA5000 / WAC6000 Series User’s Guide 202 3In the Certificates dialog box, click the Trusted Root Certificates Authorities tab, select the certificate that you want to delete, and then click Remove. 4In the Certificates confirmation, click Yes. 5In the Root Certificate Store dialog box, click Yes. 6The next time you go to the web site that issued the public key certificate you just removed, a certification error appears. Appendix A Importing Certificates NWA5000 / WAC6000 Series User’s Guide 203 Firefox The following example uses Mozilla Firefox 2 on Windows XP Professional; however, the screens can also apply to Firefox 2 on all platforms. 1If your device’s Web Configurator is set to use SSL certification, then the first time you browse to it you are presented with a certification error. 2Select Accept this certificate permanently and click OK. 3The certificate is stored and you can now connect securely to the Web Configurator. A sealed padlock appears in the address bar, which you can click to open the Page Info > Security window to view the web page’s security information. Appendix A Importing Certificates NWA5000 / WAC6000 Series User’s Guide 204 Installing a Stand-Alone Certificate File in Firefox Rather than browsing to a ZyXEL Web Configurator and installing a public key certificate when prompted, you can install a stand-alone certificate file if one has been issued to you. 1Open Firefox and click Tools > Options. 2In the Options dialog box, click Advanced > Encryption > View Certificates. Appendix A Importing Certificates NWA5000 / WAC6000 Series User’s Guide 205 3In the Certificate Manager dialog box, click Web Sites > Import. 4Use the Select File dialog box to locate the certificate and then click Open. 5The next time you visit the web site, click the padlock in the address bar to open the Page Info > Security window to see the web page’s security information. Removing a Certificate in Firefox This section shows you how to remove a public key certificate in Firefox 2. Appendix A Importing Certificates NWA5000 / WAC6000 Series User’s Guide 206 1Open Firefox and click Tools > Options. 2In the Options dialog box, click Advanced > Encryption > View Certificates. Appendix A Importing Certificates NWA5000 / WAC6000 Series User’s Guide 207 3In the Certificate Manager dialog box, select the Web Sites tab, select the certificate that you want to remove, and then click Delete. 4In the Delete Web Site Certificates dialog box, click OK. 5The next time you go to the web site that issued the public key certificate you just removed, a certification error appears. NWA5000 / WAC6000 Series User’s Guide 208 APPENDIX B IPv6 Overview IPv6 (Internet Protocol version 6), is designed to enhance IP address size and features. The increase in IPv6 address size to 128 bits (from the 32-bit IPv4 address) allows up to 3.4 x 10 38 IP addresses. IPv6 Addressing The 128-bit IPv6 address is written as eight 16-bit hexadecimal blocks separated by colons (:). This is an example IPv6 address 2001:0db8:1a2b:0015:0000:0000:1a2f:0000. IPv6 addresses can be abbreviated in two ways: • Leading zeros in a block can be omitted. So 2001:0db8:1a2b:0015:0000:0000:1a2f:0000 can be written as 2001:db8:1a2b:15:0:0:1a2f:0. • Any number of consecutive blocks of zeros can be replaced by a double colon. A double colon can only appear once in an IPv6 address. So 2001:0db8:0000:0000:1a2f:0000:0000:0015 can be written as 2001:0db8::1a2f:0000:0000:0015, 2001:0db8:0000:0000:1a2f::0015, 2001:db8::1a2f:0:0:15 or 2001:db8:0:0:1a2f::15. Prefix and Prefix Length Similar to an IPv4 subnet mask, IPv6 uses an address prefix to represent the network address. An IPv6 prefix length specifies how many most significant bits (start from the left) in the address compose the network address. The prefix length is written as “/x” where x is a number. For example, 2001:db8:1a2b:15::1a2f:0/32 means that the first 32 bits (2001:db8) is the subnet prefix. Link-local Address A link-local address uniquely identifies a device on the local network (the LAN). It is similar to a “private IP address” in IPv4. You can have the same link-local address on multiple interfaces on a device. A link-local unicast address has a predefined prefix of fe80::/10. The link-local unicast address format is as follows. Table 85 Link-local Unicast Address Format 1111 1110 100Interface ID 10 bits54 bits64 bits Appendix B IPv6 NWA5000 / WAC6000 Series User’s Guide 209 Global Address A global address uniquely identifies a device on the Internet. It is similar to a “public IP address” in IPv4. A global unicast address starts with a 2 or 3. Unspecified Address An unspecified address (0:0:0:0:0:0:0:0 or ::) is used as the source address when a device does not have its own address. It is similar to “0.0.0.0” in IPv4. Loopback Address A loopback address (0:0:0:0:0:0:0:1 or ::1) allows a host to send packets to itself. It is similar to “127.0.0.1” in IPv4. Multicast Address In IPv6, multicast addresses provide the same functionality as IPv4 broadcast addresses. Broadcasting is not supported in IPv6. A multicast address allows a host to send packets to all hosts in a multicast group. Multicast scope allows you to determine the size of the multicast group. A multicast address has a predefined prefix of ff00::/8. The following table describes some of the predefined multicast addresses. The following table describes the multicast addresses which are reserved and can not be assigned to a multicast group. Table 86 Predefined Multicast Address MULTICAST ADDRESSDESCRIPTION FF01:0:0:0:0:0:0:1All hosts on a local node. FF01:0:…

Text truncated - open the document above for the full version.

ZyXEL Communications Corporation No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Date: 2015/8/10 Federal Communications Commission 7435 Oakland Mills Rd, Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: I88WAC6103D-I To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WAC6103D-I to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name:Gary Chang Job Title :Manager e-mail: [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Emma Bao / Section Manager ZyXEL Communications Corporation Tel:886 3 578-3942 # 88582 E-mail:[email protected]

ZyXEL Communications Corporation No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Confidentiality Request Letter Date:2015/8/10 Federal Communications Commission Authorization and Evaluation Division FCC ID：I88WAC6103D-I Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Emma Bao / Section Manager ZyXEL Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

ZyXEL Communications Corporation No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Date: August 10, 2015 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, We, ZyXEL Communications Corporation declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: I88WAC6103D-I IC:2468C-WAC6103DI Regards, Emma Bao / Section Manager ZyXEL Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

ZyXEL Communications Corporation No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: August 10, 2015 Subject: FCC Application for FCC ID: I88WAC6103D-I To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from International Certification Corp..(report number: FD563002) Emma Bao / Section Manager ZyXEL Communications Corporation Tel:886 3 578-3942 # 88582 E-mail:[email protected]

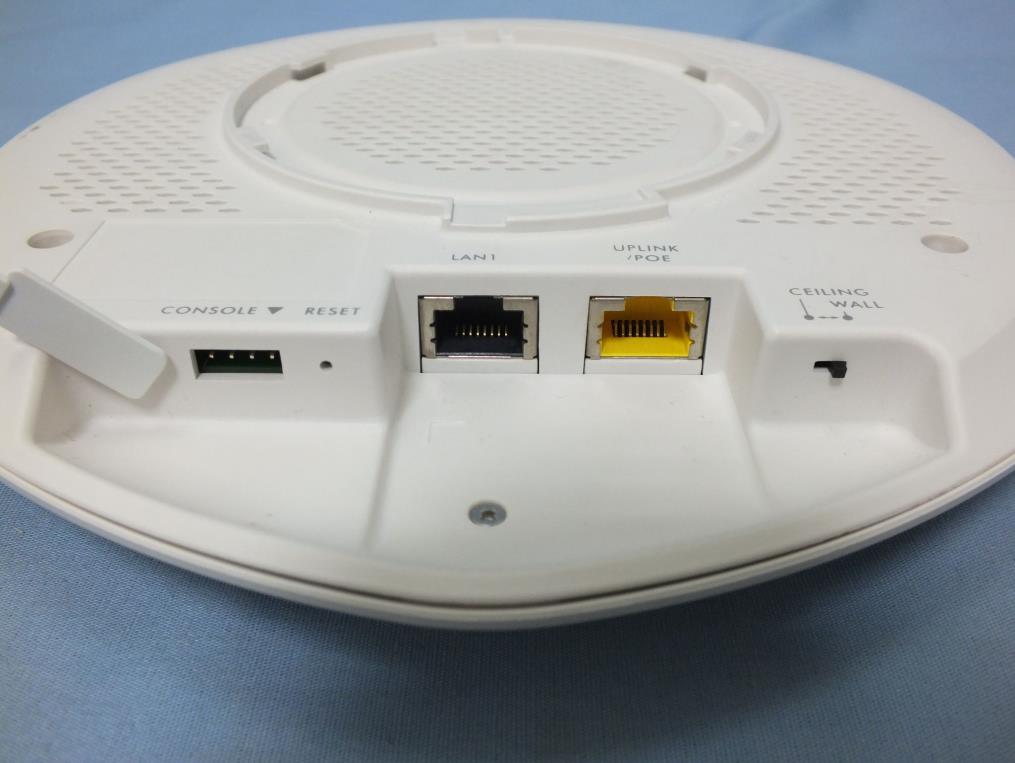

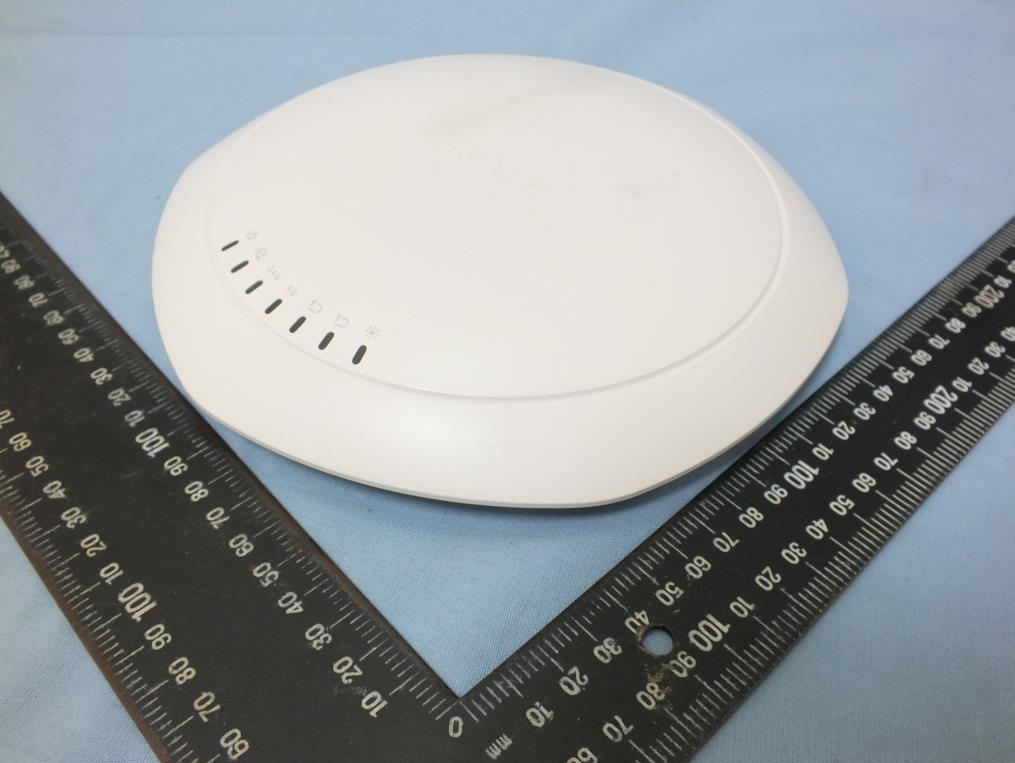

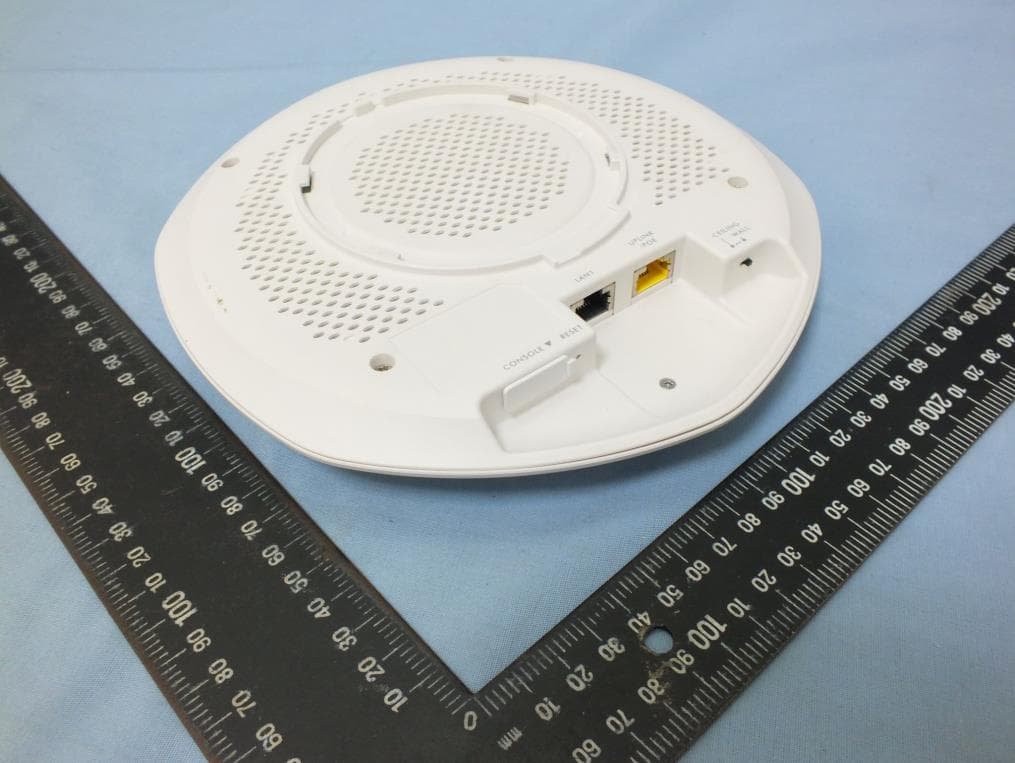

Project No.: EP563002 Page No. : 1 of 10 Photographs of EUT Project No.: EP563002 Page No. : 2 of 10

Models Name/Part Name/ Artwork Number/ Artwork Rev./ Unit:mm SPEC LABEL 02 Designed/Date/ 15 Jul ‘15amy NET15-4054900 ZyXEL WAC6103D-I DELTA NETWORKS, INC. THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF DELTA NETWORKS. AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION . Graphic Layout Scale/ 1:1 Comment/ PANTONE BLACK Diecut display only Colors Printed/Dimensions/ LENGTH WIDTH 39.5 mm x 23 mm Model Number: WAC6103D-I Power Rating: PoE Input 48-54V ,0.46A Max. Power C onsumption: 12.5 Watt FCC ID: I88WAC6103D-I IC: 2468C- WAC6103DI Made in China D41163 XXXXXXXXXXXXXX Model Number: WAC6103D-I Power Rating: PoE Input 48-54V ,0.46A Max. Power C onsumption: 12.5 Watt FCC ID: I88WAC6103D-I IC: 2468C- WAC6103DI Made in China D41163 XXXXXXXXXXXXXX 6.4mm 7mm7mm5mm5mm 4.83mm 7mm 3mm Label Location

Project No.: EP563002 Page No. : 3 of 10 Project No.: EP563002 Page No. : 4 of 10 Project No.: EP563002 Page No. : 5 of 10 Project No.: EP563002 Page No. : 6 of 10 Project No.: EP563002 Page No. : 7 of 10 Project No.: EP563002 Page No. : 8 of 10 Project No.: EP563002 Page No. : 9 of 10 Project No.: EP563002 Page No. : 10 of 10

Report No.: FA563002 Page : 1 of 6 Report Version: Rev. 02 FCC RF Exposure Report FCC ID : I88WAC6103D-I Equipment : 802.11 ac Unified Pro Access Point Model No. : WAC6103D-I Brand Name : ZyXEL Applicant : ZyXEL Communications Corporation Address : No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan. Standard : 47 CFR FCC Part 2.1091 Received Date : Jun. 30, 2015 Tested Date : Jul. 18 ~ Aug. 10, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA563002 Page : 2 of 6 Report Version: Rev. 02 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA563002 Page : 3 of 6 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FA563002 Rev. 01 Initial issue Aug. 21, 2015 FA563002 Rev. 02 Modified product name Aug. 25, 2015 Report No.: FA563002 Page : 4 of 6 Report Version: Rev. 02 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Report No.: FA563002 Page : 5 of 6 Report Version: Rev. 02 1.3 MPE EVALUATION RESULTS MPE Evaluation of Single Transmission Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 27.57 4.33 20 0.308 1 5180~5240 27.12 5.12 20 0.333 1 5745~5825 28.33 5.20 20 0.448 1 MPE Evaluation of Simultaneous Transmission 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1, PD = Power density MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of 5 GHz = 0.308 / 1 + 0.448 / 1 = 0.756 < 1 Conclusion MPE evaluations of single and simultaneous transmission meet the requirement of standard. Report No.: FA563002 Page : 6 of 6 Report Version: Rev. 02 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR563002AN Page : 1 of 114 Report Version: Rev. 02 FCC Test Report FCC ID : I88WAC6103D-I Equipment : 802.11 ac Unified Pro Access Point Model No. : WAC6103D-I Brand Name : ZyXEL Applicant : ZyXEL Communications Corporation Address : No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan. Standard : 47 CFR FCC Part 15.407 Received Date : Jun. 30, 2015 Tested Date : Jul. 20 ~ Aug. 10, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR563002AN Page : 2 of 114 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 9 1.3 Test Setup Chart .................................................................................................................................... 9 1.4 The Equipment List .............................................................................................................................. 10 1.5 Testing Applied Standards ................................................................................................................... 11 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 13 3 TRANSMITTER TEST RESULTS ........................................................................................................ 15 3.1 Conducted Emissions ........................................................................................................................... 15 3.2 Emission Bandwidth ............................................................................................................................. 20 3.3 RF Output Power .................................................................................................................................. 23 3.4 Peak Power Spectral Density ............................................................................................................... 25 3.5 Transmitter Radiated and Band Edge Emissions ................................................................................ 29 3.6 Frequency Stability ............................................................................................................................. 112 4 TEST LABORATORY INFORMATION ............................................................................................. 114 Report No.: FR563002AN Page : 3 of 114 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR563002AN Rev. 01 Initial issue Aug. 21, 2015 FR563002AN Rev. 02 Modified product name Aug. 25, 2015 Report No.: FR563002AN Page : 4 of 114 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 2.540MHz 42.24 (Margin -13.76dB) - QP Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 5150.00MHz 52.99 (Margin -1.01dB) - AV Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(e) 6dB bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Max Power [dBm]: 5150-5250MHz: 27.12 5725-5850MHz: 28.33 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR563002AN Page : 5 of 114 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 a 5180-5240 36-48 [4] 3 6-54 Mbps 5150-5250 n (HT20) 5180-5240 36-48 [4] 3 MCS 0-23 5150-5250 n (HT40) 5190-5230 38-46 [2] 3 MCS 0-23 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 3 MCS 0-9 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 3 MCS 0-9 5150-5250 ac (VHT80) 5210 42 [1] 3 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5725-5850 a 5745-5825 149-165 [5] 3 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 3 MCS 0-23 5725-5850 n (HT40) 5755-5795 151-159 [2] 3 MCS 0-23 5725-5850 ac (VHT20) 5745-5825 149-165 [5] 3 MCS 0-9 5725-5850 ac (VHT40) 5755-5795 151-159 [2] 3 MCS 0-9 5725-5850 ac (VHT80) 5775 155 [1] 3 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n/ac uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM, 256QAM modulation. Report No.: FR563002AN Page : 6 of 114 Report Version: Rev. 02 1.1.2 Antenna Set Details Brand / Model Ant. No. Type Connecto…

Text truncated - open the document above for the full version.

Report No.: FR563002CO Page : 1 of 18 Report Version: Rev. 03 FCC Co-Location Test Report FCC ID : I88WAC6103D-I Equipment : 802.11 ac Unified Pro Access Point Model No. : WAC6103D-I Brand Name : ZyXEL Applicant : ZyXEL Communications Corporation Address : No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan. Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 Received Date : Jun. 30, 2015 Tested Date : Jul. 22 ~ Aug. 10, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR563002CO Page : 2 of 18 Report Version: Rev. 03 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 The Equipment List ........................................................................................................................... 6 1.3 Test Standards ................................................................................................................................. 6 1.4 Measurement Uncertainty ................................................................................................................. 6 2 TEST CONFIGURATION .................................................................................................................. 7 2.1 Testing Condition .............................................................................................................................. 7 2.2 The Worst Test Modes and Channel Details ...................................................................................... 7 3 TRANSMITTER TEST RESULTS ..................................................................................................... 8 3.1 Unwanted Emissions into Restricted Frequency Bands ..................................................................... 8 4 TEST LABORATORY INFORMATION ........................................................................................... 18 Report No.: FR563002CO Page : 3 …
