I88WAC6103D-IA802.11 ac Unified Pro Access Point / 802.11ac Dual-Radio Nebula Cloud Managed Access Point / 802.11ac Dual-Radio Dual-Mount PoE Access Point

Default Login Details User’s Guide NAP Series 802.11ac Dual-Radio Nebula Cloud Managed Access Points Copyright © 2020 Zyxel Communications Corporation Note: Login is required only when the NAP cannot be accessed using NCC. Web Addresshttp://(DHCP-assigned IP) or http://192.168.1.2 User Nameadmin PasswordAssigned by NCC or 1234 Version 6.0 Edition 1, 03/2020 NAP Series User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the NAP and register it with the Nebula Control Center (NCC) for cloud management. • Web Configurator Online Help Click the help icon in any screen for help in configuring that screen and supplementary information. • Nebula Control Center User’s Guide This User’s Guide shows how to manage the Nebula devices remotely. The features of these devices are managed through Nebula Control Center. •More Information Go to support.zyxel.com to find other information on the NAP . NAP Series User’s Guide 3 Document Conventions Warnings and Notes These are how warnings and notes are shown in this guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • All models in this series may be referred to as the “NAP” in this guide. • Product labels, screen names, field labels and field choices are all in bold font. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Configuration > Network > IP Setting means you first click Configuration in the navigation panel, then the Network sub menu and finally the IP Setting tab to get to that screen. Icons Used in Figures Figures in this guide may use the following generic icons. The NAP icon is not an exact representation of your device. NAP Router Switch Internet Server DesktopLaptopIP Phone Printer Nebula Switch Nebula Gateway Smart T.V. Access Point Smartphone Set-top box Contents Overview NAP Series User’s Guide 4 Contents Overview Introduction ............................................................................................................................................. 7 The Web Configurator ......................................................................................................................... 21 Dashboard ............................................................................................................................................ 26 Network ................................................................................................................................................. 29 Maintenance ........................................................................................................................................ 33 Troubleshooting .................................................................................................................................... 38 Table of Contents NAP Series User’s Guide 5 Table of Contents Document Conventions ......................................................................................................................3 Contents Overview .............................................................................................................................4 Table of Contents .................................................................................................................................5 Chapter 1 Introduction ..........................................................................................................................................7 1.1 Overview .......................................................................................................................................... 7 1.1.1 Management .......................................................................................................................... 7 1.1.2 Dual-Radio ............................................................................................................................... 8 1.2 Ways to Manage the NAP ............................................................................................................... 9 1.3 Zyxel One Network (ZON) Utility .................................................................................................... 10 1.3.1 Requirements ......................................................................................................................... 10 1.3.2 Run the ZON Utility ................................................................................................................. 11 1.4 Good Habits for Managing the NAP ............................................................................................ 15 1.5 Hardware Connections ................................................................................................................. 15 1.6 LEDs .................................................................................................................................................. 15 1.6.1 NAP303 ................................................................................................................................... 16 1.6.2 NAP203 ................................................................................................................................... 17 1.6.3 NAP102 ................................................................................................................................... 19 Chapter 2 The Web Configurator.............................…

Text truncated - open the document above for the full version.

Default Login Details User’s Guide NWA/WAC/WAX Series 802.11 a/b/g/n/ac/ax Access Point Copyright © 2019 Zyxel Communications Corporation LAN IP AddressDHCP-assigned IP OR 192.168.1.2 User Nameadmin Password1234 Version 6.00 Edition 1, 12/2019 NWA/WAC/WAX Series User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots and graphics in this book may differ slightly from your product due to differences in your product hardware, firmware, or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Some screens or options in this book may not be available for your product (see the product feature tables in Section 1.4 on page 19). Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the Zyxel Device and access the Web Configurator. •CLI Reference Guide The CLI Reference Guide explains how to use the Command-Line Interface (CLI) and CLI commands to configure the Zyxel Device. Note: It is recommended you use the Web Configurator to configure the Zyxel Device. • Web Configurator Online Help Click the help icon in any screen for help in configuring that screen and supplementary information. • Nebula Control Center User’s Guide This User’s Guide shows how to manage the Zyxel Device remotely. The features of these devices can be managed through Nebula Control Center. It also offers features that are not available when the Zyxel Device is in standalone mode (see Section 2.1.2 on page 24). • NXC Series User’s Guide See this User’s Guide for instructions on using the NXC as an AP Controller (AC) for the Zyxel Device. This is used when the Zyxel Device is set to be managed by a Zyxel AC. •More Information Go to support.zyxel.com to find other information on the Zyxel Device . NWA/WAC/WAX Series User’s Guide 3 Document Conventions Warnings and Notes These are how warnings and notes are shown in this guide. Warnings tell you about things that could harm you or your device. Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations. Syntax Conventions • All models in this series may be referred to as the “Zyxel Device” in this guide. • Product labels, screen names, field labels and field choices are all in bold font. • A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Configuration > Network > IP Setting means you first click Configuration in the navigation panel, then the Network sub menu and finally the IP Setting tab to get to that screen. Icons Used in Figures Figures in this guide may use the following generic icons. The Zyxel Device icon is not an exact representation of your device. Zyxel DeviceRouter Switch Internet Server DesktopLaptopAP Controller Printer Nebula Switch Nebula Gateway Smart T.V. IP Phone Contents Overview NWA/WAC/WAX Series User’s Guide 4 Contents Overview Introduction ........................................................................................................................................... 13 AP Management .................................................................................................................................. 24 Hardware ............................................................................................................................................... 33 The Web Configurator ......................................................................................................................... 53 Standalone Configuration ................................................................................................................64 Standalone Configuration ................................................................................................................... 65 Dashboard ............................................................................................................................................ 67 Setup Wizard ......................................................................................................................................... 73 Monitor ................................................................................................................................................... 79 Network ................................................................................................................................................. 94 Wireless ................................................................................................................................................. 105 Bluetooth ............................................................................................................................................. 120 User ....................................................................................................................................................... 123 AP Profile .............................................................................................................................................. 130 MON Profile ......................................................................................................................................... 150 WDS Profile ........................................................................................................................................... 153 Certificates .......................................................................................................................................... 155 System .................................................................................................................................................. 171 Log and Report ................................................................................................................................... 194 File Manager ..…

Text truncated - open the document above for the full version.

Chapter 14 MON Profile NWA/WAC/WAX Series User’s Guide 151 14.2.1 Add/Edit MON Profile This screen allows you to create a new monitor mode profile or edit an existing one. To access this screen, click the Add button or select and existing monitor mode profile and click the Edit button. See Section 1.2.3 on page 15 for more information about MON Mode. Figure 91 Configuration > Object > MON Profile > Add/Edit MON Profile Object Reference Click this to view which other objects are linked to the selected monitor mode profile (for example, an AP management profile). #This field is a sequential value, and it is not associated with a specific profile. StatusThis field shows whether or not the entry is activated. Profile NameThis field indicates the name assigned to the monitor profile. Table 64 Configuration > Object > MON Profile (continued) LABELDESCRIPTION Chapter 14 MON Profile NWA/WAC/WAX Series User’s Guide 152 The following table describes the labels in this screen. Table 65 Configuration > Object > MON Profile > Add/Edit MON Profile LABELDESCRIPTION ActivateSelect this to activate this monitor mode profile. Profile NameThis field indicates the name assigned to the monitor mode profile. Channel dwell timeEnter the interval (in milliseconds) before the Zyxel Device switches to another channel for monitoring. Scan Channel ModeSelect auto to have the Zyxel Device switch to the next sequential channel once the Channel dwell time expires. Select manual to set specific channels through which to cycle sequentially when the Channel dwell time expires. Selecting this options makes the Scan Channel List options available. Set Scan Channel List (2.4 GHz) Select one or more than one channel to have the Zyxel Device using this profile scan the channel(s) when Scan Channel Mode is set to manual. These channels are limited to the 2.4 GHz range (802.11 b/g/n/ax). Set Scan Channel List (5 GHz) Select one or more than one channel to have the Zyxel Device using this profile scan the channel(s) when Scan Channel Mode is set to manual. These channels are limited to the 5 GHz range (802.11 a/n/ac/ax). Not all Zyxel Devices support both 2.4 GHz and 5 GHz frequency bands. OKClick OK to save your changes back to the Zyxel Device. CancelClick Cancel to exit this screen without saving your changes. NWA/WAC/WAX Series User’s Guide 153 CHAPTER 15 WDS Profile 15.1 Overview This chapter shows you how to configure WDS (Wireless Distribution System) profiles for the Zyxel Device to form a WDS with other APs. 15.1.1 What You Can Do in this Chapter The WDS Profile screen (Section 15.2 on page 153) creates preset WDS configurations that can be used by the Zyxel Device. 15.2 WDS Profile This screen allows you to manage and create WDS profiles that can be used by the APs. To access this screen, click Configuration > Object > WDS Profile. Figure 92 Configuration > Object > WDS Profile The following table describes the labels in this screen. Table 66 Configuration > Object > WDS Profile LABELDESCRIPTION AddClick this to add a new profile. EditClick this to edit the selected profile. RemoveClick this to remove the selected profile. #This field is a sequential value, and it is not associated with a specific profile. Profile NameThis field indicates the name assigned to the profile. WDS SSIDThis field shows the SSID specified in this WDS profile. Chapter 15 WDS Profile NWA/WAC/WAX Series User’s Guide 154 15.2.1 Add/Edit WDS Profile This screen allows you to create a new WDS profile or edit an existing one. To access this screen, click the Add button or select and existing profile and click the Edit button. Figure 93 Configuration > Object > WDS Profile > Add/Edit WDS Profile The following table describes the labels in this screen. Table 67 Configuration > Object > WDS Profile > Add/Edit WDS Profile LABELDESCRIPTION Profile NameEnter up to 31 alphanumeric characters for the profile name. WDS SSIDEnter the SSID with which you want the Zyxel Device to connect to a root AP or repeater to form a WDS. Pre-Shared KeyEnter a pre-shared key of between 8 and 63 case-sensitive ASCII characters (including spaces and symbols) or 64 hexadecimal characters. The key is used to encrypt the traffic between the APs. OKClick OK to save your changes back to the Zyxel Device. CancelClick Cancel to exit this screen without saving your changes. NWA/WAC/WAX Series User’s Guide 155 CHAPTER 16 Certificates 16.1 Overview The Zyxel Device can use certificates (also called digital IDs) to authenticate users. Certificates are based on public-private key pairs. A certificate contains the certificate owner’s identity and public key. Certificates provide a way to exchange public keys for use in authentication. 16.1.1 What You Can Do in this Chapter • The My Certificates screens (Section 16.2 on page 158) generate and export self-signed certificates or certification requests and import the Zyxel Device’s CA-signed certificates. • The Trusted Certificates screens (Section 16.3 on page 165) save CA certificates and trusted remote host certificates to the Zyxel Device. The Zyxel Device trusts any valid certificate that you have imported as a trusted certificate. It also trusts any valid certificate signed by any of the certificates that you have imported as a trusted certificate. 16.1.2 What You Need to Know The following terms and concepts may help as you read this chapter. When using public-key cryptology for authentication, each host has two keys. One key is public and can be made openly available. The other key is private and must be kept secure. These keys work like a handwritten signature (in fact, certificates are often referred to as “digital signatures”). Only you can write your signature exactly as it should look. When people know what your signature looks like, they can verify whether something was signed by you, or by someone else. In the same way, your private key “writes” your digital signature and your public key allows people to verify whether data wa…

Text truncated - open the document above for the full version.

Zyxel Communications Corporation No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Date: 2020/5/19 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: I88WAC6103D-IA Product name: 802.11 ac Unified Pro Access Point, 802.11ac Dual-Radio Nebula Cloud Managed Access Point, 802.11ac Dual-Radio Dual-Mount PoE Access Point To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WAC6103D-I, NAP203, NWA1123-AC PRO to the FCC Rules and Regulations. International Certification Corp. Address :No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name:Gary Chang Job Title :Manager e-mail: [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Date: May 19, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID:I88WAC6103D-IA To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR§2.803 and the importation rules in 47 CFR§2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grantshort-term confidentiality request on the following attachments until 180 days after issue date. ☒Internal Photographs ☒External Photographs ☒User's manual ☒Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒Block Diagram ☒Schematics ☒Operational Description ☐Bill of Materials ☐Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Zyxel Communications Corporation No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Date: May 19, 2020 Subject: Ad Hoc Mode Function Declaration FCC ID: I88WAC6103D-IA IC ID: 2468C-WAC6103DIA To Whom it may concern, We, Zyxel Communications Corporation declare that the device does not support any non-US channels and country code selection in all the operational mode(s). Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

Zyxel Communications Corporation No.2 Industry East RD. IX, Hsinchu Science Park, Hsinchu 30075, Taiwan, R.O.C Product Equality declaration Letter We, Zyxel Communications Corporation declare that difference between FCC ID: I88WAC6103D-I / I88WAC6103D-IA are only changed filter, power amplifier of 2.4GHz. Characteristic FCC ID:I88WAC6103D-IAFCC ID:I88WAC6103D-I Wireless function Frequency band 2412 ~ 2462 MHz 5180 ~ 5240 MHz 5745 ~ 5825 MHz 2412 ~ 2462 MHz 5180 ~ 5240 MHz 5745 ~ 5825 MHz 2.4GHz Antenna PIFA Dipole PIFA Dipole 5GHz Antenna LOOP Dipole LOOP Dipole Emma Bao / Manager Zyxel Communications Corporation Tel: 886 3 578-3942 # 88582 E-mail: [email protected]

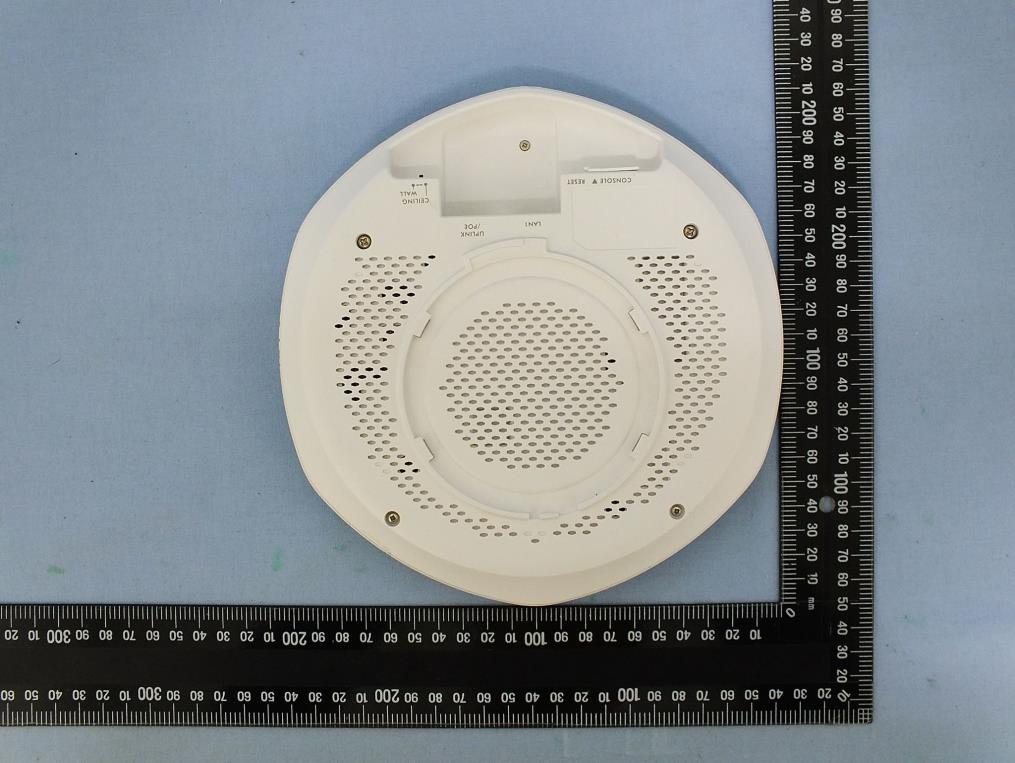

Project No.: 563002-11 Page No. : 1 of 49 Photographs of EUT Model: NWA1123-AC PRO Project No.: 563002-11 Page No. : 2 of 49 Project No.: 563002-11 Page No. : 3 of 49 Project No.: 563002-11 Page No. : 4 of 49 Project No.: 563002-11 Page No. : 5 of 49 Project No.: 563002-11 Page No. : 6 of 49 Model: WAC6103D-I Project No.: 563002-11 Page No. : 7 of 49 Project No.: 563002-11 Page No. : 8 of 49 Project No.: 563002-11 Page No. : 9 of 49 Project No.: 563002-11 Page No. : 10 of 49 Model: NAP203 Project No.: 563002-11 Page No. : 11 of 49 Project No.: 563002-11 Page No. : 12 of 49 Project No.: 563002-11 Page No. : 13 of 49
