Quick Start Guide www.zyxel.com WAP5805 5-GHz Wireless N600 HD Media Streaming Box Version 1.00 Edition 1, 9/2013 Copyright © 2013 ZyXEL Communications Corporation User’s Guide Default Login Details LAN IP AddressAP: 192.168.1.2 Client: 192.168.1.10 Password1234 WAP5805 User’s Guide2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the WAP5805 and access the Web Configurator. Contents Overview WAP5805 User’s Guide 3 Contents Overview User’s Guide ......................................................................................................................................... 8 Getting to Know Your WAP5805 .............................................................................................................10 WAP5805 Modes ....................................................................................................................................18 The Web Configurator .............................................................................................................................20 Tutorials ..................................................................................................................................................23 Technical Reference: Expert Mode .................................................................................................. 30 Access Point Expert Mode ......................................................................................................................32 Client Expert Mode ..................................................................................................................................37 Monitor ....................................................................................................................................................42 Wireless LAN ..........................................................................................................................................46 LAN .........................................................................................................................................................61 Maintenance ............................................................................................................................................65 Troubleshooting ......................................................................................................................................72 Table of Contents WAP5805 User’s Guide 4 Table of Contents Contents Overview .............................................................................................................................. 3 Table of Contents ................................................................................................................................. 4 Part I: User’s Guide ........................................................................................... 8 Chapter 1 Getting to Know Your WAP5805 ........................................................................................................ 10 1.1 Overview .........................................................................................................................................10 1.2 Applications ......................................................................................................................................10 1.3 Ways to Manage the WAP5805 ........................................................................................................ 11 1.4 Good Habits for Managing the WAP5805 ......................................................................................... 11 1.5 Resetting the WAP5805 .................................................................................................................... 11 1.5.1 Procedure to Use the Reset Button ......................................................................................... 11 1.6 The WPS Button ............................................................................................................................... 11 1.7 LEDs .................................................................................................................................................12 1.8 Wall-mounting Instructions ................................................................................................................14 1.8.1 Desktop Installation .................................................................................................................14 1.8.2 Wall-mounting Installation ........................................................................................................15 Chapter 2 WAP5805 Modes ................................................................................................................................. 18 2.1 Overview ...........................................................................................................................................18 2.1.1 Web Configurator Modes .........................................................................................................18 2.1.2 Device Operating Modes .........................................................................................................18 2.1.3 Changing Operating Mode ......................................................................................................19 Chapter 3 The Web Configurator ........................................................................................................................ 20 3.1 Overview ...........................................................................................................................................20 3…
Text truncated - open the document above for the full version.
ZyXEL Communications Corporation No.2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu, Taiwan FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name ZyXEL Communications Corporation Addresss No. 6, Innovation Road II, Hsinchu Science Park No.2, Gongye E. 9th Road, Hsinchu Science Park, City Hsinchu Country Ta i w a n declare that the following representative (agent): Name (person) Ruby zhang Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 5-GHz Wireless N600 HD Media Streaming Box Type or Model(s) WAP5805 Tradename or Brand(s) ZyXEL We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application.

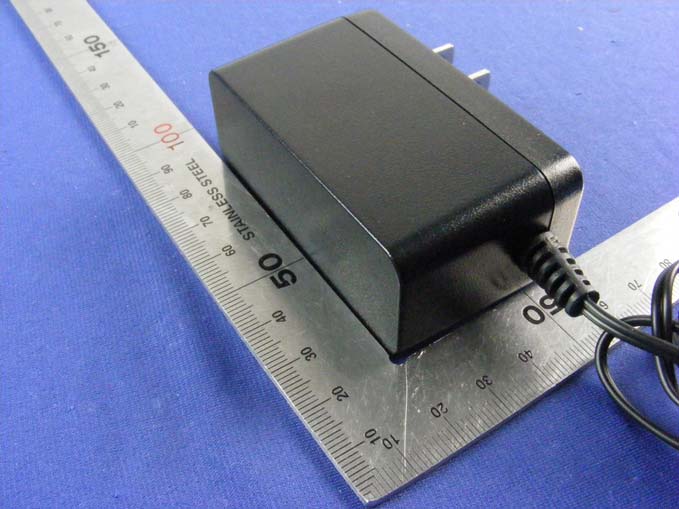

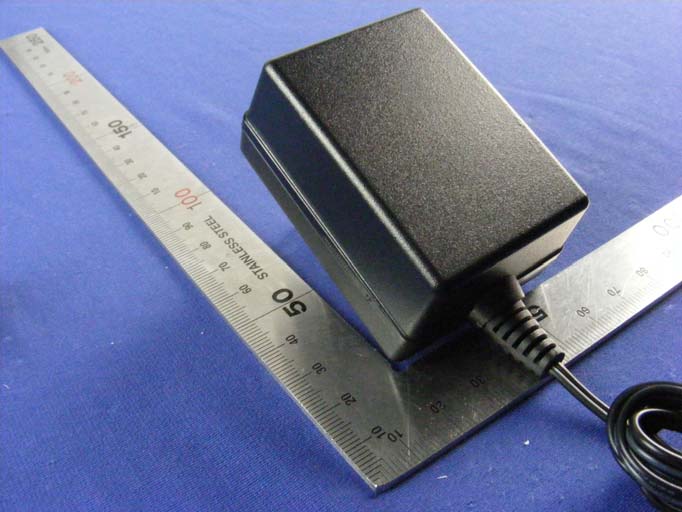

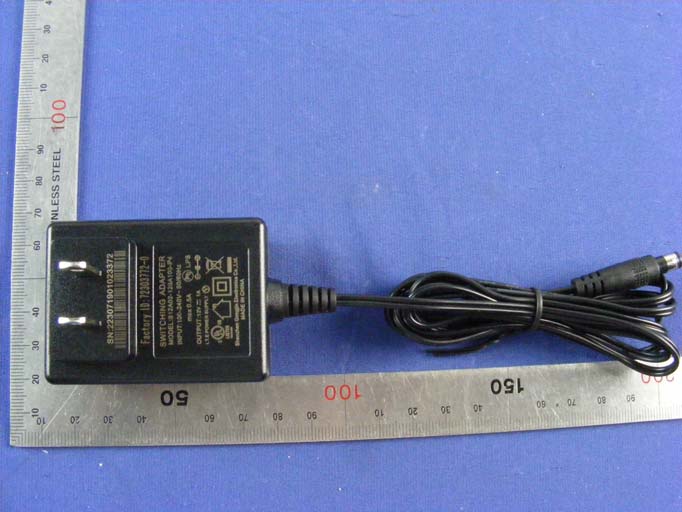

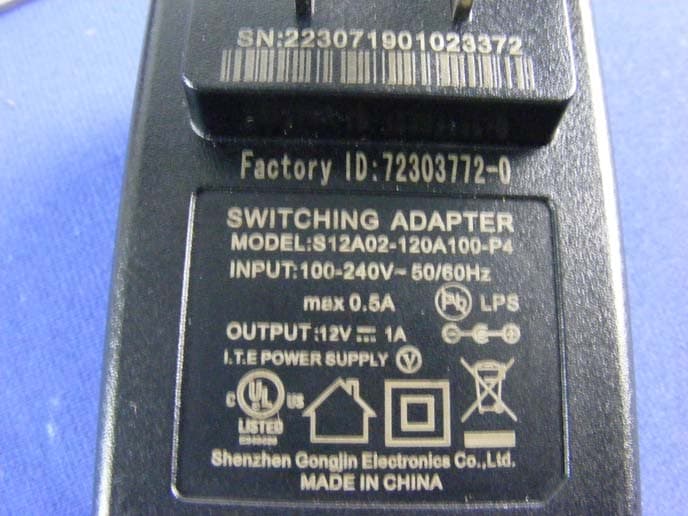

Report No.: C140606Z01 Page 1/7 External Photos of EUT Report No.: C140606Z01 Page 2/7 Report No.: C140606Z01 Page 3/7 Report No.: C140606Z01 Page 4/7 Adapter 1#: S12B22-120A100-04 Report No.: C140606Z01 Page 5/7 Report No.: C140606Z01 Page 6/7 Adapter 2#: S12A02-120A100-P4 Report No.: C140606Z01 Page 7/7

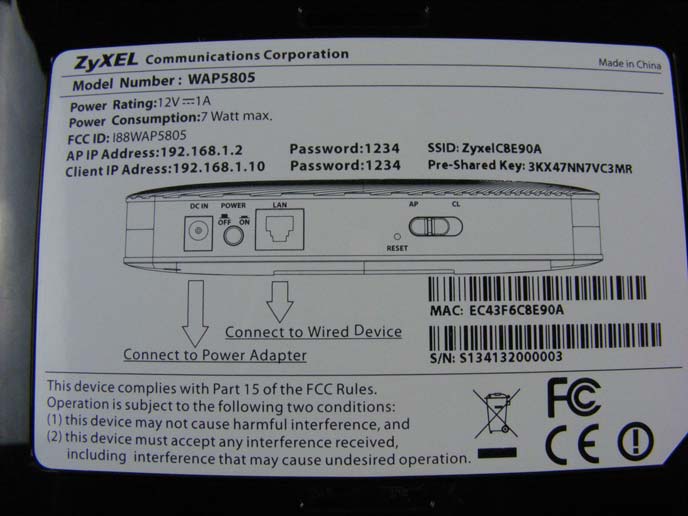

1 2 3 4 A B C D 56 1 2 3 4 56 A B C D Title: 壳底标贴位置示意图 BOTTOM LABEL 85*56mm
Report No.: C140606Z01 Page 1/3 Internal Photos of EUT Antenna 1 Antenna 4 Antenna 3 Antenna 2 Report No.: C140606Z01 Page 2/3 Report No.: C140606Z01 Page 3/3 RF Module
Compliance Certification Services Inc. Report No: C140606Z01-RP1_MPE FCC ID: I88WAP5805 Date of Issue: July 14, 2014 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Wireless HD Media Streaming Box Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5825GHz Bluetooth: 2.402GHz~ 2.480GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 24.63dBm (290.45mW) Antenna gain (Max) 2.8dBi (Numeric gain: 1.91) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 24.63dBm (290.45mW) at 5240MHz (with 2.8dBi numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C140606Z01-RP1_MPE FCC ID: I88WAP5805 Date of Issue: July 14, 2014 2 Calculation Given 2 4d GP S Π × = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=290.45mW Numeric antenna gain=1.91 Substituting the MPE safe distance using d=20 cm into Equation 1 : Fields The power density S = 290.45 × 1.91/ (4∏ × 400) cm 2 =11.04*e -2 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)
Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 1 / 209 FCC 47 CFR PART 15 SUBPART E for 5-GHz Wireless N600 HD Media Streaming Box Model: WAP5805 Brand: ZyXEL Test Report Number: C140606Z01-RP1 Issued Date: July 14, 2014 Issued for ZyXEL Communications Corporation No.6, Innovation Road II, Hsinchu Science Park No.2, Gongye E. 9th Road, Hsinchu Science Park Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The TEST RESULTS in the report only apply to the tested sample. CNAS L4818 Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 2 / 209 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00July 14, 2014 Initial Issue ALL Sabrina Wang Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 3 / 209 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST CERTIFICATION..................................................................................................4 2. EUT DESCRIPTION.......................................................................................................5 3. TEST METHODOLOGY.................................................................................................8 3.1 EUT CONFIGURATION.......................................................................................................8 3.2 EUT EXERCISE...................................................................................................................8 3.3 GENERAL TEST PROCEDURES .......................................................................................8 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ...........................................9 3.5 DESCRIPTION OF TEST MODES ....................................................................................10 4. SETUP OF EQUIPMENT UNDER TEST......................................................................11 4.1 DESCRIPTION OF SUPPORT UNITS...............................................................................11 4.2 CONFIGURATION OF SYSTEM UNDER TEST ...............................................................11 5. FACILITIES AND ACCREDITATIONS ........................................................................12 5.1 FACILITIES ........................................................................................................................12 5.2 EQUIPMENT......................................................................................................................12 5.3 ACCREDITATIONS ...........................................................................................................12 5.4 MEASUREMENT UNCERTAINTY.....................................................................................13 6. FCC PART 15 REQUIREMENTS.................................................................................14 6.1 26dB EMISSION BANDWIDTH .........................................................................................14 6.2 PEAK POWER ...................................................................................................................36 6.3 BAND EDGES MEASUREMENT.......................................................................................39 6.4 PEAK POWER SPECTAL DENSITY .................................................................................47 6.5 RADIATED UNDESIABLE EMISSION...............................................................................70 6.6 CONDUCTED UNDESIRABLE EMISSION .......................................................................86 6.7 POWERLINE CONDUCTED EMISSIONS S ...................................................................107 6.8 FREQUENCY STABILITY................................................................................................111 Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 4 / 209 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST CERTIFICATION Product 5-GHz Wireless N600 HD Media Streaming Box Model WAP5805 Brand ZyXEL Tested June 6~July 14, 2014 Applicant ZyXEL Communications Corporation No.6, Innovation Road II, Hsinchu Science Park No.2, Gongye E. 9th Road, Hsinchu Science Park Manufacturer ZyXEL Communications Corporation No.6, Innovation Road II, Hsinchu Science Park No.2, Gongye E. 9th Road, Hsinchu Science Park APPLICABLE STANDARDS STANDARDTEST RESULT FCC 47 CFR Part 15 Subpart E No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.407 ✁ FCC 14-30. The TEST RESULTS of this report relate only to the tested sample identified in this report. Approved by:Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 5 / 209 This report shall not be reproduced except in full, without the written approval of …
Text truncated - open the document above for the full version.
Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 71 / 209 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6.5.2TEST INSTRUMENTS Radiated Emission Test Site 9662 Name of EquipmentManufacturerModel Number Serial Number Last Calibration Due Calibration PSA Series Spectrum Analyzer Agilent E4446A US44300399 03/01/2014 03/01/2015 EMI TEST RECEIVER ROHDE&SCHWARZESCI 100783 03/09/2014 03/08/2015 Amplifier MITEQ AM-1604-30001123808 03/18/2015 03/18/2015 High Noise Amplifier Agilent 8449B 3008A01838 03/18/2015 03/18/2015 Board-Band Horn Antenna SchwarzbeckBBHA 9170 9170-497 07/10/2014 07/09/2015 Bilog AntennaSCHAFFNERCBL6143 5082 03/01/2014 03/01/2015 Horn AntennaSCHWARZBECK BBHA9120 D28603/01/2014 03/01/2015 Loop AntennaCOM-POWER AL-130121044 09/27/2013 09/26/2014 Turn Table N/A N/A N/A N.C.R N.C.R Controller Sunol SciencesSC104V 022310-1 N.C.R N.C.R Controller CTN/A N/A N.C.R N.C.R Temp. / Humidity Meter Anymetre JR913 N/A 02/28/2014 02/28/2015 Antenna TowerSUNOL TLT2 N/A N.C.R N.C.R Test S/W FARAD LZ-RF / CCS-SZ-3A2 6.5.3TEST CONFIGURATION Below 30MHz Spectrum / Receiver 3m 4m 1m Turntable EUT 0.8m Antenna tower Loop antenna Pre-amp Reference ground plane Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 72 / 209 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Below 1 GHz Spectrum analyzer 3m 4m 1m Turntable EUT 0.8m Antenna tower Reference ground plane Bi-log antenna Above 1 GHz 1m 30cm Spectrum analyzer Horn antenna 3m 4m Turntable EUT 0.8m Antenna tower Pre-amp For the actual test configuration, please refer to the related item – Photographs of the TEST CONFIGURATION. Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 73 / 209 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6.5.4TEST PROCEDURE 1. The EUT is placed on a turntable, which is 0.8m above ground plane. 2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emissions. 4. Maximum procedure was performed on the six highest emissions to ensure EUT compliance. 5. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. 6. Set the spectrum analyzer in the following setting as: Below 1GHz: RBW=100kHz / VBW=300kHz / Sweep=AUTO Above 1GHz: (a) PEAK: RBW=VBW=1MHz / Sweep=AUTO (b) AVERAGE: RBW=1MHz / VBW=10Hz / Sweep=AUTO 7. Repeat above procedures until the measurements for all frequencies are complete. Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 74 / 209 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6.5.5DATA SAPLE Below 1GHz Frequency (MHz) Reading (dBuV) Correct Factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Pole (V/H) Remark XXX.XXXX 36.37 -12.20 24.17 40.00 -15.83 V QP Frequency (MHz) = Emission frequency in MHz Reading (dBuV) = Uncorrected Analyzer / Receiver reading Correct Factor (dB/m) = Antenna factor + Cable loss – Amplifier gain Result (dBuV/m)= Reading (dBuV) + Corr. Factor (dB/m) Limit (dBuV/m) = Limit stated in standard Margin (dB)= Result (dBuV/m) – Limit (dBuV/m) Q.P. = Quasi-peak Reading Above 1GHz Frequency (MHz) Reading (dBuV) Correction Factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Pole (V/H) Remark XXXX.XXXX 62.09 -11.42 50.67 74.00 -23.33 V Peak XXXX.XXXX 49.78 -11.42 38.36 54.00 -15.64 V AVG Frequency (MHz) = Emission frequency in MHz Reading (dBuV)= Uncorrected Analyzer / Receiver reading Correction Factor (dB/m) = Antenna factor + Cable loss – Amplifier gain Result (dBuV/m) = Reading (dBuV) + Corr. Factor (dB/m) Limit (dBuV/m) = Limit stated in standard Margin (dB) = Result (dBuV/m) – Limit (dBuV/m) Peak= Peak Reading AVG = Average Reading Calculation Formula Margin (dB) = Result (dBuV/m) – Limits (dBuV/m) Result (dBuV/m) = Reading (dBuV) + Correction Factor Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 75 / 209 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6.5.6TEST RESULTS Below 1 GHz Test Mode: TX Tested by: Sunday Hu Ambient temperature: 24°CRelative humidity: 52% RHDate: July 13, 2014 Frequency (MHz) Reading (dBuV) Correction Factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Pole (V/H) Remark 75.5900 57.07 -26.25 30.82 40.00 -9.18 V QP 250.1900 55.01 -21.06 33.95 46.00 -12.05 V QP 320.0300 50.47 -18.93 31.54 46.00 -14.46 V QP 368.5300 47.52 -17.25 30.27 46.00 -15.73 V QP 640.1300 48.28 -12.47 35.81 46.00 -10.19 V QP 739.0700 49.81 -11.37 38.44 46.00 -7.56 V QP 33.8800 47.49 -14.06 33.43 40.00 -6.57 H QP 280.2600 53.56 -20.39 33.17 46.00 -12.83 H QP 321.9700 53.93 -18.83 35.10 46.00 -10.90 H QP 357.8600 51.69 -17.46 34.23 46.00 -11.77 H QP 680.8700 49.96 -12.42 37.54 46.00 -8.46 H QP 754.5900 51.25 -11.12 40.13 46.00 -5.87 H QP Remark: 1. No emission found between lowest internal used/generated frequency to 30MHz (9kHz~30MHz) 2. Radiated emissions measured in frequency range from 30 MHz to 1000MHz were made with an instrument using peak/quasi-peak detector mode. 3. Quasi-peak test would be performed if the peak result were greater than the quasi-peak limit. 4. Data of measurement within this frequency range shown “ --- ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. 5. Measurements above show only up to 6 maximum emissions noted, or would be lesser, with “ N/A ” remark, if no specific emissions from the EUT are recorded (ie: margin>20dB from the applicable limit) and considered that's already beyond the background noise floor. 6. Margin (dB) = Remark result (dBuV/m)…
Text truncated - open the document above for the full version.
Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 1/3 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Vertical Below 1GHz Above 1GHz Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 2/3 Horizontal Below 1GHz Above 1GHz Report No.: C140606Z01-RP1 FCC ID: I88WAP5805 Page 3/3 CONDUCTED EMISSION TEST
