I88WRE2205V2Wireless N300 Range Extender

Quick Start Guide www.zyxel.com WRE2205 Wireless N300 Range Extender Version 1.00 Edition 3, 08/2013 Copyright © 2013 ZyXEL Communications Corporation User’s Guide Default Details LAN IP Addresshttp://192.168.1.2 User Nameadmin Password1234 SSIDZyXEL Pre-shared Key00000000 WRE2205 User’s Guide2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the WRE2205 and access the Web Configurator wizards. It also contains a connection diagram and package contents list. Contents Overview WRE2205 User’s Guide 3 Contents Overview User’s Guide ......................................................................................................................................... 7 Introduction ...............................................................................................................................................9 The Web Configurator .............................................................................................................................13 Connection Wizard ..................................................................................................................................15 Status ......................................................................................................................................................21 Tutorials ..................................................................................................................................................26 Technical Reference .......................................................................................................................... 36 Wireless LAN ..........................................................................................................................................38 LAN .........................................................................................................................................................47 System ....................................................................................................................................................49 Tools ........................................................................................................................................................50 Troubleshooting ......................................................................................................................................56 Table of Contents WRE2205 User’s Guide 4 Table of Contents Contents Overview .............................................................................................................................. 3 Table of Contents ................................................................................................................................. 4 Part I: User’s Guide ........................................................................................... 7 Chapter 1 Introduction ........................................................................................................................................... 9 1.1 Overview .............................................................................................................................................9 1.2 Securing the WRE2205 .....................................................................................................................10 1.3 Front Panel ........................................................................................................................................10 1.4 The WPS Button ............................................................................................................................... 11 1.4.1 WiFi Protected Setup ............................................................................................................... 11 Chapter 2 The Web Configurator ........................................................................................................................ 13 2.1 Overview ...........................................................................................................................................13 2.2 Accessing the Web Configurator .......................................................................................................13 2.3 Resetting the WRE2205 ....................................................................................................................14 Chapter 3 Connection Wizard ............................................................................................................................. 15 3.1 Overview ...........................................................................................................................................15 3.2 Configuring the WRE2205 for Connection to an AP .........................................................................15 3.2.1 Selecting Automatically Detected AP Parameters ...................................................................15 3.2.2 Manually Configuring AP Parameters .....................................................................................17 3.3 Completing the Connection Wizard ...................................................................................................18 Chapter 4 Status ................................................................................................................................................... 21 4.1 WRE2205 Status ...............................................................................................................................21 4.1.1 Summary: Packet Statistics ....................................................................................................23 4.1.2 Summary: WLAN Station Status ..........................................................................................23 4.2 Navigation Panel ............................................................................................…

Text truncated - open the document above for the full version.

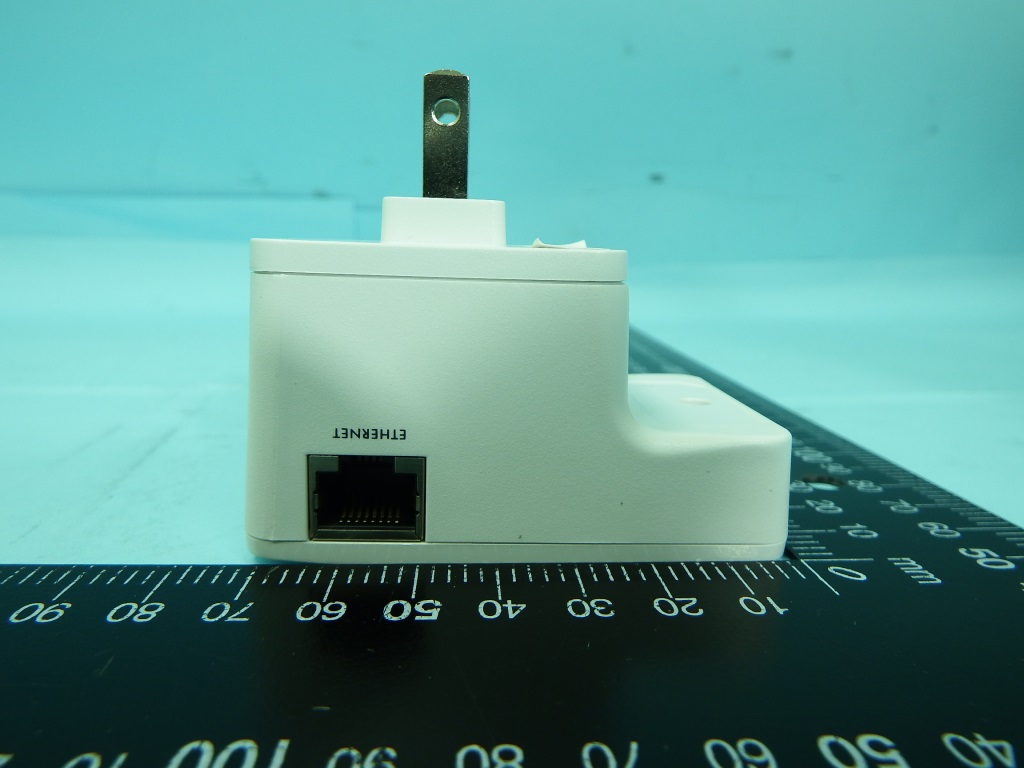

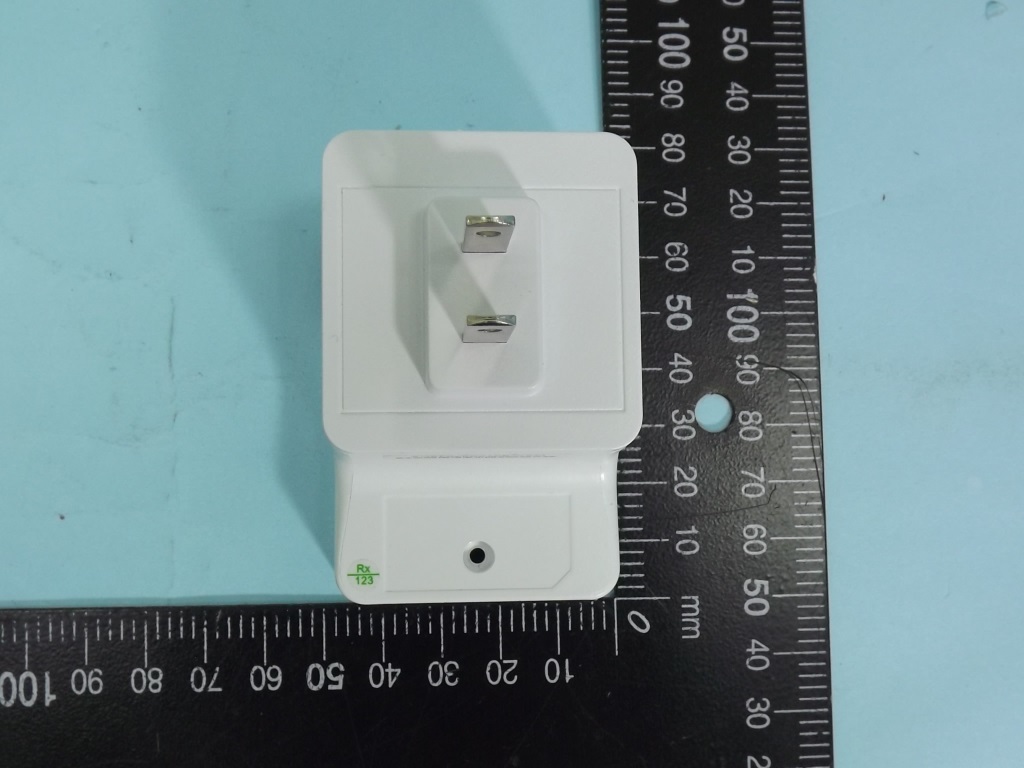

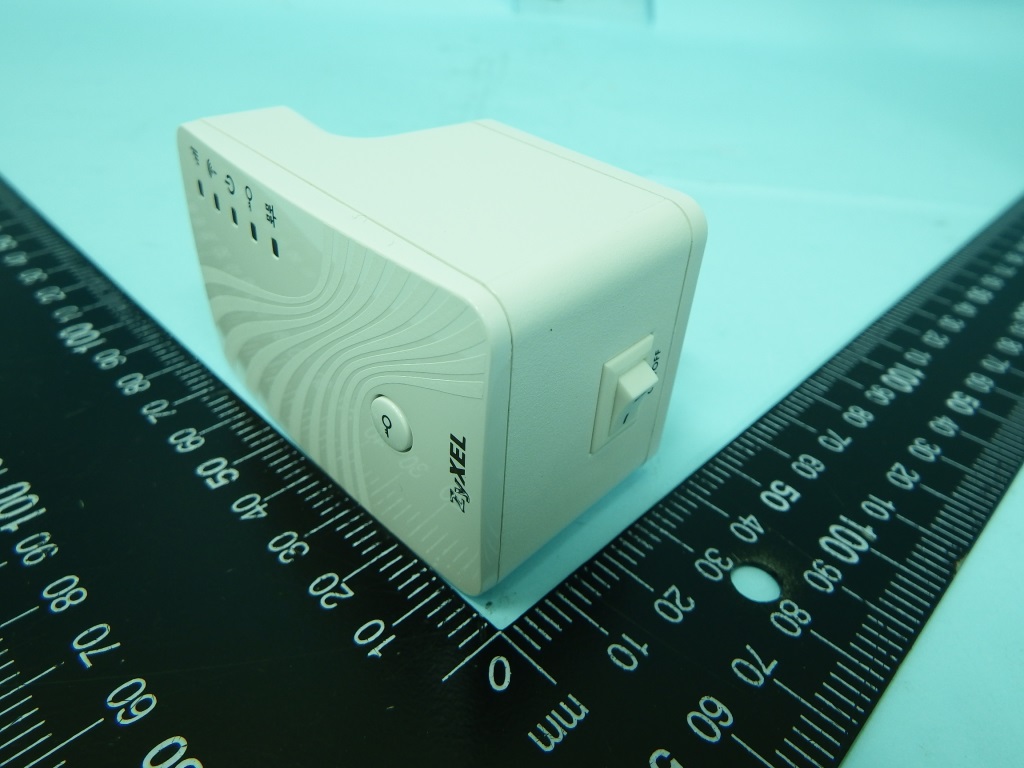

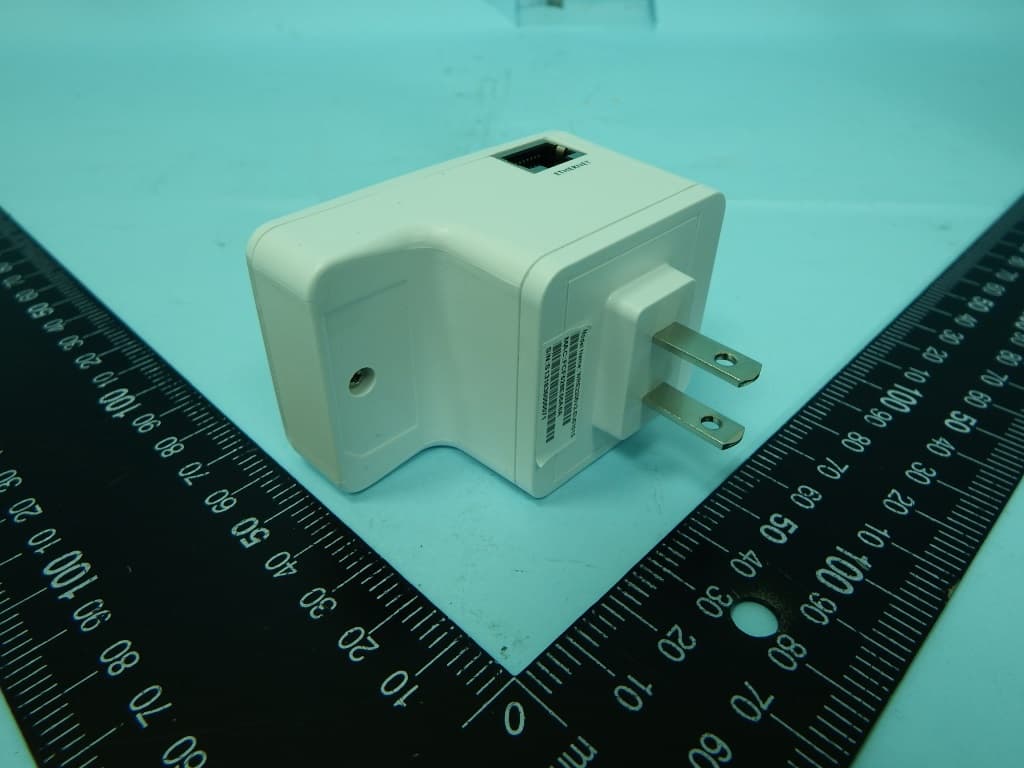

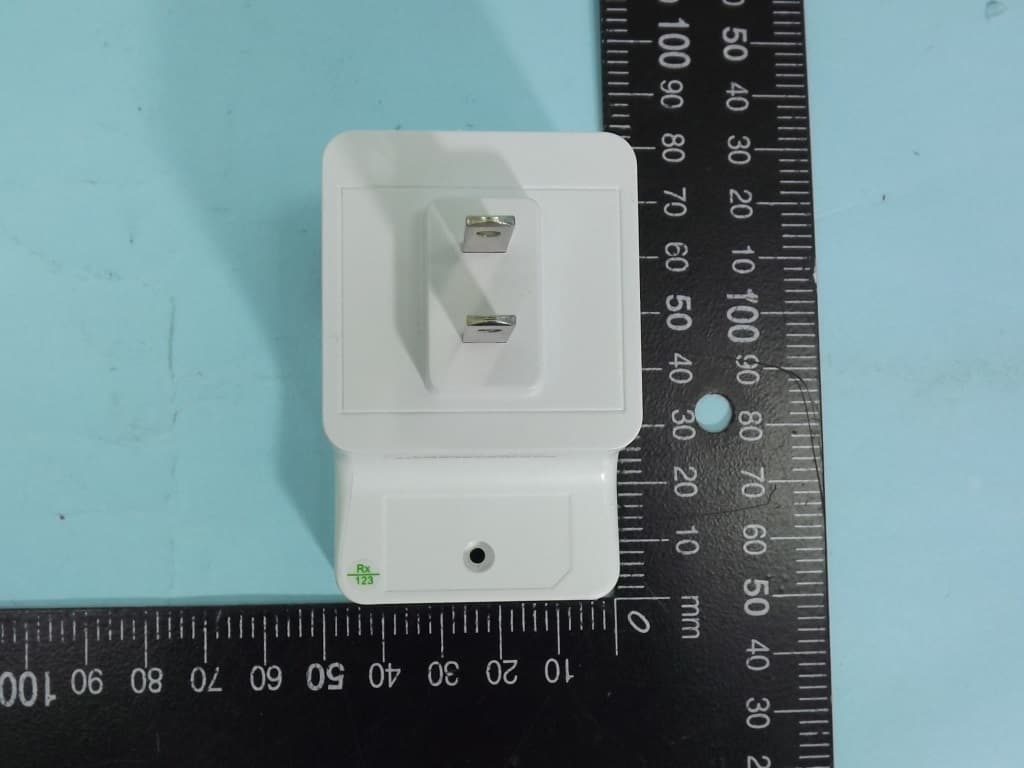

FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B1 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B2 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973

Label & label location：

FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B4 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP370531-01 SPORTON International Inc. PAGE NUMBER : B11 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 31, 2013 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA370531-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA370531-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA370531-01 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) b 1 1 Correlated 19.32 g 1 1 Correlated 21.72 n (HT20) 2 2 Correlated 24.80 n (HT40) 2 2 Correlated 24.79 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 19.32 2.43 21.75 0.02973 11G-20M 1 21.72 2.43 24.15 0.05174 11N2.4G-20M 2 24.80 2.43 27.23 0.10517 11N2.4G-40M 2 24.79 2.43 27.22 0.10491 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless N300 Range Extender Brand Name : ZyXEL Model No. : WRE2205 v2 / WRE2205 HW:V2 FCC ID : I88WRE2205V2 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant : ZyXEL Communications Corporation No. 2, Gongye E. 9th Road, Hsinchu Science Park, Hsinchu,Taiwan Manufacturer : Edimax Technology Co., Ltd. 1F., No.3, Wu-Chuan 3rd Road, Wu-Gu, New Taipei City 24891, Taiwan The product sample received on Jul. 21, 2013 and completely tested on Sep. 12, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Product Details ....................................................................................................................................... 7 1.3 Support Equipment ................................................................................................................................. 7 1.4 Testing Applied Standards ..................................................................................................................... 7 1.5 Testing Location Information .................................................................................................................. 8 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 30 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 59 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 3 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.4863180MHz 36.21 (10.02) - AV 42.93 (3.30) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 9.45 / 40M: 34.48 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 29.58 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -4.59 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2426.420MHz: 27.72dB Restricted Bands [dBuV/m at 3m]: 2390.000MHz 68.56 (Margin 5.44dB) - PK 52.52 (Margin 1.48dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4874.000MHz 55.62 (Margin 18.38dB) - PK 52.55 (Margin 1.45dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 4 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR370531-01 Rev. 01 Initial issue of report Oct. 31, 2013 2500-2690 FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 5 of 60 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General I…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR370531-01 SPORTON INTERNATIONAL INC. Page No. : 6 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
