I88WRE6505Wireless AC750 Range Extender

Quick Start Guide www.zyxel.com WRE6505 Wireless AC750 Range Extender Version 1.00 Edition 2, 7/2014 Copyright © 2014 ZyXEL Communications Corporation User’s Guide Default Login Details LAN IP Address 192.168.1.2 User Nameadmin Password1234 2.4G2.4G 5G5G WRE6505 User’s Guide 2 IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE. Related Documentation •Quick Start Guide The Quick Start Guide shows how to connect the WRE6505 and access the Web Configurator wizards. (See the wizard real time help for information on configuring each screen.) It also contains a connection diagram and package contents list. Note: It is recommended you use the Web Configurator to configure the WRE6505. Contents Overview WRE6505 User’s Guide 3 Contents Overview User’s Guide ......................................................................................................................................... 7 Introduction ...............................................................................................................................................9 WRE6505 Modes ....................................................................................................................................13 Universal Repeater Mode .......................................................................................................................15 Access Point Mode .................................................................................................................................21 The Web Configurator .............................................................................................................................27 Connection Wizard ..................................................................................................................................29 Status ......................................................................................................................................................37 Tutorials ..................................................................................................................................................43 Technical Reference .......................................................................................................................... 51 Wireless LAN ..........................................................................................................................................53 LAN .........................................................................................................................................................63 System ....................................................................................................................................................65 Troubleshooting ......................................................................................................................................76 Table of Contents WRE6505 User’s Guide 4 Table of Contents Contents Overview .............................................................................................................................. 3 Table of Contents ................................................................................................................................. 4 Part I: User’s Guide ........................................................................................... 7 Chapter 1 Introduction ........................................................................................................................................... 9 1.1 Overview .............................................................................................................................................9 1.2 Securing the WRE6505 .....................................................................................................................10 1.3 Front Panel ........................................................................................................................................10 1.4 WPS Button .......................................................................................................................................12 1.4.1 Wi-Fi Protected Setup .............................................................................................................12 Chapter 2 WRE6505 Modes ................................................................................................................................. 13 2.1 Overview ...........................................................................................................................................13 2.1.1 Device Modes ..........................................................................................................................13 Chapter 3 Universal Repeater Mode ................................................................................................................... 15 3.1 Overview ...........................................................................................................................................15 3.2 What You Can Do .............................................................................................................................15 3.3 What You Need to Know ...................................................................................................................16 3.3.1 Setting your WRE6505 to Universal Repeater Mode ..............................................................16 3.4 Universal Repeater Mode Status Screen ..........................................................................................17 3.5 WPS Screen ......................................................................................................................................19 Chapter 4 Access Point Mode ............................................................................................................................. 21 4.1 Overview ...................................................................…

Text truncated - open the document above for the full version.

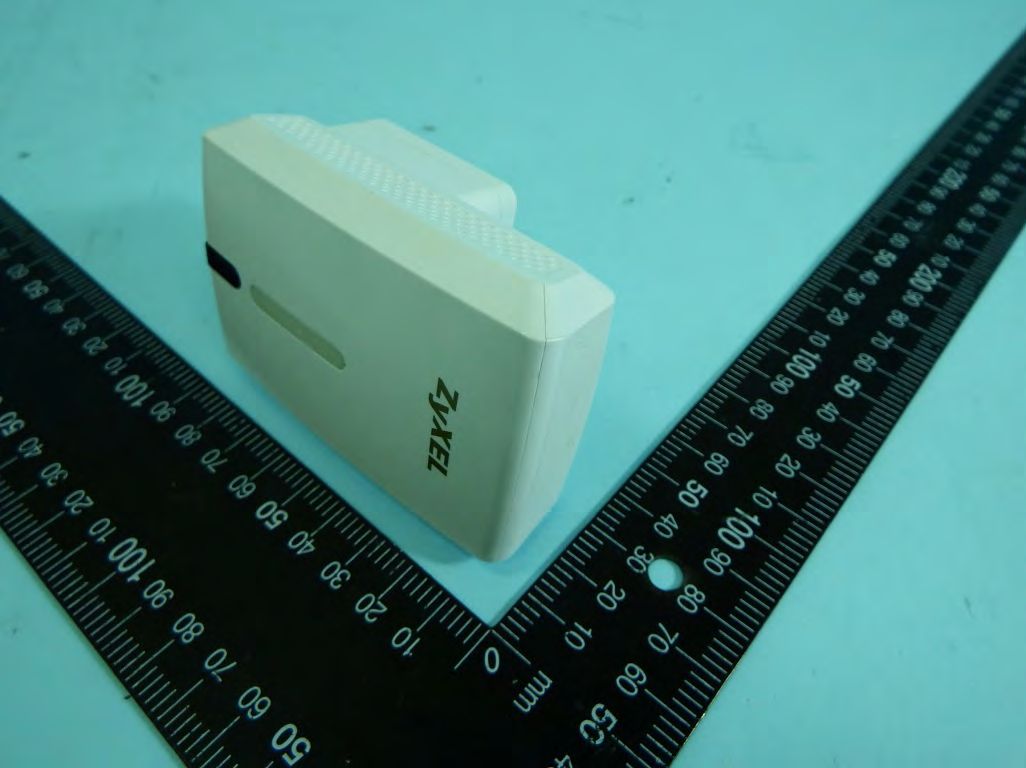

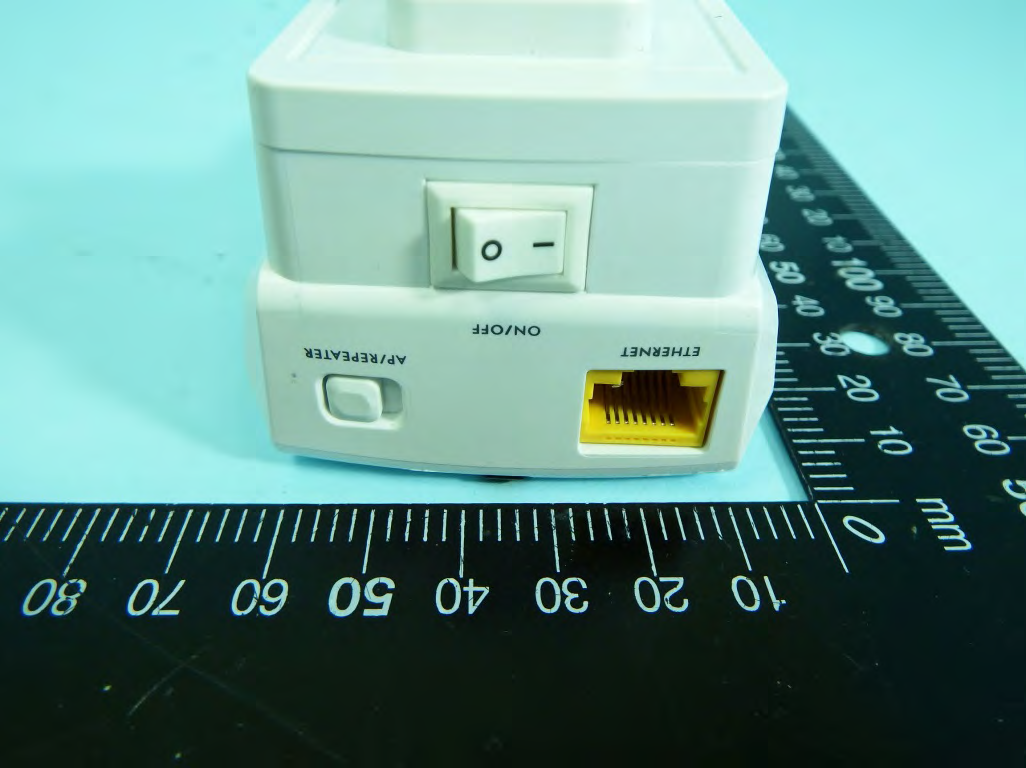

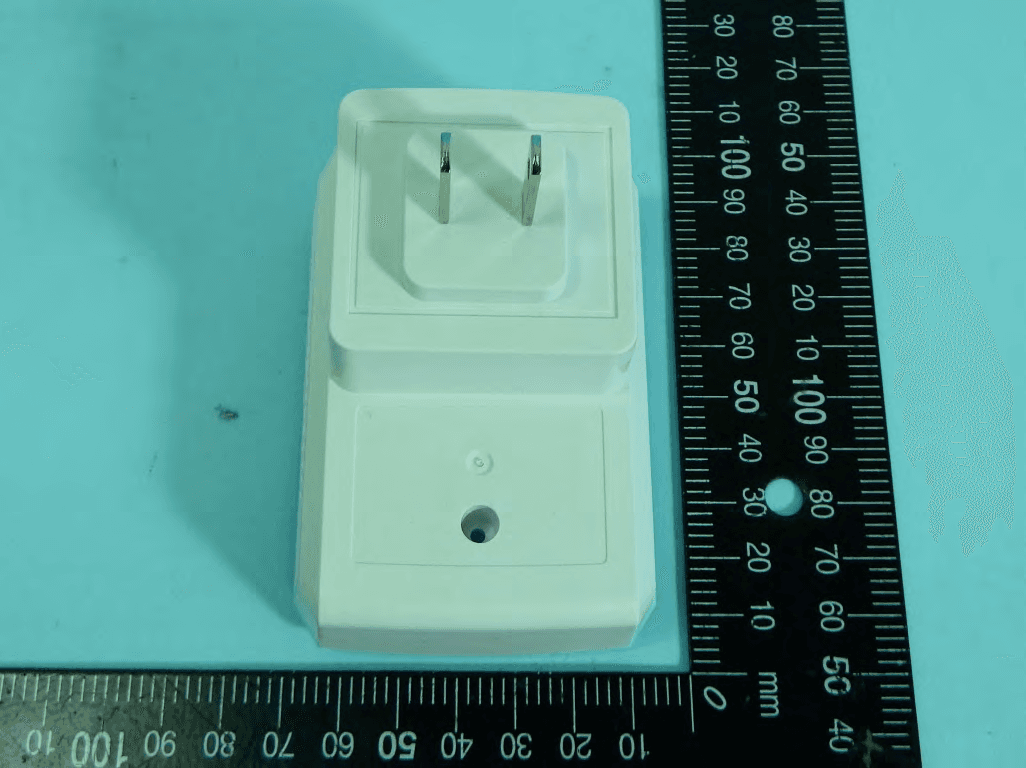

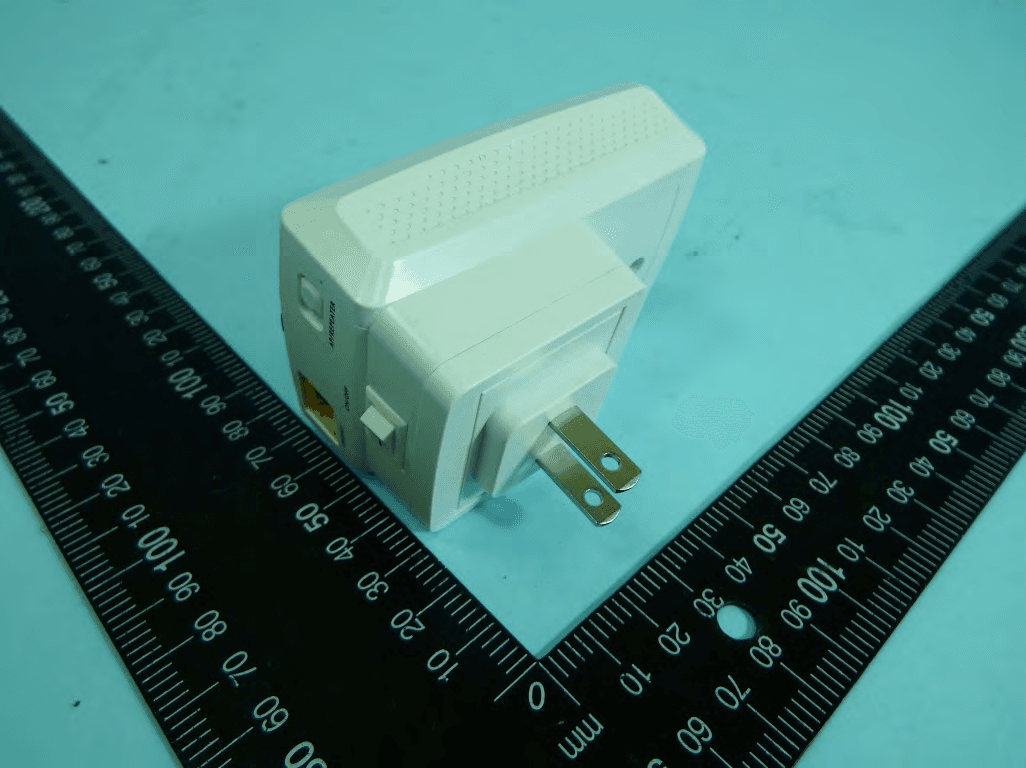

FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B1 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B2 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973

Model Number : WRE6505 Input: 100-240V~ , 0.15A, 50/60Hz IP address:192.168.1.2 Password:1234 FCC ID:I88WRE6505 Made in China Repeater mode SSID (2.4GHz): ZyXEL_2.4GEXT SSID (5GHz): ZyXEL_5GEXT Default Security: open 5mm 4.103 mm 4.103 mm 7.122 mm 5mm 7.002mm 5.033 mm 7.473 mm 5.191 mm

FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B4 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 WLAN Module FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 WLAN Module FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 2.4G Ant. 2 FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 2.4G Ant. 2 5G Ant. 2.4G port 1 2.4G port 2 5G port 1 FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973 2.4G Ant. 1 2.4G Ant. 1 FCC Test Report Report No. : EP431105-01 SPORTON International Inc. PAGE NUMBER : B11 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Jul. 03, 2014 FAX : 886-3-327-0973

RF Exposure Report Report No. :FA431105-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 F/300 6 1,500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 F/1500 30 1,500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. :FA431105-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information 5150~5250MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 1 14.68 Yes 5150-5250 n (HT20) 5180-5240 36-48 [4] 1 14.67 Yes 5150-5250 n (HT40) 5190-5230 38-46 [2] 1 16.71 Yes 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 1 15.02 Yes 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 1 16.69 Yes 5150-5250 ac (VHT80) 5210 42 [1] 1 16.92 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF General Information 5725 MHz – 5850 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5]1 21.89 Yes 5725-5850 n(HT20) 5745-5825 149-165 [5]1 21.81 Yes 5725-5850 n(HT40) 5755-5795 151-159 [2]1 21.68 Yes 5725-5850 ac(VHT20) 5745-5825 149-165 [5]1 21.21 Yes 5725-5850 ac(VHT40) 5755-5795 151-159 [2]1 21.13 Yes 5725-5850 ac(VHT80) 5775 155 [1] 1 17.79 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 1 18.33 Yes 2400-2483.5 g 2412-2462 1-11 [11] 1 18.79 Yes 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 22.16 Yes 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 18.22 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) RF Exposure Report Report No. :FA431105-01 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) DG (dBi) EIRP Power PD (S) (mW/cm²) 11N-VHT80 1 16.92 4.44 21.36 0.027 11A 1 21.89 4.44 26.33 0.085 11N-HT20 2 22.16 2.71 24.87 0.061 Co-location Total 0.173 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR431105-01 SPORTON INTERNATIONAL INC. Page No. : 1 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m)Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR431105-01 SPORTON INTERNATIONAL INC. Page No. : 2 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions below 30 MHz and test distance is 3m. Refer as ANSI C63.10, clause 6.5 for radiated emissions 30 MHz to 1 GHz and test distance is 3m. Refer as ANSI C63.10, clause 6.6 for radiated emissions above 1GHz. For 1 GHz to 5 GHz, test distance is 3m; For 5 GHz to 40 GHz, test distance is 1m. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR431105-01 SPORTON INTERNATIONAL INC. Page No. : 3 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Below 1GHz Magnetic field tests shall be…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR431105-01AC SPORTON INTERNATIONAL INC. Page No. : 1 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless AC750 Range Extender Brand Name : ZyXEL Model No. : WRE6505 FCC ID : I88WRE6505 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant Manufacturer : ZyXEL Communications Corporation No. 2, Gongye E. 9th Road Hsinchu Science Park, Hsinchu, Taiwan The product sample received on Apr. 04, 2014 and completely tested on May 07, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR431105-01AC SPORTON INTERNATIONAL INC. Page No. : 2 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories And Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 57 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR431105-01AC SPORTON INTERNATIONAL INC. Page No. : 3 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.5551950MHz 25.36 (Margin 20.64dB) - AV 33.89 (Margin 22.11dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 9.54 / 40M: 35.32 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 27.09 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -7.64 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2397.70MHz: 28.92dB Restricted Bands [dBuV/m at 3m]: 2483.50MHz 68.16 (Margin 5.84dB) - PK 52.74 (Margin 1.26dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 7311MHz 65.58 (Margin 8.42dB) - PK 52.96 (Margin 1.04dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR431105-01AC SPORTON INTERNATIONAL INC. Page No. : 4 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR431105-01AC Rev. 01 Initial issue of report Jul. 03, 2014 2500-2690 FCC Test Report Report No. : FR431105-01AC SPORTON INTERNATIONAL INC. Page No. : 5 of 58 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 1 21.16 Yes 2400-2483.5 g 2412-2462 1-11 [11] 1 23.65 Yes 2400-2483.…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR431105-01AI SPORTON INTERNATIONAL INC. Page No. : 1 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless AC750 Range Extender Brand Name : ZyXEL Model No. : WRE6505 FCC ID : I88WRE6505 Standard : 47 CFR FCC Part 15.247 Operating Band : 5725 MHz – 5850 MHz Equipment Class : DTS Applicant Manufacturer : ZyXEL Communications Corporation No. 2, Gongye E. 9th Road Hsinchu Science Park, Hsinchu, Taiwan The product sample received on Apr. 23, 2014 and completely tested on May 02, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR431105-01AI SPORTON INTERNATIONAL INC. Page No. : 2 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories And Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Transmitter Bandedge Emissions ........................................................................................................ 24 3.6 Transmitter Unwanted Emissions......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 61 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR431105-01AI SPORTON INTERNATIONAL INC. Page No. : 3 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.54068MHz 22.71 (Margin 23.29dB) - AV 33.85 (Margin 22.15dB) - QP FCC 15.207 Complied 3.2 15.247(a) Bandwidth 6dB Bandwidth [MHz] a/n(HT20): 16.36 n(HT40): 34.52 ac(VHT20): 16.69 ac(VHT40): 34.64 ac(VHT80): 74.96 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 26.90 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -4.10 PSD [dBm/MHz]:17 replace 8dBm/3kHz Complied 3.5 15.247(c) Transmitter Bandedge Emissions Non-Restricted Bands: 5725MHz 24.80 dB Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 435.46MHz 40.16 (Margin 5.84dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR431105-01AI SPORTON INTERNATIONAL INC. Page No. : 4 of 62 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Des…

Text truncated - open the document above for the full version.
