IBH95955T49.82-49.90MHz WIRELESS R./C TOY -TX

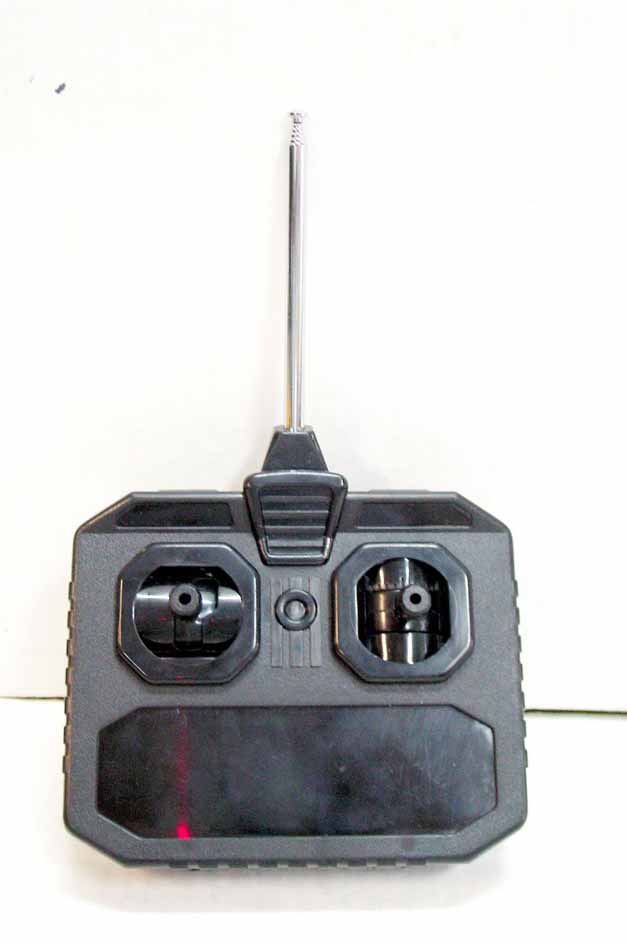

Model No. 95955 User’ S Manual Step One Installing Batteries One 9V battery for the transmitter 7.2V battery pack for the Truck Put Batteries in the Truck Turn off the Truck Remove the battery compartment cover. Place the battery pack in the recessed area with the battery pack’s connector on the same side as the truck’s matching connector. Attach the battery pack’s connector to the truck’s matching connector. They fit together only one way. Do not force them. Close the cover. You must charge the battery pack with a battery charger (not supplied) Put Battery in the Transmitter . Turn the transmitter off. . Open the battery compartment cover. . Insert on 9V battery in the battery compartment, and match the polarity symbols (+ and -) as marked inside. . Replace the cover and snap it on. Step Two Driving the Truck . Extend the transmitter’s antenna to its full length. . Turn the transmitter and Truck on. . Push forward to move forward. For turbo speed, push forward and to the right. . Pull backward to move backward. . Release to stop. . Push the left to turn left. . Push the right to turn right. . Release to go straight . When you finish driving the vehicle, turn the transmitter and vehicle off. . You can select between two wheels and four wheels steering. Slide the switch located at the rear chassis to select two or four wheels steering. Hints & Tips . Driving your Truck for long periods of time can generate a high heat level, which causes wear and tear on the motor. To help keep heat levels down, when your vehicle’s battery power dies, let it cool for at least 10 minutes before installing new batteries. . Do not touch the motor immediately after using the Truck, as it may become hot during use. . If your Truck’s motor runs, but does not respond to the transmitter, move closer to the vehicle and try again. . If someone uses a CB nearby, it might interfere with the control of your Hummer Truck. If this happens, move the vehicle away from the CB. . If the Truck moves slowly, or not at all, and you have installed new batteries, check the wheel mechanism for lint, dust, hair or thread. . When the transmitter’s range decreases, replace its battery. . If the Truck does not drive in a straight line, adjust the wheel alignment control on the bottom of the vehicle. Turn the control toward L if the vehicle pulls to the right, and toward R if the vehicle pulls to the left. . The Truck might make a popping or grinding noise when you slide the gear control switch. This is normal. FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

FCC ID: IBH95955T This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] Test Report Product Name: 49.82-49.90 MHz Wireless R/C Toy - TX FCC ID: IBH95955T Applicant: UNION CONCEPT CO.,LTD. FLAT E1, 12/F., KAI TAK FTY. BLDG. 99 KING FUK STREET, SAN PO KONG KOWLOON HONG KONG Date Receipt:07/14/2004 Date Tested: 07/21/2004 APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T REPORT #: THRU-407016 COVER SHEET THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: UNION CONCEPT CO.,LTD. TABLE OF CONTENTS LIST APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-6 ..........Duty Cycle. PAGE 7-9...........RADIATION INTERFERENCE TEST DATA PAGE 10............OCCUPIED BANDWIDTH PAGE 11............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO FCC ID: IBH95955T REPORT #: THRU-407016 TABLE OF CONTENTS THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T Test Equipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2005.04.07. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2005.04.07. Spectrum Display 85662A Hewlett Packard 2542A12429 2005.04.07. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2005.04.07. RF Preselector 85685A Hewlett Packard 2648A00504 2005.04.07. Pre-Amplifier 8449B Hewlett Packard 3008A00375 2005.04.07. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2005.04.07. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2005.04.07. Bico-Antenna 94455-1 Eaton 977 2005.03.17. Log-Periodic Antenna 3146 EMCO 2051 2005.03.17. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2005.03.17. Horn Antenna SAS-571 A.H Systems 414 2005.03.17. Spectrum Analyzer R3261C Advantest 71720189 2005.04.07. LISN KNW-242 Kyoritsu 8-923-2 2004.07.17. LISN 8012-50-R- 24 Solar 8379121 2004.07.17. Loop Ant 6507 EMCO 1435 2004.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2005.04.07. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2005.04.07. Frequency Counter CMC251 Tektronic CMC-251TW52489 2005.04.07. REPORT #: THRU-407016 1 of 11 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of THRULab & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 30ºC with a humidity of 45%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. REPORT #: THRU-407016 2 of 11 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T Duty Cycle REPORT #: THRU-407016 3 of 11 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T Pulse Train=34.85msec REPORT #: THRU-407016 4 of 11 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T Short Pulse Width=560.0 usec REPORT #: THRU-407016 5 of 11 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T Length Pulse Width= 1.660 msec. REPORT #: THRU-407016 6 of 11 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: UNION CONCEPT CO.,LTD. FCC ID: IBH95955T AP…
