IEXABTU3Bio-Telemetry Transmitter

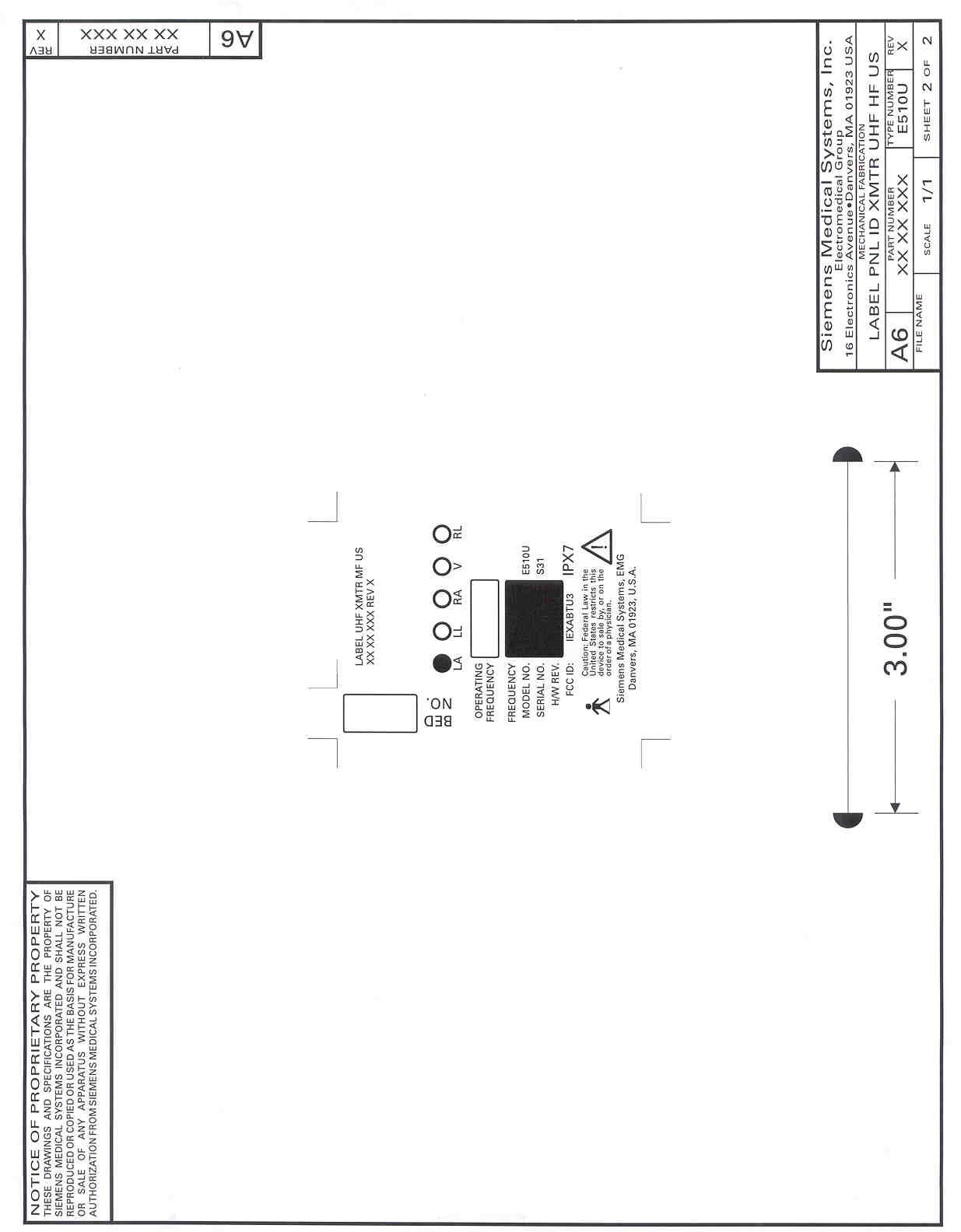

NOTE TO BE PLACED IN USERS MANUAL OPERATION OF THIS DEVICE SHOULD BE IN ACCORDANCE WITH PART 15.242 SECTIONS A, D, E, F, G AND H OF THE FCC RULES.

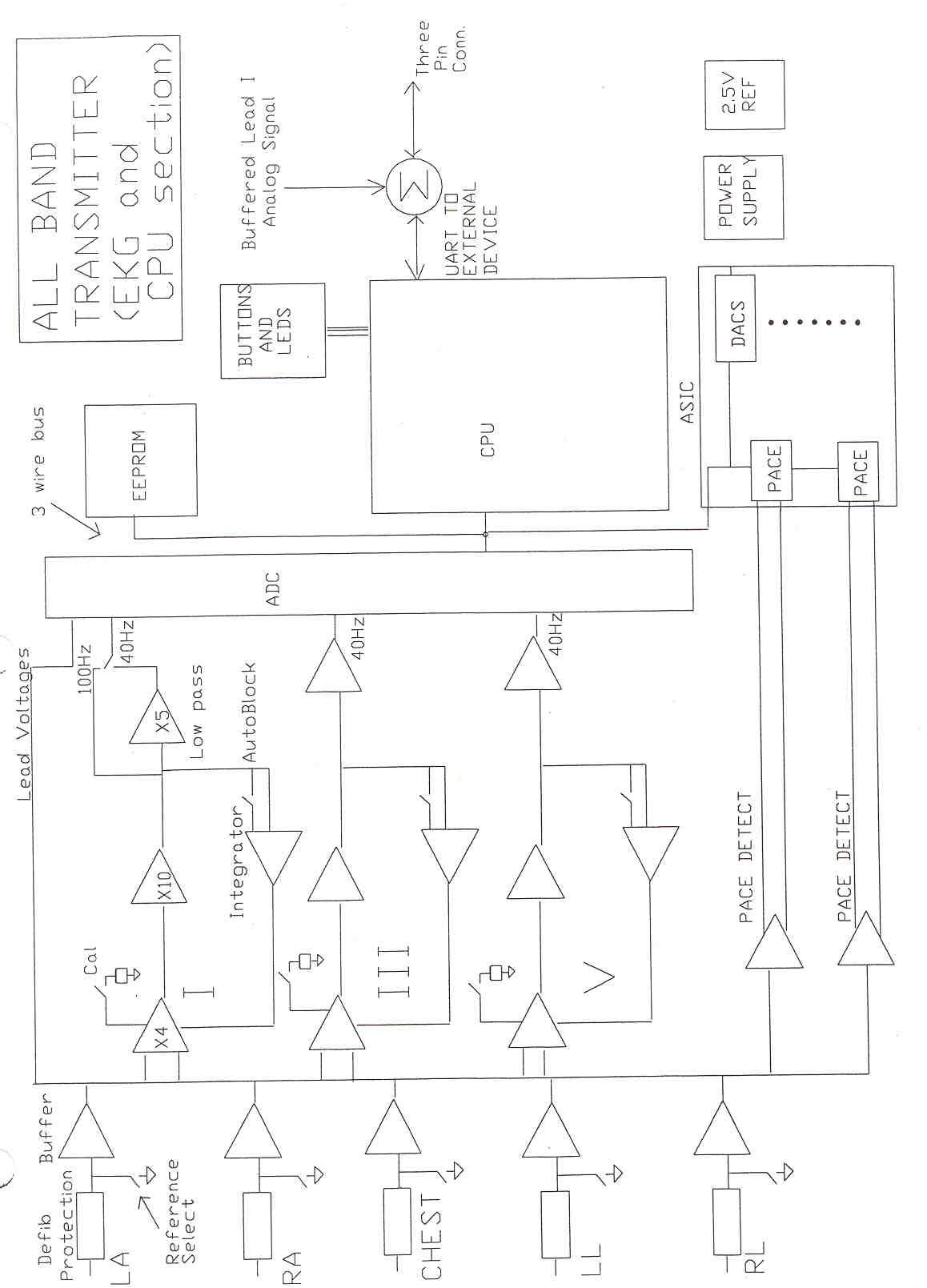

TEST SERVICES EMC EVALUATION OF THE SIEMENS BIOMEDICAL TELEMETRY TRANSMITTER (608-614MHZ) IN ACCORDANCE WITH FCC PART 15 SUBPART B AND C Prepared For:SIEMENS MEDICAL SYSTEMS, INC. ELECTROMEDICAL GROUP 16 ELECTRONICS AVENUE DANVERS, MASSACHUSETTS 01923 ATTENTION: JIM GRECO Prepared By:WILLIAM TORRENCE/ROBERT FOSTER CHOMERICS TEST SERVICES 77 DRAGON COURT WOBURN, MASSACHUSETTS 01888 Date:MAY 10, 2000 Test Report Number:TR2585.00 Test Technician or Engineer: CTS Approved Signatory: This report shall not be reproduced except in full without the written approval of Chomerics Test Services. TEST SERVICES Siemens Biomedical Telemetry Transmitter (608-614MHz) Document #: TR2585.00 Date: May 10, 2000 Page 2 of 20 TABLE OF CONTENTS 1.0General 1.1Introduction 1.1.1Purpose 1.1.2Requirements 1.2 Test Summary 1.2.1Summary of Recommendations 1.3Administrative Data 1.3.1Test Facility 1.3.2Equipment Calibration 1.3.3Test Personnel 1.4Test Set-up 1.4.1Test Site Matrix 1.4.2Test Site Descriptions 1.4.3 Equipment Under Test 1.4.4 Block Diagram 1.5Pass/Fail Criteria 2.0Emissions Tests Performed 2.1FCC Subparts B and C Radiated Electromagnetic Emissions 2.1.1Equipment Used 2.1.2Test Conditions 2.1.3Test Method 2.1.4 Results 2.1.5 Test data 2.1.6 Photographic Documentation Appendix A: Test Log TEST SERVICES Siemens Biomedical Telemetry Transmitter (608-614MHz) Document #: TR2585.00 Date: May 10, 2000 Page 3 of 20 LIST OF DEFINITIONS/ABBREVIATIONS ACAlternating Current BBBroadband BWBandwidth cmCentimeter CPUCalibrate Prior to Use dBDecibel DCDirect Current EMCElectromagnetic Compatibility EMIElectromagnetic Interference ERElectric Radiation EUTEquipment Under Test GHzGigahertz HzHertz I-faceInterface kHzKilohertz mMeter MHzMegahertz mmMillimeter mSMillisecond mVMillivolt MRMagnetic Radiation NBNarrowband NCRNo Calibration Required PLCPower Line Conduction PPSPulses Per Second uFMicrofarad uHMicrohenry uSMicrosecond uVMicrovolt UWCUse With Calibrated Equipment TEST SERVICES Siemens Biomedical Telemetry Transmitter (608-614MHz) Document #: TR2585.00 Date: May 10, 2000 Page 4 of 20 1.0GENERAL 1.1Introduction 1.1.1Purpose The purpose of this report is to document the performance of the Siemens Biomedical Telemetry Transmitter (608-614MHz) during an electromagnetic interference (EMI) test and record the test requirements and procedures used. At the request of Siemens, the tests were performed by Chomerics Test Services (CTS) of Woburn, Massachusetts. The assessment will determine the compliance or non-compliance with the requirements set up by the FCC Part 15 Subparts B and C. George Kokovidis from Siemens was present during testing. Testing was performed on April 28, 2000. 1.1.2Requirements The requirements for the sequence of tests performed on the Biomedical Telemetry Transmitter (608- 614MHz) are as follows: FCC Subpart B Radiated Electromagnetic Emissions FCC Part 15 Subpart B radiated emission requirements for Information Technology Equipment (ITE). FCC Subpart C Radiated Electromagnetic Emissions The limit for the fundamental signal is FCC Part 15 Subpart C 15.242 paragraph C. 200mV/m or 86dBuV/m The limit for all other signals including spurious and harmonic emissions is FCC Part 15 Subpart C 15.209. TEST SERVICES Siemens Biomedical Telemetry Transmitter (608-614MHz) Document #: TR2585.00 Date: May 10, 2000 Page 5 of 20 1.2TEST SUMMARY The terms "Passed" or "Failed" in this section are intended to guide the reader as to whether or not the EUT met the minimum requirements that can be interpreted from the in Section 1.5. The "Results" paragraph in each test section to follow and the test data sheets will outline specifically how the EUT performed during each test. FCC Subpart B Radiated EmissionsPASSED FCC Subpart C Radiated EmissionsPASSED 1.2.1Summary of Recommendations The Siemens Biomedical Telemetry Transmitter (608-614MHz) will require no modifications in order to insure compliance with the FCC Part 15 Subparts B and C. Please note that if any modifications and or fixes were implemented to the EUT to achieve compliance, other approaches to solving the problem may exist. In addition, any EMI/EMC shielding products listed in this report may be substituted with an equivalent. 1.3Administrative Data 1.3.1Test Facility Chomerics test facility is recognized under the National Voluntary Laboratory Accreditation Program (NVLAP) for NVLAP Codes 12F01; FCC test methods – 47 CFR Part 15 – Digital Devices, 12F01a; Conducted Emissions, and 12F01b; Radiated Emissions under NVLAP Accreditation Number 100296-0. Tests within this report not conforming to these NVLAP Codes are not covered under Chomerics NVLAP accreditation. Chomerics NVLAP accreditation covers test method 12/CIS22 for IEC/CISPR 22:1993, 12/CIS22a for IEC/CISPR 22 Amendment 1:1995 and Amendment 2:1996. Chomerics NVLAP accreditation code 12/CIS22b covers Chinese National Standard CNS 13438:1997. Chomerics Radiated and Conducted Emissions testing to AS/NZS3548 is accredited to the Australian Telecommunications Authority (AUSTEL) under file number A92/TH/0048. Chomerics’ Open Area Test Sites A and B are accredited for Radiated and Conducted Emissions through Industry Canada under file numbers IC2959A and IC2959B respectively. TEST SERVICES Siemens Biomedical Telemetry Transmitter (608-614MHz) Document #: TR2585.00 Date: May 10, 2000 Page 6 of 20 Chomerics’ Open Area Test Site A is accredited to the Voluntary Control Council for Interference (VCCI) in Japan for Radiated and Conducted Emissions testing under file R-749 and C-770 respectively. Open Area Test Site B is also accredited to the Voluntary Control Council for Interference for Radiated and Conducted Emissions testing under file R-738 and C-758 correspondingly. Chomerics test facility operates under the current revision of Chomerics Quality Assurance (QA) Manual Document Number QA002. The QA Manual has been constructed to reflect a quality program in accordance with the requirements of the National In…
