MOTOROLA, INC. FCC ID: IHDA56CK1 Page 1 of 3 800 / 1900 MHZ DUAL BAND LINEAR RF COMPENSATOR MODEL # SYN9528A USER MANUAL 1. GENERAL The 800 / 1900 MHz Dual Band Linear RF Compensator model # SYN9528A is a bi-directional, dual band RF amplifier used in conjunction with either a dual band or a standard single band mobile phone. It’s designed to compensate for signal attenuation in both transmit and receive paths due to antenna and cable losses employed in automotive OEM installations. This helps improving call quality in weak coverage areas and reduce dropped calls in between cell sites. The compensator operates in both analog (AMPS) and digital (CDMA, GSM, TDMA) modes. 2. INSTALLATION To meet the FCC’s and IC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user or nearby persons and the antenna. WARNING All installations are done at the factory. No end-user installation or accessible part is involved. Any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate this equipment. 3. I/O CONNECTION PORTABLE and ANTENNA port: FAKRA RF type connectors. DC input and ON/OFF control: 4-pin automotive connector. 4. SPECIFICATIONS FCC ID IHDA56CK1 FCC Rule Parts 22 & 24 IC Certification Number 1090-SYN9528 IC Radio Standards Specification RSS-131 Emission Designators DXW, F1D, F9W and GXW Operating Frequency TX: 824-849 MHz 1850-1910 MHz RX: 869-894 MHz 1930-1990 MHz Mode of Transmission Analog & Digital Data Source External MOTOROLA, INC. FCC ID: IHDA56CK1 Page 2 of 3 Type of Modulation AMPS (analog) CDMA, GSM & TDMA (digital) Type of Information Telephony & Data Channeling Single channel Channel Spacing AMPS: 30 KHz CDMA: 1.23 MHz GSM: 300 KHz TDMA: 30 KHz Input Power TX: 25 dBm max (800 MHz) 20 dBm max (1900 MHz) Output Power TX: AMPS: 27 dBm CDMA: 27 dBm TDMA: 27 dBm GSM: 800 MHz: 29 dBm 1900 MHz: 30 dBm Nominal Gain Cellular: TX: 824-849 MHz: 9 dBm RX: 869-894 MHz: 7.5 dBm PCS: TX: 1850-1910 MHz: 15 dBm RX: 1930-1990 MHz: 15 dBm Input and Output Impedance 50 Ohm Harmonics & Spurious IC, FCC, TIA / EIA specifications Stability Any RF load condition DC Supply Voltage 9 to 16.5 V Current Draw 1.5A max RF Load VSWR Full power at better than 2:1 VSWR Operating Temp: -30 to 60°C Storage Temp -40 to 90°C MOTOROLA, INC. FCC ID: IHDA56CK1 Page 3 of 3

May 20, 2002 Elite Electronic Engineering, Inc. TCB Certification Services 1516 Centre Circle Downers Grove 60515 Attn: Richard King Certification Department Gentlemen, TRL Technologies, on behalf of Motorola, Inc., is applying for equipment authorization for the 800 / 1900 MHz Dual Band Linear RF Compensator, model # SYN9528A. It’s designed to compensate for signal attenuation in both transmit and receive paths due to antenna and cable losses employed in automotive OEM installations. The compensator is a single channel power amplifier that will be operated under FCC Rule Part 22 and 24 and has the following specifications: Frequency Modulation Power dBm TX 824-849 MHz AMPS 27 CDMA 27 GSM 29 TDMA 27 1850-1910 MHz AMPS 27 CDMA 27 GSM 30 TDMA 27 Due to Motorola's proprietary requirement, we request that the following exhibits to be held confidential: 1. Block Diagrams 2. Operational Description 3. Schematics If you have any questions regarding this filing, please contact me at: TRL Technologies, Inc. 2410 Vantage Dr. Elgin IL 60123 Phone: (847) 844-4636 Fax: (847) 844-4650 Email: [email protected] Regards, Hiep Lam

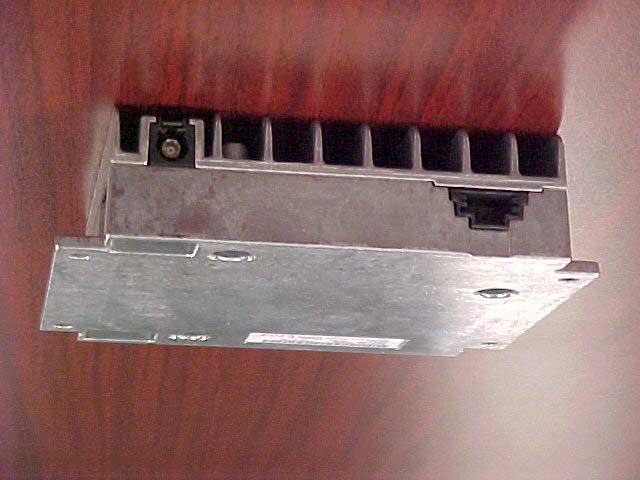

MOTOROLA, INC. FCC ID: IHDA56CK1 EXTERNAL, FRONT MOTOROLA, INC. FCC ID: IHDA56CK1 BACK, EXTERNAL

MOTOROLA, INC. IHDA56CK1 LABEL

MOTOROLA, INC. FCC ID: IHDA56CK1 INTERNAL VIEW

MOTOROLA, INC. FCC ID: IHDA56CK1 Page 1 of 1 PART # DESCRIPTION REFERENCE AM1 MMIC AMP U1 AWT6106 POWER AMP MODULE U4 AWT6111 POWER AMP MODULE U2 DFX0836H0881G DUPLEXER FIL1, FIL2 DFX1880J1960Q DUPLEXER FIL4, FIL5 LM2941T REGULATOR IC U5 MMBT3904LT1 TRANSISTOR IC NPN Q2 MMBZ5242BLT1 DIODE 12V ZENER D1 MTD2955V TRANSISTOR IC PFET Q1 SGA-3563 MMIC AMP U3 SLF-080ML DIPLEXER FIL3, FIL6 FAN2500S285 REGULATOR IC U6

MOTOROLA, INC. FCC ID: IHDA56CK1 Page 1 of 1 TUNEUP PROCEDURE There is no tuning required for the unit. Its rated output power can be set by providing the proper input power level.

MOTOROLA, INC. FCC ID: IHDA56CK1 SAR Test Report for Motorola’s 800 / 1900 MHz DualBand Linear RF Compensator, Model # SYN9528A, FCC ID IHDA56CK1 Prepared by: Phil Aseltine, Resource Manager, Motorola Tim Avicola, Director of Engineering, TRL Technologies, Inc. Motorola and TRL Technologies, Inc. Product Safety Laboratory has reviewed the 800 / 1900 MHz DualBand Linear RF Compensator, FCC ID IHDA56CK1, for the need to conduct SAR evaluation. Due to the design and installation of this product, it qualifies for the exclusion called out in 2.1091. The 800 / 1900 MHz DualBand Linear RF Compensator is operated as a mobile device as defined in 2.1091(b) bases on its design and installation. The compensator is installed into a vehicle such that it is physically secured and is generally located more than 20 cm from the end-user. This information is included in the user manual. It is suggested that the antenna be installed such that there is at least 20 cm of separation between the occupants of the vehicle and the antenna. The 800 / 1900 MHz DualBand Linear RF Compensator has maximum transmitted conducted power of 0.8W in cellular and 1W in PCS band GSM mode, respectively. The mobile antenna supplied with the transceiver has a maximum gain of 2.1 dBi, and minimum cable loss of 1.0 dB, together resulting in a total ERP of a little more than 1W in cellular band and less than 2W in PCS band. Since the transmit cellular band (824-849 MHz) is below 1.5 GHz and its ERP with the supplied antenna is below 1.5W and transmit PCS band (1850-1910 MHz) is above 1.5 GHz and its ERP with the supplied antenna is below 3W, the 800 / 1900 MHz DualBand Linear RF Compensator is categorically excluded from routine environmental evaluation per 2.1091(c).
