IHDA5ZK1800MHz Linear RF Compensator

MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 1 OF 2 800MHZ LINEAR RF COMPENSATOR MODEL # SYN8015A USER MANUAL 1. GENERAL The 800 MHz Linear RF Compensator is a bi-directional RF amplifier. It is used to compensate for signal attenuation in cellular phones due to antenna and cable losses. The device operates in both analog (AMPS) and digital (CDMA & TDMA) modes. 2. I/O CONNECTION Portable and antenna port: mini UHF type connectors. DC input and various control signals: 14-pin male connector. 3. SPECIFICATIONS Operating FrequencyTX: 824-849 MHz RX: 869-894 MHz ChannelingSingle channel Mode of TransmissionAnalog & Digital Data SourceExternal Type of ModulationAMPS (analog) CDMA (digital) TDMA (digital) Type of InformationTelephony & Data Occupied Bandwidth RequirementAMPS: 30 KHz CDMA: 1.23 MHz TDMA: 30 KHz Input PowerTX: 25 dBm max RX: 3 dBm max Output PowerTX:AMPS: 28 dBm CDMA: 29.5 dBm TDMA: 31.2 dBm RX:7 dBm Harmonics & SpuriousFCC, TIA / EIA specifications StabilityLess than 3:1 VSWR into 50 Ohm DC Supply Voltage 9 to 16.5 V MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 2 OF 2 Current Draw1.5A max RF Load VSWRFull power at better than 2:1 VSWR Operating Temp:-30 to 60°C Storage Temp-40 to 90°C

MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 1 OF 2 800MHZ LINEAR RF COMPENSATOR MODEL # SYN8015A USER MANUAL 1. GENERAL The 800 MHz Linear RF Compensator is a bi-directional RF amplifier. It is used to compensate for signal attenuation in cellular phones due to antenna and cable losses. The device operates in both analog (AMPS) and digital (CDMA & TDMA) modes. 2. ANTENNA INSTALLATION Motorola recommends that the antenna be installed such that there is at least 20 cm of separation between the occupants of the vehicle and the antenna. 3. I/O CONNECTION Portable and antenna port: mini UHF type connectors. DC input and various control signals: 14-pin male connector. 4. SPECIFICATIONS Operating FrequencyTX: 824-849 MHz RX: 869-894 MHz ChannelingSingle channel Mode of TransmissionAnalog & Digital Data SourceExternal Type of ModulationAMPS (analog) CDMA (digital) TDMA (digital) Type of InformationTelephony & Data Occupied Bandwidth RequirementAMPS: 30 KHz CDMA: 1.23 MHz TDMA: 30 KHz Input PowerTX: 25 dBm max RX: 3 dBm max Output PowerTX:AMPS: 28 dBm CDMA: 29.5 dBm TDMA: 31.2 dBm RX:7 dBm MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 2 OF 2 Harmonics & SpuriousFCC, TIA / EIA specifications StabilityLess than 3:1 VSWR into 50 Ohm DC Supply Voltage 9 to 16.5 V Current Draw1.5A max RF Load VSWRFull power at better than 2:1 VSWR Operating Temp:-30 to 60°C Storage Temp-40 to 90°C

MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 1 OF 2 800MHZ LINEAR RF COMPENSATOR MODEL # SYN8015A REFERENCE SHEET 1. GENERAL The 800 MHz Linear RF Compensator is a bi-directional RF amplifier. It is used to compensate for signal attenuation in cellular phones due to antenna and cable losses. The device operates in both analog (AMPS) and digital (CDMA & TDMA) modes. 2. ANTENNA INSTALLATION IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the occupants of the vehicle and the antenna. 3. I/O CONNECTION Portable and antenna port: mini UHF type connectors. DC input and various control signals: 14-pin male connector. 4. SPECIFICATIONS Operating FrequencyTX: 824-849 MHz RX: 869-894 MHz ChannelingSingle channel Mode of TransmissionAnalog & Digital Data SourceExternal Type of ModulationAMPS (analog) CDMA (digital) TDMA (digital) Type of InformationTelephony & Data Occupied Bandwidth RequirementAMPS: 30 kHz CDMA: 1.23 MHz TDMA: 30 kHz Input PowerTX: 25 dBm max RX: 3 dBm max Output PowerTX:AMPS: 28 dBm CDMA: 29.5 dBm TDMA: 31.2 dBm RX:7 dBm MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 2 OF 2 Harmonics & SpuriousFCC, TIA / EIA specifications StabilityLess than 3:1 VSWR into 50 Ohm DC Supply Voltage 9 to 16.5 V Current Draw1.5A max RF Load VSWRFull power at better than 2:1 VSWR Operating Temp:-30 to 60°C Storage Temp-40 to 90°C

MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 1 OF 2 800MHZ LINEAR RF COMPENSATOR MODEL # SYN8015A REFERENCE SHEET 1. GENERAL The 800 MHz Linear RF Compensator is a bi-directional RF amplifier. It is used to compensate for signal attenuation in cellular phones due to antenna and cable losses. The device operates in both analog (AMPS) and digital (CDMA & TDMA) modes. 2. ANTENNA INSTALLATION IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user or nearby persons and the antenna. 3. I/O CONNECTION Portable and antenna port: mini UHF type connectors. DC input and various control signals: 14-pin male connector. 4. SPECIFICATIONS Operating FrequencyTX: 824-849 MHz RX: 869-894 MHz ChannelingSingle channel Mode of TransmissionAnalog & Digital Data SourceExternal Type of ModulationAMPS (analog) CDMA (digital) TDMA (digital) Type of InformationTelephony & Data Occupied Bandwidth RequirementAMPS: 30 kHz CDMA: 1.23 MHz TDMA: 30 kHz Input PowerTX: 25 dBm max RX: 3 dBm max Output PowerTX:AMPS: 28 dBm CDMA: 29.5 dBm TDMA: 31.2 dBm MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 2 OF 2 RX:7 dBm Harmonics & SpuriousFCC, TIA / EIA specifications StabilityLess than 3:1 VSWR into 50 Ohm DC Supply Voltage 9 to 16.5 V Current Draw1.5A max RF Load VSWRFull power at better than 2:1 VSWR Operating Temp:-30 to 60°C Storage Temp-40 to 90°C

MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 1 OF 2 800MHZ LINEAR RF COMPENSATOR MODEL # SYN8015A REFERENCE SHEET 1. GENERAL The 800 MHz Linear RF Compensator is a bi-directional RF amplifier. It is used to compensate for signal attenuation in cellular phones due to antenna and cable losses. The device operates in both analog (AMPS) and digital (CDMA & TDMA) modes. 2. ANTENNA INSTALLATION IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna. 3. I/O CONNECTION Portable and antenna port: mini UHF type connectors. DC input and various control signals: 14-pin male connector. 4. SPECIFICATIONS Operating FrequencyTX: 824-849 MHz RX: 869-894 MHz ChannelingSingle channel Mode of TransmissionAnalog & Digital Data SourceExternal Type of ModulationAMPS (analog) CDMA (digital) TDMA (digital) Type of InformationTelephony & Data Occupied Bandwidth RequirementAMPS: 30 kHz CDMA: 1.23 MHz TDMA: 30 kHz Input PowerTX: 25 dBm max RX: 3 dBm max Output PowerTX:AMPS: 28 dBm CDMA: 29.5 dBm TDMA: 31.2 dBm MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 2 OF 2 RX:7 dBm Harmonics & SpuriousFCC, TIA / EIA specifications StabilityLess than 3:1 VSWR into 50 Ohm DC Supply Voltage 9 to 16.5 V Current Draw1.5A max RF Load VSWRFull power at better than 2:1 VSWR Operating Temp:-30 to 60°C Storage Temp-40 to 90°C

July 9, 1999 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia MD 21046 Ladies and Gentlemen, TRL Technologies, on behalf of Motorola, Inc., is applying for equipment authorization for the 800MHz Linear RF Compensator, FCC ID: IHDA5ZK1, model # SYN8015A. The compensator is a single channel power amplifier that will be operated under FCC Rule Part 22 and has the following specifications: FrequencyModulationChannelPower SpacingdBmW Uplink824-849 MHzAMPS30KHz280.63 TDMA30KHz31.21.32 CDMA1.23MHz29.50.89 Downlink869-894 MHzSame Same as Aboveas Above70.005 Due to Motorola's proprietary information, we are requesting that the foll owing portions of the data be held confidentially: 1. Block diagrams 2. Operational description 3. Schematics Please send the grant to: Andrew Bachler FCC Liason Personal Communications Sector Motorola, Inc. 600 North U.S. Highway 45 Libertyville, IL 60048 Telephone: (847) 523-6167 Fax: (847) 523-2350 E-Mail: [email protected] If you have any questions regarding this filing, please contact me at: TRL Technologies, Inc. 2155 Stonington Ave. Suite 216 Hoffman Estate IL 60195 Voice (847) 519-9690, Ext 310 Fax (847) 519-9691 Sincerely, Hiep Lam Electrical Engineer

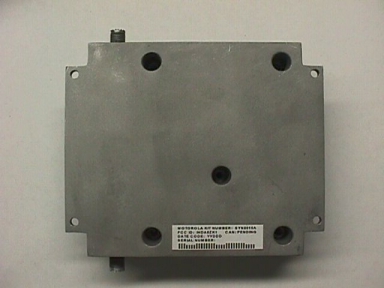

MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 1 OF 2 FRONT MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 2 OF 2 BACK

SERIAL NUMBER: C AN: PENDINGF C C ID : IH D A5 Z K 1 DATE C ODE: YYDDD M OTOR OLA KIT NUM B ER : S YN8015A SERIAL NUMBER: C AN: PENDINGF C C ID : IH D A5 Z K 1 DATE C O DE: YYDDD M O TO R O LA KIT N UM B E R : S YN8015A

MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 1 OF 1 INTERNAL

MOTOROLA, INC.FCC ID: IHDA5ZK1 800MHZ LINEAR RF COMPENSATOR MODEL # SYN8015 ITEMQTYDESCRIPTIONREFERENCEPART # 12DuplexerFIL1, FIL2DFD0836G0881E 2 2Variable AttenuatorU2, U7AV104-12 31Non Volatile Dual EEPOTU3DS1867S-10 41MMIC Gain BlockU10INA10386 51Switching RegulatorU5LM2941T 615V RegulatorU6L78M05CDT-TR 72RF Power AmplifierU4, U8RF2108 81Diode D1MMBD701LT1 9290 Degree Quadrature HybridHY1, HY2SLC-090U 101Voltage RegulatorU10LP2951ACMX 111Transcient SupressorD6MMBZ27VCLT1 124Diode-5.6V ZenerD2, D3, D4, D5MMBZ5V6ALT1 131Op-AmpU9LMC7225IMX 141PNP TransistorQ1MJD32C Page 1 of 1

MOTOROLA, INC.FCC ID: IHDA5ZK1 PAGE 1 OF 1 TUNE UP PROCEDURE This tuning procedure is for reference purpose only. The PA is tuned in the factory to the specifications. There is no adjustment needed. 1. Equipments • Network analyzer • DC power supply • PC with digital potentiometer programming capability 2. Tuning Procedure • Connect the PA’s Antenna port to S11 port and Portable port to S22 port of the network analyzer. • Connect and provide all necessary signals through the 14-pin connector. • Turn on the DC supply. • Enable the PA. • Measure S21 and adjust the digital potentiometer setting for the TX port gain. • Measure S12 and adjust the digital potentiometer setting for the RX port gain. COMPENSATOR ON/OFF CONTROL A+ RST CLK DATA S11 S22 NETWORK ANALYZER PS PS PC PORTABLE ANTENNA

1 1 September 2, 1999 SAR Test Report for Motorola The 800MHz Linear RF Compensator (FCC ID IHDA5ZK1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois The Motorola Personal Communications Sector Product Safety Laboratory has reviewed the 800MHz Linear RF Compensator product, FCC ID IHDA5ZK1, for the need to conduct SAR evaluation. Due to the design and installation of this product, it qualifies for the exclusion called out in Federal Communications Commission section 47 CFR § 2.1091 titled “Radiofrequency radiation exposure evaluation: mobile devices.” In section § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons.” The 800MHz Linear RF Compensator is intended to be installed into a vehicle such that the unit is physically secured at one location. In the users guide supplied with the product, Motorola “recommends that the antenna be installed such that there is at least 20 cm of separation between the occupants of the vehicle and the antenna." Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 centimeters from the user. Thus, 800MHz Linear RF Compensator is a “mobile device” as defined in section § 2.1091 paragraph (b). Paragraph (c) gives the descriptions of types of mobile devices that are subject to routine environmental evaluation for RF exposure based on frequencies of operation and transmit EIRP. The 800MHz Linear RF Compensator operates at a transmit frequency of 824 to 894MHz. It has a transmit conducted power of 0.63 Watt. The mobile antenna supplied with the transceiver has a maximum gain of 2.1 dBi, and minimum cable loss of –1.0 dB, together resulting in a maximum EIRP of 1.29 Watts. Since the transceivers transmit frequency is below 1.5 GHz and its EIRP with the supplied antenna is below 1.5 Watts, the 800MHz Linear RF Compensator is “categorically excluded from routine environmental evaluation” per paragraph (c), and thus SAR evaluation is not required. A picture of the 800MHz Linear RF Compensator product is shown in figure 1 below. 2 2 Figure 1.

ENGINEERING TEST REPORT NO. 21810 ADMINISTRATIVE DATA AND SUMMARY OF TESTS DESCRIPTION OF TEST ITEM: Single Carrier 800MHz RF Linear Compensator MODEL NO: SYN8015A SERIAL NO: None Assigned MANUFACTURER: TRL Technologies APPLICABLE SPECIFICATIONS: FCC Part 22 QUANTITY OF ITEMS TESTED: One (1) TEST PERFORMED BY: ELITE ELECTRONIC ENGINEERING INCORPORATED Radio Interference Consultants Downers Grove, Illinois 60515 DATE RECEIVED: June 28, 1999 DATES TESTED: June 28 and 29, 1999 PERSONNEL (OPERATORS, OBSERVERS, AND CO-ORDINATORS): CUSTOMER: Hiep Lam of TRL Technologies was present. ELITE ELECTRONIC: Daniel E. Crowder ELITE JOB NO.: 27841 ABSTRACT: The model SYN8015A Single Carrier 800MHz RF Linear Compensator complies with the technical requirements in FCC Part 22. See test results and data pages for more details. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 70 ENGINEERING TEST REPORT NO. 21810 MEASUREMENT OF RF INTERFERENCE FROM A MODEL SYN8015A SINGLE CARRIER 80OMHz RF LINEAR COMPENSATOR 1.0 INTRODUCTION: 1.1 DESCRIPTION OF TEST ITEM: During the period of June 28 and 29, 1999, a series of radio interference measurements were performed on a model SYN8015A Single Carrier 80OMHz RF Linear Compensator, (hereinafter referred to as the test item). No serial number was assigned to the test item. The tests were performed for TRL Technologies of Hoffman Estates, IL. The test item is a single carrier RF linear compensator that operates in the 800MHZ Cellular bands, 869MHz to 894MHz and 835MHz to 849MHz. The test item has a rated gain of 10dB. 1.2 PURPOSE: The test series was performed to determine if the test item meets the technical requirements of the FCC Part 22 for 800MHz Cellular Radio. 1.3 DEVIATIONS, ADDITIONS AND EXCLUSIONS: There were no deviations, additions to, or exclusions from the test specification during this test series. 1.4 APPLICABLE DOCUMENTS: The following documents of the exact issue designated form part of this document to the extent specified herein: - Federal Communications Commission "Code of Federal Regulations", Title 47, Part 22, dated 1 October 1998 - Federal Communications Commission "Code of Federal Regulations", Title 47, Part 2, dated 1 October 1998 - ANSI C63.4-1992, "American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz" Page 4 of 70 ENGINEERING TEST REPORT NO. 21810 - TIA/EIA/IS-98-A, "Recommended Minimum Performance standards for Dual-Mode Wideband Spectrum Cellular Mobile Stations", dated July 1996 1.5 SUBCONTRACTOR IDENTIFICATION: This series of tests was performed by Elite Electronic Engineering Incorporated, of Downers Grove, Illinois. The laboratory is accredited by the National Institute of Standards and Technology (NIST) under the National Voluntary Laboratory Accreditation Program (NVLAP). NVLAP Lab Code: 100278-0. 1.6 LABORATORY CONDITIONS: The temperature at the time of the test was 21°C and the relative humidity was 41%. 2.0 TEST ITEM SETUP AND OPERATION: 2.1 POWER INPUT: The test item obtained 12VDC from a Tektronix PS280 DC Power Supply through two, 1/2 meter long, unshielded leads. 2.2 GROUNDING: Since the test item was powered with 12VDC from a DC power supply, it was ungrounded during the tests. 2.3 PERIPHERAL EQUIPMENT: The following peripheral equipment was submitted with the test item: ITEM DESCRIPTION HP Signal Generator M/N E4432B, S/N VS38440973 Ophir Amplifier M/N GRF5064, S/N 1006 HP Power Meter M/N 437B, S/N 311OA05097, Next Cal 05/27/00 The output of the signal generator was routed through the amplifier. The output of the amplifier was connected to the test item through a 1 meter long coaxial cable. The power meter was connected to the test item through a 1 meter long coaxial cable. 2.4 MODULATION: The test signal was modulated with three different representative types of modulations: (1) Analog - AMPS 3OkHz; (2) Digital I/Q modulations - TDMA 3OkHz; CDMA 1.23 MHz. The Page 5 of 70 ENGINEERING TEST REPORT NO. 21810 input signals were supplied from an HP M/N E4432B Signal Generator. The RP Power Output, the Occupied Bandwidth and the Spurious Emissions at Antenna Terminal tests were performed with AMPS, TDMA, and CDMA modulated input signals. The preliminary Field Strength of Spurious Emissions tests were performed with CW, AMPS, TDMA and CDMA modulated input signals. The final Field Strength of Spurious Emissions tests were performed with CW and CDMA modulated input signals. 2.5 FREQUENCY SELECTION: One test frequency was selected for each frequency band. The specified channel spacings for each modulation are shown below: Channel Modulation Spacing AMPS 30kHz TDMA 30kHz CDMA 1.23MHz The specific test frequencies are designated as follows: Frequency Band (MHz) Uplink 836.5 Downlink 881.5 2.6 RP POWER OUTPUT: The input levels were adjusted to reach the rated output levels shown below: Rated Rated Power Power Modulation (dBm) (Watts) AMPS 28 0.63 TDMA 31.2 1.3 CDMA 29.5 0.89 3.0 TEST EOUIPMENT: 3.1 TEST EQUIPXENT LIST: A list of the test equipment used can be found on Table I. All equipment was calibrated per the instruction manuals supplied by the manufacturer. Page 6 of 70 ENGINEERING TEST REPORT NO. 21810 3.2 CALIBRATION TRACEABILITY: Test equipment is maintained and calibrated on a regular basis. All calibrations are traceable to the National Institute of Standards and Technology (NIST). 4.0 REOUIREMENTS, PROCEDURES AND RESULTS: 4.1 RP POWER OUTPUT MEASUREMENTS: 4.1.1 REQUIREMENTS: In accordance with paragraph 22.913, the effective radiated power (ERP) level is allowed up to 7 watts for mobile transmitters. 4.1.2 PROCEDURES: The test item was adjusted for the rated gain. The test item was operated to measure the output for the uplink path. (a) The input signal was set to 836.5MHz. (b) The input signal was AMPS modulated. (c) The HP 437B …
