IHDT56AB2Mobile Cellular Phone

1 en-US Legal, safety, and regulatory Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, see the user guide. Regulatory information (e-label). To view regulatory information for this phone, from the home screen swipe up and tap Settings > , then type Regulatory, or visit www.motorola.com/device-legal. Battery safety. Your phone uses a removable battery. Don’t use tools, sharp objects, or excessive force to insert or remove the battery. This may damage the battery and could cause burning and injury. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger. Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). For more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Driving precautions. Responsible and safe driving is your primary responsibility when driving a vehicle. Always obey local laws and regulations. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Seizures, blackouts, eyestrain & discomfort. This device may display flashing images or loud sounds. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Medical devices. This device may interfere with pacemakers and other medical devices. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Class 1 Laser. This device is classified as a Class 1 Laser product, which is safe in normal use per IEC60825-1:2007 and IEC60825-1:2014. This device complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice 50, dated June 24, 2007. Do not attempt to modify or disassemble. Extreme heat or cold. Don’t use your phone in temperatures below 2 en-US -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). SAR information (on e-label). To view specific absorption rate (SAR) values for t phone, from the home screen swipe up and tap Settings > , then type Regulatory, or visit www.motorola.com/sar. Operational warnings. Obey all local restrictions when using mobile devices in public areas, such as hospitals, airplanes, or schools. • Potentially explosive areas: Potentially explosive areas are often, but not always, posted and can include blasting areas, fueling stations, fueling areas (such as below decks on boats), fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders. Turn off your phone before entering such an area, and do not charge batteries. In such areas, sparks can occur and cause an explosion or fire. • Symbol key: Your charger, phone, battery (if user-removable), phone display, user’s guide, or packaging may contain symbols, defined as follows: Important safety information follows. The package and paper products that came with your phone can be recycled. Don’t dispose of your battery or phone with your household waste. See “Disposal & recycling” for more information. Don’t dispose of your battery or phone in a fire. For indoor use only. Listening at high volume to music or voice through a headset or headphone may damage your hearing. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long 3 en-US periods. Disposal & recycling. For help recycling products and packaging responsibly, go to www.motorola.com/recycling. Usage. This phone supports apps and services that could use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. Certain apps and features may not be available in all countries. Warranty. This product is covered by Motorola’s limited warranty. o review the warranty on your phone, swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. You may also obtain a copy of the warranty by contacting Motorola at: Motorola Mobility LLC, Attention Customer Service—Warranty Request, 222 West Merchandise Mart Plaza, Suite 1800, Chicago, IL 60654. Arbitration & opt-out. Except where prohibited by law, any controversy or claim arising out of or relating to any Motorola product will be resolved by binding arbitration, instead of in court, unless you opt-out. To opt-out, send a written rejection notice within 30 days of purchase that includes your name, address, phone number, phone, and phone serial number, and tells Motorola that you are rejecting this Arbitration provision to: Motorola Mobility LLC, 222 West Merchandise Mart Plaza, Suite 1800, Attn: Arbitration Provision Opt-Out, Chicago, IL 60654 or [email protected]. To locate your phone’s serial (IMEI) number, from the home screen swipe up and tap Settings > , then type IMEI. For more information on this arbitration provision, on your phone, swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/ charges may apply. Features, functionality, and other product specifications, as well as the i…

Text truncated - open the document above for the full version.

Meet Your Front Camera SIM Card Tray Volume Buttons Proximity Sensor USB-C®/Charger/Headset Jack Power Button / Fingerprint Sensor Speaker Microphone Earpiece/Speaker Put in the cards & power on Nano SIM 1 Insert the SIM tool into the tray hole to pop out the tray. Make sure you use the correct size SIM card and don’t cut the SIM card. Nano SIM 2 Insert the SIM cards with the gold contacts up, then gently push the tray into the slot. 3 Press and hold the Power button, then follow the prompts to get started. Charge your phone wirelessly using a Qi-compatible charging pad (sold separately). Place your phone face up on the charging pad to start charging. Use your phone to pay while shopping using a compatible app, such as Google Pay. Hold the NFC touchpoint area near the payment device. Main Camera Ultra-wide/ Macro Camera Flash Depth Camera Microphone Wireless Charging Area NFC Touchpoint Area Microphone XT2201-3 Ready For Your phone works with Ready For, a new platform that extends your phone’s experience to any compatible TV, PC, or monitor: • Mobile gaming on the big screen, •Video calls larger than life and with better quality, • A larger , uncluttered workspace. Scan the QR code to get started. Your phone is also compatible with (may be sold separately): •Ready For Dock •Ready For Air Remote •Ready For 4K Wireless Adapter •Active Stylus •ThinkReality A3 Glasses To learn more, visit www.motorola.com. Help & more Get answers, updates, and info: •Help is here: From the home screen, swipe up and tap Settings > Help to learn how to use your phone and get support. •Get more: Get software, user guides, and more at www.motorola.com/mymotoedge. •Get apps: Tap Play Store to browse and download apps. •Use a headset: To use a headset, you’ll need one with a USB-C connector. If using a 3.5mm headset, you’ll need an adapter to connect a 3.5mm connector to USB-C. Headset may be sold separately. •Connect with 5G: 5G service plan and 5G network coverage required; available only in select areas; device not compatible with all 5G networks. Contact your service provider for details. Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, swipe up and tap Settings > Help. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger (may be sold separately). Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging, product damage, or reduced device performance. To view applicable standards and to learn more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning shows. Tap OK to dismiss it, or wait one to five seconds, then press the Volume Up button to dismiss the alert and enable the volume to continue to be adjusted. Disposal & recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling. Extreme heat or cold. Don’t use your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice. Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt-out, see the legal guide that came with your phone. Copyright & trademarks. MOTOROLA, the stylized M logo, MOTO, and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. USB Type-C and USB-C are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners. © 2021 Motorola Mobility LLC. All rights reserved. Product ID: Model XT2201-3 Manual Number: TBD-A With moto care, extend your warranty coverage up to three years, and take advantage of features like accidental damage protection. Visit motorola.com/motocare. care motorola.com

Meet Your Front Camera SIM Card Tray Volume Buttons Proximity Sensor USB-C®/Charger/Headset Jack Power Button / Fingerprint Sensor Speaker Microphone Earpiece/Speaker Put in the cards & power on Nano SIM 1 Insert the SIM tool into the tray hole to pop out the tray. Make sure you use the correct size SIM card and don’t cut the SIM card. Nano SIM 2 Insert the SIM cards with the gold contacts up, then gently push the tray into the slot. 3 Press and hold the Power button, then follow the prompts to get started. Charge your phone wirelessly using a Qi-compatible charging pad (sold separately). Place your phone face up on the charging pad to start charging. Use your phone to pay while shopping using a compatible app, such as Google Pay. Hold the NFC touchpoint area near the payment device. Main Camera Ultra-wide/ Macro Camera Flash Depth Camera Microphone Wireless Charging Area NFC Touchpoint Area Microphone XT2201-5 Ready For Your phone works with Ready For, a new platform that extends your phone’s experience to any compatible TV, PC, or monitor: • Mobile gaming on the big screen, •Video calls larger than life and with better quality, • A larger, unclutter ed workspace. Scan the QR code to get started. Your phone is also compatible with (may be sold separately): •Ready For Dock •Ready For Air Remote •Ready For 4K Wireless Adapter •Active Stylus •ThinkReality A3 Glasses To learn more, visit www.motorola.com. Help & more Get answers, updates, and info: •Help is here: From the home screen, swipe up and tap Settings > Help to learn how to use your phone and get support. •Get more: Get software, user guides, and more at www.motorola.com/mymotoedge. •Get apps: Tap Play Store to browse and download apps. •Use a headset: To use a headset, you’ll need one with a USB-C connector. If using a 3.5mm headset, you’ll need an adapter to connect a 3.5mm connector to USB-C. Headset may be sold separately. •Connect with 5G: 5G service plan and 5G network coverage required; available only in select areas; device not compatible with all 5G networks. Contact your service provider for details. Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, swipe up and tap Settings > Help. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger (may be sold separately). Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging, product damage, or reduced device performance. To view applicable standards and to learn more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning shows. Tap OK to dismiss it, or wait one to five seconds, then press the Volume Up button to dismiss the alert and enable the volume to continue to be adjusted. Disposal & recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling. Extreme heat or cold. Don’t use your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice. Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt-out, see the legal guide that came with your phone. Copyright & trademarks. MOTOROLA, the stylized M logo, MOTO, and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. USB Type-C and USB-C are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners. © 2021 Motorola Mobility LLC. All rights reserved. Product ID: Model XT2201-5 Manual Number: TBD-A With moto care, extend your warranty coverage up to three years, and take advantage of features like accidental damage protection. Visit mot orola.com/motocare. care motorola.com

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: January 4, 2022 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: IHDT56AB2 FCC ID: IHDT56AB3 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting confidentiality for exhibits filed with the commission supporting the application of equipment authorization for those items referenced above. Motorola Mobility respectfully requests the Commission to withhold indefinitely from public disclosure the following attachments under Long-Term Confidentiality. ⚫ Schematic Diagrams ⚫ Block Diagrams ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure The above listed documents contain detailed system and equipment descriptions that are proprietary and confidential information under Motorola trade secret protection. Public disclosure of above documents would be harmful to our company and would provide competitors an unfair advantage. This information is not made publicly available even after commercial release of the device. In additional to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We request the commission to grant short-term confidentiality request on the following attachments for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and that information will be available for public review once the grant of equipment authorization is issued. Sincerely, Jeff Narducci Director, Global Regulatory Compliance [email protected]

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: January 4, 2022 To whom it may concern, Please be notified that I, Jeff Narducci, have designated Jones Tsai of Sporton International Inc. and Linbiaochun of Motorola Mobility LLC as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out in their professional capacity by Jones Tsai of Sporton International Inc. and Linbiaochun of Motorola Mobility LLC in connection with all processes required for FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the following product, and shall remain in place until completion of the certification, or until revoked, whichever is earlier: FCC ID: IHDT56AB2 FCC ID: IHDT56AB3 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Jeff Narducci Director, Global Regulatory Compliance [email protected]

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Explanation N77 operating band in US We, Motorola Mobility LLC declare that the device with FCC ID: IHDT56AB2 , FCC ID: IHDT56AB3 supported 3450-3550 MHz and 3550-3700 MHz and 3700-3980 MHz for 5G NR band n77 in USA. By design, LTE/5GNR User Equipment (UE) will only transmit after receiving the Master Information Block (MIB) and the System Information Block (SIB) from base stations. This information is necessary for the UE to join the network. Accordingly, transmissions on non-allocated US bands (eg. 3550-3700 MHz) cannot occur because there will be no authorized base station device operating on non-US bands in the USA/US Territories. This is in line with what is done with 2G and 3G protocols, to ensure that the UE will not transmit on bands that, even if supported by the UE hardware, are not allowed in the US." Jeff Narducci Director, Global Regulatory Compliance [email protected]

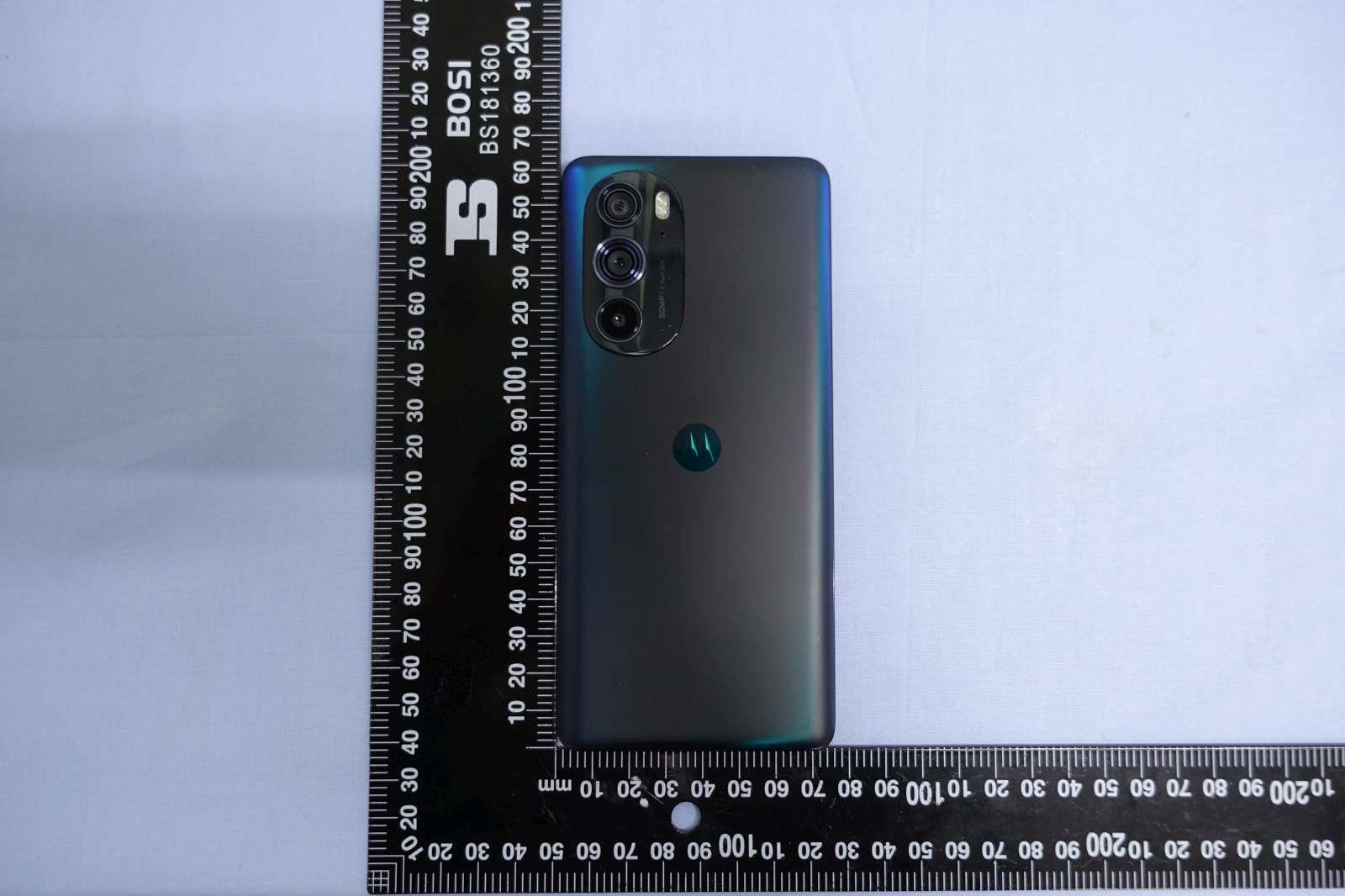

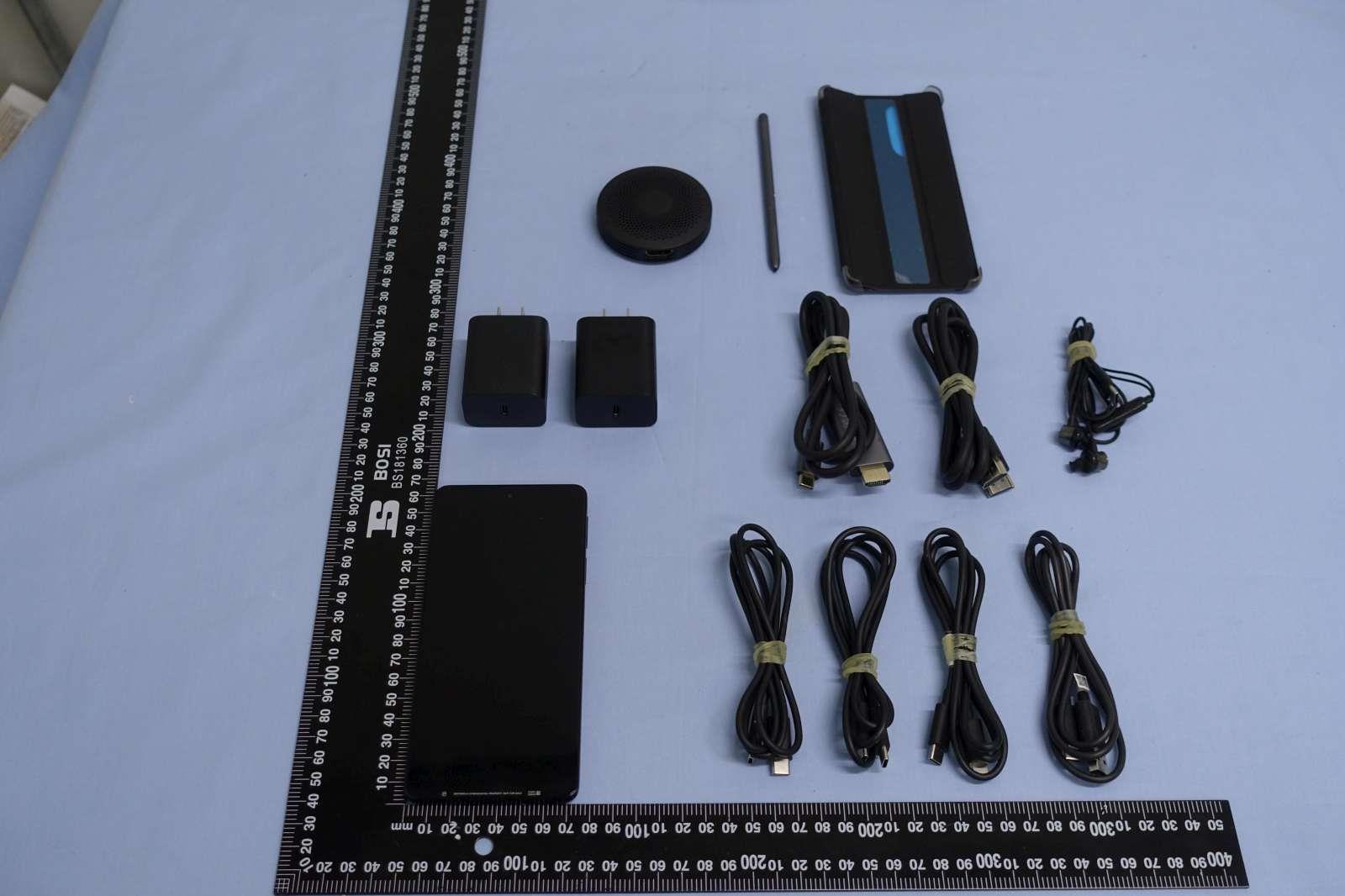

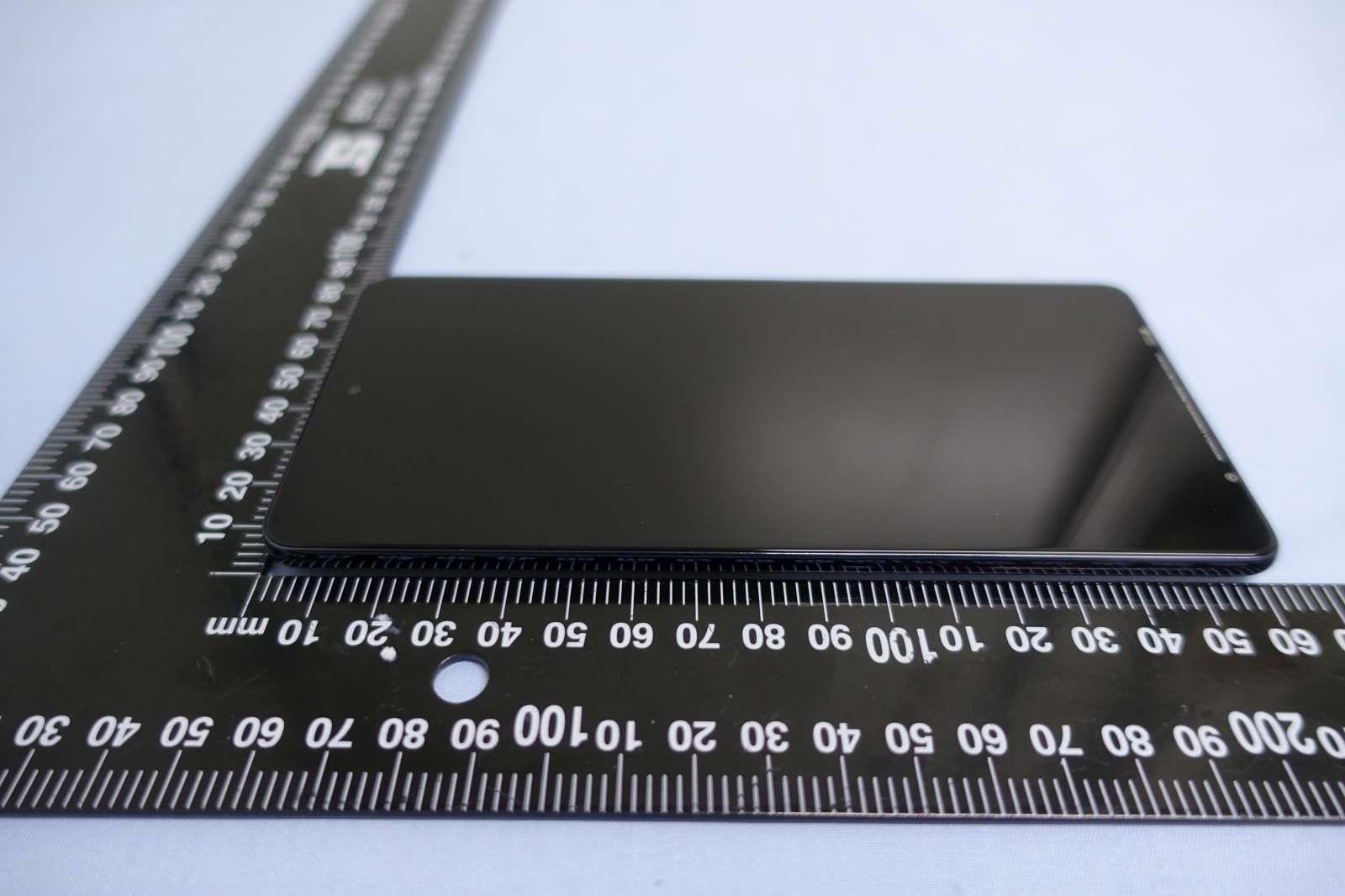

Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 1 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 2 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 3 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 4 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 5 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 6 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 7 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 List of Accessory： Specification of Accessory AC Adapter 1(US) Brand Name Motorola (Salom) Model Name MC-301 AC Adapter 2(US) Brand Name Motorola (Acbel) Model Name MC-301 Battery Brand Name Motorola (ATL) Model Name NA50 Earphone Brand Name Motorola (Lyand) Model Name MD211(SH38D20195) USB Cable 1 Brand Name Motorola (Saibao) Model Name SC18D13215 USB Cable 2 Brand Name Motorola (Cabletech) Model Name SC18D13216 USB Cable 3 Brand Name Motorola (Luxshare) Model Name SC18D13217 Type C to HDMI Cable /USBC Cable Brand Name Motorola(Linxee) Model Name SC18D02146 Stylus Brand Name Motorola smart stylus Model Name XT2201-S Smart Folio Brand Name Motorola(Techson) Model Name SS68D36907,SS68D36906 Wireless Dongle Brand Name Motorola Model Name MD-02 HDMI Cable Brand Name Motorola Model Name HC-01 USB Cable(Type A/C) Brand Name Motorola Model Name SC18C24367 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 8 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 720510 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 9 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 AC Adapter 1(US) Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 10 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 AC Adapter 2(US) Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 11 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Stylus Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 12 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Wireless Dongle Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 13 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 14 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 15 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 16 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 17 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (K…

Text truncated - open the document above for the full version.

FCC E-Label Information A. Images of the e-label screen are provided below: B. Access to the required information on the e-label Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: Settings > , then type Regulatory No any special accessories, access codes, or SIM card are required to go through the above steps. C. Devices have physical labels at point of marketing/sale visible to the purchaser (or in the alternative, on the packaging), and at time of importation? At the time of importation, marketing, and sale, the device will have the required physical label on the packaging, which will include the device’s FCC ID. D. Electronic labeling information is programmed into the device by the manufacturer at the time of manufacture. Yes. E. Electronic labeling information not modifiable by any third party. The e-label of the device is programmed by the grantee and secured in such a manner that it cannot be modified by third parties. F. All the applicable regulatory information required on the packaging or user instructions is provided according to the rules. Applicable regulatory information not found in the e-label is contained in the user manual.

FCC E-Label Information A. Images of the e-label screen are provided below: B. Access to the required information on the e-label Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: Settings > , then type Regulatory No any special accessories, access codes, or SIM card are required to go through the above steps. C. Devices have physical labels at point of marketing/sale visible to the purchaser (or in the alternative, on the packaging), and at time of importation? At the time of importation, marketing, and sale, the device will have the required physical label on the packaging, which will include the device’s FCC ID. D. Electronic labeling information is programmed into the device by the manufacturer at the time of manufacture. Yes. E. Electronic labeling information not modifiable by any third party. The e-label of the device is programmed by the grantee and secured in such a manner that it cannot be modified by third parties. F. All the applicable regulatory information required on the packaging or user instructions is provided according to the rules. Applicable regulatory information not found in the e-label is contained in the user manual.

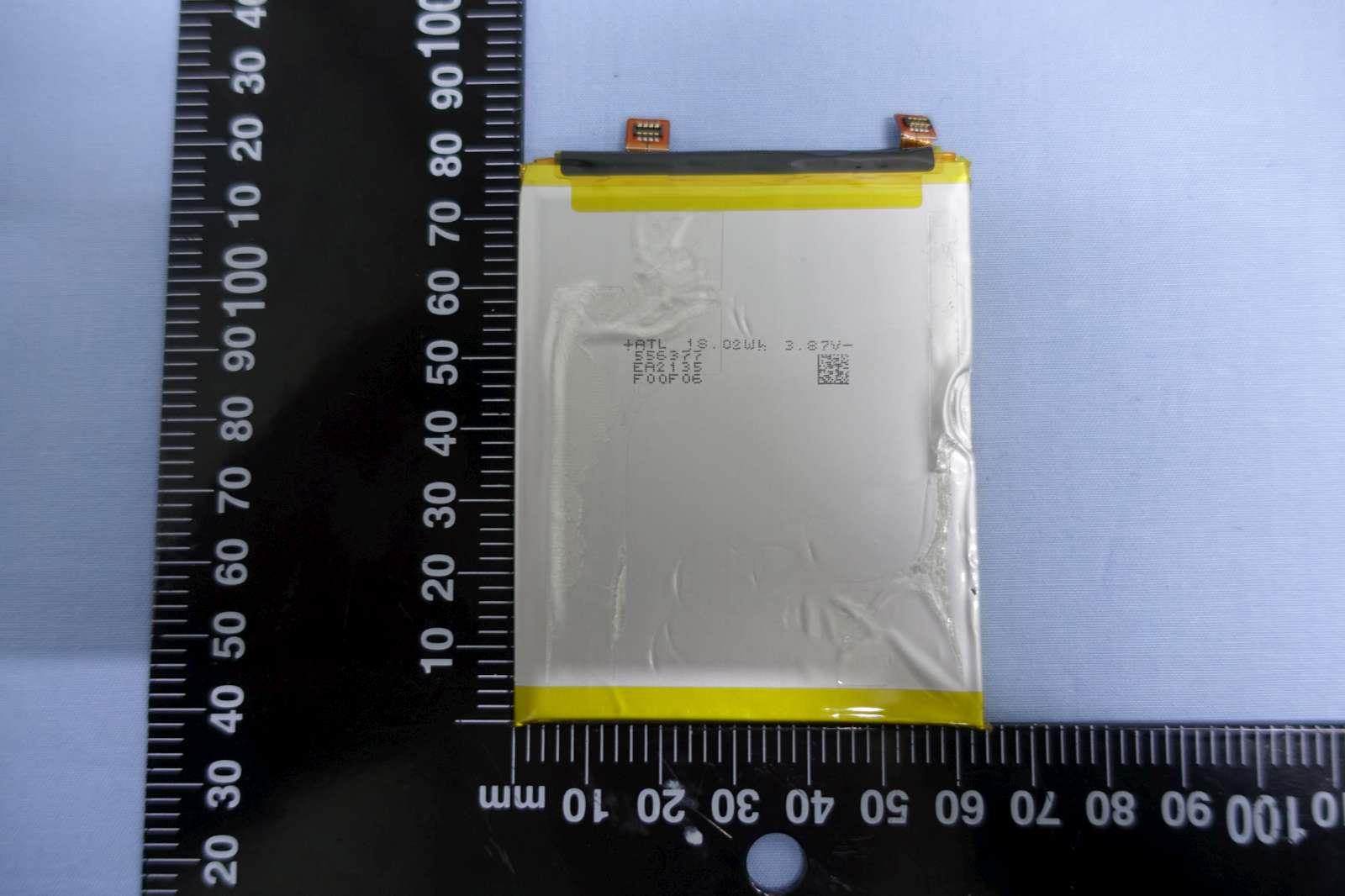

Photographs of EUT Report No.: EP192317-01B Brand Name: Motorola / Model Name: XT2201-3, XT2201-5 Sporton International (Kunshan) Inc. Page Number : 29 of 83 TEL : +86-512-57900158 Report Issued Date : Jan. 07, 2022 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID : IHDT56AB2 720510 3. Internal Photograph of EUT Antenna 1 Antenna 4 Antenna 5 Antenna 7 Antenna 2 NFC Wireless Charging Antenna 0 Antenna 8 Antenna 3 Antenna 6 Photographs of EUT Report No.: EP192317-01…
