IHDT56AJ6

Motorola Mobility LLC

Mobile Cellular Phone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Dec 19, 2022
Application Purpose: Original Equipment
Date of Application: Nov 19, 2022
Equipment Note: Mobile Cellular Phone
Frequency Range: 3500.01000000 - 3500.01000000
Company: Motorola Mobility LLC
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

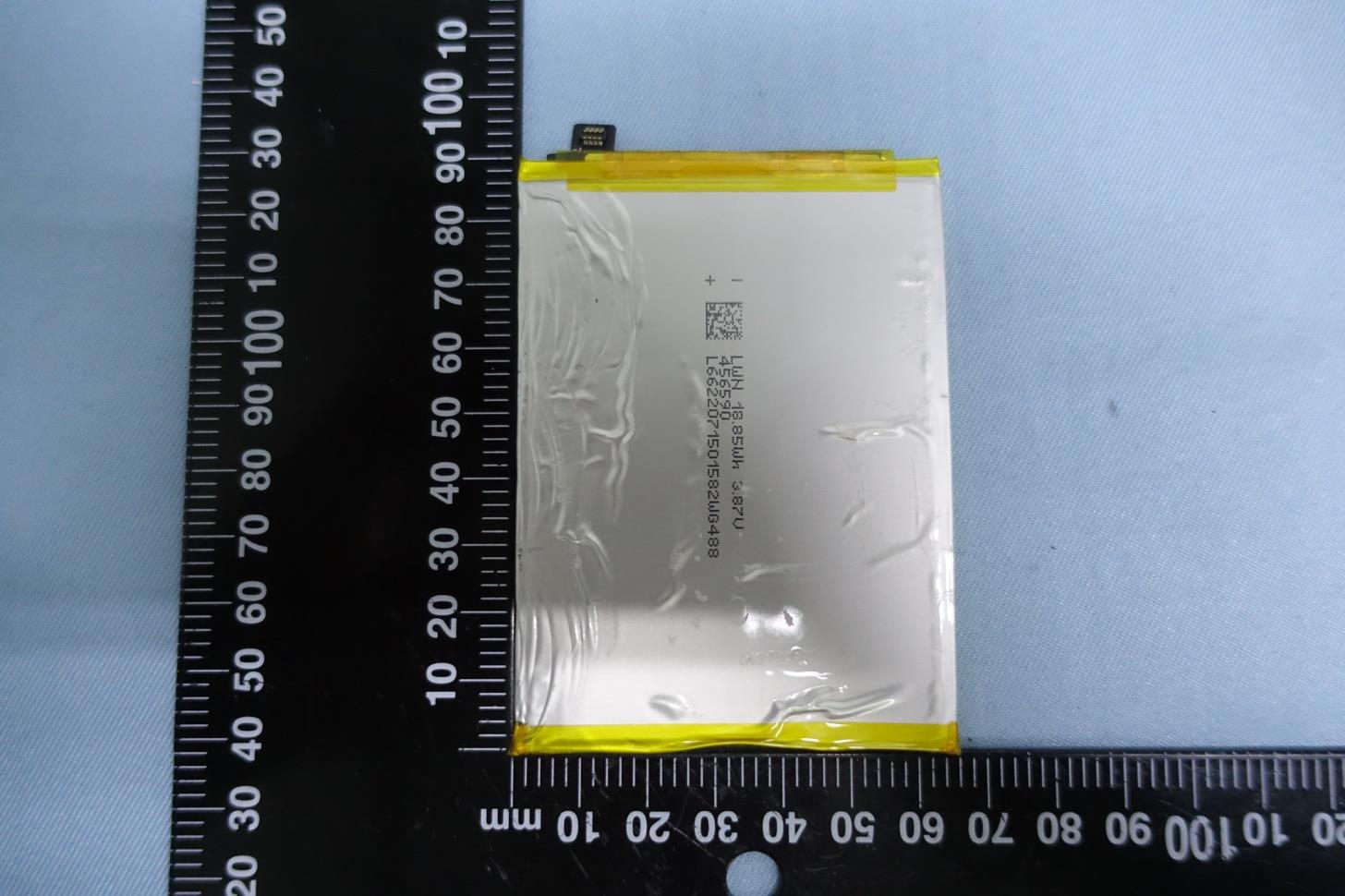

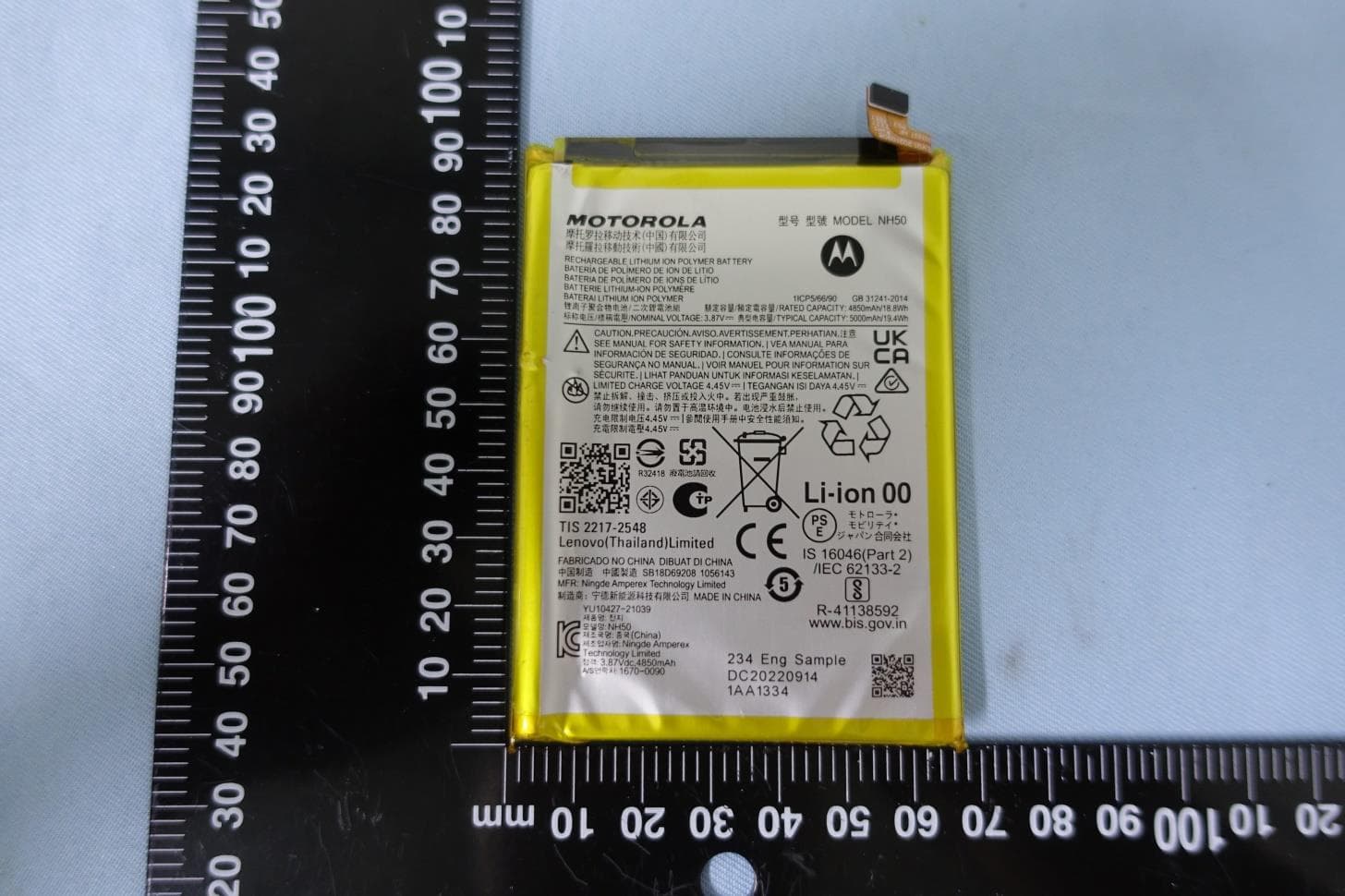

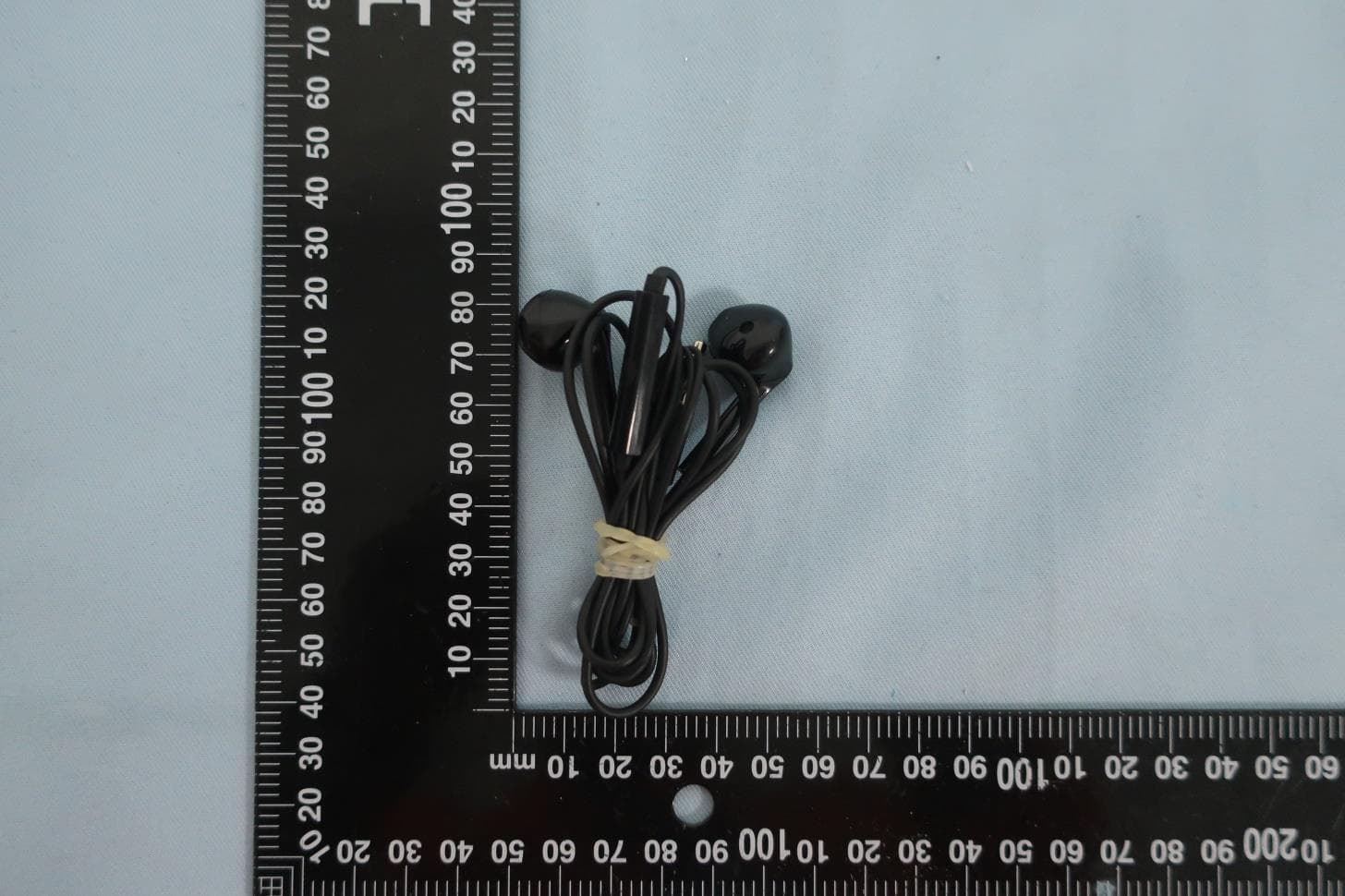

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
51	27	3.50 GHz - 3.50 GHz	101.40 mW	97M9W7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively, except for Part 90 LTE Band 26 emissions, which are conducted. SAR compliance for body-worn operating configurations is limited to belt-clips and holsters that have no metallic components in the assembly and cause the device to operate with the minimum separation distance of 5.0 mm, as described in this filing. End-users must be informed of the body- worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), simultaneous transmission and product specific (10g SAR) exposure conditions are 1.26 W/kg, 1.26 W/kg, 1.26 W/kg, 1.59 W/kg and 2.76 W/kg, respectively. This device supports LTE of 1.4, 3, 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Bands 2, 4, 25 and 66; LTE of 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Band 7; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for FDD LTE Bands 5, 12; LTE of 5 and 10 MHz bandwidth modes for FDD LTE Bands 13 and 17; LTE of 1.4, 3, 5, 10 and 15 MHz bandwidth modes for FDD LTE Band 26; and LTE of 5, 10, 15 and 20 MHz bandwidth modes for TDD LTE Band 38, 41 and 42. This device also supports LTE uplink carrier aggregation as described in this filing. This device also supports Frequency Range 1 5G NR modes of 5, 10, 15 and 20MHz bandwidth modes for FDD Band n2; 5, 10, 15, 20, 25, 30 and 40 MHz bandwidth for FDD Band n7; 5, 10, 15, 20, 30 and 40 MHz bandwidth for FDD Band n66; and 20, 30, 40, 50, 60, 70, 80, 90 and 100 MHz bandwidth modes for TDD Band n78. Frequency Range 1 5G NR ENDC modes are supported by this device, as described in this filing. HAC Rating: M3 T3: 2011. T-coil 5G sub 6 bands appraised as equivalent LTE connections. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations.
