APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CE1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 P R E L IMI N A RY Welcome Earpiece Internal Antenna USB Connector Port Insert data cable. Right Soft Key Perform functions identified by right display prompt. Menu Key Open a menu when you see M in the display Power/End Key Press & hold to power phone on & off. Press & release to end phone calls, exit menu system. Send/Answer Key Make and answer calls; press in idle to see recent dialed calls. Navigation Key Scroll through lists, set volume. Left Soft Key Perform functions identified by left display prompt. Microphone Headset Connector Port Power Connector Port Insert charger. Your C330 series phone lets you change convertible covers and keypads (see “Changing Your Phone’s Cover” on page 17). Your phone may not appear exactly as the phone image above. Note that all key locations, sequences and functions remain the same with any of the various convertible covers. C330.UG.book Page 1 Friday, June 28, 2002 1:05 PM 2 P R E L IMI N A R Y Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. © 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: Cover number: C330.UG.book Page 2 Friday, June 28, 2002 1:05 PM 3 P R E L IMI N A RY Menu Map Main Menu • Voice Dial • Recent Calls •Chat* • Media Center • My Tones • MotoMix • Picture Viewer • Ring Styles • Games • Browser * • Datebook • Calculator • Settings • (see next page) • Phonebook • Web Sessions * • Messages * • MyMenu • SIM Applications * • Fix Dial • Service Dial * •Quick Dial Note: This is the standard phone menu layout. You or your service provider may have changed the menu layout or changed some feature names. Not all features may be available for all users. *optional network, SIM card, or subscription- dependent features Shortcuts In idle, press S up or down to open Phonebook, right or left to adjust volume Display my phone number: Press M# Go to dialed calls list: Press N Exit menu system: Press O See page 49 for MyMenu Shortcuts C330.UG.book Page 3 Friday, June 28, 2002 1:05 PM 4 P R E L IMI N A R Y Settings Menu • Call Forward * •Voice Calls • Data Calls • Cancel All • Forward Status • Phone Status • My Tel. Numbers* • Credit Info/Available* • Active Line • Battery Meter • Other Information • In-Call Setup •In-Call Timer • Call Cost Setup * • My Caller ID • Answer Options • Call Waiting * • Security • Phone Lock • Lock Application • Fixed Dial • Call Barring * • SIM Pin •New Passwords • Other Settings • Personalize • Main Menu •Keys • Greeting * •Quick Dial* • Initial Setup • Time and Date • 1-Touch Dial • Backlight •Scroll • Animation • Language •Battery Save • Contrast •DTMF •Master Reset • Master Clear •Network • Car Settings • Headset Note: Not all features may be available for all users. *optional network, SIM card, or subscription- dependent features C330.UG.book Page 4 Friday, June 28, 2002 1:05 PM 5 P R E L IMI N A RY Contents Safety and General Information. . . . . . . . . . . . . . . . . . . 8 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Changing Your SIM Card . . . . . . . . . . . . . . . . . . . . . . 16 Changing Your Phone’s Cover . . . . . . . . . . . . . . . . . . 17 Resetting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . 20 Charging the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . 22 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . 23 Making and Answering Calls . . . . . . . . . . . . . . . . . . . 23 Using Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Display Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Using the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . . 28 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Using Automatic Redial . . . . . . . . . . . . . . . . . . . . . . . 35 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Dialing an Emergency Number . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID:IHDT56CE1 EXHIBIT 2A ATTESTATION STATEMENTS The transceiver of type IHDT56CE1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 1500 Gateway Boulevard, Boynton Beach, Florida and 2001 N. Division Street, Harvard Illinois. NAME: KEVIN FREISEN TITLE: ENGINEERING DIRECTOR, PERSONAL COMMUNICAITONS SECTOR 6/27/02 APPLICANT MOTOROLA INC. FCC ID:IHDT56CE1 EXHIBIT 2B I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. NAME : Mauricio Flores TITLE : RESOURCE MANAGER PCS Development Date : 6/27/02 The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56CE1) is in compliance with all applicable parts of the FCC Rules. The following is a statement of my qualifications: NAME : Rod Whaley TITLE : PRINCIPAL STAFF ENG. PCS Development Date : 6/27/02

APPLICANT: MOTOROLAFCC ID: IHDT56CE1 Exhibit 13 June 29, 2002 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56CE1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits:
Exhibit 4 Block Diagrams
Exhibit 5 Schematics
Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

January 7, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Martin Perrine In re: Motorola, Inc. FCC ID: IHDT56CE1 TC#: TC157909 CRN: 6393 (4894) Date: 1/6/2002 (8/16/2002) Dear Martin: This is in response to your fax dated January 6, 2003 requesting information on the above- referenced device. Please note that the above correspondence CRN 4894 dated 8/16/2002 was answered and submitted to FCC on 8/28/2002. Please find attached the list of attachments. We apologize for the confusion. Please let us know if you have any questions with the amendment(s) or response to your questions. Best regards, cc: Motorola, Inc. Mail your comments or suggestions (To: [email protected]) FCC - Federal Communications Commission - FCC OET Search Form 12 Matches Found For: FCC ID = IHDT56CE1 Query Results: View AttachmentExhibit TypeDescription of ExhibitDate Submitted to FCC Display Mode Attestation StatementsExhibit 2 Attestation Statements07/19/2002pdf Cover Letter(s)Exhibit 13 Cover Letter07/19/2002pdf External PhotosExhibit 3 External Photos07/19/2002pdf ID Label/Location InfoExhibit 1 ID Label Location07/19/2002pdf Internal PhotosExhibit 9 Internal Photos07/19/2002pdf Parts List/Tune Up InfoSupplemental Response to CRN 489408/28/2002pdf Parts List/Tune Up InfoExhibit 10 Parts List and Tune Up Info07/19/2002pdf RF Exposure InfoExhibit 11 SAR Report07/19/2002pdf RF Exposure InfoSupplemental Response to CRN 489408/28/2002pdf RF Exposure InfoSupplemental SAR Response to TC128007/19/2002pdf Test ReportExhibit 6 Test Report07/19/2002pdf Users ManualExhibit 8 Preliminary Users Manual Draft07/19/2002pdf End of Report. Page 1 of 1FCC OET Search Form 1/7/03https://gullfoss2.fcc.gov/cgi-bin/ws.exe/prod/oet/forms/reports/Search_Form.hts?mode=Edit&form=Exhibits&application_id=157909&fcc_

January 7, 2003 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Martin Perrine In re: Motorola, Inc. FCC ID: IHDT56CE1 TC#: TC157909 CRN: 6393 (4894) Date: 1/6/2002 (8/16/2002) Dear Martin: This is in response to your fax dated January 6, 2003 requesting information on the above- referenced device. Please note that the above correspondence CRN 4894 dated 8/16/2002 was answered and submitted to FCC on 8/28/2002. Please find attached the list of attachments. We apologize for the confusion. Please let us know if you have any questions with the amendment(s) or response to your questions. Best regards, cc: Motorola, Inc. Mail your comments or suggestions (To: [email protected]) FCC - Federal Communications Commission - FCC OET Search Form 12 Matches Found For: FCC ID = IHDT56CE1 Query Results: View AttachmentExhibit TypeDescription of ExhibitDate Submitted to FCC Display Mode Attestation StatementsExhibit 2 Attestation Statements07/19/2002pdf Cover Letter(s)Exhibit 13 Cover Letter07/19/2002pdf External PhotosExhibit 3 External Photos07/19/2002pdf ID Label/Location InfoExhibit 1 ID Label Location07/19/2002pdf Internal PhotosExhibit 9 Internal Photos07/19/2002pdf Parts List/Tune Up InfoSupplemental Response to CRN 489408/28/2002pdf Parts List/Tune Up InfoExhibit 10 Parts List and Tune Up Info07/19/2002pdf RF Exposure InfoExhibit 11 SAR Report07/19/2002pdf RF Exposure InfoSupplemental Response to CRN 489408/28/2002pdf RF Exposure InfoSupplemental SAR Response to TC128007/19/2002pdf Test ReportExhibit 6 Test Report07/19/2002pdf Users ManualExhibit 8 Preliminary Users Manual Draft07/19/2002pdf End of Report. Page 1 of 1FCC OET Search Form 1/7/03https://gullfoss2.fcc.gov/cgi-bin/ws.exe/prod/oet/forms/reports/Search_Form.hts?mode=Edit&form=Exhibits&application_id=157909&fcc_

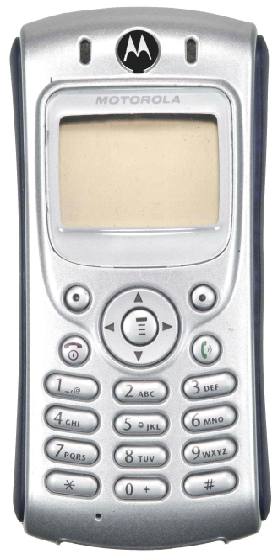

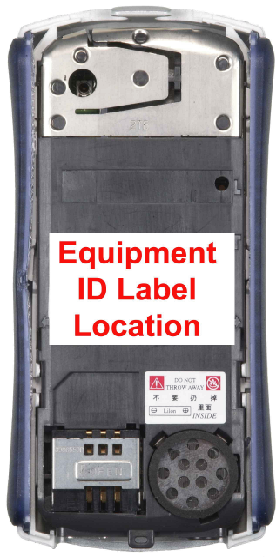

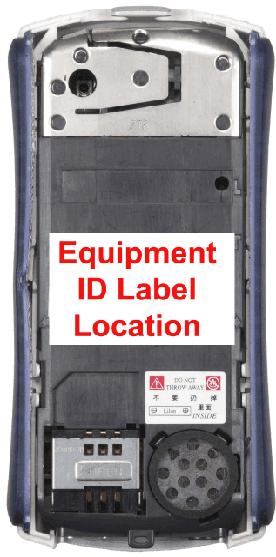

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CE1 EXHIBIT 3A Front View Rear View with housing removed to show equipment ID label APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CE1 EXHIBIT 3B Front View Rear View with housing removed to show equipment ID label

APPLICANT: MOTOROLA INC.FCC ID: IHDT56CE1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56CE1

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CE1 EXHIBIT 10 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CE1 EXHIBIT 10 Reference DesignatorPart NumberComponent Value R6020609591M0733 Dual Res R9050609591M3812k Dual Res R1050660076S010 Ohm R9070662057A2275 Ohm R9080662057A2275 Ohm R9130662057A47820 Ohm R9140662057A511.2k R1030662057M010 Ohm R3020662057M010 Ohm R3050662057M010 Ohm R3100662057M010 Ohm R5040662057M010 Ohm R5060662057M010 Ohm R7110662057M010 Ohm R8030662057M010 Ohm R8120662057M010 Ohm R9180662057M4668 Ohm R8310662057M4882 Ohm R1530662057M50100 Ohm R1540662057M62330 Ohms R1520662057M65430 Ohms R1500662057M72820 Ohms R3130662057M72820 Ohms R8100662057M741k Ohm R9090662057M741k Ohm R1510662057M781.5k R6010662057M781.5k R6060662057M812k R9110662057M904.7k R9160662057M904.7k R8010662057M925.6k R5030662057M9810k R9250662057M9810k R9310662057M9810k R9010662057N0112k R7100662057N1547k R9200662057N1547k R9210662057N1547k R1550662057N1651k R7140662057N23100k R7130662057N30200k R9060662057N31220k R9120662057N32240k APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CE1 EXHIBIT 10 R4020662057U54130 Ohm R4030662057W133.3 Ohms R9030662057W133.3 Ohms RT9000685660C01Thermister C1500809084T426800 pF C1550809084T440.01uF J6000970312B16Mini USB J9000985882K01Charger Jack J9310987837L04Headset Jack J1000988612M01RF Switch C4012113743A311uF C4042113743A311uF C20002113743A311uF C8082113743E26.0.1uF C8092113743E26.0.1uF C8182113743E26.0.1uF C8212113743E26.0.1uF C3142113743F182.2uF C1522113743L07390pF C1512113743L13680pF C1532113743L15820pF C3312113743L171000pF C1542113743L211500pF C9262113743L211500pF C1762113743L41.01uF C7012113743L41.01uF C7052113743L41.01uF C8062113743L41.01uF C8102113743L41.01uF C8112113743L41.01uF C8122113743L41.01uF C8132113743L41.01uF C8152113743L41.01uF C8162113743L41.01uF C8282113743L41.01uF C8302113743L41.01uF C8312113743L41.01uF C1452113743M240.1uF C8252113743M240.1uF C8262113743M240.1uF C9072113743M240.1uF C9082113743M240.1uF C9272113743M240.1uF C9432113743M240.1uF C1212113743N163.9pF C1222113743N163.9pF APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CE1 EXHIBIT 10 C1562113743N252.2pF C8502113743N2610pF C9282113743N2610pF C9292113743N2610pF C9352113743N2610pF C9372113743N2610pF C9002113743N3015pF C9012113743N3015pF C1752113743N4039pF C1772113743N4039pF C1792113743N4039pF C3012113743N4039pF C3022113743N4039pF C3302113743N4039pF C3322113743N4039pF C3332113743N4039pF C3342113743N4039pF C9362113743N4039pF C9412113743N4039pF C1572113743N54150pF C1782113928C031uF C6022113928C031uF C8012113928C031uF C8022113928C031uF C8032113928C031uF C8052113928C031uF C8272113928C031uF C8902113928C031uF C1342113928C044.7uF C8142113928C044.7uF C8402113928C044.7uF C9092113928C044.7uF C9102113928C044.7uF C9212113928C044.7uF C9222113928C044.7uF C9332113928C044.7uF C9342113928C044.7uF C9452113928C044.7uF C9402113928C1210uF C9482113928C1210uF C9492113928C1210uF C9112113928N010.1uF C9152113928N010.1uF C9162113928N010.1uF C9382113928N010.1uF C9422113928N010.1uF APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CE1 EXHIBIT 10 C9462113928N010.1uF C9502113928N010.1uF C9512113928N010.1uF C4022113928P041uF C4032113928P041uF C9172113928P041uF C1312113947B0533pF dual C9022113947B0533pF dual C9192113947B0533pF dual C9302113948E17.Quad Cap (0.1uF) C1332311049A762.2uF L1212409154M4022nH SH1002689851L01SHIELD, Athena SH2002689852L01SHIELD, Algae SH3002689853L01SHIELD, Neptune SH4002689853L01SHIELD, Neptune P8002809180T01Battery Connector S8004088064M01Battery Switch VR9024805656W03MMBZ5V6 Y9014809612J43XTAL Q9044809940E09.DTC114TE Y9004809995L08L08 XTAL Q9014813824B12MMJT9435 Q9034813824M28MMBT3904 DS5024870370B02White Display LEDs DS5044870370B02White Display LEDs DS5054870370B02White Keypad LEDs DS5074870370B02White Keypad LEDs U9024889526L03IPD U7055109509A431.8V 4M SRAM U9005109879E90.Seaweed U1505109923D57Algae U9205187970L09DiamondHead2 U6005187970L15Accessory XCVR U4005187970L20LM2795BLX U3005189227L02SPS Athena U8005199109K03Neptune 2.5.3 U7015199491A0128F640W18 M9005987772L02Vibrator F1006589735L01FUSE FL1309109474K05850/1900 Dual SAW

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CE1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56CE1 Date of test: Date of Report: 05/29/2002 – 06/06/2002 06/27/2002 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Firass Badaruzzaman SAR Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: System Validation & Interlaboratory Comparison Simulated Tissue Specifications and Procedure EME Cellular Phone Testing Procedure On the following types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56CE1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2002 This test report shall not be reproduced in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CE1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 5 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 7 References: Appendix 1: SAR distribution comparison for the system accuracy verification 9 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 10 Appendix 3: SAR distribution plots for Body Worn Configuration 13 Appendix 4. Probe Calibration Certificate 15 Appendix 5: Photographs of the device under test 16 Appendix 6: Dipole Correlation Certificate 23 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CE1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56CE1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Internal Antenna Location Back of Phone Length 20mm Dimensions Width 35mm Device description FCC ID Number IHDT56CE1 Serial number 5630032 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GSM GSM Maximum Output Power Setting 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.20 - 848.80 MHz 1850.20 – 1909.80 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±12.0% (K=1) with an expanded uncertainty of ±24.0% (K=2). The breakdown of the individual uncertainties is as follows: Probe Uncertainty ±% Isotropy error 7.2 Calibration error 3.3 Spatial resolution 0.5 SAR Evaluation ±% Conductivity measurement 5.0 Environmental errors 1.0 Peak SAR Evaluation ±% Probe positioning 1.0 Volumetric averaging 4.2 Device positioning 6.0 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CE1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN 365 09/26/2002 E-Field Probe ETDV6 SN 1508 10/25/2002 Dipole Validation Kit, DV900V2 SN 95 01/03/2003 SAM Phantom used for 800MHz TP-1005 Dipole Validation Kit, DV1900V2 SN 277tr 01/04/2003 SAM Phantom used for 1900MHz TP-1085 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04848 01/19/2003 Power Meter E4419B GB39511090 11/28/2002 Power Sensor #1 US39211007 12/19/2002 Power Sensor #2 US39210929 12/19/2002 Network Analyzer HP8753ES US39172529 07/05/2002 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with a HP85070 Dielectric Probe Kit These values are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory for compliance testing. f Dielectric Parameters (MHz) Tissue type Limits / Measured ε r σ (S/m) Temp (°C) Measured, 06/05/2002 41.80 0.92 22.30 Recommended Limits 41.50 0.90 20-25 Measured, 06/05/2002 41.60 0.91 23.30 835 Head Recommended Limits 41.50 0.90 20-25 Measured, 06/05/2002 54.60 0.98 23.30 Body Recommended Limits 55.20 0.97 20-25 Measured, 06/04/2002 39.80 1.45 2…
