IHDT56CG1Portable Cellular/PCS Transceiver (AMPS/CDMA)

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CG1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: PRELIMINARY Motorola T720 CDMA R2.1 Mobile Phone User’s Guide FCC Submission Draft February 18, 2002 PRELIMINARY 1 PRELIMINARY Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola T720 wireless phone. Earpiece Headset Jack Insert headset accessory for hands-free use. Status Light See incoming call and service status. Volume Keys Adjust earpiece and ringer volume. Voice Key Record voice notes, phonebook and shortcut names. Display Microphone Accessory Connector Port Insert charger and phone accessories. Power Key & End Key Turn phone on and off, end phone calls, exit menu system. Right Soft Key Perform functions identified by right display prompt. Menu Key Left Soft Key Perform functions identified by left display prompt. Send Key Send and answer calls, view recent dialed calls list. 4-Way Navigation Key Scroll through menus and lists, set feature values. 2 PRELIMINARY Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. © 2002 Motorola, Inc. All rights reserved. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: 6809441A31-O Cover number:8988485L49-O " 3 PRELIMINARY Menu Map Main Menu • Recent Calls • Received Calls • Dialed Calls • Notepad • Call Times • Phonebook • Picture Viewer • Datebook • Quick Dial • Radio • Chat • Messages • Inbox • Create Msg • Voicemail • Email Msgs • Browser Alerts • Quick Notes • Outbox • Drafts • Ring Styles • Style • Style Detail • My Tones • Shortcuts • Voice Notes • Browser • My Java Apps • Calculator • Games • Settings (see next page) Shortcuts Change display zoom: Press M, then press and hold M Display my phone number: Press M # Dial voicemail number: Press and hold 1 Go to dialed calls list: Press N Exit menu system: Press O Note: This is the standard phone menu layout. You or your service provider may have changed the menu layout or changed some feature names. Not all features may be available for all users. For example, the Radio feature on the main menu (left) is displayed only when the optional FM Stereo Radio Headset accessory is plugged into the accessory connector port on your phone (see phone illustration, page 1). " 4 PRELIMINARY Settings Menu • Phone Status • My Tel. Number • Active Line • Battery Meter • Other Information • Connection • Incoming Call • In-Call Setup • In-Call Timer • Answer Options • Security • Phone Lock • Lock Application • Restrict Calls • New Passwords • Java Tools • Java App Loader • Java System • Network Access • Other Settings • Personalize • Main Menu •Keys • Greeting • Banner • Wallpaper • Screen Saver • Quick Dial • Initial Setup • Time and Date • Auto PIN Dial • Auto Redial • Backlight • Status Light • Zoom • TTY Setup • Scroll • Animation • Language • Contrast • DTMF • Master Reset • Master Clear • Network • Car Settings • Headset 5 PRELIMINARY Contents Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Safety and General Information . . . . . . . . . . . . . . . . . . 12 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 20 Replacing the Convertible Cover . . . . . . . . . . . . . . . . 21 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . 22 Sending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Displaying Your Phone Number . . . . . . . . . . . . . . . . . 24 About Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Changing the Zoom Setting . . . . . . . . . . . . . . . . . . . . 27 Status Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Volume Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 External Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 4-Way Navigation Key . . . . . . . . . . . . . . . . . . . . . . . . 29 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Sending and Receiving Calls . . . . . . . . . . . . . . . . . . . . 32…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID : IHDT56CG1 EXHIBIT 2A SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT56CG1) for trimode, dual band mobile station cellular use is capable of compliance with the TIA/EIA-95-B Mobile Station-Base Station Compatibility Standards for Dual-Mode Spread Spectrum Systems, December 1998. (Signed – Paul Krayeski ) Paul Krayeski Engineering Section Manager Cellular Subscriber Equipment (Signed – S.T,Liew ) S.T.Liew Engineering Manager Cellular Subscriber Equipment APPLICANT: MOTOROLA, INC. FCC ID : IHDT56CG1 EXHIBIT 2B STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: • BSEE : • 12 years cellular Design Experience SIGNATURE: ( ) Paul Krayeski NAME: Paul Krayeski DATE: 4/26/2002 POSITION: Engineering Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. SIGNATURE: ( ) S.T,Liew NAME: S.T,Liew DATE: 4/26/2002 POSITION: Engineering Manager

APPLICANT: MOTOROLAFCC ID: IHDT56CG1 Exhibit 13 May 10, 2002 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56CG1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard in the 800 MHz cellular band, and the Digital CDMA standard in both the 800 MHz and the PCS bands, as outlined in EIA/TIA IS-95-A "Mobile Station – Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System”. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

Date: April 24, 2003 Subject: Request for additional information (FCC ID: IHDT56CG1) Reference: Correspondence Reference Number: 4797 731 Confirmation Number: 842138 Date of Original Email: 7/26/2002 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois EMC 1) Strong justification for compliance with band edge requirements of 22.901(d) for CDMA 800. Plots provided show noncompliance. Remeasure. For TCB, please review applications carefully. Data clearly demonstrates noncompliance. The FCC has recently pointed out the exact same error while auditing IHDT56BJ3. 2) Information demonstrating compliance with part 22 ESN and E911 requirements. Such information could not be located. 3) Additional internal photos. Please include all components such as the case. SAR 1) Additional test configuration photo for body worn position. Photograph provided does not clearly show the distance from the body of the device to the phantom. Please also update the grant to provide the appropriate body-worn test distance. 2) Strong justification for the probe conversion factor used for 1900 MHZ body measurements. No corresponding probe certification could be found. Please remeasure with a certified probe conversion factor. 3) Statement explaining large SAR drift noted on several plots. Retest as appropriate. Please include measurements of power versus time of the device in all modes for at least 30 minutes. 4) Statement explaining the second/cutoff hotspots which are evident on several head SAR plots. Please provide additional test data fully measuring these points. RESPONSE: The original version of this equipment was not marketed. However, instead of surrendering the grant, per agreement with Richard Fabina, FCC Chief, a class II permissive change was submitted for the version which actually shipped. This class II application was a complete submission package and included responses to all of the questions in CRN4797.

Date: April 24, 2003 Subject: Request for additional information (FCC ID: IHDT56CG1) Reference: Correspondence Reference Number: 4796 731 Confirmation Number: 842138 Date of Original Email: 7/26/2002 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois EMC 1) Strong justification for compliance with band edge requirements of 22.901(d) for CDMA 800. Plots provided show noncompliance. Remeasure. For TCB, please review applications carefully. Data clearly demonstrates noncompliance. The FCC has recently pointed out the exact same error while auditing IHDT56BJ3. 2) Information demonstrating compliance with part 22 ESN and E911 requirements. Such information could not be located. 3) Additional internal photos. Please include all components such as the case. SAR 1) Additional test configuration photo for body worn position. Photograph provided does not clearly show the distance from the body of the device to the phantom. Please also update the grant to provide the appropriate body-worn test distance. 2) Strong justification for the probe conversion factor used for 1900 MHZ body measurements. No corresponding probe certification could be found. Please remeasure with a certified probe conversion factor. 3) Statement explaining large SAR drift noted on several plots. Retest as appropriate. Please include measurements of power versus time of the device in all modes for at least 30 minutes. 4) Statement explaining the second/cutoff hotspots which are evident on several head SAR plots. Please provide additional test data fully measuring these points. RESPONSE: The original version of this equipment was not marketed. However, instead of surrendering the grant, per agreement with Richard Fabina, FCC Chief, a class II permissive change was submitted for the version which actually shipped. This class II application was a complete submission package and included responses to all of the questions in CRN4796.

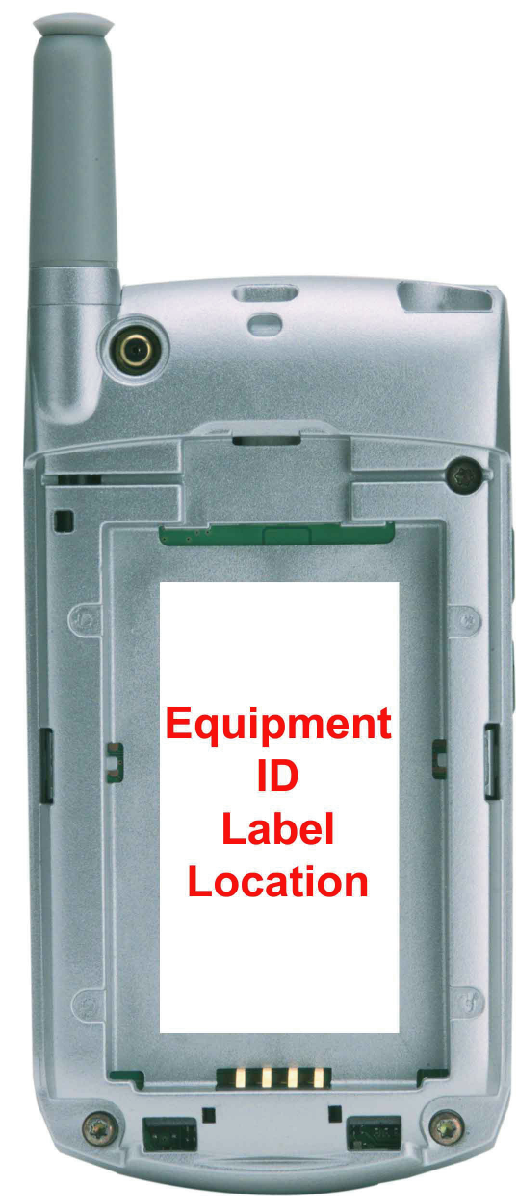

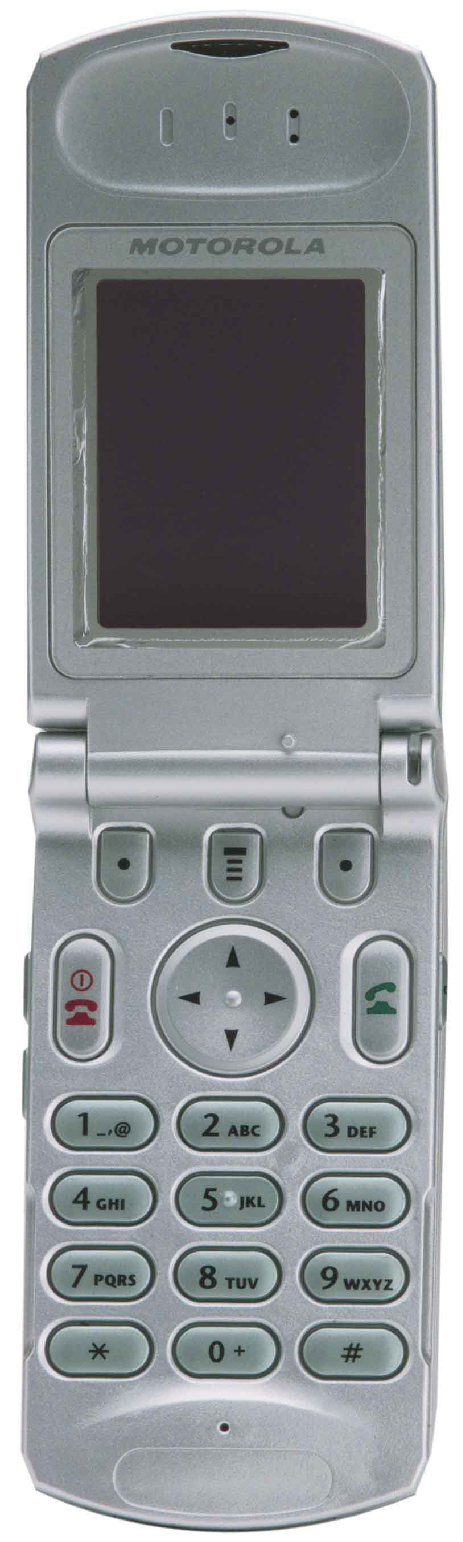

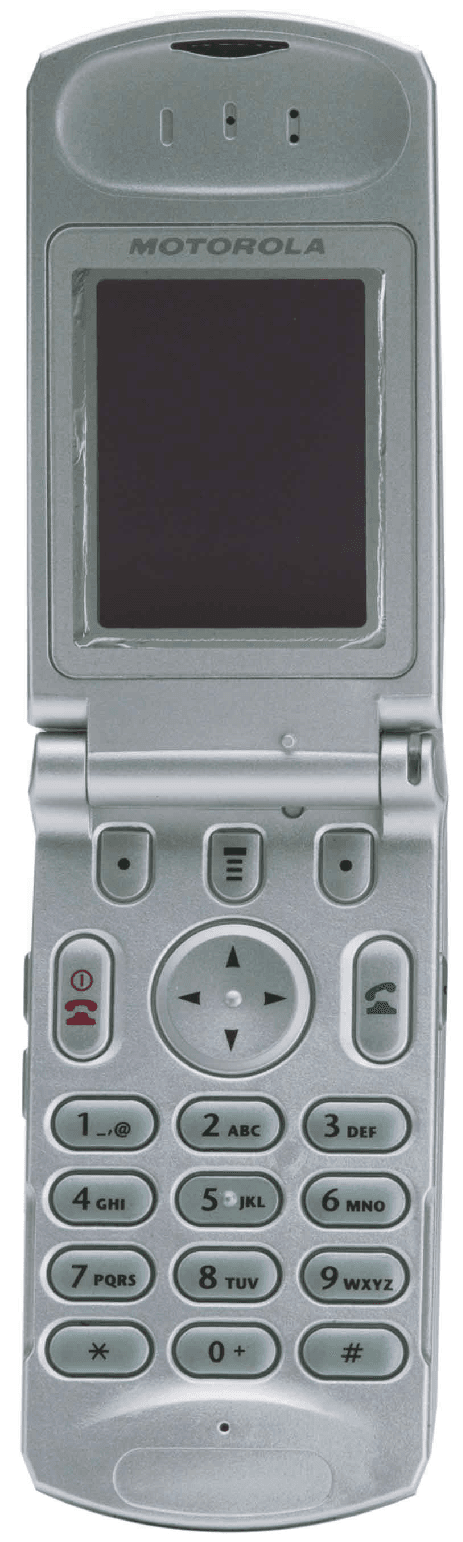

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CG1 EXHIBIT 3 Front View with Flip Open Rear View with Battery Removed to Show Equipment ID Label Front View with Flip Closed

APPLICANT: MOTOROLA INC.FCC ID: IHDT56CG1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56CG1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CG1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed)

APPLICANT: MOTOROLA, INCFCC ID : IHDT56CG1 Exhibit 10 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user adjustments or tuning in this mobile cellular transceiver. APPLICANT: MOTOROLA, INCFCC ID : IHDT56CG1 Exhibit 10 ReferencePart NumberDescriptionValue 12V_FLASHTPSM1_016TEST_POINT A13987575M01ANTENNA_CONTACT C102113743N13CAP3pF C10012113928N01CAP0.1uF C10022113743L41CAP.01uF C10032113928N01CAP0.1uF C10042113743L41CAP.01uF C10052113928N01CAP0.1uF C10062113743L41CAP.01uF C10072113928P04CAP1.0uF C10082113743L41CAP.01uF C10092113743L33CAP4700pF C1012113743N07CAP1.5pF C10102113928N01CAP0.1uF C10112113743L41CAP.01uF C10122113743L41CAP.01uF C10132113743L33CAP4700pF C10142113928N01CAP0.1uF C10152113928N01CAP0.1uF C10162113928N01CAP0.1uF C1022113743N14CAP3.3pF C1032113743N09CAP2pF C1042113743N12CAP2.7pF C1052113743N64CAP7pF C1062113743N40CAP39pF C1072113743N40CAP39pF C1082113743N14CAP3.3pF C1092113743N03CAP1pF C1102113743N28CAP12pF C1112113743N40CAP39pF C1122113743N44CAP56pF C1132113743N40CAP39pF C1142113743N40CAP39pF C1152113743N24CAP8.2pF C11600DNP00043CAPDNP C1200DNP00043CAPDNP C1202113743N50CAP100pF C12012113928N01CAP0.1uF C12022113928N01CAP0.1uF C12042113928N01CAP0.1uF C12052113928N01CAP0.1uF C12062113928N01CAP0.1uF APPLICANT: MOTOROLA, INCFCC ID : IHDT56CG1 Exhibit 10 C1212113743L17CAP1000pF C1222113743L17CAP1000pF C1232113743L17CAP1000pF C12400DNP00043CAPDNP C1252113743N44CAP56pF C1262113743N44CAP56pF C1272113743L17CAP1000pF C1282113743L17CAP1000pF C1292113743N18CAP4.7pF C1312113743N58CAP4pF C1402113743N50CAP100pF C1412113743L17CAP1000pF C1422113743N60CAP5pF C1432113743L17CAP1000pF C1442113743L17CAP1000pF C14500DNP00043CAPDNP C1462113743N03CAP1pF C1472113743N11CAP2.4pF C1502113743N40CAP39pF C1512113928N01CAP0.1uF C1522113928P04CAP1.0uF C1532113743L17CAP1000pF C1542113743L17CAP1000pF C155DNP2113743M08CAP.022uF C1562113743L17CAP1000pF C1572113928P04CAP1.0uF C1582113928N01CAP0.1uF C1602113743N50CAP100pF C1612113928N01CAP0.1uF C1622113743K16CAP0.22uF C1632113743N50CAP100pF C1642113743N50CAP100pF C1652113743N29CAP13pF C1662113743L17CAP1000pF C1682113743L17CAP1000pF C1692113743N40CAP39pF C1702113740F29CAP12pF C1712113743N34CAP22pF C1722113743N34CAP22pF C1732113743N34CAP22pF C1752113928P04CAP1.0uF C20022113928C04CAP4.7uF C20032113743L41CAP.01uF C20042113743L41CAP.01uF C20052113743L41CAP.01uF APPLICANT: MOTOROLA, INCFCC ID : IHDT56CG1 Exhibit 10 C20062113743L41CAP.01uF C20072113743L41CAP.01uF C20082113743L17CAP1000pF C20092113743N30CAP15pF C2012113743L01CAP220pF C20102113743N30CAP15pF C20112113743L41CAP.01uF C20142113928P04CAP1.0uF C20152113928P04CAP1.0uF C20162.11E+09CAP2.2uF C20172113928C04CAP4.7uF C20182113928P04CAP1.0uF C20192113928P04CAP1.0uF C2022113743N50CAP100pF C20202113928C04CAP4.7uF C20212113928C04CAP4.7uF C20222.11E+09CAP2.2uF C20232113928P04CAP1.0uF C2032113743L01CAP220pF C2042113743L17CAP1000pF C2072113743N01CAP0.5pF C2082113743N32CAP18pF C2092113743L29CAP3300pF C2102.11E+16CAP.033uF C21012113743A24CAP0.33uF C21022113928C12CAP10uF C21032113928C12CAP10uF C21042113928P04CAP1.0uF C2112113743N60CAP5pF C2142113743N32CAP18pF C2152113743N60CAP5pF C2162113743N12CAP2.7pF C2172113743L17CAP1000pF C2182113743L17CAP1000pF C219DNP2113743N42CAP47pF C2202113743N50CAP100pF C22012113947B05CAP33pF C2212113928N01CAP0.1uF C2232113743L29CAP3300pF C2242113743L09CAP470pF C2252113743N50CAP100pF C2262113743L17CAP1000pF C2272113743N32CAP18pF C2282113743N42CAP47pF C2322113743N50CAP100pF APPLICANT: MOTOROLA, INCFCC ID : IHDT56CG1 Exhibit 10 C2332113743N09CAP2pF C2402113928N01CAP0.1uF C2412113928N01CAP0.1uF C2422113928C04CAP4.7uF C2432113743L17CAP1000pF C2442113743L17CAP1000pF C2452113928C04CAP4.7uF C2462113743L17CAP1000pF C30002113928N01CAP0.1uF C30012113928N01CAP0.1uF C312113928N01CAP0.1uF C31002113947H01CAP0.1uF C31212113947H01CAP0.1uF C3512113928N01CAP0.1uF C40012113928N01CAP0.1uF C40022113947B05CAP33pF C40032311049A89CAPP22uF C40042113947H01CAP0.1uF C40072113928N01CAP0.1uF C40082113928P04CAP1.0uF C40092113743L01CAP220pF C40102113928N01CAP0.1uF C40122113947B05CAP33pF C40132113947H01CAP0.1uF C40142113947H01CAP0.1uF C40152113743N38CAP33pF C40162113947B05CAP33pF C40172113947H01CAP0.1uF C40182113928N01CAP0.1uF C40202113928P04CAP1.0uF C4082113740F41CAP39pF C4102113743N40CAP39pF C4112113928P04CAP1.0uF C5001DNP2113743L41CAP.01uF C5100DNP2.11E+07CAP.01uF C5111DNP2113743L41CAP.01uF CR1504809877C28BBY58_06W CR2014809877C29BBY58_05W CR2024809877C29BBY58_05W CR31004.81E+14RB715F D12034.81E+14RB715F D31014.81E+14RB715F D40104.81E+14RB715F E1202SHORT_RES0402SHORT E1204SHORT_RES0402SHORT APPLICANT: MOTOROLA, INCFCC ID : IHDT56CG1 Exhibit 10 E2001SHORT_RES0402SHORT E2002SHORT_RES0402SHORT E2003SHORT_RES0402SHORT E2004SHORT_RES0402SHORT E2005SHORT_RES0402SHORT E218588547M01ANCG11G57SMT009TT1 E2100SHORT_RES0402SHORT E3001SHORT_RES0402SHORT E3002SHORT_RES0402SHORT E4006SHORT_RES0402SHORT FL1019109239M18B7708 FL1029109474K04856027 FL1219185646H09855893 FL1319109144M03LFB32183 FL1419109142L0942L09 FL1709185726J06SRMF1818FNC32B FL2009109144M05LFB32 FL219109239M19SX-B277H-HB0S FL229109170T03HPMD-7903 FL239185906G09LFDP15N0039 FL249109170T04855904 FL31004889526L02CSPEMI-307 FL31014889526L01CSPEMI-306 FL5019103913K1613K16 J100987378K01SWITCH J32010987636K05CONN_J J40010987837L04CONN_J J5001DNP3989090L01CONN_J J5100DNPPT09LVLA92CONN_J J5201PT28PNGA02CONN_P J5300DNP0989043K01CONN_J L102409154M11IDCTR6.8nH L1012409154M12IDCTR8.2nH L1022409154M06IDCTR2.7nH L1032409154M15IDCTR15.0nH L1042409154M21IDCTR47.0nH L1052409154M12IDCTR8.2nH L1062409154M04IDCTR1.8nH L1072409154M11IDCTR6.8nH L1082409154M13IDCTR10.0nH L1092409154M12IDCTR8.2nH L112409154M13IDCTR10.0nH L1102409154M48IDCTR100nH L1112409154M19IDCTR33.0nH L1122409154M07IDCTR3.3nH APPLICANT: MOTOROLA, INCFCC ID : IHDT56CG1 Exhibit 10 L1132409154M10IDCTR5.6nH L1212409154M21IDCTR47.0nH L1222409154M21IDCTR47.0nH L1232485793G21IDCTR72nH L1242485793G21IDCTR72nH L12DNP2487319K08IDCTR5.6nH L1302409154M22IDCTR56.0nH L1312409154M22IDCTR56.0nH L13DNP2487319K08IDCTR5.6nH L142409154M09IDCT…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56CG1 Date of test: Date of Report: 04/01/2002 – 04/12/2002 04/29/2002 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Firass Badaruzzaman SAR Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: System Validation & Interlaboratory Comparison Simulated Tissue Specifications and Procedure EME Cellular Phone Testing Procedure On the following types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56CG1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2001 This test report shall not be reproduced in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 5 5) System Accuracy Verification 7 6) Test Results 7 6.1 Head Adjacent Test Results 8 6.2 Body-Worn Test Results 10 References: Appendix 1: SAR distribution comparison for the system accuracy verification 11 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 12 Appendix 3: SAR distribution plots for Body Worn Configuration 17 Appendix 4. Probe Calibration Certificate 19 Appendix 5: Photographs of the device under test 20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56CG1) The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Extendable Antenna Location Right Side Length 106 mm Dimensions Width 4 mm Configuration Extendable Whip Device description FCC ID Number IHDT56CG1 Serial number CB40A0250A Mode(s) of Operation 800 AMPS 800 CDMA 1900 CDMA Modulation Mode(s) AMPS CDMA CDMA Maximum Output Power Setting 27.00 dBm 25.00 dBm 25.00 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824-849MHz 824-849MHz 1851-1909MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±12.0% (K=1) with an expanded uncertainty of ±24.0% (K=2). The breakdown of the individual uncertainties is as follows: Probe Uncertainty ±% Isotropy error 7.2 Calibration error 3.3 Spatial resolution 0.5 SAR Evaluation ±% Conductivity measurement 5.0 Environmental errors 1.0 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 Peak SAR Evaluation ±% Probe positioning 1.0 Volumetric averaging 4.2 Device positioning 6.0 The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN365 09/26/2002 E-Field Probe ETDV6 SN1508 10/25/2002 Dipole Validation Kit, DV900V2 SN79 10/26/2002 Dipole Validation Kit, DV900V2 SN92 01/03/2003 Dipole Validation Kit, DV900V2 SN94 01/03/2003 SAM Phantom used for 800MHz TP-1005 Dipole Validation Kit, DV1900V2 284TR 01/05/2003 Dipole Validation Kit, DV1900V2 280TR 01/04/2003 SAM Phantom used for 1900MHz TP-1085 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04848 01/19/2003 Power Meter - E4419B GB39511090 11/28/2002 Power Sensor - 8481A US39211009 02/14/2003 Network Analyzer HP8753ES US39172529 07/05/2002 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 5 5 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with a HP85070 Dielectric Probe Kit These values are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory for compliance testing. f Dielectric Parameters (MHz) Tissue type Limits / Measured ε r σ (S/m) Temp (°C) Measured, 04/01/2002 42.90 0.93 N/A Recommended L…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56CG1 EXHIBIT 6 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 6410-3 Report Date – May 2, 2002 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . SignatureName: _Kirby Munroe__ Title: Compliance Engineer Date : _ 5/2/2002____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56CG1 Test Report Number: 6410-3EXHIBIT 6 2 Test Report Details Tests Performed By:Motorola Personal Communications Sector Product Safety and Compliance Group 1500 Gateway Boulevard Boynton Beach, FL 33426 PH (561) 739-2179 Fax (561) 739-2131 FCC Registration Number: 100000 Industry Canada Number: IC3908 Tests Requested By:Motorola Inc. Personal Communications Sector Motorola Korea Design Center Seoul, South Korea Product Type:Cellular Phone Signaling Capability:Analog, CDMA 800, CDMA 1900 Model Number:SUG2353A Serial Numbers:KT0000515, KT0000530 Received Date:April 23, 2002 Testing Start Date:April 23, 2002 Testing Complete Date:May 2,2002 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 98-C, ANSI 63.4 2000, RSS-118, RSS-129, RSS- 133 APPLICANT: MOTOROLA INC FCC ID: IHDT56CG1 Test Report Number: 6410-3EXHIBIT 6 3 Summary of Testing Test Test Name # Pass/Fail 1RF Power OutputNA 2ERP (Effective Radiated Power)NA 3Modulation CharacteristicsPass 4Occupied BandwidthPass 5Spurious Emissions at Antenna TerminalPass 6Field Strength of Spurious EmissionsPass 7Frequency StabilityPass 8Field Strength of Spurious EmissionsPass from Unintentional Radiators TestTest Name Margin with respect # to the Limit_________ 1RF Power Output NA 2ERP (Effective Radiated Power) NA 3Modulation Characteristics NA 4Occupied Bandwidth NA 5Spurious Emissions at Antenna Terminal 17.3 dB 6Field Strength of Spurious Emissions 12.1 dB 7Frequency Stability 129 Hz 8Field Strength of Spurious Emissions 1.9 dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. APPLICANT: MOTOROLA INC FCC ID: IHDT56CG1 Test Report Number: 6410-3EXHIBIT 6 4 Measuring Equipment and Calibration Information APPLICANT: MOTOROLA INC FCC ID: IHDT56CG1 Test Report Number: 6410-3EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56CG1 Test Report Number: 6410-3EXHIBIT 6 6 ManufacturerItemItem Version/Serial CALIBRATION NameNameMode l #NumberDUE DATE Description Rohde & SchwarzEMI Test ReceiverESI26 838386/010 2/26/2003 Hewlett P…

Text truncated - open the document above for the full version.
